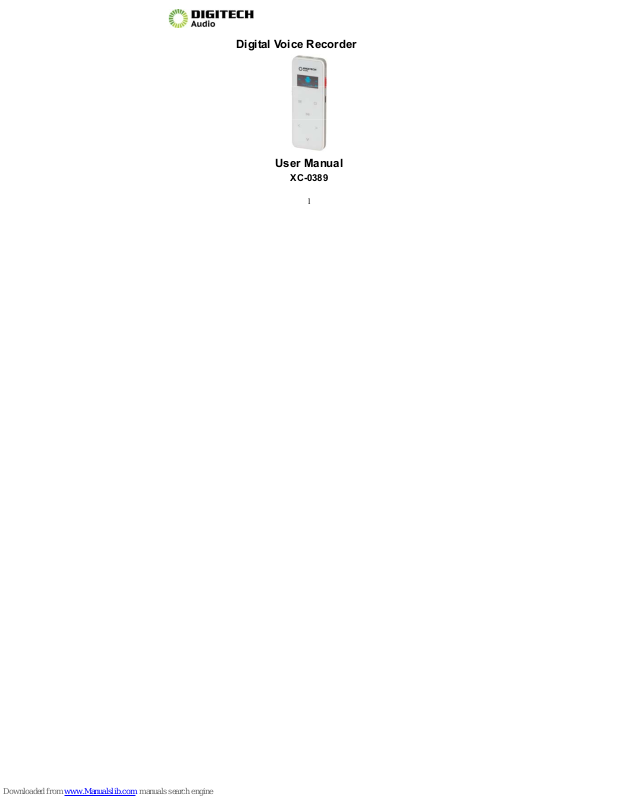

DigiTech XC-0389 User Manual
1
Digital Voice Recorder
User Manual
XC-0389
2
Box Contents:
1 x Digital Voice Recorder
1 x Earphones
1 x Tie Clasp External
1 x Micro B USB Cable
3
Product Diagram:
4
1. Left In-built Microphone
2. Right In-built Microphone
3. LCD Display
4. Record
5. Recording LED Indicator
6. Lanyard Slot
7. Headphone Jack
8. Microphone / Line-in Jack
9. Play/Pause Button
10. Menu Button
11. Stop/Return Button
12. Volume Button
13. Vol+ / Previous / Rewind
14. Vol- / Next / Fast Forward
15. Power On/Off / Hold
16. USB Data / Power Connection
5

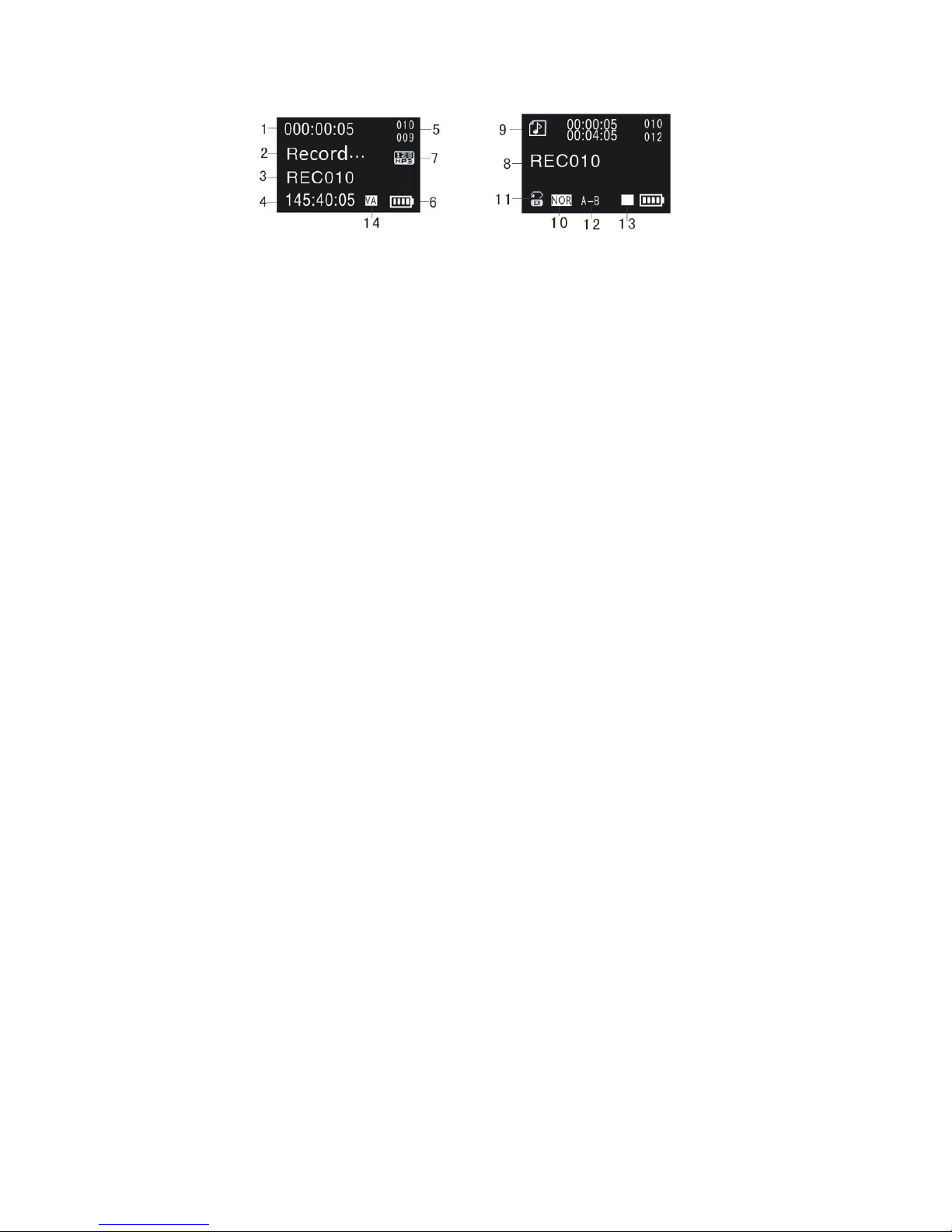

LCD Diagram:
6
1. Current Time
2. Recording State
3. Recording File Name
4. Recording Balance Time
5. Current File Number/ Total File
Number
6. Battery Percentage
7. Recording Format
8. File Name
9. Play Mode
10. Equalizer Mode
11. Repeat Mode
12. A-B Repeat Mode
13. Play/Pause/Stop
14. Voice Activated Recording
(VOR)
7
Functions:
Power On/Off:
Power On: In power off mode; slide the “Power“ button to the “ON/OFF” position
and hold for 2 seconds until the screen displays the Digitech Audio symbol.
Power Off: In standby mode; slide the “Power” button to the “ON/OFF” position and
hold for 2 seconds until the screen displays “Power Off”
Lock Button: In standby mode; slide the “Power” button to the top “Lock” position,
now all buttons are locked. Slide the “Power” button to the below position, this will
cancel the lock function.
8
One-Key Recording:
In any state including being powered off, slide the Red “REC” recording switch from
“STOP” to “REC”; the device will start recording.
Modes:
1. Voice Mode:
In any state including being powered off, slide the Red “REC” recording switch from
“STOP” to “REC”; the device will start recording.
Press the “
” Play/Pause button to pause recording, press the “ ” button again
