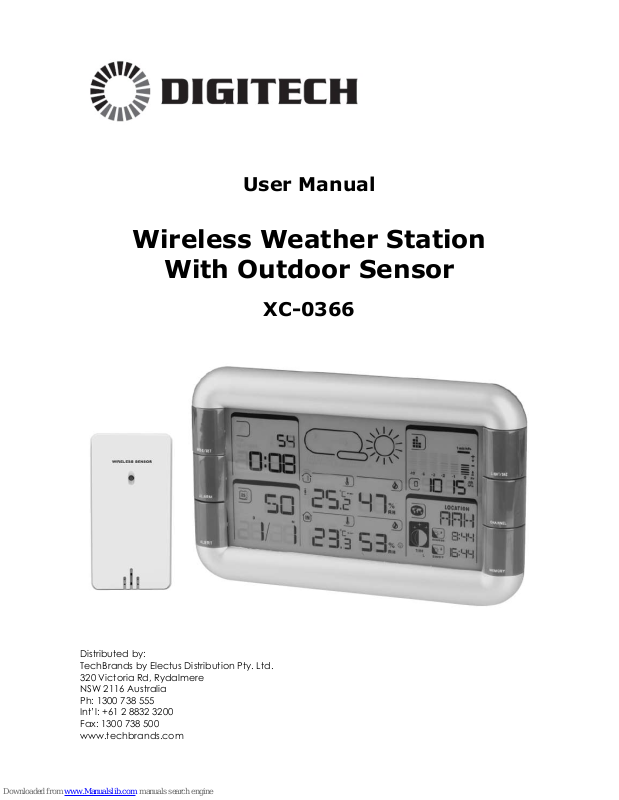

User Manual
Wireless Weather Station
With Outdoor Sensor
XC-0366
Distributed by:
TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
Ph: 1300 738 555
Int’l: +61 2 8832 3200
Fax: 1300 738 500
www.techbrands.com
Specifications:
Transmitter Frequency: 433MHz
Transmitter Range: 30m
Temperature Range: -20°C - 70°C
Console Power: 2 x AA Battery (not included)
Sensor Power: 2 x AA Battery (not included)
Console Dimensions: 220(W) x 141(H) x 36(D) mm
Sensor Dimensions: 97(W) x 50(H) x 32(D) mm
Important:
- The weather forecast will only be ready 12 hours after the batteries are
inserted.
- The radio communication between the receiver and the transmitter will reach
a distance of 30m line of sight. Obstacles in the way, such as buildings, trees
and high power voltage lines can interfere with the transmission.
- Radio interferences created by computer screens, radios, or TV sets can in
some cases cut off the radio communication entirely. Please take this into
consideration when choosing standing or mounting locations.
- Please keep the transmitter indoors if the outdoor temperature reaches below
-20°C.
Instructions:
- Open the battery compartment on the weather station and insert 2 x AA
batteries, taking care to put them in the correct polarity. Close the battery
compartment.
- Open the battery compartment on the transmitter and insert 2 x AA batteries,
taking care to put them in the correct polarity. Close the battery
compartment.
Note: Ensure to install the batteries into the weather station and transmitter
within the same hour to ensure that they synchronize properly.
Setting the connection to the outdoor sensors:
Once the battery is inserted into the transmitter, by default the transmitter
supplied with your weather station will be on Channel 1. Set the channel of the
transmitter on the back of the sensor.
- Press the ‘CHANNEL’ on the weather station to select a channel (1 to 3). This
gives you the option of polling 3 outdoor sensors with each weather station.
- Press and hold the ‘CHANNEL’ button for 2 seconds to search for outdoor
sensors.
Setting the date/time:
While setting the unit, if no buttons are pressed within 8 seconds the display
will automatically switch back to normal clock mode.
- Press and hold the ‘MODE/SET’ button for 2 seconds until the year is flashing
on the screen.
- Press ‘UP’ or ‘DOWN’ to set the year.
- Press ‘MODE/SET’ and the month will be flashing on the screen.
- Press ‘UP’ or ‘DOWN’ to set the month.
- Press ‘MODE/SET’ and the date will be flashing.
- Press ‘UP’ or ‘DOWN’ to set the date.
- Press ‘MODE/SET’ to select the weekday. There are 7 languages for the
weekday: English, Italian, French, Dutch, Spanish, Danish and German. Press
‘UP’ or ‘DOWN’ to set the language.
- Press ‘MODE/SET’ and 12/24 will be flashing on the screen.
- Press ‘UP’ or ‘DOWN’ to select 12 or 24 hour mode.
- Press ‘MODE/SET’ and the “00” icon will start to flash on the screen to set the
time zone.
- Press ‘UP’ or ‘DOWN’ to set the time zone, ranging from -12 to +12.
- Press ‘MODE/SET’ and the hour will be flashing on the display.
- Press ‘UP or ‘DOWN’ to set the hour.
- Press ‘MODE/SET’ and the minute will be flashing on the display.
- Press ‘UP’ or ‘DOWN’ to set the minute.
- Press ‘MODE’SET’ to lock in the settings.
Setting the alarm:
While setting the unit, if no buttons are pressed within 8 seconds the display
will automatically switch back to normal clock mode.
- Press the ‘ALARM’ button to select the alarm you want to set.
- Press and hold the ‘ALARM’ button for 2 seconds until A1 appears and the
alarm hour is flashing on the display.
- Press ‘UP’ or ‘DOWN’ to set the A1 alarm hour.
- Press ‘ALARM’ and the alarm minute will be flashing on the display.
- Press ‘UP’ or ‘DOWN’ to set the A1 alarm minute.
- Press ‘ALARM’ and A2 will appear and the alarm hour will be flashing on the
display.
- Press ‘UP’ or ‘DOWN’ to set the A2 alarm hour.
- Press ‘ALARM’ and the alarm minute will be flashing on the screen.
- Press ‘UP’ or ‘DOWN’ to set the A2 alarm minute.
- Press ‘ALARM’ to lock in the setting.
- To stop the alarm, press ‘MODE/SET’ or ‘ALARM’
- To snooze the alarm, press ‘SNZ/LIGHT’
Note: When activated, the alarms will sound at the pre-set time every day for
2 minutes until de-activated. The alarm is a rising alarm, changing volume 4
times within the 2 minutes. To view the current alarm settings, press ‘ALARM’
to view the first alarm time (A1 will show next to the time). Press ‘ALARM’
again to view the second alarm time (A2 will show next to the time). Press
‘ALARM’ again to revert to the current time or the unit will automatically revert
in 8 seconds.
