VERSION EX 1.2

DECLARATION OF CONFORMITY

ManufacturerÕs Name: IVL Technologies Ltd.

per DigiTech specifications

ManufacturerÕs Address: 6710 Bertram Place

Victoria, B.C. Canada V8M 1Z6

declares that the products:

DigiTech Vocalist Performer

conform to the following product specifications:

EMC: EN 55022 (1987):

CISPR 22 (1993) Class B

EN 50082-1 (1992)

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC (1989) as amended by the CE Marking Directive 93/68/EEC (1993).

IVL Technologies Ltd. 6710 Bertram Place Victoria, B.C. Canada V8M 1Z6 February 19, 1997

Peter George, Vice President of Engineering

European Contact: Your local DigiTech Sales and Service Office or International Sales Office 3 Overlook Drive Unit #4 Amherst, New Hampshire 03031, USA Tel (603) 672-4244 Fax (603) 672 4246

TABLE OF CONTENTS

Program List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setup Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Audio Connection Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

MIDI Connection Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Performance Setting Levels, Generating a Good Signal . . . . . . . . . . . . . . . . . . . . . 11

Loading Programs from the Front Panel,The LCD Display Window .12 The Harmony Controls, Understanding the Five Harmony Types: . . .13

Chordal, Scalic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Vocoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Chromatic, Pitch Correct, Changing Harmonies with the Softkeys . .16

Editing Using Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Gender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Detune . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Vibrato . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Scoop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Reverb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Mix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Harmony Editing, Changing Softkey Assignments . . . . . . . . . . . . . .26

Editing Individual Harmony Styles . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Customizing A Harmony, Naming Programs and Styles . . . . . . . . . . 30

Storing Your Edits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Utilities MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

MIDI Selection of Key and Harmony . . . . . . . . . . . . . . . . . . . . . . . . .35

MIDI Keyboard Split Point, MIDI Song Utilities . . . . . . . . . . . . . . . .40

MIDI Program Dump Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Initialization Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Footswitch Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

User Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Synthesizer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Audio Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Song Mode Playing, Creating, Editing, Naming, Arranging Songs . . . . . . . . . . . . 51

Basic Harmony Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Appendix 1 Specifications Appendix 2 - MIDI MIDI Implementation chart

MIDI Messages MIDI SysEx Dump Formats MIDI SysEx Parameters Decimal / Binary / Hex equivalents

# Program Name Program Type

1 Silky Thickener Auto Doubling 2 Stereo Doubler 3 Mono Doubler 4 Group Doubler 5 Octave Down 6 Octave Up 7 Up and Down

8 Blow Me Down Special Effects 9 Cher A Like 10 Cyberian One 11 Cyberian Two 12 Cyberian Three 13 I Can't Sing 14 Ethyl Merman 15 Barry Tone

16 Oakridge Chordal Harmony 17 Steve ÔNÕ Edie 18 Heavenly 19 One Up On Ya 20 Midgrade 21 Take Six 22 Barber Pole 23 Fill ÔEr Up 24 Deep Choir 25 Double Up

26 Keyboard:Notes Vocoder 27 Keyboard: Male 28 Keyboard: Female 29 Keyboard: Mixed 30 Keyboard: Scoops 31 Keyboard: Layer 32 Keyboard: Stereo 33 Keyboard: Plain 34 Keyboard: 4 chan 35 Keyboard: Auto Trans

36 Everlys Scalic Harmony 37 Eagles 38 Manhattan 39 Doobies 40 Thirds Below 41 Nashville 42 Cluster Six 43 Deep Six 44 Suite Judy 45 Third & Gender

46 PCorr 1 hit note Pitch Correction 47 PCorr 2 Maj scale 48 PCorr 3 Min scale 49 PCorr 4 Nearest semi 50 PCorr 5 2 semi bend

Control Hints

Sing or play a vocal track. No front panel or MIDI input required

Play chords on a MIDI keyboard or the front panel while you sing. The harmony voices will move with your voice.

Play individual notes or chords on a MIDI keyboard while you sing. The harmony voices will not move automatically with your voice.

Play one note only for thick effect

Requires 4 MIDI channels to work

Select the key and scale of your song from the front panel. Once you have set the key and scale there is no more button pushing required beyond activating Bypass. Experiment with different Major and Minor scales by pressing the softkeys under the LCD.

Hit a note from the front panel or a MIDI keyboard Select the key from the front panel keyboard Select the key from the front panel keyboard Sing - all notes will be corrected Use the pitch wheel on a MIDI keyboard

Vocalist Workstation EX Program List

INTRODUCTION

Congratulations and thank you for purchasing the DigiTech Vocalist Workstation EX. This product incorporates a high quality, editable reverberation effect with the innovative vocal harmony technology that has made DigiTech a world leader in vocal harmony processing. We are confident you will be satisfied with its ease of use, elegant ergonomic design and sound quality whether your application is live performance or studio recording.

The Vocalist Workstation EXÕs features include:

❷ up to 5 part harmony generation including input vocal ❷ harmony voice ÒgenderÓ feature ❷ extensive ÒhumanizingÓ options ❷ front panel mixing for quick access during performance ❷ built-in digital reverb ❷ transmits and receives single program dumps from Studio Vocalist

and/or another Vocalist Workstation

❷ bright LCD display ❷ 8 softkeys for additional harmony options and to simplify editing ❷ one octave front panel keyboard for key and chord entry ❷ song mode for harmonies without MIDI ❷ comprehensive MIDI SysEx implementation: many parameters are

accessible via MIDI

AC & GROUNDING INFORMATION

The Vocalist Workstation EX is equipped with an AC adapter. Use only the 9.75V AC, 820mA adapter supplied with the Vocalist Workstation EX (Harmon Pro Group PS750). Any other adapter may cause damage to the Vocalist Workstation EX. The Vocalist Workstation EX, like any piece of computer hardware, is sensitive to voltage drops, spikes and surges. Interference such as lightning or power ÒbrownoutsÓ can erase your program memory, or even permanently damage the circuitry inside the unit. Here are some suggestions to help protect your Vocalist Workstation EX from such a fate: ¥ Turn it off when not in use: Make a habit of turning off all of

your gear when it is not in use. If there is a lightning or severe windstorm, unplug all of your equipment: A surge from a nearby lightning strike or downed power line can destroy electronic equipment even if the switch is off.

¥ Use Spike and Surge Protectors: An inexpensive solution to all

but the most severe of AC line conditions. Surge protected power strips are usually only slightly more expensive than unprotected strips, and higher quality multi-stage surge suppressors are usually under $50 Ð a worthy investment for the protection of all your valuable electronic equipment.

¥ Use AC Line Conditioners: This is the best and most expensive

way to protect your Vocalist Workstation EX from line voltage fluctuations. Line conditioners constantly monitor the incoming voltage for excessive peaks and dips and make adjustments accordingly, thereby delivering consistent power levels. For very expensive equipment, AC line conditioners are an absolute requirement.

SAFETY PRECAUTIONS

The symbols shown below are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with arrowpoint in a equilateral triangle means that there are dangerous voltages present within the unit. The exclamation point in an equilateral triangle indicates that it is necessary for the user to refer to the ownerÕs manual,

These symbols warn that there are no user serviceable parts inside the unit. Do not open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturerÕs warranty. Do not get the Vocalist Workstation EX wet. If liquid is spilled on the unit, unplug it immediately and take it to a dealer for service. Disconnect the equipment during storms to prevent damage.

WARNING FOR YOUR PROTECTION, PLEASE

READ THE FOLLOWING:

Water and Moisture: Appliance should not be used near water (e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. POWER SOURCES: The appliance should be connected to a

power supply only of the type described in the operating instructions or as marked on the appliance.

POWER CORD PROTECTION: Power supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

SERVICING: To reduce the risk of fire or electric shock, the user

should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

LITHIUM BATTERY WARNING

CAUTION! This product contains a lithium battery. There is danger of explosion if battery is incorrectly replaced. Replace only with an Sony CR2032 or equivalent. Make sure the battery is installed with the correct polarity. Discard used batteries according to manufacturerÕs instructions. ADVARSEL! Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun batteri som anbefalt (Sony CR2032) av apparatfabrikanten. Brukt batteri returneres apparatleverand¿ren. ADVARSEL! Lithiumbatteri - Eksplosjonsfare ved fejlagtig hŒndtering. Udskiftning mŒ kun ske med batteri av samme fabrik(Sony CR2032) at og type. LevŽr det brugte batteri tilbage til leverand¿ren. VAROITUS! Paristo voi rŠfŠhtŠŠ, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppin (Sony CR2032). HŠvitŠ kŠytetty paristovalmistajan ohjeiden mukaisesti. VARNING! Explosionsfar vid felaktigt batteribyte. AnvŠnd samma batterityp eller en ekvivalent typ (Sony CR2032) som rekommenderas av apparattillverkaren. Kassera anvŠnt batteri enligt fabrikantens instruktion. ATTENTION! Il y a danger dÕexplsion sÕil y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du m•me type (Sony CR2032) ou dÕun type Žquivalent recommandŽ par le constructeur. Mettre au rebut les batteries usagŽes conformŽment aux instructions du fabricant.

ELECTROMAGNETIC COMPATIBILITY

This unit conforms to the Product Specifications noted on the Declaration of Conformity. Operation is subject to the following two conditions: ¥ this device may not cause harmful interference, and ¥ this device must accept any interference received, including

interference that may cause undesired operation. Operation of this unit within significant electromagnetic fields should be avoided.

¥ use only shielded interconnecting cables.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION:RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR

WARNING:TOREDUCETHE RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS EQUIPMENTTO RAIN OR MOISTURE

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¥ Reorient or relocate the receiving antenna ¥ Increase the separation between the equipment and receiver

that may cause undesired operation.

¥ Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected

¥ Consult the dealer or an experienced radio/TV technician for help.

1) This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numŽrique de la class B respecte toutes les exigences du R•glement sur le matŽriel brouilleur du Canada.

2) Complies with Canadian ICES-003 Class B Conforme au R•glement Canadien NMB0003 Classe B

MANUAL

The information contained in this manual is subject to change at any time without notification. Some information contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since this version of the manual was completed. The manual version status is printed on the front cover. The information contained in this version of the ownerÕs manual supercedes all previous versions.

SETUP

Front Panel

1234

567 8

1) LCD display Provides visual feedback of all operating modes including performance, edit-

ing and utility modes.

2) LED displays The Input LED monitors the incoming signal from the Mic and Line inputs. The 0dB LED lights 3 dB before the onset of clipping.

The MIDI LED indicates that the Vocalist Workstation EX is receiving MIDI.

The Overflow LED indicates an overload of the digital signal processor. If it lights, reduce the input gain or front panel mixer faders.

The Lock LED shows that the pitch detection circuitry has recognized the input pitch.

3) Mode/Bypass button group The Factory button selects the factory-designed program bank for perfor- mance or editing.

The User button selects the user-programmable bank for performance and editing.

The Bypass button mutes the Harmony components from the mix, leaving the Lead Vocal and Reverb. Note that if the Lead level is set to zero, Bypass will

mute all sound.

Utility mode allows access to system, MIDI, footswitch and user preference configurations.

Song mode is for editing and performance of ÒsongsÓ which are sequences of chord changes, key types and variations triggered by MIDI, the front panel, or a footswitch.

4) Data Wheel In Factory, User and Song modes, the Data Wheel selects and loads programs. In Edit mode, it increases or decreases the value of the selected parameter.

5) The Softkeys These keys perform different functions in each different mode; They select harmony variations in the Programs mode and configuration parameters in the Program or Song Edit and Utilities modes. For further information on how these relate to different Programs, see pages 13, 16 & 18.

The Left and the Right Arrow button become active when the ♦and ∅char-

acters are seen in the top corners of the LCD within Edit or Utility mode. Pressing either of the page buttons will present the next or previous editing screen.

6) Keyboard This one-octave keyboard allows you to input musical information such as Key and Chord root note. The keyboard can also be used to select a cue-in note, which is selectable from the Utilities menu.

7) Edit mode group The Edit button presents the parameter editing screens from within Factory, User and Song modes.

The Exit button backtracks through successive menu layers in all editing and programming modes.

The Store button offers the option of saving an edited program in the User bank. For more information on editing Programs, see the Editing chapter.

8) Front Panel Mixer section These faders allow you to modify mix levels quickly. They are ÒglobalÓ controls in that they affect all programs. They are also relative to the mixer settings within each program. To allow you room to Ònudge the level up a bitÓ and to reproduce the factory programs as they were mixed, you should align the Lead, Harmony and Reverb faders with the raised bump placed at 70% of each faderÕs travel, which is called the Ònominal level".

The Lead level fader controls the amount of your dry, unprocessed voice in the mix. If the Lead voice is turned off in any particular program, this control will have no effect, and there will be no dry, unprocessed voice output from the Workstation regardless of the Bypass position.

The Harmony level fader controls the level of the harmony voices in the mix. If the Harmony voice is turned off in a particular program, this control will have no effect

The Reverb Level fader controls the amount of reverb added to the combined lead and harmony voice mix. Each Program allows you to store unique lead and harmony reverb levels.

The Input control varies the input level for the microphone and line inputs. The raised bump in the control corresponds to 0 dB.

The Output control varies the output level for both left and right outputs and the Headphone jack. The raised bump in the control corresponds to 0 dB at +4 dBu nominal, the professional standard for signal levels. If your mixer accepts semi-pro signal levels (-10 dBu) you should reduce this fader.

Back Panel

1 2 3 4 5 6 7 8

1) Power Switch Turns the Vocalist Workstation EX on and off.

2) Power Input Use only the Harmon Pro Group PS750 9.75V AC, 820 mA power adapter

supplied with this unit.

3) MIDI section The MIDI input receives MIDI control and program information from external MIDI devices such as keyboards and sequencers.

The MIDI output transmits system, specific button pushes and program information which can be recorded and played back externally from a sequencer. It also can transmit bulk system exclusive data to allow backup of user data on a MIDI sequencer or voice librarian.

The MIDI Thru jack transmits an exact copy of any MIDI information received at the MIDI input.

4) Footswitch input This is for connection to a DigiTech FS-300 footswitch to provide remote control of Bypass, Program and Song functions.

5) Headphone output 1/4" stereo jack for headphones.

6) Left and Right outputs These are the main mix outputs. They are TRS (tip, ring, sleeve) type to

send balanced or unbalanced signals, depending on the number of conductors in the connecting cable. These produce a nominal +4 dBu signal level when the Lead, Harmony, Reverb and Output level faders are set at their respective nominal bumps. For devices that operate at -10 dBu, reduce the output level with the Output level fader.

A jack connected to the Left output only will receive a mono sum of the stereo mix.

7) Line input This jack accepts mono line level audio from an external source. The connector is TRS to accept balanced or unbalanced signals. This jack overrides the mic input jack.

The +4/-10 switch matches the Vocalist Workstation EXÕs line input level to the output level of your mixer. Consult your mixer manual to determine itÕs output level. This is important to match correctly as excess noise or distortion can result.

8) Mic input Balanced XLR jack for microphone-level signals. A cardoid, 1 kOhmimpedance type microphone is preferred.

Audio Connection Examples

Effect Processor

Mixing Console

Audio Setup

The drawing at left represents the basic Vocalist Workstation EX audio setup. You would most likely use this in live performance or if you are recording with a mixer that has a limited number of inputs.

Connect as follows:

¥ Connect the microphone to the Mic input. ¥ Connect the Left and Right audio outputs to the inputs of

your mixer. For mono operation, connect the Left output only.

The drawing at left represents a Vocalist Workstation EX audio setup that gives additional control over the dry and effect signal paths. You would most likely use this in recording or if you have a live performance mixer with enough effects channels. This allows you to use separate processing on the Lead and Harmony voices, i.e. EQ, compression, or an external mic preamp such as the DigiTech VTP-1.

Connect as follows:

¥ Connect the microphone to an input channel of your mixer. ¥ Connect the effects send of your mixer to the Line input of

the Vocalist Workstation EX.

¥ Connect audio outputs Left and Right to either the effects

returns or the inputs of your mixer.

¥ Pull the Lead level fader on the Vocalist Workstation EX

down to zero. Note that this also removes any Lead voice from the reverb. If you want the Vocalist Workstation EX to provide reverb on the lead but no dry lead, leave the Lead level fader up and set the Mix parameter, Lead Reverb Wet/Dry mix to 100% wet. See page 23 for more details on Mix parameters.

FX Send

FX Return or Line Input

Vocalist

Workstation

MIDI

Jacks

Synth Module(s)

MIDI Keyboard

Sequencer

MIDI OUT

MIDI

THRU

MIDI

MIDI OUT

MIDI

THRU

MIDI

MIDI OUT

MIDI

THRU

MIDI

Audio

Recorder

with Vocal

Performance

sync

Vocalist

Workstation

MIDI

Jacks

Vocalist

Workstation

MIDI

Jacks

Basic MIDI Setup

This setup could be used for a live performance or live recording situation. The Vocalist Workstation EX can recognize the chords you play and output the appropriate harmony or you could use a Vocoder preset to play the exact harmony notes you need. These concepts are explained in greater detail later on in this manual.

Connect as follows:

¥ Connect the output of your controller keyboard to the MIDI in

of the Vocalist Workstation EX.

¥ Set your keyboard's MIDI transmit channel to 1 (the Vocalist

Workstation EX's default channel) or change the Vocalist Workstation EX's MIDI receive channel to match your keyboard. See page 33 in the Utilities section for further details.

¥ Connect any MIDI sound modules to the MIDI thru jack.

Intermediate MIDI Setup

This configuration allows you to record key, chord and harmony style change keystrokes from the front panel into a sequencer for automated playback later. This could be useful for live vocal performances using sequenced backing tracks. You could also use the sequencer to back up your edited patches to disk. If you do extensive editing, it is very important to store backup copies of your work.

Connect as follows:

¥ Connect the MIDI output of the Vocalist Workstation EX to

the input of your sequencer or storage device.

¥ Connect the output of the sequencer or storage device to the

Vocalist Workstation EX's input.

¥ The patch dump from the Vocalist Workstation EX to the stor-

age device must be initiated from the Vocalist Workstation EX. The Vocalist Workstation EX can receive a patch dump at any time. See page 42 in the Utilities section for further details.

Advanced MIDI Setup

The setup at left may be found in many audio and MIDI recording studios. The sequencer allows you to record and edit the keyboard performance that controls the harmony voices. Routing the vocal performance through the Vocalist Workstation EX and controlling it with the sequencer allows you to ÒcraftÓ exactly the harmony performance you want. Connect as follows: ¥ Connect the MIDI output of your keyboard to the input of the

sequencer.

¥ Connect the MIDI output of the sequencer to the input of the

Vocalist Workstation EX.

¥ Connect your MIDI sound module(s) to the Vocalist

Workstation EX's Thru jack.

MIDI Connection Examples

PERFORMANCE

This chapter discusses the main operating features of the Vocalist Workstation EX. It begins with setting the correct levels and proceeds with discussions of the different harmony modes and their uses.

We assume that you have connected your Vocalist Workstation EX according to the diagrams on the previous pages and that you are familiar with the other devices in your system.

Setting the Input and Output Levels

First, move the input and output level controls down to the bottom position.

Input Level

Sing into the microphone and turn up the Input Level control until the loudest passage you sing causes only brief peaks to register on the red 0dB LED. Too much input gain causes both the unprocessed (dry) vocal signal and the harmony voices to distort. Too little gain and the Vocalist Workstation EX will not produce harmonies at all.

Output Level

Once you have set the WorkstationÕs input level, sing into your mic and bring the Output level fader up to the nominal level ÒbumpÓ at halfway up the faderÕs travel. This will set the output level to nominal +4 dB. If you are sending audio to a mixer input that operates at -10 dB, reduce this control according to the mixerÕs input meters.

Generating a Good Signal

It is important that the singer perform as close as possible to the microphone in order to reduce unwanted harmonization of background noise. In a quiet studio environment this is less critical but on a loud stage, the singerÕs voice must be considerably louder at the microphone than any other sounds.

It is also important to avoid using omnidirectional mics. They can pick up reflections and noise that disrupt the Vocalist Workstation EXÕs pitch detection. Use directional microphones only; these microphoneÕs pickup patterns are generally called ÒcardoidÓ or Òhyper-cardoidÓ.

The Signal Lock LED turns on when the Vocalist Workstation EX recognizes the pitch of the input signal. If this LED turns on weakly or flashes during sustained vocal notes, the input level must be increased either by singing louder or adjusting the Input Level control.

Loading Programs

The Vocalist Workstation EX is shipped from the factory with the first factory program selected once it is powered up. Turn the Data Wheel knob to scroll through the different factory programs. Programs are loaded automatically as you turn the wheel. Programs can also be loaded via MIDI program change.

There are two banks of programs to choose from with 50 programs in each. The ÒFactoryÓ or ÒUserÓ button will light up when either of these banks are chosen. You can save edited programs into the User bank only. See ÒStoring your EditsÓ for further details.

The LCD Display Window

When you load a new program, the LCD displays information you will need in order to control the Workstation correctly. The following graphic shows these details:

Program Number

Shows a number from 1 to 50.

Current Key/Chord Root

This two character field shows the current key or chord root note in Scalic or Chordal harmony programs only.

Program Name

A name of up to 15 characters is shown here. There may be identical names in the User bank if edits have been made.

Program Harmony Type

In Scalic or Chordal harmony programs only, this character will be either a backlit ÒSÓ or ÒCÓ. The ÒSÓ shows that the program is based on a Scalic harmony, while the ÒCÓ shows that the program is built on a Chordal harmony. These characters are available for your use in User programs in the Program naming screen.

Indicator Arrow

This shows which of the available Harmony Styles is currently loaded. It will move when you press the Softkeys to select another Harmony Style.

Available Harmony Styles

Each Program may have up to 8 different Harmony Style variations. These variations are based on the Harmony Type featured in the current program. Each ÒwindowÓ shows the first four characters of the style name. For more information see the section called ÒUnderstanding the Five Harmony TypesÓ.

Current Harmony Style Full Name

This 12 character field shows the full name of the current Harmony Style. The style naming conventions are are described in the ÒUnderstanding the Five Harmony TypesÓ section.

The Harmony Controls

For musically correct harmonies to be generated automatically, you must provide the Vocalist Workstation EX with some musical information. ItÕs just like when you are playing with other musicians; they need to know what chords youÕre playing in order to stay Òin keyÓ with you. You can use either a MIDI keyboard or the WorkstationÕs one-octave keyboard and 8 softkeys to provide this information.

When you load a Program, the eight softkeys are used to call up a different harmony variations. Each Softkey corresponds to a harmony style on the LCD display (see example below).

Several different harmony styles are assigned to each program so that you donÕt have to load a completely different program when, for example, you want to change from a major to a minor harmony.

Different Programs require different control input from you. For example, you can use the front panel keyboard (or MIDI keyboard notes) to choose the root note of the chord in a Chordal Program, the Key in a Scalic Program, or the actual harmony notes to be played in a Vocoder Program.

Understanding the Five Harmony Types

Each program is based on one of five basic harmony types. The differences lie in the control method you choose and the sound you are after.

Note: The first harmony style (top left softkey) is always loaded when a new program is loaded.

The Vocalist Workstation EXÕs five basic harmony types are:

¥ Chordal These three Harmony types need musical

control from you as you are singing.

¥ Scalic

¥ Vocoder

¥ Chromatic These two Harmony types are for more

specific uses. Chromatic doesn't require any special musical control. Used in Unison presets to thicken the sound of the Lead vocal.

¥ Pitch Correct Pitch Correct can take input from a pitch bend

wheel, front panel keyboard or a MIDI note.

Chordal

You can tell a program is based on Chordal harmony when the upper right hand character of the display shows a backlit ÒCÓ character. You will also see first letter of the harmony style name shown in lower case letters (e.g. maj, min, maj7). To use a Chordal harmony program, you must input each chord in your song as it occurs. Chord input can come from chords you play on a MIDI keyboard or from the front panel harmony controls. The Vocalist Workstation EX has intelligent MIDI chord recognition to interpret the chord inversions you play to produce correct harmonies.

A chord has two parts: the root note and the type. An example of this would be an A major 7th chord which has ÒAÓ as its root and Òmajor 7thÓ as its type.

Uses: provides a constant chordal harmony ÒbedÓ that stays on the currently selected chord. Chordal harmonies automatically move harmony intervals so that they sound correct over your lead voice melody.

For examples of Chordal harmony, choose any of the Factory Programs 16 through 25. Choose a root note on the front panel keyboard and sing. As you sing, use the softkeys to switch between major, minor and the other chord types, and listen to how the harmony voices change.

Style naming conventions: The first 3 to 4 characters of the name show the chord type such as maj, min, dom7 etc. The 2 to 7 characters following the chord type show the arrangement of the harmony voices above and below your voice. The number with an arrow beside it shows how many scale intervals away from the input note the harmony will be and whether it is above or below. The B character shows that a bass voice is present that will move less than the other voices. Fixed means that the harmony voices

will move less too.

Scalic

You can tell a program is based on Scalic harmonies when the upper right hand character of the display shows a backlit ÒSÓ character. The first letter of the harmony style name is capitalized (e.g. Maj1 and Min1). Scalic harmony programs require that you to enter the key and scale which usually needs to be done only once at the beginning of your song. In western popular music, the chords often revolve around a single scale such as A major where ÒAÓ is the key and ÒmajorÓ is the scale around which all the chords of the song are centered.

Programs based on Scalic harmony have a selection of different scales you can choose from by pressing the softkeys. For example, the ÒEverlysÓ program (#36) has 3 different major scales and two minors as do many of the other Scalic-based programs. The major scales differ only on the harmony note generated on the fifth note of the scale i.e. Maj1 generates a major chord, Maj2 generates a suspended chord and the Maj3 generates a minor chord. The two minor scales differ in that they generate a major chord on the fourth note (Min1) or a minor chord (Min2). This may seem a bit confusing so rely on your ears to make the appropriate choices.

Use: Scalic harmonies are more active in harmony motion where Chordal tends to be less so. Scalic programs sound the most natural for popular song harmony.

For examples of Scalic harmony, choose any of Factory Programs 36 through 45, choose the key on the front panel keyboard and sing. Notice that as you sing up and down the melody, the Harmony voices stay very close to you.

Style naming conventions: The first 3 to 4 characters of the name show the scale type such as Major, Minor, Doriian etc. The next 3 to 5 characters show the voicing. For example: Òv3355Ó as found in the Eagles program shows that your lead voice (v) has doubled 3rd and doubled 5th harmonies above it. Numbers to the right show harmonies above and numbers to the left show harmony voices below.

You may also see two additional characters ÒsmÓ and ÒstÓ. This displays the setting of the Bending parameter, which determines whether the harmony voices will follow the lead vocal sliding smoothly between notes (sm) or whether the harmony will not slide between notes but will jump from scale note to scale note in a stepped fashion (st).

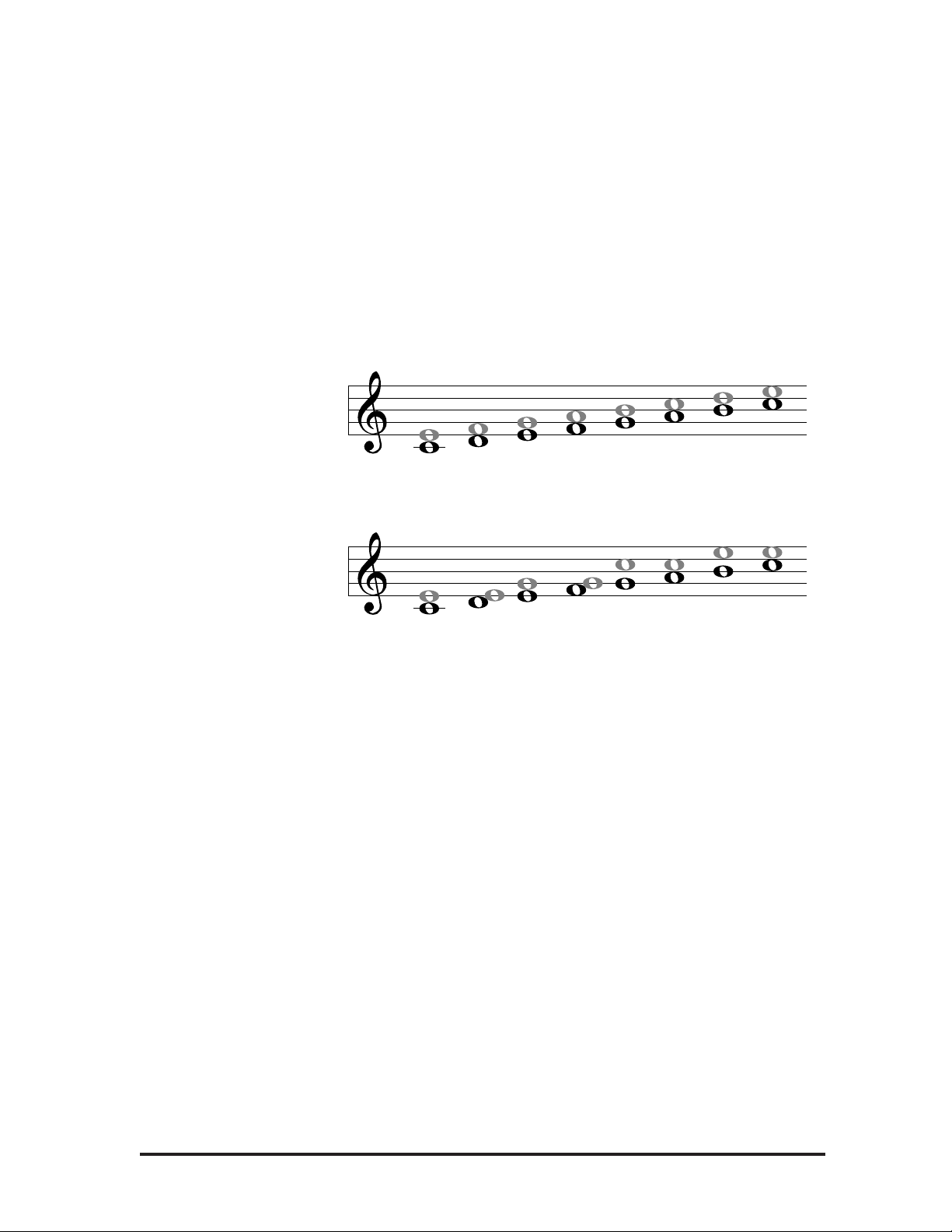

For more information on Chordal and Scalic harmony, see the Basic Harmony Concepts chapter.

Vocoder

Vocoder mode is named after a completely different technology that functions in a similar way. It is not the familiar Òrobot voiceÓ sound. The Vocalist Workstation EXÕs Vocoder mode does not feature intelligent harmony because you play the notes from a MIDI keyboard or the front panel keyboard that you want to hear as harmonies. Vocoder mode is probably the most flexible mode allowing you to weave intricate melody lines from your MIDI keyboard that can be recorded and edited in a MIDI sequencer like any other MIDI performance.

Use: Vocoder is for situations where neither a straight chord nor a parallel harmony line will do. Since you directly control the notes being Òsung", you can create counter-melodies and harmonies that go in different directions. While it is more efficient to use a MIDI keyboard in Vocoder programs, the front panel keyboard is active in these programs as well.

For examples of Vocoder harmony, try Factory Programs 26 through 35. Hold down any chord up to four notes on the front panel keyboard or a MIDI keyboard and sing. Keep in mind that no sound will come out unless you are holding down some keys. Change the chord, and the Harmony voices change. You don't even have to singÑpull the Lead Level control all the way down, and talk into the mic as you play different notes on the keyboard.

Note: Scalic harmony programs that generate a single 3rd interval generally work for more songs than programs with a combined 3rd and 5th.

Chromatic

Chromatic mode does not require the Vocalist Workstation EXÕs intelligent harmony because the harmony notes always remain a fixed interval away from the input note. This harmony type is used in programs that feature unison, octave, or fifth interval harmonies. You do not need to enter key information when you load Chromatic harmony programs.

Use: Chromatic Harmony is good for fattening up a vocal (live or recorded, solo or group) by doubling the Lead with unison Harmonies, and octave up or down harmonies.

For examples of Chromatic harmony, choose any of Factory Programs 1 through 7.

Pitch Correct

Pitch Correct mode is not intended for harmony. It offers you a method of manipulating a singerÕs pitch when needed. The Vocalist Workstation EX has five programs dedicated to Pitch Correction. Two of these are based upon Pitch Correct mode and the remaining three use specially modified Scalic and Chromatic modes to offer automatic operation.

Use: Pitch Correct is used to force an out-of-tune vocal performance into the correct pitch. Use it to ÒrescueÓ a recorded track where the performance is good but some of the notes are out of tune.

For examples of Pitch Correct, choose Programs 46 through 50. The program list at the beginning of this manual provides more tips on setup.

Changing Harmonies with the Softkeys

The softkeys below the LCD are offered in factory programs that are based on Scalic and Chordal harmony. All other factory programs feature one softkey selection only. The top left softkey assignment is automatically loaded when you change programs.

In the Scalic harmony programs (#36 to 45) the softkeys allow you to select different Major or Minor scales to provide the correct harmony for your song. These scales have subtle differences that make a harmony sound acceptable or not. Once you have entered the key of your song with the front panel keyboard, you can try each scale to determine which is correct.

In the Chordal harmony programs (#16 to 25) the softkeys allow you to select chord types. While this more easily done with a MIDI keyboard, the softkeys allow easy access if no keyboard is available.

See ÒHarmony EditingÓ on page 26 for changing softkey assignments and creating new harmony styles.

EDITING

This chapter describes the general principles of editing in the Vocalist Workstation EX and the individual editing modes in detail. To reduce the amount of redundant information, the general procedures, menu system and controls are described at the beginning of the chapter followed by detailed discussions of each of the edit parameters.

The Harmony editing screens are split up in successive layers of complexity. This is done to make this section easier to understand.

Using Styles to Simplify Editing

When you press the Edit button in Programs mode, you enter into an area that can be as simple or as flexible as you want. Modifying a program can be as easy as choosing a preprogrammed style or as involved as going into the deepest layer and adjusting a single parameter.

To simplify the editing process, we have reduced the number of individual parameter changes you need to make by introducing what we call ÒstylesÓ. Styles simplify editing by collecting related parameters together in a group and giving them a name. For example, this is done so that it is not always necessary to change the vibrato depths on each of the four voices to add a little more vibrato overall.

The ÒhumanizingÓ features: Gender, Detune, Vibrato and Scoop each have their own library of styles from which you can choose, as does Reverb. Harmony uses a variation on the style concept which is described later in this chapter. The Mix and Program Name parameters do not use styles.

Editing a program in the Vocalist Workstation EX can be done in either of two ways: you can change which style is assigned to the program or you can create a new style to assign to the program. In both cases you will be using the concept of a ÒlibraryÓ all of the programs share from. If you do build up your own library of user styles, keep in mind that if you edit a user style that is shared by other programs these programs will be affected in the same way.

The factory styles have been constructed to give you a broad range of choices from which you can personalize your programs. You cannot permanently modify a factory style but you can make changes and save them to a new user style.

The Menu System and Editing Controls

The Vocalist Workstation EX menu system is designed to allow easy access to all editable parameters in it. It is composed of several layers; each layer has decision branches leading to subsequent layers. We have deliberately limited the number of layers to encourage you to experiment without making you learn a complex menu system.

The controls used to navigate the menu system are shown in the graphic following:

Style Modify

Edit Parameter &

Style Select

Performance

Edit

Programs Style Library

Program

Style

The Edit Button

When pressed from Factoryor User Programs mode, the Edit button presents the Parameter/Style Select screen. Once a parameter is selected, another press of the Edit button enters the Style Modify screens.

When pressed from Songs mode, the Edit button presents the Arrangement screen. An additional press of the Edit button presents the Section editing screen. See page 52 of the Songs mode section for further details.

The Edit button will light indicating you have entered Program Edit or Song Edit modes and it will stay lit as long as you are there.

The Soft Keys

In all modes, each layer of the menu system contains a different group of softkey assignments. They perform the following functions:

¥ to select the parameter you want to modify,

¥ to select the harmony voice you want to make a change to,

¥ increment or decrement the value of the selected parameter by one.

The Data Wheel

The Data Wheel changes the parameter you have selected. It is a detented (clicking) rotary encoder type with no start or stop point.

¥ At the top level of Factory or User modes, it is used to load pro-

grams.

¥ At the top level of Songs mode, it is used to load songs.

¥ In all Edit modes, it is used to increment or decrement the value of

the selected parameter.

The Data Wheel has a speed-sensitive feature that can access a large number of individual steps without turning the wheel excessively.

The Left and Right Arrow Buttons

These buttons are active only when you see the ♦ and ∅ characters dis-

played in the upper corners of the LCD. They allow you to access the various editing screens in Factory, User, Songs and Utilities modes.

Pressing the arrow buttons presents the next or previous edit screen. Repeated presses loop around the available screens.

The Store Button

The Store button allows you to save any changes you have made to a program or style. You can also use it to copy programs and styles to other locations. Store can be pressed in any Vocalist Workstation EX mode except for Utilities. Refer to the section on ÒStoring Your EditsÓ at the end of this chapter to save your changes.

The Exit Button

This button presents the previous menu layer screen. Pressing it repeatedly will backtrack through the menu layers to the last used mode.

Gender

The Gender styles introduce a unique harmonic character into the harmonies to add the qualities associated with male or female voices. This makes the harmonies sound more as if they are coming from a distinctly separate group of people rather than being multiples of you. The two editable parameters for Gender are Assignment and Setting.

Assignment

There are two Genders assignable for each program. You can assign a male Gender to a lower harmony and a female Gender to a higher harmony for instance. This can also be reversed for special effects.

To assign no Gender to voices, you must still assign Gender 1 or 2 to those voices and change the Gender setting to 0.

Setting

The Gender settings range from +50 to Ð50. The positive values shift the overtones higher for female characteristics and the negative values shift the overtones lower for male characteristics.

To assign no Gender to voices, you must still assign Gender 1 or 2 to those voices and change the Gender setting to 0.

To edit the Gender parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to Gender. (Gend)

3. Select a different style preset using the Data Wheel. If you are satisfied with loading a different style, refer to the ÒStoring your EditsÓ section. Press the Edit button again to modify the current Gender

Note: Each voice must have a Gender setting even if it is zero

style or, to create a new Gender style from scratch, load one of the blank styles (BlnkGend #) and then press the Edit button.

4. Press the softkeys below the LCD to select which voice you want to modify.

5. Turn the Data Wheel to change the Gender assignment for the selected voice. The softkeys can also be used for this purpose.

6. Press the Right Arrow button to go to the Gender settings screen. You will see the settings for Gender #1 on the left and #2 on the right.

7. Select which Gender setting you want to change with the softkeys and turn the Data Wheel to make the changes.

Detune

The Detune styles add a subtle Òout-of-tunenessÓ to the harmony voices. Because human voices are never perfectly in tune, this function can ÒhumanizeÓ your harmonies. This feature also works well on programs where two, three or all four voices are singing the same note (unison), as the detuning produce a chorusing effect.

The editable parameters in a Detune style are: Amount, Randomness and Pitch Randomize. These are set individually for each voice.

Amount

This sets the number of cents sharp or flat the harmony voices are. The amount is editable in 1 cent increments between 100 cents (1 semitone) above or below the input note.

Randomness

This makes every new harmony note have a slightly different detune amount. It is variable from zero to 25 cents in 1 cent increments. Randomness will only reduce the detune amount, not add to it - for example, a Detune amount of +12 cents with Randomness set to 6 cents would vary from +6 to +12 with each new note.

Pitch Randomize

Pitch Randomize further humanizes your harmonies by continuously varying the pitch through the duration of a note. You have a selection of low, medium or high settings.

To edit the Detune parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to Detune (Detu).

3. Select a different style preset using the Data Wheel. If you are satisfied with loading a different style, refer to the ÒStoring your EditsÓ section on page 32. Press the Edit button again to modify the current Detune style or, to create a new Detune style from scratch, load one of the blank styles (BlnkDetu #) and then press the Edit button.

4. To modify the amount of Detune effect on the first voice, turn the Data Wheel. Press the softkeys below the other voices to select them for editing. The softkeys can also be used to change values.

5. To edit the Randomness parameter, press the Right Arrow button to move to the next edit screen. Select the voices with the softkeys and increase or decrease the amount of Randomness with the Data Wheel.

6. To edit the amount of Pitch Randomization, press the Right Arrow button. Turn the Data Wheel to adjust to the desired value.

Vibrato

Adding Vibrato to the Vocalist Workstation EXÕs harmonies is another way of adding realism. Vibrato is the regular modulation of a voiceÕs pitch that lends interest to an otherwise static note. You can edit five different vibrato parameters for each voice allowing you to construct the most realistic vibrato performance possible.

Depth

This varies the amount of pitch deviation above and below the root pitch of the harmony note. This varies in 1 cent increments between 0 and 100 cents.

Rate

This is the modulation speed of the vibrato. It is measured in Hertz (Hz: the number of cycles per second). This can be varied in tenths of one Hz between 0 and 9.9 Hz.

Type

This gives you a selection of four different vibrato waveforms. They are: sine wave, square wave, sawtooth up and sawtooth down.

Delay

This changes the time between when the Vocalist Workstation EX produces a harmony note and the onset of vibrato. Vibrato does not immediately occur after the delay period; instead it increases gradually in intensity. It is edited in 20 millisecond increments from 0 to 2.5 seconds.

Randomness

Randomness applies random values to the combination of Depth and Rate. Each new note you sing will have a slightly faster or slower vibrato rate and slightly increased or decreased depth. This parameter is set from 1 to 10.

To edit the Vibrato parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to Vibrato. (Vibr)

3. Select a different style preset using the Data Wheel. If you are satisfied with loading a different style, refer to the ÒStoring your EditsÓ section on page 30. Press the Edit button again to modify the current Vibrato style or, to create a new Vibrato style from scratch, load one of the blank styles (BlnkVibr #) and then press the Edit button.

4. To increase and decrease the Vibrato Depth on voice number one, turn the Data Wheel. Press the softkeys below the LCD to select other voices for editing. The softkeys are also be used to raise or lower values.

5. To edit the Vibrato Rate, press the Right Arrow button to move to the next edit screen. Select one of the voices with the softkeys and use the Data Wheel to edit the value.

6. To vary the Vibrato Delay, press the Right Arrow button to move to the next edit screen. Select one of the voices with the softkeys and use the Data Wheel to edit the value.

7. To edit the Randomness parameter, press the Right Arrow button to move to the next edit screen. Select one of the voices with the softkeys and increase or decrease the amount of Randomness with the Data Wheel while you sing.

Scoop

ÒScoopingÓ refers to a technique singers use where they bend the pitch into a note from below the target pitch. This feature makes your Vocalist Workstation EX harmonies sound like a group of singers improvising their parts.

There are two ways of introducing Scoop: you can use the Randomness factor in the Scalic, Chromatic and Vocoder modes to have the voices scoop automatically at random intervals or, in Vocoder mode only, you can introduce it deliberately via MIDI velocity. Scoop does not function in Pitch Correct mode.

Scoop Occurrence

This parameter allows you to set how often you would like the Vocalist Workstation EX to produce a scoop. A 50 percent occurrence rate means that, on average, one in every two notes you sing will scoop into pitch.

Scoop Amount

The amount of Scoop is applied in cents, from 0 to 900. Zero is no scoop and 900 is equivalent to 9 semitones. The higher values are not intended to produce long portamento-type slides into a note; they are intended to sound more like the voice has quickly come up from a non-pitched note below the input note.

Scoop Rate

Scoop time is variable from 0 (slowest) to 10 (fastest). The numbers represent a range of acceptable rates but are not referenced to any specific time scale.

Vocoder Scoop Threshold (Vocoder styles only)

With a Vocoder style currently loaded, this parameter allows you to produce a scooped harmony note only when you hit a keyboard note (or notes) above a certain velocity. The MIDI velocity range can be set from 0 to 127 although you will most likely be using the higher velocities.

To edit the Scoop parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to Scoop. (Scp)

3. Select a different style preset using the Data Wheel. If you are satisfied with loading a different style, refer to the ÒStoring your EditsÓ section on page 30. Press the Edit button again to modify the current Scoop style or, to create a new Scoop style from scratch, load one of the blank styles (BlnkScp #) and then press the Edit button.

4. The first screen is the Scoop Occurrence setting. This should be set to the maximum value (100%) while you are experimenting with the other Scoop parameters. When you have set the other parameters to your liking the Occurrence setting can be reduced.

5. To set the Scoop amount press the right arrow button. Turn the Data Wheel to edit voice #1. Select the other voices with the softkeys beneath them and modify them with the Data Wheel.

6. To set the Scoop rate press the right arrow button. Turn the Data Wheel to edit voice #1. Zero is the slowest and 10 is the fastest rate. Select the other voices with the softkeys beneath them and modify them with the Data Wheel. To get your bearings, start by setting the rates at the lower settings and increase once you find the Scoop Amount that you like.

7. (Vocoder styles only) Press the right arrow button to advance to the Vocoder Threshold screen. The Data Wheel changes the value above which scoops are triggered by keyboard velocity.

Reverb

The Vocalist Workstation EXÕs reverb effect is designed to surround your voice and the harmony voices with an acoustic environment. Because humans seldom if ever hear sounds without also hearing reflections off of nearby objects, the reverb effect adds realism to your performance.

The control parameters are very flexible and can simulate everything from an intimate studio to a large reflective hall and points in between. The factory programmed reverb styles allow quick changes and provide a starting point for your reverb explorations.

Each program may be stored with its own reverb setting to allow different effects for the songs in your repertoire. For more information on reverb, see the Vocalist EX Series Applications Guide.

Room Type

There are 5 room types available: Studio, Chamber, Club, Hall and Arena. The difference between them is the timing of the reflections.

Decay Time

This determines the amount of time it takes the particular room you have chosen to stop reverberating. Each room type has a slightly different range of decay times: Studio: .1-1 seconds, Chamber: .2-2 seconds, Club: .5-2.5 seconds, Hall: 1.5-4 seconds, Arena: 2-20 seconds.

Brightness

This parameter controls the decay time of the high frequencies only. This simulates different absorbing properties of the walls in your environment. The ÒdarkÓ value is fully damped, that is, high frequencies die off very quickly. The ÒbrightÓ value means that the highs take the same time as the low frequencies to die away.

HF Rolloff

This is the high frequency rolloff control which applies a lowpass (hi cut) filter to the overall reverb. As opposed to the Brightness control which adjusts the time of high frequency decay, the HF Rolloff control adjusts the amount of high frequencies present. The range of control is from 500 Hz through to Flat.

Reverb Enable

This is merely an on/off switch for the reverb effect. It allows you a convenient way to mute the reverb without affecting the programÕs controls.

Mix

Each program in the Vocalist Workstation EX can be stored with unique mixer settings (there are no ÒMixÓ Styles). This allows you to bring up the level of a single harmony voice for example or to turn the lead voice off for a 100% wet special effect. Each program can also have its own pan settings and reverb levels.

The front panel faders add and subtract to the mixer settings within the currently selected program. If any of the programmed levels are at zero, the front panel faders will not have any effect.

Note: If the Lead (dry) Voice is selected to zero in a program, all audio (not just the harmonies) will be muted when the Bypass is activated.

Harmony/Lead Mix

This parameter varies the mix between your uneffected input voice and the sum of the harmony voices. Both settings are interactive, that is, setting either sets both. The relative levels are displayed in percent.

Harmony Voice Levels

The volume of each of the four voices are adjusted independently. The levels are edited in 1 dB increments between 0 dB (full volume) and off.

Harmony Voice Pan

Each harmony voice can have its left/right orientation in the stereo field edited between 50 increments left and 50 right with the center point being 0. A graphical display shows the relative positions.

Input Vocal Pan

The lead voice (also known as ÒdryÓ) can be panned to any point in the stereo field in the same way as the harmony voices.

Lead Reverb Wet/ Dry Mix

The amount of reverb applied to the lead voice can be adjusted independently with this control.

Harmony Reverb Wet/ Dry Mix

The amount of reverb on the harmony voices only can be adjusted with this control. This works in conjunction with the individual harmony voice levels. For example, a harmony voice that is lower in volume than the other three voices would also have proportionately less reverb.Each program has its own mixer settings. There are no Mix styles as there are for the other edit parameters.

To edit the Mix parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button then the softkey corresponding to Mix.

2. To adjust the Harmony/Lead mix, turn the Data Wheel. The bar graphs showing the relative levels move together.

3. To adjust the individual harmony levels, press the Right Arrow button. The LCD shows the current attenuation as a vertical bar with a numerical dB level. Remember, 0 dB is full volume for the selected voice. Press the softkeys below the other voices to select them for level adjustment. The softkeys may also be used to raise or lower values.

4. To edit the individual voice pans, press the Right Arrow button. In this screen, the voices are stacked vertically but still correspond to the softkeys in the same way as the other edit screens. When you move the Data Wheel, the pan pointers move diagonally across the screen to give you a visual indication of where the voice is placed in the stereo field. The stereo position is also shown by the letters ÒLÓ (left), ÒRÓ (right) and ÒCÓ (center) with a number from 1 to 50 showing how far the voice is from the center position.

5. To change the panning of the lead voice, press the Right Arrow button to move to the Dry Pan screen. Turn the Data Wheel to change the pan position as described in the individual pans.

6 To change the Harmony Reverb Wet/Dry mix, press the Right

Arrow button to move to the Harmony Reverb Mix screen. Turn the Data Wheel to change the pan position as described in the individual pans.

7 To change the Lead Reverb Wet/Dry mix, press the Right Arrow

button to move to the Lead Reverb Mix screen. Turn the Data Wheel to change the pan position as described in the individual pans.

8. Press Store to save your changes or press the Exit button three times to return to the top level.

Harmony Editing

The Vocalist Workstation EX has automatic functions capable of producing musically correct harmonies and a large number of factory programs crafted to fit many performance situations. There may be, however, instances where the factory harmonies need to be edited to to suit your requirements.

The Vocalist Workstation EX allows you to shape the harmonies from the point of replacing one chord type with another in a Chordal harmony program for example, to the point of determining exactly which notes the Vocalist Workstation EX generates for any series of input notes in a Scalic harmony program.

Harmony styles work in a slightly different way from the humanizing styles. Where only one Detune or Vibrato style can be assigned to a particular program, there are 8 different harmony styles assignable per program that can be called up using the softkeys.

We will divide the harmony editing section into 3 levels for simplicity:

Level 1. Changing the Softkey assignments of Harmony Styles

Level 2. Editing Harmony Styles

Level 3. Customizing Harmony Styles

Level 1: Changing the Softkey Assignments of Harmony Styles

This is the simplest level in which to modify the harmony component of a program. You have a choice of pre-programmed harmony styles that can be attached to the various programs to suit your needs.

Assignment of Harmony Styles to Softkeys

Each of the eight softkeys can be re-designated to enable a different harmony style when pressed. The same styles can be shuffled or a different style can be chosen for a particular softkey.

An example could be if you have chosen a program that produces a Chordal harmony with the voicing you want but it doesnÕt have an aug-

mented 7th chord assigned to any of the softkeys, you could change its assignment from something you donÕt need such as a diminished 7th.

Changing the Style Assigned to a Softkey:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to the Harmony parameter. The LCD shows the the current softkey selected by an arrow, its harmony style in quotation marks, and the other softkey assignments.

3. Press the softkey you want to reassign. The style display shows the keyÕs current assignment.

4. Turn the Data Wheel to select a different harmony style. You have a number of different styles to assign to each softkey. See ÒStyle Type, Scale or Chord SelectÓ described below for their descriptions.

5. If you want to reassign another softkey, press it and repeat step #4.

6. When you are satisfied, press Store once or Exit twice to save your changes. See ÒStoring Your EditsÓ at the end of this chapter for more details on saving.

Level 2: Editing Individual Harmony Styles

If you canÕt find the harmony style you need from the pre-programmed harmony styles, you can enter the next editing level and create or modify one for yourself.

You have a choice of the following harmony style editing parameters:

Harmony Type, Scale or Chord Select

You can choose between Chromatic, Scalic, Chordal, Vocoder and Pitch Correct harmony types to assign to your harmony style.

For Chordal harmonies, this screen allows you to choose between major, major 7th, minor, minor 7th, dominant 7th, minor 7th flat 5, diminished 7th, augmented 7th, suspended and suspended 7th chord types.

If you choose Scalic harmony, this screen also allows you to choose the scale type which can be Major, Minor,Whole tone, Diminished, Blues, Dorian, Harmonic Minor and Melodic Minor.

The Chromatic, Vocoder and Pitch Correct types do not require any scale or chord selection.

Unison is not a specific Harmony Type, but you will see it in some of the Program titles. It is a Chromatic harmony set to double the lead voice at the same pitch, or very close to it.

Harmony Voicing (Except Pitch Correct and Vocoder)

This parameter allows you to arrange the intervals relative to your input note such as a 3rd above or 5th below harmony. The Harmony Voicing screen is available only to the Chordal, Scalic and Chromatic harmony types only. Each of the three types has a different number of voicing intervals available because of the nature of each type of harmony.

Chordal harmonies allow you to choose intervals that belong to the current chord type only. The range is plus or minus 2 octaves with a separate bass voicing. The Bass voicing stays on the chord root and does not move with your voice like the other voicings.

Scalic harmonies allow you to choose intervals that belong to the scale type only. The same ranges apply (plus or minus 2 octaves). There is no bass voicing in Scalic harmonies.

Chromatic harmonies allow you to choose any interval between 2 octaves up or down.

Bending (Chromatic and Scalic only)

Bending relates to pitch correction of the harmony voices and is independent of pitch bending. In Chromatic and Scalic harmony types, you have the option of pitch-correcting the harmony notes or not. When you want the harmony notes to be corrected, this is referred to as ÒSteppedÓ bending. Because they are corrected, the harmony notes ÒstepÓ up and down even when your voice is sliding between notes.

When you want the harmonies to follow your exact pitch, out-of-tune notes and all, you can set this parameter to ÒSmoothÓ bending. Smooth harmonies sound more natural and allow you to perform ÒBlueÓ notes but you must be accurate with your pitch for the harmonies to sound acceptable.

Harmony Motion (Chordal mode only)

Harmony motion gives you control over the number of Òbreak pointsÓ in each octave. A break point is the note at which the harmony interval changes up or down depending on the voicing and the number of voices in your harmony. Normal harmony motion has more break points, creating a more active harmony part. The other option, ÒfixedÓ, reduces the number of break points to only two regardless of voicing and the number of harmony voices.

Pitch Bend

This is where you set the amount of pitch bend that can be introduced through MIDI. Each of the 8 styles can have a different range with the range being 0 to 12 semitones.

Portamento Rate

Portamento is a feature available to all harmony types that reduces the ÒsteppingÓ that can occur between successive harmony notes. This can make harmonies sound more like a human singer would. Each note slides its pitch into the next at a specific rate that you determine. A small amount of portamento has been built into many of the factory programs. The values range from 0 to 10 with 10 being the slowest rate or the maximum amount of portamento.

Vocoder Mode Select (Vocoder Mode only)

There are 7 different Vocoder modes to choose from. The first 4 deal with voice assignment. In order for the Vocalist Workstation EXÕs intelligent Vocoder panning to work correctly, it is often necessary to limit the number of voices available to those required by your harmony part. The lay-

ered modes create thickening on single or two part harmonies. The 4 MIDI Channel mode allows individual control of each of the four harmony voices for complete pan position stability and independent pitch bend.

Transpose (Vocoder and Pitch Correct only)

In Vocoder mode, this feature allows you to transpose your harmonies +/Ð 3 octaves. You could use this when you are triggering your Vocoder harmonies from the bottom or top of your keyboard and the untransposed harmonies would be in the wrong octaves. The auto option allows the Vocalist Workstation EX to trigger notes in the octave closest to your input note.

In Pitch Correct mode, transposing works in conjunction with MIDI or front panel keyboard input. When you sing and press a key, the resulting pitch can be transposed up to 3 octaves up or down for special effects. The auto option works as described above.

To edit the harmony style parameters:

1. Use the Data Wheel to select the program you want to edit and press the Edit button.

2. Press the softkey that corresponds to the Harmony parameter. The LCD shows the the current softkey selected by an arrow, its harmony style in quotation marks, and the other softkey assignments.

3. Press the softkey you wish to edit. The style display show this keyÕs assignment.

4. Press the Edit button. The Harmony Type selection screen is displayed.

Your choice here affects the order and selection of editing screens because each different harmony type has its own set of parameters. Rather than explaining the location of editing screens in text, what follows is a table showing the screens in the order in which they appear.

The Arrow buttons guide you to the next or previous screen, the softkeys select the different editing fields and the Data Wheel is used to change the values.

Edit screen layout by harmony type:

CHROMATIC:

Harmony Type : Voicing : Bending : Pitch Bend : Portamento Rate : Customize : Style Name

SCALIC:

Voicing : Bending : Pitch Bend : Portamento Rate : Customize : Style Name

CHORDAL:

Voicing : Harmony Motion : Pitch Bend : Portamento Rate : Customize : Style Name

VOCODER:

Vocoder Mode : Transpose : Pitch Bend : Portamento Rate : Style Name

PITCH CORRECT:

Transpose : Pitch Bend : Portamento Rate : Style Name

When you are satisfied, press Store once or Exit twice to save your changes. See ÒStoring Your EditsÓ at the end of this chapter for more details on saving.

Level 3: Customizing A Harmony

Customizing allows you to determine exactly which notes are produced for any given input note. It is the deepest harmony editing level and it is only available with Chordal, Scalic and Chromatic harmony types.

Examples of customized harmonies are the Blu1, Blu2 and Blu3 harmony styles shown in the ÒBlues Third AboveÓ program. All three styles are based on a major Scalic harmony that has been edited so that certain input notes produce different harmonies from those in the strict definition of a Major scale.

Once you have customized a harmony, the Voicing edit screen disappears and is replaced by the Customize Voicing screens. The Customize Voicing screens work differently in that you have all twelve notes of the scale to apply to input notes where you previously could choose only the notes within a major or minor scale for Scalics and notes from a particular chord in Chordal harmonies.

The Custom Harmonies screens are as follows:

Custom Voicing

You have a range of twelve input notes within one octave to assign alternative harmony voicings to. You can, however, choose any of the notes within a four octave range to apply to the input notes in your octave.

You also have the option of inserting a Òno changeÓ shown by Òn/cÓ in the Custom Voicing screen. This is a way of handling non-scale or nonchord notes gracefully and to control harmony motion. Instead of assigning a particular note, you can assign a Òno changeÓ which locks the harmony note on the previous one regardless of whether it was higher or lower. In fact, Òno changeÓ forms the basis for the Chordal harmony concept where the harmony notes are confined to two or three notes per octave for any of twelve input notes.

Custom Harmony Key

You must tell the Vocalist Workstation EX what key your input notes are referenced to before you begin customizing. The default key from the factory is C but you can change it to any of the 12 keys.

To make your own custom harmony:

1. Select a program with harmony styles close to what you want and press the Edit button.

2. Press the softkey that corresponds to Harmony. Select the harmony style closest to what you want. This will save you extra effort.

3. Press the Edit button.

4. Press the Left Arrow button twice to locate the Ò[Edit] to CustomizeÓ screen. Press the Edit button. This presents the Custom Harmony Voicing screen showing the note assignments for the harmony style you have chosen.

5. Use the softkeys to select each of the four voices for editing and use the Data Wheel to change the voicings.

6. Press the Store button to save your new harmony style. Remember, you have to assign this new style to the current program; it is not done automatically.

Naming Your Programs and Styles

When you have completed your editing you have the option of modifying or creating a 15 character name for the program. Fifteen character style names are available for harmony styles as well. The humanizing styles can also be named but with 12 character names only.

You may use a mixture of upper and lower case letters, numbers and symbols for naming. If you want to enter a letter in a blank space, the default assignment is from the lower case alphabet. Also included are insert and delete functions to speed naming.

To change a Program or Style name:

1. Select the program or style you want to rename and press the Edit button.

2. For programs, press the softkey that corresponds to Name. For styles, press the Left Arrow button. The naming screen will be shown in the LCD.

3. Select a character type from the top row of softkeys. These are upper (uppr) and lower (lowr) case characters, numbers (numr) and symbols (symb). The default for a blank space is lower case. The bottom row of softkeys controls cursor left (<<<) and right (>>>) movement and allows you to insert or delete characters at the cursor position.

4. Spin the Data Wheel to change the character underscored by the cursor.

5. Press Store to save your changes or press the Program button to can- cel your changes and return to the top level.

Note: If you want to reference your harmonies to any other key than C, press the Right Arrow button to present the Custom Harmony Key reference setting screen. Use the Data Wheel to change to the new key.

Storing your Edits

There are two ways to save your edits using the Store function:

1. Program Store - This is the term for saving any change you make such as attaching a different humanizing style to a program, loading different harmony styles or changing the mix. Factory programs cannot be overwritten; they can only be copied to the user bank where any changes are stored permanently.

2. Style Store - This is the term for saving an edited version of a humanizing or harmony style. Styles are stored independently of programs and are stored in a separate library to be shared by the programs. Factory styles cannot be over-written after they have been modified; they can only be copied to user locations.

To store programs to the user bank: (Program Store)

1. When you are satisfied with your editing, press the Store button. A Program Store is initiated from either the Performance (top) layer or the Select Parameter layer.

2. The LCD shows that the new program name is the same as the current name. It also shows that the Vocalist Workstation EX has automatically chosen the next blank user slot to store the new program to.

3. Press Store again to accept the default name and destination. If you want to, you can change the destination with the Data Wheel.

To store styles to the user bank: (Style Store)

1. After editing the parameters of a style, press the Store button. A Style Store is initiated only from Style Modify layer.

2. The LCD will show that the new style name is the same as the cur-

rent with a Ò■Ó character tagged onto the end. It will also show that

the Vocalist Workstation EX has automatically chosen the next blank user slot to store the new style to.

3. Press Store again to accept the default name and destination. If you want, you can change the destination with the Data Wheel.

4. Press Exit.

5. Follow the Program Store procedure to attach the new style to your program permanently.

Note: Once you have built up your own library of new styles, keep in mind that when you modify a style that is shared by more than one program, you are making changes to all of these programs. When you choose to edit and store a user style, the store screen will tell you whether other programs are sharing this style.

Note: If you have edited and saved a style to the user bank, it is not permanently attached to the current program until you perform a Program Store.

UTILITIES

Overview

The Utilities mode allows you to make global (affecting all programs) configuration changes to the Vocalist Workstation EX, including MIDI channel assignments, audio configurations, program, song and style initialization and user preferences.

To enter and exit Utilities mode:

Press the Utilities button in any of the other operating modes including Programs, Edit, and Songs modes. Once you have altered one of the configuration settings, you can press the Utilities button again to exit to the screen you started from. For example, this makes it convenient during editing to change MIDI channel assignments.

To select one of the configuration menus:

After entering Utilities mode, you can select the configuration menu you need from the softkeys.

Version Display

This is represented by the abbreviation Vers. Pressing this soft key produces the introduction screen as shown when the product is first powered up. Displayed on the second line of this screen is the software version number. The software version number indicates whether software updates, if any, have occurred.

MIDI

Pressing the MIDI soft key within Utilities mode presents the MIDI Utilities sub menu. From this screen you can choose a MIDI Utility to modify.

MIDI Channel Select

To provide maximum flexibility and to reduce conflicts, the Vocalist Workstation EX can control the channel assignments of more than just the usual program changes and continuous controllers. There are three areas in the Vocalist Workstation EX that can have their own MIDI channel assignments if required.

The System & Vocoder channel determines which channel program changes, continuous controller (Pitch Bend, Modulation etc.) and singlechannel Vocoder messages are received upon. When you use the 4 channel Vocoder mode, the System & Vocoder setting determines the channel for voice one only.

The Key & Harmony channel allows you to select different keys or chords (depending on the harmony type) and any of the eight different harmony styles assigned to a program via MIDI.

The 4 MIDI Channel Vocoder setting allows each of the four individual voices to have its own channel when using the Ò4MIDÓ Vocoder style within any Vocoder program. Assigning each voice its own MIDI channel and using the program stops Òvoice swappingÓ which causes voices panned in the stereo field to switch positions. If you run in mono, or stereo mode and you donÕt mind the voice swapping, you can use a Ò4MIDÓ Vocoder style on the same MIDI channel as the system.

The 4 channel Vocoder mode also allows you to use separate pitch bending on each of the four voices.

Voice one in 4 channel Vocoder mode is always the same as the System & Vocoder channel. The remaining three voices are set independently.

To change the System & Vocoder and Key & Harmony MIDI channels:

1. Press the Utilities button from any mode. This presents the UTILITIES main menu.

2. Press the soft key corresponding to MIDI. This presents the MIDI Utilities sub-menu.

3. Press the soft key corresponding to Channel.

4. Select either System & Vocoder or Key & Harmony by pressing the corresponding softkeys below the options. Turn the Data Wheel or use the upper and lower softkeys to select the desired channel. Selecting the ÒoffÓ option disables the MIDI program change feature. Selecting the ÒomniÓ option causes the Vocalist Workstation EX to respond to MIDI messages on all 16 MIDI channels.

5. Press the Utilities button again to exit. This returns you to the mode from which you entered.

To change the Vocoder MIDI channel(s):

1. Press the Utilities button from any mode. This presents the UTILITIES main menu.

2. Press the soft key corresponding to MIDI. This presents the MIDI Utilities sub-menu.

3. Press the soft key corresponding to Channel.

4. Press the Right Arrow button.

5. You can select Vocoder voices 2, 3 and 4 using the softkeys below them. Voice 1 follows the system channel and cannot be changed in this screen. The channel settings can be changed with the upper and lower softkeys or the Data Wheel.

Selecting the ÒoffÓ option by turning the Data Wheel to the right disables external control of the Vocoder. Selecting the ÒomniÓ option causes the Vocoder to respond to notes on any and all MIDI channels.

6. Press the Utilities button again to exit. This returns you to the mode from which you entered.

Note: If you decide to use the option of accessing styles by MIDI

pro-

gram changes

, the key and harmony channel should be set to a different channel than the system channel to avoid conflicts between loading programs and loading harmony styles.

MIDI Selection of Key & Harmony

Controlling your harmonies can be done through MIDI as an alternative to using the front panel. You have the option of independently selecting key or chord root and style. There are several ways in which this can be done to provide you the most flexibility in live performance or sequencing.

MIDI options for selecting key and harmony style:

¥ Chord Recognition

¥ Controller #16 (transmitted from front panel)

¥ Notes

¥ Program Change

Using Chord Recognition and a Chordal harmony program is the most useful combination when you want to just Òplug in and playÓ. The chord voicings you use in your playing are interpreted by the Vocalist Workstation EX as key and harmony information. You can also set chord recognition so that it only recognizes chords played on the upper or lower part of your keyboard with a split point that you set. This way, left hand bass lines donÕt cause the harmonies to jump around. See page 39 for more information on setting the split point.

The program you have loaded must contain styles that are related to the chords you play. As an example, if you play a C augmented 7th chord and the Vocalist Workstation EX program has no augmented 7th styles the Vocalist Workstation EX selects the closest sounding chord. See the Harmony Editing section on page 27 for instructions on adding or modifying chord styles.

Controller 16 is a MIDI continuous controller that can be used to select key and harmony together. The Vocalist Workstation EXÕs front panel keyboard and softkeys transmit this information over MIDI when you press them and can be recorded and played back from a sequencer. Each button has its own CC16 value and is shown in the following graphic:

MIDI Notes give you another way to combine program changes and key and harmony changes into one MIDI channel. Each MIDI note in the following reference table represents both a key and a style in a single message. Select your key or chord root from the octave matched to the softkey you want.

60 62 64 65 67 69 71

61 63 66 68 70

0246

1357

2468

12345678

357

Program Change messages can also be used to select key and harmony simultaneously. The following table shows how they are assigned. The top row represents the softkeys, the keyboard represents the chord root or key and the table shows the resulting program change number.

To choose MIDI Key & Harmony options:

1. Press the Utilities button from any mode. This presents the UTILITIES main menu.

2. Press the soft key corresponding to MIDI. This presents the MIDI Utilities sub-menu.

3. Press the soft key corresponding to Key & Harmony.

4. The first page allows you to to set the receive and transmit options with the Data Wheel.

5. Press the Right Arrow button to change between Chord Recognition+CC16, Program Change, and Notes with the Data Wheel.

6. Press the Right Arrow button again to set the keyboard split point for chord recognition. The softkeys are used to select the ÒaboveÓ or ÒbelowÓ options and the split point note selection.

7. Press the Utilities button to exit to the previous mode.

MIDI Continuous Controllers (CC)

The Vocalist Workstation EX responds to MIDI CC messages like any synthesizer module. This section of the Utilities menu allows you to remap which MIDI controllers affect Vocalist Workstation EX parameters. Any of the 120 MIDI continuous controllers and Aftertouch (which is not an official CC) can control the Vocalist Workstation EX. You can also select Ònone,Ó which disables MIDI control of any parameter.

A continuous controller is a specific type of message transmitted by a MIDI keyboard. You are transmitting CCÕs for example, when you move your pitch bend or modulation wheels, press down harder on the keys or

B# A# F#

B A G F

blow into a breath control device. It is with CCÕs that you introduce dynamics and emotion into your harmony performance.

Vocalist Workstation EX parameters you can modify by continuous control and their default MIDI mappings:

¥ Volume to MIDI Volume (CC 7)

¥ Detune to Expression Controller (CC 11)

¥ Vibrato Depth to Modulation Wheel (CC 1)

¥ Vibrato Rate to Effect Control 1 (CC 12)

¥ Harmony Hold to Effect Control 2 (CC 13)

The Harmony Hold works with Chordal and Scalic harmony programs to freeze the current harmonies while you continue to sing notes that would otherwise cause the harmonies to change. ItÕs useful when you want to throw some vocal ÒriffsÓ in a part of song and donÕt want the harmonies to follow.

To change the Continuous Controller mapping:

1. Press the Utilities button from any mode. This presents the UTILITIES main menu.

2. Press the soft key corresponding to MIDI. This presents the MIDI Utilities sub-menu.

3. Press the soft key corresponding to CC.

4. Use the softkeys to select one of the three editable fields in the MIDI Controllers screen: the internal parameter you want to control, the CC that controls it and the control polarity. The control polarity can be used to reverse the response of the controller.

5. Press the Utilities button to exit to the previous mode.

MIDI Program Change mapping

Incoming MIDI Program Change messages can be remapped to any of the Vocalist Workstation EXÕs internal programs. Remapping simply means that when you send the product a MIDI program change number 1, you have the option of making that number call up some other program instead. This allows the product to adapt to existing program changes in MIDI sequences or MIDI performance controllers.

Any incoming Program Change command can be:

¥ Mapped to the same program number in the Vocalist Workstation

¥ Mapped to any other program number

¥ Mapped to enable Bypass mode

¥ Ignored by the Vocalist Workstation EX (no change from previously

loaded program)

Note:

All CC’s except Volume (CC7) reset to their default values when a MIDI program change message is received.

This utility can also control the reception and transmission of program changes. This is handy if you want the Vocalist Workstation EX to retransmit any program remappings you have created. These messages are sent from the MIDI Output jack

The program change receive and transmit options are:

¥ Off Ignore MIDI program changes

¥ Receive only Enable external MIDI program changes

¥ Transmit only Transmit front panel program changes

¥ Receive and transmit Receive external and send remapped programs

To edit the MIDI Program Change mapping:

1. Press the Utilities button from any mode. This presents the UTILITIES main menu.

2. Press the soft key corresponding to MIDI. This presents the MIDI Utilities sub-menu.

3. Press the soft key corresponding to Program then the Left Arrow button. This shows the MIDI Program Mapping screen with the mapping for internal program number 1.

4. Use the Data Wheel to scroll through the incoming program numbers and find the one you would like remapped. The display shows the names of the internal programs these numbers are currently mapped to.

5. Press a soft key under the Òmaps toÓ prompt to move the brackets to the internal program selection field. Use the Data Wheel to scroll through the program numbers.

6. Press Utilities button to exit to previous mode.

To configure Program Change receive and transmit options:

1. Enter Utilities and MIDI program Change mode as above.

2. Use the Data Wheel to scroll through the options explained above.

3. Press Utilities button to exit to previous mode.

Vocoder keyboard split point

You can define the area of your controller keyboard that triggers Vocoder notes. You can choose which half of your keyboard generates Vocoder harmonies and where the split point is. Setting the Vocoder to respond only to the top half of your keyboard could help when you are playing left-handed bass lines and donÕt want them interfering with your Vocoder harmonies. You could also set the Vocalist Workstation EX to respond only to the lower octaves if you are performing right-handed melody lines and you would like to hold Vocoder chords with your left.

To set the Vocoder mode split point:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu.

3. Press the softkey corresponding to Voco.

4. Use the softkeys to select either the above/below or note number fields. Use the Data Wheel to modify the settings.

5. Press the Utilities button once again to exit; this returns you to the mode from which you entered.

MIDI Song Utilities

The MIDI Song Utilities allow you to have full MIDI control over the reception and transmission of Song Selection, Song Mapping, and Song Steps.

Songs you have created in the Vocalist Workstation EX can be selected via external MIDI Song Select messages sent from devices capable of sending them. The front panel of the Vocalist Workstation EX can be used to send Song Select messages to other devices such as your sequencer in order to automate song changes during performance.

The MIDI Song Select receive and transmit options are:

¥ off Ignore MIDI Song Select messages

¥ receive Enable external MIDI Song changes

¥ transmit Transmit front-panel Song changes

¥ receive + transmit Receive external and transmit front-

panel Song changes

To change the MIDI Song Select receive/transmit option:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu.

3. Press the softkey corresponding to Song.

4. Use the Data Wheel to select the desired Song Select option.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

The MIDI Song Mapping feature allows you to change the relationship between incoming Song Select messages and which song is actually loaded.

Note: The split point is only available for the single channel Vocoder modes.

Any incoming Song Select command can be:

¥ Mapped to the same song number in the Vocalist Workstation EX

¥ Mapped to any other song number

¥ Ignored by the Vocalist Workstation EX (no change from previously

loaded song)

To edit the MIDI Song mapping:

1. Press the Utilities button from any mode; this will present the UTILITIES main menu.

2. Press the MIDI softkey; this will present the MIDI Utilities submenu.

3. Press the softkey corresponding to Song.

4. Press the Right Arrow button; this will show the MIDI Song Mapping screen with the mapping for internal song number 1.

5. Use the Data Wheel to scroll through the incoming song numbers and find the one you would like to remap. In the second line of the display you will see the titles of the internal songs change as you scroll. Press a softkey under the Òmaps toÓ prompt to move the indicator arrow to the internal song selection field. Use the Data Wheel to select the desired internal song number.

6. Press the Utilities button again to exit.

MIDI Song Step messages allow you to step sequentially through the various sections of a song in either forward or reverse directions. There are several ways to configure the reception and transmission of Song Step MIDI control.

The Song Step receive and transmit options are:

¥ off Ignore MIDI Song Step messages

¥ receive Enable external MIDI Song Step

changes

¥ transmit Transmit front-panel Song Steps

¥ receive + transmit Receive external and transmit Song

Steps

To change the MIDI Song Step receive/transmit option:

1. Press the Utilities button from any mode; this will present the UTILITIES main menu.

2. Press the MIDI softkey; this will present the MIDI Utilities submenu.

3. Press the softkey corresponding to Song.

4. Press the Right Arrow button twice.

5. Use the Data Wheel to select the desired Song Step option.

6. Press the Utilities button once again to exit; this returns you to the mode from which you entered.

Song Step Direction can be controlled in various ways. The Vocalist Workstation EXÕs Song Step Forward messages can be assigned to MIDI Continuous Controller number 17, or any MIDI note from C -1 to G 9. Song Step Backward messages can be assigned to MIDI Continuous Controller 18, or any MIDI note from C -1 to G 9. If MIDI notes are used to control song steps, be sure to assign unique notes to the forward and backward directions to avoid conflicts.

The Song Step direction control options are:

¥ CC17 (value equals # of Steps) Step forward

¥ CC18 (value equals # of Steps) Step back

¥ MIDI Notes (any two) Step forward and back

To change the MIDI Song Step direction:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu.

3. Press the softkey corresponding to Song.

4. Press the Right Arrow button three times.

5. Use the softkeys to select Forward or Backward direction fields and the Data Wheel to select the desired controller.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

MIDI Dump Utilities

The Vocalist Workstation EXÕs MIDI Dump Utilities allow you transmit programs, songs, and utility settings as MIDI system exclusive messages to other Vocalist Workstation EXs, or computer-based sysex (system exclusive) librarian programs for future retrieval.

To dump a single program to another Vocalist Workstation or a sysex librarian:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping the program to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Use the Data Wheel to select the desired program to dump.

5. Press the Store button to dump the program; the unit will display ÒDumping...completedÓ after about one second to indicate that the dump is finished.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Note - Supporting earlier DigiTech Harmony products: To maintain compati-

bility with earlier products, the Vocalist Workstation EX is able to receive a single program dump from a Studio Vocalist or another Vocalist Workstation. Consult the appropriate owner’s manual for dump procedure.

To dump a single program to another Studio Vocalist :

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping all programs to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Press the Right Arrow button once.

5. Press the Store button to dump all programs; the unit will display ÒDumping...Ó while the dump is in progress. When the dump has been transmitted in full, the unit will display ÒDumping...completedÓ. The time required to perform a bulk dump will vary with the number of programs, styles and songs stored in the unit at any given time. Typically, a bulk dump will take about ten seconds to complete.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To dump all programs (bulk dump) to another Vocalist Workstation EX or a sysex librarian:

1. Press the Utilities button from any mode; this presents the

UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping all programs to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Press the Right Arrow button twice.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To dump a single song to another Vocalist Workstation or a sysex librarian:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping the song to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Press the Right Arrow button three times.

5. Use the Data Wheel to select the desired song to dump.

Note- Vocalist Workstation EX and Vocalist Workstation Compatibility: You may

perform single program dumps between these two products only. The bulk dump feature will not work.

6. Press the Store button to dump the song; the unit will display ÒDumping...completedÓ after about one second to indicate that the dump is finished.

7. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To dump all songs to another Vocalist Workstation EX or a sysex librarian:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping all programs to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Press the Right Arrow button four times.

5. Press the Store button to dump all songs; the unit will display ÒDumping...Ó while the dump is in progress. When the dump has been transmitted in full, the unit will display ÒDumping...completedÓ.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

The Vocalist Workstation EXÕs MIDI Dump Utilities also allow you to dump all utility settings; this includes all global parameters as well as Continuous Controller, Program Select, and Song Select mappings.

To dump utility settings to another Vocalist Workstation or a sysex librarian:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the MIDI softkey; this presents the MIDI Utilities sub-menu. If you are dumping all programs to a sysex librarian, ensure that the librarian is ready to receive a sysex dump.

3. Press the softkey corresponding to Dump.

4. Press the Right Arrow button five times.

5. Press the Store button to dump the utility settings; the unit will dis- play ÒDumping...completedÓ after about one second to indicate that the dump is finished.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Initialization Utilities

From time to time, you may find that you have a few user programs or songs which you no longer use, or no longer want to keep. The Vocalist Workstation EXÕs Initialization Utilities allow you to clear an unwanted program or song from memory, resulting in a Òclean slateÓ from which you can create a new one. Note that once a program or song is initialized, it is gone for good! If you want to save your program or song before initializing it, dump it via MIDI either to another Vocalist Workstation EX

or a sysex librarian program for later retrieval. (Refer to the MIDI Dump Utilities section above for help.)

An easy way to free up memory in your Vocalist Workstation EX is to occasionally initialize all unused user styles. This procedure will initialize only the styles which are currently not used by any program, so there is no danger of changing the sound of existing programs. Initializing unused styles periodically as a Òroutine maintenanceÓ activity will ensure that you always have some available memory with which to create and store new styles.

You also have the option of restoring all factory programs, styles and songs (factory restore). This option should be used cautiously, since all user programs, styles and songs are erased in this procedure! Use the factory restore option only if you are sure that you wish to return the Vocalist Workstation EX to its initial factory state.

Pressing the Init softkey from within the Utilities mode presents the Initialize Utilities sub menu.

From the Init screen you can choose to initialize:

¥ a user Program

¥ any Song

¥ all unused styles

¥ all programs, styles and songs (factory restore)

To initialize (clear) a user program:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Init softkey; this presents the Initialize Utilities sub-menu.

3. Press the softkey corresponding to Programs.

4. Use the Data Wheel to select the program to initialize.

5. Press the Store button to initialize the program; the unit will respond with ÒProg Init completeÓ.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To initialize a song:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Init softkey; this presents the Initialize Utilities sub-menu.

3. Press the softkey corresponding to Song.

4. Use the Data Wheel to select the song to initialize.

5. Press the Store button to initialize the song; the unit will respond with ÒSong Init completeÓ.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To initialize all unused styles:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Init softkey; this presents the Initialize Utilities sub-menu.

3. Press the softkey corresponding to Style.

4. Press the Store button to initialize all unused styles; the unit will respond with ÒStyle Init completeÓ.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To initialize all programs, styles and songs (factory initialization):

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Init softkey; this presents the Initialize Utilities sub-menu.

3. Press the softkey corresponding to All.

4. Press the Store button. A warning tells you that all user programs, songs and styles will be lost. To cancel the factory initialization, press the Exit button; otherwise, press the Store button to perform the initialization. During the initialization process the version screen will appear; when initialization is complete, factory program F 1 will be loaded and the unit is ready to use.

Footswitch Utilities

The Vocalist Workstation EX Footswitch Utilities allow you to reconfigure the functions of the DigiTech FS300 3-button footswitch to meet your personal preferences.

Any button on the FS300 can be configured to control:

¥ Bypass Latching (BypL) bypass is activated when the

footswitch is pressed and released, stays activated until the footswitch is pressed and released again.

¥ Bypass Momentary (BypM) bypass activated only while

footswitch is held down.

¥ Program up (Pgm )

¥ Program down (Pgm¬)

¥ Song up (Sng )

¥ Song down (Sng¬)

¥ Song Step up (Stp )

¥ Song Step down (Stp¬)

¥ Data up (Dat )

¥ Data down (Dat¬)

The default switch assignment for the FS300, from left to right, is

Program up Program down Bypass.

To change the assignment of a footswitch button:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Foot softkey; this presents the Footswitch Controls sub- menu.

3. Press the softkey corresponding to the footswitch button to be reassigned, either left, center or right.

4. Use the Data Wheel to select the desired footswitch action.

5. Repeat steps 3 and 4 for other button assignments, if desired.

6. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

User Utilities

The User Utilities allow you to select between eight different levels of LCD display contrast, and to enable or disable voice editing of harmony intervals. Voice editing of harmony intervals needs some explanation: when editing the voicing interval or customizing a harmony style, you have the option of entering the note with the Data Wheel or by actually singing the note. The Vocalist Workstation EX will recognize the note and you will see the display change to the note you have just sung.

To change the LCD display contrast:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the User softkey.

3. Use the Data Wheel to select the desired contrast level.

4. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Note: The Data up and down parameters allow you to duplicate the Data Wheel using your footswitch.

To enable or disable voice editing of intervals:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the User softkey.

3. Press the Right Arrow button.

4. Use the Data Wheel to toggle voice editing of intervals on or off as desired.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Synthesizer Mode

The Vocalist Workstation EX includes an on-board synthesizer that has two modes of operation:

¥ It can provide a cue-in note to help you find a starting pitch to sing to.

¥ It can assist you in auditioning and editing programs.

Upon entering the Synthesizer screen (see below) and the synthesizer is set to Off, you can press a note on the front panel keyboard and a single cue-in note will be produced at the outputs. This feature is only available within Utilities mode.

When you set the internal synthesizer to On, you can return to Programs mode and press any note on the front panel keyboard to play the note through the Vocalist Workstation EXÕs pitch shifters. This will allow you to hear the harmonies currently defined for that note within the current program.

You can also adjust the output volume of the synthesizer if desired. The default volume level is -6 dB.

To activate the internal synthesizer:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Synth softkey.

3. Use the Data Wheel to toggle the synthesizer tone on or off as desired.

4. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

To adjust the synthesizer volume:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Synth softkey.

3. Press the Right Arrow button.

4. Use the Data Wheel to set the desired synthesizer volume level.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Audio Utilities

There are several important audio parameters that you can adjust to optimize the performance of the Vocalist Workstation EX.

The Audio configuration parameters include:

¥ Ess Sensitivity

¥ Bass Rejection Threshold

¥ Anti-feedback Control

¥ Tuning Reference

Ess Sensitivity

The Ess Sensitivity adjustment allows you to decrease the amount of sibilant energy (i.e. ÒessÓ, ÒteeÓ and ÒchÓ sounds) presented to the input of the Vocalist Workstation EXÕs pitch recognition circuitry. An increase in the Ess Sensitivity parameter increases the Vocalist Workstation EXÕs ability to ÒignoreÓ sibilant sounds, thereby minimizing the chance of pitch tracking errors. This setting can need to be adjusted to accommodate different singers. It is easily modified while the singer sings.

To adjust the Ess Sensitivity:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Audio softkey.

3. Use the Data Wheel to increase or decrease the Ess Sensitivity as desired.

4. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Bass Rejection

The Bass Rejection Threshold control is used to increase the Vocalist Workstation EXÕs immunity to pitch tracking errors caused by low frequency noise at the input. Increasing the Bass Rejection Threshold is useful for filtering out wind, background, or microphone handling noise. Once again, the frequency response of the audio path is not affected.

To adjust the Bass Rejection Threshold:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Audio softkey.

3. Press the Right Arrow button.

Note: Sibilance is reduced only at the Vocalist Workstation EX’s pitch recognition circuitry and not in the audio path. The frequency response of the input voice is not affected.

4. Use the Data Wheel to increase or decrease the Bass Rejection Threshold as desired.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Anti-feedback Control

The Anti-feedback Control is useful for reducing high frequency feed- back in live or other high volume applications. Increasing the value of the Anti-Feedback control attenuates sibilant sounds in the audio path.

To adjust the Anti-feedback Control:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Audio softkey.

3. Press the Right Arrow button three times.

4. Use the Data Wheel to increase or decrease the Anti-feedback Control as desired.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

Tuning Reference

The Tuning Reference in the Vocalist Workstation EX can be adjusted + or - 100 cents (one semitone) from a base reference of A = 440 Hz.

To change the Tuning Reference:

1. Press the Utilities button from any mode; this presents the UTILITIES main menu.

2. Press the Audio softkey.

3. Press the Left Arrow (<) button twice.

4. Use the Data Wheel to set the Tuning Reference as desired.

5. Press the Utilities button once again to exit; this will return you to the mode from which you entered.

SONG MODE

The Song mode is a handy and effective tool for live performance that enables you to switch harmony styles Òon the flyÓ. Song mode also provides a convenient way to select key or chord change sequences from a Digitech FS300 footswitch. Choose different Styles, scales or special effects by entering them into a list that can be stepped through, almost like a manual sequencer. For example, you could assign ÒSilky ThickenerÓ to the first verse, ÒEverlysÓ to the second verse, ÒEaglesÓ to the chorus and ÒManhattanÓ to the bridge. The Song mode of the Vocalist Workstation EX song is arranged into sections in the same way as most popular songs. You construct each song from the building blocks of verse, bridge, chorus etc. and then place them in the order you want. You can create your own customized song list in any of the 50 song presets.

Song mode also lets you program chord changes which are needed in the Chordal mode if you are not using MIDI. Simply press the FS300 footswitch at the correct musical points to step through the changes in real time. Alternatively, MIDI can also be used to control the steps of Song playback.

Playing the Demo Songs

Pressing the Songs button presents the Song Performance screen which will show you the information for the demonstration songs.

Song mode performance controls from the front panel:

¥ The Data Wheel is used to load songs

¥ The Arrow buttons and footswitch are used to step forward and

backward through the song sections.

Song mode control options using the footswitch:

¥ Song up and down

¥ Song step up and down

These options are configured in the Utilities menu under the Foot softkey.

You can step through the demo songs with the footswitch or Arrow keys the to familiarize yourself with Songs mode. Choose a song you are familiar with and sing it while you step through the chord changes. As

you step through the songs, you will hear and see the step number increment and the current chord names and styles change. Depending on which demo song you have chosen, you may see the program change also.

Creating Your Own Songs

The arrangement and section editing screens in Song mode make it easy to create your own songs for non-MIDI performance. Each song in the Vocalist Workstation EX is made up of up to 16 different sections with a choice of preset names such as Verse, Chorus etc.. Each section can consist of up to 32 different steps and these are the actual chord, key or program changes that make up a song. A song can be as simple as a single section with 4 chord changes in it or as complex as multiple verse, chorus, and bridge sections each with numerous chord and program changes.

The beauty of this format is that it is easier to build a song up in sections in no particular order and piece them together in the arrangement screen. This is especially useful for songwriting where the arrangement of verse, chorus and bridge is likely to change.

To create a new song section:

1. Press the Songs button. This presents the Performance screen.

2. Turn the Data Wheel to locate a blank song. The song name ÒBlank

Song....#Ó will show in the LCD and the Bypass LED will light. The

Bypass LED always lights at the end of a section.

3. Press the Edit button. This presents the Arrangement editing screen. (The screen shown below represents what the screen will look like after the changes outlined below have been made)

4. Use the front panel keyboard to input the key you want your song to be in. If set incorrectly, this will be confusing later.

5. Press the Insert softkey once. The letter ÒAÓ appears as the first section in the song. If you turn the Data Wheel, you can change the letter assignment for this section. If you press the right Arrow button, the arrow moves to select the ending marker. Return the arrow so it is beneath the letter and set the letter to ÒAÓ.

6. Press the Edit button again. This will show the Section editing screen.

Song Title Key

Section Name Step Number

Program Number Section Name

Chord / Key Variation

6. Press the Insert softkey to add a new step to your section. This presents the Step Insert screen. In this screen you can choose a different chord root or key, harmony style and program for each step in this section.

7. Turn the Data Wheel to select the program you want for this step. Select the chord root or key from the front panel keyboard and the harmony style from the softkeys

Tip: You can simplify this step by selecting your chords on a MIDI keyboard and pressing the Step footswitch button to enter them.

8. Press the Right Arrow button to insert another event into your section. The number at the top left of the screen will increase by one. Since you have entered a program you like in the previous step, you only need to enter the chord root, key or harmony style.

9. Press the Right Arrow button to enter new steps as they are required. If you make a mistake, it can be repaired in the Step Edit screen only (see below).

10. Press the Exit button to review your work in the Section Edit screen. Sing this part of your song and use the Arrow buttons or the footswitch to take you forward and back through the steps. If you have missed a chord, press Insert and add it as before. If you have more steps than you need or an incorrect entry, press the Delete softkey.

Editing Your Steps

If you would like to change something you entered in the Step Insert screen, this can be done in the Step Edit screen. This will allow you to modify chord root, harmony style, key and programs only. You cannot insert or delete events as you can in the Step Insert screen.

It is helpful to know the section and step number before you enter the Step Edit screen. Advance through the steps in the Performance or Section Edit screens taking note of where your change will be required.

To modify a song step:

1. From the Arrangement screen, select the section you want to edit with the Arrow buttons. Press the Edit button. This presents the Step Insert screen.

2. Press the Edit button again. This presents the Step Edit screen.

3. Locate the step you want to change with the Arrow buttons. The step number at the top left of the LCD will show you where you are.

Note: Insert adds a new step before the current one shown on the screen. Delete removes the current step and replaces it with the one following.

Section Letter

Step Number

Program Number

Step Insert/Delete

Key or Chord Program Name Name Editor

4. Use the Data Wheel, softkeys and keyboard to enter the new information. The Arrow buttons are still active so you can make changes to additional steps.

5. Press the Exit button twice to exit and store your changes if you decide to keep them.

Naming Songs and Sections

Naming your song is important for your reference but not required by the Vocalist Workstation EX.

If you plan to use the Arrangement editing feature you should assign each section a name such as verse, chorus etc.. This will make it easier to know where you are in performance and when it comes time to put the sections together into an arrangement. To save you typing in each section name, we have given you factory names from which you can choose.

To name a song:

1. Press the Songs button to enter Songs mode, and select the desired song # with the Data Wheel.

2. Press the Edit button once.

3. Press the Name softkey.

4. The current name is shown on the second line. The softkeys are used to move the cursor and to enter letters, numbers and symbols and the Data Wheel is used to select data.

5. Press the Exit button twice and then Store; or Exit then Store to save your changes.

To name a song section:

1. Press the Songs button to enter Songs mode.

2. Press the Edit button once.

3. Press the Right and Left Arrow buttons to locate which section you want to name.

4. Press the Edit button.

5. Press the Name softkey. This presents the section naming screen.

6. Turn the Data Wheel to select the predefined name you want to assign to the current section.

7. Press the Exit button twice and then Store to save your changes, or the screen-labeled softkeys to discard edits. Press Exit to return to Songs mode..

You have now created the first building block of a song. Depending on the complexity of your song, you may be finished with programming at this point.

If, however, you have other parts of your song you would like harmonies in, you will probably want to create some more sections and then piece them together in the Arrangement editing screen.

To create more sections:

1. Repeat steps 1 to 4 above. Make sure to load the song you have just started even though it may still be called ÒBlank song #Ó.

2. Press the Insert softkey to add another section.

3. Turn the Data Wheel one notch to the right. This selects your new section for editing and change its letter assignment to ÒBÓ.

4. Press the Edit button to enter the Section edit screen. Proceed as described previously.

Arranging your song

If you are following the preceding instructions, you will have a couple of sections named A and B in no particular order. To make it easier to execute a song in performance, you need to order the sections so you only have to press the Step Up footswitch to advance through the steps. This is where you need the Arrangement editing screen.

You need to know the arrangement of the song you are copying from or creating. It might be helpful to jot it down on a piece of paper. Start by writing down the whole song, even the parts that donÕt have harmonies, in verse/chorus/verse/chorus form. This helps considerably when you are in the Arrangement editing screen.

To arrange the parts of your song:

1. Create at least two song sections as described previously.

2. From the Song Performance screen (top level) press the Edit button to enter the Arrangement editing screen. The display shows different letter assignments for the sections you have created on the arrangement line.

3. Press the Insert softkey several times to put more sections into your arrangement. The arrangement line fills with ÒAÓs.

4. Press the Right and Left Arrow to select sections that need to be changed. The bent arrow on-screen shows which section is currently selected.

5. Turn the Data Wheel to change the current section assignment. Repeat this procedure until you have programmed your complete arrangement.

6. Press the Exit button. This initiates the Store screen. You can choose to store your song in any location by turning the Data Wheel.

Changing Song Keys (Transposing)

If you want to change the key of your song to accommodate a different singer or a sore throat, you can do so with the Song Transpose feature. All of the chords in your songs will automatically shift to the new key and you can decide whether to temporarily change the key or make the change permanent.

To change the key of your song:

1. Press the Songs button to enter Songs mode, and use the Data Wheel to select the desired song.

2. Press the Edit button once.

3. Press the note on the front panel keyboard that corresponds to the new key. To check the new key, press exit twice to bring you to the Performance screen where you can step through the song.

4. To save the key change press the Store button twice. If you do not save the change,the last changes will disappear when you load another song or power the unit off.

BASIC HARMONY CONCEPTS

Overview

A well-crafted vocal harmony can do a great deal towards enhancing a musical selection. The contrast between a lone singing voice and a group of voices signing together makes the music that much more interesting.

But harmonies can be somewhat difficult to understand, so in this chapter, we will try and demystify this process. Discussed will be the concept of Òmusically correctÓ harmonies and the difference between the two essential harmony types utilized by the Vocalist Workstation EX: Chordal harmony and Scalic harmony.

ÒMusically CorrectÓ

No, this isnÕt a variation of Òpolitically correctÓ, but it still implies a certain level of responsibility. This responsibility is to produce a combination of notes that is pleasing to sensibilities accustomed to the western twelve tone scale.

Harmonies that are ÒcorrectÓ are referred to as being ÒDiatonicÓ which is defined as:

¥ any melody or group of chords that conforms to a single scale or key.

To illustrate this, see the C major scale below. Whether you studied music or not, youÕve no doubt heard it somewhere and could probably sing it from memory.

A diatonic, correct harmony could be shown by simply taking all the notes in this scale and moving them up one line on the staff. Notice in the example below of a 3rd above harmony that the harmony notes shown in grey belong to the scale.

If any of the harmony notes were sharped or flatted they would fall outside this particular scale and would not be diatonic. This theory holds for all of the different types of scales such as major, minor, diminished, augmented and wholetone.

The opposite of a diatonic harmony is chromatic. A chromatic scale is defined as:

a scale type that uses all 12 semitones.

Notice that the previous scale example had 8 notes. The chromatic scale uses all the sharp and flat notes in between as well. There are 12 of each of the major, minor, etc. scales; there is only one chromatic scale.

To illustrate a chromatic harmony, see the following example of a chromatic 3rd above harmony on our C major scale.

The sharps show the non-scale notes. The reason for the difference is that the chromatic harmony notes stay exactly 4 semitones (a major 3rd ) above each scale note. In the diatonic example, the harmony notes varied between 3 and 4 semitones in order to stay true to the scale. The drawing below demonstrates this.

Scalic and Chordal Harmony; The Difference

Probably the toughest part of understanding harmony is pinpointing the difference between the Scalic and Chordal harmony types. There are many of each type of preset in the Vocalist Workstation EX that, by trial and error, you have found useful yet not fully understood why. LetÕs try to clear that up.

The practical difference could be summed up in a couple of sentences:

1. Scalic Harmony usually requires you to enter the one key that works for a whole song. Scalic harmonies will sound correct in many songs but not all and this is why you have a choice between the two. Scalic harmonies are also more active in harmony motion.

2. Chordal harmony requires you to input a different chord change for every chord in a song. They can be applied to almost any song you can play.

This is only the practical difference between the two harmony types, we now need to explore the theoretical differences.

The word ÒscalicÓ has at its root the word ÒscaleÓ and this is important. To the Vocalist Workstation EX, a scale is:

Diatonic Chromatic

a group of notes within one octave that falls in one of the following scale types; Chromatic, Major, Minor, Harmonic Minor, Melodic Minor, Wholetone, Diminished, Dorian and ÒBluesÓ.

In the previous example showing the principle of diatonic harmony, we were showing a scalic harmony. That is, one whose harmony notes only fall within the notes that belong to that particular scale. For our C major scale, this means there are 7 possible harmony notes.

This is a key part of the difference between Scalic and Chordal harmonies because for every note you sing in a Chordal harmony, the Vocalist Workstation EX will choose from only three or four possible harmony notes.

These fall within the notes of designated chords and are mostly made up of the root note, third, fifth and, optionally, the seventh of a chord. These are the choices that the Vocalist Workstation EX has from which to produce a Chordal harmony. The following graphic shows where the harmony notes would fall in a simple 1 voice above Scalic and Chordal harmony.

Notice that in the Chordal example, the harmony notes jump over larger distances and are made of only the root, third and fifth of the scale.

The reason for using these different harmony types is that they create a more interesting musical experience. Most songs could benefit from either or both approaches. Depending on the chord changes in the accompaniment, the tight and always moving Scalic harmonies might be better for a catchy chorus where the more stationary and open Chordal harmonies would leave Òbreathing spaceÓ to highlight a lead vocal.

It is important to assess these for yourself by experimenting with both types in all of the styles of music you are involved with.

Scalic Harmony over C Major Scale

Chordal Harmony over C Major Scale

SPECIFICATIONS

Microphone Input Balanced XLR, 1 KOhm impedance, cardoid (directional) type preferred Line Input Balanced or unbalanced 1/4" TRS, +4/-10 dB level (switchable), 2.2

KOhm impedance

Microphone Input Range @ 150 Ohm source impedance: minimum -42.1 dBu, maximum -3.2 dBu Line Input Range Balanced input @ 50 Ohm source impedance: maximum +18.0 dBu Line Outputs Balanced or unbalanced 1/4" TRS, stereo or mono, +4 dBu (can be

reduced by trimming Output Level fader)

Maximum output level +16 dBu

Sampling A/D: 18 bit @ 48 KHz Frequency Response (dry) 15 Hz to 20 KHz, +0/-1 dB Signal to Noise >92 dB ÒAÓ weighted Total Harmonic Distortion 0.032%

+ Noise

Power Requirements Input voltage = 9.75 VDC

Input current = 820 mA

Use only Harmon Pro Group PS750 adaptor or exact equivalent

Size 6.6" H x 10.5" W x 1.7" D

167 mm H x 267 mm W x 43 mm D

Weight 1.5 lb.

.7 kg.

Internal Lithium Battery Sony CR2032

Note: The lithium battery in the Vocalist Workstation EX keeps a portion of the memory powered to retain user settings. If you find that user programs or songs cannot be stored, or are lost when the Workstation is turned off, this may be due to a dead battery. Take the Workstation to a DigiTech dealer or service centre to have the battery replaced. In normal use, a battery should last three to five years.

Note Number

Vocoder & Pitch Correct

Key&Harmony Select, Vocoder

Basic Channel

Default Channel

Default Messages Altered

True Voice

Mode

Velocity Note ON

Note OFF

Function... Transmitted

MIDI Implementation Chart

Recognized Remarks

After Touch

Key's Ch's

Pitch Bender

Control Change

Prog Change

True # System Exclusive System

Common

:Song Pos

:Song Sel

:Tune System

Real Time

:Clock

:Commands Aux

Messages

:Local ON/OFF :All Notes Off :Active Sense :Reset

Notes

Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO

O : Yes X : No

1-4 1-4

1-16 1-16

0-127

1-128 1-128

0-127

24-102

Memorized

X X

Mode 3

X O Vocoder Scooping XX XX

Up to ±12 SemitonesXO

XO OO OO OO XX

Mappable

See Details On Following Pages

OO XX

XX XX

XX XX XX XX

******** ********

& Pitch Correct, Song Step

*1: Channel Pressure and CCs 0-15, 20-63, 65-119 are available for mapping to control volume, detune, vibrato depth, vibrato rate and harmony hold.

IVL Technologies Vocalist Workstation EX

Date: February 1998

Version: 1.10

CC Assignment Map *1

Key & Harmony Select

Song Step Forward

Song Step Backward

Reserved for Future Use

Damper Pedal

MIDI MESSAGES

MIDI PARAMETER EDIT format: Example:

procedure number 60h 60 effect number 01 style number 01 parm number 01 value MSB (0,0,0,0,0,0,value lo.7,value hi.7) 00 value hi (6-0 bits) 00 value lo (6-0 bits) 10

Example:

F0 00 00 10 00 36 60 01 01 01 00 00 10 F7

; parm edit effect 1, detune, parm 1, Packed value

MIDI SysEx Message Format:

F0 00 00 10

00 36 60 01 01 01 00 00 10 F7

Universal DOD SysEx Vocal- Value End SysEx Manuf. Chan- Iist Work- Parm of Header ID nel station EX ID Edit Message

MIDI QUERY: QUERY format:

procedure number 5Eh query type (0=front panel, 1=edit buffer)

Example:

F0 00 00 10 00 36 5E 00 F7; SYSEX query (front panel) F0 00 00 10 00 36 5E 01 F7; edit buffer

MIDI QUERY: RESPONSE format depends on the query type

format (front panel) :

procedure number 5Dh PACKED { query type (0=front panel) data size hi (00h) data size lo (56h) character set (1 byte) LCD buffer (80 bytes) levels .7-.4 return levels .7-.4 input levels LED state (2 bytes) .1=bypass .2=factory .3=user .4=song .5=utility

.6=edit }

format (edit buffer) :

procedure number 5Dh PACKED { query type (1=edit buffer) data size hi data size lo data }

Example:

F0 00 00 10 00 36 5D ... packed data ... F7 ; SYSEX query response

DEVICE INQUIRY: QUERY format:

procedure number 7Eh (universal system exclusive non real time header)

channel number xx (with 7FH, device responds no matter what sys chan)

general info id 06 device inquiry message id 01

Example:

F0 7E 7F 06 01 F7

DEVICE INQUIRY: RESPONSE format:

procedure number 7Dh (universal system exclusive

non real time header)

channel number xx general info id: 06 device id response message: 02 manufactures id: 00 00 10 (DOD Electronics) device family code (36h,00) device member code (00, 00) software version id (integer, fraction, 0, 0)

Example:

F0 7E xx 06 02 00 00 10 36 00 00 00 02 01 00 00 F7 ; Vocalist Workstation EX 1.0

MIDI EDIT BUFFER EDIT format:

procedure number 5Ch PACKED { edit buffer data }

Example:

F0 00 00 10 00 36 5C ... packed edit buffer data ... F7 ; edit buffer edit

MIDI KEY PRESS format:

procedure number 5Fh switch type

(4=switch, 5=control abs, 6=control inc, 7=control dec) switch number value (7th bit) value (6-0 bits)

Example:

F0 00 00 10 00 36 5F 06 04 00 01 F7 ; rotenc inc 1 F0 00 00 10 00 36 5F 04 14 00 01 F7 ; edit on F0 00 00 10 00 36 5F 05 03 00 00 F7 ; soft key 0

PACKED BYTES OPERATION:

MIDI data is transmitted in a packed data format. The packing format groups the 8-byte data into 7 bytes. The most significant bits of the next 7 data bytes are sent first then the 7 bytes with the most significant bit removed are sent. On receiving the data, the data can be retrieved by combining the most significant bit with the corresponding lower bits.

MIDI sysex data format reserves the most significant bit to indicate status bytes.

Sending data via MIDI sysex must clear the most significant bit, but this changes the data value, so the data must be packed so information is not lost.

byte 1 : MSB byte data 1 bit 7 in msb.0 data 2 bit 7 in msb.1 data 3 bit 7 in msb.2 data 4 bit 7 in msb.3 data 5 bit 7 in msb.4 data 6 bit 7 in msb.5 data 7 bit 7 in msb.6

byte 2 : data 1 byte (6-0 bits) byte 3 : data 2 byte (6-0 bits) byte 4 : data 3 byte (6-0 bits) byte 5 : data 4 byte (6-0 bits) byte 6 : data 5 byte (6-0 bits) byte 7 : data 6 byte (6-0 bits) byte 8 : data 7 byte (6-0 bits)

Example:

To represent the value 131, convert to hexadecimal (hex) 131 decimal = 0083 hex * Group the hex value into two pairs: 00 83 Translate each number into binary 0,0 hex = 0000,0000 binary 8,3 hex = 1000,0011 binary result: 0000,0000 1000,0011 Remove the most significant bits (MSB) - the leading

numerals - and make them zeros result: 0

000,0000 0000,0011 removed 0 & 1 Convert back to hex - result: 00, 03 Take the MSBs that were removed, (0 and 1 in this exam-

ple) and put them into binary byte: result: 0000,0001 Convert to hex - result: 01 Add this byte before the other two Final result: 131 decimal = 01,00,03 packed

Example 2:

To represent the value -50, convert to hexadecimal (hex)

-50 decimal = FFCE hex Group the hex value into two pairs: ff ce Translate each number into binary F,F hex = 1111,1111 binary C,E hex = 1100,1110 binary binary result: 1111,1111 1100,1110 Remove the most significant bits (MSB) - the leading

numerals - and make them zeros result: 0111,1111 0100,1110 removed 1 & 1 Convert back to hex - result: 7F, 4E Take the MSBs that were removed, (1 and 1 in this exam-

ple) and put them into binary byte: result: 0000,0011 Convert to hex - result: 03 Add this byte before the other two Final result: -50 decimal = 03,7F,4E packed

* Note: The Calculator applet included with Microsoft Windows

has Hex conversion functions.

{

F0h - Beginning of SYSEX Message 00h 00h 10h - DigiTech Product Identifier xxh - Channel # 36h - Vocalist Workstation EX Device ID 42h - Procedure number (Dump 1 Program)

{

1bh - number of styles

{

Style ID Style Version (see note #2 below)

{

# of data bytes = xxh style data bytes

{

F7h - End of SYSEX Message

NOTES:

1) The data enclosed by the dotted line is transmitted in 8 / 7 bit-packed format, e.g. MSbits byte followed by n ≤ 7 data bytes with MSbits cleared.

SYSEX Header

(7 bytes)

Number of Styles

(1 byte)

Style Header

(2 bytes)

Style Data

(xx bytes)

EOX

Repeated for total number of Styles (see note #2)

MIDI SYSEX Dump 1 Vocalist Workstation EX Program Formats

see note #1 below

2) Dump 1 Style List Order: PS4preset style

PS4EFFECT stytle detune style vibrato style time style (time OFF) scoop style mix style timbre style variation style custharmony style variation style custharmony style variation style custharmony style variation style

custharmony style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style REVERBEFFECT style REVERB style REVERBMIX style

{

F0h - Beginning of SYSEX Message 00h 00h 10h - DigiTech Product Identifier xxh - Channel # 35h - Vocalist Workstation 1.0 Device ID 42h - Procedure number (Dump 1 Program)

{

1bh - number of styles

{

Style ID Style Version (see note #2 below)

{

# of data bytes = xxh style data bytes

{

F7h - End of SYSEX Message

NOTES:

1) The data enclosed by the dotted line

is transmitted in 8 / 7 bit-packed format, e.g. MSbits byte followed by n ≤ 7 data bytes with MSbits cleared.

SYSEX Header

(7 bytes)

Number of Styles

(1 byte)

Style Header

(2 bytes)

Style Data

(xx bytes)

EOX

Repeated for total number of Styles (see note #2)

MIDI SYSEX Dump 1 Vocalist Workstation (non-EX version) Program Formats

see note #1 below

2) Dump 1 Style List Order: PS4preset style

{

F0h - Beginning of SYSEX Message 00h 00h 10h - DigiTech Product Identifier xxh - Channel # 36h - Vocalist Workstation EX Device ID 42h - Procedure number (Dump 1 Program)

{

1 - number of styles (dumped one Style at a

{

Style ID Style Version (see note #2 below) Number of Factory Styles (2 bytes) Number of User Styles (2 bytes)

{

# of data bytes = xxh style data bytes

{

F7h - End of SYSEX Message

NOTES:

1) The data enclosed by the dotted line is transmitted in 8 / 7 bit-packed format, e.g. MSbits byte followed by n ≤ 7 data bytes with MSbits cleared.

SYSEX Header

(7 bytes)

Number of Styles

(1 byte)

Style Header

(2 bytes)

Style Data

(xx bytes)

EOX

Repeated for total number of Styles (see note #2)

MIDI SYSEX Dump All Vocalist Workstation EX Program Formats

see note #1 below

2) Dump All Programs Style Order: PS4preset style PS4EFFECT stytle detune style variation style custharmony style vibrato style time style timbre style scoop style mix style REVERBEFFECT style REVERB style REVERBMIX style

Repeated for total number of data blocks

{

F0h - Beginning of SYSEX Message 00h 00h 10h - DigiTech Product Identifier xxh - Channel # 24h - Studio Vocalist Device ID 42h - Procedure number (Dump 1 Program)

{

18h - number of styles

{

Style ID Style Version

{

# of data bytes = xxh style data bytes

{

F7h - End of SYSEX Message

NOTES:

1) The data enclosed by the dotted line is transmitted in 8 / 7 bit-packed format, e.g. MSbits byte followed by n ≤ 7 data bytes with MSbits cleared.

SYSEX Header

(7 bytes)

Number of Styles

(1 byte)

Style Header

(2 bytes)

Style Data

(xx bytes)

EOX

Repeated for total number of Styles (see note #2)

MIDI SYSEX Dump 1 Studio Vocalist Program Formats

see note #1 below

2) Dump 1 Style List Order: PS4preset style PS4EFFECT stytle detune style vibrato style time style (time OFF) scoop style mix style timbre style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style variation style custharmony style

MIDI Sysex Parameters

PARAMETER EDITS

PROGRAM EFFECT STYLE: (EFFECT: 1 STYLE: 0)

0 detune index 0 to 16 1 vibrato index 0 to 20 2 protected 3 scoop index 0 to 17 4 protected 5 gender index 0 to 50 6 variation 0 index 0 to 381 (2 bytes) 7 variation 1 index 0 to 381 (2 bytes) 8 variation 2 index 0 to 381 (2 bytes) 9 variation 3 index 0 to 381 (2 bytes) 10 variation 4 index 0 to 381 (2 bytes) 11 variation 5 index 0 to 381 (2 bytes) 12 variation 6 index 0 to 381 (2 bytes) 13 variation 7 index 0 to 381 (2 bytes)

DETUNE STYLE: (EFFECT: 1 STYLE: 1)

0 protected 1 amount 0 -100 to 100 2 amount 1 -100 to 100 3 amount 2 -100 to 100 4 amount 3 -100 to 100 5 random 0 0 to 25 6 random 1 0 to 25 7 random 2 0 to 25 8 random 3 0 to 25 9 pitch randomize 0=off, 1=low, 2=med, 3=high

VIBRATO STYLE: (EFFECT: 1 STYLE: 2)

0 protected 1 type 0 0=sine, 1=sqr, 2=saw 1, 3=saw 2 2 type 1 0=sine, 1=sqr, 2=saw 1, 3=saw 2 3 type 2 0=sine, 1=sqr, 2=saw 1, 3=saw 2 4 type 3 0=sine, 1=sqr, 2=saw 1, 3=saw 2 5 depth 0 0 to 100 (for 0 to +/- 100) 6 depth 1 0 to 100 (for 0 to +/- 100) 7 depth 2 0 to 100 (for 0 to +/- 100) 8 depth 3 0 to 100 (for 0 to +/- 100) 9 rate 0 0 to 99 (for 0 to 9.9) 10 rate 1 0 to 99 (for 0 to 9.9) 11 rate 2 0 to 99 (for 0 to 9.9) 12 rate 3 0 to 99 (for 0 to 9.9)

13 delay 0 0 to 250 (for 0 to 2.50) 14 delay 1 0 to 250 (for 0 to 2.50) 15 delay 2 0 to 250 (for 0 to 2.50) 16 delay 3 0 to 250 (for 0 to 2.50) 17 random 0 0 to 10 18 random 1 0 to 10 19 random 2 0 to 10 20 random 3 0 to 10

SCOOP STYLE: (EFFECT: 1 STYLE: 4)

0 protected 1 rate 0 0 to 10 2 rate 1 0 to 10 3 rate 2 0 to 10 4 rate 3 0 to 10 5 amount 0 0 to 90 (for 0 to 900) 6 amount 1 0 to 90 (for 0 to 900) 7 amount 2 0 to 90 (for 0 to 900) 8 amount 3 0 to 90 (for 0 to 900) 9 scoop occurrence 0 to 100 10 velocity threshold 0 to 127, -1=off

MIX STYLE: (EFFECT: 1 STYLE: 5)

0 wet 0 to 100 1 dry 0 to 100 2 voice 0 -40 to 0, -41=off 3 voice 1 -40 to 0, -41=off 4 voice 2 -40 to 0, -41=off 5 voice 3 -40 to 0, -41=off 6 pan 0 0 to 100 7 pan 1 0 to 100 8 pan 2 0 to 100 9 pan 3 0 to 100 10 pan dry 0 to 100 11 aux 0 -40 to 0, -41=off 12 aux 1 -40 to 0, -41=off

GENDER STYLE: (EFFECT: 1 STYLE: 6)

0 protected 1 assign 0 0 to 1 (for 1 to 2) 2 assign 1 0 to 1 (for 1 to 2) 3 assign 2 0 to 1 (for 1 to 2) 4 assign 3 0 to 1 (for 1 to 2) 5 TIMBRE shift 0 -50 to 50 6 TIMBRE shift 1 -50 to 50

VARIATION STYLE: (EFFECT: 1 STYLES: 7-14) Style 7 = Variation 0 Style 8 = Variation 2

and so on up to Style 14 = Variation 7

0 protected 1 harmony type 0=Chromatic, 1=Scalic, 2=Chordal,

3=Vocoder, 4=PitchCorr 2 protected 3 scale type 0=Major, 1=Minor, 2=Whole,

3=Dimin, 4=Blues, 5=Dorian,

6=HarMin, 7=MelMin 4 chord type 0=maj, 1=maj7, 2=min, 3=min7,

4=dom7, 5=m7b5, 6=dim7,

7=aug7, 8=sus, 9=sus7 5 interval 0 1 to maximum valid interval 6 interval 1 1 to maximum valid interval 7 interval 2 1 to maximum valid interval 8 interval 3 1 to maximum valid interval 9 chordal harm motion 0=normal, 1=fixed 10 smooth bend 0=smooth, 1=stepped 11 pitch bend range 0 to 12 (for 0 to +/- 12) 12 vocoder mode 0=1 Voice, 1=1 Voice Layered,

2=2 Voice, 3=2 Voice Layered,

4=3 Voice, 5=4 Voice, 6=4 MIDI

Channels 13 vocoder transpose octave -3 to 3, 4 auto 14 portamento rate 0 to 10

REVERB EFFECT STYLE: (EFFECT: 2 STYLE: 0)

0 reverb index

1 protected

REVERB STYLE: (EFFECT: 2 STYLE: 1)

0 protected

1 enable 0, 1 2 room type 1 to 5 3 decay time 0 to 9 dependent on room type 4 brightness 0 to 9, 0 = dark, 9 = bright 5 HF rolloff 0 to 17, 17 = flat

REVERB MIX STYLE: (EFFECT: 2 STYLE: 2)

0 harmony reverb wet 0 to 100, total of wet + dry =100

1 harmony reverb dry 0 to 100 " 2 lead reverb wet 0 to 100 " 3 lead reverb dry 0 to 100 "

GLOBAL STYLE: (EFFECT: 15 STYLE: 0)

0 protected 1 protected 2 protected 3 protected 4 protected 5 KeyRoot (C) 0 to 11

6 protected 7 bypass (off) 0=ON, 1=OFF 8 protected 9 interval display type 0=Notes, 1= SemiTones 10 protected 11 protected 12 protected 14 lcd contrast 0 to 7, 7=High 15 protected 16 timbre split point 128 to 129 17 MIDI KVS channel 0 to 15, 16=omni, 17=off 18 MIDI system channel 0 to 15, 16=omni, 17=off 19 MIDI Voc channel 2 0 to 15, 16=omni, 17=off 20 MIDI Voc channel 3 0 to 15, 16=omni, 17=off 21 MIDI Voc channel 4 0 to 15, 16=omni, 17=off 22 MIDI current CCmap idx 0=volume, 1=detune,

2=vibdepth, 3=vib rate, 4=harmhold

23 MIDI current CCparm 0 to 15, 20 to 119,

120=aftch, 121=none 24 MIDI current CCpol 0=-, 1=+ 25 MIDI KVS mode 0=program change, 1=notes,

2=chords and CC 16 26 MIDI KVS comm 0=off, 1=receive, 2=transmit,

3=receive + transmit 27 MIDI KVS splitdir 0=below, 1=above 28 MIDI KVS splitpoint 0 to 127 29 MIDI current PCmap idx 0 to 127 30 MIDI current PCprog 0 to 197, 198=bypass,

199=none 31 MIDI current PCprog name 0..197 32 MIDI PC comm 0=off,1=receive, 2=transmit,

3=receive + transmit 33 MIDI current SSmap idx 0 to 127 34 MIDI current SSsong 0 to 127, 128=none 35 MIDI current SSsong name 0 to 127 36 MIDI SS comm 0=off, 1=receive, 2=transmit

3=receive + transmit 37 MIDI SongStep fwd -1=CC 17, 0 to 127 38 MIDI SongStep back -1=CC 18, 0 to 127 39 MIDI SongStep comm 0=off, 1=receive, 2=transmit,

3=receive + transmit 40 MIDI Voc splitdir 0=below, 1=above 41 MIDI Voc splitpoint 0 to 127 42 AUDIO harm gate -60=off, -59 to -20 43 AUDIO bass reject 1 to 10 44 AUDIO ess sens 1 to 10

45 AUDIO feedback 1 to 10 46 AUDIO tuningref -100 to 100 47 AUDIO synthmode 0=OFF, 1=ON-25

47 AUDIO synthmode 0=OFF, 1=ON 48 AUDIO synthvolume -24 to 0 49 protected 50 USER uservoiceedit 0=OFF, 1=ON 51 USER footsw1 0=BypL, 1=BypM,

2=Pgm down, 3=Pgm up, 4=Sng down, 5=Sng up, 6=Stp down, 7=Stp up, 8=Dat down, 9=Dat up

52 USER footsw2 0=BypL, 1=BypM,

2=Pgm down, 3=Pgm up, 4=Sng down, 5=Sng up, 6=Stp down, 7=Stp up, 8=Dat down, 9=Dat up

53 USER footsw3 0=BypL, 1=BypM,

2=Pgm down, 3=Pgm up, 4=Sng down, 5=Sng up, 6=Stp down, 7=Stp up, 8=Dat down,

9=Dat up 54 protected 55 custharmony interval 0 1 to maximum valid interval 56 custharmony interval 1 1 to maximum valid interval 57 custharmony interval 2 1 to maximum valid interval 58 custharmony interval 3 1 to maximum valid interval 59 protected 60 protected 61 protected 62 protected 63 protected 64 protected 65 protected 66 protected 67 protected 68 protected 69 protected 69 protected 70 protected 71 protected 72 protected 73 protected

BUTTON PRESS

switch 4 for key press which are

on/off values

control absolute 5 for key press with a value control relative inc 6 for key press with a relative

increment value

control relative dec 7 for key press with a relative

decrement value

CONTROLLER SWITCHES AVAILABLE THRU MIDI SYSEX

1 NOTE KEY use controller absolute and note key

values

2 ARROW controller increment (right arrow)

controller decrement (left arrow)

3 SOFT use controller absolute and soft key

values 4 ROTENC use controller increment / decrement 10 SUNGNOTE use controller absolute and note key

values

SWITCHES WHICH ONLY HAVE ON/OFF VALUES

16 BYPASS KEY 17 BYPASS KEYM 18 STORE 19 EXIT 20 EDIT 22 SONG 23 UTILITY 28 FACTORY 29 USER

NOTE KEY VALUES

0C 1C# 2D 3D# 4E 5F 6F# 7G 8G# 9A 10 A# 11 B

SOFT KEY VALUES

in the order they appear

0246 1357

Decimal / Hexadecimal /Binary

Table

Decimal Hexadecimal Binary

0 0 0000 1 1 0001 2 2 0010 3 3 0011 4 4 0100 5 5 0101 6 6 0110 7 7 0111 8 8 1000 9 9 1001 10 A 1010 11 B 1011 12 C 1100 13 D 1101 14 E 1110 15 F 1111 16 10 0001,0000 17 11 0001,0001 18 12 0001,0010 19 13 0001,0011 20 14 0001,0100 21 15 0001,0101 22 16 0001,0110 23 17 0001,0111 24 18 0001,1000 25 19 0001,1001 26 1A 0001,1010 27 1B 0001,1011 28 1C 0001,1100 29 1D 0001,1101 30 1E 0001,1110 31 1F 0001,1111 32 20 0002,0000 33 21 0002,0001 34 22 0002,0010 35 23 0002,0011 36 24 0002,0100 37 25 0002,0101 38 26 0002,0110 39 27 0002,0111 40 28 0002,1000

Decimal / Hexadecimal /Packed Bytes T able

Decimal Hexadecimal Packed

-100 FF9C 03 7F 1C

-50 FFCE 03 7F 4E

-25 FFE7 03 7F 67

-10 FFF6 03 7F 76

-5 FFFB 03 7F 7B

-2 FFFE 03 7F 7E

-1 FFFF 03 7F 7F 0 0000 00 00 00 1 0001 00 00 01 2 0002 00 00 02 5 0005 00 00 05 10 000A 00 00 0A 25 0019 00 00 19 50 0032 00 00 32 100 0064 00 00 64 150 0096 01 00 16 200 00C8 01 00 48

8760 South Sandy Parkway

Sandy, Utah, 84070

Telephone (801) 566-8800

Fax (801) 566-7005

International Distribution: 7 Farmington Road

Amherst, New Hampshire 03031 U.S.A.

Fax (603) 672-4246

DigiTech is a registered trademark of DOD

Electronics Corporation

DOD Electronics Corporation

Vocalist Workstation EX 1.2

18-2193-B

DigiTech VOCALISTWEX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
