Outdoor UHF/VHF TV Antenna
with Rotating Motor
Instruction Manual
Distributed by:
Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
www.electusdistribution.com.au
Made in China
TV2

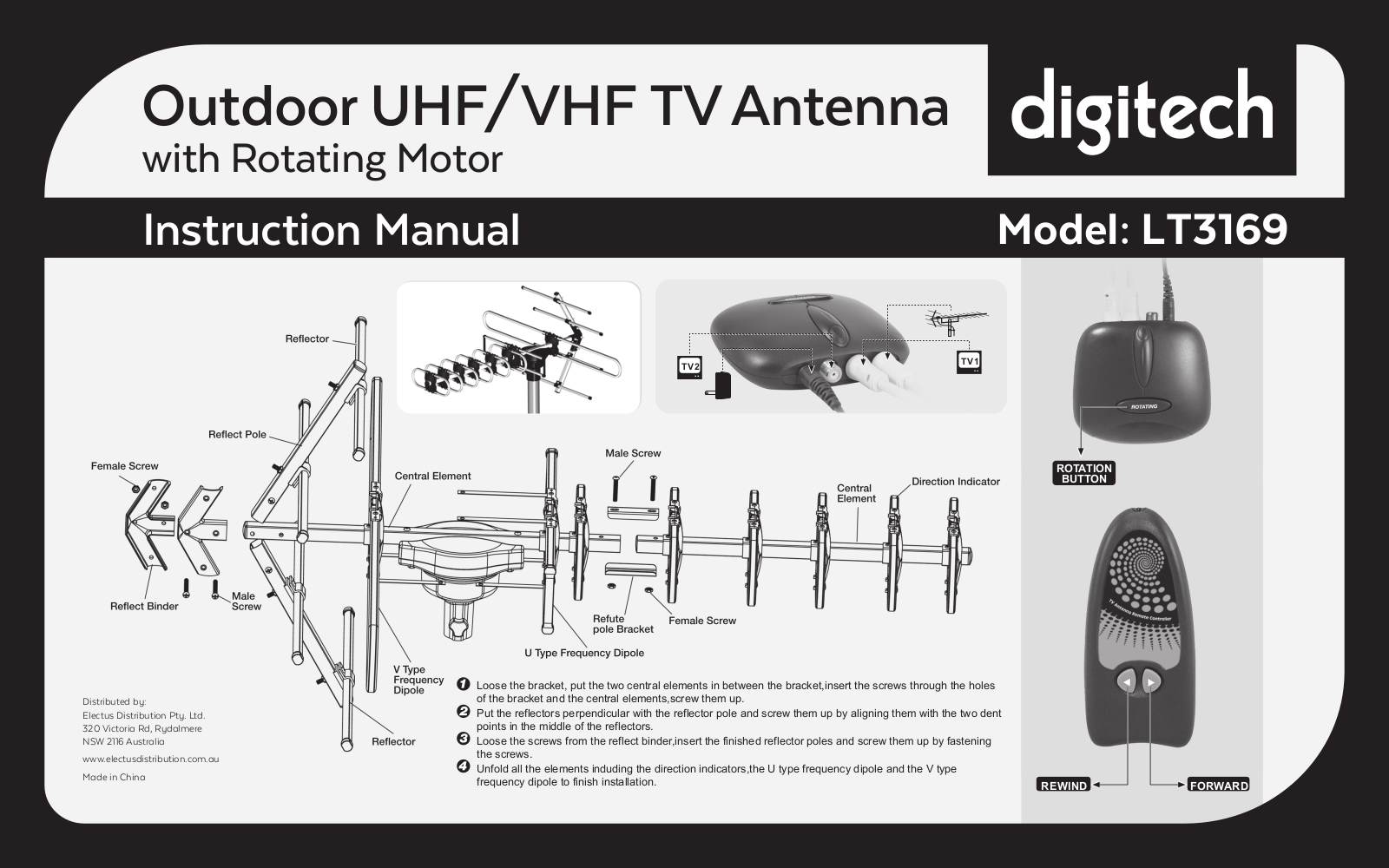

Loose the bracket, put the two central elements in between the bracket,insert the screws through the holes
of the bracket and the central elements,screw them up.
Put the reflectors perpendicular with the reflector pole and screw them up by aligning them with the two dent
points in the middle of the reflectors.
Loose the screws from the reflect binder,insert the finished reflector poles and screw them up by fastening
the screws.
Unfold all the elements induding the direction indicators,the U type frequency dipole and the V type
frequency dipole to finish installation.
TV1
Model: LT3169
ROTATION
BUTTON
REWIND
FORWARD
