UNVENTED (VENT-FREE) GAS LOG HEATER

OWNER’S OPERATION AND INSTALLATION MANUAL

For more information, visit www.desatech.com

("A" Models) 18", 24", and 30"

Remote-Ready

(“C” Models) 18", 24", and 30"

Variable Manually-Controlled

Remote-Ready and Variable Manually-Controlled Models

Also Design-Certified As Vented Decorative Appliances

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed

by a qualified installer, service agency, or the gas supplier.

PILOT OFF HI

(“B” Models) 18", 24", and 30"

Thermostatically-Controlled

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built fireplace, or in an approved ventless firebox. It is designcertified for these installations in accordance with ANSI Z21.11.2. Exception: Do not install this appliance in a factory-built fireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Air for Combustion and Ventilation

section on page 4 of this manual.

This appliance may be installed in an aftermarket,* manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

TABLE OF CONTENTS SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 3

OPTIONAL REMOTE CONTROL ACCESSORIES .................... 4

LOCAL CODES........................................................................... 4

UNPACKING............................................................................... 4

PRODUCT FEATURES .............................................................. 4

AIR FOR COMBUSTION AND VENTILATION ........................... 4

INSTALLATION ........................................................................... 7

OPERATING HEATER.............................................................. 16

INSPECTING BURNERS.......................................................... 22

CLEANING AND MAINTENANCE ............................................ 23

SAFETY INFORMATION

TROUBLESHOOTING .............................................................. 24

OPTIONAL POSITIONING OF

THERMOSTAT SENSING BULB ........................................... 27

SPECIFICATIONS .................................................................... 28

WIRING DIAGRAM ................................................................... 29

SERVICE HINTS....................................................................... 29

TECHNICAL SERVICE ............................................................. 29

REPLACEMENT PARTS .......................................................... 29

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 30

ACCESSORIES ........................................................................ 36

WARRANTY INFORMATION...................................... Back Cover

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and propane/LP gases are

odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls

can be dangerous.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the hand-held remote accessory (Remote-Ready Models Only), keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

For more information, visit www.desatech.com

104415

SAFETY INFORMATION

Continued

SAFETY INFORMATION

PRODUCT IDENTIFICATION

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

4. This heater shall not be installed in a bedroom or bathroom, unless installed as a vented appliance. See Installing Damper Clamp Accessory for Vented Operation, page 10 (RemoteReady and Variable Manually-Controlled Models Only).

5. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, repair flue damper before operating heater.

6. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

7. To prevent the creation of soot, follow the instructions in Clean- ing and Maintenance, page 23.

8. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls and furniture.

9. This heater needs fresh, outside air ventilation to run properly . This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if enough fresh air is not available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, see Trouble- shooting, pages 24 through 26.

10. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

11. Do not use this heater to cook food or burn paper or other objects.

12. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

13. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

14. Turn heater off and let cool before servicing, installing, or repairing. Make sure the selector switch is in the OFF position (Remote-Ready Models Only). Only a qualified service person should install, service, or repair heater.

15. Make sure the selector switch is in the OFF position when you are away from home for long periods of time (Remote-Ready Models Only).

16. Remote-Ready heaters do not to be connected to any external electrical source.

17. Operating heater above elevations of 4,500 feet may cause pilot outage.

18. T o prevent performance problems, do not use propane/LP fuel tank of less than 100 lb. capacity (propane/LP units only).

19. Provide adequate clearances around air openings.

PRODUCT IDENTIFICATION

Crossover Log

Rear Log

Front Log

Piezo Ignitor

Front Burner

Control Knob

Front Burner

Front Log

Piezo Ignitor

Remote Control (Optional)

W A

R M

E R

C O

R A U

N O F

Control Knob

Flame Adjustment Knob

Selector Switch (Optional)

Figure 1 - Product Identification

Crossover Log

Rear Burner

Middle Log

Base Assembly

Rear Log

Rear Burner

Middle Log

Base Assembly

104415

For more information, visit www.desatech.com

OPTIONAL REMOTE CONTROL ACCESSORIES LOCAL CODES

UNPACKING PRODUCT FEATURES AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation

OPTIONAL REMOTE CONTROL ACCESSORIES

There are four optional remote controls that can be purchased separately for Remote-Ready Models Only:

• wall switch • hand-held ON/OFF remote

• wall thermostat • hand-held thermostat remote. See Accessories, page 36.

The wall thermostat or hand-held thermostat may not be used where vented decorative listing is required.

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Note:

Where listed vented decorative logs are required, thermostat

operation is not permitted.

UNPACKING

CAUTION: Do not remove the metal data plates from the grate assembly. The data plates contain important warranty and safety information.

1. Remove logs and heater base assembly from carton. not pick up heater base assembly by burners. This could damage heater. Always handle base assembly by grate.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

Note:

PRODUCT FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing coals. This heater is designed for ventfree operation with flue damper closed. It has been tested and approved to ANSI Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters. This heater may also be operated as a vented decorative (ANSI Z21.60) product by opening the flue damper (Non-Thermostat Models Only).

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for ventfree room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will help you classify your

space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

For more information, visit www.desatech.com

104415

AIR FOR COMBUSTION AND VENTILATION

Continued

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation (Cont.)

Determining Fresh-Air Flow for Heater Location

Unusually tight construction is defined as construction where:

a. walls and ceilings e xposed to the outside atmosphere

have a continuous water vapor retar der with a rating of one perm (6 x 10 openings gasketed or sealed

-11

kg per pa-sec-m2) or less with

and

b. weather stripping has been added on openable win-

dows and doors

and

c. caulking or sealants are applied to areas such as

joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must pro vide additional fresh air . See

Air From Outdoors

, page 6

Ventilation

If your home does not meet all of the three criteria above, proceed to

tion,

Determining Fresh-Air Flow For Heater Loca-

below.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining

rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height =___________ cu. ft. (volume of space)

Example:

height) = 2560 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or open-

ings, add the volume of these rooms to the total volume of the space.

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maximum Btu/Hr the space

can support)

Example:

Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

__________________ Btu/Hr (maximum the space can support) __________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/ Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the ex-

tra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See V entilation Air Fr om Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Out-

doors, page 6.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined. If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support,

the space is an unconfined space. You will need no additional fresh air ventilation.

2560 cu. ft. (volume of space) x 20 = 51,200 (maximum

Vent-free heater _____________ Btu/Hr Gas water heater* _____________ Btu/Hr Gas furnace _____________ Btu/Hr Vented gas heater _____________ Btu/Hr Gas fireplace logs _____________ Btu/Hr Other gas appliances* + _____________ Btu/Hr Total = _____________ Btu/Hr

Example:

Gas water heater _____________ Btu/Hr Vent-free heater + _____________ Btu/Hr Total = _____________ Btu/Hr

51,200 Btu/Hr (maximum the space can support) 73,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 33,000 73,000

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

or applicable local codes

104415

For more information, visit www.desatech.com

AIR FOR COMBUSTION AND VENTILATION

Ventilation Air

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation

for required size of ventilation grills or ducts.

IMPORTANT:

attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for inlet or outlet air into

12"

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 2 - Ventilation Air from Inside Building

Outlet Air

Remove

Door into

Adjoining

Room, Option

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

To Attic

Inlet Air

Figure 3 - Ventilation Air from Outdoors

For more information, visit www.desatech.com

Crawl Space

Crawl

Space

Ventilated

104415

INSTALLATION

Check Gas Type

Installation and Clearances for Vent-Free Operation

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must in-

stall heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: Make sure the selector switch is in the OFF position before installing heater (Remote-Ready Models Only).

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney flue may create and distribute soot within the house. Inspect chimney flue for damage. If damaged, repair flue damper before operating heater.

WARNING: Seal any fresh air vents or ash cleanout doors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heatresistant sealant. Do not seal chimney flue damper.

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT:

this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, pages 4 through 6.

Vent-free heaters add moisture to the air. Although

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your unit. If your gas supply is not correct, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

INSTALLATION AND CLEARANCES FOR VENT-FREE OPERATION

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

MINIMUM FIREPLACE

CLEARANCE TO

COMBUSTIBLE MATERIALS

Log Size 18", 24", 30" Side Wall 16" Ceiling 42" Floor 5"

WARNING: Never install the heater

• in a bedroom or bathroom unless installed as a vented appliance, see page 10 (Remote-Ready and Variable Manually-Controlled Models Only)

• in a recreational vehicle

• where curtains, furniture, clothing, or other flam-

mable objects are less than 42 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

For more information, visit www.desatech.com

104415

LOG SIZING REQUIREMENTS

Minimum Firebox Size

Log Front Rear* Size Height Depth Width Width

18" 17" 14" 20" 14" 24" 17" 14" 26" 18" 30" 17" 14" 32" 22"

*Measured at 14" depth

INSTALLATION

Installation and Clearances for Vent-Free Operation (Cont.)

INSTALLATION

Continued

Carefully follow the instructions below. This will ensure safe installation into a masonry, UL127-listed manufactured fireplace, or listed vent-free firebox.

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fireplace cabinet to any combus-

tible material and wall should follow diagram in Figure 4.

Example:

combustible material and protrudes 3 combustible material must be 4" from the side of the fireplace cabinet (see Figure 4).

Note:

follow firebox manufacturer’s instructions for minimum clearances to combustible materials.

B. Clearances from the top of the fireplace opening to the ceiling

should not be less than 42 inches.

*Minimum 16 inches from Side Wall

Figure 4 - Minimum Clearance for Combustible to Wall

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed. Go to

Clamp Accessory for Vented Operation,

The face of a mantel, bookshelf, etc. is made of

/2" from the wall. This

When installing your gas logs into a manufactured firebox,

Example

Installing Damper

page 10.

noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" Models Only). See Figure 5 for minimum clearances.

If Using Mantel

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8 inches up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" Models Only). Even if noncombustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 5 and Figures 6 and 7, page 9, for minimum clearances.

IMPORTANT:

If you cannot meet these minimum clearances, you must operate heater with chimney flue damper open. Go to Install- ing Damper Clamp Accessory for Vented Operation, page 10.

Noncombustible Requirements for Material Distance (A) Safe Installation

12" or more Noncombustible material OK. Between 8" and 12" 24" or 30" Models: Install fireplace

hood accessory (GA6050, GA6052, or GA6053 see

18" Model: Noncombustible material OK.

Less than 8" Noncombustible material must be

extended to at least 8". See

8" and 12"

extend material, you must operate heater with flue damper open.

Heat Resistant Material

Accessories

, above. If you cannot

(A)

, page 36).

Between

Minimum Noncombustible Material Clearances

If Not Using Mantel

Note:

If using a mantel proceed to If Using Mantel. If not using a

mantel, follow the information on this page. You must have noncombustible material(s) above the fireplace

opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have

For more information, visit www.desatech.com

Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

104415

INSTALLATION

Hearth

5" Min.

Combustible Material

Continued

INSTALLATION

Mantel Clearances

Floor Clearances

MANTEL CLEARANCES

In addition to meeting noncombustible material clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet the clearances listed below, you will need a hood.

Determining Minimum Mantel Clearance

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 6).

Determining Minimum Mantel Clearance When Using a Hood

If minimum clearances in Figure 6 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 7 when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the flue damper open

• raise the mantel to an acceptable height

• remove the mantel

FLOOR CLEARANCES

A. If installing appliance on the floor level, you must maintain

the minimum distance of 14" to combustibles (see Figure 8).

B. If combustible materials are less than 14" to the fireplace, you

must install appliance at least 5" above the combustible flooring (see Figure 9).

Mantel Shelf

18" 14"

20" 17"

Distances to Underside of Mantel

22" 19"

Underside of Mantel Shelf

24" 20"

Top of Fireplace Opening

All minimum distances are in inches

Log Set

24"/30" Models 18" Model

Minimum NonCombustible Material

10" 8" 6"

(A)

12" 8"

Minimum NonCombustible Material Height

Figure 6 - Minimum Mantel Clearances Without Using Hood

Mantel Shelf

Underside of Mantel Shelf

12" 15" 18"

Min.

Distances to Underside of Mantel

All minimum distances are in inches

Log Sets

18", 24",

20"

& 30" Models

Top of Fireplace Opening

Minimum NonCombustible Material

12" 10" 8" 6"

Hood

Hood (GA6050, GA6052)

(GA6050, GA6052, or GA6053)

104415

Figure 7 - Minimum Mantel Clearances When Using Hood

14" Min.

Figure 8 - Minimum Fireplace Clearances If Installed at Floor Level

For more information, visit www.desatech.com

Combustible Material

Noncombustible

Non-Combustible

Material

Figure 9 - Minimum Fireplace Clearances Above Combustible Flooring

INSTALLATION

Installing Damper Clamp Accessory for Vented Operation Installing Heater Base Assembly

INSTALLATION

Continued

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

Note:

When used as a vented heater, appliance must be installed only in a solid-fuel burning fireplace with a working flue and constructed of noncombustible material.

If your heater is a manually-controlled model, you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1. The fireplace does not meet the clearance to combustibles re-

quirements for vent-free operation.

2. State or local codes do not permit vent-free operation.

3. You prefer vented operation. If reasons number 1 or 2 above apply to you, you must permanently

open chimney flue damper. You must install the damper clamp accessory (to order, see Accessories, page 36). This will insure vented operation (see Figure 10). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent flue opening you must provide. Attach damper clamp so the minimum permanent flue opening will be maintained at all times.

Area of Various Standard

Round Flues

Diameter (ins.) Area (sq. ins.)

5" 20 sq. inches 6" 29 sq. inches 7" 39 sq. inches 8" 51 sq. inches

Chimney Minimum Permanent

Height (ft.) Flue Opening (sq. ins.)

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

Damper Clamp

Damper

Masonry Fireplace

Manufactured Fireplace

Damper

INSTALLING HEATER BASE ASSEMBLY

WARNING: You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel. This will insure adequate air flow and guard against sooting. Raise fireplace floor with noncombustible material. Make sure material is secure.

CAUTION: Do not pick up heater base assembly by burners. This could damage heater. Only handle base assembly by grates.

IMPORTANT:

not level, heater will not work properly. For thermostat models, avoid damage to thermostat bulb. Avoid nicks or sharp bends in thermostat bulb wire. Keep thermostat bulb in mounting bracket.

Installation Items Needed

• hardware package (provided with heater)

• approved flexible gas hose and fittings (not provided) (if allowed by local codes)

• sealant (resistant to propane/LP gas, not provided)

• electric drill with 3/16" masonry drill bit

Note:

Install optional GHRCTA Receiver and Hand-Held Remote Control Kit (see Accessories, page 36) before installing gas log heater (Remote-Ready Models Only). See installation instructions included with the kit.

1. Apply pipe joint sealant lightly to male threads of gas fitting

(not provided). For Variable Manually-Controlled and Thermostatically-Controlled Models connect approved flexible gas hose to gas regulator of heater (see Figure 11, page 11). For Remote-Ready models connect approved flexible gas hose to inlet side of gas control (see Figure 12, page 11).

IMPORTANT:

ing flexible gas hose (V ariable Manually-Controlled and Ther mostatically-Controlled Models Only).

2. Locate mounting brackets, bolts, and nuts in hardware pack-

age (V ariable Manually-Controlled and Thermostatically-Controlled Models Only). Attach mounting brackets to heater base (see Figure 13, page 11). Attach nuts finger tight.

3. Position heater base assembly in fireplace.

Make sure the heater burners are level. If heater is

Hold gas regulator with wrench when connect-

Figure 10 - Attaching Damper Clamp

For more information, visit www.desatech.com

104415

INSTALLATION

Continued

4. For Variable Manually-Controlled and Thermostatically-Controlled Models mark screw locations through holes in mounting brackets (see Figure 13). For Remote-Ready Models mark screw locations through holes in front panel of base (see Figure 14). If installing in a brick-bottom fireplace, mark screw locations in mortar joint of bricks.

5. Remove heater base from fireplace.

6. Remove mounting brackets from heater base (Variable Manually-Controlled and Thermostatically-Controlled Models Only).

7. Drill holes at marked locations using 3/16" drill bit.

8. For Variable Manually-Controlled and Thermostatically-Controlled Models attach mounting brackets to fireplace floor using masonry screws provided in hardware package (see Figure 13). Reattach heater base to mounting brackets (see Figure 13). Tighten nuts firmly.

9. For Remote-Ready Models attach base, through holes in front panel of base, to fireplace floor using masonry screws provided in hardware package (see Figure 14).

10. Connect to gas supply. See Connecting To Gas Supply, page 12.

Installing Heater Base Assembly (Cont.)

Mounting Bracket Screw

Mounting Bracket Nut

Figure 13 - Attaching Heater to Fireplace Floor (Variable ManuallyControlled and Thermostatically-Controlled Models Only)

Masonry Screw

INSTALLATION

Masonry Screw

Mounting Bracket

Masonry Screw

Heater Gas Regulator

Flexible Gas Hose (if allowed by local codes)

Figure 11 - Attaching Flexible Gas Hose to Heater Gas Regulator (Variable Manually-Controlled and Thermostatically-Controlled Models Only)

Gas Control

Flexible Gas Hose (if allowed by local codes)

Figure 12 - Attaching Flexible Gas Hose to Heater Gas Regulator (Remote-Ready Models Only)

Figure 14 - Attaching Base to Fireplace Floor (Remote-Ready Models Only)

104415

For more information, visit www.desatech.com

INSTALLATION

Connecting To Gas Supply

INSTALLATION

Continued

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

CAUTION: Never connect propane/LP fireplace directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

WARNING: Never connect natural gas fireplace to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

Installation Items Needed

Before installing heater, make sure you have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved flexible gas line with gas connector (if allowed by local codes) (not provided)

* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 36.

For propane/LP units, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 15. Pointing the vent down protects it from freezing rain or sleet.

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figures 16 or 17 page 13, depending on your model).

IMPORTANT:

location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

WARNING: Use pipe joint sealant that is resistant

to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figures 16 or 17 page 13, depending on your model. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings (Variable Manually-Controlled and Thermostatically-Controlled Models Only).

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting it to gas piping and/or fittings (Remote-Ready Models Only).

Install equipment shutoff valve in an accessible

External Regulator Propane/LP Supply Tank

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of volume will occur.

For more information, visit www.desatech.com

Vent Pointing Down

Figure 15 - External Regulator With Vent Pointing Down

104415

INSTALLATION

Continued

Connecting to Gas Supply (Cont.)

INSTALLATION

Checking Gas Connections

CSA Design-Certified Equipment

PROPANE/LP

From External Regulator (11" W.C.** to 14" W.C. Pressure)

NATURAL

From Gas Meter (5" W.C.** to 10.5" W.C. Pressure)

Tee Cap Pipe Joint Nipple

Figure 16 - Gas Connection (Variable Manually-Controlled and Thermostatically-Controlled Models Only)

CSA Design-Certified Equipment Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

Gas Control

Figure 17 - Gas Connection (Remote-Ready Models Only)

Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

3" Minimum

Sediment Trap

3" Minimum

Pipe Cap Tee Nipple Joint

Sediment Trap

Gas Regulator

PROPANE/LP From External Regulator (11" W.C.** to 14" W.C. Pressure)

NATURAL From Gas Meter (5" W.C.** to 10.5" W.C. Pressure)

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines under

Pressure Testing gas Supply Piping system

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 18, page 14).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

3. Check all joints from gas meter to equipment shutoff valve for natural gas or propane/LP supply to equipment shutoff valve for propane/LP (see Figure 19, page 14). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Connecting to Gas Supply

, page 12.

* Purchase the optional CSA design-certified equipment shutoff valve

from your dealer. See Accessories, page 36.

**Minimum inlet pressure for purpose of input adjustment.

For more information, visit www.desatech.com

104415

INSTALLATION

Checking Gas Connections (Cont.) Installing Logs

INSTALLATION

Continued

Pressure Testing Heater Gas Connections

1. Open equipment shutoff valve (see Figure 18).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to thermostat gas valve (Thermostat-Controlled Models), to control valve (Manually-Controlled Models), or to gas control (RemoteReady Models)(see Figures 19 and 20). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, pages 16 through 21). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appliance, page 17 for Thermostat-Controlled models, page 18 for Manually-Controlled Models, or page 20 for Remote-Ready Models).

Equipment Shutoff Valve

Figure 18 - Equipment Shutoff Valve

Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 19 - Checking Gas Joints (propane/LP only)

Open

POSITION

OFF

POSITION

Closed

Thermostat Gas Valve or Control Valve Location

Equipment Shutoff Valve

Gas Meter

Figure 20 - Checking Gas Joints (Natural Gas Only)

Thermostat Gas Valve or Control Valve Location

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1. Place front log (#1 for 18", #1a and #1b for 24" and 30") on top of the grate. Make sure the notches in the bottom of the log fits over the grate prongs (see Figure 21, page 15). Push back of logs flush with metal grate bar. Logs for 24" and 30" should fit with ends touching and a small realistic crack in the center.

2. Rest middle log (#2) behind metal posts on front burner. Make sure the grooves in the bottom of the log fit over the grate. Bring the log forward next to the metal posts. The cutout in the middle log must be on top (see Figure 22, page 15).

3. Slide the grooves in the back of the rear log (#3) against the rear grate prongs. Make sure the peg on the log is on top (see Figure 23, page 15).

4. Place the crossover log (#4) on the back log and the middle log. Make sure the peg on the rear log is in the hole in the bottom of the crossover log. The crossover log should fit in the cutout of the middle log (see Figure 24, page 15).

For more information, visit www.desatech.com

104415

INSTALLATION

Continued

INSTALLATION

Installing Logs (Cont.)

Notch

Front Log (#1)

Grate Prongs

Figure 21 - Installing Front Log (#1) [18" Variable ManuallyControlled Set Shown]

Groove

Metal Post

Metal Grate Bar

Middle Log (#2)

Groove

Groove in Back of Log

Grate Prong

Rear Burner

Figure 23 - Installing Rear Log (#3) [18" Variable ManuallyControlled Set Shown]

Cutout

Peg

Rear Log (#3)

Groove in Back of Log

Grate Prong

Crossover Log (#4)

Hole

Metal Post

Figure 22 - Installing Middle Log (#2) [18" Variable ManuallyControlled Set Shown]

Note:

Your appliance may vary from model shown but log

Grate

placement will be the same.

Peg

Figure 24 - Installing Crossover Log (#4) [18" Variable ManuallyControlled Set Shown]

104415

For more information, visit www.desatech.com

OPERATING HEATER (THERMOSTAT CONTROLLED MODELS)

For Your Safety Read Before Lighting Lighting Instructions

OPERATING HEATER

THERMOSTAT-CONTROLLED MODELS

FOR YOUR SAFETY READ

BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

WARNING:

• If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Note:

Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the HI heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: Damper handle will be hot if heater has

been running.

1. STOP! Read the safety information column 1.

2. Make sure equipment shutoff valve is fully open.

3. Turn control knob clockwise

to the OFF position.

Clockwise

4. Wait five (5) minutes to clear out any gas. Then smell for

gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

5. Turn control knob counterclockwise

C-clockwise

to the PILOT position. Press in control knob for five (5) seconds (see Figure 25).

Note:

You may be running this heater for the first time after hooking up to gas supply . If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

6. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner . If needed, keep pr essing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs ar e made, light pilot with match. T o light pilot with matc h, see Manual Lighting Procedure on page 17.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 3 through 7. This heater has a safety interlock system. Wait one (1) minute for system to reset before lighting pilot again.

8. Turn control knob counterclockwise to desired heating level. The b urners should light. Set control knob to any heat level between HI and LO.

Ignitor Electrode

Thermocouple

Pilot Burner

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

For more information, visit www.desatech.com

Ignitor Button

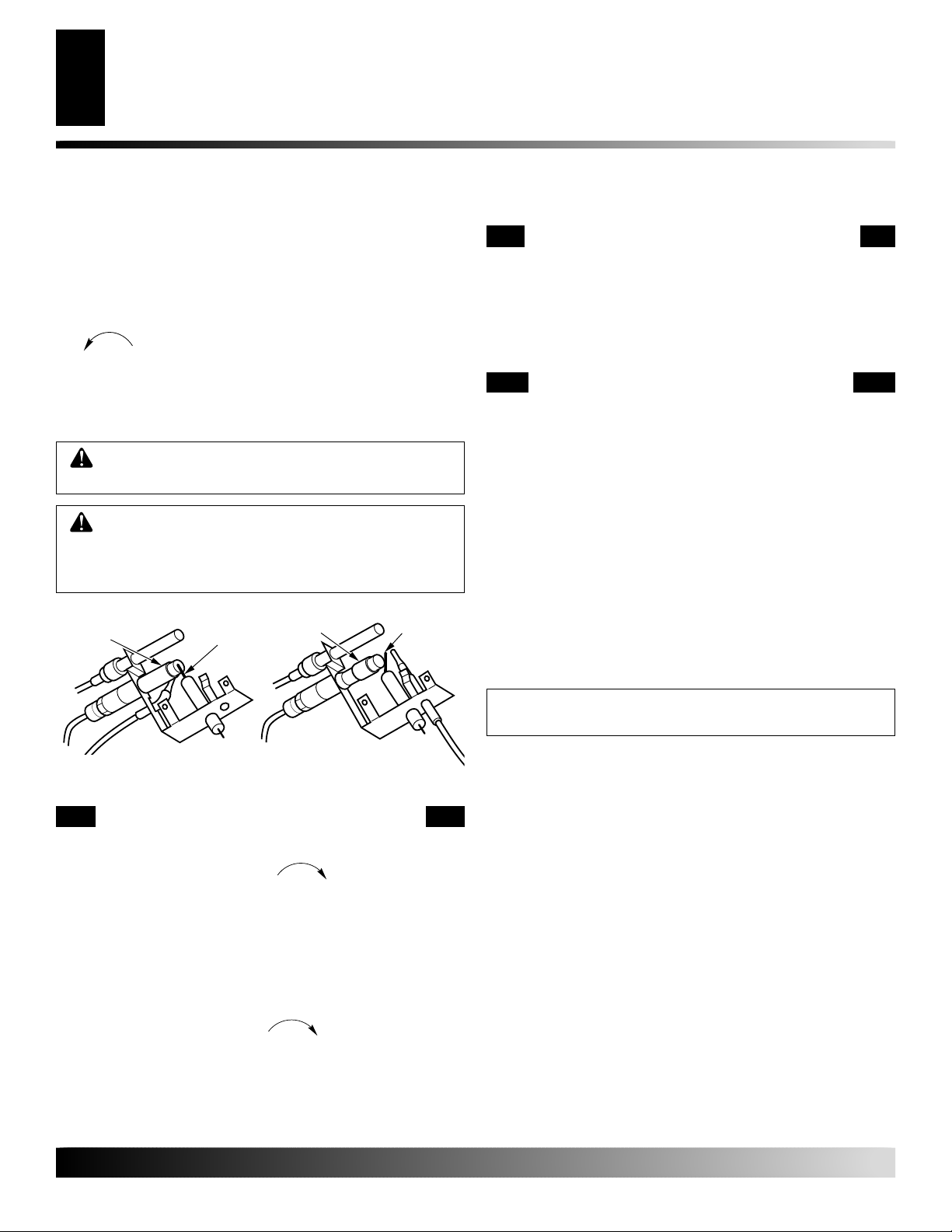

Figure 25 - Control Knob and Ignitor Button Location

Control Knob

Figure 26 - Pilot

104415

OPERATING HEATER

Continued

OPERATING HEATER (THERMOSTAT-CONTROLLED MODELS)

To Turn Gas Off To Appliance

Thermostat Control Operation

Manual Lighting Procedure

OPERATING HEATER (MANUALLY-CONTROLLED MODELS)

For Your Safety Read Before Lighting

Lighting Instructions

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

Turn control knob clockwise to the OFF position.

Shutting Off Burners Only (pilot stays lit)

Turn control knob clockwise to the PILOT position.

THERMOSTAT CONTROL

OPERATION

The thermostat control knob can be set to any comfort level between HI and LO. The thermostat will gradually modulate the heat output and flame height from higher to lower settings, or pilot, in order to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

Note:

Selecting the HI setting with the control knob will cause the

burner to remain fully on, without modulating down in most cases.

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 16.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8, page 16.

MANUALLY-CONTROLLED MODELS

FOR YOUR SAFETY READ

BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your g as supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

WARNING:

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Note:

Home owners generally prefer to operate their heater

with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the High heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

For more information, visit www.desatech.com

104415

WARNING: Damper handle will be hot if heater has

been running.

1. STOP! Read the safety information starting in column 1.

2. Make sure equipment shutoff valve is fully open.

3. Press in and turn control knob clockwise to the OFF position.

OPERATING HEATER (MANUALLY-CONTROLLED MODELS)

Lighting Instructions (Cont.) Variable Control Operation To Turn Gas Off To Appliance Manual Lighting Procedure

OPERATING HEATER (REMOTE-READY MODELS)

For Your Safety Read Before Lighting

OPERATING HEATER

Continued

4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, starting in column 1 of page 17. If you don’t smell gas, go to the next step.

5. Press in control knob and turn counter clockwise to the PILOT position. Keep control knob pressed in for five (5) seconds (see Figure 27).

Note:

You may be running this heater for the first time

after hooking up to gas supply . If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

6. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner . If needed, keep pr essing ignitor button until pilot lights.

Note:

If pilot does not light, contact a qualified service person or gas supplier for repairs. Until repairs ar e made, light pilot with match. T o light pilot with matc h, see Manual Lighting Procedure, column 2.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 3 through 7.

8. Push in and turn control knob counterclockwise

C-clockwise

to the HI position. Both burners should light. Set control knob to desired setting.

Thermocouple

Ignitor Electrode

Pilot Burner

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

1. Press in and turn control knob clockwise HI position.

2. Turn the control knob clockwise

Clockwise

position.

3. Press in control knob and turn clockwise OFF position.

to the PILOT

Clockwise

to the

Shutting Off Burners Only (pilot stays lit)

1. T urn the control knob clockwise

2. Press in and turn control knob clockwise PILOT position.

to the HI position.

Clockwise

to the

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, pages 17 and 18.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8, column 1.

REMOTE-READY MODELS

FOR YOUR SAFETY READ

BEFORE LIGHTING

Ignitor Button

Figure 27 - Control Knob and Ignitor Button Location

Control Knob

Figure 28- Pilot

VARIABLE CONTROL OPERATION

The variable control valve can be set to any heat setting and flame height desired, by simply turning the control knob until that setting is attained. Even the lowest setting provides realistic flames and glowing embers from two burners. Selecting higher settings produces greater heat output. This results in increased heating comfort.

WARNING: Do not operate heater between locked

positions.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

For more information, visit www.desatech.com

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

104415

OPERATING HEATER

Continued

OPERATING HEATER (REMOTE-READY MODELS)

For Your Safety Read Before Lighting (Cont.)

Lighting Instructions

C. Use only your hand to push in or turn the gas control knob.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

WARNING

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Note:

1. STOP! Read the safety information, starting in column 2, page 18.

2. Make sure equipment shutoff valve is fully open.

3. Set selector switch in the OFF position.

4. Press in and turn control knob clockwise to the OFF position (see Figure 29).

WARNING: Burners will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

5. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, starting in column 2, page 18. If you don’t smell gas, go to the next step.

6. Press in and turn control knob counterclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 29).

Note:

You may be running this heater for the first time after hooking up to gas supply . If so, the control knob may need to be pressed in for 30 seconds or less. This will allow air to bleed from the gas system.

7. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

WARNING: Damper handle will be hot if heater

has been running.

Control Knob

Ignitor Button

Figure 29 - Control Knob and Ignitor Button Location

For more information, visit www.desatech.com

104415

Flame Adjustment Knob

AUTO OFF ON

Selector Switch in OFF Position

OPERATING HEATER (REMOTE-READY MODELS)

Lighting Instructions (Cont.) To Turn Gas Off To Appliance Manual Lighting Procedure Optional Remote Operation

OPERATING HEATER

Continued

8. Keep control knob pr essed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 4 through 8, page 19.

9. Slightly push in and turn control knob counterclockwise

to the ON position.

10. Wait one minute and s witch selector switch to the ON position to light burners. using GWMT1 or GWMS2 optional accessories.

11. Set flame adjustment knob to any level between HI and LO.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automatically with selector switch in the ON position.

Pilot Burner

Note:

Ignitor Electrode

AUTO is only functional when

Pilot Burner

Ignitor Electrode

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, page 19.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 9 through 11, Lighting Instructions, column 1.

OPTIONAL REMOTE OPERATION

Note:

All remote control accessories must be purchased separately (see Accessories, page 36). Follow instructions included with the remote control.

Thermostat Control Operation

(Optional GHRCTA Series Only) The thermostat control setting on the remote control unit can be set to any comfort level between WARMER and COOLER. The burners will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

For wall thermostat operation, follow instruction supplied with thermostat accessory GWMT1. For wall switch operation follow instructions supplied with GWMS2.

Figure 30 - Pilot (Propane/LP)

Figure 31 - Pilot (Natural)

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

1. T ur n control knob clockwise to the OFF position. 2a. Set selector switch in the OFF position. 2b. If Using Optional Hand-Held Remote: Set selector switch

in the OFF position to prevent draining battery.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1. Tur n control knob clockwise to the PILOT position.

2. Use remote control manual OFF button.

3. Set selector switch in the OFF position.

NOTICE: You must light the pilot before using the remote control unit. See

1. After lighting, let pilot flame burn for about one minute.

Turn control knob to ON position. Adjust flame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position. may light if hand-held remote ON button was on when selector switch was last turned off. Y ou can no w turn the burners on and off with the hand-held remote control unit.

IMPORTANT:

MOTE or ON position when the pilot is not lit. This will drain the battery.

IMPORTANT:

hand-held remote control unit for up to 3 seconds to assur e proper operation.

Lighting Instructions

Do not leave the selector switch in the RE-

Be sure to press the ON/OFF buttons on the

on page 19.

Note:

The burners

For more information, visit www.desatech.com

104415

OPERATING HEATER

Continued

OPERATING HEATER (REMOTE-READY MODELS)

Optional Remote Operation (Cont.)

GHRC Series Operation:

2a. Press the ON/OFF button to turn the burners on and off.

When turning burners off, the pilot will remain lit.

GHRCTA Series Operation:

2b. Press the AUTO/ON/OFF button on the hand-held remote

control (see Figure 33). The lights to the left of the button will show AUTO, ON, or OFF.

• In the ON mode, the burners will ignite. The heater is in manual mode when ON is lit.

• In the AU TO mode, the thermostat in the hand-held remote unit controls the room temperature. To increase the room temperature, press the top arr ow of the TEMP button. To lower the room temperature, press the bottom arrow of the TEMP button. At higher settings the heater will run longer.

IMPORTANT:

neered to take an air temperature sample ev ery 5.5 minutes in the auto mode. It will not respond immediately to the temperature setting being turned up or down.

IMPORTANT:

near the heater. Do not keep the hand-held remote control unit too close to the heater. The thermostat on the handheld remote control unit will heat up too quickly and turn the heater off.

3. To turn the b urner off , press the AUTO/ON/OFF b utton until OFF lights. The pilot will remain lit.

IMPORTANT:

trol knob on the heater to the OFF position.

This remote control has been specially engi-

The hand-held remote contr ol unit must be

To turn the pilot off, manually turn the con-

Control Knob in On Position

Flame Adjustment Knob

ON OFF REMOTE

Selector Toggle Switch (Optional Remote Control)

Figure 32 - Setting the Selector switch, Control Knob, and Flame Adjustment Knob for Remote Operation

Increases Room Shows Temperature

Temperature in

AUTO Mode Setting

Decreases Room

The Log Heater will Automatically Cycle between Pilot and the Heat Setting that has been Selected

Temperature in

AUTO Mode

Turns Burners

On or Off and

Allows You to

Choose the Auto

Setting

Figure 33 - Thermostat Hand-Held Remote Control Unit Selections (GHRCTA Only)

104415

For more information, visit www.desatech.com

INSPECTING BURNERS

Pilot Flame Pattern Front Burner Flame Pattern

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 34 shows a correct pilot flame pattern. Figure 35 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 35

• turn heater off (see T o T urn Of f Gas to Appliance, page 17 [Thermostat-Controlled Models], page 18 [Manually-Controlled Models], or page 20 [Remote-Ready Models])

• see Troubleshooting, pages 24 through 26

Pilot Burner

Thermocouple

Figure 34 - Correct Pilot Flame Pattern (Your pilot may vary from pilots shown)

Pilot Burner

Thermocouple

FRONT BURNER FLAME PATTERN

Figure 36 shows correct front burner flame pattern. Figure 37 shows incorrect front burner flame pattern. The incorrect burner flame pattern shows yellow tipping at top of blue flame.

WARNING: If yellow tipping occurs, your heater could produce increased levels of carbon monoxide. If front burner flame pattern shows yellow tipping, follow instructions at bottom of this page. Yellow flame on rear burner is normal.

NOTICE: Do not mistake orange flames with yellow tipping. Dirt or other fine particles are burned by heater, causing brief patches of orange flame.

If front burner flame pattern is incorrect, as shown in Figure 37

• turn heater off (see T o Turn Of f Gas to Appliance, page 17 [Thermostat-Controlled Models], page 18 [Manually-Controlled Models], or page 20 [Remote-Ready Models])

• see Troubleshooting, pages 24 through 26

Pilot Burner

Thermocouple

Figure 35 - Incorrect Pilot Flame Pattern (Your pilot may vary from pilots shown)

Thermocouple

Figure 36 - Correct Front Burner Flame Pattern

Yellow Tipping At Top of Blue Flame

Figure 37 - Incorrect Front Burner Flame Pattern

For more information, visit www.desatech.com

104415

CLEANING AND MAINTENANCE

WARNING: Turn off heater and let cool before

cleaning.

CAUTION: You must keep control areas, burners, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, pet hair, bedding material, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

Cleaning Burner Injector Holder and Pilot Air Inlet Hole

CLEANING AND MAINTENANCE

Logs

Injector Holder

Ports/Slots

Burner Tube

Primary Air Inlet Holes

Figure 38 - Injector Holder On Outlet Burner Tube

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 38).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 39). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Pilot Air Inlet Hole

Pilot Assembly

Pilot Air Inlet Hole

Pilot Assembly

Figure 39 - Pilot Inlet Air Hole (Your pilot may vary from pilots shown)

LOGS

• If you remove logs for cleaning, refer to Installing Logs, page 14, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

104415

For more information, visit www.desatech.com

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

WARNING: Turn off and unplug heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode positioned wrong

7. Ignitor electrode broken

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel.

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace piezo ignitor

7. Replace piezo ignitor

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 23) or replace ODS/ pilot assembly

7. Replace gas regulator

ODS/pilot lights but flame goes out when control knob is released

For more information, visit www.desatech.com

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered

4. Equipment shutoff valve not fully open

5. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

6. Thermocouple connection loose at control valve

7. Thermocouple damaged

8. Control valve damaged

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Wait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 23) or replace ODS/ pilot assembly

6. Hand tighten until snug, then tighten 1/4 turn more

7. Replace thermocouple

8. Replace control valve

104415

TROUBLESHOOTING

Continued

TROUBLESHOOTING

OBSERVED PROBLEM

One or both burners do not light after ODS/ pilot is lit

Delayed ignition of one or both burners

Burner backfiring during combustion

POSSIBLE CAUSE

1. Inlet gas pressure is too low

2. Burner orifice(s) clogged

3. Mislocated crossover tube

4. Burner orifice(s) diameter is too small

5. Remote selector in OFF position (Remote-Ready Models Only)

6. Wire disconnected from gas control (Remote-Ready Models Only)

1. Manifold pressure is too low

2. Burner orifice(s) clogged

3. Mislocated crossover tube

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

REMEDY

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see Cleaning and Main- tenance, page 23) or replace burner orifice(s)

3. Contact qualified service person

4. Replace burner orifice(s)

5. Put remote selector in ON position

6. See Wiring Diagram, page 29

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see Cleaning and Main- tenance, page 23) or replace burner orifice(s)

3. Contact qualified service person

1. Clean burner (see Cleaning and Main- tenance, page 23) or replace burner orifice

2. Replace damaged burner

3. Replace gas regulator

Yellow flame in front burner during burner combustion

Slight smoke or odor during initial operation

Heater produces a whistling noise when burners are lit

White powder residue forming within burner box or on adjacent walls or furniture

Moisture/condensation noticed on windows

1. Not enough air

2. Gas regulator defective

1. Residues from manufacturing processes and logs curing

1. Turning control knob to HI position when burners are cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice(s)

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. turn into white powder residue

1. Not enough combustion/ventilation air

1. Check burner(s) for dirt and debris. If found, clean burner(s) (see Cleaning and Maintenance, page 23)

2. Replace gas regulator

1. Problem will stop after a few hours of operation

1. Turn control knob to LO position and let warm up for a minute

2. Operate burners until air is removed from line. Have gas line checked by local natural or propane/LP gas company

3. Observe minimum installation clearances (see pages 7 through 9)

4. Clean burners (see Cleaning and Main- tenance, page 23) or replace burner orifice(s)

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

1. Refer to Air for Combustion and Venti- lation requirements (page 4)

104415

For more information, visit www.desatech.com

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

Operating heater where impurities in air exist may create odors. Cleaning

OBSERVED PROBLEM

Remote does not function (Remote-Ready Models Only)

Heater produces a clicking/ticking noise just after burners are lit or shut off

Heater produces unwanted odors

Heater shuts off in use (ODS operates)

POSSIBLE CAUSE

1. Battery is not install. Battery power is low

1. Metal expanding while heating or contracting while cooling

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See ment above)

2. Low fuel supply (propane/LP only)

3. Gas leak. See Warning statement

at top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

IMPORTANT

state-

REMEDY

1. Replace 9-volt batteries in receiver and remote control

1. This is common with most heaters. If noise is excessive, contact qualified service person

1. Open window to ventilate room. Stop using odor causing products while heater is running

2. Refill supply tank (propane/LP only)

3. Locate and correct all leaks (see Check- ing Gas Connections, page 13)

1. Open window and/or door for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 23)

Gas odor even when control knob is in OFF position

Gas odor during combustion

Log set cycles to pilot, but room temperature drops to a lower than ideal level before log set comes back on

For more information, visit www.desatech.com

1. Gas leak. See Warning statement at top of page

2. Control valve or gas control defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement

at top of page

1. Thermostat sensing bulb needs to be repositioned (Thermostat-Controlled Models Only)

2. Hand-held remote control is too close to heater (Remote-Ready Models Only)

1. Locate and correct all leaks (see Check- ing Gas Connections, page 13)

2. Replace control valve or gas control

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 13)

1. Reposition thermostat sensing bulb (see Instructions for Optional P ositioning of Thermostat Sensing Bulb, page 27)

2. Move hand-held remote control unit farther away from the heater

104415

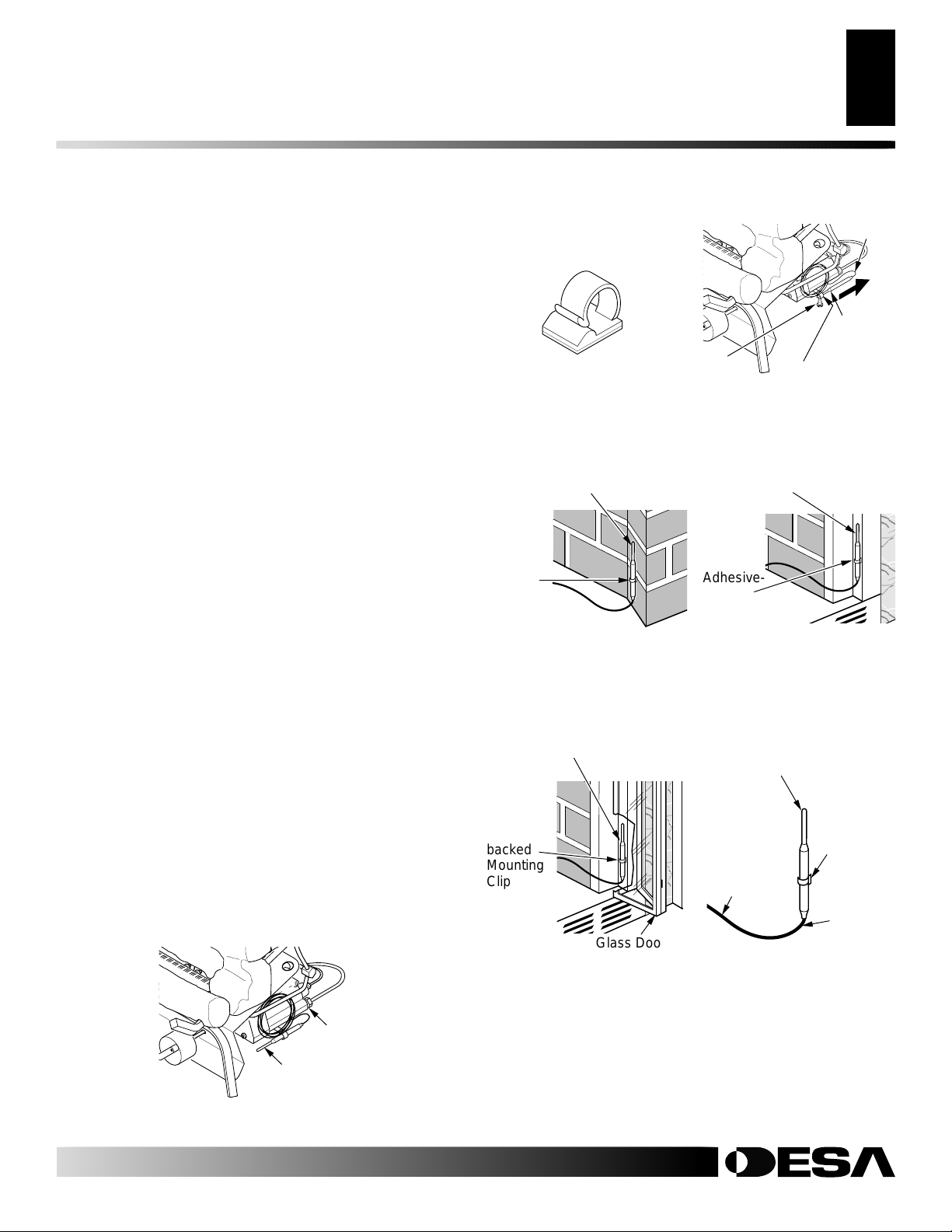

OPTIONAL POSITIONING OF THERMOSTAT SENSING BULB

(Thermostat-Controlled Models Only)

FOR MASONRY AND FACTORY-BUILT METAL FIREPLACE

If your log set cycles to pilot, but the room temperature drops to a lower than ideal comfort level before the log set comes back on, you may want to reposition the thermostat sensing bulb.

The thermostat sensing bulb is located on the gas valve assembly. This location allows the thermostat to keep the room temperature at an ideal comfort level for most fireplace applications. For positioning the thermostat sensing bulb elsewhere, an adhesive-backed mounting clip is available.

Tools needed: 5/16" hex driver or socket

1. Locate the gas valve assembly and thermostat sensing bulb (see Figure 40).

2. With 5/16" hex driver or socket, loosen the thermostat screw. Carefully slide the thermostat sensing bulb out of the retaining clamp (see Figure 42).

Note:

Do not remove the screw. Make sure you tighten the

screw after removing the thermostat sensing bulb.

IMPORTANT:

bulb or capillary.

3. The thermostat sensing bulb may be located to the lower right front side of fireplace. Determine location of sensing bulb, but do not mount sensing bulb until step 5. If you have a masonry fireplace, see Figure 43 for location.

If you have a factory-built metal fireplace, see Figure 44 for location.

If your fireplace has glass doors, position sensing bulb directly behind door gap on right bottom side (see Figure 45).

4. The mounting clip must be a minimum of 3" from bottom of fireplace to prevent crimping of capillary. Once you have decided on a location, clean the area thoroughly. Remove the paper backing from the adhesive on back of mounting clip. Press the clip into the new location so that the thermostat sensing bulb will be positioned vertically with the capillary at the bottom (see Figure 46). Slide the thermostat sensing bulb into the clip.

IMPORTANT:

Do not force or bend the thermostat sensing

Do not crimp capillary.

Gas Valve Assembly

(THERMOSTAT-CONTROLLED MODELS ONLY)

For Masonry and Factory-Built Metal Fireplace

Figure 41 - Adhesive-backed Mounting Clip

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Figure 43 - Locating Thermostat Sensing Bulb on Masonry Fireplace

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Glass Doors

Figure 45 - Installing Thermostat Sensing Bulb behind Glass Doors

Screw

Figure 42 - Removing Thermostat Sensing Bulb

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Figure 44 - Locating Thermostat Sensing Bulb on Factory-built Metal Fireplace

Thermostat Sensing Bulb

Capillary

Figure 46 - Positioning the Thermostat Sensing Bulb in the Vertical Position with the Capillary at the Bottom

Retaining Clamp

Capillary

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Do Not Crimp Capillary

Thermostat Sensing Bulb

Figure 40 - Location of Gas Valve Assembly and Thermostat Sensing Bulb

For more information, visit www.desatech.com

104415

SPECIFICATIONS

18" Thermostat-Controlled 24" Thermostat-Controlled 30" Thermostat-Controlled

Btu (Variable) 16,000/26,000 20,000/33,000 21,500/36,000 Type Gas Propane/LP Only - Natural Propane/LP Only - Natural Propane/LP Only - Natural Ignition Piezo Piezo Piezo Manifold Pressure 7.9" W.C. - 3.4" W.C. 7.9" W.C. - 3.4" W.C. 7.9" W.C. - 3.4" W.C. Inlet Gas Pressure

(in. of water)

Maximum 14" - 10.5" 14" - 10.5" 14" - 10.5"

Minimum* 11" - 5" 11" - 5" 11" - 5" Shipping Weight 26 lbs. 30 lbs. 34 lbs. * For purpose of input adjustment

18" Variable 24" Variable 30" Variable Manually-Controlled Manually-Controlled Manually-Controlled

(in. of water)

Maximum 14" - 10.5" 14" - 10.5" 14" - 10.5"

Minimum* 11" - 5" 11" - 5" 11" - 5" Shipping Weight 26 lbs. 30 lbs. 34 lbs. * For purpose of input adjustment

18" Remote-Ready 24" Remote-Ready 30" Remote-Ready

Btu (Variable) 16,000/26,000 20,000/33,000 21,500/36,000 Type Gas Propane/LP Only - Natural Propane/LP Only - Natural Propane/LP Only - Natural

Ignition Piezo Piezo Piezo Manifold Pressure 7.9" W.C. - 3.4" W.C. 7.9" W.C. - 3.4" W.C. 7.9" W.C. - 3.4" W.C.

Inlet Gas Pressure (in. of water)

Maximum 14" - 10.5" 14" - 10.5" 14" - 10.5"

Minimum* 11" - 5" 11" - 5" 11" - 5" Shipping Weight 32 lbs. 34 lbs. 36 lbs. * For purpose of input adjustment

For more information, visit www.desatech.com

104415

WIRING DIAGRAM (REMOTE-READY MODELS ONLY)

SERVICE HINTS

TECHNICAL SERVICE

REPLACEMENT PARTS

WIRING DIAGRAM

(Remote-Ready Models Only)

Thermopile

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

• propane/LP gas supply may be low You may feel your gas pressure is too low. If so, contact your local

propane/LP or natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Technical Service Department at (1-866-672-6040). You can also visit DESA International’s technical services web site at www.desatech.com.

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International’s Technical Service Department at 1-866-672-6040.

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International at 1-866-672-6040 for referral information.

When calling DESA International, have ready

• model number of your heater

• the replacement part number

104415

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Variable Manually-Controlled Split Oak Models VS18NVC, E18N, VS18PVC, E18P, VS24NVC, E24N, VS24PVC, E24P, VS30NVC and VS30PVC

ILLUSTRATED PARTS BREAKDOWN

VARIABLE MANUALLYCONTROLLED SPLIT OAK MODELS

VS18NVC, E18N, VS18PVC, E18P, VS24NVC, E24N, VS24PVC, E24P, VS30NVC and VS30PVC

18" Model Only

Models Only

24" and 30"

26-1

26-2

6-2

6-1

For more information, visit www.desatech.com

104415

Variable Manually-Controlled Split Oak Models

PARTS LIST

VS18NVC, E18N, VS18PVC, E18P, VS24NVC, E24N,

VS24PVC, E24P, VS30NVC and VS30PVC

PARTS LIST

VARIABLE MANUALLY-CONTROLLED SPLIT OAK MODELS

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 29 of this manual.

PART NUMBER FOR

KEY VS18NVC VS18PVC VS24NVC VS24PVC VS30NVC VS30PVC NO. E18N E18P E24N E24P DESCRIPTION QTY.

1 104388-01 104388-01 — — — — Front Log (#1) 1 1a — — 104388-05 104388-05 104388-07 104388-07 Front Left Log (#1a) 1 1b — — 104388-04 104388-04 104388-06 104388-06 Front Right Log (#1b) 1 2 104390-01 104390-01 104390-02 104390-02 104390-03 104390-03 Middle Log (#2) 1 3 104392-01 104392-01 104392-02 104392-02 104392-03 104392-03 Rear Log (#3) 1 4 104394-01 104394-01 104394-02 104394-02 104394-03 104394-03 Crossover Log (#4) 1 5 101006-01 101006-01 101006-01 101006-01 101006-01 101006-01 Pilot Bracket 1 6 101330-01 101330-01 101330-05 101330-05 101330-06 101330-06 Front Burner Assembly 1 6-1 101008-01 101008-01 101008-01 101008-01 101008-01 101008-01 Crossover Burner Gasket 1 6-2 101007-01 101007-01 101007-01 101007-01 101007-01 101007-01 Crossover Burner 1 7 109824-01 100999-01 109824-02 100999-02 109824-03 100999-03 Rear Burner Assembly 1 8 108139-01 108139-01 108139-02 108139-02 108139-03 108139-03 Grate Assembly 1 9 108138-01 108138-01 108138-01 108138-01 108138-01 108138-01 Saddle Bracket 2 10 102223-01 102223-01 102223-02 102223-02 102223-03 102223-03 Base Pan 1 11 098867-09 098867-10 098867-09 098867-10 098867-09 098867-10 Gas Regulator 1 12 M11084-38 M11084-38 M11084-38 M11084-38 M11084-38 M11084-38 Screw 2 13 101011-01 101011-01 101011-02 101011-02 101011-03 101011-03 Inlet Tube 1 14 098354-01 098354-01 098354-01 098354-01 098354-01 098354-01 Control Knob 1 15 098462-03 098462-03 098462-03 098462-03 098462-03 098462-03 Control Rod 1 16 098325-01 098325-01 098325-01 098325-01 098325-01 098325-01 Roll Pin 1 17 098508-01 098508-01 098508-01 098508-01 098508-01 098508-01 Valve Retainer Nut 1 18 102568-01 102568-02 102568-01 102568-02 102568-01 102568-02 Gas Valve 1 19 101005-01 101005-01 101005-01 101005-01 101005-01 101005-01 Valve Bracket 1 20 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 Screw 4 21 101004-11 101004-10 101004-11 101004-01 101004-04 101004-02 Rear Burner Injector 1 22 101004-11 101004-10 101004-08 101004-02 101004-08 101004-06 Front Burner Injector 1 23 102258-01 102258-01 102258-01 102258-01 102258-01 102258-01 Burner Tube 1 24 099387-08 099387-08 099387-08 099387-08 099387-08 099387-08 Pilot Tube 1 25 098276-01 098276-01 098276-01 098276-01 098276-01 098276-01 1/8" Plug 1 26 103042-01 099059-02 103042-01 099059-02 103042-01 099059-02 O.D.S. Pilot 1 26-1 098594-01 098594-01 098594-01 098594-01 098594-01 098594-01 Ignitor Electrode 1 26-2 098593-01 098593-01 098593-01 098593-01 098593-01 098593-01 Thermocouple 1 27 098249-01 098249-01 098249-01 098249-01 098249-01 098249-01 Nut 4 28 098271-10 098271-10 098271-06 098271-06 098271-06 098271-06 Ignitor Cable 1 29 102445-01 102445-01 102445-01 102445-01 102445-01 102445-01 Piezo Ignitor 1

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 100563-01 100563-01 100563-01 100563-01 Warning Plate 1 101055-02 101055-02 101055-02 101055-02 101055-02 101055-02 Lighting Instructions Plate 1 100565-01 100565-01 100565-01 100565-01 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 100639-01 100639-01 100639-01 100639-01 Caution Decal 1 101137-03 101137-01 101137-03 101137-01 101137-03 101137-01 Hardware Kit 1 GA6060 GA6060 GA6060 GA6060 GA6060 GA6060 Lava Rock 1

104415

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Thermostat-controlled Models VS18NTB, VS18PTB, VS24NTB, VS24PTB, VS30NTB and VS30PTB

ILLUSTRATED PARTS BREAKDOWN

THERMOSTAT-CONTROLLED MODELS VS18NTB, VS18PTB,

VS24NTB, VS24PTB, VS30NTB and VS30PTB

24" and 30"

Models Only

18" Model Only

9-2

9-1

6-1

6-2

For more information, visit www.desatech.com

22 21

104415

VS18NTB, VS18PTB, VS24NTB, VS24PTB, VS30NTB and VS30PTB

PARTS LIST

THERMOSTAT-CONTROLLED MODELS

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 29 of this manual.

Thermostat-controlled Models

PARTS LIST

KEY NO. VS18NTB VS18PTB VS24NTB VS24PTB VS30NTB VS30PTB DESCRIPTION QTY.

1 104388-01 104388-01 ————Front Log (#1) 1 1a ——104388-05 104388-05 104388-07 104388-07 Front Left Log 1a 1 1b ——104388-04 104388-04 104388-06 104388-06 Front Right Log 1b 1 2 104390-01 104390-01 104390-02 104390-02 104390-03 104390-03 Middle Log (#2) 1 3 104392-01 104392-01 104392-02 104392-02 104392-03 104392-03 Rear Log (#3) 1 4 104394-01 104394-01 104394-02 104394-02 104394-03 104394-03 Crossover Log (#4) 1 5 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 Screw 5 6 103042-01 099059-02 103042-01 099059-02 103042-01 099059-02 O.D.S. Pilot 1 6-1 098594-01 098594-01 098594-01 098594-01 098594-01 098594-01 Ignitor 1 6-2 098593-01 098593-01 098593-01 098593-01 098593-01 098593-01 Thermocouple 1 7 098249-01 098249-01 098249-01 098249-01 098249-01 098249-01 Nut 4 8 101006-01 101006-01 101006-01 101006-01 101006-01 101006-01 Pilot Bracket 1 9 101330-01 101330-01 101330-05 101330-05 101330-06 101330-06 Front Burner Assembly 1 9-1 101008-01 101008-01 101008-01 101008-01 101008-01 101008-01 Gasket, Crossover Burner 1 9-2 101007-01 101007-01 101007-01 101007-01 101007-01 101007-01 Crossover Burner 1 10 109824-01 100999-01 109824-02 100999-02 109824-03 100999-03 Rear Burner Assembly 1 11 108139-01 108139-01 108139-02 108139-02 108139-03 108139-03 Grate Assembly 1 12 108138-01 108138-01 108138-01 108138-01 108138-01 108138-01 Saddle Bracket 2 13 102223-01 102223-01 102223-02 102223-02 102223-03 102223-03 Base Pan 1 14 098867-09 098867-10 098867-09 098867-10 098867-09 098867-10 Gas Regulator 1 15 M11084-38 M11084-38 M11084-38 M11084-38 M11084-38 M11084-38 Screw 2 16 102810-01 102810-01 102810-02 102810-01 102810-03 102810-01 Inlet Tube 1 17 098354-01 098354-01 098354-01 098354-01 098354-01 098354-01 Control Knob 1 18 098462-03 098462-03 098462-03 098462-03 098462-03 098462-03 Control Rod 1 19 100000-01 100000-01 100000-01 100000-01 100000-01 100000-01 Cotter Pin 1 20 101053-01 101053-01 101053-01 101053-01 101053-01 101053-01 Adapter 1 21 099211-01 099211-01 099211-01 099211-01 099211-01 099211-01 Screw 1 22 098544-01 098544-01 098544-01 098544-01 098544-01 098544-01 Thermostat Clamp 1 23 101329-14 101329-15 101329-25 101329-18 101329-25 101329-21 Thermostat Gas Valve Assy. 1 24 100994-01 100994-01 100994-01 100994-01 100994-01 100994-01 Thermovalve Bracket 1 25 101004-11 101004-10 101004-11 101004-01 101004-04 101004-02 Rear Burner Injector 1 26 101004-11 101004-10 101004-08 101004-02 101004-08 101004-06 Front Burner Injector 1 27 102811-01 102811-01 102811-01 102811-01 102811-01 102811-01 Thermostat Burner Tube 1 28 099387-09 099387-09 099387-09 099387-09 099387-09 099387-09 Pilot Tube 1 29 102255-01 102255-01 102255-01 102255-01 102255-01 102255-01 Strap 1 30 102764-01 102764-01 102764-01 102764-01 102764-01 102764-01 Heat Shield 1 31 098271-10 098271-10 098271-06 098271-06 098271-06 098271-06 Ignitor Cable 1 32 102445-01 102445-01 102445-01 102445-01 102445-01 102445-01 Piezo Ignitor 1

100563-01 100563-01 100563-01 100563-01 100563-01 100563-01 Warning Plate 1 101054-01 101054-01 101054-01 101054-01 101054-01 101054-01 Lighting Instructions Plate 1 100565-01 100565-01 100565-01 100565-01 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 100639-01 100639-01 100639-01 100639-01 Caution Decal 1 101137-01 101137-01 101137-01 101137-01 101137-01 101137-01 Hardware Kit 1 101416-38 101416-38 101416-38 101416-38 101416-38 101416-38 Information Video 1 GA6060 GA6060 GA6060 GA6060 GA6060 GA6060 Lava Rock 1 102030-01 102030-01 102030-01 102030-01 102030-01 102030-01 Auxiliary Thermostat Mtg. Clip 1

PART NUMBER FOR

PARTS AVAILABLE — NOT SHOWN

104415

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Remote-Ready Models VS18NRA, E18NR, VS18PRA, E18PR, VS24NRA, E24NR, VS24PRA, E24PR, VS30NRA, E30NR, VS30PRA, and E30PR

ILLUSTRATED PARTS BREAKDOWN

REMOTE-READY VARIABLE CONTROL VS18NRA, E18NR, VS18PRA, E18PR,

VS24NRA, E24NR, VS24PRA, E24PR, VS30NRA, E30NR, VS30PRA, and E30PR

9-2

9-1

24" and 30"

Models Only

18" Model Only

Items 23 and 30

25 5

Are For Natural

Gas Models Only

For more information, visit www.desatech.com

104415

Remote-Ready Models

PARTS LIST

VS18NRA, E18NR, VS18PRA, E18PR, VS24NRA, E24NR,

VS24PRA, E24PR, VS30NRA, E30NR, VS30PRA, and E30PR

PARTS LIST

REMOTE-READY VARIABLE CONTROL

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 29 of this manual.

PART NUMBERS

KEY VS18NRA VS18PRA VS24NRA VS24PRA VS30NRA VS30PRA NO. E18NR E18PR E24NR E24PR E30NR E30PR DESCRIPTION QTY.

1 104388-01 104388-01 1a 1b 2 104390-01 104390-01 104390-02 104390-02 104390-03 104390-03 Middle Log (#2) 1 3 104392-01 104392-01 104392-02 104392-02 104392-03 104392-03 Rear Log (#3) 1 4 104394-01 104394-01 104394-02 104394-02 104394-03 104394-03 Crossover Log (#4) 1 5 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 Screw 6 6 103779-01 103778-01 103779-01 103778-01 103779-01 103778-01 O.D.S. Pilot 1 7 098249-01 098249-01 098249-01 098249-01 098249-01 098249-01 Nut 6 8 103780-01 103780-01 103780-01 103780-01 103780-01 103780-01 Pilot Bracket 1 9 101330-01 101330-01 101330-05 101330-05 101330-06 101330-06 Front Burner Assembly 1 9-1 101008-01 101008-01 101008-01 101008-01 101008-01 101008-01 Crossover Burner Gasket 1 9-2 101007-01 101007-01 101007-01 101007-01 101007-01 101007-01 Crossover Burner 1 10 109824-01 100999-01 109824-02 100999-02 109824-03 100999-03 Rear Burner Assembly 1 11 103775-02 103775-02 103775-01 103775-01 103775-03 103775-03 Base Pan 1 12 098271-10 098271-10 098271-06 098271-06 098271-06 098271-06 Ignitor Cable 1 13 102445-01 102445-01 102445-01 102445-01 102445-01 102445-01 Piezo Ignitor 1 14 103588-01 103588-01 103588-01 103588-01 103588-01 103588-01 Heat Shield 1 15 103782-01 103782-01 103782-01 103782-01 103782-01 103782-01 Valve Bracket 1 16 M12461-26 M12461-26 M12461-26 M12461-26 M12461-26 M12461-26 Screw 5 17 103781-01 103781-02 103781-01 103781-02 103781-01 103781-02 Gas Control 1 18 098264-02 098264-02 098264-02 098264-02 098264-02 097264-02 Male Fitting 1 19 103784-02 103784-02 103784-02 103784-02 103784-02 103784-02 Flame Adjustment Knob 1 20 103784-01 103784-01 103784-01 103784-01 103784-01 103784-01 Control Knob 1 21 103587-01CK 103587-01CK 103587-01CK 103587-01CK 103587-01CK 103587-01CK Switch Plate 1 22 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 M11084-26 Screw 2 23 099387-12 24 100609-01 099387-09 100609-01 099387-09 100609-01 099387-09 Pilot Tube 1 25 101004-11 101004-10 101004-11 101004-01 101004-04 101004-02 Rear Burner Injector 1 26 101004-11 101004-10 101004-08 101004-02 101004-08 101004-06 Front Burner injector 1 27 103783-01 103783-01 103783-01 103783-01 103783-01 103783-01 Remote Burner Tube 1 28 099998-01 099998-01 099998-01 099998-01 099998-01 099998-01 Switch 1 29 103284-02 103284-02 103284-02 103284-02 103284-02 103284-02 Wiring Harness 1 30 099918-02 31 108138-01 108138-01 108138-01 108138-01 108138-01 108138-01 Saddle Bracket 2 32 108139-01 108139-01 108139-02 108139-02 108139-03 108139-03 Grate Assy. 1

__ __

100563-01 100563-01 100563-01 100563-01 100563-01 100563-01 Warning Plate 1 103877-01 103877-01 103877-01 103877-01 103877-01 103877-01 Lighting Instructions Plate 1 100565-01 100565-01 100565-01 100565-01 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 100639-01 100639-01 100639-01 100639-01 Caution Decal 1 101137-02 101137-02 101137-02 101137-02 101137-02 101137-02 Hardware Kit 1 101416-38 101416-38 101416-38 101416-38 101416-38 101416-38 Information Video 1 GA6060 GA6060 GA6060 GA6060 GA6060 GA6060 Lava Rock 1

__ __

104388-05 104388-05 104388-07 104388-07 Front Log, Left (#1a) 1 104388-04 104388-04 104388-06 104388-06 Front Log, Right (#1b) 1

099387-12

099918-02

PARTS AVAILABLE — NOT SHOWN

099387-12

099918-02

Front Log (#1) 1

Pilot Tube 1

Pilot Regulator 1

104415

For more information, visit www.desatech.com

ACCESSORIES

Purchase these heater accessories from your local dealer. If they can not supply these accessories, call DESA International at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE - GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

FIREPLACE HOOD

Black - GA6050 Brass - GA6052 Antique Brass - GA6053

For all models. Helps deflect heat away from mantel or wall above fireplace. Fits openings 28" to 48" wide.

WALL-MOUNT THERMOSTAT SWITCH GWMT1

(Not Shown)

For all Remote-Ready Models. The desired comfort setting can be selected on the wall thermostat and the log heater will automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH - GWMS2

(Not Shown)

For all Remote-Ready Models. Allows the gas log heater to be turned on and off with a wall switch.

VENT-FREE LOGMATE® FIREBOXES

(Not Shown)

Available in 32", 36", and 42" models. Circulating fireboxes feature louvers and an optional blower. Non-circulating, smooth face models are ideal for custom trim applications such as stone or marble.

FB32C (CIRCULATING), FB32NC (NONCIRCULATING) SERIES

(Not Shown)

For 18" and 24" models.

FB36CA, FB42C SERIES (CIRCULATING), FB36NCA, FB42NC SERIES (NON-CIRCULATING)

(Not Shown)

For all models.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - GHRCTA

For all Remote-Ready Models. Allows the gas log heater to be operated in a manually or thermostatically controlled mode. You can turn the gas log heater on and off without ever leaving the comfort of your easy chair.

RECEIVER AND HAND-HELD REMOTE CONTROL KIT - GHRC

For all Remote-Ready Models. Allows the gas log heater to be turned on and off by using a hand-held remote control.

For more information, visit www.desatech.com

DAMPER CLAMP - GA6080

(Not Shown)

For Remote-Ready and Variable Manually-Controlled Models.

Permanently opens chimney flue damper for vented operation.

LAVA ROCK - GA6060

(Not Shown)

For all models. Order when additional rock is desired. (1.8 lb. bag)

CLEANING KIT - GCK

(Not Shown)

For all models. Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

INFORMATION VIDEO - 108917-01

For all models. A care and maintenance video is available by calling 1-866-672-6040.

104415

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us.

• ACCESSORIES

You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:

Brand: Model: Date Purchased: Serial Number:

(Comfort Glow, Vanguard, etc.) (EFP33PR, VTGH33NR, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

First Name: Last Name: Address: City: State: Zip: Country: Home Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA International:

1. Where will the product be used? ❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000 ❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Suppl ❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project ❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999 ❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased: Name: ______________________________________ City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson’s Recommendation Friend/Relative’s Recommendation Portability Quiet Operation

104415

For more information, visit www.desatech.com

Not Important Somewhat Important Very Important

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

For more information, visit www.desatech.com

104415

NOTES

_______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________

For more information, visit www.desatech.com

104415

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We

make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE GAS LOG HEATERS

DESA International warrants this product to be free from defects in materials and components for four (4) years and five (5) years on stainless steel burners from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS AND FIVE (5) YEARS ON STAINLESS STEEL BURNERS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

104415 01

NOT A UPC

For more information, visit www.desatech.com

104415-01 Rev. G 02/02

104415

Desa A Remote-Ready User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
