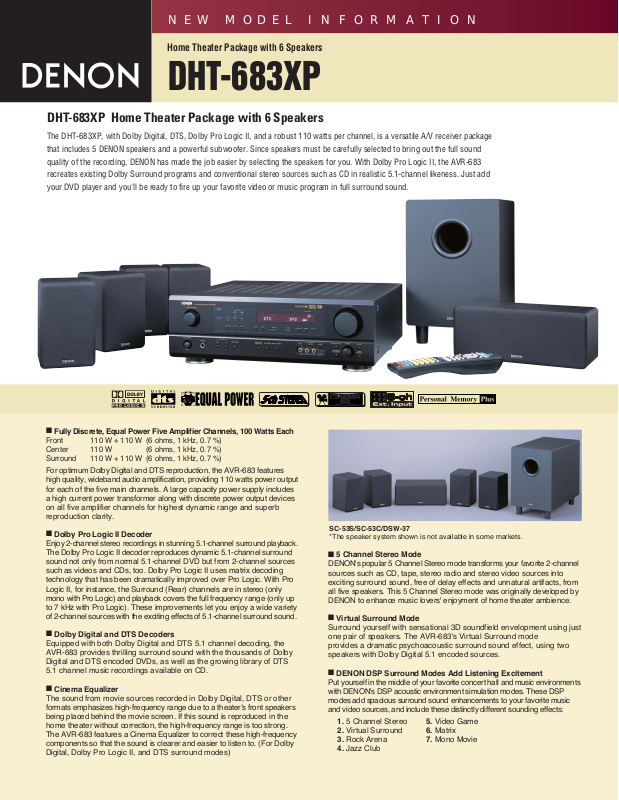

Denon DHT-683XP User Manual
The DHT-683XP, with Dolby Digital, DTS, Dolby Pro Logic II, and a robust 110 watts per channel, is a versatile A/V receiver package
that includes 5 DENON speakers and a powerful subwoofer. Since speakers must be carefully selected to bring out the full sound
quality of the recording, DENON has made the job easier by selecting the speakers for you. With Dolby Pro Logic II, the AVR-683
recreates existing Dolby Surround programs and conventional stereo sources such as CD in realistic 5.1-channel likeness. Just add
your DVD player and you'll be ready to fire up your favorite video or music program in full surround sound.
DHT-683XP Home Theater Package with 6 Speakers
■
Fully Discrete, Equal Power Five Amplifier Channels, 100 Watts Each
Front 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
Center 110 W (6 ohms, 1 kHz, 0.7 %)
Surround 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
For optimum Dolby Digital and DTS reproduction, the AVR-683 features
high quality, wideband audio amplification, providing 110 watts power output
for each of the five main channels. A large capacity power supply includes
a high current power transformer along with discrete power output devices
on all five amplifier channels for highest dynamic range and superb
reproduction clarity.
■
Dolby Pro Logic II Decoder
Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround
sound not only from normal 5.1-channel DVD but from 2-channel sources
such as videos and CDs, too. Dolby Pro Logic II uses matrix decoding
technology that has been dramatically improved over Pro Logic. With Pro
Logic II, for instance, the Surround (Rear) channels are in stereo (only
mono with Pro Logic) and playback covers the full frequency range (only up
to 7 kHz with Pro Logic). These improvements let you enjoy a wide variety
of 2-channel sources with the exciting effects of 5.1-channel surround sound.
■
Dolby Digital and DTS Decoders
Equipped with both Dolby Digital and DTS 5.1 channel decoding, the
AVR-683 provides thrilling surround sound with the thousands of Dolby
Digital and DTS encoded DVDs, as well as the growing library of DTS
5.1 channel music recordings available on CD.
■
Cinema Equalizer
The sound from movie sources recorded in Dolby Digital, DTS or other
formats emphasizes high-frequency range due to a theater’s front speakers
being placed behind the movie screen. If this sound is reproduced in the
home theater without correction, the high-frequency range is too strong.
The AVR-683 features a Cinema Equalizer to correct these high-frequency
components so that the sound is clearer and easier to listen to. (For Dolby
Digital, Dolby Pro Logic II, and DTS surround modes)
■
5 Channel Stereo Mode
DENON's popular 5 Channel Stereo mode transforms your favorite 2-channel
sources such as CD, tape, stereo radio and stereo video sources into
exciting surround sound, free of delay effects and unnatural artifacts, from
all five speakers. This 5 Channel Stereo mode was originally developed by
DENON to enhance music lovers' enjoyment of home theater ambience.
■
Virtual Surround Mode
Surround yourself with sensational 3D soundfield envelopment using just
one pair of speakers. The AVR-683's Virtual Surround mode
provides a dramatic psychoacoustic surround sound effect, using two
speakers with Dolby Digital 5.1 encoded sources.
■
DENON DSP Surround Modes Add Listening Excitement
Put yourself in the middle of your favorite concert hall and music environments
with DENON's DSP acoustic environment simulation modes. These DSP
modes add spacious surround sound enhancements to your favorite music
and video sources, and include these distinctly different sounding effects:
1. 5 Channel Stereo 5. Video Game
2. Virtual Surround 6. Matrix
3. Rock Arena 7. Mono Movie
4. Jazz Club
DHT-683XP
Home Theater Package with 6 Speakers
NEW MODEL INFORMATION
SC-53S/SC-53C/DSW-37
*The speaker system shown is not available in some markets.
■
Versatile Input & Output Terminals
• Digital Optical Output
The AVR-683 provides 1 digital optical output terminal where you can
connect a CD recorder or other digital recording device to make highquality digital recordings directly from digital sources such as CD.
• Front Panel Inputs
The AVR-683's front panel includes 1 set of video and audio input
terminals where you can easily connect your video camera, game
machine or other video or pure audio device.
•
Audio Inputs
8 Analog Inputs ............................. CD, TUNER, DVD/VDP, TV/DBS, AUX,
VCR, CDR/TAPE, V.AUX(FRONT)
6 Analog EXT. Input ...................... FRONT L/R, CENTER,
SURROUND L/R, SUBWOOFER
3 Digital (Optical) Input.................. OPTICAL X 3 (FRONT: 1)
1 Digital (Coaxial) Input ................. COAXIAL X 1
•
Audio Outputs
1 Analog PRE OUT Terminals ...... SUBWOOFER
2 Analog REC OUT Terminals
....... VCR, CDR/TAPE
1 Digital (Optical) Output ............... OPTICAL X 1
•
Video Inputs
4 Composite Inputs ....................... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)
3 S-Video Inputs............................ DVD/VDP, TV/DBS, VCR
2 Component Inputs ...................... DVD/VDP, TV/DBS
•
Video Outputs
2 Composite Outputs..................... VCR, MONITOR
2 S-Video Outputs ......................... VCR, MONITOR
1 Component Output ..................... MONITOR
■
Front A/B Speaker Terminals
Two sets of speaker terminals are provided for the main (left and right)
speakers. This allows the use of a second pair of stereo speakers in
another room in the home.
■
High-grade Speaker Terminals (for speakers A):
Large binding post speaker terminals has been provided for all 5 channels
(Front L/R, Center, Surround L/R) to accommodate thick, high-grade
speaker cables and banana plugs.
■
Personal Memory Plus, for Easy Operation
The AVR-683 includes the Personal Memory Plus function that automatically
remembers the surround mode you last used for each program source, so
that you do not need to select the mode again for that program.
■
Multi-Function Preset Memory Remote Controller
The supplied system remote controller features a large selection of remote
control codes to operate other components in your home theater system,
including codes for selected DENON models, along with remote control
codes from other manufacturers. The most frequently used buttons are laid
out separately for TV, VCR and DVD, for maximum ease-of-use.
■
Acclaimed Customization Feature
As with all of DENON’s high-grade A/V receiver, the AVR-683 lets you
adjust delay times and other parameters so that you can customize the
performance of the AVR-683 to suit your own home theater and enhance
operating ease. The adjustments are easy to make via a dialog format on
the fluorescent display on the front panel. These customized features are
then stored, for each source input and surround mode, in Personal
Memory Plus so constant readjustments are not required.
■
Frequency Synthesis Tuning
• 40-Station AM/FM Random Preset Memory Tuning
• Auto Preset Memory
Specifications
■
Power Amplifier Section
Rated output *THD figures are power amp stage values.
Front ........................................ 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Center...................................... 110 W (6 ohms, 1 kHz, 0.7 %)
80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround ................................. 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
■
Preamplifier Section
Input sensitivity/Impedance
CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX
V.AUX(FRONT).............. 200 mV/47 kohms
Output level/Load impedance
SUBWOOFER................ 1.2 V/10 kohms
CDR/TAPE, VCR............ 200 mV/47 kohms
Frequency response........... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)
Signal-to noise ratio............ 98 dB (A-weighting) (Tone Defeat On)
Tone control........................ Treble: ±12 dB at 10 kHz
Bass: ±12 dB at 100 Hz
■
FM Section
Tuning frequency range...... 87.5 - 107.9 MHz
Usable sensitivity................ 1.0 µV (11.2 dBf)
■
AM Section
Tuning frequency range...... 520 - 1710 kHz
Usable sensitivity................ 18 µV
■
General
Power supply ...................... AC 120 V, 60 Hz
Power consumption ............ 4.0 A
Dimensions......................... 434 (W) x 147 (H) x 417 (D) mm
17.1” (W) x 5.8” (H) x 16.4” (D)
Weight ................................ 10.4 kg, 22.9 lbs
■
Speaker section
SC-53S (Satellite speaker system)
Type ................................... 2-way Acoustic Suspension
Magnetic shielding............... Yes
Imepedance........................ 6 ohms
Dimensions......................... 110 (W) x 175 (H) x 130 (D) mm (+9 mm grill)
4.3” (W) x 6.9” (H) x 5.1” (D)
Weight ................................ 1.7 kg, 3.74 lbs
SC-53C (Center speaker system)
Type ................................... 2-way Acoustic Suspension
Magnetic shielding............... Yes
Imepedance........................ 6 ohms
Dimensions......................... 275 (W) x 110 (H) x 130 (D) mm (+9 mm grill)
10.8” (W) x 4.3” (H) x 5.1” (D)
Weight ................................ 2.8 kg, 6.16 lbs
DSW-37 (Subwoofer system with built-in Amplifier)
Imepedance........................ 4 ohms
Power supply ...................... AC 120 V, 60 Hz, 60 W
Dimensions......................... 216 (W) x 300 (H) x 400 (D) mm
8.5” (W) x 11.8” (H) x 15.7” (D)
Weight ................................ 5.5 kg, 12.1 lbs
DENON ELECTRONICS. DENON, LTD.
DIVISION OF DENON CORPORATION (USA) 3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: 973-396-0810 www.denon.com
12600501 A
NEW MODEL INFORMATION
DHT-683XP
*Design and specifications are subject to change without notice.
*”Dolby”, “Dolby Digital”, “Pro Logic II”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.
Front panel with terminal cover.
