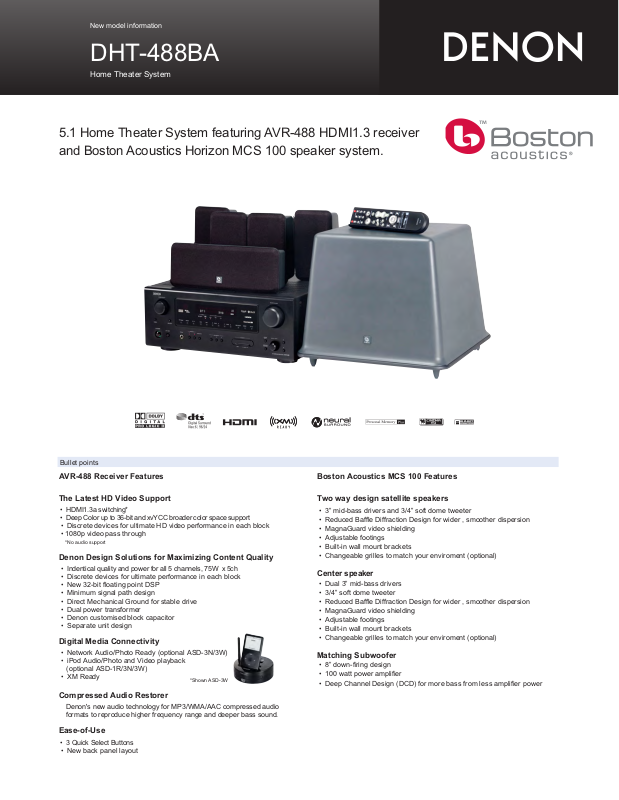

New model information
™
®
DHT-488BA
Home Theater System
5.1 Home Theater System featuring AVR-488 HDMI1.3 receiver
and Boston Acoustics Horizon MCS 100 speaker system.
Bullet points
AVR-488 Receiver Features
The Latest HD Video Support
• HDMI1.3a switching*
• Deep Color up to 36-bit and xvYCC broader color space support
• Discrete devices for ultimate HD video performance in each block
• 1080p video pass through
*No audio support
Denon Design Solutions for Maximizing Content Quality
• Indentical quality and power for all 5 channels, 75W x 5ch
• Discrete devices for ultimate performance in each block
• New 32-bit floating point DSP
• Minimum signal path design
• Direct Mechanical Ground for stable drive
• Dual power transformer
• Denon customised block capacitor
• Separate unit design
Digital Media Connectivity
• Network Audio/Photo Ready (optional ASD-3N/3W)
• iPod Audio/Photo and Video playback
(optional ASD-1R/3N/3W)
• XM Ready
*Shown ASD-3W
Compressed Audio Restorer
Denon's new audio technology for MP3/WMA/AAC compressed audio
formats to reproduce higher frequency range and deeper bass sound.
Ease-of-Use
• 3 Quick Select Buttons
• New back panel layout
Boston Acoustics MCS 100 Features
Two way design satellite speakers
• 3” mid-bass drivers and 3/4” soft dome tweeter
• Reduced Baffle Diffraction Design for wider , smoother dispersion
• MagnaGuard video shielding
• Adjustable footings
• Built-in wall mount brackets
• Changeable grilles to match your enviroment (optional)
Center speaker
• Dual 3” mid-bass drivers
• 3/4” soft dome tweeter
• Reduced Baffle Diffraction Design for wider , smoother dispersion
• MagnaGuard video shielding
• Adjustable footings
• Built-in wall mount brackets
• Changeable grilles to match your enviroment (optional)
Matching Subwoofer
• 8” down-firing design
• 100 watt power amplifier
• Deep Channel Design (DCD) for more bass from less amplifier power
Receiver AVR-488 Input / Output terminals
IN
DMI
H
omponent
C
-Video
S
omposite
C
nalog audio (Tuner included)
A
nalog EXT. Input
A
igital OPTICAL
D
igital COAXIAL
D
ock control for iPod
D
2
3
3
4
8
5
2
2
1
.1ch
Accessories
AVR-488
Renote
Batteries
FM antenna
AM loop antenna
Quick setup sheet
1
2
1
1
1
OUT
DMI Monitor
H
omponent Monitor
C
-Video REC
S
onitor
M
omposite REC
C
nalog audio REC
A
nalog Preout
A
M
onitor
MCS 100
Spkear wires
PIn cable for subwoofer
Wall mount bracket
AVR-488 Specifications
ower Amplifier Section
1
1
1
1
1
1
2
1
P
ated output *THD figures are power amp stage values.
R
ront 75 W +75 W (8 ohms, 20Hz - 20kHz)
F
Center 75 W (8 ohms, 20Hz - 20kHz)
Surround 75 W +75 W (8 ohms, 20Hz - 20kHz)
General
Power supply AC 120 V, 60 Hz
imensions (WxHxD) 434 x 171 x 377 mm
D
Weight 10.4 kg, 22.9 lbs
110W + 110W (6 ohms, 1kHz)
110W (6 ohms, 1kHz)
110W + 110W (6 ohms, 1kHz)
17-3/32” x 6-47/64” x 14-27/32”
MCS 100 Specifications
Satellite speakers
Nominal Impedance 8 ohms
Dimensions (WxHxD) 113 x 93 x 189 mm
Weight 1.14 kg, 2.5lbs / each
5
1
5
Center speaker
Nominal Impedance 8 ohms
Dimensions (WxHxD) 321 x 95 x 115 mm
Weight
ubwoofer
S
Power supply AC 120 V, 60 Hz
Dimensions (WxHxD) 390 x 324 x 390 mm
Weight
4-3/8” x 4-11/16” x 7-3/8”
12-5/8” x 3-23/32” x 4-17/32”
5-11/32” x12-23/32” x 15-11/32”
1
• Design and specifications aresubject to change without notice.
• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
• DTSis a registered trademark & the DTS logos andsymbolare trademarks of DTS,Inc.
• ©2007 XM Satellite Radio Inc. Allrights reserved.
