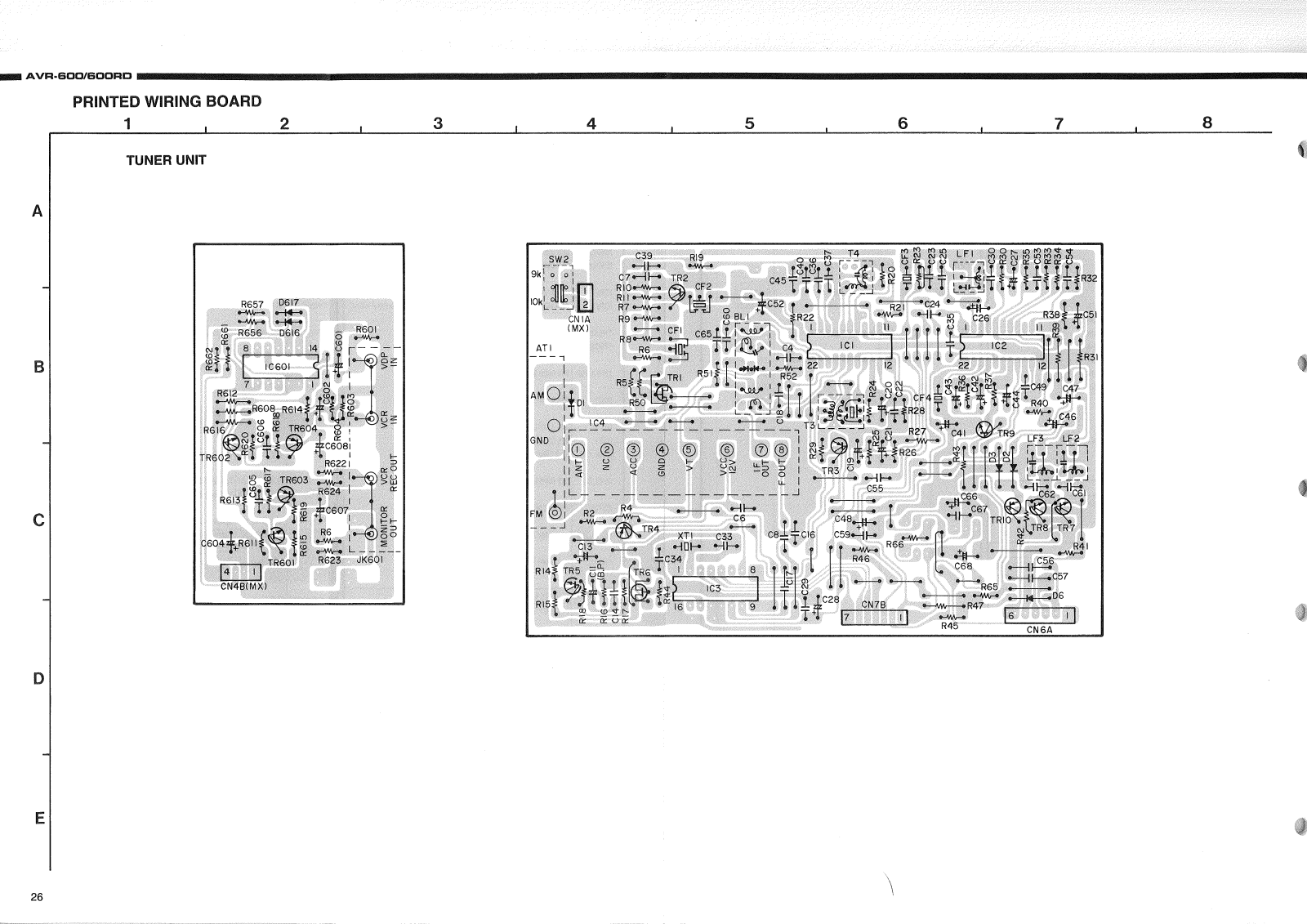

Denon AVR-600, AVR-600RD Service Manual
Specifications and Main Features
- Model: AVR-600/600RD
- Number of Channels: 5.1
- Output Power: 100W per each section
- Total Harmonic Distortion: 0.08%
- Frequency Response: 10 Hz – 100 kHz
- Signal-to-Noise Ratio: 100 dB (A-weighted)
- Input Sensitivity: 150 mV (line level)
- Impedance: 4 – 8 ohms
- HDMI Inputs: 3 (114model)
- HDMI Outputs: 1
- Composite Video Inputs: 4
- Component Video Inputs: 2
- Audio inputs: 4RCA, 1 optical and 1 coaxial
- Audio outputs: 2 pre-outs (For front channels)
- Radio tuner: FM/AM
- Remote Control: yes, Included (RC-195)
- Dimensions: 17.1 x 5.3 x 15.9 inches
- Weight: 21.5 lbs
Frequently Asked Questions
Q: What type of speakers does the AVR-600 come with?
A: AVR-600 comes in 5.1 channel AV plant with speaker configuration.
Q: Is connecting my TV to the AVR-600 through HDMI possible?
A: Sure, you can connect a TV tothe AVR-600 via 3 HDMI inputs a 1 HDMI output.
Q: What is the warranty duration of the AVR-600?
A: A major duration is generally set at one year from purchase of the unit, though for some retailers it may be slightly longer.
Q: How to restore default factory settings on my AVR-600?
A: To reset AVR-600 switch it off and unplug itfrom the outlet then while plugging it back in press and hold TUNER and VIDEO SELECT buttons down.
Q: Are surround formats available to use with the AVR-600 device?
A: The AVR-600 supports Dolby Pro Logic surround formats along with multiple other surround formats.
Q: Is the AVR-600 compatible with Bluetooth devices?
A: The AVR-600 does not feature any embedded Bluetooth capability but it will work with any external Bluetooth receiver having the right plug connections.
Q: What is the max power rating for each channel?
A: The max power output rating per channel is at 100W.
Q: Is the remote available for use alongside the AVR-600?
A: A remote control model RC-195 is part of the AVR-600 purchase package.
Q: What inputs does the AVR-600 support?
A: The AVR-600 module is equipped with HDMI, RCA, Optical, and Coaxial audio as well as composite and component video inputs.
Q: What is the weight of the AVR-600 device?
A: Approximately the weight of the AVR-600 is 21.5 lbs.
