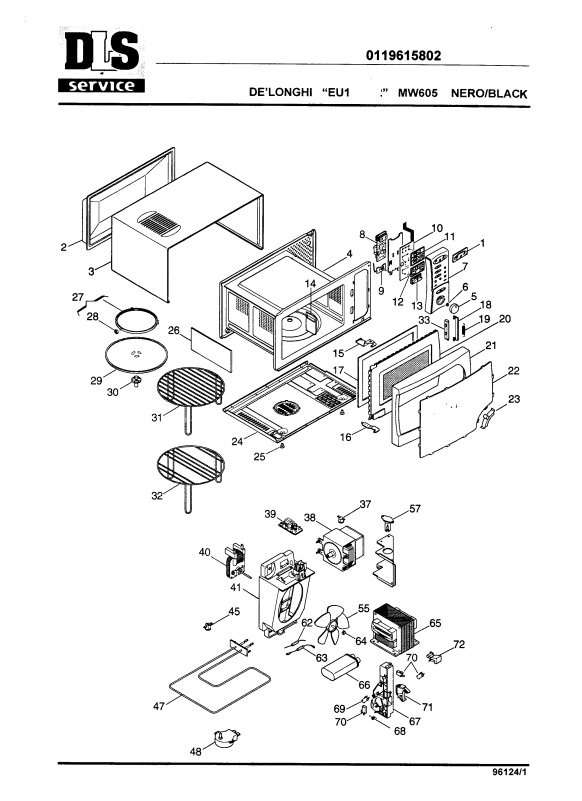

DE’LONGHI ’EU’ MW605.NERO Cod.0119615802
SERVICE
Pos Codice Italiano English Francais Deutsch Espanol
560055 SCATOLA IMBALLO CARTON PACKAGING CARTON D’EMBALLAGE VERPACKUNGSKARTON CAJA EMBALAJE
569750 POLISTIROLO SUP. POLYSTYRENE UPPER POLYSTYRENE SUP. STYROPOR OBEN POLIESTIROL SUP.
569751 POLISTIROLO INF. POLYSTYRENE LOWER POLYSTYRENE INF. STYROPOR UNTEN POLIESTIROL INF.
573884 ISTRUZIONI (IGBFDNLE) INSTRUCTION BOOK MODE D’EMPLOI BEDIENUNGSANLEITUNG ISTRUCCION
573885 ISTRUZION(GBPGRHSU) INSTRUCTION BOOK MODE D’EMPLOI BEDIENUNGSANLEITUNG ISTRUCCION
01 593124 VETRINO GLASS VERRE GLAS VIDRIO
02 690447 SCHIENALE REAR PANEL PANNEAU ARRIERE RUECKWAND RESPALDO
03 709340 MANTELLO HOUSING ENVELOPPE GEHAEUSE CHASIS ENVOLVENTE
04 709157 CAVITA CAVITY CAVITE HOHLRAUM CAVIDAD
05 537326 MANOPOLA KNOB BOUTON KNOPF MANDO
06 611900 MOLLA SPRING RESSORT FEDER MUELLE
07 593274 CRUSCOTTO CONTROL PANEL Tableau de Commande BEDIENUNGSBLENDE Marco Panel Mandos
08 521669 SCHEDA BOARD FICHE PLATINE FICHA
09 506545 POTENZIOMETRO POTENTIOMETER POTENTIOMETRE POTENTIOMETER POTENCIOMETRO
10 521683 MEMBRANA MEMBRANE MEMBRANE MEMBRANE MAMBRABA
11 537324 TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
12 537323 TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
13 537322 TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
14 536380 CHIUSURA CLOSURE FERMETURE VERSCHLUSS CIERRE
15 709161 CERNIERA SUP. HINGE UPPER CHARNIERE SUP. SCHARNIER (OBEN) BISAGRA SUP.
16 709162 CERNIERA INF. HINGE LOWER CHARNIERE INF. SCHARNIER (UNTEN) BISAGRA INF.
17 536565 CORNICE FRAME ENCADREMENT RAHMEN MARCO
18 536384 GANCIO HOOK CROCHET HAKEN GANCHO
19 612003 MOLLA SPRING RESSORT FEDER MUELLE
20 737967 PORTA DOOR PORTE TUER PUERTA
21 537327 CORNICE FRAME ENCADREMENT RAHMEN MARCO
22 592982 FRONTALE FRONT PANEL PANNEAU AVANT VORDERWAND PARTE DELANTERA
23 537328 MANIGLIA HANDLE POIGNEE GRIFF MANILLA
24 690448 BASAMENTO BASE SOCLE UNTERGESTELL BASE
25 532710 GOMMINO RUBBER PAD PARE CHOCS PUFFER GUARNICION
26 536653 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
27 552577 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
28 535762 RUOTA CASTOR ROULETTE RAD RUEDA
29 536473 PIATTO PLATE PLAT TELLER PLATO
30 535127 TRASCINATORE PULLER ENTRAINEUR MITNEHMER ARRASTRADOR
31 612009 GRIGLIA GRID GRILLE GITTER PARRILLA
32 612024 GRIGLIA GRID GRILLE GITTER PARRILLA
33 536347 GUIDA RUNNER GLISSIERE FUEHRUNG GUIA
37 521466 TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO
38 512983 MAGNETRON MAGNETRON MAGNETRON MAGNETRON MAGNETRON
39 521659 SCHEDA BOARD FICHE PLATINE FICHA
40 512987 MOTORE PLASET MOTOR PLASET MOTEUR PLASET MOTOR PLASET MOTOR PLASET
41 536349 COCLEA ARCHIMEDES SCREW VIS D’ARCHIMEDE SCHNECKE TORNILLO SIN FIN
45 521676 TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO
47 512981 RESISTENZA HEATING Element ELEMENT Chauffant HEIZELEMENT RESISTENCIA
48 512767 MOTORE MOTOR MOTEUR MOTOR MOTOR
55 536578 VENTOLA PLASET FAN PLASET HELICE PLASET FLUGELRAD PLASET VENTILADOR PLASET
57 513133 LAMPADA LAMP LAMPE LAMPE LAMPARA
62 512327 DIODO DIODE DIODE DIODE DIODO
63 512782 DIODO DIODE DIODE DIODE DIODO
64 611916 MOLLA SPRING RESSORT FEDER MUELLE
65 513052 TRASFORMATORE TRANSFORMER TRANSFORMATEUR TRANSFORMATOR TRANSFORMADOR
66 512509 CONDENSAT. 1,05uF CAPACITOR 1,05uF CONDENSATEUR 1,05uF KONDENSATOR 1,05uF CONDENSAD. 1,05uF
67 536365 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
68 612004 MOLLA SPRING RESSORT FEDER MUELLE
69 511854 MICROINTERRUTTORE MICROSWITCH MICRORUPTEUR MIKROSCHALTER MICROINTERRUPTOR
70 511855 MICROINTERRUTTORE MICROSWITCH MICRORUPTEUR MIKROSCHALTER MICROINTERRUPTOR
71 536366 CAMMA CAM CAME NOCKE LEVA
72 536367 CAMMA CAM CAME NOCKE LEVA
DE’LONGHI ’EU’ MW605.NERO Cod.0119615802 1334/1997/0
- Pag. 1/1 -
DLS
DE’LONGHI ’EU’ MW605SILVER 0119615820
SERVICE
Pos Codice Italiano English Francais Deutsch Espanol
01 593124 VETRINO GLASS VERRE GLAS VIDRIO
02 690447 SCHIENALE REAR PANEL PANNEAU ARRIERE RUECKWAND RESPALDO
03 7019101800MANTELLO HOUSING ENVELOPPE GEHAEUSE CHASIS ENVOLVENTE
04 709157 CAVITA CAVITY CAVITE HOHLRAUM CAVIDAD
05 5319122800MANOPOLA KNOB BOUTON KNOPF MANDO
06 611900 MOLLA SPRING RESSORT FEDER MUELLE
07 5919122100CRUSCOTTO CONTROL PANEL Tableau de Commande BEDIENUNGSBLENDE Marco Panel Mandos
08 521669 SCHEDA BOARD FICHE PLATINE FICHA
09 506545 POTENZIOMETRO POTENTIOMETER POTENTIOMETRE POTENTIOMETER POTENCIOMETRO
10 521683 MEMBRANA MEMBRANE MEMBRANE MEMBRANE MAMBRABA
11 537324 TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
12 5319121300TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
13 537322 TASTIERA KEYBOARD CLAVIER DRUCKKNOPFTAFEL TECLADO
14 536380 CHIUSURA CLOSURE FERMETURE VERSCHLUSS CIERRE
15 709161 CERNIERA SUP. HINGE UPPER CHARNIERE SUP. SCHARNIER (OBEN) BISAGRA SUP.
16 709162 CERNIERA INF. HINGE LOWER CHARNIERE INF. SCHARNIER (UNTEN) BISAGRA INF.
17 536565 CORNICE FRAME ENCADREMENT RAHMEN MARCO
18 536384 GANCIO HOOK CROCHET HAKEN GANCHO
19 612003 MOLLA SPRING RESSORT FEDER MUELLE
20 737967 PORTA DOOR PORTE TUER PUERTA
21 5319122400CORNICE FRAME ENCADREMENT RAHMEN MARCO
22 5919122200FRONTALE FRONT PANEL PANNEAU AVANT VORDERWAND PARTE DELANTERA
23 5319122500MANIGLIA HANDLE POIGNEE GRIFF MANILLA
24 690448 BASAMENTO BASE SOCLE UNTERGESTELL BASE
25 532710 GOMMINO RUBBER PAD PARE CHOCS PUFFER GUARNICION
26 536653 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
27 552577 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
28 535762 RUOTA CASTOR ROULETTE RAD RUEDA
29 536473 PIATTO PLATE PLAT TELLER PLATO
30 535127 TRASCINATORE PULLER ENTRAINEUR MITNEHMER ARRASTRADOR
31 612009 GRIGLIA GRID GRILLE GITTER PARRILLA
32 612024 GRIGLIA GRID GRILLE GITTER PARRILLA
33 536347 GUIDA RUNNER GLISSIERE FUEHRUNG GUIA
37 521466 TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO
38 512985 MAGNETRON MAGNETRON MAGNETRON MAGNETRON MAGNETRON
39 521659 SCHEDA BOARD FICHE PLATINE FICHA
40 512987 MOTORE PLASET MOTOR PLASET MOTEUR PLASET MOTOR PLASET MOTOR PLASET
41 5319127100COCLEA ARCHIMEDES SCREW VIS D’ARCHIMEDE SCHNECKE TORNILLO SIN FIN
45 521676 TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO
47 512981 RESISTENZA HEATING Element ELEMENT Chauffant HEIZELEMENT RESISTENCIA
48 512767 MOTORE MOTOR MOTEUR MOTOR MOTOR
55 536578 VENTOLA PLASET FAN PLASET HELICE PLASET FLUGELRAD PLASET VENTILADOR PLASET
57 513133 LAMPADA LAMP LAMPE LAMPE LAMPARA
62 512327 DIODO DIODE DIODE DIODE DIODO
63 512782 DIODO DIODE DIODE DIODE DIODO
64 611916 MOLLA SPRING RESSORT FEDER MUELLE
65 513052 TRASFORMATORE TRANSFORMER TRANSFORMATEUR TRANSFORMATOR TRANSFORMADOR
66 512509 CONDENSAT. 1,05uF CAPACITOR 1,05uF CONDENSATEUR 1,05uF KONDENSATOR 1,05uF CONDENSAD. 1,05uF
67 536365 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
68 612004 MOLLA SPRING RESSORT FEDER MUELLE
69 511854 MICROINTERRUTTORE MICROSWITCH MICRORUPTEUR MIKROSCHALTER MICROINTERRUPTOR
70 511855 MICROINTERRUTTORE MICROSWITCH MICRORUPTEUR MIKROSCHALTER MICROINTERRUPTOR
71 536366 CAMMA CAM CAME NOCKE LEVA
72 536367 CAMMA CAM CAME NOCKE LEVA
DE’LONGHI ’EU’ MW605SILVE Cod.0119615820 6304/1999/0
- Pag. 1/1 -
