DeLonghi ESS603 User Operating Instructions Manual

ESS603

double oven

electric cooker

Before operating this cooker,

please read these instructions carefully

Users Operating Instructions

2

Dear Customer

Thank you for choosing one of our appliances which has been carefully designed and
built by our specialist staff and thoroughly tested to satisfy your cooking requirement.

We suggest that you read this Instruction Booklet so that you will understand fully how
to operate the appliances.

Please keep the booklet handy. You may wish to refer to it at a later date.

De Longhi

Contents

Model ESS603

Page Number

– Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 3

– Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 4

Power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 4

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 4

Connecting the mains cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 5

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 6

Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 6

Preparing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 6

– Features and technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 7

– How to use the hotplates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 8

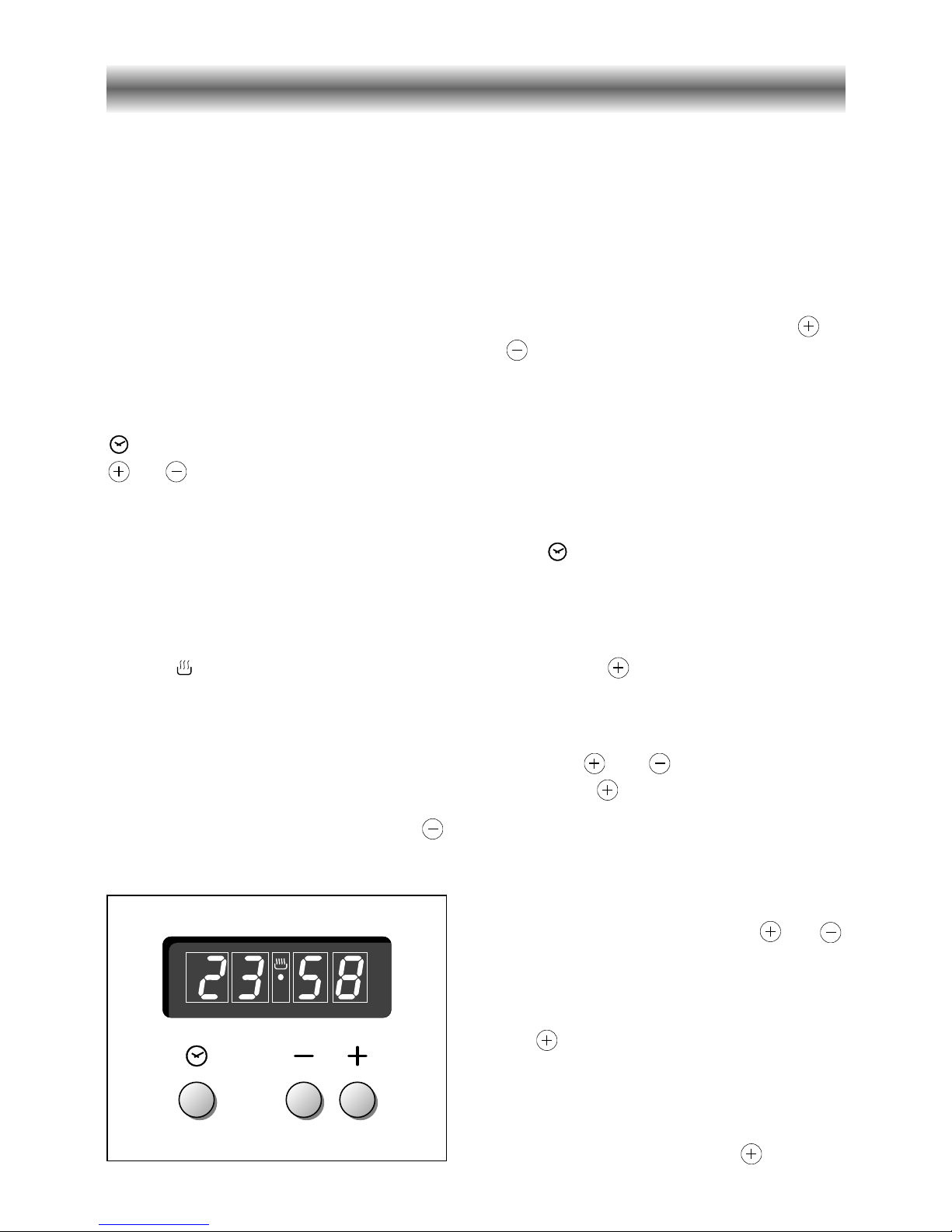

– How to use the electronic clock/programmer . . . . . . . . . . . . . . . . . . . . . . . . . .” 13

– How to use the Top conventional oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 14

– How to use the Bottom fan oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 16

– Temperature recipe guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 18

– Do’s and do not’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 19

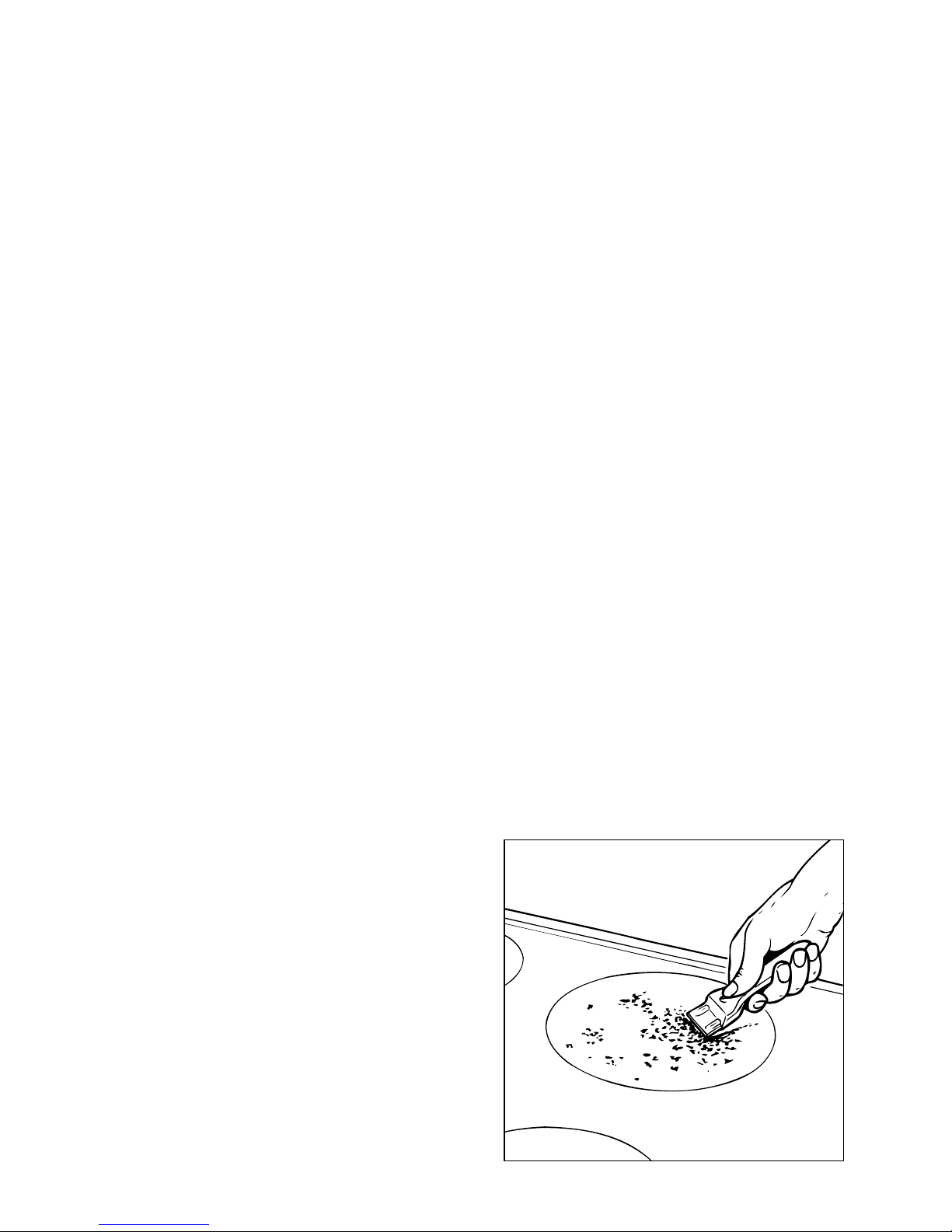

– Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 20

– After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .” 22

3

Introduction

Congratulations on your purchase of this Delonghi electric cooker which has been
carefully designed and produced to give you many years of satisfactory use.

Before using this appliance it is essential that the following instructions are carefully read and
fully understood.
We would emphasise that the installation section must be fully complied with for your safety
to ensure that you obtain the maximum benefits from your appliance.

F

u

n

c

tio

n

T

em

p

er

a

tu

r

e

T

O

P

O

V

E

N

B

O

T

T

O

M

O

V

E

N

E

S

S

6

0

2

A
U
T
O

Fig. 1

Identification label

When you open the bottom oven door
the indentification label is at the
bottom right hand side.

This cooker has been designed, constructed and marketed in compliance with:

- safety requirements of EEC Directive “Low voltage” 73/23;

- protection requirements of EEC Directive “EMC” 89/336;

- requirements of EEC Directive 93/68.

4

Power connection

This appliance must be installed by a qualified technician in accordance with the current
local regulations and in compliance with the manufacturer instructions.

All electrical wiring must be in compliance with the appropriate IEE regulations and carried
out by a qualified electrician.

Before installing the cooker the electricity must be turned off.

The electrical connections must be connected to the terminal block as detailed opposite.
A cable of the correct rating of this appliance must be used type H05 RR-F section 6 mm

2

.

Cable must be able to withstand a temperature rise of 75°C above ambient temperature.

Technical data

230 Volts AC - 50 Hz

Static top oven

– Top element 0.7 kW
– Bottom element 1.1 kW
– Grill element 2.1 kW

Fan Bottom Oven

– Fan element 2.5 kW

Maximum power rating

– Top oven 2.1 kW
– Bottom oven 2.5 kW

Hotplate

– Front left 1.7 kW
– Back left 1.2 kW
– Back right 2.2 kW
– Front right 1.2 kW

Oven lamp 15 W
300 °C, miniature edison screw

Maximum rated power 10.96 kW

Installation

5

Connecting the mains cable

– Remove the two screws securing the cover plate A behind the cooker.
– Remove the screw C from the cable clamp.

– Insert the mains cable (type HO5 RR-F) of minimum 10 mm

2

section into the cable protec-

tor P.

– Connect the live, neutral and earth cables to the mains terminal connection block B.

EARTH

N NEUTRAL

L LIVE

– Refit the cable clamp C so that it clamps the outer sleeving of the cable.
– Refit the cover plate A.

IMPORTANT: This appliance must be earthed.

L

N

Green &Yellow
(Earth)

Red

or

Brown

(Live)

Black

or

Blue

(Neutral)

Fig. 2

P

C

B

A

6

Before use

Please ensure that all packing has been removed
from the appliance before switching on.
The appliance is supplied with a protective film on
stainless steel surfaces. This film must be removed
before using the cooker.

Preparing the ovens

Clean the upper and lower ovens thoroughly before

using for the first time; use water and soap, then rinse
carefully. Hook the side frames (fig. 4 and 5) to the
side walls and then insert the shelves and grill pan
into the shelf guides provided in the side frames.
Once you have done this heat the oven and the grill
element for about 30 minutes to eliminate any resid­ual factory grease that might impart unpleassant
smells to the meals to be cooked.

F

u

n

c

t

i

o

n

T

e

m

p

e

r

a

t

u

r

e

T

O

P

O

V

E

N

B

O

T

T

O

M

O

V

E

N

E

S

S

60

2

A
U
T
O

650 mm

450 mm

300

mm

Fig. 3

Location

This cooker has“X”-type protection
against overheating of the surrounding
surfaces.

It may be installed close to a side wall
which is higher than the hob, provided
a minimum distance of 300 mm is
maintained (see fig. 3).

The furniture walls adjacent to the cooker
must be made of material resistant to heat.
The veneered syntetical material and the
glue used must be resistant to a
temperature of 120°C in order to avoid
ungluing or deformations.

The cooker may be located in a kitchen, a
kitchen/diner or bed-sitting room but not
in a room containing a bath or shower.

Curtains must not be fitted immediatly
behind appliance or within 500 mm of the
sides.

It is essential that the cooker is positioned
as stated opposite.

IMPORTANT

As a safety measure, before you start to clean
the oven, switch off the electrical supply.

Fig. 4

Fig. 5

7

Features and technical data

Ovens (Fig. 6)

6. Conventional top oven

7. Fan bottom oven

Control panel (Fig. 6)

Control knobs:

8. Front right hotplate (4)

9. Rear right hotplate (3)

10. Rear left hotplate (2)

11. Front left hotplate (1)

12. Bottom oven switch and
thermostat

13. Top oven function
selector

14. Top oven thermostat

Control lamps:

15. Bottom oven temperature

16. Top oven temperature

17. Hotplates

Oven timer:

18. Auto electronic timer
(bottom oven only)

950 mm

600 mm

600 mm

F

u

n

c

t

i

o

n

T

e

m

p

e

r

a

t

u

r

e

T

O

P

O

V

E

N

B

O

T

T

O

M

O

V

E

N

ESS602

A
U
T
O

21354

14 13 12 11 10 9 8

18

16

6

7

1715

Fig. 6

Vitroceramic hob (Fig. 6)

1.

Radiant hotplate Ø 180, 1700 W

2.

Radiant hotplate Ø 145, 1200 W

3.

Halogen hotplate Ø 210, 2200 W

4.

Radiant hotplate Ø 145, 1200 W

5.

Residual heat indicators

8

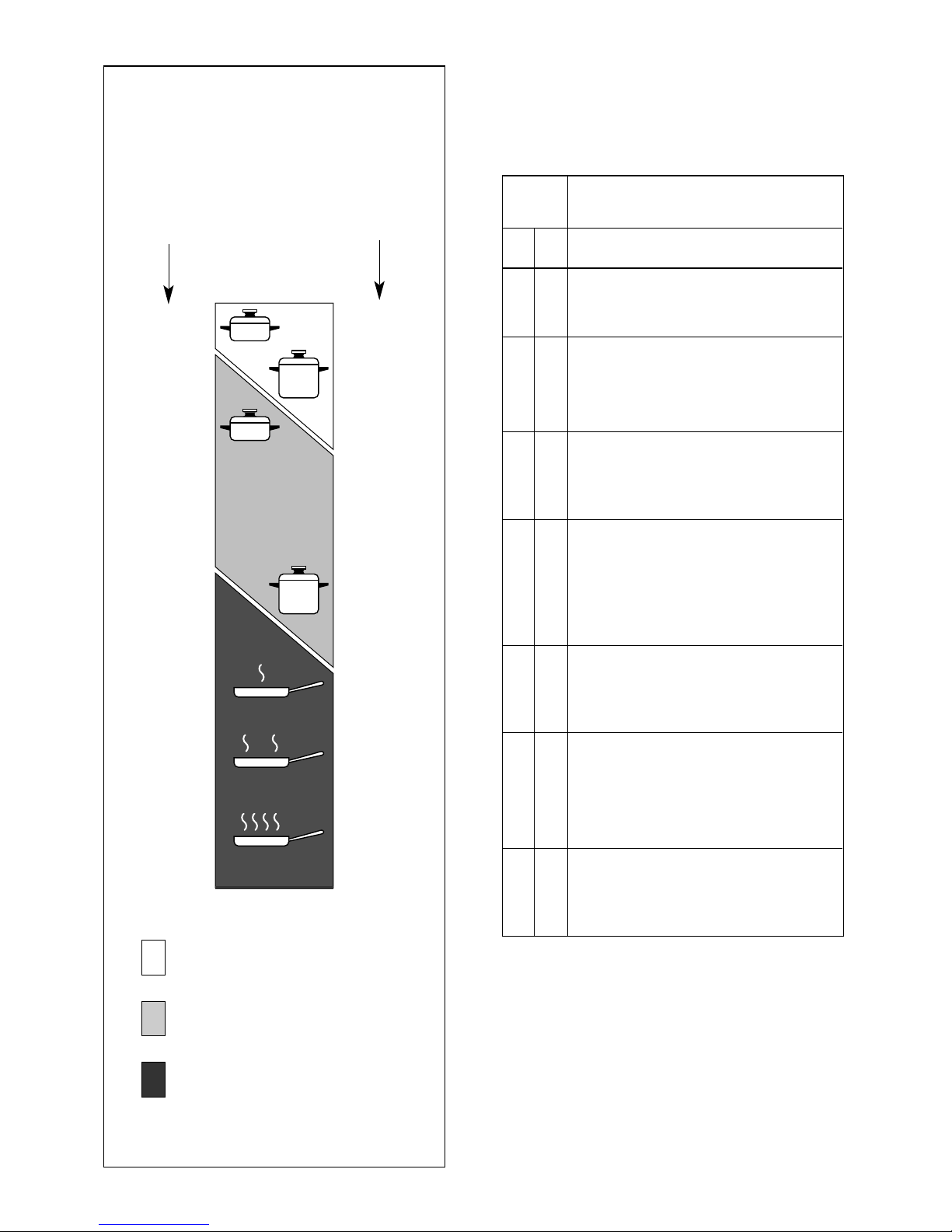

How to use the hotplates

The ceramic surface of the hob allows a fast transmission of heat in the vertical direction,
from the heating elements underneath the ceramic glass to the pans sat on it.

The heat does not spread in the horizontal direction, so that the glass stays “cool” at only a
few centimeters from the cooking plate.

The 4 cooking plates are shown by dark disks on the ceramic surface.

Fig. 8

Fig. 7

Radiant hotplate control knob:

The radiant hotplates are controlled by a 6-position control switch (fig. 7).

Halogen hotplate control knob:

The halogen hotplate is controlled by a energy regulator switch (fig. 8).
The heat power of the halogen hotplate can be adjusted without steps from “0” to its max
“12”.
