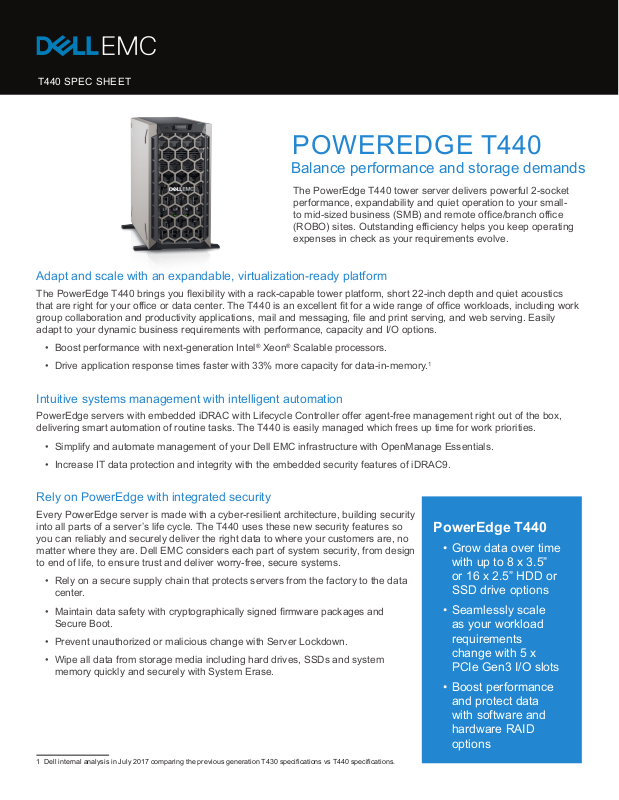

T440 SPEC SHEET

POWEREDGE T440

Balance performance and storage demands

The PowerEdge T440 tower server delivers powerful 2-socket performance, expandability and quiet operation to your smallto mid-sized business (SMB) and remote ofce/branch ofce (ROBO) sites. Outstanding efciency helps you keep operating expenses in check as your requirements evolve.

Adapt and scale with an expandable, virtualization-ready platform

The PowerEdge T440 brings you exibility with a rack-capable tower platform, short 22-inch depth and quiet acoustics that are right for your ofce or data center. The T440 is an excellent t for a wide range of ofce workloads, including work group collaboration and productivity applications, mail and messaging, le and print serving, and web serving. Easily adapt to your dynamic business requirements with performance, capacity and I/O options.

• Boost performance with next-generation Intel® Xeon® Scalable processors.

• Drive application response times faster with 33% more capacity for data-in-memory.

Intuitive systems management with intelligent automation

PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box,

delivering smart automation of routine tasks. The T440 is easily managed which frees up time for work priorities.

• Simplify and automate management of your Dell EMC infrastructure with OpenManage Essentials.

• Increase IT data protection and integrity with the embedded security features of iDRAC9.

Rely on PowerEdge with integrated security

Every PowerEdge server is made with a cyber-resilient architecture, building security

into all parts of a server’s life cycle. The T440 uses these new security features so

you can reliably and securely deliver the right data to where your customers are, no

matter where they are. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free, secure systems.

• Rely on a secure supply chain that protects servers from the factory to the data

center.

• Maintain data safety with cryptographically signed rmware packages and Secure Boot.

• Prevent unauthorized or malicious change with Server Lockdown.

• Wipe all data from storage media including hard drives, SSDs and system

memory quickly and securely with System Erase.

PowerEdge T440

• Grow data over time with up to 8 x 3.5” or 16 x 2.5” HDD or

SSD drive options

• Seamlessly scale

as your workload requirements change with 5 x PCIe Gen3 I/O slots

• Boost performance and protect data with software and

hardware RAID

options

1 Dell internal analysis in July 2017 comparing the previous generation T430 specications vs T440 specications.

PowerEdge T440

Features Technical Specication

Processor Up to two Intel® Xeon® Scalable processors, up to 14 cores per processor

Memory

Storage controllers Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140

Drive bays Up to 4 or 8 x 3.5” SAS/SATA (HDD/SSD) max 80TB or up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB

Power supplies 495W, 750W, 1100W hot-plug PSU; Gold efciency

Sizing Form factor: Tower or rack, 5U Chassis max depth: 594.82 mm

Bezel Optional security bezel

Embedded / At-Server iDRAC9 with Lifecycle Controller

Consoles & Mobile OpenManage Enterprise (available soon)

Integrations OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Software

Connections OpenManage connections: Nagios & Nagios XI,Oracle Enterprise Manager, HP Operations Manager,

Tools Dell EMC Repository Manager

Security TPM 1.2/2.0 optional

I/O & Ports

GPU

16 DDR4 DIMM slots, Supports RDIMMS/ LRDIMMS, speeds up to 2666MT/s, 512GB max Supports registered ECC DDR4 DIMMs only

Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 External HBAs (non-RAID): 12 Gbps SAS HBA

450W Cabled AC PSU

iDRAC Direct

OpenManage Essentials

IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management

Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs

Cryptographically signed rmware

Hardware Root of Trust

2 x 1GbE LOM 9 x USB (5 x USB 2.0, 4 x USB 3.0), dedicated IDRAC Direct Micro-USB Video card: VGA Up to 5 PCIe Gen 3 slots

1X NVIDIA NVS 310 1X NVIDIA Quadro P4000

Fan redundancy

iDRAC REST API with Redsh

OpenManage Power Center OpenManage Mobile

iDRAC Service Module

OpenManage Server Administrator OpenManage Storage Services

Secure Boot

System Lockdown

System Erase

See Dell.com/GPU for latest information.

Supported operating systems

OEM-ready version

available

Recommended support and services

Dell Financial Services Deliver results with easy nancing. Explore nancial options that move at the speed of business. For more information, visit

Canonical® Ubuntu® LTS Citrix® XenServer Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more

information, visit Dell.com/OEM.

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for

your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit

dell.com/itlifecycleservices.

https://www.emc.com/products/how-to-buy/global-nancial-services/index.htm.*

For specications and interoperability details see

Dell.com/OSsupport.

Learn more at Dell.com/PowerEdge
