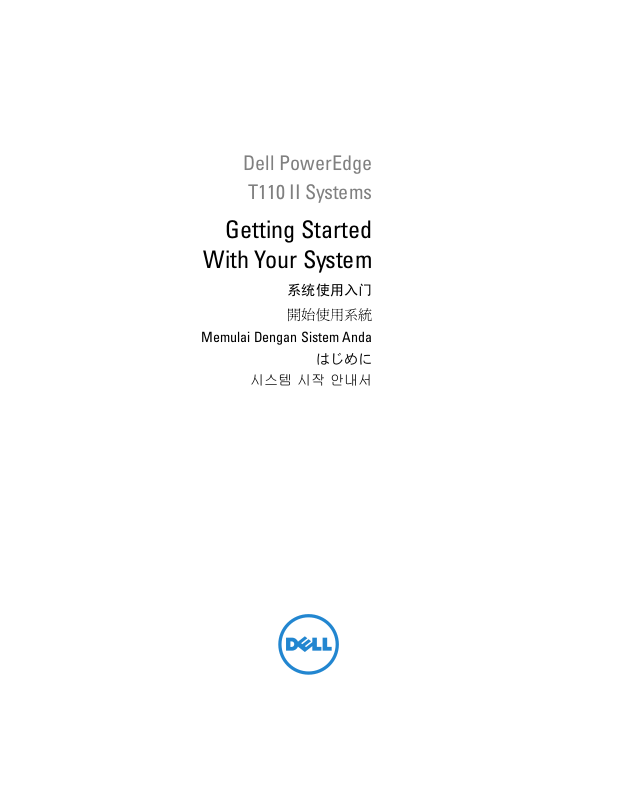

Dell PowerEdge T110 II Systems

Getting Started

With Your System

系统使用入门

開始使用系統

Memulai Dengan Sistem Anda

はじめに

시스템 시작 안내서

Dell PowerEdge

T110 II Systems

Getting Started

With Your System

Regulatory Model E11S Series

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Intel Microsoft Corporation in the United States and/or other countries. Red Hat are registered trademarks of Red Hat, Inc. in the United States and other countries. VMware Citrix other countries. SUSE ™

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

and Windows Server® are either trademarks or registered trademarks of Microsoft

is a registered trademark of VMWare, Inc. in the United States or other countries.

and XenServer® are registered trademarks of Citrix Systems, Inc. in the United States and/or

is a trademark of Novell, Inc. in the United States and other countries.

and Red Hat Enterprise Linux®

Regulatory Model: E11S Series

December 2010 P/N DHY8H Rev. A01

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Optional—Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug into each connector. Be sure to tighten the screws (if any) on the monitor's cable connector.

Getting Started With Your System 3

Connecting the Power Cable

Connect the system’s power cable to the system and, if a monitor is used, connect the monitor’s power cable to the monitor.

Securing the Power Cable

Bend the system power cable into a loop, as shown in the illustration, and attach to the cable clasp.

Plug the other end of the power cable into a grounded electrical outlet or a separate power source such as an uninterruptible power supply (UPS) or a power distribution unit (PDU).

NOTE: Ensure that the system is connected to a stand-alone power source with

stable power supply for better performance.

4 Getting Started With Your System

Turning On the System

Press the power button on the system. The power indicator should light.

Complete the Operating System Setup

If you purchased a preinstalled operating system, see the operating system documentation that ships with your system. To install an operating system for the first time, see the installation and configuration documentation for your operating system. Be sure the operating system is installed before installing hardware or software not purchased with the system.

Supported Operating Systems

• Microsoft Windows Small Business Server 2011 (x64) Standard and Essential Editions

• Microsoft Windows Server 2008 R2 SP1 (x64) Standard and Foundation Editions

• Microsoft Windows Server 2008 R2 (x64) Standard and Foundation Editions

• Microsoft Windows Server 2008 (x86) Standard Edition with SP2

• Microsoft Windows Server 2008 (x64) Standard Edition with SP2

• Microsoft Windows Server 2008 R2 SP1 (x64) with Hyper-V for Standard Edition

Getting Started With Your System 5

• Microsoft Windows Server 2008 SP2 (x64) with Hyper-V for Standard Edition

• Microsoft Windows Server 2008 R2 (x64) with Hyper-V for Standard Edition

• Red Hat Enterprise Linux Server 6.0 (x64)

•SUSE

• VMware ESX Version 4.1 Update 1 (Classic)

• VMware ESXi Version 4.1 Update 1 (Embedded)

• Citrix XenServer v5.6 Feature Pack 1

Linux Enterprise Server 11 SP1 (x64)

NOTE: For the latest information on supported operating systems,

see support.dell.com.

Dell Software License Agreement

• Before using your system, please read the Dell Software License Agreement that came with your system.

• You must consider any CD, DVD, or diskette set of Dell installed software as BACKUP copies of the software installed on your system’s hard-disk drive.

• If you do not accept the terms of the agreement, please call the customer assistance telephone number. For customers in the United States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit from the top of the page.

support.dell.com

and select your country or region

6 Getting Started With Your System

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or as a separate document.

• The

• Any media that ships with your system that provides documentation and tools

Owner’s Manual

and describes how to troubleshoot the system and install or replace system components. This document is available online at

support.dell.com/manuals

for configuring and managing your system, including those pertaining to the operating system, system management, system updates, and system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

provides information about system features

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your Owner’s Manual. Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This service may not be offered in all locations.

Información de la NOM (sólo para México)

La información que se proporciona a continuación aparece en el dispositivo descrito en este documento, en cumplimiento de los requisitos de la Norma Oficial Mexicana (NOM):

Importador:

Número de modelo: E11S Voltaje de alimentación: 100 V CA–240 V CA Frecuencia: 50 Hz/60 Hz Consumo eléctrico: 9.0 A–4.5 A

Getting Started With Your System 7

Technical Specifications

Processor

Processor type One Intel Xeon processor E3-1200 product family

or One Intel Core i3-2100 product family or One Intel Pentium processor (when available)

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots Slot 1: PCIe x8 (x8 routing), half-length

Slot 2: PCIe x16 (x8 routing), full-length

Slot 3: PCIe x8 (x4 routing), half-length

Slot 4: PCIe x1 (x1 routing), half-length

Memory

Architecture 1066 MHz or 1333 MHz DDR3 unbuffered Error

Correcting Code (ECC) DIMMs

Memory module sockets Four 240-pin

Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB

Minimum RAM 1 GB

Maximum RAM 32 GB

Drives

Hard drives Up to four 3.5-inch, cabled SAS or SATA

internal drives

Optical drive Optional internal SATA DVD-ROM or

SATA DVD+/-RW

Optional external USB DVD-ROM

NOTE: DVD devices are data only.

Tape drive One optional internal half-height tape

backup device

8 Getting Started With Your System

Connectors

Back

NIC

Serial

USB

Video

eSATA

Front

USB

Internal

USB

Video

Video type Matrox G200, integrated in Winbond WPCM450

Video memory 8 MB

Power

AC power supply (per power supply)

Wattage

Vo lt ag e

Heat dissipation

Maximum inrush current

Batteries

System battery

One RJ-45 (for integrated 1 GB NIC)

9-pin, DTE, 16550-compatible

Four 4-pin, USB 2.0-compliant

15-pin VGA

One 7-pin connector

Two 4-pin, USB 2.0-compliant

305 W

100 VAC–240 VAC, 50 Hz/60 Hz, 9.0 A–4.5 A

1300 BTU/hr maximum

Under typical line conditions and over the entire system ambient operating range, the inrush current may reach 35 A per power supply for 10 ms or less.

CR 2032 3.0-V lithium coin cell

Getting Started With Your System 9

Physical

Height 42.03 cm (16.55 in)

Width 18.90 cm (7.44 in)

Depth 46.38 cm (18.25 in)

Weight 16.1 kg (35.49 lb)

Environmental

NOTE: For additional information about environmental measurements for specific

system configurations, see dell.com/environmental_datasheets.

Temperature

Operating

10 °C to 35 °C (50 °F to 95 °F) with a maximum temperature gradation of 10 °C per hour

NOTE: For altitudes above 2950 feet, the maximum

operating temperature is derated 1 ºF/550 ft.

Storage

Relative humidity

Operating

Storage

Maximum vibration

Operating

Storage

–40 °C to 65 °C (–40 °F to 149 °F) with a maximum temperature gradation of 20 °C per hour

20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour

5% to 95% (noncondensing)

0.26 Grms at 5 Hz–350 Hz for 15 min

1.87 Grms at 10 Hz–500 Hz for 15 min

10 Getting Started With Your System

Environmental (continued)

Maximum shock

Operating

Storage

Altitude

Operating

Storage

Airborne contaminant level

Class

One shock pulse in the positive z axis (one pulse on each side of the system) of 31 G for 2.6 ms in the operational orientation

Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms

Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 32 G faired square wave pulse with velocity change at 270 inches/second (686 centimeters/second)

–16 m to 3048 m (–50 ft to 10,000 ft)

NOTE: For altitudes above 2950 feet, the maximum

operating temperature is derated 1 ºF/550 ft.

–16 m to 10,600 m (–50 ft to 35,000 ft)

G1 as defined by ISA-S71.04-1985

Getting Started With Your System 11

12 Getting Started With Your System

Dell PowerEdge

T110 II 系统

系统使用入门

管制型号

E11S

系列

注、小心和警告

注：“注”表示可以帮助您更好地使用计算机的重要信息。

小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导致数据

丢失。

警告：

____________________

本出版物中的信息如有更改，恕不另行通知。

未经

Dell Inc.

本文中使用的商标：是

Intel Corporation Microsoft Corporation Enterprise Linux® 是 Red Hat, Inc. VMWare, Inc. Systems, Inc.

国家/地区的商标。

本出版物中述及的其它商标和商品名称是指拥有相应商标和商品名称的公司或其产品。

Dell Inc.

“警告”表示可能会导致财产损失、人身伤害甚至死亡。

书面许可，严禁以任何形式复制这些材料。

、

徽标和

DELL

Dell

™

在美国和其它国家/地区的注册商标。

在美国和/或其它国家/地区的商标或注册商标。

在美国或其它国家/地区的注册商标。

在美国和/或其它国家/地区的注册商标。

对其它公司的商标和产品名称不拥有任何所有权。

PowerEdge

在美国和其它国家/地区的注册商标。

是 Dell Inc.

™

Microsoft

和 XenServer® 是 Citrix

Citrix

SUSE

是 Novell, Inc.

™

的商标。

Intel® 和 Xeon®

和

Windows Server

Red Hat

VMware® 是

和 Red Hat

在美国和其它

是

管制型号：

2010 年 12 月 P/N DHY8H Rev. A01

E11S

系列

安装和配置

警告：执行下列步骤之前，请查看系统随附的安全说明。

打开系统包装

打开系统包装并检查各个组件。

可选 — 连接键盘、鼠标和显示器

连接键盘、鼠标和显示器（可选）。系统背面的连接器附有图标，这些图标指示了要插入每个连接器的电缆。

确保拧紧显示器的电缆连接器上的螺钉（如果有）。

系统使用入门 15

连接电源电缆

将系统电源电缆连接至系统，如果使用显示器，将显示器电源电缆连接至显示器。

固定电源电缆

如图例所示，将系统电源电缆弯曲成环状，并连接至电缆挂钩。将电源电缆的另一端插入接地的电源插座或单独的电源，如不间断电源设备

或配电装置

(UPS)

注：为获得最佳的性能，请确保使用稳定的电源设备将系统连接至独立的

电源。

16 系统使用入门

(PDU)

。

开启系统

按下系统上的电源按钮。电源指示灯将会亮起。

完成操作系统安装

如果购买了预安装的操作系统，请参阅系统随附的操作系统说明文件。第一次安装操作系统时，请参阅操作系统的安装和配置说明文件。请确保先安装操作系统，然后再安装未随系统一起购买的硬件或软件。

支持的操作系统

•

Microsoft Windows Small Business Server 2011 (x64) Standard Essential

•

Microsoft Windows Server 2008 R2 SP1 (x64) Standard Foundation

•

Microsoft Windows Server 2008 R2 (x64) Standard

•

Microsoft Windows Server 2008 (x86) Standard

•

Microsoft Windows Server 2008 (x64) Standard

•

具有版

•

具有

•

具有

•

Red Hat Enterprise Linux Server 6.0 (x64)

版

版及版（附带版（附带

Hyper-V 的 Microsoft Windows Server 2008 R2 SP1 (x64) Standard

Hyper-V 的 Microsoft Windows Server 2008 SP2 (x64) Standard

Hyper-V 的 Microsoft Windows Server 2008 R2 (x64) Standard

系统使用入门 17

版及

Foundation

）

SP2

）

SP2

版

•

Dell

•

SUSE

Linux Enterprise Server 11 SP1 (x64)

版本

VMware ESX

VMware ESXi Citrix XenServer v5.6 Feature Pack 1

注：有关支持的操作系统的最新信息，请访问 support.dell.com。

4.1 Update 1

版本

4.1 Update 1

（经典）

（嵌入式）

软件许可协议

在使用您的系统前，请阅读系统随附的您必须将

盘驱动器上安装的软件的备份副本。如果您不接受协议条款，请拨打客户帮助电话号码。美国地区的客

户，请致电问

support.dell.com

安装的软件的任何

Dell

800-WWW-DELL (800-999-3355)

并从页面顶部选择您的国家或地区。

CD、DVD

软件许可协议。

Dell

或套装软盘视为您系统硬

。美国以外的客户，请访

18 系统使用入门

可能需要的其它信息

警告：请参阅系统附带的安全与管制信息。保修信息可能包括在该说明文

件中，也可能作为单独的说明文件提供。

•

《用户手册》提供了有关系统功能的信息，并说明了如何排除系统故障以及安装或更换系统组件。可在

support.dell.com/manuals

在线获取

该说明文件。

•

系统随附的所有介质都提供了用于配置和管理系统的说明文件和工具，包括与随系统购买的操作系统、系统管理、系统更新以及系统组件相关的说明文件和工具。

注：请经常访问 support.dell.com/manuals 以获得更新，并首先阅读这

些更新，因为这些更新通常会取代其它说明文件中的信息。

获得技术帮助

如果您对本指南中的步骤有疑问，或系统运行无法达到预期效果，请参阅《用户手册》。

dell.com/training

提供全面的硬件培训和认证。有关详情，请参阅

Dell

。此项服务可能并非在所有地区都提供。

技术规格

处理器

处理器类型一个

或一个或一个

Intel Xeon

Intel Core i3-2100

Intel Pentium

处理器

E3-1200

产品系列

处理器（如果可用）

产品系列

扩充总线

总线类型

扩充槽插槽 1：

PCI Express 第 2

插槽 2：

插槽 3：

插槽 4：

代

PCIe x8（x8

PCIe x16（x8

PCIe x8（x4

PCIe x1（x1

布线），半长

布线），全长

布线），半长

系统使用入门 19

+ 49 hidden pages

Dell T100 II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Installation and Configuration

Unpacking the System

Connecting the Power Cable

Securing the Power Cable

Turning On the System

Complete the Operating System Setup

Supported Operating Systems

Dell Software License Agreement

Other Information You May Need

Obtaining Technical Assistance

Información de la NOM (sólo para México)

Technical Specifications

系统使用入门

安装和配置

打开系统包装

连接电源电缆

固定电源电缆

开启系统

完成操作系统安装

支持的操作系统

可能需要的其它信息

获得技术帮助

技术规格
