About this guide
This guide provides site preparation recommendations, step-by-step procedures for rack mounting and desk mounting, inserting modules,
and connecting to a power source.
CAUTION: To avoid electrostatic discharge (ESD) damage, wear grounding wrist straps when handling this equipment.
WARNING: Only trained and qualied personnel can install this equipment. Read this guide before you install and power up this
equipment. This equipment contains two power cords. Disconnect both power cords before servicing.
WARNING: This equipment contains optical transceivers, which comply with the limits of Class 1 laser radiation.
1
Figure 1. Class 1 laser product tag
WARNING: When no cable is connected, visible and invisible laser radiation may be emitted from the aperture of the optical
transceiver ports. Avoid exposure to laser radiation. Do not stare into open apertures.
Regulatory
• Marketing model S4112F-ON is represented by the regulatory model E24W and the regulatory Type E24W001.
• Marketing model S4112T-ON is represented by the regulatory model E24W and the regulatory Type E24W002.
Topics:
• Related documents
• Information symbols
Related documents
For more information about the S4112–ON Series (S4112F-ON and S4112T-ON), see the following documents:
• OS10 Enterprise Edition Release Notes
• OS10 Enterprise Edition User Guide
• S4112–ON Series Set-up Guide
• S4112-ON Series Release Notes
• Open Networking Hardware Diagnostic Guide
NOTE
: For the most recent documentation, see Dell EMC support: www.dell.com/support.
About this guide 5
Page 6
Information symbols
This book uses the following information symbols:
NOTE: The Note icon signals important operational information.
CAUTION: The Caution icon signals information about situations that could result in equipment damage or loss of data.
WARNING: The Warning icon signals information about hardware handling that could result in injury.
WARNING: The ESD Warning icon requires that you take electrostatic precautions when handling the device.
6 About this guide
Page 7
S4112–ON Series switch
The following sections describe the Dell EMC S4112–ON Series (S4112F-ON and S4112T-ON) switch:
Topics:
• Introduction
• Features
• Physical dimensions
• LED display
• Prerequisite
• S4112–ON Series congurations
• Luggage tag
Introduction
The S4112–ON Series (S4112F-ON and S4112T-ON) is a one-half rack unit (RU), full-featured xed form-factor top-of-rack (ToR)
1/10/25/40/50/100GbE switch for 10G servers with small form-factor pluggable plus (SFP+) and quad small form-factor pluggable 28
(QSFP28) ports.
2
• The S4112F-ON supports 1/10/25/40/50/100GbE with 12 xed SFP+ ports to implement 1GbE and 10GbE and three xed QSFP28
ports to implement 4x10, 4x25, 2x50, 40, and 100GbE.
• The S4112T-ON supports 1/10/25/40/50/100GbE with 12 RJ-45 ports to implement 1GbE and 10GbE and three QSFP28 port to
implement 4x10, 4x25, 2x50, 40, and 100GbE.
The S4112-ON Series supports the following congurations:
Table 1. S4112-ON Series supported
S4112F-ON S4112T-ON
12 x 10G + 3 x 100G 12 x 10GBaseT + 3 x 100G
12 x 10G + 12 x 25G 12 x 10GBaseT + 12 x 25G
12 x 10G + 3 x 40G 12 x 10GBaseT + 3 x 40G
24 x 10G 12 x 10GBaseT + 12 x 10G SFP+
12 x 10G + 6 x 50G 12 x 10GBaseT + 6 x 50G
congurations
S4112–ON Series switch 7
Page 8
Figure 2. S4112F–ON Series AC I/O-side view
1 Twelve SFP+ ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 AC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
Figure 3. S4112T–ON Series AC I/O-side view
1
Twelve SFP+ ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 AC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
Figure 4. S4112F–ON Series DC I/O-side view
Twelve RJ-45 ports 2 Micro USB-B console port
1
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 DC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
8 S4112–ON Series switch
Page 9
Figure 5. S4112T–ON Series DC I/O-side view
1 Twelve RJ-45 ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 DC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
The S4112–ON Series fan-side of the switch has three integrated fans.
NOTE: The S4112-ON Series has a DC power source rated -40 to -72 VDC, 6A minimum, Tma=40C, and an altitude operation of
3048m. The power cable is 10AWG, 16A minimum, with a 72V minimum rating.
Figure 6. S4112–ON Series AC and DC fan-side view
1
Ground holes 2 Fans
Features
The S4112–ON Series (S4112F-ON and S4112T-ON) oers the following features:
• S4112F-ON: 12 xed 1/10GbE SFP+ ports and 3 xed 100GbE QSFP28 ports
• S4112T-ON: 12 xed 1/10GBASE-T RJ-45 ports and 3 xed 100GbE QSFP28 ports
• One MicroUSB-B serial console port
• One RJ-45 serial console port
• One universal serial bus (USB) Type-A port for more le storage
• One ESD Jack
• One 2-Core Rangeley C2338 processing unit (CPU), 7.5Watts TDP 1.7 GHz, one memory channel with one 4GB 1600MTS DDR3 SODIMM module, and one 16GB mSATA/M.2 SSD module
• Seven-segment stacking indicator
• Two power supply units
• Integrated fan units
• 1/2RU chassis
S4112–ON Series switch
9
Page 10
Physical dimensions
The S4112–ON series (S4112F-ON and S4112T-ON), has the following physical dimensions:
• 209 x 450 x 41.25 mm (W x D x H)
• 8.2 x 17.7 x 1.75 inches (W x D x H)
LED display
The S4112–ON Series (S4112F-ON and S4112T-ON), contains LED displays on the I/O side of the switch. This section describes open
networking installation environment (ONIE) LED behaviors. Some LED behaviors may change after you install your software.
LED behavior
The following S4112–ON Series switch LED behavior displays during ONIE operations:

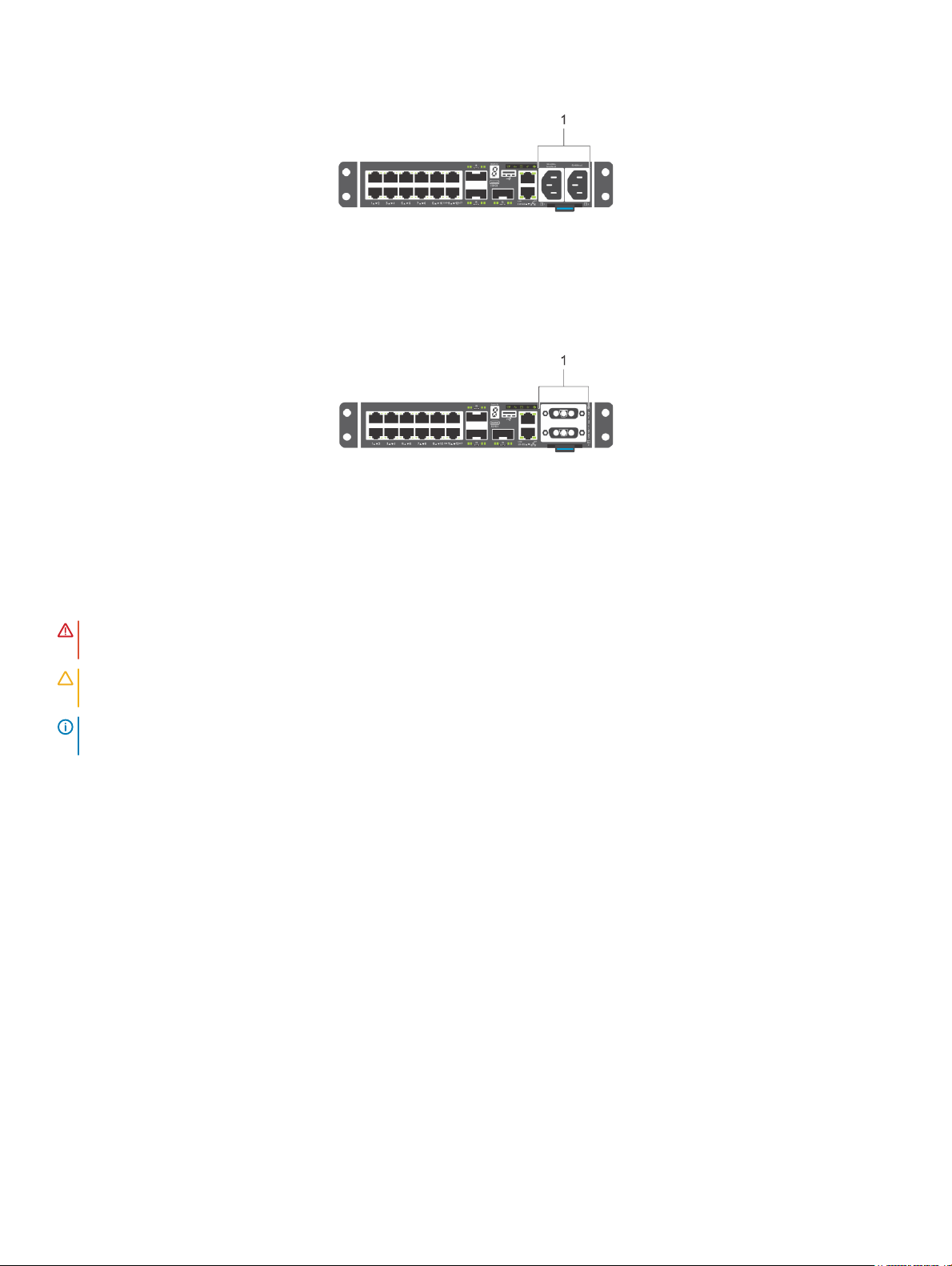

Figure 7. S4112F–ON AC and DC I/O-side LEDs
1
SFP+ port LED 2 QSFP28 port LED
3 Stack ID 4 Master LED
5 System LED 6 Power LED
7 Fan LED 8 Locator LED/System beacon
9 RJ-45/RS-232 LED
NOTE: Some LED behaviors change after you install your software.
10 S4112–ON Series switch
Page 11
Figure 8. S4112T–ON AC and DC I/O-side LEDs
1 RJ-45 port LED 2 QSFP28 port LED
3 Stack ID 4 Master LED
5 System LED 6 Power LED
7 Fan LED 8 Locator LED/System beacon
9 RJ-45/RS-232 LED
Table 2. S4112–ON Series LED behavior
LED Description
System Status/Health LED
Power LED
FAN LED
PSU LED
Locator LED/System Beacon
• Solid green—Normal Operation
• Flashing green—Booting
• Solid yellow—Critical system error
• Flashing yellow—Noncritical system error, fan failure, or power
supply failure
• O—No power
• Solid green—Normal
• Solid yellow—POST is in process
• Flashing yellow—Power Supply failure or loss of power
redundancy
• O—No power
• Solid green—Fan powered and running at the expected RPM
• Flashing yellow—Fan failed or loss of cooling redundancy
• O—No power
• Solid green—Normal
• Flashing yellow—PSU failure
• Flashing green—FW update
• O—Locator function is disabled
• Flashing blue—Locator function is enabled
S4112–ON Series switch 11
Page 12
LED Description
Master LED
7-segment LED
Table 3. System management Ethernet port LEDs
LED Description
Link LED
Activity LED
Table 4. SFP+ port LEDs
LED Description
• O—system is the stack slave
• Solid green—System is the stack master or a standalone unit
• O—No power
• Solid green—displays a hex digit representing the stack unit ID
• O—No link
• Solid green—Link operating at a maximum speed,
autonegotiated/forced or 1G
• Solid yellow—Link operating at a lower speed, autonegotiated/
forced or 10/100M
• O—No link
• Flashing green—Port activity
Link LED
Activity LED
NOTE: There are four LEDs for each QSFP28 port. For each port, 100GbE or 40GbE uses only one LED, 2x50GbE uses two
LEDs, and 4x25GbE or 4x10GbE uses all four LEDs.
Table 5. QSFP28 port LEDs
LED Description
Link/Activity LED
• O—No link
• Solid green—Link operating at maximum speed—10G on an
SFP+ port
• Solid yellow—Link operating at a lower speed—1G on an SFP+
port
• O—No link
• Flashing green—Port activity
• Solid blue, 1 second on/o—Port beacon
• O—No link
• Solid green—Port link operating at maximum speed—100G on a
QSFP28 port or 40G on a QSFP+ port
• Flashing green—Port activity operating at maximum speed—
100G on a QSFP28 port
• Solid yellow—Port link operating at a lower speed
• Flashing yellow, 1 second on/o—Port beacon—Port activity at
100G on a QSFP28 port
Link/Activity LED—4x25G mode or 4x10G mode
12 S4112–ON Series switch
• O—No link
Page 13
LED Description
• Solid green—Port link at 4x25G on a QSFP28 port or 4x10G on
a QSFP+ port
• Flashing green—Port activity at 4x25G on a QSFP28 port
• Solid yellow—Port link at 4x10G on a QSFP28 port
• Flashing yellow, 1 second on/o—Port beacon—Port activity at
4x10G on a QSFP28 port
Link/Activity LED—2x50G
• O—No link
• Solid yellow—Port link at 2x50G on a QSFP28 port
• Flashing yellow—Port activity at 2x50G on a QSFP28 port
• Flashing yellow, 1 second on/o—Port beacon
Prerequisite
NOTE: For detailed installation instructions, see Site preparations and S4112-ON Series installation sections.
The following is a list of required and optional components for the S4112–ON Series switch:
• S4112F-ON or S4112T-ON switch
• AC country- and regional-specic cables to connect the AC power source to each of the switches’ AC power supplies
• Metal wire clips for AC power cables
• Dual tray or single rails, not included
• Screws for rack installation, not included
• #1 and #2 Phillips screwdrivers, not included
• Torx screwdriver, not included
• Ground cable screws, included
• Copper or ber cables
Other optional components are:
• AC or DC ground cable for the frame-end of the ground cable
• AC ground lug
• Extra power supply unit
NOTE
: The DC ground lug kit ships with the other accessories inside the shipping box.
S4112–ON Series congurations
The S4112–ON Series (S4112F-ON and S4112T-ON) switch is available in several dierent congurations.
All S4112–ON Series switches include the following congurations:
• AC power supply with airow from the I/O side to the PSU side—normal
• AC power supply with airow from the PSU side to the I/O side—reverse
• DC power supply with airow from the I/O side to the PSU side—normal
• DC power supply with airow from the PSU side to the I/O side—reverse
The following table lists each S4112-ON Series switch conguration:
S4112–ON Series switch
13
Page 14
Table 6. S4112–ON Series congurations
S4112–ON Series
Switch
S4112F-ON AC or DC
Normal airow
S4112F-ON AC or DC
Reverse airow
S4112T-ON AC or DC
Normal airow
S4112T-ON AC or DC
Reverse airow
Conguration
12 xed SFP+ ports, 3 xed QSFP28 ports, 7-segment stacking indicator, 1 micro-USB-B
console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet management port,
2 AC or DC PSUs, and 3 integrated fans.
12 xed SFP+ ports, 3 xed QSFP28 ports, 7-segment stacking indicator, 1 micro-USB-B
console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet management port,
2 AC or DC PSUs, and 3 integrated fans.
12 xed 10GBASE-T ports, 3 xed QSFP+ ports, 7-segment stacking indicator, 1 microUSB-B console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet
management port, 2 AC or DC PSUs, and 3 integrated fans.
12 xed 10GBASE-T ports, 3 xed QSFP+ ports, 7-segment stacking indicator, 1 microUSB-B console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet
management port, 2 AC or DC PSUs, and 3 integrated fans.
Luggage tag
The S4112–ON Series (S4112F-ON and S4112T-ON) switch has a pull-out tag, known as a luggage tag, on the PSU-side of the switch. The
front of the luggage tag includes switch ID information. The back of the luggage tag includes a QRL that takes you to a How-To site where
you can watch videos about racking the switch, replacing components, conguring port channels, and so on.
14
S4112–ON Series switch
Page 15

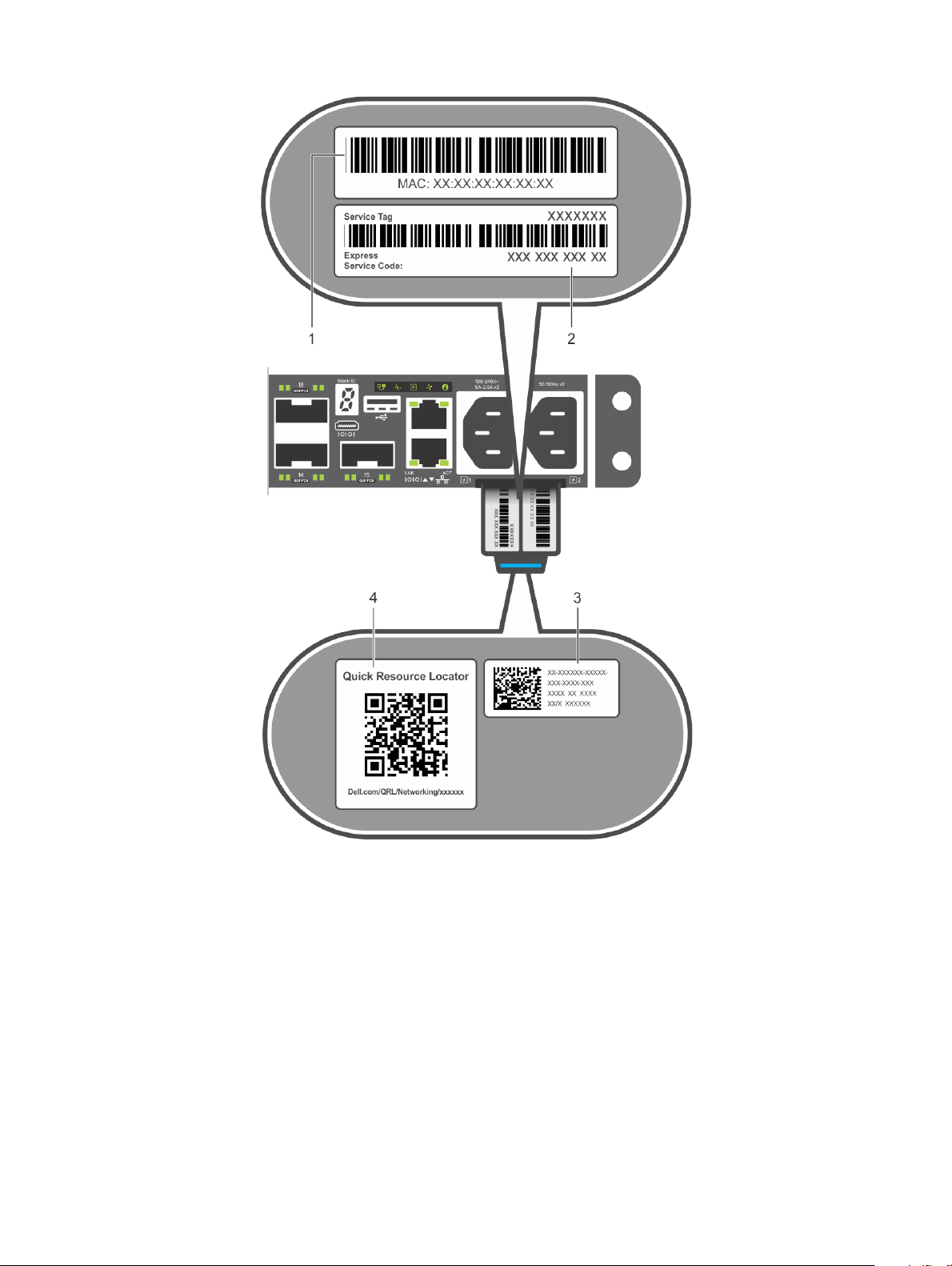

Figure 9. S4112–ON Series AC luggage tag
1
MAC address 2 Service tag
3 System QRL 4 QRL
S4112–ON Series switch 15
Page 16
Figure 10. S4112–ON Series DC luggage tag
1
MAC address 2 Service tag
3 System QRL 4 QRL
16 S4112–ON Series switch
Page 17
Site preparations
The S4112–ON Series (S4112F-ON and S4112T-ON) switch is suitable for installation as part of a common bond network (CBN).
You can install the switch in:
• Network telecommunication facilities
• Data centers
• Other locations where the National Electric Code (NEC) applies
For more information about switch specications, see Specications.
NOTE: Install the switch into a rack or cabinet before installing any additional components such as cables or optics.
Topics:
• Site selection
• Cabinet placement
• Rack mounting
• Switch ground
• Fans and airow
• Power
• Storing components
3
Site selection
Install Dell EMC equipment in restricted access areas.
A restricted access area is one where service personnel can only gain access using a special tool, lock, key, or other means of security. The
authority responsible for the location controls access to the restricted area.
Ensure that the area where you install your S4112–ON Series switch meets the following safety requirements:
• Near an adequate power source. Connect the switch to the appropriate branch circuit protection according to your local electrical
codes.
• Environmental, or switch location, temperature range is from (from 5° to 40°C (50 to 104°F).
• Operating humidity is from 5 to 85 percent non-condensing.
• In a dry, clean, well-ventilated, and temperature-controlled room, away from heat sources such as hot cooling vents or direct sunlight.
• Away from sources of severe electromagnetic noise.
• Inside the restricted access area, positioned in a rack or cabinet, or on a desktop with adequate space in the front, back, and sides for
proper ventilation and access.
• Install the switch in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75.
For more information about switch storage and environmental temperatures, see Specications.
Cabinet placement
Install the S4112–ON Series switch only in indoor cabinets designed for use in a controlled environment.
Do not install the switch in outside cabinets. For cabinet placement requirements, see Site selection.
Site preparations 17
Page 18
The cabinet must meet minimum size requirements. Airow must be in accordance with the Electronic Industries Alliance (EIA) standard.
Ensure that there is a minimum of 5 inches (12.7 cm) between the intake and exhaust vents and the cabinet wall.
Rack mounting
When you prepare your equipment rack, ensure that the rack is grounded.
Ground the equipment rack to the same ground point the power service in your area uses. The ground path must be permanent.
Switch ground
Dell EMC recommends grounding your switch. Use the S4112–ON Series switch in a CBN.
NOTE: For an AC-powered switch, although the third conductor of the AC power cord provides a ground path, Dell EMC
recommends grounding your switch with a dedicated ground wire.
NOTE: For a DC-powered switch, the only way to safely ground your switch is to attach a dedicated ground wire. The ground lug
kit ships in a plastic bag placed with the other accessories inside the shipping box. The ground lug bracket screws ship attached
to the switch. Before you install the DC switch in the dual-tray, attach the ground lug and bracket to the switch using the
included screws and then attach the DC ground wire to the ground lug. The DC-powered switch ships with the DC ground lug,
bracket, and screws.
For more information, see Ground cable.
Fans and airow
The fans on the S4112–ON Series (S4112F-ON and S4112T-ON) switch support two airow options: normal and reverse.
Fan combinations
Fan installation is done as part of the factory install based on SKU type. The S4112–ON Series has stock keeping units (SKUs) that support
the following congurations:
• AC PSU and system fans normal airow
• AC PSU and system fans reverse airow
• DC PSU and system fans normal airow
• DC PSU and system fans reverse airow

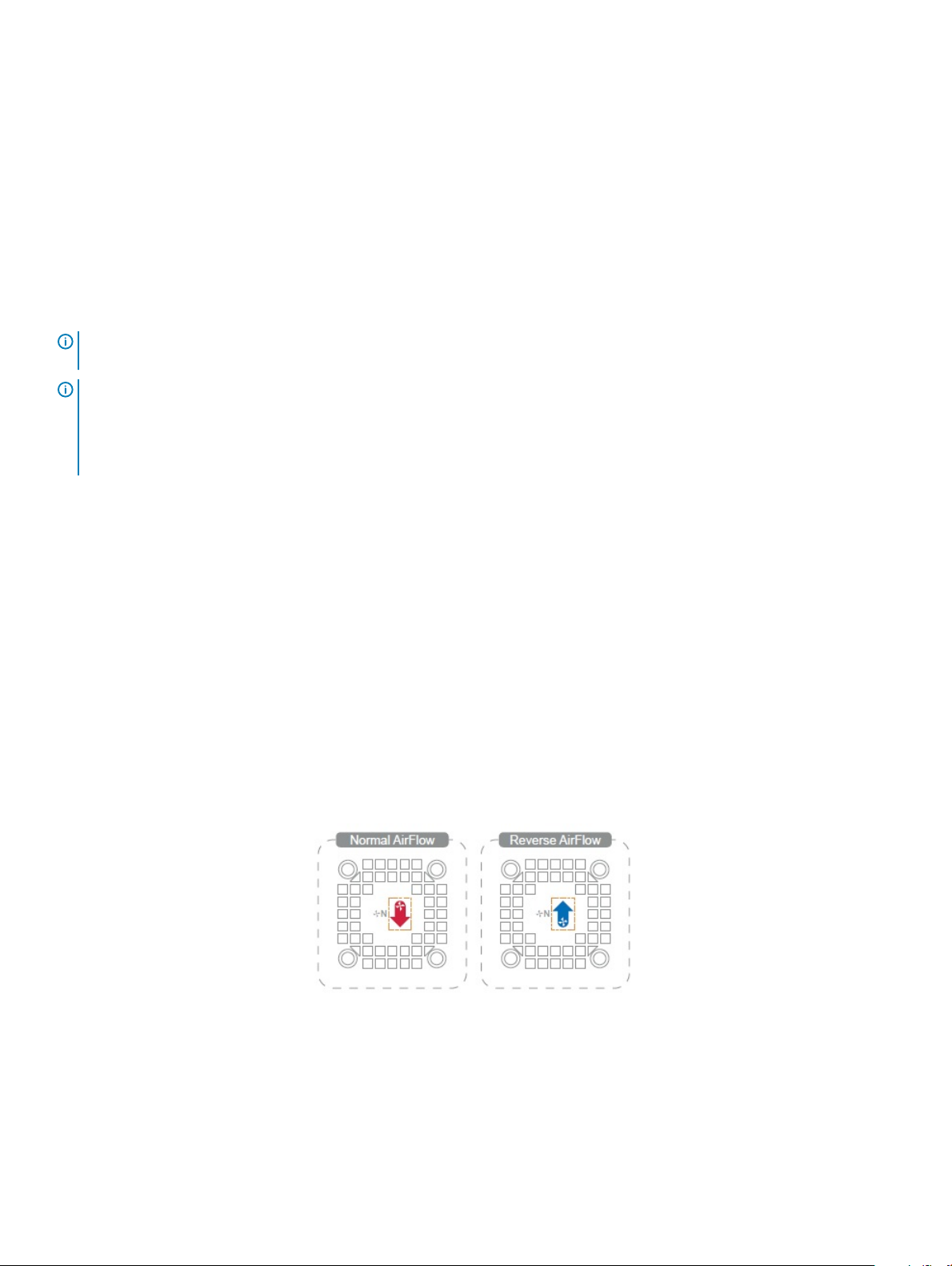

Figure 11. Fan airow
• Red down arrow shows hot airow out.
• Blue up arrow shows cold airow in.
For proper ventilation, position the switch in an equipment rack or cabinet with a minimum of 5 inches (12.7 cm) of clearance around the
exhaust vents. When you install two S4112–ON Series switches near each other, to permit proper airow, position the two switches at least
Site preparations
18
Page 19
5 inches (12.7 cm) apart. The fan speed varies based on internal temperature monitoring. The S4112–ON Series never intentionally turns o
the fans.
For more information, see Fans.
Power
To connect the switch to the applicable power source, use the appropriate power cable. An AC power cable is included with each PSU.
When installing AC or DC switch, follow the requirements of the National Electrical Code ANSI/NFPA 70, where applicable.
The switch is powered-up when the power cable is connected between the switch and the power source.

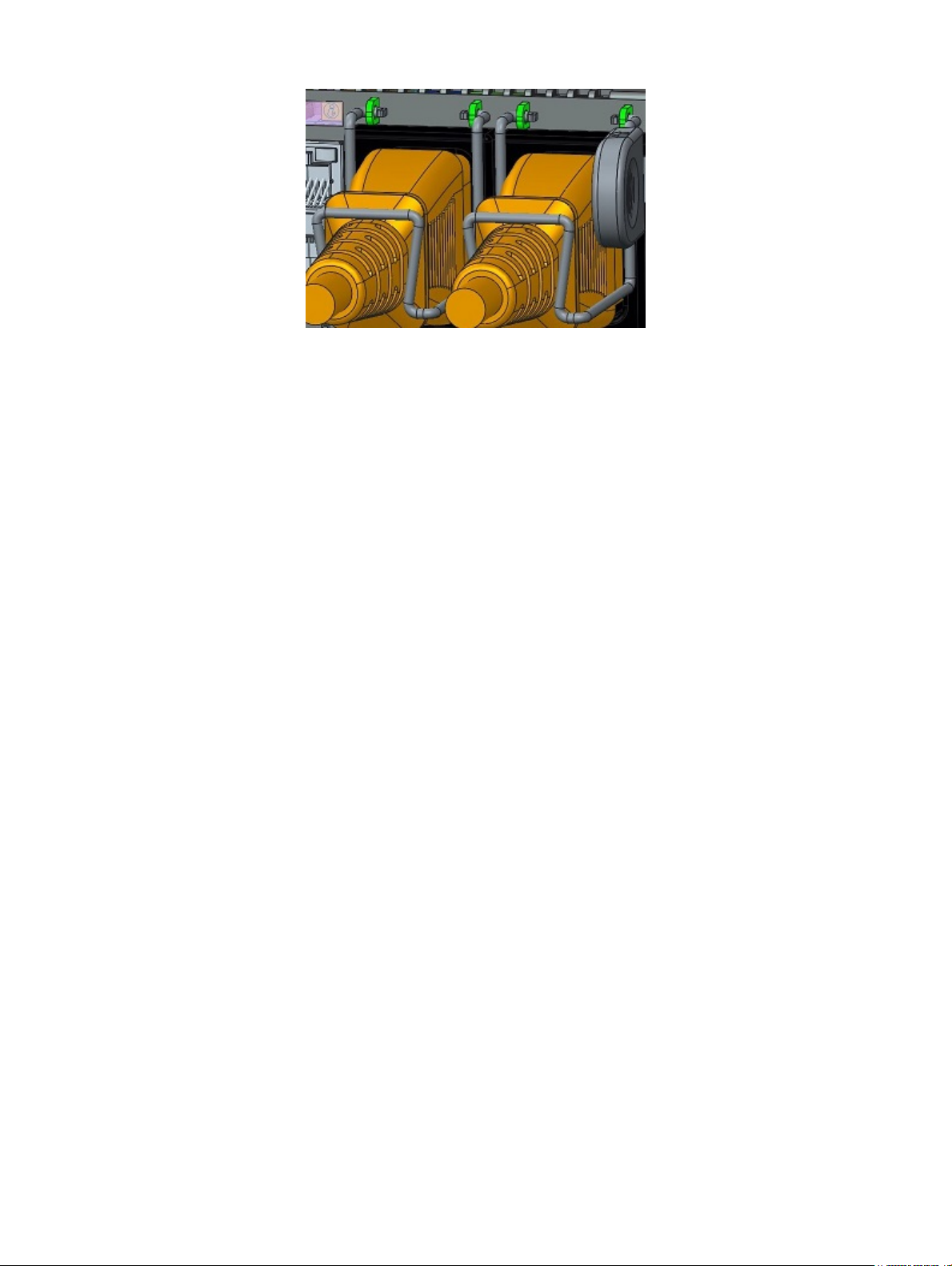

After you connect the AC power cable to the switch, attach the metal wire clip. For more information, see Power supplies.
CAUTION: Always disconnect the power cable before you service the power supply slots. The switch has multiple power cords.
Before servicing, ensure all power cords are disconnected.
CAUTION: On the AC switch, use the power supply cable as the main disconnect device. Ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.
Storing components
If you do not install your S4112–ON Series switch and components immediately, properly store the switch and all optional components
following these guidelines:
• Storage location temperature must remain constant. The storage range is from -40° to 65°C (-40° to 149°F).
• Store on a dry surface or oor, away from direct sunlight, heat, and air conditioning ducts.
• Store in a dust-free environment.
NOTE
: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the S4112–ON Series switch and its accessories. After you remove the original packaging, place the S4112–ON
Series switch and its components on an anti-static surface.
Site preparations 19
Page 20
S4112–ON Series installation
To install the S4112-ON Series (S4112F-ON and S4112T-ON) switch, complete the installation procedures in the order presented in this
section.
Always handle the switch and its components with care. Avoid dropping the switch or any eld replaceable units (FRUs).
NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when
handling the S4112–ON Series switch and its components. As with all electrical devices of this type, take all the necessary safety
precautions to prevent injury when installing this switch.
4
NOTE: For more information, see the
Topics:
• Unpack
• Ground cable
• Rack or cabinet installation
• Half RU front-rack installation
• Switch installation
• Optics installation
• Switch power-up
• After switch installation
• Switch replacement
Open Networking Hardware Diagnostic Guide
.
Unpack
NOTE
: Before unpacking the switch, inspect the container and immediately report any evidence of damage.
When unpacking the S4112-ON Series switch, make sure that the following items are included:
• One S4112F-ON or S4112T-ON switch
• One RJ-45 to DB-9 female cable
• AC power: two country- and region-specic AC power cables
• Two AC power cable clips
• DC power: two DC connectors
• AC ground lug kit
• DC ground lug kit—included in the accessories box
• S4112–ON Series Set-up Guide
• Safety and Regulatory Information
• Warranty and Support Information
Unpack steps
1 Place the container on a clean, at surface and cut all straps securing the container.
20 S4112–ON Series installation
Page 21
2 Open the container or remove the container top.
3 Carefully remove the switch from the container and place it on a secure and clean surface.
4 Remove all packing material.
5 Inspect the product and accessories for damage.
Ground cable
NOTE: For an AC-powered switch, although the third conductor of the AC power cord provides a ground path, Dell EMC
recommends grounding your switch with a dedicated ground wire.
NOTE: For a DC-powered switch, the only way to safely ground your switch is to attach a dedicated ground wire. The ground lug
kit ships in a plastic bag placed with the other accessories inside the shipping box. The ground lug bracket screws ship attached
to the switch. Before you install the DC switch in the dual-tray, attach the ground lug and bracket to the switch using the
included screws and then attach the DC ground wire to the ground lug.
The ground cable is not included. To properly ground the chassis, Dell EMC recommends a one- or two-hole lug, M4 hole size. The ground
lugs must be a UL-recognized, crimp-type lug.
CAUTION: Grounding conductors
NOTE: Coat the one-hole lug with an anti-oxidant compound before crimping. Also, bring any unplated mating surfaces to a shiny
nish and coat with an anti-oxidant before mating. Plated mating surfaces must be clean and free from contamination.
Before you install the switch into the dual-tray:
1 Cut the ground cable (not included) to the desired length. The cable length must facilitate proper operation of the fault interrupt
circuits. Use the shortest cable route allowable.
2 Unscrew the two attached M4 screws and set aside.
3 Attach the ground lug and bracket to the switch using the M4 screws.
4 Using one of the two M4 threaded holes, attach the ground cable to the lug. Use the M4 screw with a captive internal tooth lock
washer. Torque the screw to ±5-6 in-lbs.
5 Attach the other end of the ground cable to a suitable ground point such as the rack or cabinet.
The rack installation ears are not a suitable grounding point.
must
be made of copper. Do not use aluminum conductors.
Rack or cabinet installation
You may either place the switch on a rack shelf or mount the switch directly into a 19" wide, EIA-310- E-compliant rack. The dual-tray
mounting rails ship with the dual tray, not the switch.
WARNING
information booklet before you begin.
NOTE: The illustrations in this section are not intended to represent a specic switch.
: This guide is a condensed reference. Read the safety instructions in your
Safety, Environmental, and Regulatory
NOTE: Do not the use the mounted rails as a shelf or a workplace.
Rack mount safety considerations
• Rack loading—Overloading or uneven loading of racks may result in shelf or rack failure, possibly damaging the equipment and causing
personal injury. Stabilize racks in a permanent location before loading begins. Mount the components starting at the bottom of the rack,
then work to the top. Do not exceed your rack’s load rating.
• Power considerations—Connect only to the power source specied on the unit. When you install multiple electrical components in a
rack, ensure that the total component power ratings do not exceed the circuit capabilities. Overloaded power sources and extension
cords present re and shock hazards.
• Elevated ambient temperature—If you install the switch in a closed rack assembly, the operating temperature of the rack environment
may be greater than the room ambient temperature. Use care not to exceed the 45°C (113°F) maximum ambient temperature of the
switch.
S4112–ON Series installation
21
Page 22
• Reduced air ow—Do not compromise the amount of airow required for safe operation of the equipment. Install the equipment in the
rack so that the equipment constantly has the correct amount of airow surrounding it.
• Reliable earthing—Maintain reliable earthing of rack-mounted equipment. Pay particular attention to the supply connections other than
the direct connections to the branch circuit, for example: use of power strips.
• Do not mount the equipment with the fan panel facing downward.
Half RU front-rack installation
The dual-tray mounting rails ship with the dual tray, not with the switch. You must supply eight rack-mount screws for this four-post
installation.
NOTE: Do not install the dual tray in a two-post rack.
To install the half-RU switch:
• Attach the rails to the dual tray.
• Install the dual tray in the rack.
• Install the switch in the dual tray.
1 Remove the dual tray and the rails from the shipping packaging and place them on a clean antistatic surface.
2 Line up the three holes on the inner switch rail with the dual-tray mounting heads.

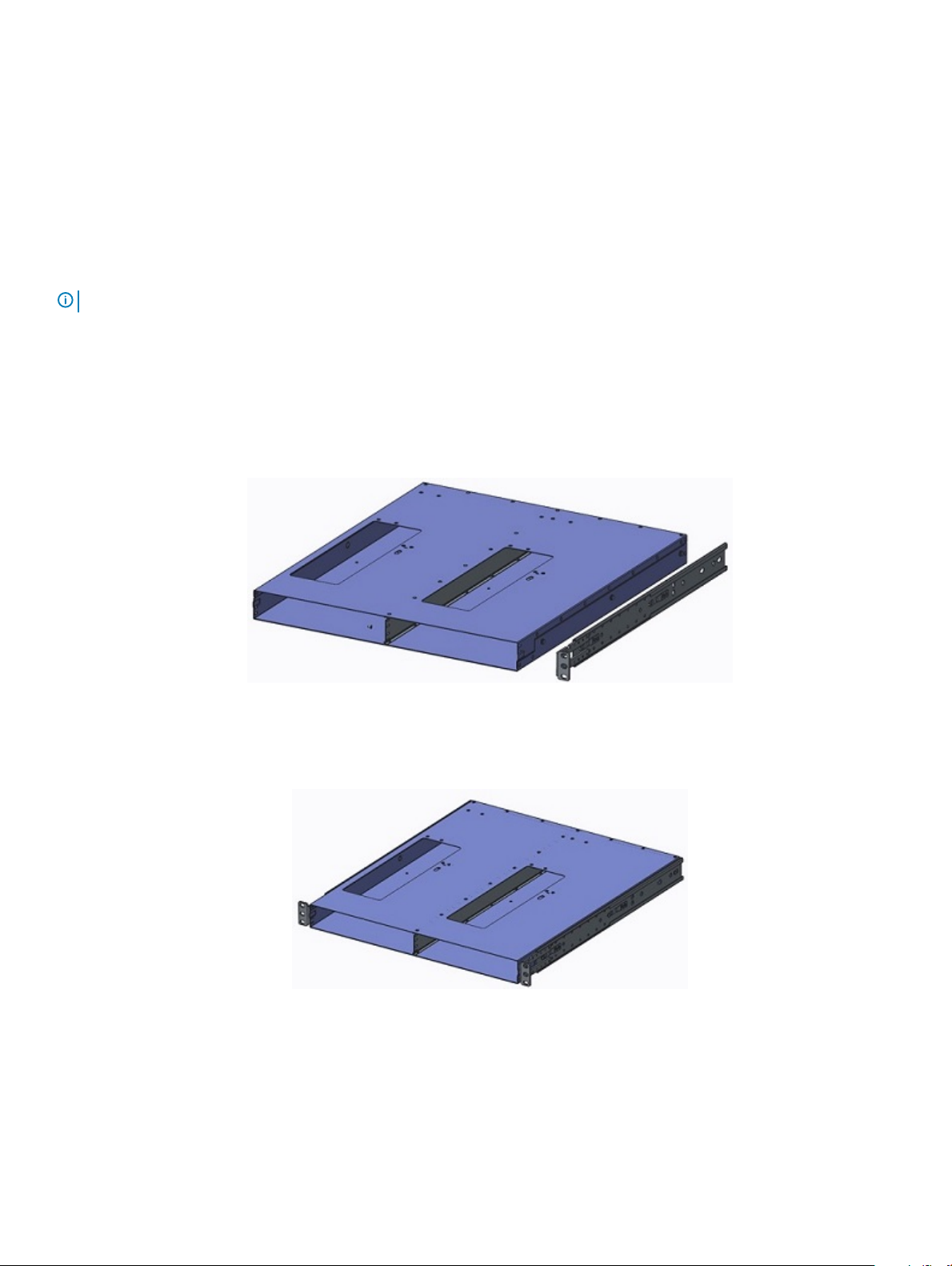

Figure 12. Dual-tray and rack mounting rail
3 Attach the rail to the dual tray. Slide the rail back until it locks into place.
4 Repeat with the other side.
Figure 13. Attach dual-tray and rack mounting rails
5 Install the dual tray inside the 4-post rack. Rack mount screws are not included.
6 Attach the front dual-tray switch rails to the 4-post rack from the front. Secure the dual tray to the rack using two user-supplied
screws for each rack post.
S4112–ON Series installation
22
Page 23

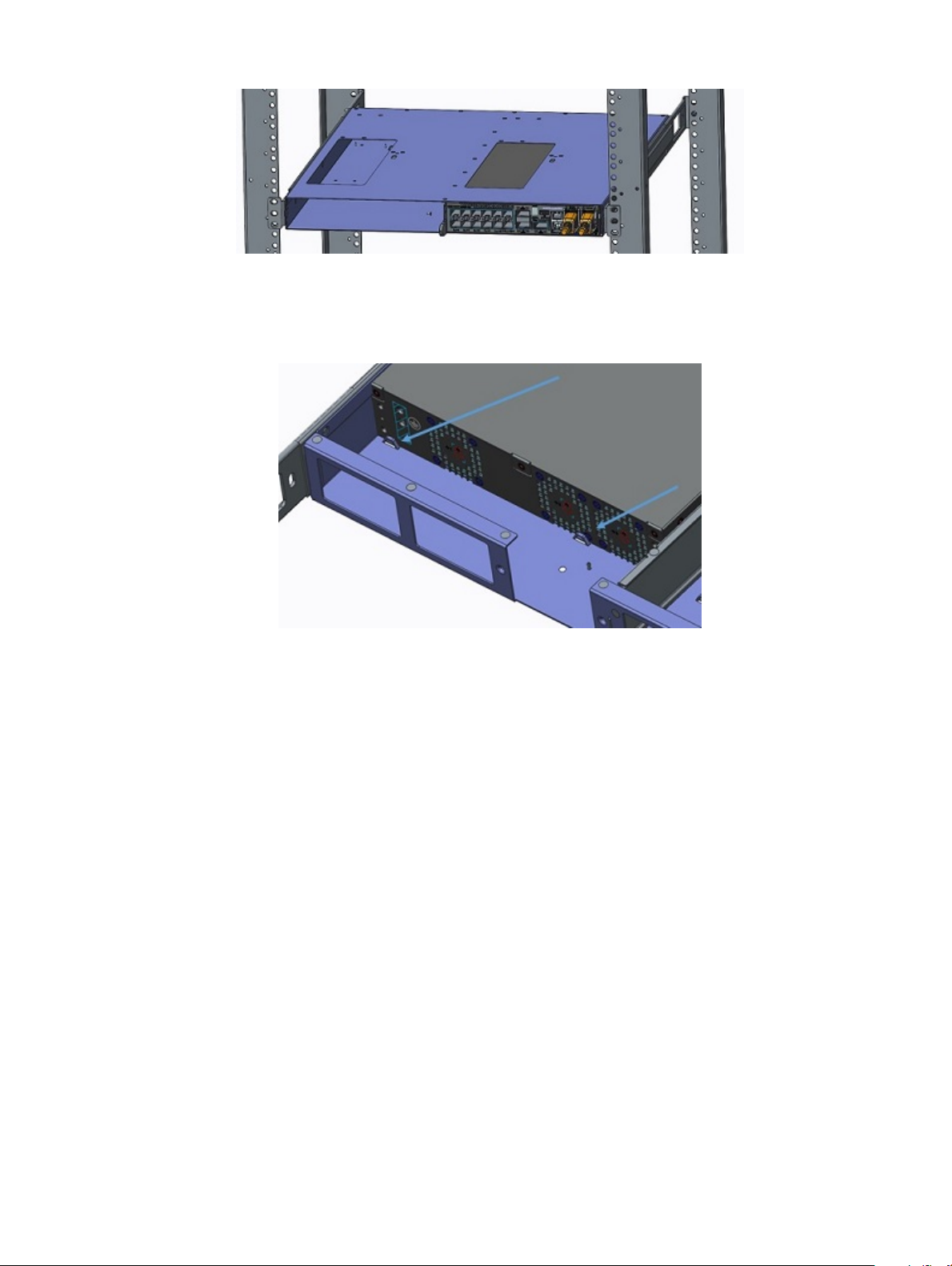

Figure 14. Attach the dual-tray front to the 4-post rack front
7 Attach the rear dual-tray switch rails to the 4-post rack from the rear. Secure the dual tray to the rack using two user-supplied screws
for each rack post.
Figure 15. Attach the dual-tray rear to the 4-post rack rear
8 Tighten all mounting screws to securely mount the dual tray into the 4-post rack.
Figure 16. Secure the dual-tray in the 4-post rack
Switch installation
Install one or two half-RU switches in the four-post rack-mounted dual tray.
1 Install one switch into either dual-tray slot from the front.
S4112–ON Series installation
23
Page 24
Figure 17. Install an S4112-ON Series switch
The switch is fully inserted when it hits the stop feature on the dual tray. The front switch latch snaps the switch into place.
Figure 18. Dual-tray stop feature
2 If you are installing two switches, insert the second switch in the open dual-tray slot.
Switch removal
Remove the switch from the dual tray from the front of the four-post rack.
Push in the front switch latches according to the latch arrows and pull out the switch.
24
S4112–ON Series installation
Page 25
Figure 19. S4112-ON Series release latches
Figure 20. S4112-ON Series release arrow
Optics installation
The S4112-ON Series (S4112F-ON adn S4112T-ON) switch has the following optic congurations:
Table 7. S4112-ON Series optic
Platform Description
S4112F-ON
S4112T-ON
For a list of supported optics, see the S4112–ON Series data sheet at www.dell.com/support or contact your Dell EMC sales
representative.
CAUTION
when handling the S4112–ON Series and its components.
WARNING: When working with optical bers, follow all warning labels and always wear eye protection. Never look directly into
the end of a terminated or unterminated ber or connector as it may cause eye damage.
1
Position the optic so it is in the correct position.
The optic has a key that prevents it from being inserted incorrectly.
2 Insert the optic into the port until it gently snaps into place.
: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap
: When you cable the ports, be sure not to interfere with the airow from the small vent holes above and below
NOTE
the ports.
congurations
• 12 xed 1/10GbE SFP+ optical ports
• 3 xed 1/100GbE QSFP28 optical ports
• 3 xed 1/100GbE QSFP28 optical ports
S4112–ON Series installation 25
Page 26
Optics removal
Remove an optic by pushing the tab on the optic and sliding the optic from the port.
When removing optics with direct attach cables (DACs) from the port, pull the release tab rmly and steadily. Before pulling the release tab,
you may need to gently push the optic into the port to ensure that it is seated properly. Do not jerk or tug repeatedly on the tab.
Switch power-up
Supply power to the S4112-ON Series (S4112F-ON and S4112T-ON) switch after you mount it in a rack or cabinet.
Dell EMC recommends reinspecting your switch before powering up. Verify the following:
• The equipment is properly secured to the rack. Dell EMC recommends properly grounding the switch.
• The ambient temperature around the unit, which may be higher than the room temperature, is within the limits specied for the S4112–
ON Series, see Specications.
• There is sucient airow around the unit.
• The input circuits are correctly sized for the loads and that you use sucient overcurrent protection devices.
• All protective covers are in place.
• Blank panels are installed if you do not install optional modules.
NOTE: A US AC power cable is included for powering up an AC power supply. You must order all other power cables separately.
NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when
handling the S4112–ON Series switch and its components.
Power up sequence
When the switch powers up, the fans immediately come on at high speed. The fan speed slows as the switch continues to boot up.
After switch installation
After you have securely installed and powered on the S4112-ON Series switch:
• If you are using Dell EMC software, see switch documentation at www.dell.com/support.
• If you need ONIE information, see ONIE documentation at www.onie.org.
• If you are using third-party software, see your third-party documentation.
Switch replacement
The following steps describe removing and replacing a switch. For further assistance when replacing a switch, contact your Dell EMC
support representative.
NOTE
: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the switch and accessories. After you remove the original packaging, place the switch and components on an
anti-static surface.
1 Back up the switch conguration to your back-up computer or laptop TFTP server.
copy running-config tftp://hostip/filepath
To establish a console connection to the switch CLI, assign an IP address on the switch network.
2 Disconnect the power source.
S4112–ON Series installation
26
Page 27
3 Label and remove all cables.
4 Remove the switch from the dual tray.
Press the front switch latch according to the arrow and slide the switch forward.
If you are using the PSUs in the replacement switch, remove them from the switch.
5 Unpack the new switch.
For more information, see Unpack.
6 Conrm that the software version of the replacement switch is the same as the previously installed switch.
show os-version
If the software versions do not match, upgrade the replacement switch software using the procedure included with the rmware
download.
7 Copy the backed-up switch conguration to the new switch.
copy tftp://hostip/filepath running-config
8 Install the new switch in the dual tray.
For detailed installation instructions, see S4112-ON Series installation.
If you are using the PSUs from the removed switch, reinsert them in the replacement switch.
9 Connect all the cables.
10 Power on the switch.
For more information, see Switch power up.
S4112–ON Series installation 27
Page 28
Power supplies
The S4112–ON Series (S4112F-ON and S4112T-ON) switch ships with two AC or DC power supplies.
The power supplies have two air-ow directions, normal and reverse. Normal is from the I/O-side to the PSU-side. Reverse is from the
PSU-side to the I/O-side.
CAUTION: To prevent electrical shock, ensure that the S4112-ON Series switch is grounded properly. If you do not ground your
equipment correctly, excessive emissions may result. Use a qualied electrician to ensure that the power cables meet your local
electrical requirements.
NOTE: Connect the power supply to the appropriate branch circuit protection as dened by your local electrical codes and verify
that the remote power source complies with the switch input power specications.
NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when
handling the S4112–ON Series switch and its components.
Topics:
• Components
• DC power connections
Components
5
The AC or DC power supply option is available for the S4112–ON Series (S4112F-ON and S4112T-ON) switch.
Power supply unit 1 (PSU1) is on the inner-right side of the switch; power supply unit 2 (PSU2) is on the outer-right side of the switch.

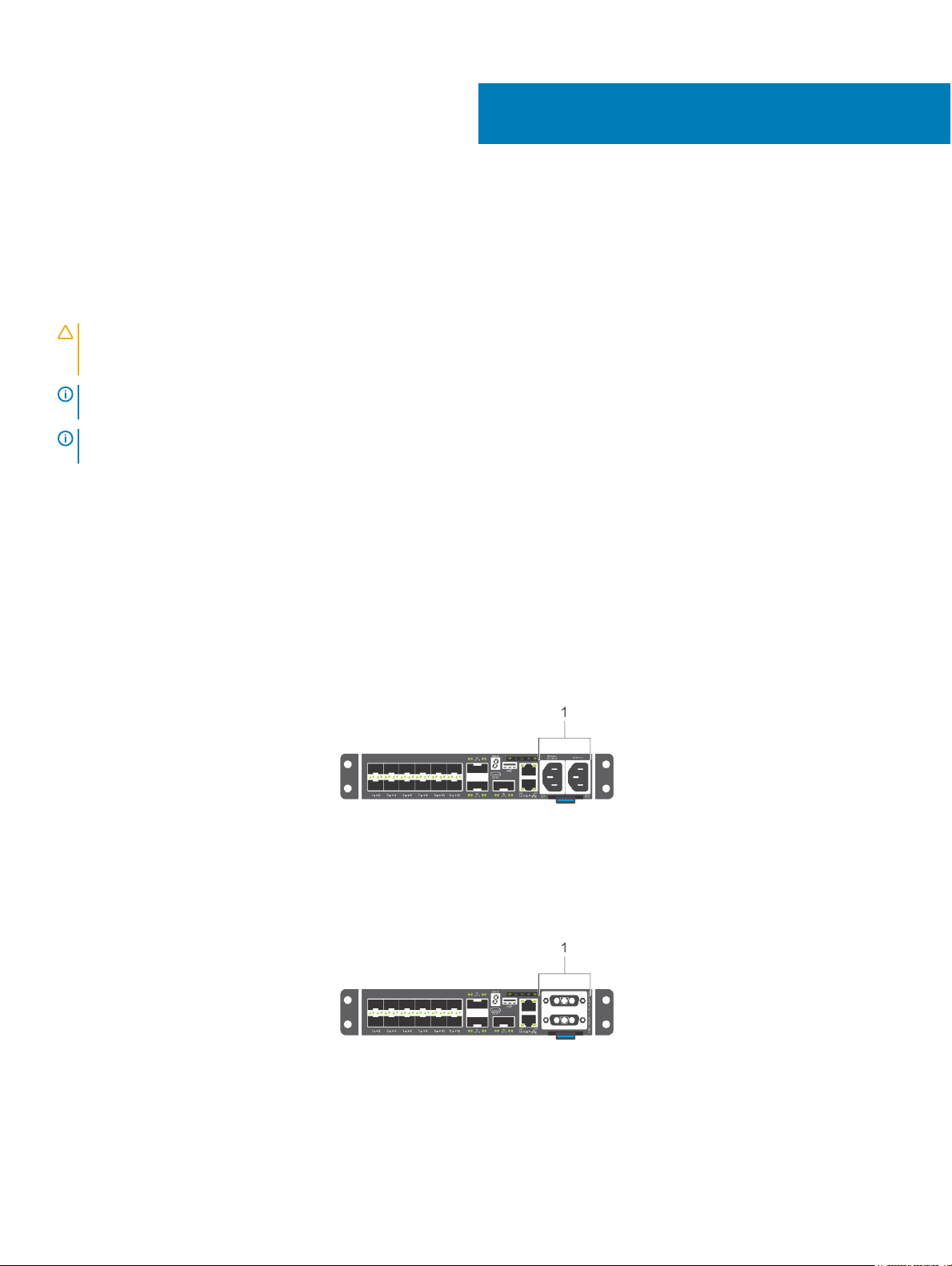

Figure 21. S4112F–ON AC PSUs
1
AC PSUs
Figure 22. S4112F–ON DC PSUs
DC PSUs
1
28 Power supplies
Page 29
Figure 23. S4112T–ON AC PSUs
1 AC PSUs
Figure 24. S4112T–ON DC PSUs
1
DC PSUs
The PSUs have an integrated fan that you cannot replace individually; if the fans integrated in a PSU fail, you must replace the entire PSU.
You can replace the fan trays individually. For fan tray replacement procedures, see Fans.
WARNING
removed.
CAUTION: Remove the power cable from the PSU before removing the PSU. Also, do not connect the power cable before you
insert the PSU in the switch.
NOTE: To comply with the GR-1089 Lightning Criteria for Equipment Interfacing with AC Power Ports, use an external surge
protection device (SPD) at the AC input of the router.
: Prevent exposure and contact with hazardous voltages. Do not attempt to operate this switch with the safety cover
AC power cable clips
After you connect the AC power cable to the switch, attach the metal wire clip to the switch over each AC power cable, as shown.
Power supplies
29
Page 30
Figure 25. AC power cable clips
PSU LEDs
The single PSU LED is on the I/O-side of the switches.
• Solid green—Input is OK.
• Flashing yellow—There is a fault with the PSU.
• Flashing green—System update.
• O—PSU is o.
DC power connections
Each DC PSU comes with a connector cable. One cable is provided for each DC PSU.
30
Power supplies
Page 31

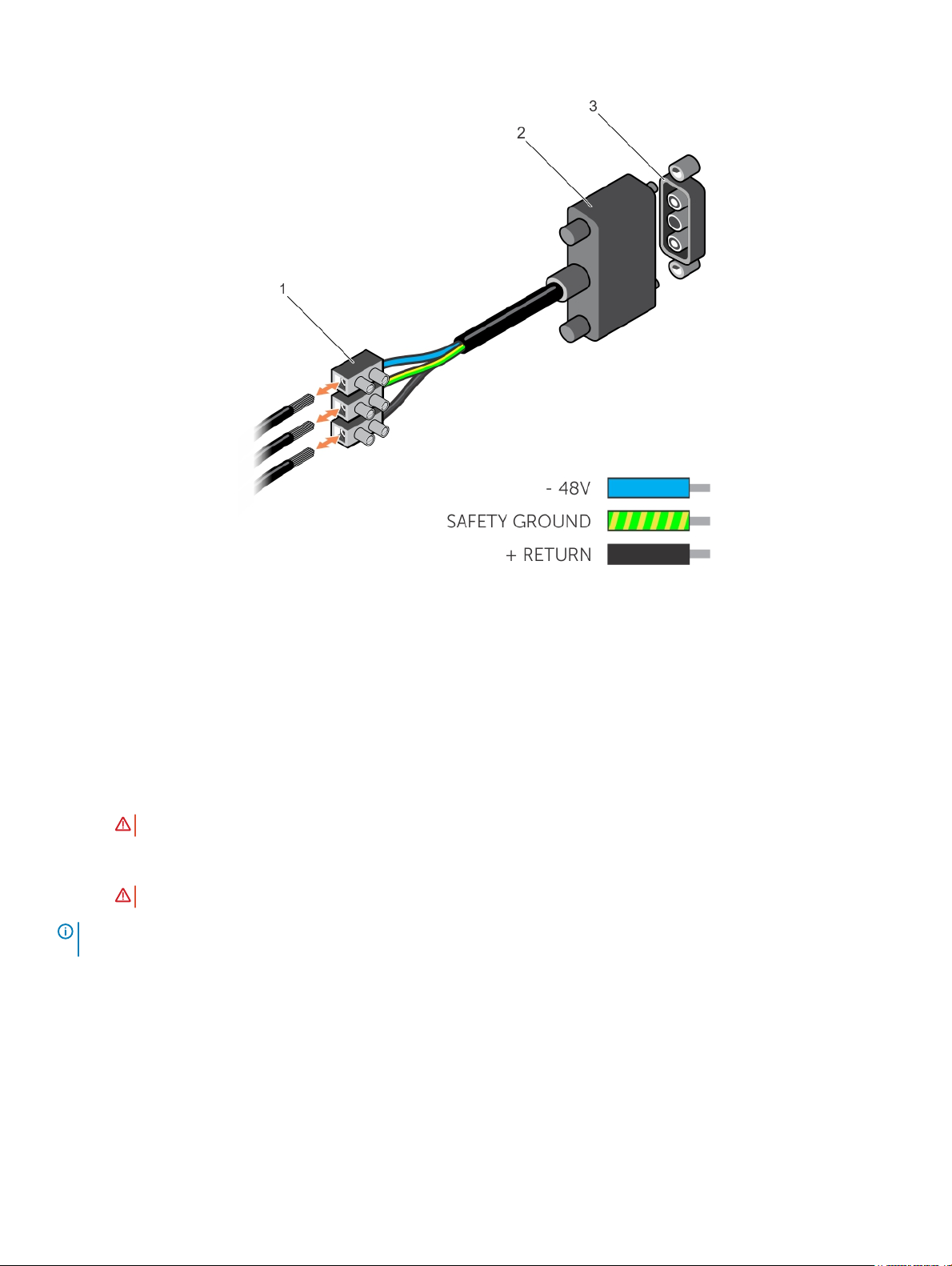

Figure 26. DC power connector and wiring block
1
Wiring block 2 Power connector
3 PSU connector
1 Strip a 1/2 inch section of insulation from each of the power connector’s wires, as shown.
2 Insert each of the power connector’s bare wire lengths into the wiring block. The blue wire is -48V, the black wire is the positive
return, and the yellow/green wire is the ground wire, as shown.
3 Use a at-blade screwdriver to tighten the screws that secures the bare wires into the wiring block.
4 Secure the site’s DC power source wires to the other side of the wiring block, see steps 1 and 3.
WARNING
5 Insert the DC power connector into the power socket of the DC PSU. Ensure that the connector pins rmly seat and you hear the
click of the power connector’s left and right levered clamps lock into place.
WARNING
NOTE: To remove the power connector from a DC PSU, unscrew the thumb screws and pull the power connector from the DC
PSU socket.
: Do not cross the wires.
: Never try to force the power connector into or out of the DC PSU power socket.
Power supplies 31
Page 32
Fans
The S4112–ON Series (S4112F-ON and S4112T-ON) switch comes from the factory with three integrated fans.
The S4112–ON Series switch supports two airow direction options—normal and reverse.
• Airow is from the I/O panel to the PSU—normal.
• Airow is from the PSU to the I/O panel—reverse.
Components
The following are the S4112–ON Series (S4112F-ON and S4112T-ON) fan components:
• S4112–ON Series fan module
• S4112–ON Series fan module—reverse
Integrated fan number 1 is on the left PSU-side, fan number 2 is in the center PSU-side, and fan number 3 is on the right PSU-side.
6
Figure 27. S4112–ON Series AC and DC fan modules
1
AC and DC fan modules
Fan LEDs
• Solid green—fan function is normal.
• Flashing yellow—there is a fan fault.
• O—fan is o.
32 Fans
Page 33
Management ports
Besides the 10/100/1000Base-T RJ-45 ports, the S4112-ON Series (S4112F-ON and S4112T-ON) switch provides several ports for
management and storage.
NOTE: The output examples in this section are for reference only. Your output may vary.
Topics:
• RS-232 console port access
• USB-B console port access
• USB storage
• Before you install an OS
• ONIE service discovery
RS-232 console port access
The RS-232 console port is on the I/O-side of the S4112-ON Series (S4112F-ON and S4112T-ON) switch, as shown.
7
Figure 28. S4112F-ON AC RS-232 console port
1
AC RS-232 console port
Figure 29. S4112T-ON AC RS-232 console port
AC RS-232 console port
1
Management ports 33
Page 34
Figure 30. S4112F-ON DC RS-232 console port
1 DC RS-232 console port
Figure 31. S4112T-ON DC RS-232 console port
1 DC RS-232 console port
CAUTION: Ensure that any equipment attached to the serial port can support the required 115200 baud rate.
NOTE: When connecting the RJ45 console to the patch panel or terminal server using Cat5e or Cat6 Ethernet cables, the
maximum cable length is 100m. However, if the Ethernet cable is disconnected from the patch panel or terminal server but
connected to the RJ45 console, the maximum cable length is 6m. If the cable is longer than 6m when disconnected from the
panel or server, your switch may not boot.
NOTE: Before starting this procedure, ensure your PC has a 9-pin serial port. You must have a terminal emulation program
already installed and running on your PC.
NOTE: If your PC’s serial port cannot accept a female DB-9 connector, use a DB-9 male-to-male adaptor.
1 Install the provided RJ-45 connector side of the provided cable into the S4112-ON Series console port.
2 Install the DB-9 female side of the provided copper cable into your PC’s serial port. Or install the DB-9 cable into other data terminal
equipment (DTE) server hardware that you intend to use.
3 Keep the default terminal settings on the console as follows:
• 115200 baud rate
• No parity
• 8 data bits
• 1 stop bit
• No ow control
USB-B console port access
The USB-B console port is on the I/O side of the switch.
NOTE
: The S4112-ON Series switches use the Silicon Labs CP2109 USB-B chip. To nd the correct USB-B universal
asynchronous receiver-transmitter (UART) driver, see https://www.silabs.com/products/development-tools/software/usb-to-
uart-bridge-vcp-drivers.
The terminal settings are the same for the serial console port and the RS-232/RJ-45 console port:
• 115200 baud rate
• No parity
Management ports
34
Page 35
• 8 data bits
• 1 stop bit
• No ow control
When you connect the USB-B port, it becomes the primary connection and, while connected, all messages are sent to the USB-B port.
NOTE: Before starting this procedure, be sure that you have a terminal emulation program already installed on your PC. Install
the appropriate drivers to support the USB-B port. To download Dell EMC drivers, see www.dell.com/support. If your computer
requires non-Dell EMC drivers, contact Dell EMC Technical Support for assistance.
1 Power on the PC.
2 Connect the USB-A end of the cable into an available USB port on the PC.
3 Connect the USB-B end of the cable into the USB-B console port on the S4112-ON Series switch.
4 Power on the switch.
5 Install the necessary USB device drivers.
To download Dell EMC drivers, see www.dell.com/support. If your computer requires non-Dell EMC drivers, contact Dell EMC
Technical Support for assistance.
6 Open your terminal software emulation program to access the switch.
7 Conrm that the terminal settings on your terminal software emulation program are as follows:
• 115200 baud rate
• No parity
• 8 data bits
• 1 stop bit
• No ow control
USB storage
USB storage does not automatically mount. The supported le system is FAT. To use USB storage, rst mount the device using the
following steps:
1 Create a mount directory for the USB.
ONIE:/ # mkdir /mnt/usb
2 View the xed disks using fdisk.
ONIE:/mnt # fdisk -l
For internal storage:
Disk /dev/sda: 15.8 GB, 15829303296 bytes
255 heads, 63 sectors/track, 1924 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Device Boot Start End Blocks Id System
/dev/sda1 1 1925 15458303+ ee EFI GPT
For USB storage:
Disk /dev/sdb: 30.9 GB, 30942946304 bytes
64 heads, 32 sectors/track, 29509 cylinders
Units = cylinders of 2048 * 512 = 1048576 bytes
Device Boot Start End Blocks Id System
3 Mount the device /dev/sdb to the /mnt/usb directory.
ONIE:/ # mount -t vfat /dev/sdb /mnt/usb
: The following message displays if the /mnt/usb directory is missing: mount: mounting /dev/sdb
NOTE
on /mnt/usb failed: No such file or directory.
Management ports 35
Page 36
NOTE: The following message displays if the USB device is not seen: mount: mounting /dev/sdb on /mnt/usb
failed: No such device or address.
4 Add a device to the le systems table using the fstab command and mount the le systems—recommended.
ONIE:/ # vi /etc/fstab
# FSTAB entry for the ONIE-BOOT partition mounted on /boot
LABEL=ONIE-BOOT /mnt/onie-boot ext4 defaults,rw,errors=remount-ro 0 1
/dev/sdb /mnt/usb vfat defaults 0 1
ONIE:/ # mount -a
The mount -a command mounts all the le systems as indicated in the /etc/fstab le.
Before you install an OS
After powering on the S4112-ON Series (S4112F-ON and S4112T-ON) switch, it goes through a power-on self-test (POST).
POST runs every time the switch is initialized and checks the hardware components to determine if the switch is fully operational before
booting. After POST, the switch uses the Grub bootloader.
To select an entry, use the up and down arrow keys. Press Enter to select an operating software (OS) or enter e to edit the commands
before booting. Enter c for a command line. The selected entry runs automatically in the operating system.
Grub bootloader example
GNU GRUB version 2.02~beta2+e4a1fe391
+--------------------------------------------------+
|*ONIE: Install OS |
| ONIE: Rescue |
| ONIE: Uninstall OS |
| ONIE: Update ONIE |
| ONIE: Embed ONIE |
| EDA-DIAG |
| |
| |
| |
| |
| |
| |
+--------------------------------------------------+
Your system comes with ONIE installed.
NOTE
: To access ONIE, use the RJ-45 console port.
ONIE example
ONIE: Install OS
For downloading and installing an OS from a URL
Starts ONIE with ONIE Discovery Service
(factory default boot)
ONIE: Rescue
Starts ONIE without ONIE Discovery Service
Useful for running Diagnostics manually
ONIE: Uninstall OS
Restore to factory defaults erases any installed OS
ONIE: Update ONIE
For downloading and updating ONIE from a URL
Management ports
36
Page 37
ONIE: Embed ONIE
For downloading and updating ONIE from a URL and erases any installed OS
During the initial setup, the switch boots to ONIE Install. ONIE Install boots with ONIE Discovery to the console (ONIE:).
NOTE: For more information, see the
After you have securely installed and powered on the S4112-ON Series switch, to congure your switch, see your third-party ONIEcompatible OS or the Dell EMC OS documentation.
Open Networking Hardware Diagnostic Guide
.
ONIE service discovery
ONIE attempts to locate the installer through several discovery methods, as shown. To download and run an installer, the ONIE Service
Discovery feature uses the rst successful method found.
1 Search locally attached storage devices for one of the ONIE default installer lenames—for example, the lename is: onie self
update from the USB.
2 Search locally attached storage devices for one of the ONIE default installer lenames—for example, USB.
3 Query to the IPv4 and IPv6 link-local neighbors using HTTP for an installer.
4 Discover TFTP-based image from the DHCP server.
Examples of ONIE ifconfig eth0 commands
If none of the ONIE Service Discovery methods are successful, you can disable this using the onie-discovery-stop command.
You can install an operating system manually from HTTP, FTP, or TFTP using the onie-nos-install <URL> command.
NOTE
: If you have a recovery USB plugged into your switch, remove it before installing the DIAG-OS using the onie-nos-
install command.
The ONIE Install environment uses DHCP to assign an IP address to the management interface—eth0. If that fails, it uses the default IP
address 192.168.3.10/255.255.255.0.
To display the IP address, use the ifconfig eth0 command, as shown.
ONIE:/ # ifconfig eth0
eth0 Link encap:Ethernet HWaddr 90:B1:1C:F4:9C:76
inet addr:10.11.53.33 Bcast:10.255.255.255 Mask:255.0.0.0
inet6 addr: fe80::92b1:1cff:fef4:9c76/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:18 errors:0 dropped:0 overruns:0 frame:0
TX packets:24 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000
RX bytes:1152 (1.1 KiB) TX bytes:6864 (6.7 KiB)
Interrupt:21 Memory:ff300000-ff320000
To assign an IP address to the management interface, eth0, and verify network connectivity, use the ifconfig eth0 <ip
address>
ONIE:/ # ifconfig eth0 10.11.53.33/16
Verify the network connection with ping.
ONIE:/ # ping 10.11.8.12
PING 10.11.8.12 (10.11.8.12): 56 data bytes
64 bytes from 10.11.8.12: seq=0 ttl=62 time=1.357 ms
64 bytes from 10.11.8.12: seq=1 ttl=62 time=0.577 ms
^C
command, as shown.
Management ports
37
Page 38
Specications
This section lists the S4112–ON Series (S4112F-ON and S4112T-ON) switch specications.
CAUTION: Operate the product at an ambient temperature not higher than 45°C (113°F).
CAUTION: Lithium Battery Caution: There is a danger of explosion if the battery is incorrectly replaced. Replace only with same
or equivalent type of battery. Dispose of the batteries according to the manufacturer's instructions.
NOTE: For RoHS information, see Restricted Material Compliance.
Topics:
• Chassis physical design
• IEEE standards
• Agency compliance
• USA Federal Communications Commission statement
• European Union EMC directive conformance statement
• Japan VCCI compliance for class A equipment
• Korean certication of compliance
• Safety standards and compliance agency certications
• Electromagnetic compatibility
• Product recycling and disposal
8
Chassis physical design
Table 8. Chassis physical design
Parameter Specications
Height 1.75 inches (41.25 mm)
Width 8.2 inches (209 mm)
Depth 17.7 inches (450 mm)
Chassis weight with factory-installed components
Rack clearance required
Table 9. Environmental parameters
Parameter Specications
Operating temperature 5° to 40°C (50° to 104°F)
S4112F-ON: 8.30 lbs, 3.76 kg (2 PSUs and 3 fans)
S4112T-ON: 8.45 lbs, 3.81 kg (2 PSUs and 3 fans)
Front: 5 inches (12.7 cm)
Back: 5 inches (12.7 cm)
38 Specications
Page 39
Parameter Specications
-5°C to 45°C (23°F to 113°F) short term
Short term is </= 1% of operational hours per year.
NOTE: Reduce maximum temperature by 1°C/125 meters
(1°F/228 feet) above 950 meters (3,117 feet).
Operating humidity 5% to 85% (RH), non-condensing
5% to 90% (RH), non-condensing, short term
Short term is </= 1% of operational hours per year.
Storage temperature –40° to 65°C (–40° to 149°F)
Storage humidity 5% to 95%, non-condensing
Maximum thermal output
Maximum operational altitude 10,000 feet (3,048 meters)
Maximum non-operational altitude 39,370 feet (12,000 meters)
Shock Dell EMC Spec SV0115
S4112F-ON: 180W, 614 BTU/hr
S4112T-ON: 200W, 682 BTU/hr
Table 10. AC power requirements
Parameter Specications
Power supply 100–240 VAC 50/60 Hz
Maximum current draw per system 2A/1.7A at 100/120V AC 1A/0.8A at 200/240V AC
Maximum power consumption
Typical power consumption
Table 11. DC power requirements
Parameter Specications
Minimum and maximum input voltage range −40V, –72V DC, 5A Max
Maximum input current −40V/5A, −48V/4.2A, −72V/2.8A
Start up VDC 39.0 ± 1.5 V
Start o VDC 37.5 ±1.5 V
S4112F-ON: 180W
S4112T-ON: 200W
S4112F-ON: 90W
S4112T-ON: 120W
IEEE standards
The S4112–ON Series (S4112F-ON and S4112T-ON) switch complies with the following IEEE standards:
• 802.1ab (LLDP)
Specications
39
Page 40
• 802.1ax (Layer 2)
• 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2)
• 802.3 (1000BASE-KX)
• 802.3ba (40GbE and 100GbE ports)
Agency compliance
The S4112–ON Series (S4112F-ON and S4112T-ON) switch complies with the following safety and agency requirements:
USA Federal Communications Commission statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designated to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance to the
instructions, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case users will be required to take whatever measures necessary to correct the interference at their own
expense.
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Dell EMC is not responsible for
any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or
modications in the equipment. Unauthorized changes or modication could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Figure 32. Canadian department of communication statement
European Union EMC directive conformance statement
This product is in conformity with the protection requirements of EU Council Directive 2004/30/EC on the approximation of the laws of
the Member States relating to electromagnetic compatibility. Dell EMC can not accept responsibility for any failure to satisfy the protection
requirements resulting from a non-recommended modication of this product, including the tting of non-Dell EMC option cards.
This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to CISPR 32/
CISPR34 and EN55032 / EN55034. The limits for Class A equipment were derived for commercial and industrial environments to provide
reasonable protection against interference with licensed communication equipment.
WARNING
may be required to take adequate measures.
European Community Contact
Dell EMC, EMEA - Central
Dahlienweg 19
66265 Heusweiler
: This is a Class A product. In a domestic environment, this device may cause radio interference, in which case, you
Specications
40
Page 41
Germany
Tel: +49 172 6802630
Email: EMEA Central Sales
Japan VCCI compliance for class A equipment
Figure 33. Japan: VCCI compliance for class A equipment
This is Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment
(VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be
required to take corrective actions.
WARNING: Use the AC power cords with Dell Networking equipment only. Do not use Dell EMC AC power cords with any
unauthorized hardware.
Figure 34. Japan: warning label
Korean certication of compliance
Figure 35. Korean certication of compliance
Specications
41
Page 42
Figure 36. Korean package label
Safety standards and compliance agency
certications
• CUS UL 60950-1, 2nd Edition
– Meets or exceeds Hi Pot and Ground Continuity testing per UL 60950-1.
• AS/NZS 60950
• CSA 60950-1-03, 2nd Edition
• EN 60950-1, 2nd Edition
• EN 60825-1, 1st Edition
• EN 60825-1 Safety of Laser Products—Part 1: Equipment Classication Requirements and User’s Guide
• EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems
• FDA Regulation 21CFR 1040.10 and 1040.11
• IEC 60950-1, 2nd Ed, including all National Deviations and Group Dierences
• IEC 62368-1
Electromagnetic compatibility
Emissions
• International: CISPR 32: Class A
• Australia/New Zealand: AS/NZS CISPR 32, Class A
• Canada: ICES-003, Issue-4, Class A
• Europe: EN55032: CISPR 32, Class A
• EN55032
• Japan: VCCI Class A
• Korea: KN32, Class A
• Taiwan: CNS13438, Class A
• USA: FCC CFR47 Part 15, Subpart B, Class A
Immunity
• EN 300 386 EMC for Network Equipment
Specications
42
Page 43
• EN 55024
• EN 61000-3-2 Harmonic Current Emissions
• EN 61000-3-3 Voltage Fluctuations and Flicker
• EN 61000-4-2 ESD
• EN 61000-4-3 Radiated Immunity
• EN 61000-4-4 EFT
• EN 61000-4-5 Surge
• EN 61000-4-6 Low Frequency Conducted Immunity
• EN 61000-4-11 Voltage Dips/Interruptions
Product recycling and disposal
You must recycle or discard this switch according to applicable local and national regulations. Dell EMC encourages owners of information
technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Dell EMC oers a variety of product return
programs and services in several countries to assist equipment owners in recycling their IT products.
Waste Electrical and Electronic Equipment (WEEE) directive for recovery, recycle, and reuse of IT and telecommunications products
Dell EMC switches are labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment
(WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European
Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life
per this Directive.
Figure 37. The European WEEE symbol
In accordance with the European WEEE Directive, electrical and electronic equipment (EEE) is to be collected separately and to be reused,
recycled, or recovered at end of life. Users of EEE with the WEEE marking per Annex IV of the WEEE Directive, as shown above, must not
dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to customers for the return, recycling
and recovery of WEEE. Customer participation is important to minimize any potential eects of EEE on the environment and human health
due to the potential presence of hazardous substances in EEE.
Dell EMC products, which fall within the scope of the WEEE, are labeled with the crossed-out wheelie-bin symbol, as shown above, as
required by WEEE.
For information on Dell EMC product recycling oerings, see the WEEE Recycling instructions on the Support page. For more information,
contact the Dell EMC Technical Assistance Center.
Specications
43
Page 44
9
Dell EMC support
The Dell EMC support site provides documents and tools to help you eectively use Dell EMC equipment and mitigate network outages.
Through the support site you can obtain technical information, access software upgrades and patches, download available management
software, and manage your open cases. The Dell EMC support site provides integrated, secure access to these services.
To access the Dell EMC support site, go to www.dell.com/support/. To display information in your language, scroll down to the bottom of
the web page and select your country from the drop-down menu.
• To obtain product-specic information, enter the 7-character service tag, known as a luggage tag, or 11-digit express service code of
your switch and click Submit. For more information about the luggage tag, see Luggage tag.
To view the chassis service tag or express service code, pull out the tag or enter the show chassis command from the CLI.
• To receive more technical support, click Contact Us. On the Contact Information web page, click Technical Support.
To access switch documentation, go to www.dell.com/manuals/.
To search for drivers and downloads, go to www.dell.com/drivers/.
To participate in Dell EMC community blogs and forums, go to www.dell.com/community.
44 Dell EMC support
Loading...
