Dell PowerConnect B-DCX-4s Rack Mount Kit Installation Manual

53-1001799-01 January 31, 2010

PowerConnect B-DCX-4S

Rack Mount Kit

Installation Procedure

Supporting PowerConnect B-DCX-4S Backbone

53-1001799-01

*53-1001799-01*

Notes, Cautions, and Warnings

NOTE

CAUTION

DANGER

A NOTE indicates important information that helps you make better use of your computer.

See the safety and regulatory information that shipped with your system. For additional regulatory information, see the Regulatory Compliance Homepage on www.dell.com at the following location: www.dell.com/regulatory_compliance.

A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

A DANGER indicates a potential for property damage, personal injury, or death.

____________________

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, Dell OpenManage and the YOURS IS HERE in the U.S. and other countries; Microsoft, Windows, Windows Server, MS-DOS and Windows Vista are either trademarks or registered trademarks

of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Regulatory Model Codes: Brocade DCX-4S, Brocade DCX

2 PowerConnect B-DXC-4S Rack Mount Kit Installation Procedure

logo are trademarks of Dell Inc.; Intel, Pentium, and Celeron are registered trademarks of Intel Corporation

53-1001799-01

In this guide

CAUTION

NOTE

ATTENTION

•Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Installation guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Installing the DCX-4S in equipment cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . 4

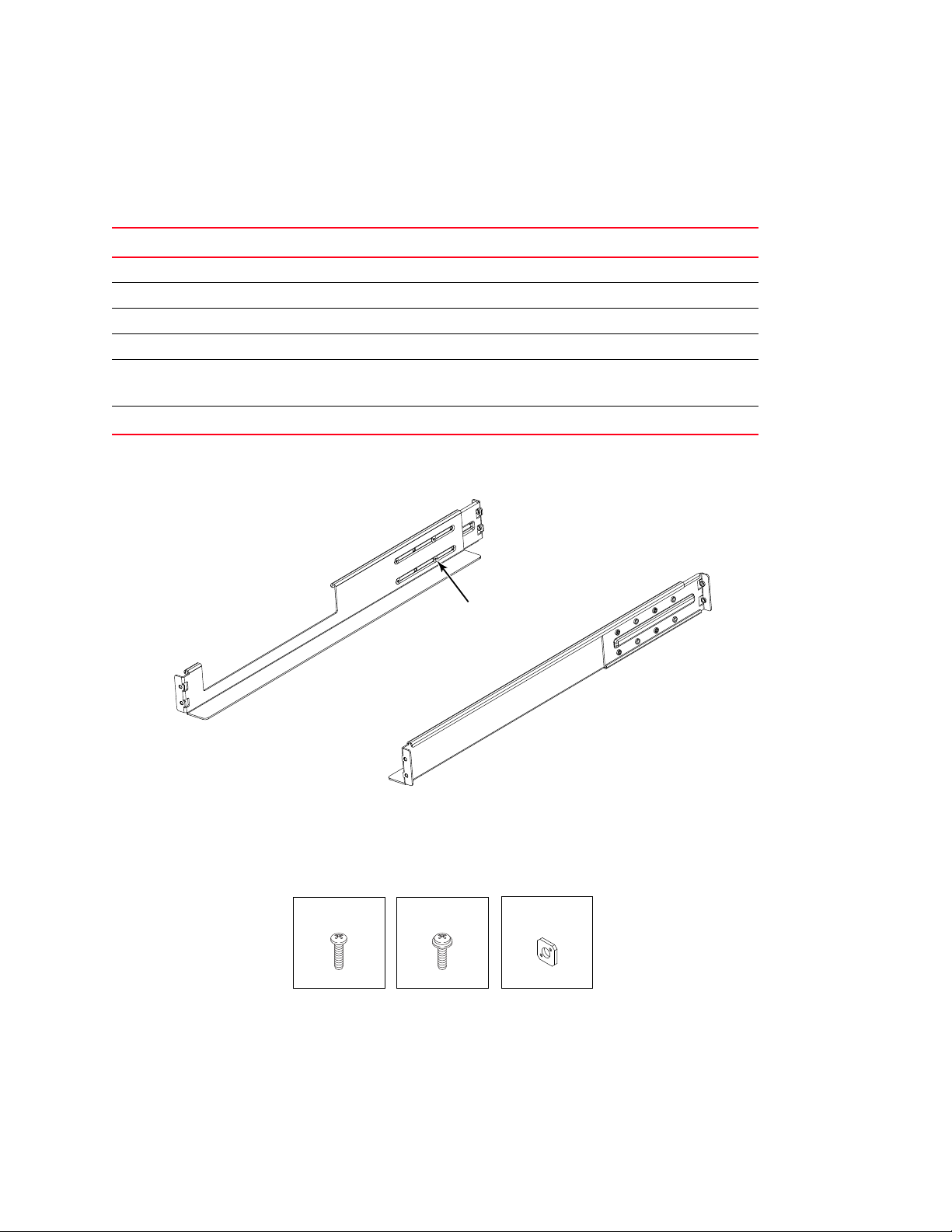

•Unpacking the PowerConnect B-DCX-4S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

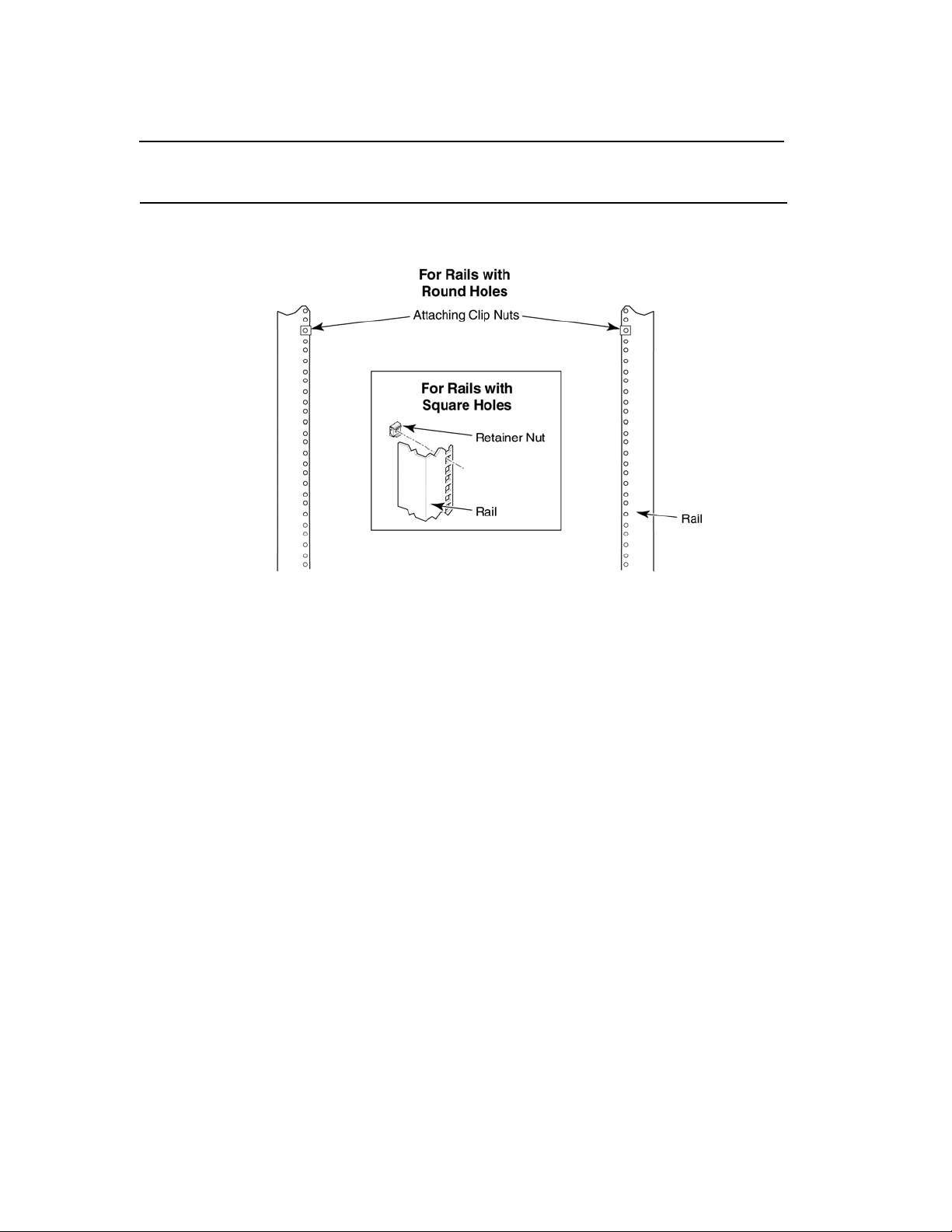

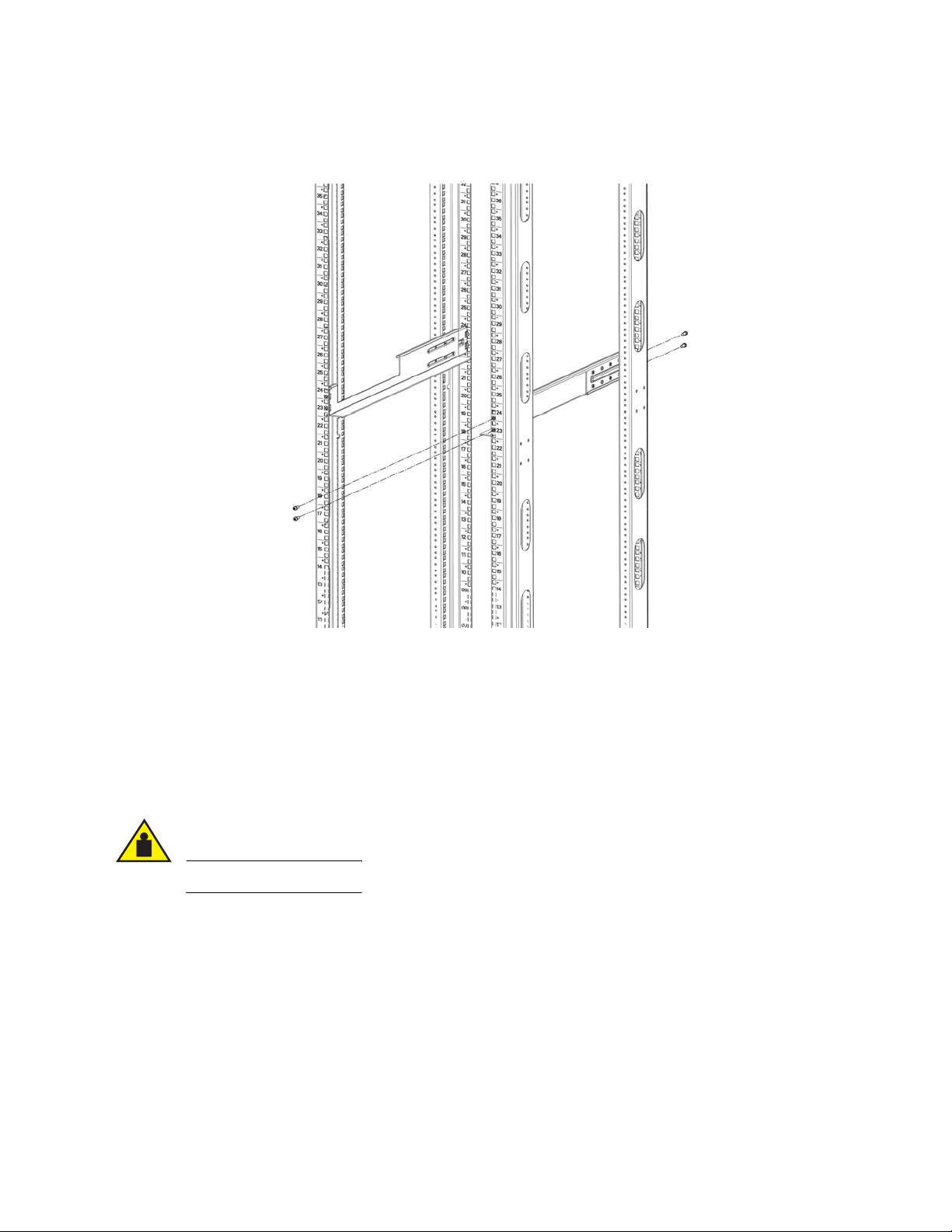

•Installing cabinet hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

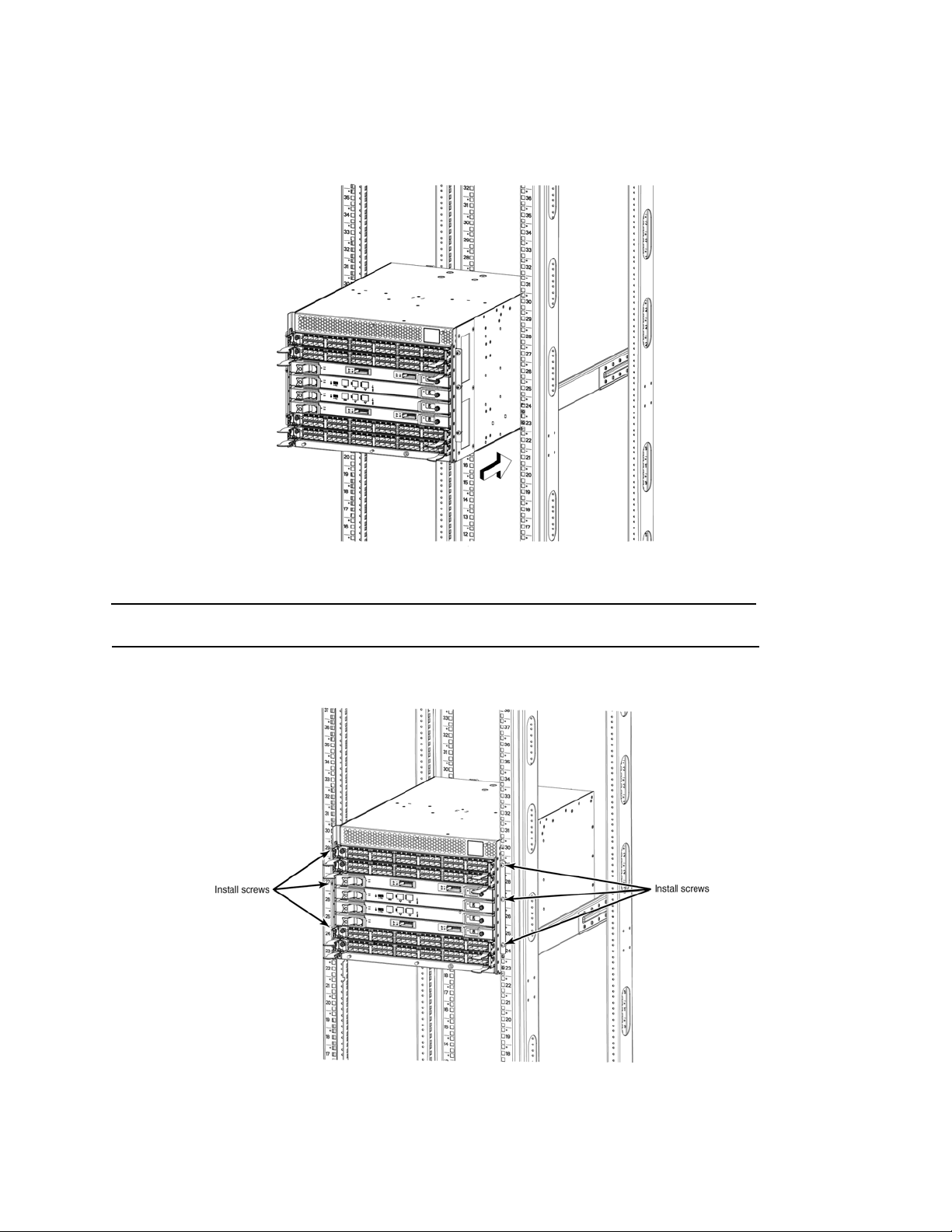

•Install DCX-4S in cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Introduction

This document provides instructions to install a DCX-4S Backbone in a 19 in. EIA equipment cabinet with a rail-to-rail depth of 27-31 in.(68.58 to 78.74 cm).

Safety

Observe the caution notice in this manual. The caution notice has an ID, which is displayed in parentheses (C015). Use this ID to locate the translation of this caution notice in the Brocade Product Safety Notices.

Use safe lifting practices when moving the product. (C015)

A fully populated PowerConnect B-DCX-4S weighs 103.50 kg (228.20 lb) with four FC8-48 port cards installed (192 ports) and requires a hydraulic or assisted lift to install it.

Installation guidelines

To ensure adequate cooling, install the chassis with the air intake (nonport side) facing the cool-air aisle.

Follow these general installation guidelines:

• Provide a space that is 8 rack units (8U) high, 61.19 cm (24.09 in.) deep, and 43.74 cm (17.22 in.) wide. 1U is

equal to 4.45 cm (1.75 in.).

• To allow the quick removal of all power from the chassis, use AC power sources that are easily accessible and

located near the chassis.

• Verify that the additional weight of the chassis does not exceed the weight limits of the cabinet.

• Plan for cable management before installing the chassis. Cables can be managed in a variety of ways, such as

by routing cables below the chassis, to either side of the chassis, through cable channels on the sides of the cabinet, or using patch panels. Refer to the product’s Hardware Reference Manual for specific information.

PowerConnect B-DXC-4S Rack Mount Kit Installation Procedure 3 53-1001799-01
