OptiPlex 7060 Small Form Factor

Setup and specications guide

Regulatory Model: D11S
Regulatory Type: D11S004

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks

may be trademarks of their respective owners.

2018 - 05

Rev. A00

Contents

1 Set up your computer.....................................................................................................................................5

2 Chassis.......................................................................................................................................................... 8

Front view........................................................................................................................................................................... 8

Back view............................................................................................................................................................................9

3 System specications.................................................................................................................................. 10

Chipset...............................................................................................................................................................................10

Processor...........................................................................................................................................................................10

Memory...............................................................................................................................................................................11

Storage............................................................................................................................................................................... 11

Storage combinations.......................................................................................................................................................12

Audio...................................................................................................................................................................................12

Video.................................................................................................................................................................................. 13

Communications............................................................................................................................................................... 13

Ports and connectors.......................................................................................................................................................13

System board connectors................................................................................................................................................14

Operating system..............................................................................................................................................................14

Power supply.....................................................................................................................................................................14

Physical specications..................................................................................................................................................... 15

Environmental................................................................................................................................................................... 15

4 System setup............................................................................................................................................... 16

Boot menu......................................................................................................................................................................... 16

Navigation keys.................................................................................................................................................................16

System setup options.......................................................................................................................................................17

General options........................................................................................................................................................... 17

System information.....................................................................................................................................................18

Video screen options..................................................................................................................................................19

Security........................................................................................................................................................................19

Secure boot options................................................................................................................................................... 21

Intel Software Guard Extensions options.................................................................................................................21

Performance...............................................................................................................................................................22

Power management...................................................................................................................................................23

Post behavior..............................................................................................................................................................24

Manageability..............................................................................................................................................................24

Virtualization support................................................................................................................................................ 25

Wireless options......................................................................................................................................................... 25

Maintenance...............................................................................................................................................................25

System logs................................................................................................................................................................ 26

Advanced conguration............................................................................................................................................ 26

Updating the BIOS in Windows .....................................................................................................................................26

Updating BIOS on systems with bitlocker enabled................................................................................................27

Contents

3

Updating your system BIOS using a USB ash drive.............................................................................................27

Updating the Dell BIOS in Linux and Ubuntu environments................................................................................. 28

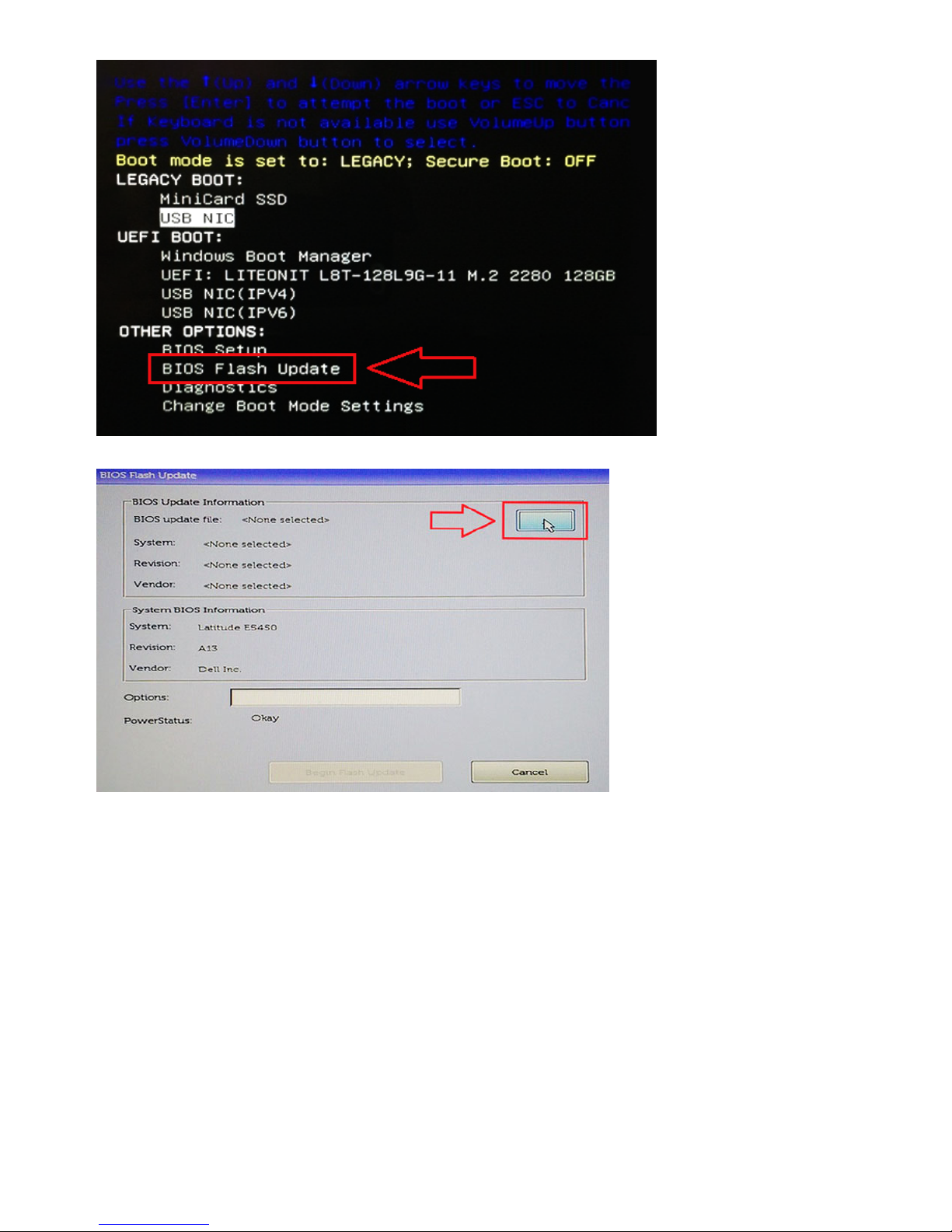

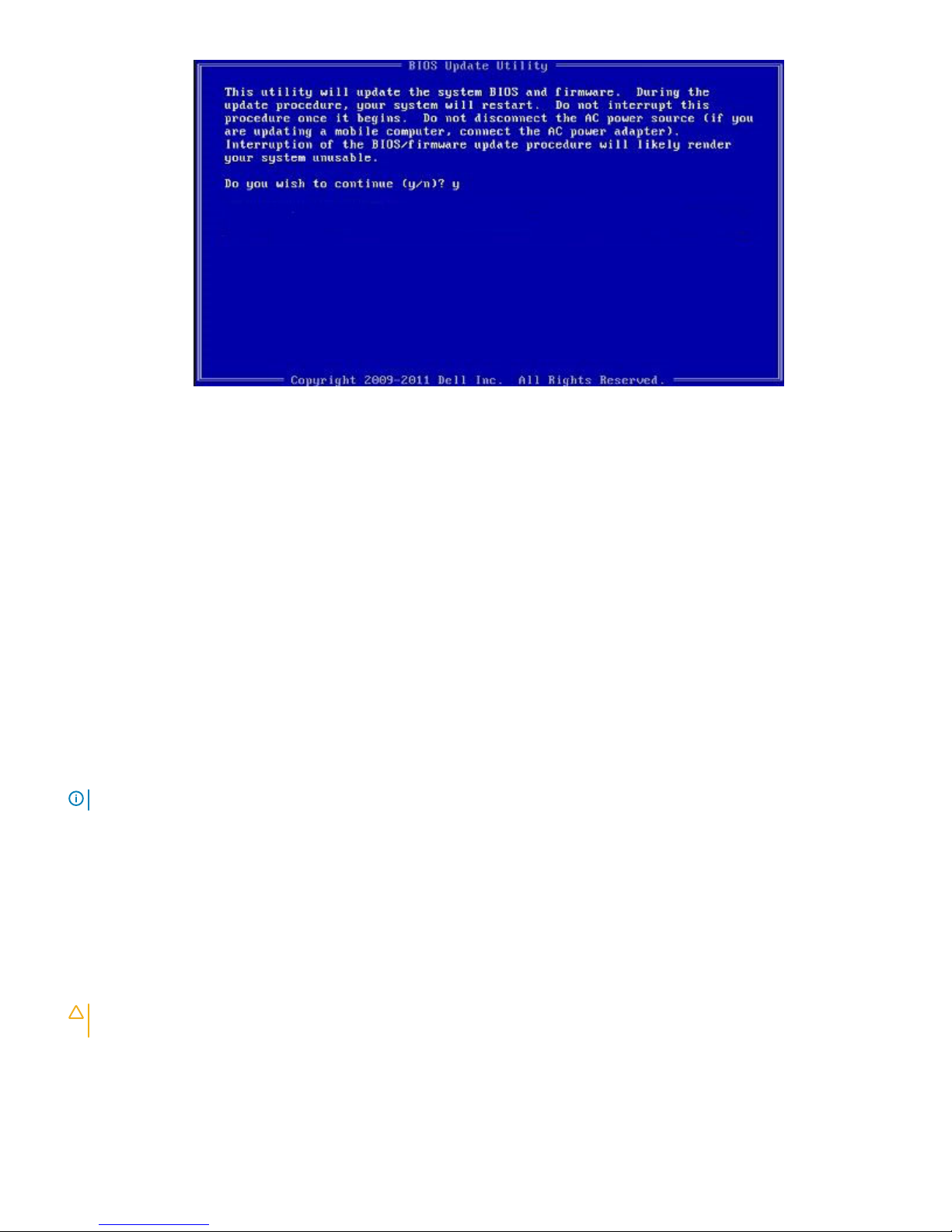

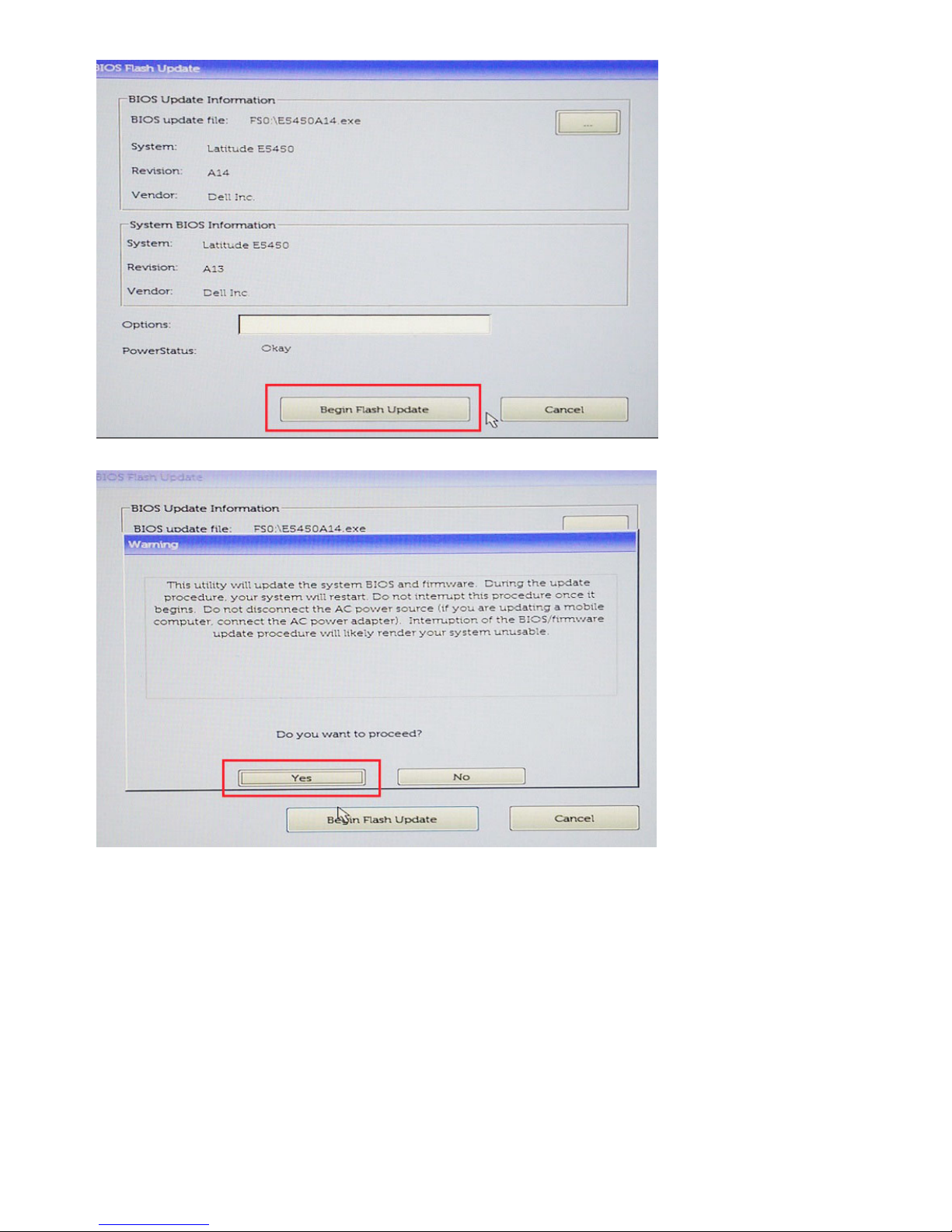

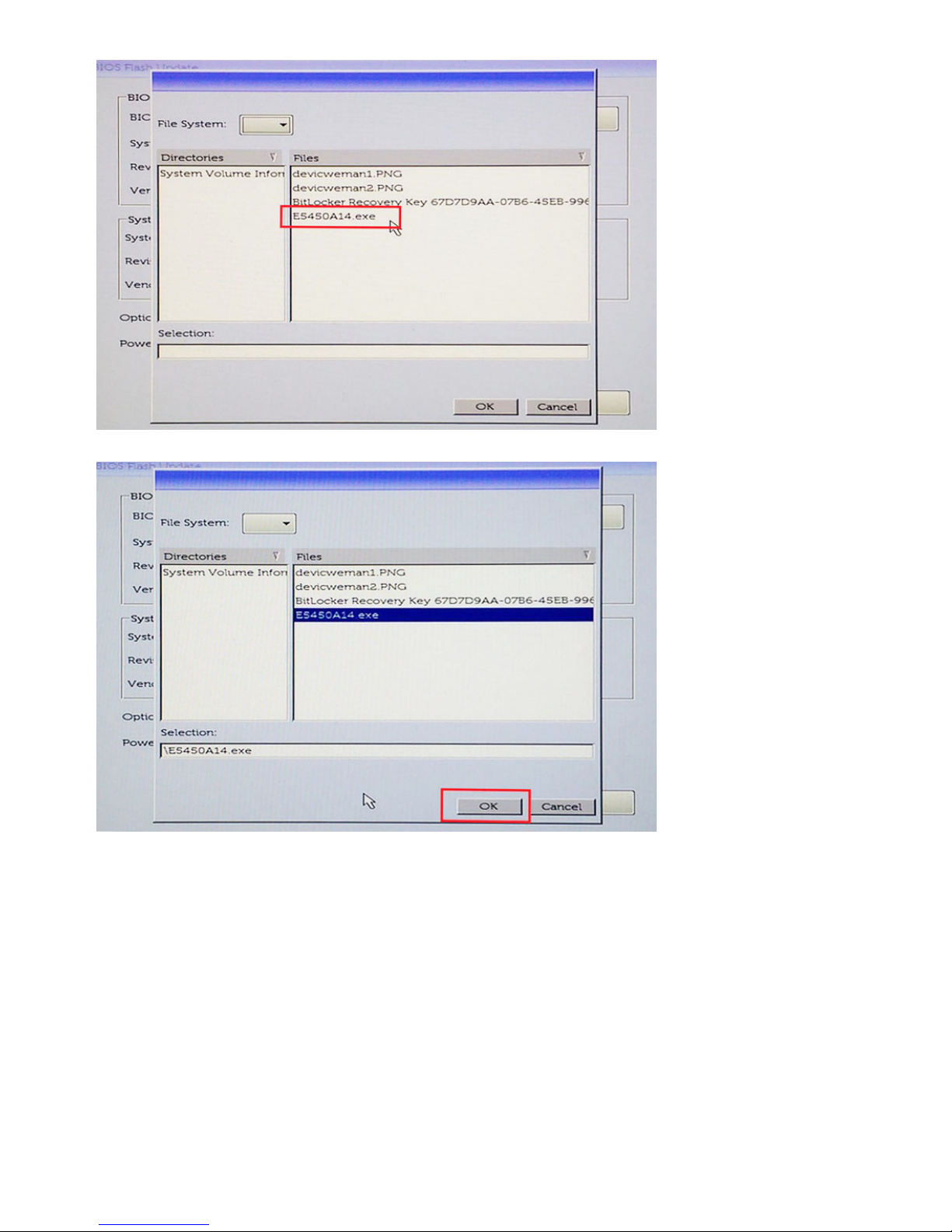

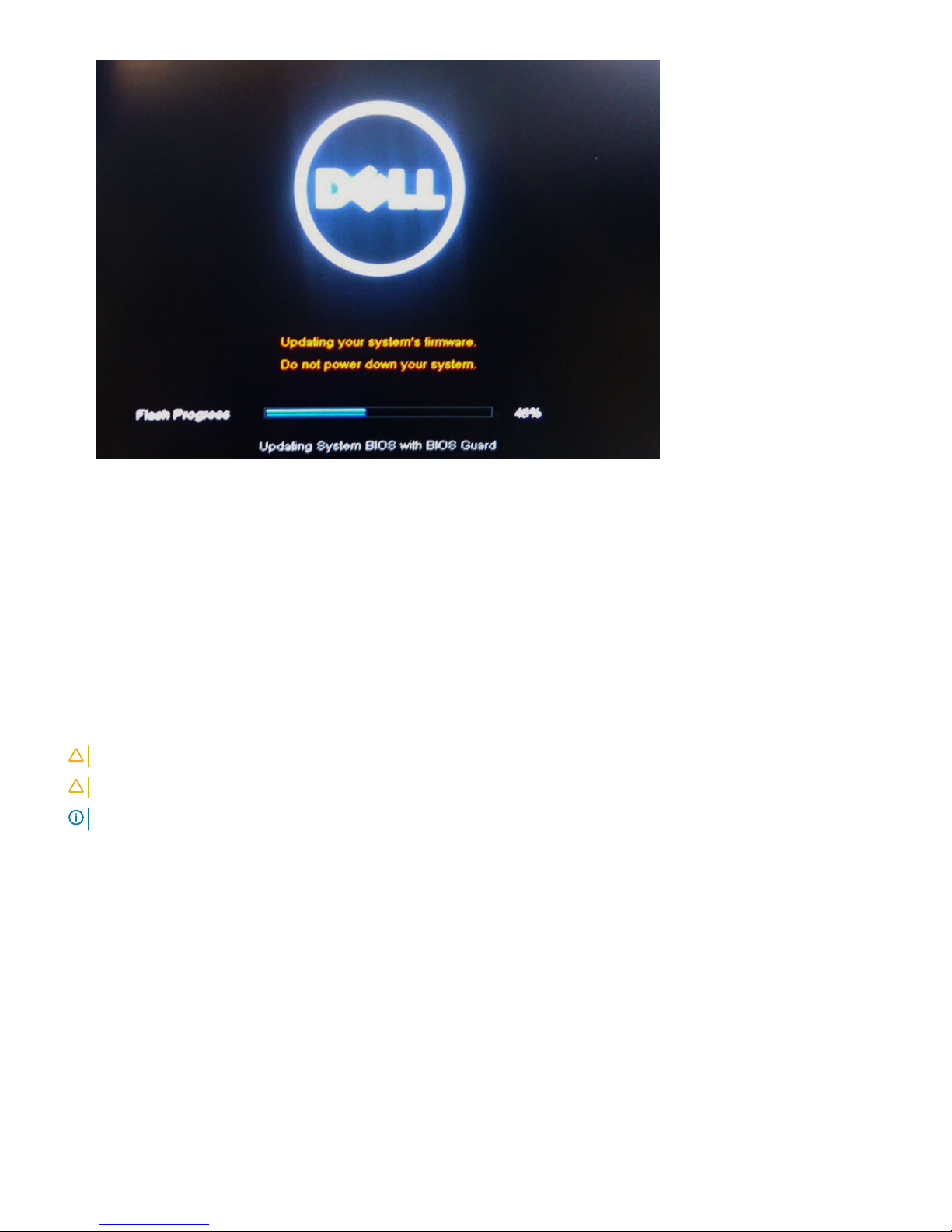

Flashing the BIOS from the F12 One-Time boot menu......................................................................................... 28

System and setup password...........................................................................................................................................32

Assigning a system password and setup password............................................................................................... 32

Deleting or changing an existing system setup password.................................................................................... 33

5 Software......................................................................................................................................................34

Downloading drivers........................................................................................................................................................ 34

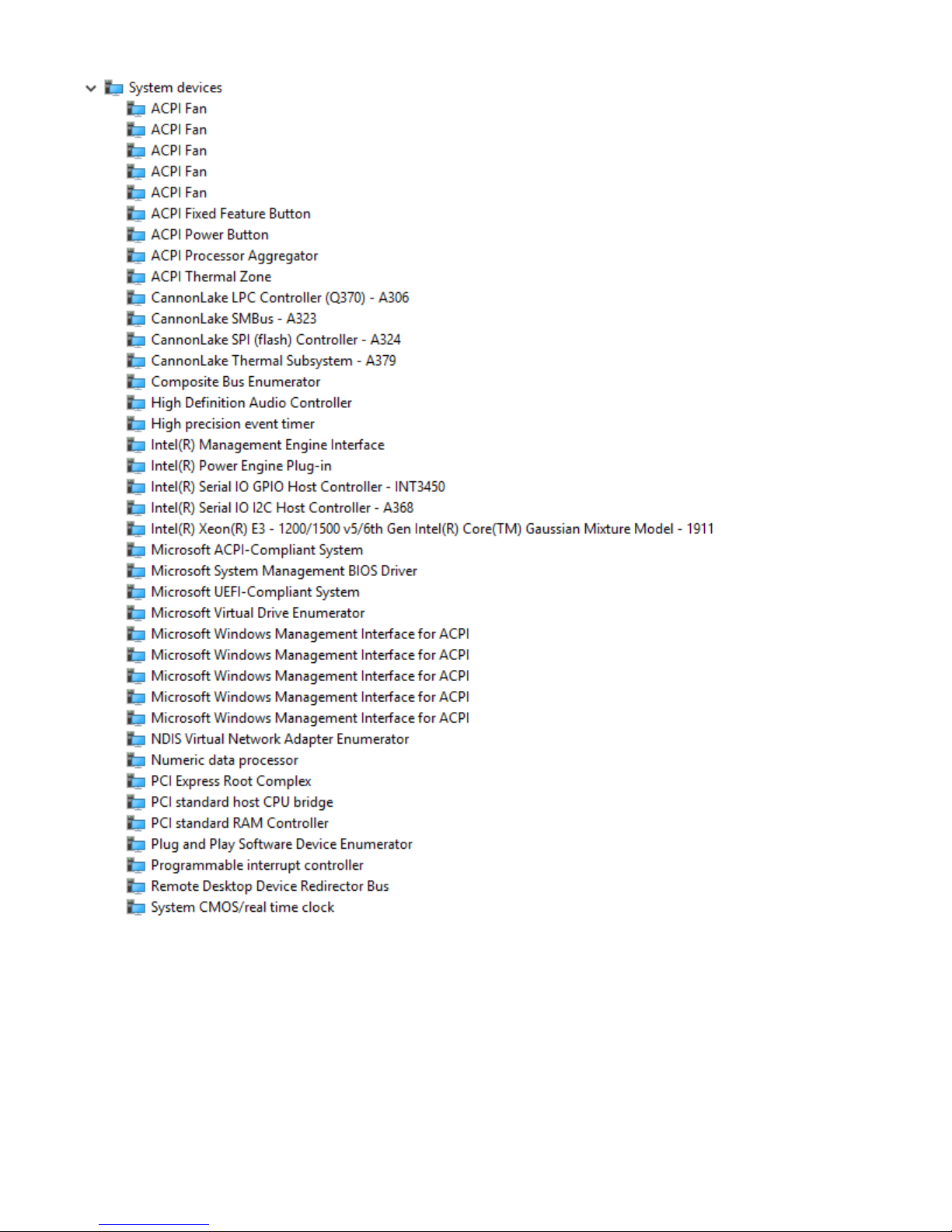

System device drivers............................................................................................................................................... 34

Serial IO driver............................................................................................................................................................35

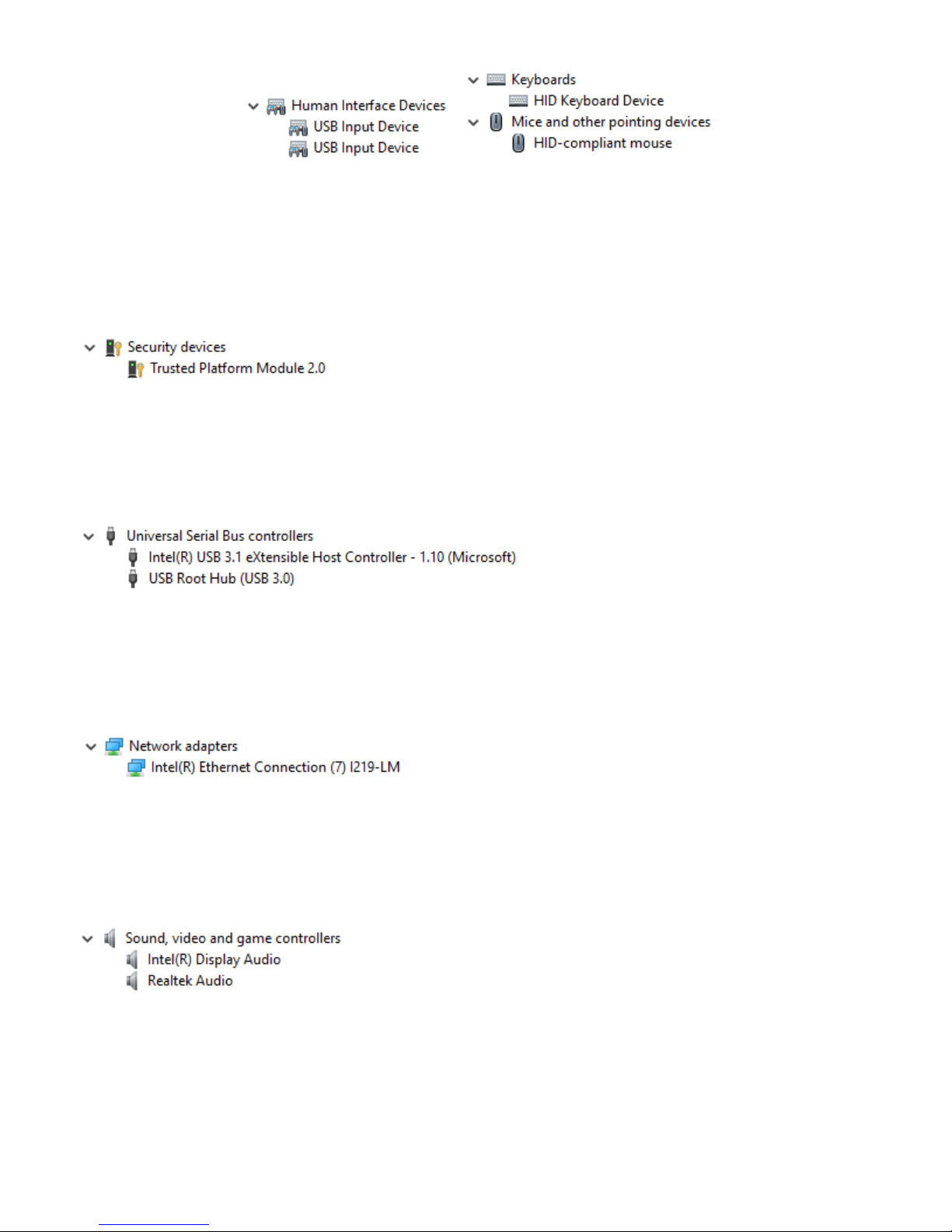

Security drivers.......................................................................................................................................................... 36

USB drivers.................................................................................................................................................................36

Network adapter drivers........................................................................................................................................... 36

Realtek Audio..............................................................................................................................................................36

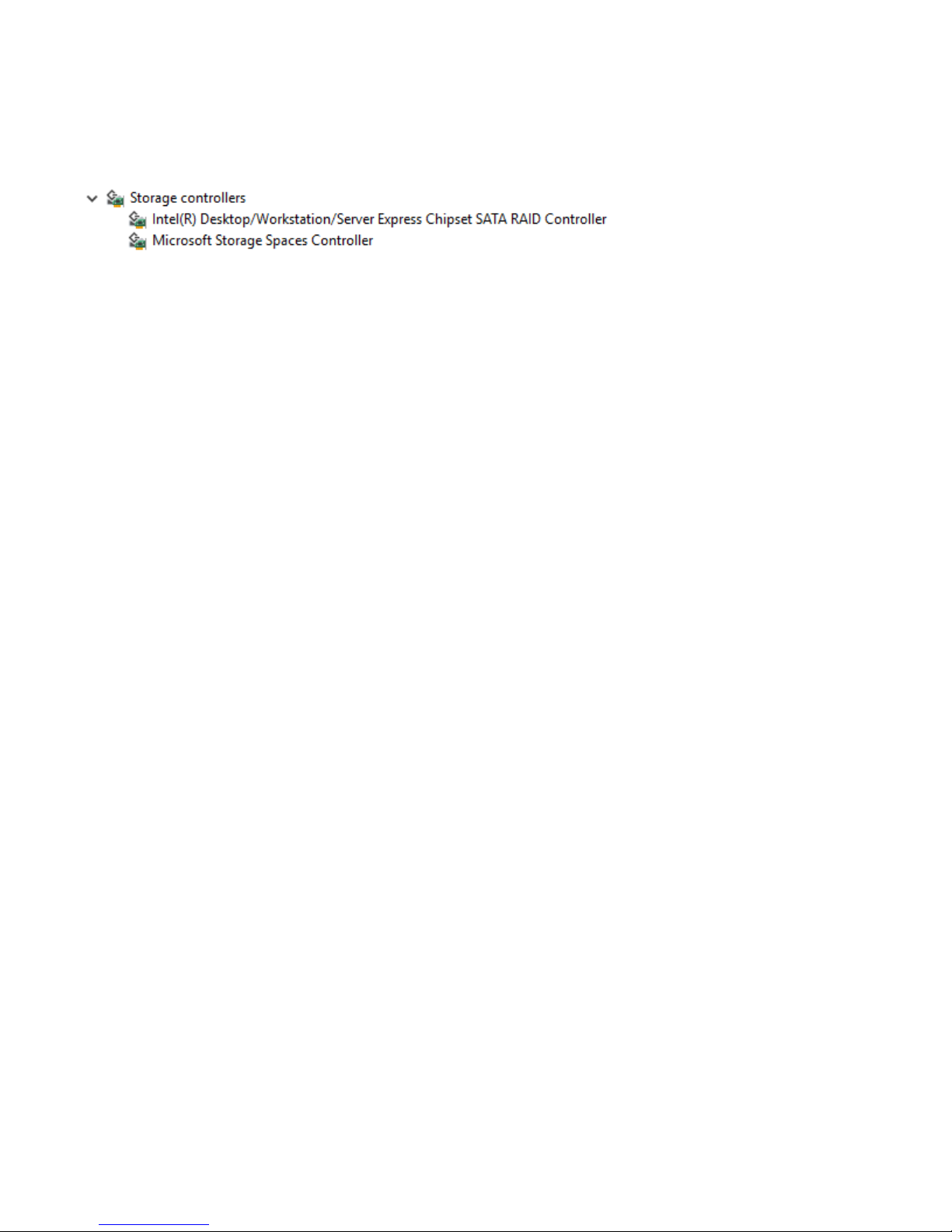

Storage controller....................................................................................................................................................... 37

6 Getting help.................................................................................................................................................38

Contacting Dell.................................................................................................................................................................38

4 Contents

Set up your computer

1 Connect the keyboard and mouse.

2 Connect to your network using a cable, or connect to a wireless network.

3 Connect the display.

1

Set up your computer 5

NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of

your computer are covered. Connect the display to the discrete graphics card.

4 Connect the power cable.

5 Press the power button.

6 Follow the instructions on the screen to nish Windows setup:

6

Set up your computer

a Connect to a network.

b Sign-in to your Microsoft account or create a new account.

7 Locate Dell apps.

Table 1. Locate Dell apps

Register your computer

Dell Help & Support

SupportAssist — Check and update your computer

Set up your computer

7

Chassis

This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations.

Topics:

• Front view

• Back view

Front view

1 Optical drive (optional) 2 Power button and power light

3 Hard-drive activity light 4 Memory card reader (optional)

5 Headset/Universal audio jack port 6 USB 2.0 port with PowerShare (supports battery charge

capability)

7 USB 2.0 port 8 USB 3.1 Gen 2 Type-C port with PowerShare

9 USB 3.1 Gen 1 port

2

8 Chassis

Back view

1 Line-out port 2 PS/2 keyboard port

3 Serial port (optional) 4 PS/2 mouse port

5 DisplayPort/HDMI 2.0b/VGA/USB Type-C Alt-Mode (optional) 6 DisplayPorts

7 Service tag 8 USB 3.1 Gen 1 ports

9 USB 2.0 ports (supports SmartPower On) 10 Network port

11 Expansion card slots 12 Power connector port

13 Power supply diagnostic light 14 Release latch

15 Antenna SMA connectors (optional) 16 Kensington security cable slot

17 Padlock ring

Chassis 9

System specications

NOTE: Oerings may vary by region. The following specications are only those required by law to ship with your computer. For

more information about the conguration of your computer, go to Help and Support in your Windows operating system and
select the option to view information about your computer.

Topics:

• Chipset

• Processor

• Memory

• Storage

• Storage combinations

• Audio

• Video

• Communications

• Ports and connectors

• System board connectors

• Operating system

• Power supply

• Physical specications

• Environmental

Chipset

Table 2. Chipset

specications

Type

Intel Q370

Non-volatile memory on chipset

Yes

BIOS conguration SPI (Serial Peripheral Interface)

256Mbit (32MB) located at SPI_FLASH on chipset

Trusted Platform Module (Discrete TPM Enabled) 24KB located at TPM 2.0 on chipset

Firmware TPM (Discrete TPM Disabled) Available in select countries

NIC EEPROM

LOM conguration contained within LOM e-fuse – no dedicated
LOM EEPROM

Processor

Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions
on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of
congurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards
by locking in specic product congurations worldwide. The following GSP processors identied below will be made available to Dell
customers.

3

10 System specications

NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/

country.

Table 3. Processor specications

Type UMA Graphics

Intel Core i3-8100 (4 Cores/6MB/4T/3.6GHz/65W)

Intel UHD Graphics 630

Intel Core i3-8300 (4 Cores/8MB/4T/3.7GHz/65W)

Intel UHD Graphics 630

Intel Core i5-8400 (6 Cores/9MB/6T/up to 4.0GHz/65W)

Intel UHD Graphics 630

Intel Core i5-8500 (6 Cores/9MB/6T/up to 4.1GHz/65W)

Intel UHD Graphics 630

Intel Core i5-8600 (6 Cores/9MB/6T/up to 4.3GHz/65W)

Intel UHD Graphics 630

Intel Core i7-8700 (6 Cores/12MB/12T/up to 4.6GHz/65W)

Intel UHD Graphics 630

Memory

Table 4. Memory specications

Minimum memory conguration

4 GB

Maximum memory conguration

64 GB

Number of slots

4 UDIMM

Maximum memory supported per slot

16 GB

Memory options

• 4 GB - 1 x 4 GB

• 8 GB - 1 x 8 GB

• 8 GB - 2 x 4 GB

• 16 GB - 2 x 8 GB

• 16 GB - 1 x 16 GB

• 32 GB - 2 x 16 GB

• 32 GB - 4 x 8 GB

• 64 GB - 4 x 16 GB

Type DDR4 DRAM Non-ECC memory

Speed

2666 MHz memory will perform at 2400 MHz on i3 processors

Storage

Table 5. Storage

specications

Type Form factor Interface Capacity

Solid-State Drive (SSD) M.2 2280

• SATA AHCI, Up to 6 Gbps

Up to 2 TB

System specications 11

Type Form factor Interface Capacity

• PCIe 3 x4 NVME, Up to 32
Gbps

Hard drive (HDD) 2.5 and 3.5 inch SATA AHCI, Up to 6 Gbps Up to 2 TB at 5400/7200 RPM

Self-encrypting Opal drive Hard­Disk Drive (SED HDD)

One 2.5 inch SATA AHCI, Up to 6 Gbps 2.5 inch 500 GB at 7200 RPM

Solid State Hybrid Drive One 2.5 inch SATA AHCI, Up to 6 Gbps 2.5 inch 1 TB at 5400 RPM

Optical drive 1 Slim SATA AHCI, Up to 6 Gbps

Intel Optane Memory M.2 16 GB

Storage combinations

Table 6. Storage combinations

Primary/Boot drive Secondary drive

M.2 Drive

M.2 Drive 2.5 inch HDD

M.2 Drive 3.5 inch HDD

2.5 inch HDD

2.5 inch HDD 2.5 inch HDD

3.5 inch HDD

2.5 inch HDD with Intel Optane

2.5 inch HDD with Intel Optane 2.5 inch HDD

3.5 inch HDD with Intel Optane 2.5 inch HDD

Audio

Table 7. Audio

specications

Controller Realtek ALC3234

Type Integrated

Speakers Internal speaker (mono)

Interface

• AC511 Sound Bar (optional)

• AC411 External speakers (optional)

• Dell AX210CR USB Stereo speakers (optional)

• Stereo headset/mic combo

Internal speaker amplier 2W (RMS) per channel

12 System specications
