Dell D1000 User Manual

Dell

TM

Dual Video USB 3.0

Docking Station

User

Guide

Model: D1000

NOTE: A NOTE indicates important information that helps you make
better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.

© 2015 Dell Inc. All rights reserved.

Information in this document is subject to change without notice. Reproduction of these
materials in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.

Trademarks used in this text: Dell and the Dell logo are trademarks of Dell Inc., Intel®,
Centrino®, Core™, and Atom™ are either trademarks or registered trademarks of Intel
Corporation in the U.S. and other countries; Microsoft®, Windows®, and Windows start button
logo are either trademarks or registered trademarks of Microsoft Corporation in the United
States and/or other countries; Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc.
and is used by Dell under license; Blu-ray Disc™ is a trademark owned by the Blu-ray Disc
Association (BDA) and licensed for use on discs and players; Other trademarks and trade names
may be used in this document to refer to either the entities claiming the marks and names or
their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other
than its own.

2015 – 11 Rev. A01



3

Contents

a. Dell Docking Station – USB 3.0 (D1000)
b. USB 3.0 I/O cable
c. Power adapter and power cord
d. USB Flash Drive - Driver for D1000

a b c

d

Specifications

Inputs

• 1 x USB 3.0 (Standard B Type)

• 1 x DC power

Outputs

• 2 x USB 3.0

• 1 x USB 3.0 Power Share ( ) supporting BC 1.2 and 2.1A battery charging.

• 1 x VGA

• 1 x HDMI

• 1 x DisplayPort

• Gigabit Ethernet

• Combo Audio (Headphone/Mic)

Maximum resolution and refresh rate supported for your display:

4



USB 3.0

Ethernet

DisplayPort

HDMI

USB 3.0

VGA

USB 3.0

Audio Combo

Power in

Kensington Lock

USB 3.0 Type-B (Input)

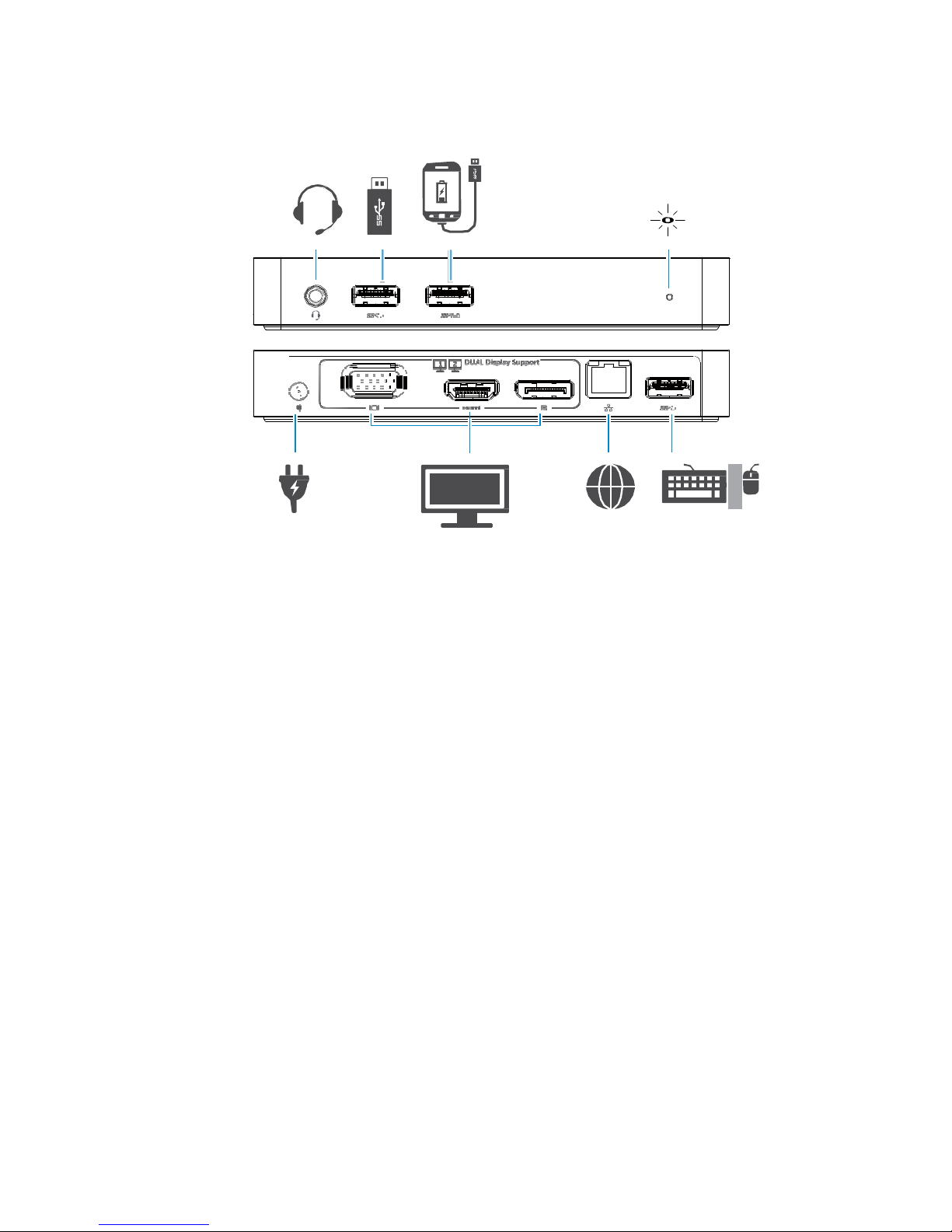

Product Overview

Front View

Back View
