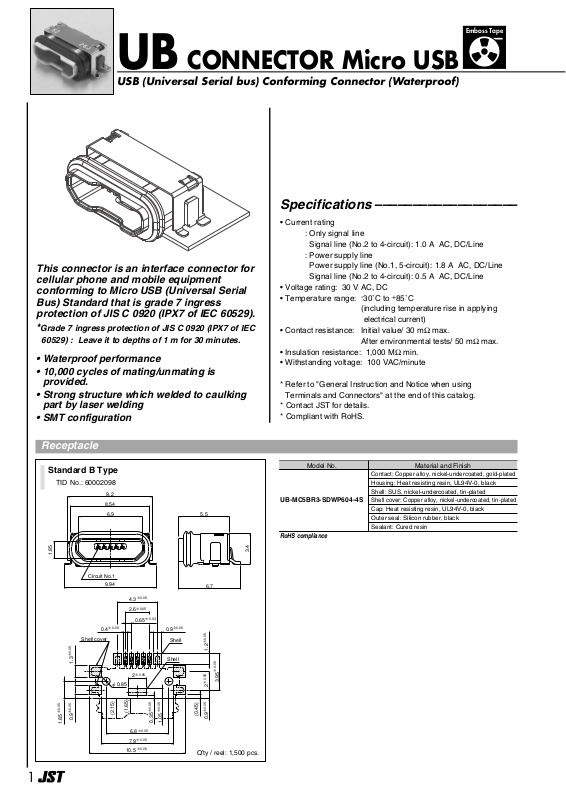

UB CONNECTOR Micro USB
USB (Universal Serial bus) Conforming Connector (Waterproof)
Emboss Tape
• Waterproof performance
• 10,000 cycles of mating/unmating is
provided.
• Strong structure which welded to caulking
part by laser welding
• SMT configuration
Specifications –––––––––––––––––––
• Current rating
: Only signal line
Signal line (No.2 to 4-circuit): 1.0 A AC, DC/Line
: Power supply line
Power supply line (No.1, 5-circuit): 1.8 A AC, DC/Line
Signal line (No.2 to 4-circuit): 0.5 A AC, DC/Line
• Voltage rating: 30 V AC, DC
• Temperature range:
-
30˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 30 mΩ max.
After environmental tests/ 50 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 100 VAC/minute
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Receptacle
9.2
8.54
9.94
3.4
6.7
5.5
1.85
6.9
Circuit No.1
RoHS compliance
Standard B Type
TID No.: 60002098
This connector is an interface connector for
cellular phone and mobile equipment
conforming to Micro USB (Universal Serial
Bus) Standard that is grade 7 ingress
protection of JIS C 0920 (IPX7 of IEC 60529).
*
Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC
60529) : Leave it to depths of 1 m for 30 minutes.
±0.05
1.85
±0.05
6.8
φ0.85
±0.05
2
±0.05
1.2
±0.05
0.9
±0.05
1.3
±0.05
0.9
±0.05
4.3
±0.05
2.6
±0.03
0.65
±0.05
0.4
(2.15)
(0.45)
±0.05
3.95
(1.65)
±0.05
0.9
±0.05
2
±0.05
10.5
±0.05
7.9
±0.05
1.05
±0.05
0.35
Shell cover
Shell
Shell
Q’ty / reel: 1,500 pcs.
Model No. Material and Finish
UB-MC5BR3-SDWP604-4S
Contact: Copper alloy, nickel-undercoated, gold-plated
Housing: Heat resisting resin, UL94V-0, black
Shell: SUS, nickel-undercoated, tin-plated
Shell cover: Copper alloy, nickel-undercoated, tin-plated
Cap: Heat resisting resin, UL94V-0, black
Outer seal: Silicon rubber, black
Sealant: Cured resin
