INTEGRATED CIRCUITS

DATA SH EET

UAA2068G

Transmit chain and synthesizer with
integrated VCO for DECT

Product specification
Supersedes data of 1998 Jan 07
File under Integrated Circuits, IC17

1998 Nov 19

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

FEATURES

• Economical integrated solution for frequency generation
in DECT cordless telephones

• Integrated low phase noise 950 MHz VCO with
frequency doubler

• Local Oscillator (LO) drive (−14 dBm) for RF mixer
circuit

• Dedicated DECT PLL synthesizer

• 3-line serial interface bus

• 3 dBm output preamplifier with an integrated switch

• Low current consumption from 3 V supply

• Compatible with Philips Semiconductors ABC baseband

chip (PCD509x series).

APPLICATIONS

• 1880 to 1920 MHz DECT cordless telephones.

GENERAL DESCRIPTION

The UAA2068G BiCMOS device integrates a 950 MHz
VCO, a frequency doubler, main and reference dividers
and a phase comparator, to implement a phase-locked
loop for DECT channel frequencies. The 1.9 GHz signal is
buffered and switched, in TX mode, to drive the transmit
power amplifier (CGY20xx series) or, in RX mode, to be
used as an LO signal for the receiver mixer IC (UAA2078).

UAA2068G

The reference divider ratio is fixed at 8. Outputs of the
main and reference dividers drive a phase comparator
where a charge pump produces phase error current pulses
for integration in an external loop filter. Only a passive loop
filter is necessary. The charge-pump current (phase
comparator gain) is set by an external resistor at pin R

The VCO is powered from an internally regulated voltage
source and includes internal varicap diodes. Its tuning
range is wider than the required band to allow for
production spreads. In a TDMA system such as DECT, the
VCO and the synthesizer are switched on one slot before
the required one to lock the VCO to the required channel
frequency. Just before the required slot, the synthesizer is
switched off, allowing open-loop modulation of the VCO
during transmission. When opening the loop, the
frequency pulling (due to switching off the synthesizer) can
be maintained within the DECT specification.

The device is designed to operate from 3 NiCd cells in
pocket phones, with low current and nominal 3.6 V
supplies. Separate power and ground pins are provided to
the different parts of the circuit. The ground leads should
be short-circuited externally to prevent large currents
flowing across the die and thus causing damage.
All supply pins (VCC) must also be at the same potential,
except V
other supply pins (e.g. VCC= 3 V and V
wider VCO control voltage range).

which can be equal to or greater than the

CC(CP)

CC(CP)

= 5 V for

SET

.

The synthesizer’s main divider is driven by the frequency
doubler output in the range from 1880 to 1920 MHz and
programmed via a 3-wire serial bus.

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

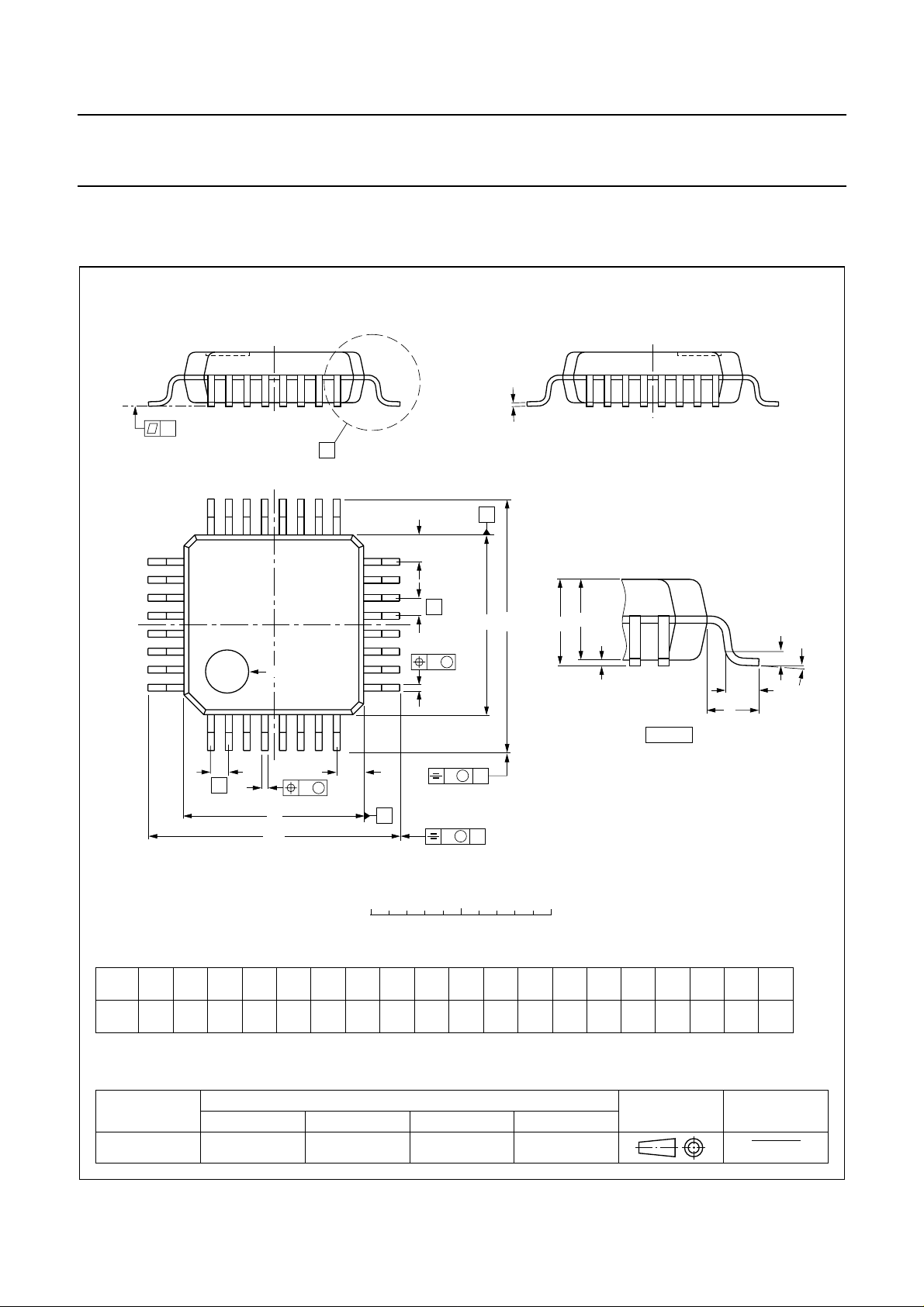

UAA2068G LQFP32 plastic low profile quad flat package; 32 leads; body 5 × 5 × 1.4 mm SOT401-1

1998 Nov 19 2

PACKAGE

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

QUICK REFERENCE DATA

V

= 3.6 V; V

CC

given are not tested.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC

V

CC(CP)

I

CC(SYA)

I

CC(SYD)

I

CC(VCO)

I

CC(BUF)

I

CC(DBL)

I

CC(AMP)

I

CC(pd)

f

o(RF)

f

xtal

f

PC

T

+

+

amb

CC(CP)

= 3.6 V; T

=25°C; unless otherwise specified. Characteristics for which only a typical value is

amb

general supply voltage 3.0 3.6 5.2 V
charge-pump supply voltage V

CC(CP)

≥ V

CC

3.0 3.6 5.2 V

synthesizer supply current S_EN = 1 − 9.5 14 mA

VCO and buffer parts supply current VCO_ON = 1 − 9.5 14 mA

doubler supply current in RX mode − 14.4 19 mA

in TX mode − 10 14 mA

TX preamplifier supply current in RX mode − 050µA

in TX mode − 24 32 mA
total supply current in power-down mode − 550µA
RF output frequency 1880 − 1920 MHz
crystal reference input frequency − 13.824 − MHz
phase comparator frequency − 1728 − kHz
operating ambient temperature −10 − +60 °C

1998 Nov 19 3

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

BLOCK DIAGRAM

handbook, full pagewidth

V

R_OFF

AMPGND

V

CC(SYD)

V

CC(SYA)

TXA
TXB

LOA
LOB

26
29
28

27

12
13

2
5

CC(AMP)

30 15 11 16 17 24 21 20

PREAMP

V

CC(DBL)

BUFFER

3-LINE BUS

1 31 4 3 6 10 7

32

T_EN

RF

SWITCH

LO

MAIN DIVIDER

REFERENCE DIVIDER

V

CC(DBL)

DOUBLER

V

CC(BUF)

BUFFER

UAA2068G

COMPARATOR

V

CC(VCO)

PHASE

V

REG

VCO

LL

VCOB

VCOA

23
18

25
22
19
14

CHARGE

PUMP

UAA2068G

V

TUNE

V

MOD

VCO_ON
VCGND
VCOGND
DBLGND

9

V

CC(CP)

8

CP

DATA

CLK

XTAL

SYDGND

SYAGND

S_EN

Fig.1 Block diagram.

1998 Nov 19 4

R

SET

CPGND

R

SET

MGK383

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

PINNING

SYMBOL PIN DESCRIPTION

DATA 1 3-wire programming bus data input
V

CC(SYD)

SYDGND 3 synthesizer CMOS divider ground
XTAL 4 reference frequency input
V

CC(SYA)

SYAGND 6 synthesizer prescaler ground
CPGND 7 charge-pump ground
CP 8 charge-pump output signal
V

CC(CP)

R

SET

V

CC(DBL)

LOA 12 local oscillator output A
LOB 13 local oscillator output B
DBLGND 14 doubler ground
T_EN 15 transmit enable signal input
V

CC(BUF)

V

CC(VCO)

V

MOD

VCOGND 19 VCO ground; note 1
VCOA 20 VCO inductor connection A
VCOB 21 VCO inductor connection B
VCGND 22 internal varicap ground; note 1
V

TUNE

V

REG

VCO_ON 25 VCO power on control input; note 2
R_OFF 26 power on control for RX LO buffer/TX preamplifier; note 3
AMPGND 27 transmit amplifier ground
TXB 28 transmit amplifier output B
TXA 29 transmit amplifier output A
V

CC(AMP)

CLK 31 3-wire programming bus clock input
S_EN 32 synthesizer enable signal input

2 synthesizer CMOS divider positive supply voltage

5 synthesizer prescaler positive supply voltage

9 charge-pump positive supply voltage
10 charge-pump current setting input
11 doubler positive supply voltage

16 VCO isolation buffer positive supply voltage
17 VCO positive supply voltage
18 transmit modulation input

23 VCO tuning input
24 VCO regulator output

30 transmit amplifier positive supply voltage

UAA2068G

Notes

1. Pins 19 and 22 are internally short-circuited.

2. Use with S_PWR on ABC baseband chip.

3. Use with R_PWR on ABC baseband chip.

1998 Nov 19 5

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

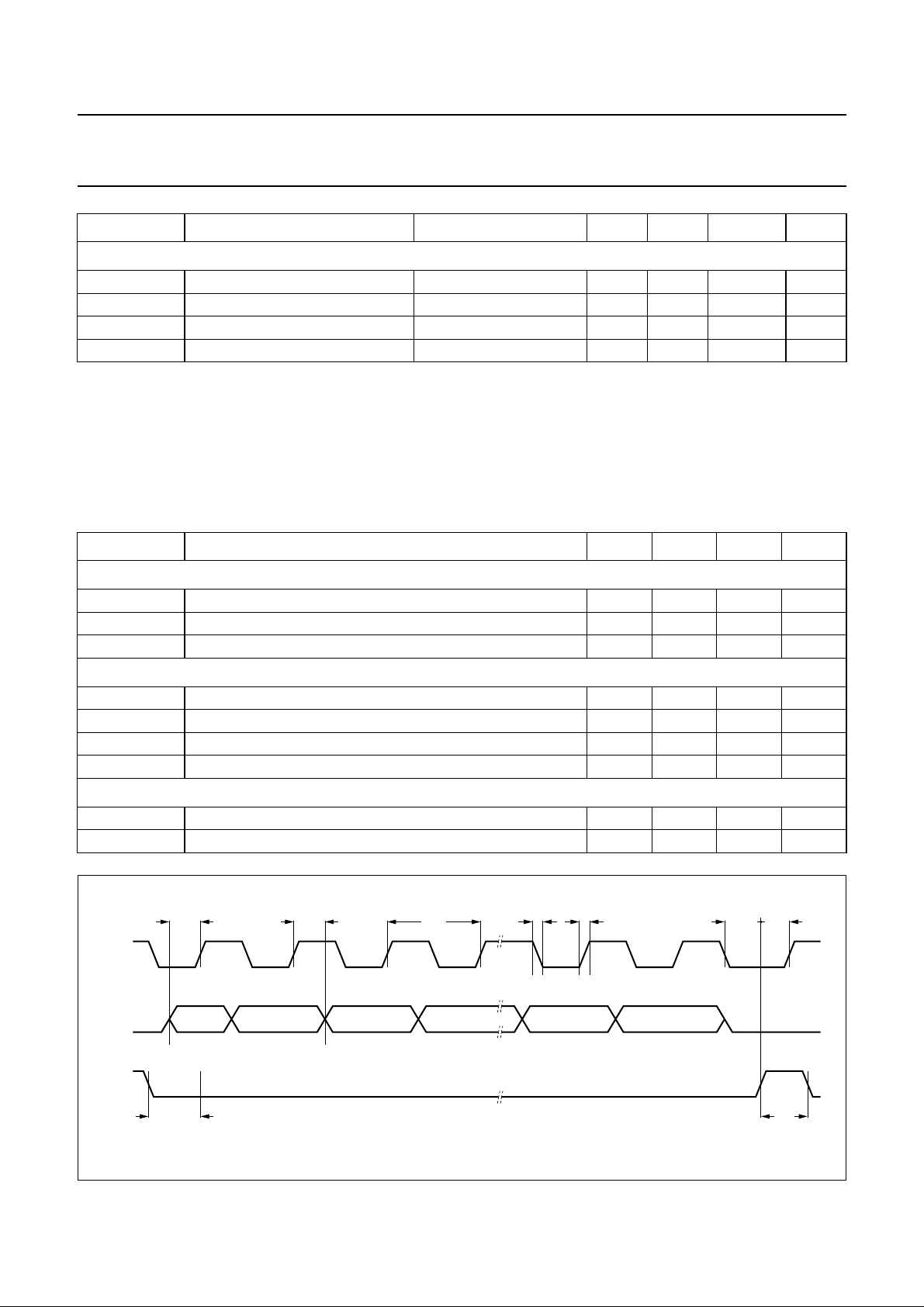

handbook, full pagewidth

CLK

S_EN

31

32

1

DATA

XTAL

CP

2
3
4
5
6
7
8

9

10

SET

R

CC(CP)

V

V

CC(SYD)

SYDGND

V

CC(SYA)

SYAGND

CPGND

CC(AMP)

V

TXA

30

29

UAA2068G

11

12

LOA

CC(DBL)

V

TXB
28

13

LOB

R_OFF

AMPGND
27

26

14

15

T_EN

DBLGND

VCO_ON
25

24
23
22
21
20
19
18
17

16

CC(BUF)

V

V

REG

V

TUNE

VCGND
VCOB
VCOA
VCOGND
V

MOD

V

CC(VCO)

MGK382

UAA2068G

Fig.2 Pin configuration.

FUNCTIONAL DESCRIPTION
Transmit chain

BUFFER AND FREQUENCY DOUBLER

VCO,
The VCO operates at a nominal centre frequency of

950 MHz. It is fully integrated apart from two inductors
which complete the resonator network. This VCO operates
from an on-chip regulated power supply (V

REG

), which
minimizes frequency disturbances due to variations in
supply voltage. The buffered VCO signal is fed into a
frequency doubler. The large difference between the
transmitted and VCO frequencies reduces
transmitter-oscillator coupling problems.

The output of the doubler is used to drive the synthesizer
main divider and can also be switched to either the TX
preamplifier or the RX LO output buffer. The high isolation
obtained from the VCO buffer and the frequency doubler
ensures very small frequency changes when turning on
the TX preamplifier or the RX LO output buffer. In TX
mode, the oscillator can be directly modulated with GMSK
filtered data at pin V

MOD

.

RF

SWITCH

The RF switch passes the doubled VCO signal to either
the TX preamplifier (when T_EN is HIGH) or to the RX LO
buffer (when T_EN is LOW). In TX mode, the difference in
the RF power levels, observed at the TX output when
T_EN is switched from LOW-to-HIGH, is typically 40 dB.

TX

PREAMPLIFIER

The TX preamplifier amplifies the RF signal up to a level of
3 dBm which is suitable for use with Philips
Semiconductors DECT power amplifiers such as the
CGY20xx series. It is powered-up when both R_OFF and
VCO_ON are HIGH.

RX LO

BUFFER

The RX LO buffer outputs the frequency doubled VCO
signal at a level of −14 dBm. This signal can then be used
as the local oscillator drive for the receive mixers of
devices such as the UAA2078. The buffer is powered-up
when R_OFF is LOW and VCO_ON is HIGH.

1998 Nov 19 6

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

Synthesizer

M

AIN DIVIDER

The main divider is clocked by the RF signal from the
internal frequency doubler. The divider operates at
frequencies from 1880 to 1920 MHz. It consists of a
bipolar prescaler followed by a CMOS counter. Any main
divider ratio from 1024 to 1151 inclusive can be
programmed.

EFERENCE DIVIDER

R
The reference divider is clocked by the signal at pin XTAL.

The circuit operates with levels from 50 to 500 mV (RMS)
at a frequency of 13.824 MHz, with a fixed divider ratio
of 8.

HASE COMPARATOR

P
The phase comparator is driven by the output of the main

and reference dividers. It produces current pulses at
pin CP. The pulse duration is equal to the difference in
time of arrival of the edges from the two dividers. If the
main divider edge arrives first, CP sinks current. If the
reference divider edge arrives first, CP sources current.
The DC value of the charge-pump current is nominally ten
times the current drawn by the external resistor connected
to pin R
the gain of the phase detector remains linear even for
small phase errors.

The charge pump has a separate supply, V
helps to reduce the interference on the charge-pump
output from other parts of the circuit. V
than the other supply voltages if a wider range on the VCO
input is required. The V
than that on other VCC pins.

. Additional circuitry is included to ensure that

SET

CC(CP)

can be higher

CC(CP)

voltage must not be less

CC(CP)

, which

UAA2068G

For the divider ratio, the first bit (b6) entered is the most
significant (MSB).

S_EN must be LOW to capture new programming data.
S_EN must be HIGH to switch on the synthesizer.

Operating modes

The synthesizer is on when the input signal S_EN is HIGH,
and off when S_EN is LOW. When turned on, the dividers
and phase detector are synchronized to avoid a random
initial phase error. When turned off, the phase detector is
synchronized with the dividers to avoid interrupting a
charge-pump pulse.

The VCO is on when the input signal VCO_ON is HIGH.
The polarity of VCO_ON is chosen for compatibility with
output S_PWR at the ABC chip. When turned on, it needs
some time (typically 30 µs) to reach its steady state.

The TX preamplifier is on when both R_OFF and VCO_ON
are HIGH. The polarity of R_OFF is chosen for
compatibility with output R_PWR at the ABC chip. When
turned on, it needs some time (typically 10 µs) to reach its
steady state. In transmit mode, the timing of the R_OFF
LOW-to-HIGH transition can be chosen such that the TX
preamplifier is turned on while the synthesizer loop
remains closed thus avoiding frequency pulling of the
VCO. In the receive mode, depending on the exact timing
of R_OFF compared to VCO_ON, the TX preamplifier can
be switched on at the beginning of the previous slot, but is
switched off when the R_OFF goes LOW; this occurs
when the synthesizer loop is closed. The LO output
amplifier is turned on when R_OFF is LOW and VCO_ON
is HIGH.

The UAA2068G has a very low current consumption in
power-down mode.

Serial programming bus

A simple 3-line unidirectional serial bus is used to program
the circuit. These 3 lines are data (DATA), clock (CLK) and
enable (S_EN). The data sent to the device is loaded in
bursts framed by S_EN. Programming clock edges and
their appropriate data bits are ignored until S_EN goes
active LOW. The programmed information is read directly
by the main divider when S_EN returns HIGH. During
synthesizer operation, S_EN should be kept HIGH.
In normal operating mode, only the last 8 bits serially
clocked into the device are retained within the register.
Additional leading bits are ignored, and no check is made
on the number of clock pulses. The data format is shown
in Table 2. The first bit entered is b7, the last bit is b0.

1998 Nov 19 7

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

Table 1 Mode control; note 1

BLOCK STATUS VCO_ON R_OFF T_EN S_EN

VCO, buffer, doubler, RF switch, TX preamplifier and LO buffer
powered-down

VCO, buffer, doubler, RF switch and TX preamplifier powered-up 1 1 1 X
LO buffer powered-down
Nominal RF signal at TX output
VCO, buffer, doubler, RF switch and TX preamplifier powered-up 1 1 0 X
LO buffer powered-down
No RF signal output
VCO, buffer, doubler, RF switch and LO buffer powered-up 1 0 0 X
TX preamplifier powered-down
Nominal RF signal at LO buffer output
VCO, buffer, doubler, RF switch and LO buffer powered-up 1 0 1 X
TX preamplifier powered-down
No RF signal output
To power-down PLL blocks; notes 2 and 3 1 X X 0
To power-up PLL blocks; notes 2 and 3 1 X X 1
All blocks in power-down state; notes 2 and 3 0 X X 0
New PLL division ratio is loaded and the PLL blocks are powered-up

on the rising edge of S_EN; note 3

0XXX

1 X X 0 to 1

Notes

1. X = don’t care.

2. PLL blocks are the main divider, reference divider, phase detector and charge pump.

3. A reference signal is needed on pin XTAL for correct operation.

1998 Nov 19 8

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

Table 2 Bit allocation; notes 1 and 2

FIRST

IN

b15

(3)

b14

(3)

b13

(3)

b12

(3)

b11

X XXXXXXX0 main divider programming

Notes

1. X = don’t care.

2. In normal operation, only 8 bits are programmed into the register.

3. For normal operation, b15 to b8 do not need to be programmed.

4. The validation bit (b7) must be programmed with zero for normal operation.

5. Bit b6 is the MSB of the main divider coefficient.

6. The main divider ratio is equal to 1024 plus the programmed value (see Table 3).

Table 3 Main divider programming

b6 b5 b4 b3 b2 b1 b0

Binary equivalent of n 1024 + n 1.728 × (1024 + n)
1000001 1089 1881.792
1001010 1098 1897.344

REGISTER BIT ALLOCATION

DATA FIELD

(3)

b10

(3)

b9

(3)

b8

(3)

b7

(4)

b6

(5)

MAIN DIVIDER

b5 b4 b3 b2 b1 b0

SYNTHESIZED

RATIO

FREQUENCY (MHz)

UAA2068G

LAST

IN

(6)

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

CC

V

CC(CP)

V

CC(CP)

− V

CC

∆GND difference in ground supply voltage applied

supply voltage −0.3 +5.5 V
charge-pump supply voltage −0.3 +5.5 V
difference in voltage between V

CC(CP)

and V

CC

−0.3 +5.5 V

note 1 − 0.3 V

between all ground pins

P

tot

T

stg

T

amb

T

j

total power dissipation − 275 mW
storage temperature −55 +125 °C
operating ambient temperature −10 +60 °C
junction temperature − 150 °C

Note

1. Pins short-circuited internally must be short-circuited externally.

HANDLING

Inputs and outputs are protected against electrostatic discharge in normal handling. However, to be totally safe, it is
desirable to take normal precautions appropriate to handling MOS devices.

1998 Nov 19 9

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

CHARACTERISTICS

= 3.6 V; V

V

CC

given are not tested.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

CC

V

CC(CP)

I

CC(SYA)

I

CC(SYD)

I

CC(VCO)

I

CC(BUF)

I

CC(DBL)

I

CC(AMP)

I

CC(pd)

+

+

thermal resistance from junction to ambient in free air 100 K/W

CC(CP)

= 3.6 V; T

=25°C; unless otherwise specified. Characteristics for which only a typical value is

amb

supply voltage 3 3.6 5.2 V
charge-pump supply voltage V

CC(CP)

≥ V

CC

3 3.6 5.2 V

synthesizer supply current S_EN = 1 − 9.5 14 mA

VCO and buffer parts supply

VCO_ON = 1 − 9.5 14 mA

current
doubler supply current in RX mode − 14.4 19 mA

in TX mode − 10 14 mA

TX preamplifier supply current in RX mode − 050 µA

in TX mode − 24 32 mA

total supply current in

− 550 µA

power-down mode

Synthesizer main divider

f

RF

R

m

RF frequency 1880 − 1920 MHz
main divider ratio 1024 − 1151

Synthesizer reference divider input

f

xtal

V

xtal(rms)

crystal reference input frequency − 13.824 − MHz
sinusoidal input signal level

(RMS value)

R

ref

R

i

reference division ratio − 8 −
input resistance (real part of the

input impedance)

C

i

input capacitance (imaginary
part of the input impedance)

Phase detector

f

PC

phase comparator frequency − 1728 − kHz

Charge-pump output

I

o(cp)

I

o(cp)(err)

I

match

I

L(cp)

charge-pump output current VCP=1⁄2VCC;

charge-pump output current error note 1 −25 − +25 %
sink-to-source current matching VCP=1⁄2V
charge-pump-off leakage current VCP=1⁄2V

50 − 500 mV

f

= 13.824 MHz − 4.5 − kΩ

xtal

− 2.5 − pF

− 1.5 − mA

R

= 8.2 kΩ

SET

CC
CC

−±5− %

−1 0 +1 nA

1998 Nov 19 10

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Charge-pump current setting resistor input; pin R

R

SET

V

SET

external resistor connected
between pin R

and ground

SET

regulated voltage at pin R

SET

VCO

f

VCO

G
G

VCO
MOD

oscillator frequency over full temperature

tuning input VCO gain − 45 − MHz/V
modulation input VCO gain − 1 − MHz/V

Switch part

FTLO

TXoff

isolation between LO and TX
outputs when TX preamplifier is
off (RX mode)

FTLO

TXon

isolation due to the switch when
TX preamplifier is on (TX mode)

SET

5.6 − 12 kΩ

− 1.2 − V

940 − 960 MHz

range; note 2

f = 1890 MHz; note 2 −−50 − dB

f = 1890 MHz; note 2 −−40 − dB

TX preamplifier and LO buffer parts

P

o(TX)

f

o(TX)

TX preamplifier output power over full temperature

output frequency on TX
preamplifier or LO buffer

R

o(TX)

TX preamplifier output resistance
(real part of the parallel output
impedance)

C

o(TX)

TX preamplifier output
capacitance (imaginary part of
the parallel output impedance)

FTVCO

TX

VCO frequency feedthrough at

the TX output
CNR
CNR

∆f

o(offset)

25
4686

carrier-to-noise ratio at TX output carrier offset ∆f = 25 kHz −−75 −

carrier-to-noise ratio at TX output carrier offset

total frequency shift due to note 2 −−±15 kHz

200 mV V

change

CC

disabling the synthesizer measured 20 µs after

∆f
P
R

o(drift)

o(LO)

o(LO)

frequency drift during a slot note 2 − 1 ± 10 kHz

LO preamplifier output power note 2 −−14 − dBm

LO preamplifier output

resistance (real part of the

parallel output impedance)
C

o(LO)

LO preamplifier output

capacitance (imaginary part of

the parallel output impedance)

037 dBm

range; note 2

1880 − 1920 MHz

balanced − 150 −Ω

balanced − 0.5 − pF

referenced to the f

o(TX)

−−41 −36 dBc

level; note 2

dBc/Hz

−−135 −132

dBc/Hz

∆f = 4686 kHz

disabling the synthesizer

balanced − 120 −Ω

balanced − 0 − pF

1998 Nov 19 11

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Interface logic input signal levels; pins DATA, CLK, S_EN, T_EN, R_OFF and VCO_ON

V

IH

V

IL

I

bias

C

i

Notes

1. Condition: 0.5 < VCP<(V

2. Measured and guaranteed only on the Philips evaluation board, including PCB and balun filter.
should never exceed 5.2 V.

3. V

IH

SERIAL BUS TIMING CHARACTERISTICS

VCC= 3.6 V; T

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

Serial programming clock; CLK

t

r

t

f

T

cy

Enable programming; S_EN

t

START

t

END

t

W

t

SU;S_EN

Register serial input data; DATA

t

SU;DAT

t

HD;DAT

HIGH-level input voltage note 3 2.2 − VCC+ 0.3 V
LOW-level input voltage −0.3 − +0.5 V
input bias current logic 1 or logic 0 −5 − +5 µA
input capacitance − 2 − pF

− 0.5).

CC(CP)

=25°C; unless otherwise specified.

amb

input rise time − 10 40 ns
input fall time − 10 40 ns
clock period 100 −−ns

delay to rising clock edge 40 −−ns
delay from last falling clock edge −20 −−ns
minimum inactive pulse width 4000 −−ns
enable set-up time to next clock edge 20 −−ns

input data to clock set-up time 20 −−ns
input data to clock hold time 20 −−ns

handbook, full pagewidth

CLK

DATA

S_EN

t

SU;DAT

t

START

MSB LSB

t

HD;DAT

T

cy

Fig.3 Serial bus timing diagram.

1998 Nov 19 12

t

t

f

r

t

ENDtSU;S_EN

MBK095

t

W

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

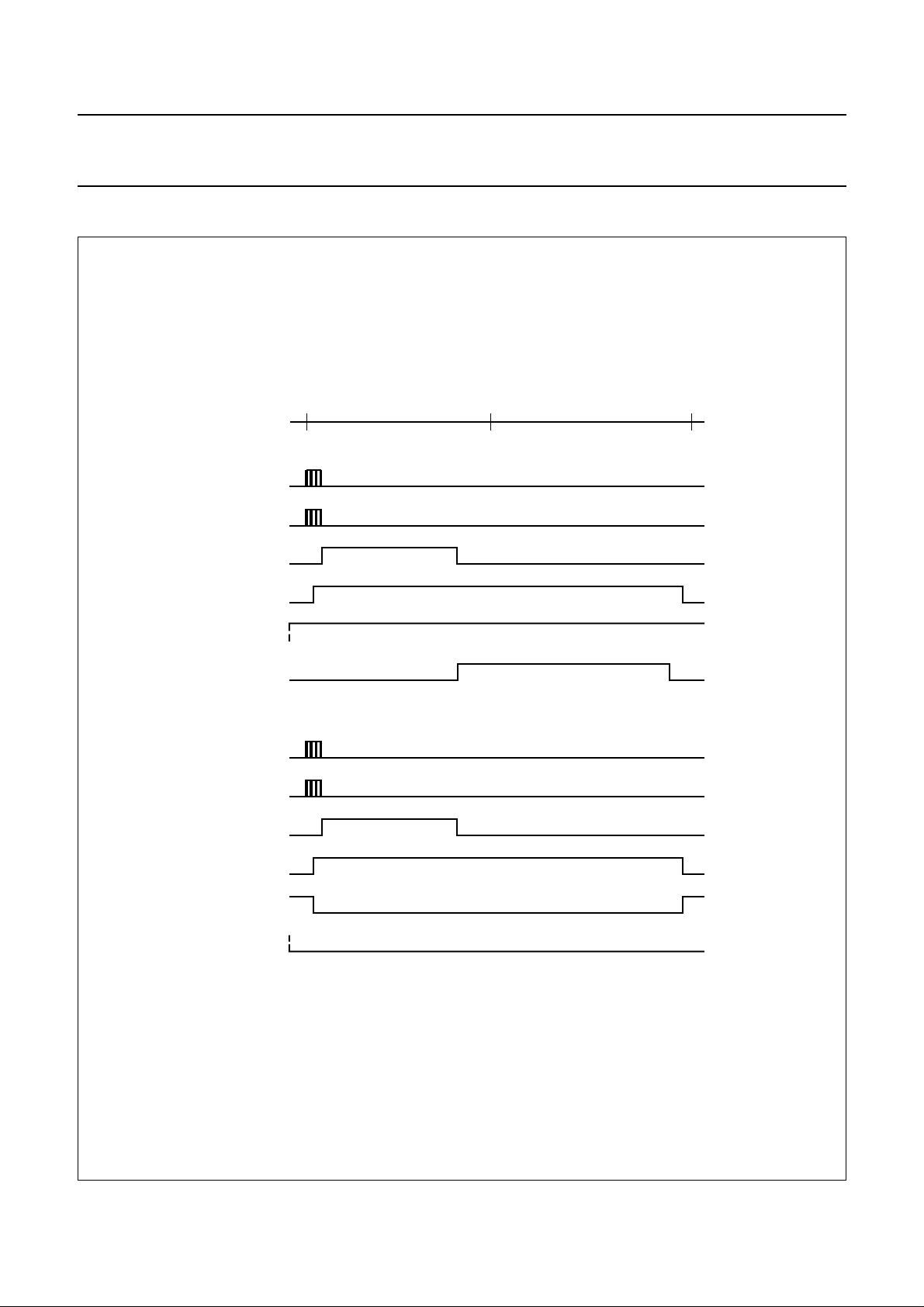

TIMING CHARACTERISTICS

handbook, full pagewidth

slot time

In TX mode

DATA

CLK

S_EN

VCO_ON
= S_PWR

R_OFF
= R_PWR

(1)

(1)

previous slot active slot

UAA2068G

In RX mode

VCO_ON
= S_PWR

R_OFF
= R_PWR

(1) On ABC baseband chip.

T_EN

DATA

CLK

S_EN

(1)

(1)

T_EN

MGK384

Fig.4 Application bus timing diagram.

1998 Nov 19 13

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

APPLICATION INFORMATION

handbook, full pagewidth

1 pF

6.8 nH

6.8 nH
22 pF

CLK

S_EN

32 31 30 29

1
2
3
4
5
6
7
8

9 10111213141516

SET

R

CC(CP)

V
R

SET

8.2 kΩ

120 pF

from
ABC
chip

8.2 pF

1 kΩ
1 kΩ
1 kΩ

V

CC

8.2 pF

V

CC

100 nF

loop filter

560 pF

8.2 pF

8.2 pF

V

CC(SYD)

SYDGND

V

CC(SYA)
SYAGND

CPGND

1.5 kΩ

V

CC

8.2 pF

DATA

XTAL

CP

8.2 pF

3.9 kΩ

8.2 nF
NPO

TXOUT

8.2 nH

10 pF

1.8 nH

3.9 pF

CC(AMP)

V

UAA2068G

CC(DBL)

V

V

CC

8.2
pF

to receiver

AMPGND

TXB

TXA

28 27 26 25

LOB

LOA

DBLGND

8.2
pF

1 pF

8.2 nH
10 pF

22 pF

8.2
pF

R_OFF

T_EN

V

8.2 pF

VCO_ON

24
23

22
21

20
19
18
17

V

CC

CC(BUF)

8.2 pF

1 kΩ

1 kΩ

8.2 pF
1 kΩ

8.2 pF

V

REG

V

TUNE
VCGND
VCOB
VCOA
VCOGND

V

MOD
V

CC(VCO)

8.2 pF

from ABC chip

L1

6.8 nH

L2

6.8 nH

V

CC

from ABC

chip

from

ABC chip

MGK385

UAA2068G

82 nF

8.2
pF

L1 and L2: order of magnitude.
Values depend on board layout.

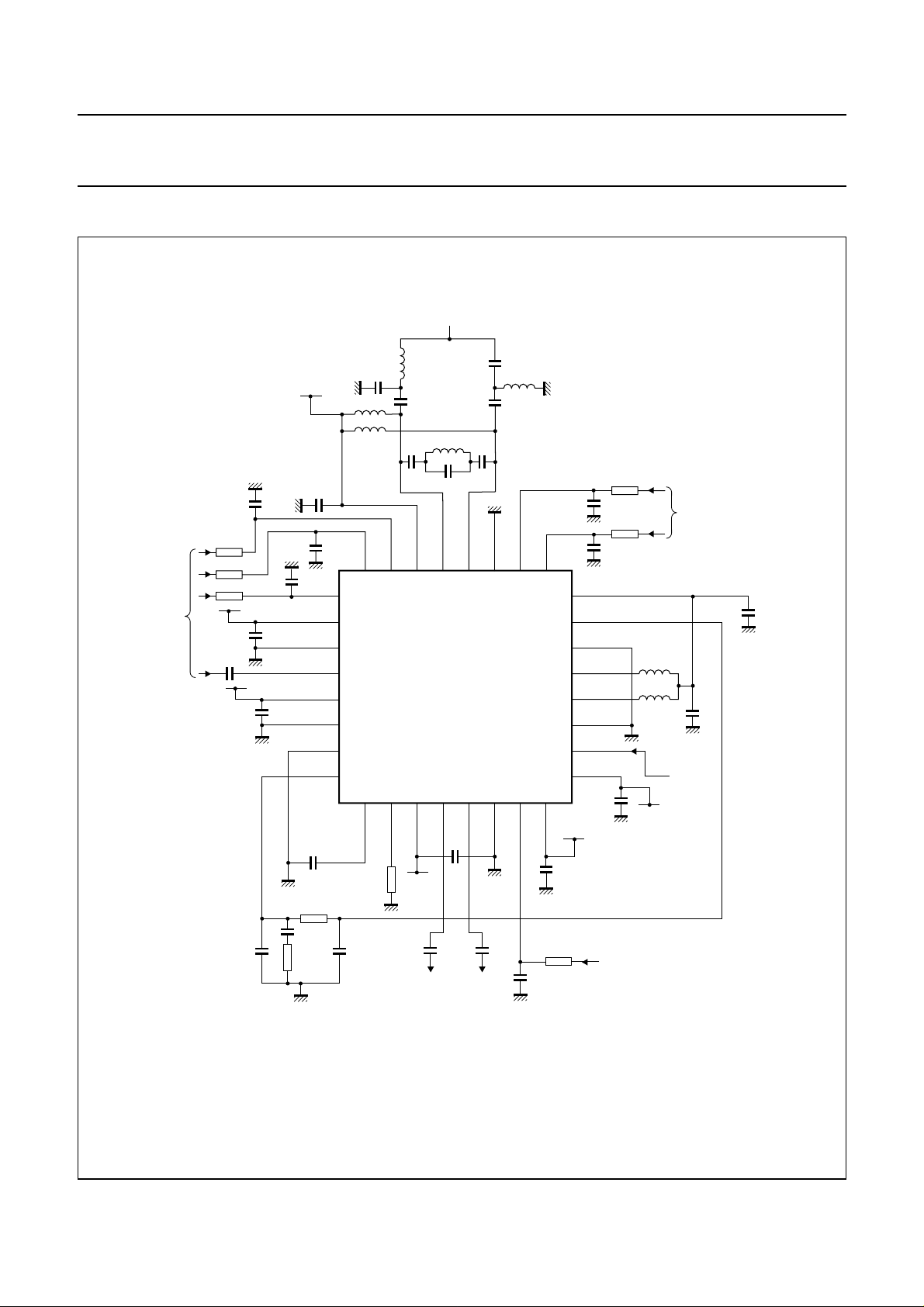

Fig.5 Typical application diagram.

1998 Nov 19 14

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

PACKAGE OUTLINE

LQFP32: plastic low profile quad flat package; 32 leads; body 5 x 5 x 1.4 mm

c

y

X

24

25

17

Z

16

E

A

UAA2068G

SOT401-1

e

pin 1 index

32

1

e

DIMENSIONS (mm are the original dimensions)

mm

A

max.

1.60

A

1A2A3bp

0.15

1.5

1.3

0.25

0.05

UNIT

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

w M

b

p

D

H

D

cE

0.27

0.18

0.17

0.12

9

8

Z

D

B

0 2.5 5 mm

(1) (1)(1)

D

5.1

4.9

w M

b

p

v M

v M

scale

(1)

eH

H

5.1

4.9

0.5

7.15

6.85

D

E

A

B

H

E

E

7.15

6.85

A

A

LL

p

0.75

1.0

0.45

2

A

1

detail X

Z

D

0.2

0.12 0.1

0.95

0.55

(A )

3

L

p

L

Zywv θ

E

o

0.95

7

o

0.55

0

θ

OUTLINE
VERSION

SOT401-1

IEC JEDEC EIAJ

REFERENCES

1998 Nov 19 15

EUROPEAN

PROJECTION

ISSUE DATE

95-12-19
97-08-04

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

SOLDERING
Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

UAA2068G

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Wave soldering

Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1998 Nov 19 16

Philips Semiconductors Product specification

Transmit chain and synthesizer with

UAA2068G

integrated VCO for DECT

Suitability of surface mount IC packages for wave and reflow soldering methods

PACKAGE

BGA, SQFP not suitable suitable
HLQFP, HSQFP, HSOP, SMS not suitable

(3)

PLCC
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is

, SO, SOJ suitable suitable

temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

The package footprint must incorporate solder thieves downstream and at the side corners.

it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

WAVE REFLOW

(2)

(3)(4)
(5)

SOLDERING METHOD

(1)

suitable

suitable
suitable

.

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1998 Nov 19 17

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

UAA2068G

NOTES

1998 Nov 19 18

Philips Semiconductors Product specification

Transmit chain and synthesizer with
integrated VCO for DECT

UAA2068G

NOTES

1998 Nov 19 19

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone]

Middle East: see Italy
Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 435102/750/03/pp20 Date of release: 1998 Nov 19 Document order number: 9397 750 04258
