DATA SH EET

Product specification
Supersedes data of 1995 Aug 28
File under Integrated Circuits, IC01

1996 Jul 17

INTEGRATED CIRCUITS

TDA1373H

General Digital Input (GDIN)

1996 Jul 17 2

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

FEATURES

• Four operating modes:
– Sample Rate Conversion (SRC) mode
– AD/DA mode
– SLAVE-VCO mode
– SLAVE-VCXO mode

• Full digital sample rate conversion over a wide range of
input sample rates

• Fast and automatic detection and locking to the input
sample rate with continuous tracking

• Digital Phase-Locked Loop (PLL) with adaptive
bandwidth which removes jitter on the digital audio input

• Audio outputs (soft) muted during loop acquisition

• Full linear phase processing based on all-FIR filtering

• Integrated full digital IEC 958 demodulator for digital

input signals (AES/EBU or SPDIF format) with intelligent
error handling

• Extended input sample frequency range

• IEC 958 Channel Status (CS) and User Channel (UC)

outputs

• On-chip CS and/or UC demodulation and buffering
(consumer and professional format)

• Dedicated subcode processing for Compact Disc (CD)

• Final output quantization to 16, 18 or 20 bits with

optional in-audio-band noise shaping

• Bitstream input and output for coupling with 1-bit
analog-to-digital conversion (ADC) and digital-to-analog
conversion (DAC)

• I

2

S and Japanese serial input formats supported for

SRC and DAC functions

• I2S and Japanese serial output formats supported for
SRC and ADC functions

• I2S and Japanese 4× oversampled serial output
available for SRC and ADC functions

• 8-bit digital gain/attenuation control

• Switchable Digital Signal Processor (DSP)-interface

(I2S input and output) for additional audio processing

• Additional clock outputs available at 768, 384, 256 and
128f

so

• 3-line serial microcontroller interface, compatible with
the Philips CD I.C. protocol (HCL)

• 5 V power supply

• 0.7 µm double metal Complementary Metal Oxide

Semiconductor (CMOS)

• SRC THD + N:
– −113 dB over the 0 to 20 kHz band (1 kHz, 20 bits

input and output) (see Fig.3)

– −95 dB over the 0 to 20 kHz band (1 kHz, 16 bits

input and output)

• Pass band ripple smaller than ±0.004 dB for
up-sampling and down-sampling filters

• Stop band suppression:
– selectable between 70 dB and 50 dB for 64×

up-sampling filters

– 80 dB for 128× down-sampling filters

• Microcontroller operated and stand-alone mode.

APPLICATIONS

• Professional audio equipment for:
– mixing
– recording
– editing
– broadcasting

• CD-Recordable (CD-R)

• Digital Speaker Systems (DSS)

• Digital Compact Cassette recorders (DCC)

• Digital Audio Tape (DAT) and MD recorders

• Digital amplifiers

• Jitter killers.

1996 Jul 17 3

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

GENERAL DESCRIPTION

The TDA1373H is a General Digital Input (GDIN) device
for audio signals which is able to perform a high-quality
sample rate conversion of digital audio signals (SRC
mode). The device reads several serial input formats and
signals in the IEC 958 digital audio format (also known as
AES/EBU or SPDIF signals). For this purpose a full Audio
Digital Input Circuit (ADIC) is present in the device.

An internal digital PLL results in extensive jitter removal
from incoming digital audio signals without any analog
loop electronics. The standard 20 bit output word length
can be limited to 16 or 18 bits by means of ‘in-audio-band
noise shaping’.

The GDIN digital filters can also be reused for Bitstream
ADC and DAC conversion (AD/DA mode). The internal
digital PLL can be reconfigured to operate the GDIN in a
slave mode, where the output sample frequency of the
device is locked to the incoming sample rate
(SLAVE-VCO and SLAVE-VCXO modes).

The combination of an ADIC function, sample rate
conversion and Bitstream ADC and DAC results in a
device with a highly versatile functionality and large
replacement value in consumer and professional
audio sets.

QUICK REFERENCE DATA

All inputs and outputs CMOS compatible; unless otherwise specified.

ORDERING INFORMATION

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

DD

supply voltage fso> 44.1 kHz 4.75 5 5.5 V

f

so

≤ 44.1 kHz 4.5 5 5.5 V

I

DD(tot)

total supply current fso= 44.1 kHz − 155 − mA

P

tot

total power dissipation fso= 44.1 kHz − 775 − mW

f

so

= 49 kHz;

VDD= 5.5 V

− 1030 − mW

IEC 958 input DI1S (high-sensitivity IEC input)

V

i(p-p)

AC input voltage
(peak-to-peak value)

0.2 − V

DD

V

Clock and timing

f

so(max)

maximum output sample frequency VDD= 4.75 V 49 55 − kHz

Temperature

T

amb

operating ambient temperature 0 70 °C

TYPE

NUMBER

PACKAGE

NAME DESCRIPTION VERSION

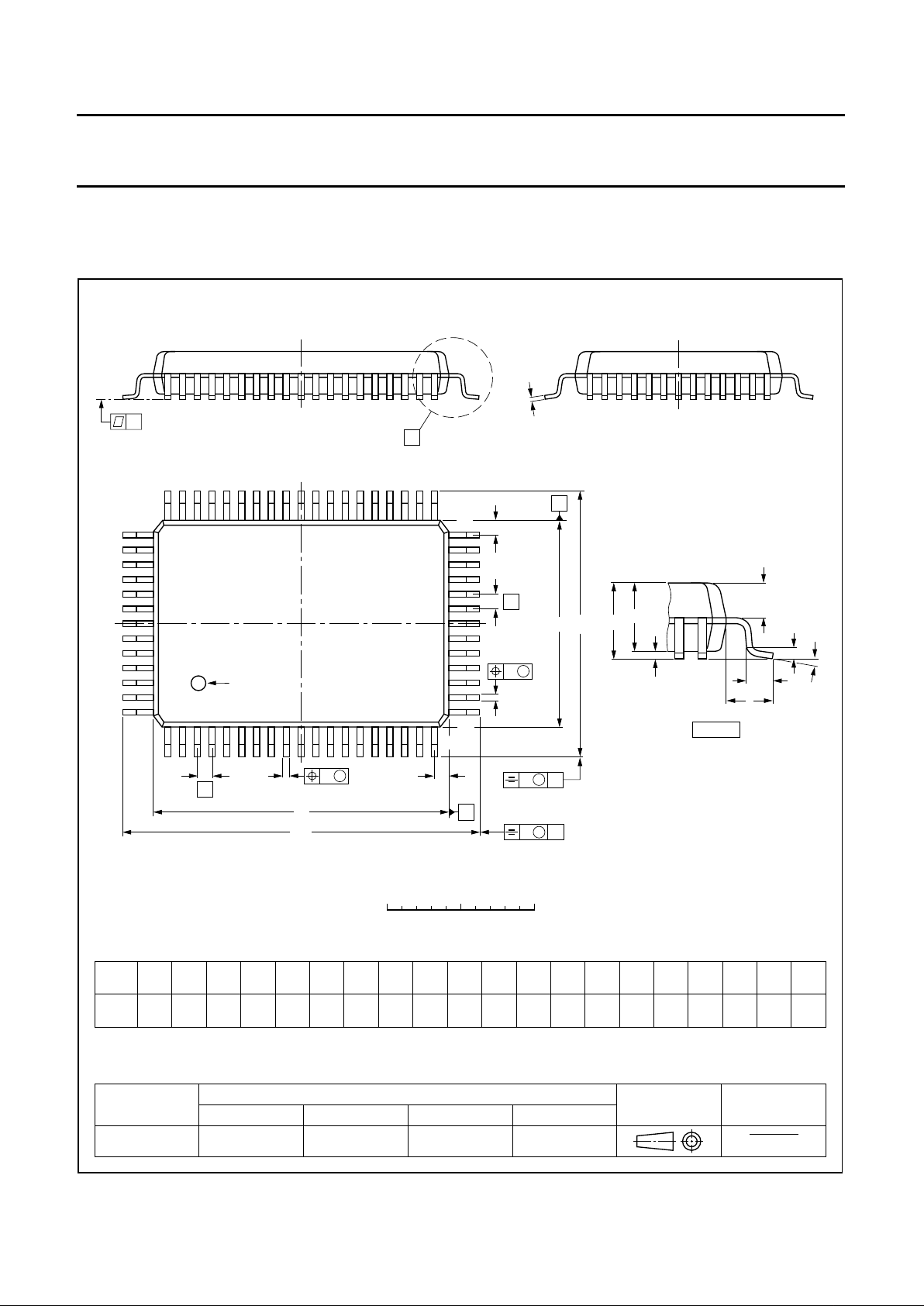

TDA1373H QFP64 Plastic quad flat package; 64 leads (lead length 1.95 mm);

body 14 × 20 × 2.7 mm; high stand-off height

SOT319-1

1996 Jul 17 4

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

BLOCK DIAGRAM

Fig.1 Block diagram.

Switches MM1 and MM0 are controlled indirectly via the mode selection. All other switches can be controlled directly by the user.

handbook, full pagewidth

MLC334 - 2

ADIC

(IEC 958

DECODER)

DATA

SLICER

4 x

UP-

SAMPLING

44
37
48
43
62

63

1

MU
EM

LOCK

SA
DI1D
DI1O

CHANNEL

STATUS

EXTRACTION

USER

CHANNEL

EXTRACTION

PHASE

DETECTOR

LOOP

FILTER

HOLD VCO

GENERAL
CONTROL

CLOCK

SHOP

CRYSTAL

OSCILLATOR

768fso384fso256fso128f

so

23 27 28 30 312221 19 204645473536345239 14327

CLO4CLO3CLO2CLO1CLIXTLOXTLIDA

V

DDA4

V

SSA4

LDCLCENCUSBS

DDD

V

11

DDDVDDDVDDD

V

DDDVDDD

V

MICRO-

CONTROLLER

INTERFACE/

STAND-ALONE

CONTROL

16 x
UP-

SAMPLING

VARIABLE

HOLD

FIFO
AND
GAIN

I S OUT

2

I S IN

2

I S

OUT

2

I S

OUT

2

IN-BAND

NOISE

SHAPER

32 x

DOWN-

SAMPLING

4 x

DOWN-

SAMPLING

64f

so

HOLD

ATTENUATOR

BITSTREAM

DIGITAL

FILTER

DAC

OUTPUT

8

SSD

V

33

SSD

V

40

SSD

V

53

SSD

V

26

SSD

V

29

SSD

V

58

SSD

V

61

SSD

V

64

SSD

V

12

SSD

V

13 24

SSD

V

17

SSDVSSD

V

TDA1373H

60

DI2C

59

DI2W

57

DI2D

54

FOW

56

FOC

55

FOD

4

AIL

5

AIR

38

RST

42

TST1

41

TST2

stereo

FOS

DI2

3

DI1S

2

DDA1

V

SSA1

V

25

FSL

10

DO2D

16

DO2W

6

DO2C

50

DO1D

49

DO1W

51

DO1C

9

AOL1

15

AOR1

18

CLD

AOS

DNI

DSO

INS

DO2

MM0

DI2

DI1

MM1

U

PV
C

WS
PO

1996 Jul 17 5

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

PINNING

SYMBOL PIN DESCRIPTION TYPE

DI1S 1 IEC 958 digital audio input ‘S’ (200 mV peak-to-peak value) E036A
V

SSA1

2 IEC 958 slicer analog ground E038A

V

DDA1

3 IEC 958 slicer analog supply voltage E037A
AIL 4 Bitstream audio input left HPP01
AIR 5 Bitstream audio input right HPP01
DO2C 6 serial digital audio output 2; bit clock output (192f

so

) OPF40

V

DDD

7 digital supply voltage; note 1 −
V

SSD

8 digital ground; note 2 −
AOL1 9 Bitstream audio output left OPF40
DO2D 10 DLO = 0; serial digital audio output 2; data;

DLO = 1; Bitstream audio output left inverted (

AOL1); note 3

OPF40

V

DDD

11 digital supply voltage; note 1 −

V

SSD

12 digital ground; note 2 −

V

SSD

13 digital ground; note 2 −

V

DDD

14 digital supply voltage; note 1 −
AOR1 15 Bitstream audio output right OPF40
DO2W 16 DLO = 0; serial digital audio output 2; word select output (4f

so

);

DLO = 1; Bitstream audio output right inverted (AOR1); note 3

OPF40

V

SSD

17 digital ground; note 2 −
CLD 18 Bitstream DAC clock (192 or 128f

so

) OPF43

V

DDA4

19 oscillator analog supply voltage E037A
V

SSA4

20 oscillator analog ground E038A
XTLI 21 crystal input 768f

so

OSX01
XTLO 22 crystal output OSX01
CLI 23 external VCO input (SLAVE-VCO mode only) HPP01
V

SSD

24 digital ground; note 2 −

FSL 25 SA = 0 (microcontroller operated) external VCO output (slave modes

only); SA = 1 (stand-alone control) DI11 control line; note 4

HOF21

V

SSD

26 digital ground; note 2 −

CLO1 27 clock output 768f

so

OPF40
CLO2 28 clock output 384f

so

OPF40
V

SSD

29 digital ground; note 2 −

CLO3 30 clock output 256f

so

OPF40
CLO4 31 clock output 128f

so

; OPF40

V

DDD

32 digital supply voltage; note 1 −

V

SSD

33 digital ground; note 2 −
BS 34 block sync; channel status/user channel/CD subcode OPF40
CEN 35 data enable; channel status/user channel/CD subcode OPF40
CUS 36 data bit; channel status/user channel/CD subcode OPF40
EM 37 IEC 958 source pre-emphasis flag OPF20

1996 Jul 17 6

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Notes

1. All V

DDD

pins are internally connected.

2. All V

SSD

pins are internally connected.

3. DLO is a command flag from register 4 (see Section “Command registers”).

4. SA is the stand-alone/microcontroller operated pin (pin 43). DI11, NSD, DI2, QU1, QU0 and MS0 are command flags
to control the operation of the device. For more information see Section “Controlling the GDIN”.

RST 38 power-on reset input (active LOW) HPP07
V

DDD

39 digital supply voltage; note 1 −

V

SSD

40 digital ground; note 2 −
TST2 41 test pin 2 (LOW for normal operation) HPP01
TST1 42 test pin 1 (LOW for normal operation) HPP01
SA 43 Stand-alone/microcontroller operated selection;

SA = 1 for stand-alone operation

HPP01

MU 44 mute flag (active HIGH) OPF40
LD 45 SA = 0 (microcontroller operated) microcontroller interface; load

(read/write); SA = 1 (stand-alone control) NSD control line; note 4

HPP01

DA 46 SA = 0 (microcontroller operated) microcontroller interface (data);

SA = 1 (stand-alone control) DI2 control line; note 4

HOF41

CL 47 SA = 0 (microcontroller operated) microcontroller interface (clock);

SA = 1 (stand-alone control) QU1/QU0 control line; note 4

HPP01

LOCK 48 ADIC lock flag (active HIGH) OPF40
DO1W 49 serial digital audio output 1; word select input/output (f

so

) HOF41
DO1D 50 serial digital audio output 1; data OPF43
DO1C 51 serial digital audio output 1; bit clock input/output (48f

so

) HOF41

V

DDD

52 digital supply voltage; note 1 −

V

SSD

53 digital ground; note 2 −
FOW 54 serial digital audio feature output; word select OPF43
FOD 55 serial digital audio feature output; data OPF43
FOC 56 serial digital audio feature output; bit clock (64f

so

) OPF43
DI2D 57 serial digital audio input 2; data HPP01
V

SSD

58 digital ground; note 2 −
DI2W 59 serial digital audio input 2; word select HOF21
DI2C 60 serial digital audio input 2; bit clock output HOF21
V

SSD

61 digital ground; note 2 −
DI1D 62 SA = 0 (microcontroller operated) IEC 958 digital audio input ‘D’ (CMOS

level); SA = 1 (stand-alone control) MSO control line; note 4

HPP01

DI1O 63 IEC 958 digital audio input ‘O’ (CMOS level) HPP01
V

SSD

64 digital ground; note 2 −

SYMBOL PIN DESCRIPTION TYPE

1996 Jul 17 7

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

51
50
49

47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

48

20

21

22

24

25

26

27

28

29

30

31

32

23

64

63

62

60

59

58

57

56

55

54

53

52

61

MLB955 - 2

TDA1373H

MU

EM

LOCK

SA

DI1O

DI1D

CLO4

CLO3

CLO2

CLO1

CLI

XTLO

XTLI

DA
LD

CL

CEN

CUS

BS

DDD

V

DDD

V

DDD

V

DDD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSA4

V

SSD

V

DI2C

DI2W

DI2D

FOW

FOC

FOD

AIL

AIR

RST

TST1
TST2

DI1S

DDA1

V

DDD

V

DDA4

V

DDD

V

SSA1

V

FSL

DO2D

DO2W

DO2C

DO1D
DO1W

DO1C

AOL1

AOR1

CLD

Fig.2 Pin configuration.

1996 Jul 17 8

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

FUNCTIONAL DESCRIPTION
Operating modes

S

AMPLE RATE CONVERSION (SRC) MODE

The output sample rate is determined by a crystal and can
be chosen up to 49 kHz. The range of input sample rates
for a given output sample rate is given in Table 1. A pitch
variation (‘Varispeed’) of ±12% around the nominal input
sample rate can be tracked.

Table 1 Input sample rates

OUTPUT SAMPLE RATE

(kHz)

I

2

S INPUT (kHz)

0.3 to 1.7f

so

IEC 958 INPUT (kHz)

0.35 to 1.45f

so

48 13 to 83 16 to 68

44.1 12 to 76 15 to 62
32 9to55 12to45

Data path

(see Fig.4)

The input signal at sample frequency fsi comes in via one
of the DI1 inputs (IEC 958) or via the serial input DI2X.
The signal passes through the FIFO/GAIN part and is
interpolated in the up-sampling filters. The actual sample
rate conversion takes place in the variable hold block. The
down-sampling filters decimate the sample frequency to
fso and after in-band noise shaping, the output signal is
present at serial output DO1. Additionally the converted
signal is available at the ‘analog’ Bitstream outputs AOL,
AOR and at the serial digital output DO2 (4f

so

).

handbook, full pagewidth

160

60

10

5

MLB956

10

4

10

3

10

2

10

140

120

100

80

THD N

(dB)

f (Hz)

Fig.3 Total harmonic distortion plus noise as a function of frequency.

Measurement done with ‘Audio Precision’.
SRC mode; 48 to 44.1 kHz; 20-bit output.

1996 Jul 17 9

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

MLC335

ADIC

(IEC 958

DECODER)

FIFO

&

GAIN

4 x AND 16 x

UP-SAMPLING

32 x AND 4 x

DOWN-

SAMPLING

IN-BAND

NOISE

SHAPER

BITSTREAM

DIGITAL

FILTER

HOLD

CLOCK SHOP

MICROCONTROLLER

INTERFACE

GENERAL CONTROL

DIGITAL PLL

CS AND UC

EXTRACTION

DO1C

DO1D

DO1W

DO2C

DO2D

DO2W

AOL

AOR

FOC

FOD

FOW

TST2TST1CLIXTLIXTLOLOCKEMCUSCENBSFSL

CLD

Main path.

Example of

additional path.

CLO4CLO3CLO2CLO1RSTSAMUDALDCL

DI1S

DI1O

DI1D

AIL

AIR

DI2C

DI2D

DI2W

TDA1373H

768f

so

BITSTREAM

DAC

e.g. TDA1547

analog output

digital output

fsoI S

2

digital input

fsiAES/EBU or I S

2

TDA1373H

AOS

INS

DO2

DSO

DI2

FOS

DI1

DNI

VARIABLE

HOLD

Fig.4 Standard data path in the SRC mode.

1996 Jul 17 10

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

SLAVE-VCO AND SLAVE-VCXO MODES
In the SLAVE-VCO and SLAVE-VCXO modes, the GDIN

can pass an exact copy of the incoming samples to the
output, e.g. for storage on a digital medium such as CD-R.
The output sample rate tracks any input sample rate within
the frequency range of the external VC(X)O (fso=fsi).

In the SLAVE-VCO mode a pitch variation of ±12.5%
around the nominal sample frequency can be tolerated.

Data path

(see Fig.5)

The signal at input sample frequency fsi comes in via one
of the DI1 inputs (IEC 958).

The ADIC signal passes through the FIFO/GAIN block and
can be fed through the IN-BAND NOISE SHAPER to the
serial output DO1. Additionally, the signal is present at
DO2 (4fso) and at the Bitstream outputs AOL and AOR.

Exact copies for digital use (e.g. write to a disk) from the
input signal can be retrieved at output FO (this signal might
be affected by jitter since it has not passed through the
FIFO/GAIN block). By means of data path switch DSO, this
direct output of the ADIC block can also be fed to
output DO1. Note that in this event the DO1 serial format
becomes equal to the FO format (see Table 3).

AD/DA

MODE

In this mode, the GDIN supports an economic realization
of analog-to-digital and digital-to-analog conversion, in
accordance with the Bitstream principle. This requires a
Bitstream sigma-delta modulator and a Bitstream DAC,
since the up-sampling and down-sampling filters of the
sample rate convertor are reused. ADC and DAC can be
simultaneously performed.

Data path DA conversion

(see Fig.6)

The signal at sample frequency fso comes in via serial input
DI2X or via one of the DI1 inputs (IEC 958). The signal
passes through the FIFO/GAIN part and is interpolated in
the up-sampling filters. A Bitstream digital filter converts
this signal into a Bitstream signal at outputs AOL and AOR,
after which it can be filtered by a Bitstream DAC like the
TDA1547.

Data path AD conversion

(see Fig.6)

The Bitstream signal from the sigma-delta modulator
enters the GDIN at inputs AIL and AIR. The
down-sampling filters decimate this signal to fso and after
in-band noise shaping (selectable), the output signal is
present at serial output DO1.

1996 Jul 17 11

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

MLC336

ADIC

(IEC 958

DECODER)

FIFO

&

GAIN

4 x AND 16 x

UP-SAMPLING

32 x AND 4 x

DOWN-

SAMPLING

IN-BAND

NOISE

SHAPER

BITSTREAM

DIGITAL

FILTER

HOLD

CLOCK SHOP

MICROCONTROLLER

INTERFACE

GENERAL CONTROL

DIGITAL PLL

CS AND UC

EXTRACTION

VARIABLE

HOLD

DO1C

DO1D

DO1W

DO2C

DO2D

DO2W

AOL

AOR

FOC

FOD

FOW

TST2TST1CLIXTLIXTLOLOCKEMCUSCENBSFSL

CLD

Main path.

Example of

additional path.

CLO4CLO3CLO2CLO1RSTSAMUDALDCL

AIL

AIR

DI2C

DI2D

DI2W

TDA1373H

TDA1373H

BITSTREAM

DAC e.g.TDA1547

analog output

digital output

fsiI S

2

digital input

fsiAES/EBU or I S

2

VCO

768f

so

TDA1373H

BITSTREAM

DAC e.g.TDA1547

analog output

digital output

fsiI S

2

digital input

fsiAES/EBU or I S

2

AOS

DO2

DSO

DNI

DI2

FOS

DI1S

DI1O

DI1D

DI1

INS

Fig.5 Standard data path in the SLAVE-VCO and SLAVE-VCXO modes.

1996 Jul 17 12

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

MLC337

ADIC

(IEC 958

DECODER)

FIFO

&

GAIN

4 x AND 16 x

UP-SAMPLING

32 x AND 4 x

DOWN-

SAMPLING

IN-BAND

NOISE

SHAPER

BITSTREAM

DIGITAL

FILTER

HOLD

CLOCK SHOP

MICROCONTROLLER

INTERFACE

GENERAL CONTROL

DIGITAL PLL

CS AND UC

EXTRACTION

VARIABLE

HOLD

DO1C

DO1D

DO1W

DO2C

DO2D

DO2W

AOL

AOR

FOC

FOD

FOW

TST2TST1CLIXTLIXTLOLOCKEMCUSCENBSFSL

CLD

Main path.

Example of

additional path.

CLO4CLO3CLO2CLO1RSTSAMUDALDCL

AIL

AIR

DI2C

DI2D

DI2W

TDA1373H

768f

so

BITSTREAM

DAC

e.g. TDA1547

analog output

digital output

fsoI S

2

digital input

fsoAES/EBU or I S

2

TDA1373H

AD IN

DA IN

AD OUT

DA OUT

AOS

DO2

DSO

INS

DNI

DI2

FOS

analog input

BITSTREAM

ADC

e.g. SAA7360

DI1S

DI1O

DI1D

DI1

Fig.6 Standard data paths in the AD/DA mode.

1996 Jul 17 13

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Description of functional blocks

IEC 958

AUDIO DIGITAL INPUT CIRCUIT

The TDA1373H has three IEC 958 inputs:

1. DI1S.

2. DI1O.

3. DI1D.
DI1S accepts IEC 958 line signals (minimum 200 mV

peak-to-peak value and maximum 5 V peak-to-peak
value), DI1O and DI1D accept only CMOS level signals.
The input sample rate range that can be handled depends
on the output sample frequency (fso) of the device.

The maximum useful word length of the incoming samples
is 20 bits.

The internal ADIC retrieves the stereo audio samples, the
V, U, C and P data bits, the ADIC word clock and the bit
clock from the selected IEC 958 input signal. The digital

ADIC locks in less than 1 ms for a 44.1 kHz input signal.
During this lock-in time the word clock is stopped and the
audio bits are muted.

The validity flag (VA), pre-emphasis flag and pin (EM), lock
flag (LCK) and lock pin (LOCK) are available to check the
status of the ADIC. This validity flag is an OR-ing of the
incoming validity (V) bit and the own error detection of the
ADIC. The actions which take place in case of detected
errors are listed in Table 2.

Table 2 Error concealment in the IEC 958 decoder

ERROR ACTION DATA ACTION WORD CLOCK

Validity (V-bit) error pass sample no action
Parity (P-bit) error repeat last correct sample
Number of data bits ≠32
Missing pre-amble(s)
Extra pre-amble(s)
More than 4 pre-ambles missing or extra mute output; restart stop ADIC word clock

SERIAL DIGITAL INPUTS DI2W, DI2D AND DI2C
The serial digital input DI2 can be used as standard input

instead of the DI1 IEC 958 input or can be used together
with the FO-output to switch a DSP IC in the input data
path. A third possibility is to use DI2 as direct input to the
GDIN Bitstream digital filter. In that case the DI2 input
signal should be 4× oversampled externally. The serial
formats supported are shown in Fig.7 and Table 3.

Table 3 Serial input and output formats (see note 1)

Note

1. S = slave; M = master.

INPUT

OUTPUT

f

WS

f

BCK

I2S

JAPANES

E 16-BIT

JAPANESE

18-BIT

JAPANESE

20-BIT

3-STATE CONTROL BITS

DI2 f

si

≤128f

si

S S S S no DI2, DI21 and DI22

4f

so

192f

so

M S S S no DI2

DO1 f

so

48f

so

MM M

− yes DO1S, DO1 1 and DO12

≤128f

so

S −−

DO2 4f

so

192f

so

MM M − no DO2, DO21 and DO22

FO f

si

64f

so

M −− −yes FO and FO1

1996 Jul 17 14

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

DATA

BCK

WS

LEFT

RIGHT

LSB MSB LSB MSB

DATA (D)

BCK (C)

WS (W)

RIGHT RIGHT

LEFT

LEFT

t

hWS

t

suWS

t

LB

t

HB

t

r

t

f

T

BCK

t

suDATthDAT

LSB MSB

DATA

BCK

WS

LEFT

RIGHT

MLB960

MSB LSB MSB

DATA (D)

BCK (C)

WS (W)

RIGHT

LEFT

t

hWS

t

suWS

t

LB

t

HB

t

r

t

f

T

BCK

t

suDATthDAT

LSB MSB

LSB

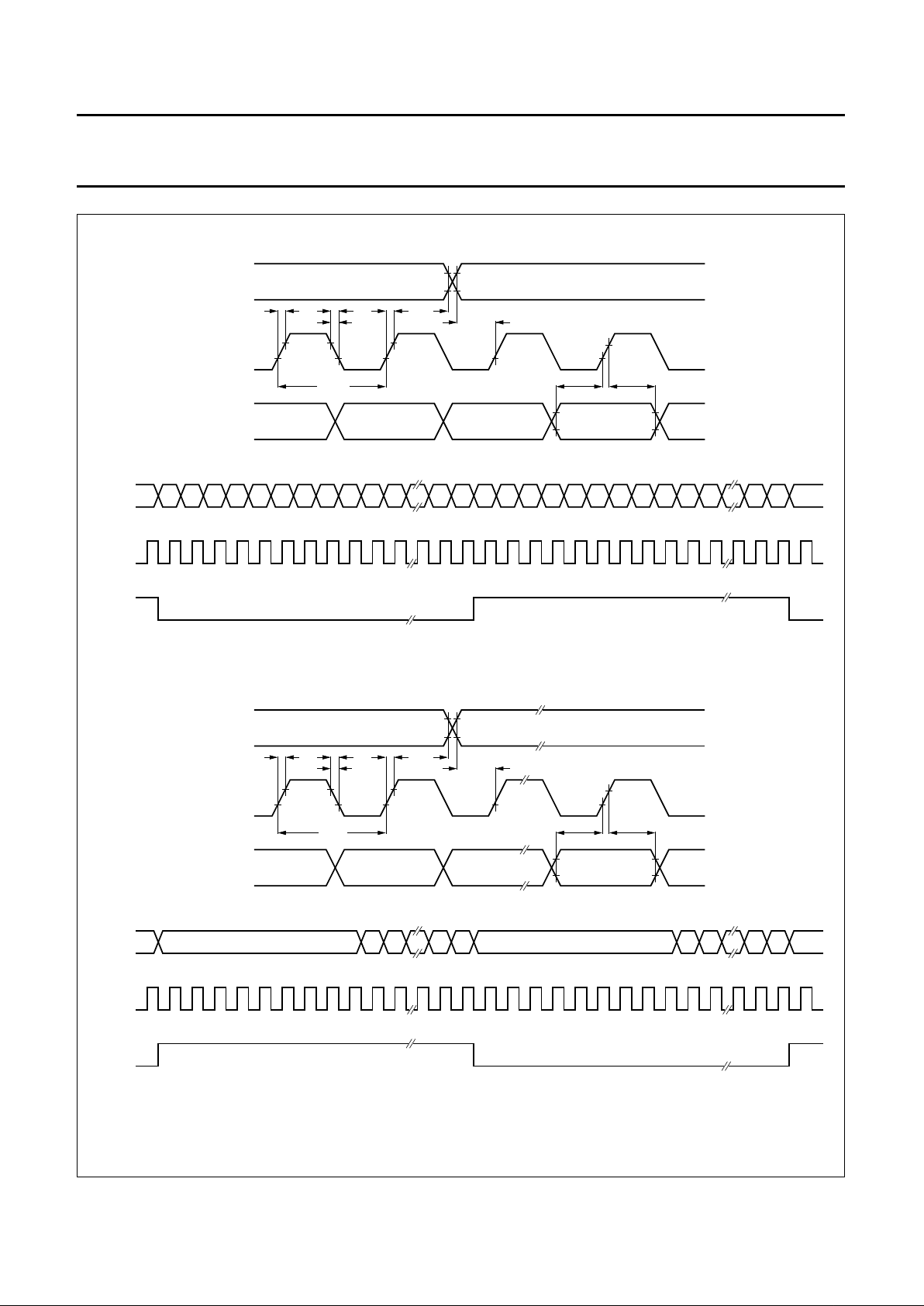

Fig.7 Timing diagram for the serial input and output formats.

a. I2S input format.
b. Japanese input format.

a.

b.

1996 Jul 17 15

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

SERIAL DIGITAL OUTPUTS DO1W, DO1D AND DO1C
Depending on the operating mode and data path

switching, DO1 can contain the output of the in-band noise
shaper or can be directly connected to the output of the
internal ADIC. The supported serial formats and modes of
this interface are given in Table 3.

In case the GDIN goes out-of-lock the output data is muted
and if the output is configured as master transmitter, the
word clock slips half a word clock period. If this is
undesirable, use the serial output as a slave transmitter.

S

ERIAL DIGITAL OUTPUTS DO2W, DO2D AND DO2C

The additional digital audio output DO2 operates at 4fso.
DO2 can contain data of the up-sampling (not in SRC
mode) or down-sampling filters. The formats supported
are shown in Table 3.

S

ERIAL FEATURE OUTPUTS FOW, FOD AND FOC

The internal ADIC output is directly available in I2S format
at this output. This makes it possible to switch a DSP

featuring IC in the data path before SRC (at f

si

). See

Table 3 for the formats supported.

handbook, full pagewidth

AIL and AIR
DATA

FOC, CLO4 and DO2C
CLOCK

T

cy

t

f

t

r

MLB961

CLD
CLOCK

AOL1, AOL2,
AOR1 and AOR2
DATA

t

CL

t

CH

t

d2

t

d3

V 1 V

DD

1.0 V

t

d1

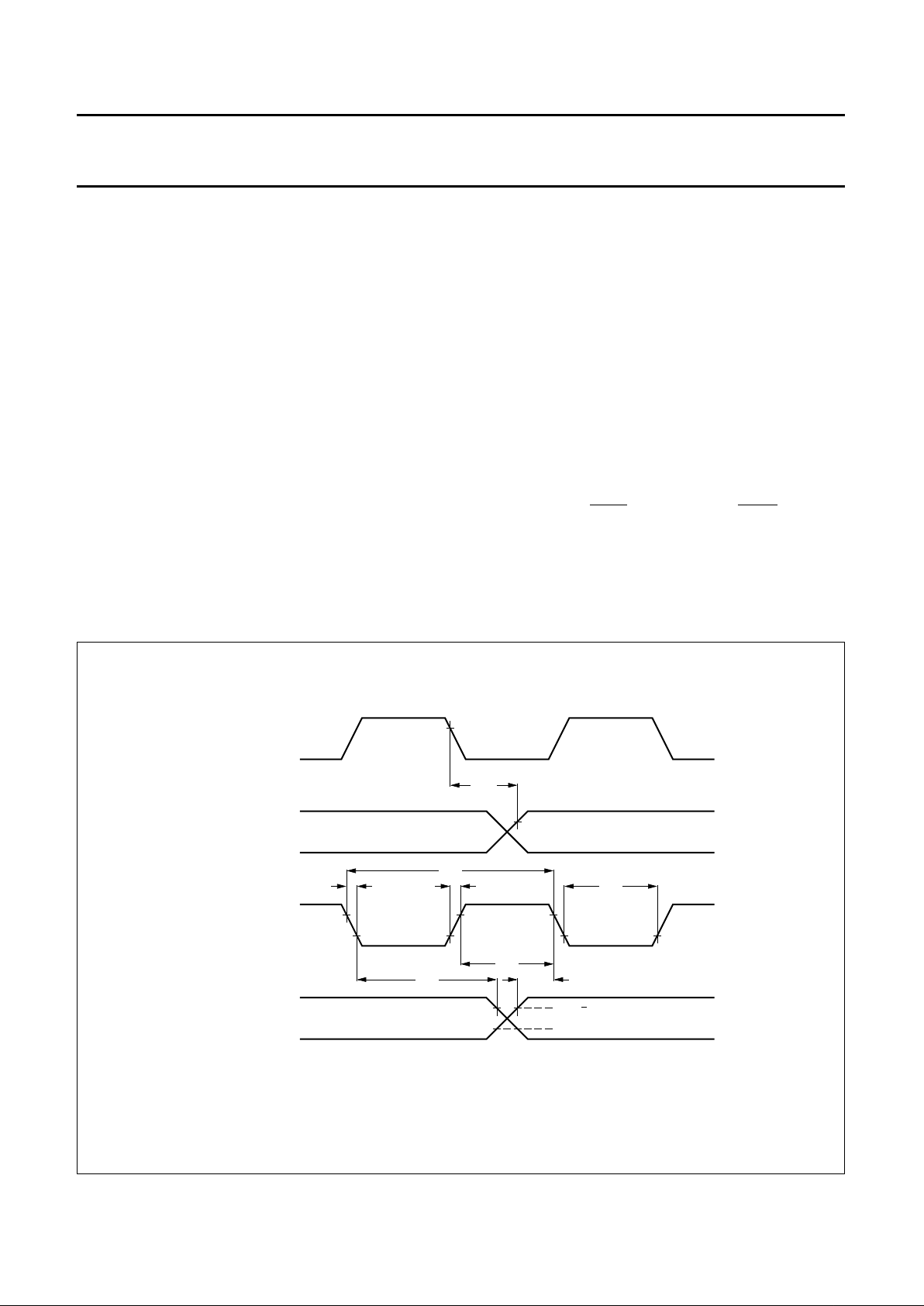

Fig.8 Timing diagram for the Bitstream inputs and outputs.

BITSTREAM INPUTS AIL AND AIR
The Bitstream input receives data at 128fso from a 1-bit

sigma-delta modulator. Possible Bitstream inputs at 64f

so

are held twice. The timing diagram for the Bitstream inputs
and outputs is given in Fig.8.

B

ITSTREAM OUTPUTS AOL1 AND AOR1

The Bitstream output generates a 128 (SRC and SLAVE
modes) or 192 (AD/DA mode) times oversampled
Bitstream and can be connected to a Bitstream DAC (e.g.
TDA1547) for high-quality DAC. It is also possible to get
the inverted Bitstream signals on the complementary
Bitstream outputs AOL1 (pin DO2D) and AOR1
(pin DO2W) by setting the DLO control bit. By using a
simple low-pass filter, this symmetrical Bitstream output
can be used to make an inexpensive analog monitor
output. In that event the serial digital output DO2 cannot be
used.

1996 Jul 17 16

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

FIRST-IN FIRST-OUT (FIFO)
The incoming samples are buffered in a FIFO. The depth

of this FIFO determines the transients that can be allowed
in the input frequency, as they may occur during pitch
control. The FIFO has a depth of 8 samples, which makes
GDIN support a tracking speed of up to 4 kHz/ms. FIFO
overflow detection is provided to detect out-of-lock
situations.

G

AIN CONTROL

At the begin of the data path, the signal level can be
controlled over a gain/attenuation range from 2 to 0 with a
step size of 2E-7. This gain control can be used for volume
control, gain correction and fade-in or fade-out. For normal
operation, the gain level should be set to 1-2E-7
(−0.068 dB) to avoid pass band ripple clipping in the digital
filters. Whenever a new gain value is set, the gain level is
increased or decreased by one step per input sample until
the new entered value is reached.

Setting the MMU control bit forces the GDIN to start a soft
muting. The gain is decreased, by one step per input
sample, to zero. Clearing the MMU bit will increase the
gain back to its original value. Only those outputs, for
which the signal passes through the ‘gain control’ part, are
muted.

64×

UP-SAMPLING FILTER

A 64× (4× and 16×) oversampling filter is incorporated in
the GDIN for the SRC process. This filter can also be used

as the up-sampling filter for a Bitstream digital-to-analog
conversion in the AD/DA mode, in combination with the
Bitstream digital filter and Bitstream DAC (e.g. TDA1547).
Two filter characteristics can be chosen by the control bit
SS (see Table 4).

The 50 dB stop band suppression mode is especially
suited for 32 kHz input sources like Digital Satellite Radio
(DSR), where a very narrow transition band is required to
obtain 0 to 15 kHz pass band.

Table 4 Filter characteristics 64× up-sampling filter

SS PASS BAND STOP BAND

0 0 to 0.45351f

si

±0.004 dB 0.54648fsito 1f

si

−70 dB

1 0 to 0.46875f

si

±0.004 dB 0.53125fsito 1f

si

−50 dB

VARIABLE HOLD
In SRC mode, the variable hold is the interface between

the 64× up-sampling filters (64fsi) and the
128× down-sampling filters (128fso). In SLAVE and AD/DA
modes, the variable hold holds each sample twice from
64fsito 128fsi (fsi=fso).

128×

DOWN-SAMPLING FILTER (see Fig.10)

After SRC, a 128× (32× +4×) down-sampling filter
decimates the signal to fso. In the AD/DA mode, this filter
is used as the ADC down-sampling filter for a Bitstream
sigma-delta modulator. The stop band suppression is
80 dB from 0.54648fso (e.g. 24.1 kHz at fso= 44.1 kHz).

1996 Jul 17 17

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

100

0

100

0 20406080

MLB962

80

60

40

20

f (kHz)

stop band

suppression

(dB)

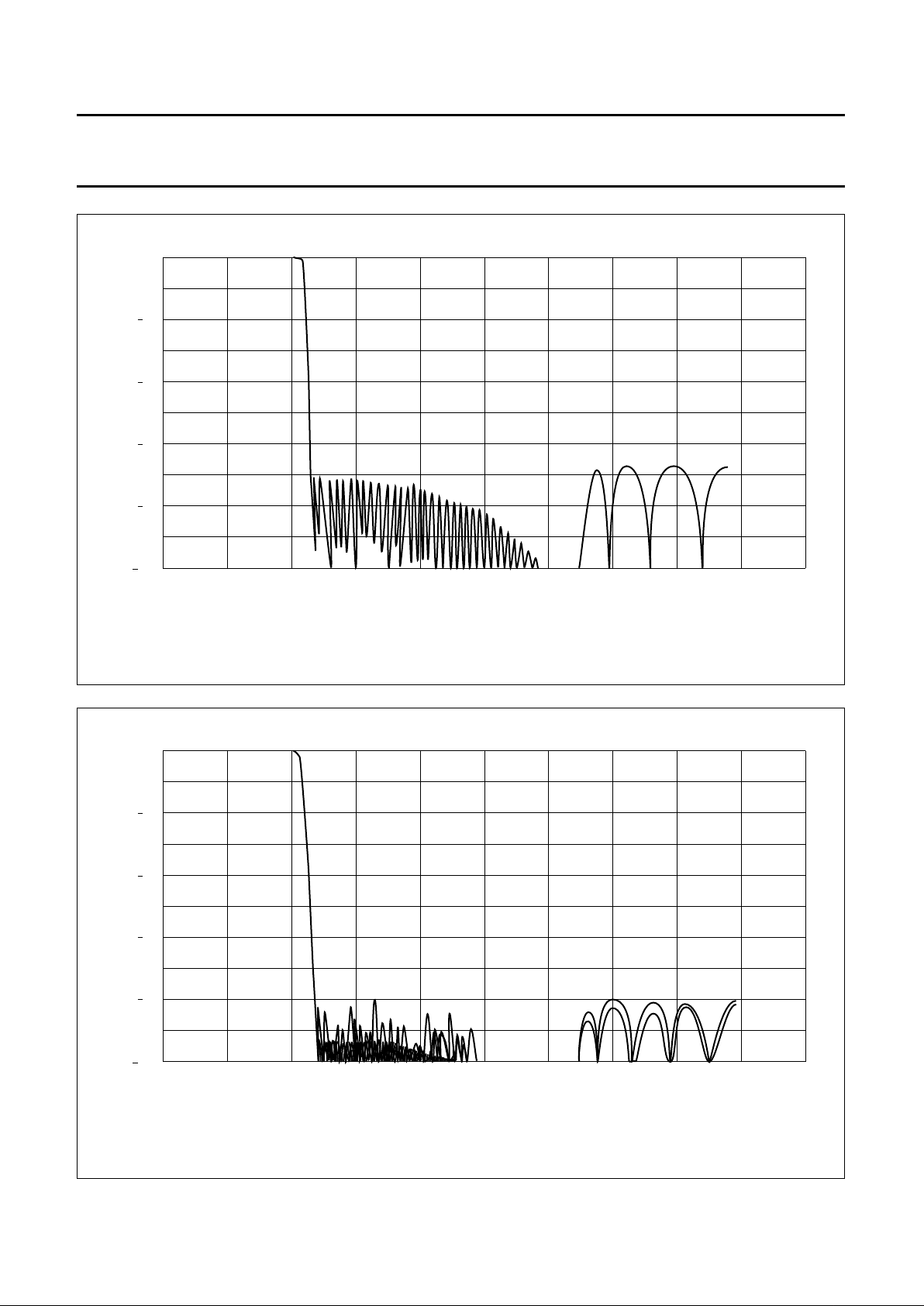

Fig.9 Filter characteristic 64× up-sampling filter.

SS = 0; 70 dB stop band suppression.

handbook, full pagewidth

100

0

100

0 20406080

MLB963

80

60

40

20

f (kHz)

stop band

suppression

(dB)

Fig.10 Filter characteristic 128× down-sampling filter.

1996 Jul 17 18

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

IN-BAND NOISE SHAPING (INS)
The standard 20-bit output word length can be reduced to

16 or 18 bits to match digital consumer equipment.
Normally 16 bit output re-quantization at audio-band
sample rates drops the signal-to-noise ratio (S/N)
inevitably to 95 dB, because of the re-quantization noise at

−98 dB.
It is possible however to shape the re-quantization noise in

a psycho-acoustical way. This reduces the re-quantization
noise at the frequencies where the human ear is most
sensitive and stores the bulk of re-quantization noise at
high frequencies, where the human ear is quite insensitive.

The In-band Noise Shaping function (to 16 or 18 bits)
results in a subjective quality improvement of about 2 bits
below the actual quantization level.

It is also possible to re-quantize the 20 bit output to 16 bits
without noise shaping but by a simple rounding operation.
Table 5 gives an overview of the 4 possible settings.

Table 5 Selectable output word lengths

Note

1. INS = In-band Noise Shaping.

B

ITSTREAM DIGITAL FILTER

The Bitstream digital filter generates a Bitstream signal
which should be filtered by a Bitstream DAC
(e.g. TDA1547) to become a high-quality analog signal.
The input for this block can be selected from the output of
the up-sample path or directly from serial input DI2. In this
case, the input signal applied to DI2 should be externally
oversampled to 4fso and further oversampling will be
carried out by the hold function. The Bitstream signal has
a frequency of 128fso (SRC and SLAVE modes) or 192f

so

(AD/DA mode).
To prevent idle patterns in the audio band, it is strongly

advised to add out-of-band dither by setting
control bit NSD.

D

IGITAL PLL

The digital PLL controls the variable hold function which
steers the actual SRC process. An adaptive loop filter

QU1 QU0 WORD LENGTH

0 0 16 bit (rounded)
0 1 20 bit
1 0 16 bit INS

(1)

1 1 18 bit INS

(1)

allows fast locking to the input frequency and a small
bandwidth during steady-state. At start-up, the bandwidth
of the 3-step digital loop filter is gradually reduced to

0.5 Hz. A difference frequency of 1 Hz is reached within
512 input samples (10 ms at 44.1 kHz), which allows to
start the SRC. At this moment the outputs are de-muted,
indicated at pin MU and status flag MUT.

The FIFO position is continuously monitored to control the
adaptive loop filter. The loop filter switches back to a fast
state when the FIFO tends to drift, e.g. during pitch control
on the input signal. It is possible to fix the loop filter in one
of the three states. In the adaptive mode, the actual state
can be monitored by the microcontroller (ST1 and ST0). In
SRC mode, the microcontroller can retrieve the exact input
sample frequency via the status registers STS3 and STS4.

Table 6 PLL operation modes

In both SLAVE modes, a pulse modulated signal at
pin FSL is present to control the external VC(X)O. In
SLAVE-VCO mode, CLI is the clock input of the GDIN and
in SLAVE-VCXO mode XTLI is the clock input. An external
1000 Hz low-pass filter retrieves the control voltage for the
VC(X)O. To get the loop characteristics as described
above, the centre frequency of the VCO should be at

1

⁄2VDD and the sensitivity should be:

Hz/V.

The maximum VCO frequency range is:
(768 × 0.3)f

so(c)

< 768fsi(=fso) < (768 × 1.7)f

so(c)

(49 kHz).

IEC 958 C

HANNEL STATUS AND USER CHANNEL EXTRACTOR

(CUP)
The internal ADIC retrieves also the Channel Status (CS)

and User Channel (UC) bits from the IEC 958 signal. The
C/U processing function block can be programmed for
4 different functions (see Table 7).

LC1 LC0

PLL

OPERATION

PLL BANDWIDTH

(Hz)

0 0 adaptive 500, 50 or 0.5
0 1 state 1 fixed 500
1 0 state 2 fixed 50
1 1 state 3 fixed 0.5

g

v

768f

so c()

1
2

-- -

V

DD

------------------------ -

=

1996 Jul 17 19

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Table 7 Overview of selectable CUP functions

Note

1. X = don’t care.

SM1 SM0 LR

(1)

CUP FUNCTION RAM BUFFER

0 1 0 extract full C-block left (192 bits/block) 80H to 97H
0 1 1 extract full C-block right (192 bits/block) 80H to 97H
1 0 X extract full U-block (384 bits/block) 80H to AFH
0 0 X decode CD-Subcode Q-information (80 bits/CD frame) from U-bits 80H to 89H

The extracted or decoded information can be read in three
ways:

• From the internal RAM buffer by a microcontroller
(see Section “The RAM buffer”)

• At the output pins CUS, BS and CEN (see Fig.11)

• In status registers STS5 and STS6 (permanent 16

‘consumer mode’ C-bits, see Table 9).

During CD subcode Q extraction, a 16-bit CRC is done
over the Q-channel (CRC flag). This flag is only
meaningful when the ADIC is locked (LCK flag).

T

HE RAM BUFFER

A double RAM buffer is present in the device. While
reading one buffer, the other buffer is filled with the new
incoming data. The RAM buffer can be read in two ways:

1. Interrupt protocol (UIP = 0).

2. User request protocol (UIP = 1).

Interrupt protocol (UIP = 0)

A C-block, a U-block or CD Subcode frame is read in the
time between two Block Sync (output pin BS) pulses,
which can be used as the interrupt for a microcontroller. At
a sample rate of 44.1 kHz, the microcontroller must be

able to read a C-block or U-block within
CD Subcode frames are received at a data rate of 75 Hz

or 13.3 ms/frame.

User request protocol (UIP = 1)

The microcontroller requests for a C, U and CD-Q block or
frame, which will then become available at the next block
preamble, indicated by BS. The information is not updated
until the next user request, which means the
microcontroller can take any time to read the information.
The CD Subcode CRC check flag always shows the CRC
over the last received CD Subcode Q frame and is not
stored with the present Q frame in the buffer. Figure 12
shows the user request read procedure.

192

44100

----------------

4.35 ms.=

1996 Jul 17 20

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

MLB964

LEFT CS0

or UC0

RIGHT CS0

or UC1

LEFT CS191

or UC382

RIGHT CS191

or UC 383

T

cyBS

t

suBC

t

hBC

t

suCC

t

hCC

t

LCEN

t

cyCEN

CUS

CEN

BS

t

cyCEN

t

suCC(CD)

t

hCC(CD)

t

HCEN(CD)

T

cyBS(CD)

t

suBC(CD)

t

HBS(CD)

CUS

CEN

BS

Q1 R1 S1 Q98 Q1 R1 S1

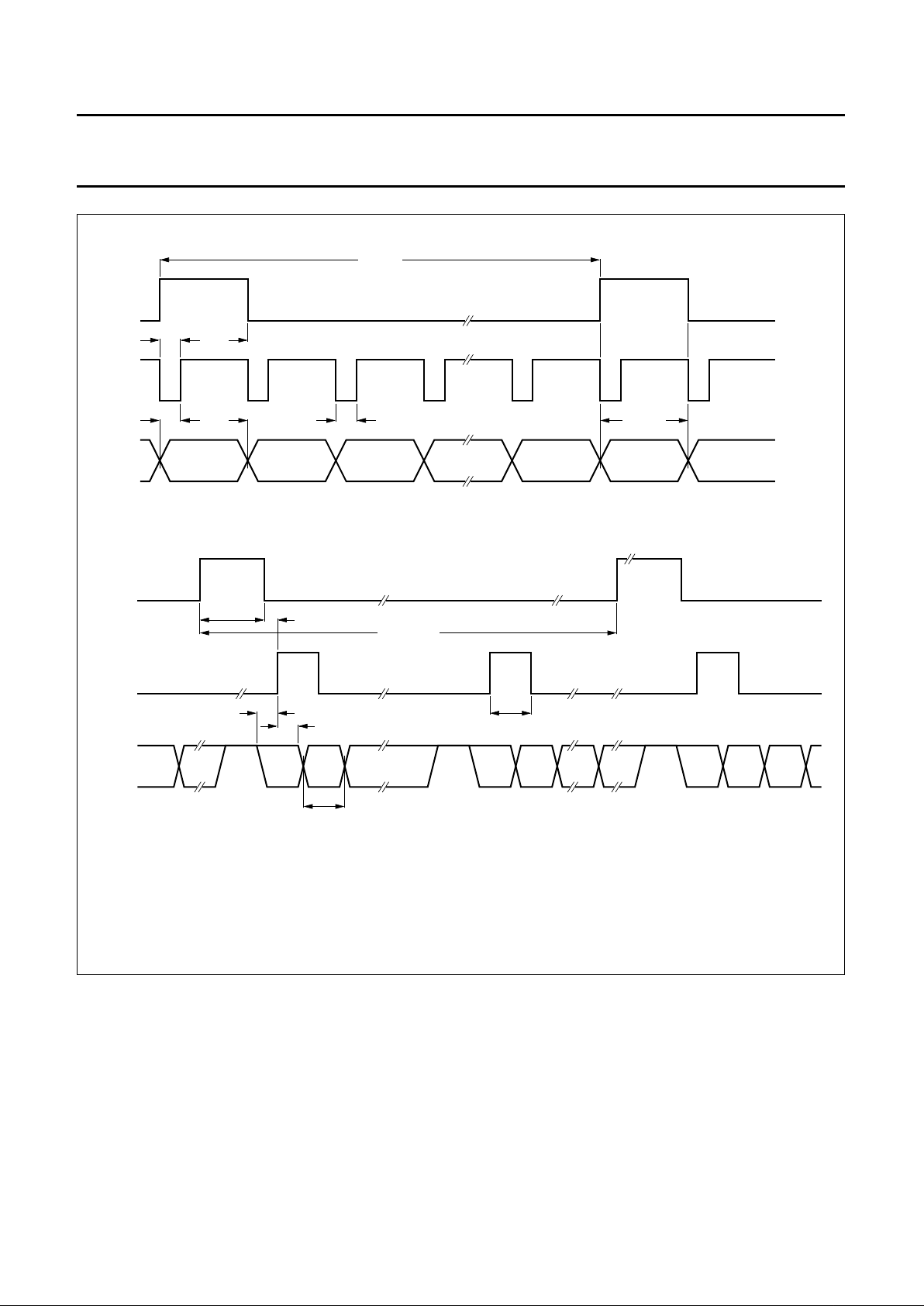

Fig.11 Timing of the CUS, CEN and BS output pins.

a. Channel Status (CS) or User Channel (UC) extraction.
b. CD subcode demodulation.

a.

b.

1996 Jul 17 21

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

handbook, full pagewidth

MLB965

Block Sync or
CD subcode frame sync (BS)

Buffer Contents Valid (BCV)

Set Buffer Free (SBF)

microcontroller
data communication
(LD, CL, DA)

OK, buffer valid

set buffer free again

buffer

completely

read

start to

read

buffer

request to read (hold buffer)

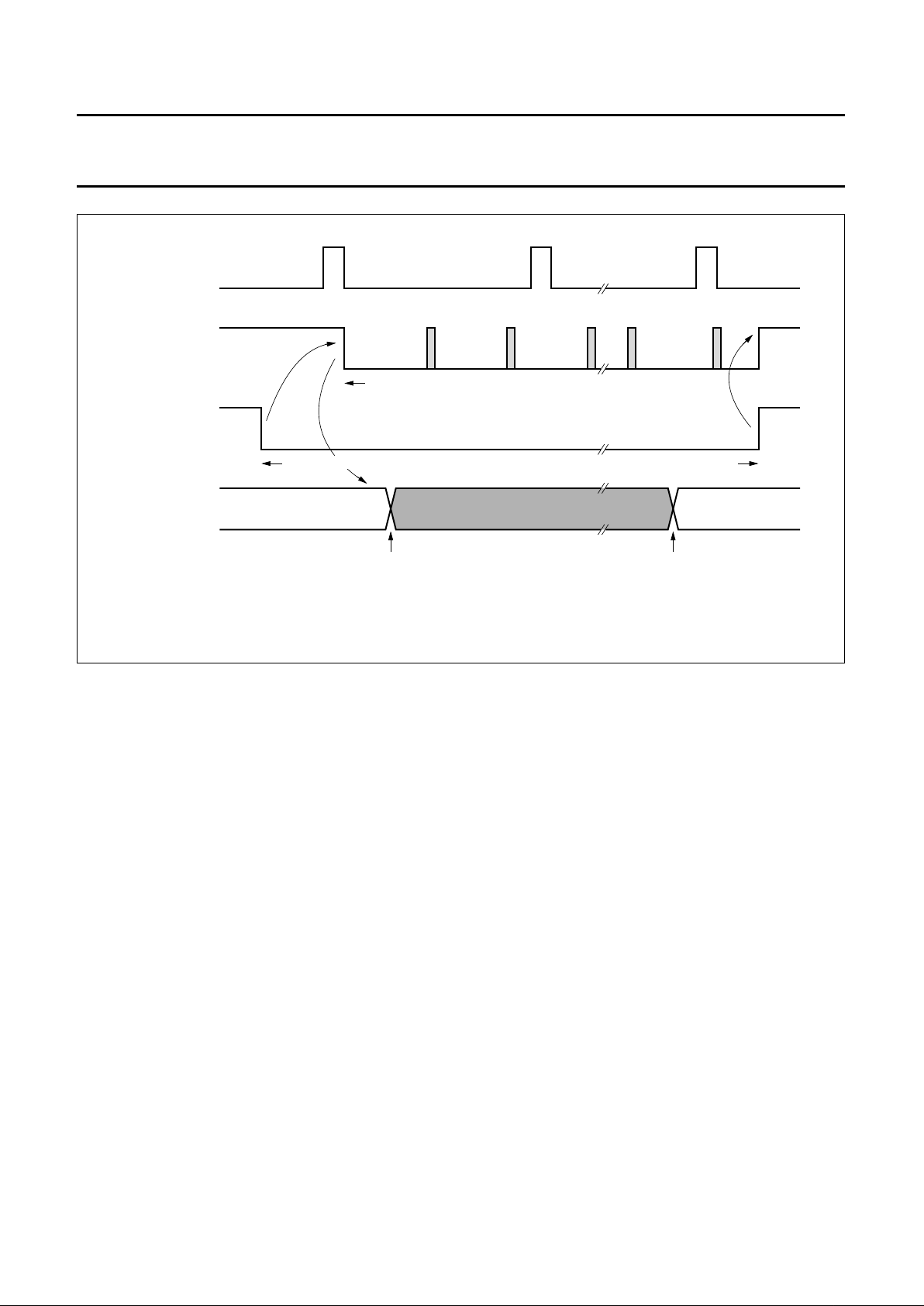

Fig.12 C, U and CD-Q user request procedure.

THE MICROCONTROLLER INTERFACE/

STAND-ALONE CONTROL BLOCK

If pin SA is LOW, a microcontroller controls and monitors
the operation of the GDIN and reads C, U and CD-Q
information. A 3-line bidirectional serial interface with data
(DA), load (LD) and clock (CL) line is present. For both a
write and read operation the microcontroller generates the
clock and load signals.

A single byte is written by setting the LD signal active
HIGH during transmission of the serial data. At the rising
edge of the serial clock, the GDIN clocks in the serial data.
At the end of the 8-bit data word a ‘load pulse’ should be
given to enable the internal serial-to-parallel conversion.

Write operations are always two-byte operations. First, the
register address is sent to the GDIN, then the
corresponding data is send (see Fig.13):

1. Write Address.

2. Write Data byte.

A single byte read-operation is initialized by pulling LD
LOW. When the serial clock is started, the GDIN will
transmit serial data on the DA line. The information is read
by the microcontroller at the rising edges of the clock CL.

Read operations are at least two-byte operations with
multi-byte reads possible. The address is sent to the GDIN
and then one or more bytes are read from the GDIN with
each additional byte coming from an incrementally higher
address:

1. Write Address.

2. Read Data byte.

3. Read Data byte.

4. Read Data byte.

5. Etc.
Multi-read operations continue to cycle through the given

Register Address Range until the read operation is
completed.

If pin SA is HIGH, the GDIN can operate without an
external microcontroller. In this event, only the SRC mode
and the AD/DA mode can be selected. A number of pins
are reconfigured to control some of the internal switches of
the device. For more information see Chapter “Pinning”
and Section “Controlling the GDIN”.

1996 Jul 17 22

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Table 8 TDA1373H memory map

REGISTER ADDRESS RANGE REGISTER NAME TYPE

00H to 05H CMD1 to CMD6 command; read/write
40H to 45H STS1 to STS6 status; read
80H to 97H RAM buffer; C-block read
80H to AFH RAM buffer; U-block read
80H to 89H RAM buffer; CD-Q frame read

handbook, full pagewidth

MLB966

7070

7070

t

hDC

t

suDC

T

cy

t

HCL

t

LCL

t

hLC

t

suLC

t

LD1

t

HLD

t

suLC

t

suDC

t

hDC

CL

LD

DA

CL

LD

DA

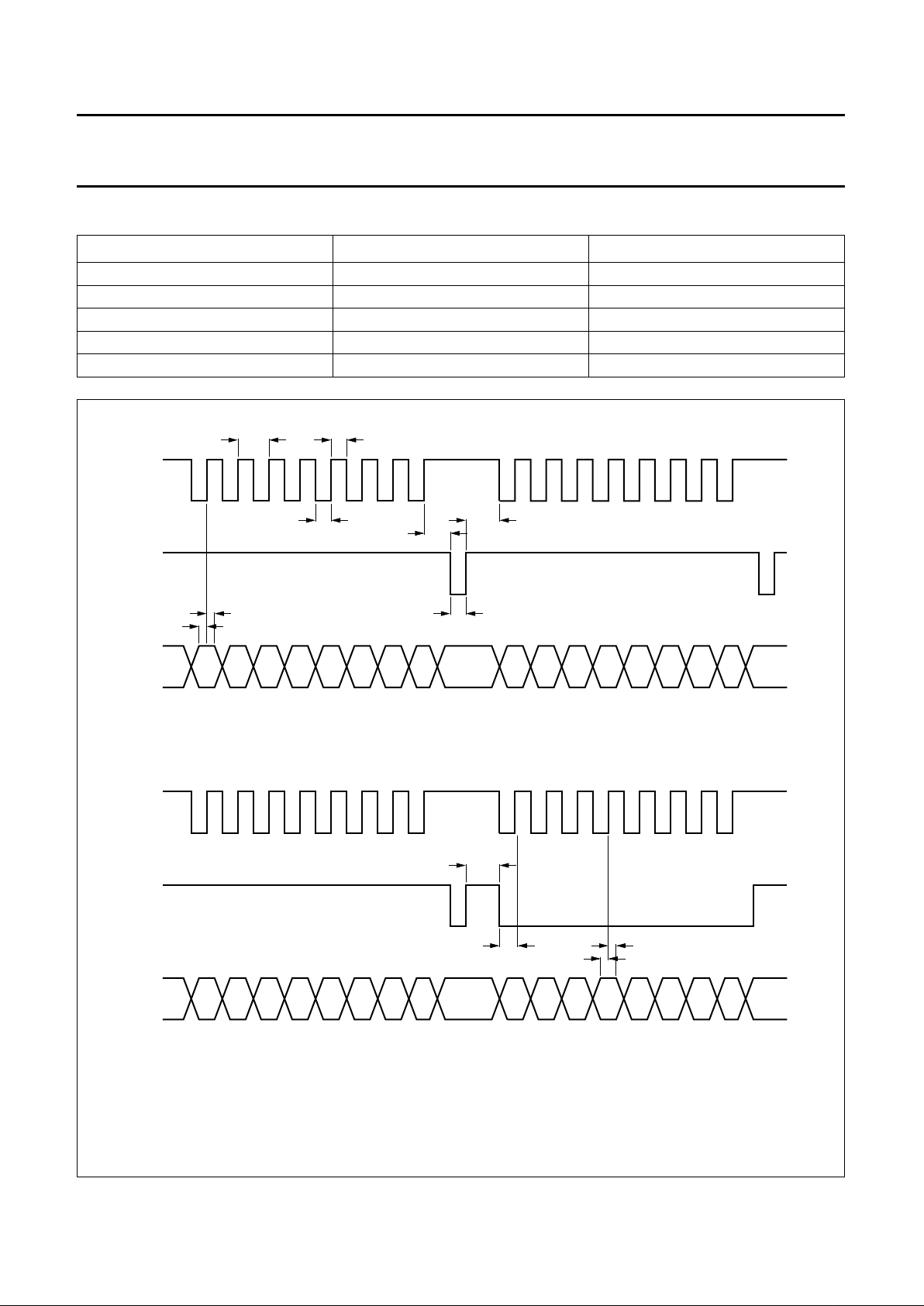

Fig.13 Timing for the microcontroller read and write operations.

a. A complete write operation.
b. A complete read operation.

a.

b.

1996 Jul 17 23

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Controlling the GDIN

M

ICROCONTROLLER OPERATED

Status registers

Table 9 Status registers

Notes

1. Only valid when the internal ADIC is in lock (bit 3 of register STS1; LCK = 1).

REGISTER BIT FLAG DESCRIPTION EXPLANATION

STS1 (40H) GDIN
status information

7 − reserved −
6 − reserved −
5 − reserved −
4 − reserved −
3 LCK internal ADIC lock status 0 = not locked; 1 = locked
2 CRC CD-Q channel; CRC check

(1)

0 = OK; 1 = error

1 VA validity bit

(2)

0 = valid; 1 = not valid

0 BCV RAM buffer contents 0 = valid; 1 = not valid

STS2 (41H) GDIN
status information

7 − reserved −
6 − reserved −
5 − reserved −
4 − reserved −
3 − reserved −

2 and 1 ST1 and ST0 PLL operating status

(3)

00 = reserved; 01 = state 1;
10 = state 2; 11= state 3

0 MUT mute status

(4)

0 = mute OFF; 1 = mute ON

STS3 (42H) 7 to 0 LF15 to LF8 LF15 to LF0:

input sample rate

(5)

fsi=fso× (1 − (0.75 × LF15 to LF0))
STS4 (43H) 7 to 0 LF7to LF0
STS5 (44H)

(6)

AES/EBU channel
status

7 and 6 CA1 and CA0 clock accuracy 00 = level 2; 01 = level 1;

10 = level 3; 11= reserved

5 and 4 FS1 and FS0 input sample rate 00 = 44.1 kHz; 01 = reserved;

10 = 48 kHz; 11= 32 kHz

3 EM pre-emphasis 0 = OFF; 1 = ON
2 CPY copyright protection 0 = YES; 1 = NO
1 AN audio or data 0 = audio; 1 = data
0 CPF consumer or professional use 0 = consumer; 1 = professional

STS6 (45H)

(6)

AES/EBU channel
status

7 CAT7 CAT7 to CAT0: category code some examples:

00000000 = general

10000000 = CD

1100001L = DCC

1100000L = DAT

0100100L = mixer

0101100L = SRC

1001000L = MD

6CAT6
5CAT5
4CAT4
3CAT3
2CAT2
1CAT1
0CAT0

(7)

1996 Jul 17 24

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

2. VA = IEC 958 V-bit or ADIC error detector.

3. Only valid when the digital PLL works in adaptive mode.

4. After approximately 512 stereo input samples (approximately 10 ms when fsi= 44.1 kHz).

5. Only valid in SRC mode. LF15 to LF0 are in two’s complement notation.

6. Only valid when IEC 958 input format is consumer (bit 0 of register STS5; CPF = 0). When the input format is
professional (CPF = 1) the STS5 and STS6 registers contain the first 16 bits of C-block.

7. Generation status (L-bit).

Command registers

Table 10 Command registers

REGISTER BIT FLAG DESCRIPTION EXPLANATION

CMD1 (00H) ADIC
control

7 and 6 DI12 and DI11 ADIC input selector 00 = DI1S; 01 = DI1O;

10 = DI1D; 11 = reserved

5 UIP user interface protocol 0 = interrupt;

1 = user requirement

4 SBF set internal RAM buffer free 0 = hold buffer;

1 = set buffer free

3 and 2 SM1 and SM0 channel decoding 00 = CD-Q; 01 = C-block;

10 = U-block; 11 = reserved
1 LRS C-block left/right selector 0 = left; 1 = right
0 DBA RAM buffer mode 0 = normal; 1 = test

CMD2 (01H) loop
and mode control

7 − reserved −
6 − reserved −

5 and 4 LC1 and LC0 PLL control; note 1 00 = adaptive;

01 = state 1 fixed;

10 = state 2 fixed;

11 = state 3 fixed

3 and 2 MS1 and MS0 mode selector; notes 1 and 2 00 = SRC mode;

01 = AD/DA mode;

10 = SLAVE-VCXO mode;

11 = SLAVE-VCO mode
1 RTR enable 3-state outputs; note 3 0 = 3-state; 1 = enabled
0 MRS reset (hardware reset); note4 0 = no reset; 1 = reset

CMD3 (02H)
data path

(5)

7 DSO DO1 output selector 0 = INS; 1 = ADIC
6 − reserved −
5 FOS FO output selector 0 = ADIC; 1 = 128× filter
4 DI2 FIFO input selector 0 = FOW, FOD and FOC;

1 = DI2W, DI2D and DI2C
3 DNI input selector 128× filter 0 = variable hold; 1 = AIL/AIR
2 INS In-band Noise Shaper input

selector

0 = output 128× down;

1 = output FIFO/GAIN
1 AOS Bitstream digital filter input

selector

0 = variable hold;

1 = DI2W, DI2D and DI2C
0 DO2 DO2 output selector 0 = 128× down; 1 = 64× up

1996 Jul 17 25

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Notes

1. In the SLAVE-VCXO mode, the PLL should be fixed in state 2 until locked.

2. A mode change will always invoke a restart of the GDIN.

3. At power-on the DO1 and FO outputs are ‘3-state’ to avoid I2S bus conflicts. This bit overrides the serial I/O
control bits.

4. A MRS or hardware reset clears all command registers, also the MRS flag itself.

5. See Section “Data path switching” for possible settings of the data path switches in the different modes.

6. Set all reserved flags to 0.

7. Setting MMU starts a soft-mute from current gain value to 0 by1⁄

128

per input sample. Clearing MMU starts the

inverse process from 0 to current gain value.

8. To prevent idle patterns in the audio band, it is strongly advised to add out-of-band dither by setting control bit NSD.

9. Set this bit for 32 kHz input sources.

10. Use ‘01111111’ for normal operation to avoid pass band ripple clipping.

CMD4 (03H)
control

7 − reserved −
6 − reserved −
5 MMU soft mute function; note 7 0 = OFF; 1 = ON

4 and 3 QU1 and QU0 in-band noise shaper 00 = 16-bit; 01 = 20-bit;

10 = 16-bit INS; 11= 18-bit INS

2 NSD dither Bitstream digital filter;

note 8

0 = OFF; 1 = ON

1 DLO symmetrical Bitstream output 0 = OFF; 1 = ON
0 SSP stop band suppression 64× filter;

note 9

0 = 70 dB; 1 = 50 dB

CMD5 (04H)
input/output
formats

7 and 6 DI22 and DI21 serial format DI2 input 00 = I

2

S; 01 = Japanese 16-bit;
10 = Japanese 18-bit;
11 = Japanese 20-bit

5 and 4 DO22 and

DO21

serial format DO2 output 00 = I

2

S; 01 = Japanese 16-bit;
10 = Japanese 18-bit;
11 = reserved

3 and 2 DO12 and

DO11

serial format DO1 output 00 = I

2

S; 01 = Japanese 16-bit;
10 = Japanese 18-bit;
11 = 3-stated

1 DO1M DO1 master/slave selector 0 = master; 1 = slave
0 FOT FO output 3-state selector 0 = I

2

S; 1 = 3-stated

CMD6 (05H) 7 GAIN7 GAIN7 to GAIN0: gain of the

GCM block

(10)

; maximum = 2;

step =1⁄

128

some examples:
11111111 = ×2 (maximum)
10000000 = ×1
01111111 = ×0.992
00000001 = ×0.0078

6 GAIN6
5 GAIN5
4 GAIN4
3 GAIN3
2 GAIN2
1 GAIN1
0 GAIN0

REGISTER BIT FLAG DESCRIPTION EXPLANATION

1996 Jul 17 26

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Data path switching

All data path switches are freely controllable, although not all combinations make sense in the different operating modes.
Table 11 shows the preferred settings of the CMD3 control register.

Table 11 Preferred settings of the CMD3 control register

Notes

1. Level 0 or 1 indicates to set the flag in this position. A = application dependent.

2. When the output of the internal ADIC is fed directly to DO1 or FO, the serial output format is I

2

S, the word select

jitters (by one 384fso clock cycle) and the number of bit clocks per word select is not fixed.

S

TAND-ALONE CONTROL

When pin SA is HIGH, the GDIN operates under stand-alone control. Some basic settings can be controlled in this event
by changing the level at the control pins. Table 12 shows which command bits are pin-controllable during stand-alone
operation. The command bits which are not pin-controllable are automatically set to their appropriate value in accordance
with the selected mode (SRC or AD/DA). All control bits not shown get the value 0 in the event of stand-alone control.

Table 12 Command registers

Notes

1. When the device operates in stand-alone control, only the SRC mode and AD/DA mode are available.

2. This means that all 3-state outputs are permanently enabled during stand-alone operation.

REGISTER BIT FLAG DATA PATH SWITCH SRC

(1)

SLAVE

(1)

AD/DA

(1)

CMD3 (02H)
data path

7 DSO DO1 output selector; note 2 0 A A
6 − reserved −−−
5 FOS FO output selector; note 2 A A A
4 DI2 FIFO input selector A A A
3 DNI input selector 128× filter 0 1 1
2 − reserved −−−
1 AOS AOL and AOR output selector A A A
0 DO2 DO2 output selector 0 A A

REGISTER FLAG PIN DESCRIPTION EXPLANATION

CMD1 (00H) ADIC
control

DI11 FSL ADIC input selector 0 = DI1S;

1 = DI1O

CMD2 (01H) loop
and mode control

MS0 DI1D mode selector; note 1 0 = SRC mode;

1 = AD/DA mode

RTR − enable 3-state outputs; note 2 RTR is always 1 in stand-alone

mode

CMD3 (02H)
data path

DI2 DA FIFO input selector 0 = FOW, FOD and FOC;

1 = DI2W, DI2D and DI2C

DNI − input selector 128× filter SRC mode = 0: variable hold;

AD/DA mode = 1: AIL/AIR

CMD4 (03H)
control

QU0/QU1 CL in-band noise shaper 0 = 20 bit; 1 = 16 bit INS

NSD LD dither Bitstream digital 0 = OFF; 1 = ON

CMD6 (05H) GAIN − gain of the FIFO/GAIN block gain = 01111111 = ×0.992

1996 Jul 17 27

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. Human Body Model (HBM): C = 100 pF; R = 1.5 kΩ; 3 zaps positive and 3 zaps negative.

2. Machine Model (MM): C = 200 pF; L = 2.5 µH; R = 25 Ω; 3 zaps positive and 3 zaps negative.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DD

supply voltage −0.5 − +6.5 V

I

DD

supply current −−200 mA

V

i

input voltage −0.5 − VDD+ 0.5 V

I

i(max)

maximum input current −−10 mA

I

o(max)

maximum output current −−10 mA

P

tot

total power dissipation − 1030 − mW

T

stg

storage temperature −65 − +150 °C

T

amb

operating ambient temperature 0 − +70 °C

V

es

electrostatic handling HBM; note 1 −3000 − +3000 V

MM; note 2 −300 − +300 V

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air 46 K/W

1996 Jul 17 28

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

CHARACTERISTICS

V

DD

=5V±10%; T

amb

= 0 to +70 °C; CL= 50 pF; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

DD

supply voltage −0.5 − 6.5 V

I

DDD

digital supply current − 148 180 mA

I

DDA1

analog supply current IEC 958 data
slicer

− 0.65 1 mA

I

DDA4

analog supply current clock oscillator − 46mA

P

tot

total power dissipation fso= 44.1 kHz − 775 − mW

I

q(tot)

total quiescent supply current T

amb

=25°C;

note 2

−−10 µA

DC characteristics

I

NPUT PINS TYPE HPP01 (AIL, AIR, CLI, TST2, TST1, SA, LD, CL, DI2D, DI1D AND DI1O)

V

IL

LOW level input voltage −−0.3V

DD

V

V

IH

HIGH level input voltage 0.7V

DD

−−V

I

IL

 input leakage current −−1.0 µA
INPUT PIN TYPE HPP07 (SCHMITT-TRIGGER; RST)
V

IL

LOW level input voltage −−0.2V

DD

V

V

IH

HIGH level input voltage 0.8V

DD

−−V

V

hys

hysteresis voltage − 0.33V

DD

− V

I

IL

 input leakage current −−1.0 µA
INPUT PIN DI1S (IEC 958 INPUT)
V

IL

LOW level input voltage −−0.3V

DD

V

V

IH

HIGH level input voltage 0.7V

DD

−−V

I

i

input current −−1.9 mA

OUTPUT PINS TYPE OPF40 (DO2C, AOL1, DO2D, AOR1,DO2W, CLO1,CLO2, CLO3, CLO4, BS, CEN,CUS, MU AND
LOCK; 4 mA OUTPUTS)

V

OL

LOW level output voltage −−0.5 V

V

OH

HIGH level output voltage VDD− 0.5 −−V
OUTPUT PIN TYPE OPF20 (EM; 2 mA OUTPUT)
V

OL

LOW level output voltage −−0.5 V
V

OH

HIGH level output voltage VDD− 0.5 −−V
OUTPUT PINS TYPE OPF43 (CLD, DO1D, FOW, FOD AND FOC; 4 mA 3-STATE OUTPUTS)
V

OL

LOW level output voltage −−0.5 V
V

OH

HIGH level output voltage VDD− 0.5 −−V
I

OZ

3-state leakage current −−5.0 µA

1996 Jul 17 29

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

INPUT/OUTPUT PINS TYPE HOF21 (FSL, DI2W AND DI2C; 2 mA OUTPUTS)
V

IL

LOW level input voltage −−0.3V

DD

V

V

IH

HIGH level input voltage 0.7V

DD

−−V

I

OZ

 3-state leakage current −−5.0 µA

V

OL

LOW level output voltage −−0.5 V
V

OH

HIGH level output voltage VDD− 0.5 −−V
INPUT/OUTPUT PINS TYPE HOF41 (DA, DO1W AND DO1C; 4 mA OUTPUTS)
V

IL

LOW level input voltage −−0.3V

DD

V

V

IH

HIGH level input voltage 0.7V

DD

−−V

I

OZ

 3-state leakage current −−5.0 µA

V

OL

LOW level output voltage −−0.5 V
V

OH

HIGH level output voltage VDD− 0.5 −−V
Characteristics per block and pin; note 1
I

NPUT PINS TYPE HPP01 AND HPP07

C

i

input capacitance − 10 − pF
t

r

rise time (unless otherwise specified) −−Tcyns
t

f

fall time (unless otherwise specified) −−Tcyns
OUTPUT PINS TYPE OPF40 AND OPF43
t

r

rise time (unless otherwise specified) − 510ns
t

f

fall time (unless otherwise specified) − 510ns
CRYSTAL OSCILLATOR
g

m

mutual conductance 0.007821 − 0.03913 mA/V
Z

O

output impedance 405 − 3200 Ω
I

IL

 input leakage current −−1.0 µA

C

I

input capacitance − 3.1 − pF
C

O

output capacitance −−18 pF
V

IL

LOW level input voltage −−0.3V

DD

V

V

IH

HIGH level input voltage 0.7V

DD

−−V
IEC 958 INTERFACE (FOR TIMING SEE SECTION 13 OF REFERENCE 1 IN CHAPTER “References”)
V

i(p-p)

AC input voltage (peak-to-peak value) 0.2 − V

DD

V

C

i

input capacitance − 25 − pF

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1996 Jul 17 30

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

SERIAL INPUT INTERFACES (see Fig.7)
t

r

rise time (unless otherwise specified) −−25 ns

t

f

fall time (unless otherwise specified) −−25 ns

t

suDAT

set-up time data (D) to clock (C) T

cy

−−ns
t

hDAT

hold time data (D) to clock (C) 0 −−ns

t

suWS

set-up time word select (W) to clock (C) T

cy

−−ns
t

hWS

hold time word select (W) to clock (C) 0 −−ns

T

BCK

clock period time see Table 3 − 1/f

BCK

− ns

t

HB

bit clock HIGH time T

cy

−−ns
t

LB

bit clock LOW time T

cy

−−ns
SERIAL OUTPUT INTERFACES
t

r

rise time (unless otherwise specified) −−10 ns

t

f

fall time (unless otherwise specified) −−10 ns

t

suDAT

set-up time data (D) to clock (C) 0.5t

BCK

−−ns
t

hDAT

hold time data (D) to clock (C) T

cy

−−ns
t

suWS

set-up time word select (W) to clock (C) 0.5t

BCK

−−ns
t

hWS

hold time word select (W) to clock (C) T

cy

−−ns
T

BCK

clock period time see Table 3 − 1/f

BCK

− ns

t

HB

bit clock HIGH time 0.4t

BCK

−−ns
t

LB

bit clock LOW time 0.4t

BCK

−−ns
BITSTREAM INPUTS AIL AND AIR (see Fig.8)
t

d1

delay time after HIGH-to-LOW clock
transition

−−100 ns

BITSTREAM OUTPUTS AOL1, AOR1 AND CLD (see Fig.8)
t

r

data output rise time − 10 15 ns

t

f

data output fall time − 10 15 ns

t

su

data output set-up time 0 −−ns

t

h

data output hold time 25 −−ns

t

r

clock output rise time − 510ns

t

f

clock output fall time − 510ns

t

CH

clock output HIGH time 40 −−ns

t

CL

clock output LOW time 40 −−ns

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1996 Jul 17 31

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

MICROCONTROLLER INTERFACE (see Fig.13)
T

cyCL

CL cycle time 6T

cy

−−ns
t

HCL

CL HIGH time 3T

cy

−−ns
t

LCL

CL LOW time 3T

cy

−−ns
t

suLC

set-up time LD to CL write operation 9T

cy

−−ns
t

hLC

hold time LD to CL write operation 3T

cy

−−ns
t

LD1

write pulse period LD 3T

cy

−−ns
T

cyLD

LD cycle time read operation 3T

cy

−−ns
t

hLC

hold time LD to CL read operation 3T

cy

−−ns
t

LD2

read enable LD pulse period 6T

cy

−−ns
t

suDC

set-up time DA to CL write operation T

cy

−−ns
t

hDC

hold time DA to CL write operation 3T

cy

−−ns
t

suDC

set-up time DA to CL read operation T

cy

−−ns
t

hDC

hold time DA to CL read operation 3T

cy

−−ns
OUTPUT PINS CUS, CEN AND BS (see Fig.11)

Channel status or channel mode

T

cyBS

BS cycle time −−ms

t

CEN

CEN enable time −

1

⁄2f

si

−µs

t

LCEN

CEN LOW time 1.5 −−µs

t

suBC

set-up time BS to CEN 1.5 −−µs

t

hBC

hold time BS to CEN 8 −−µs

t

suCC

set-up time CUS to CEN 1.5 −−µs

t

hCC

hold time CUS to CEN 8 −−µs

CD-Q subcode demodulation mode

T

cyBS(CD)

frame sync BS cycle time − 13.3 − ms

t

HBS(CD)

frame sync BS HIGH time − 408 −µs

t

CEN

CEN enable time − 136 −µs

t

HCEN(CD)

CEN enable HIGH time −

1

⁄2f

si

− ms

t

suBSCEN

set-up time BS to CEN 8 −−µs

t

suCC(CD)

set-up time CUS to CEN 1.5 −−µs

t

hCC(CD)

hold time CUS to CEN 8 −−µs

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

192

1

f

si

-----

×

1996 Jul 17 32

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

Notes

1. Most timing specifications are referenced to the system clock Tcy=1⁄

384fso

.

2. The (IDD) quiescent current is checked on as much active gate area as possible, therefore outputs are chosen
reference. Each output is IDD tested in HIGH and LOW state. The minimum number of test vectors on which I

DD

quiescent current is tested is 2 and the maximum is N + 1 (N = number of outputs). These test vectors also define
fixed conditions in the core. IDD quiescent current test is not allowed on test vectors which may result in additional
quiescent current caused by pull-up/down resistors, I/Os, internal bus-structures, etc. In total this IDD quiescent
current test contributes highly to the (functional) fault coverage.

QUALITY SPECIFICATION

• General quality in accordance with

“SNW-FQ-611 part E”

and can be found in the

“Quality Reference Handbook”

(order number 9398 510 63011).

REFERENCES

1.

“Digital audio interface”

, first edition 1989-03 International standard

“IEC 958”

.

2.

“I2S bus specification”

, release 2-86, Philips Export B.V. (order number 9398 332 10011).

R

ESET

t

PWRES

reset pulse width 10T

cy

−−ns

t

iRES

internal reset time after reset pulse −−40T

cy

ns

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1996 Jul 17 33

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

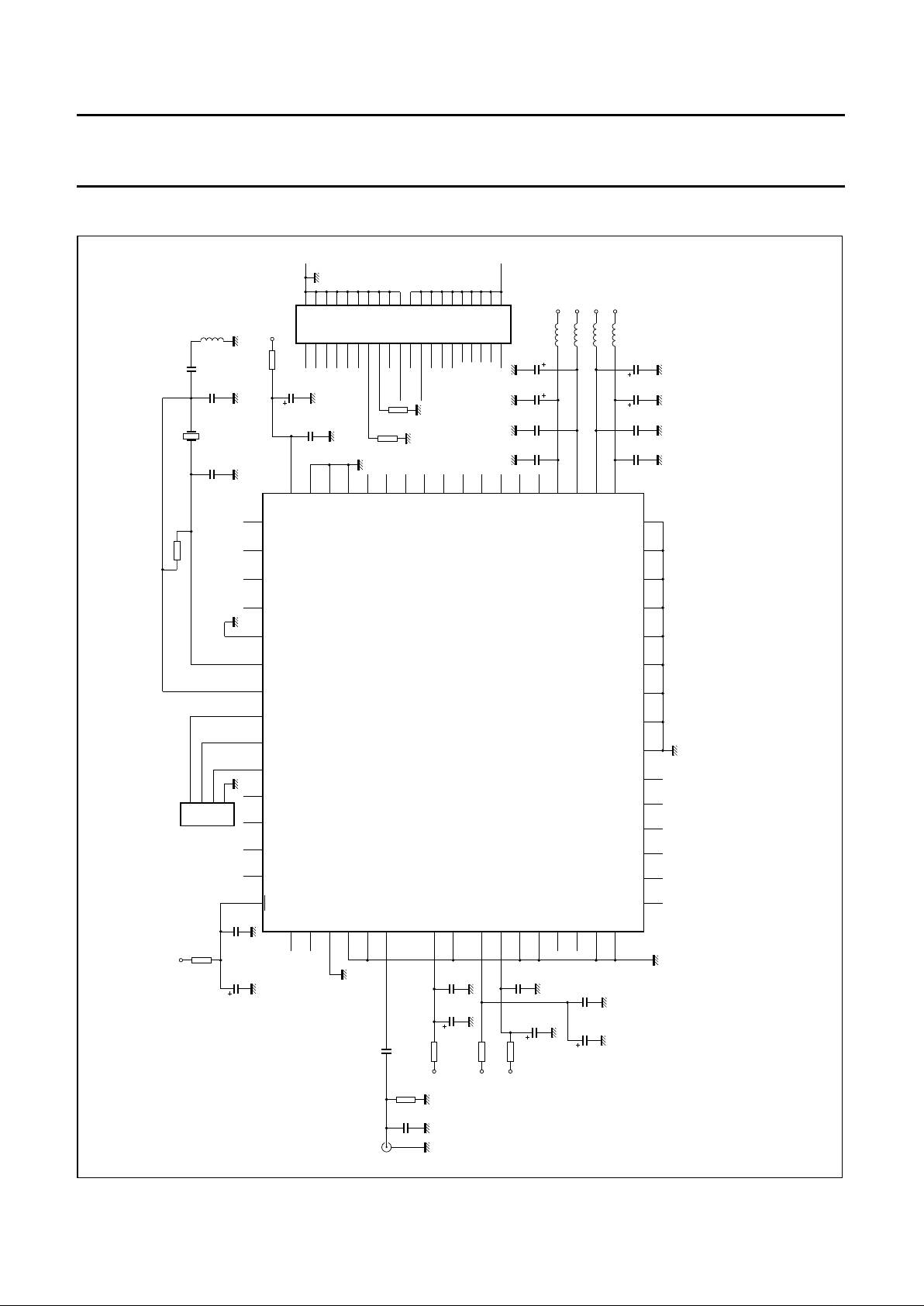

TEST DIAGRAM

handbook, full pagewidth

MLB967 - 1

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

V

SSD

64615829265340338

V

DDD

52

V

DDD

39

V

DDD

32

V

DDD

7

C10

100

nF

C11

100

nF

C12

6 V

C13

6 V

VCCV

CC

L4

L3

V

CC

L2

V

CC

L1

C9

100

nF

C8

100

nF

C14

6 V

C15

6 V

CLO

18

AOR1

15

AOL1

9

DO1C

51

DO1W

49

DO1D

50

DO2C

6

DO2W

16

DO2D

10

FSL

25

17

24

20

19

V

DDA4VSSA4

V

SSD

V

SSD

C5

100

nF

6 V

C6

R9

V

CC

CLO4

31

CLO3

30

CLO2

28

CLO1

27

CLI

23

XTLO

22

XTLI

21

DA

46

LD

45

CL

47

LOCK

48

CEN

35

CUS

36

BS

34

RST

38

R2

C16

22

pF

C17

22

pF

L5

C1

1 nF

Y1

768f

s

432

1

JP1

R3

10 kΩ

100 kΩ

4.7 Ω

75 Ω

4.7 Ω

4.7 Ω

4.7 Ω

47

µF

47

µF

47

µF

47

µF

47

µF

47

µF

47

µF

47

µF

2.2 µH

V

CC

C7

10 µF

C2

100

nF

DI2C

60

DI2W

59

DI2D

57

FOC

56

FOW

54

FOD

55

MU44EM37SA43DI1O63DI1D62DI1S

1

3

2

111412

13

AIL4AIR5TST142TST2

41

V

SSD

V

SSD

V

DDD

V

DDD

V

SSA1

V

DDA1

TDA1373H

C19

100

nF

C20

100

nF

C22

C23

6 V

6 V

R6

V

CC

R5

V

CC

R4

V

CC

C18

100

nF

C21

6 V

R1

C3 100 nF

C4

100

pF

J1

RCA

10

kΩ

10

kΩ

13579

11131517192123272931333537

39

25

DO1D

DO1W

DO1C

DI2D

DI2W

DI2C

AIL

AIR

AOL1

AOL2

AOR1

AOR2

CLD

XTIN

SDA

IN

2468101214161820222428303234363840

26

JP2

ground

supply

voltage

DO2D

DO2W

R7

R8

Fig.14 Test diagram for the TDA1373H.

1996 Jul 17 34

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

PACKAGE OUTLINE

UNIT A1A2A3b

p

cE

(1)

eH

E

LLpQZywv θ

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.36

0.10

2.87

2.57

0.25

0.50

0.35

0.25

0.13

14.1

13.9

1

18.2

17.6

1.43

1.23

1.2

0.8

7
0

o
o

0.2 0.10.21.95

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

1.0

0.6

SOT319-1

92-11-17
95-02-04

D

(1) (1)(1)

20.1

19.9

H

D

24.2

23.6

E

Z

1.2

0.8

D

b

p

e

θ

E

A

1

A

L

p

Q

detail X

L

(A )

3

B

19

y

c

D

H

b

p

E

H

A

2

v M

B

D

Z

D

A

Z

E

e

v M

A

w M

1

64

52

51 33

32

20

X

w M

0 5 10 mm

scale

pin 1 index

64 leads (lead length 1.95 mm); body 14 x 20 x 2.7 mm; high stand-off height

QFP64: plastic quad flat package;

SOT319-1

A

max.

3.3

1996 Jul 17 35

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

“Quality

Reference Handbook”

(order code 9398 510 63011).

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

Even with these conditions, do not consider wave
soldering the following packages: QFP52 (SOT379-1),
QFP100 (SOT317-1), QFP100 (SOT317-2),
QFP100 (SOT382-1) or QFP160 (SOT322-1).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1996 Jul 17 36

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1996 Jul 17 37

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

NOTES

1996 Jul 17 38

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

NOTES

1996 Jul 17 39

Philips Semiconductors Product specification

General Digital Input (GDIN) TDA1373H

NOTES

Internet: http://www.semiconductors.philips.com/ps/

(1) TDA1373H_3 June 26, 1996 11:51 am

Philips Semiconductors – a worldwide company

© Philips Electronics N.V. 1996 SCA50
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,
Tel. [phone], Fax. [phone]

Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 2A Akademika Koroleva str., Office 165,
252148 KIEV, Tel. [phone]/1642, Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone], Fax. [phone]
Middle East: see Italy

Printed in The Netherlands 517021/50/03/pp40 Date of release: 1996 Jul17 Document order number: 9397 750 00927
