Datasheet MT9042CP Datasheet (MITEL)

MT9042C

Multitrunk System Synchronizer

Advance Information

Features

• Meets jitter requirements for: AT&T TR62411
Stratum 3, 4 and Stratum 4 Enhanced for DS1
interfaces; and for ETSI ETS 300 011, TBR 4,
TBR 12 and TBR 13 for E1 interfaces

• Provides C1.5, C3, C2, C4, C8 and C16 output
clock signals

• Provides 8kHz ST-BUS framing signals

• Selectable 1.544MHz, 2.048MHz or 8kHz input
reference signals

• Accepts reference inputs from two independent
sources

• Provides bit error free reference switching ­meets phase slope and MTIE requirements

• Operates in either Normal, Holdover and
Freerun modes

Applications

• Synchronization and timing control for
multitrunk T1 and E1 systems

• ST-BUS clock and frame pulse sources

• Primary Trunk Rate Converters

DS5144 ISSUE 2 September 1999

Ordering Information

MT9042CP 28 Pin PLCC

-40°C to +85°C

Description

The MT9042C Multitrunk System Synchronizer
contains a digital phase-locked loop (DPLL), which
provides timing and synchronization signals for
multitrunk T1 and E1 primary rate transmission links.

The MT9042C generates ST-BUS clock and framing
signals that are phase locked to either a 2.048MHz,

1.544MHz, or 8kHz input reference.

The MT9042C is compliant with AT&T TR62411
Stratum 3, 4 and 4 Enhanced, and ETSI ETS 300

011. It will meet the jitter tolerance, jitter transfer,
intrinsic jitter, frequency accuracy, holdover
accuracy, capture range, phase slope and MTIE
requirements for these specifications.

OSCi

OSCo

PRI

SEC

RSEL
LOS1
LOS2

TRST

Virtual
Refer-

State

Select

ence

DPLL

State

Select

Input

Impairment

Monitor

Guard Time

Circuit

Master

Clock

Selected

Reference

Select

MUX

Reference

Select

Automatic/Manual

Control State Machine

MS1 MS2 GTo GTi

Refer-

Corrector

Enable

TIE

Corrector

Circuit

ence

TIE

RST

Figure 1 - Functional Block Diagram

VDD VSS

Feedback

Output

Interface

Circuit

Frequency

Select

MUX

FS1 FS2

C1.5o
C3o

C2o
C4o

C8o
C16o
F0o
F8o

F16o

1

MT9042C Advance Information

VSS

TRST

SEC

PRI

RST

FS1

FS2

VDD

OSCo

OSCi

F16o

F0o
F8o

C1.5o

432
5

6
7

8

9
10
11

12 13 14 15 16 17 18

C2o

C3o

1

C4o

28

VSS

27

C8o

26

25

RSEL

24

MS1

23

MS2

22

LOS1

21

LOS2

20

GTo
GTi

19

VDD

C16o

Figure 2 - Pin Connections

Pin Description

Pin # Name Description (see notes 1 to 5)

1,15 V

2 TRST TIE Circuit Reset (TTL Input). A logic low at this input resets the Time Interval Error (TIE)

3 SEC Secondary Reference (TTL Input). This is one of two (PRI & SEC) input reference

Ground. 0 Volts.

SS

correction circuit resulting in a re-alignment of input phase with output phase as shown in
Figure 19. The TRST pin should be held low for a minimum of 300ns.

sources (falling edge) used for synchronization. One of three possible frequencies (8kHz,

1.544MHzMHz, or 2.048MHz) may be used. The selection of the input reference is based
upon the MS1, MS2, LOS1, LOS2, RSEL, and GTi control inputs (Automatic or Manual).

4 PRI Primary Reference (TTL Input). See pin description for SEC.

5,18 V

Positive Supply Voltage. +5VDC nominal.

DD

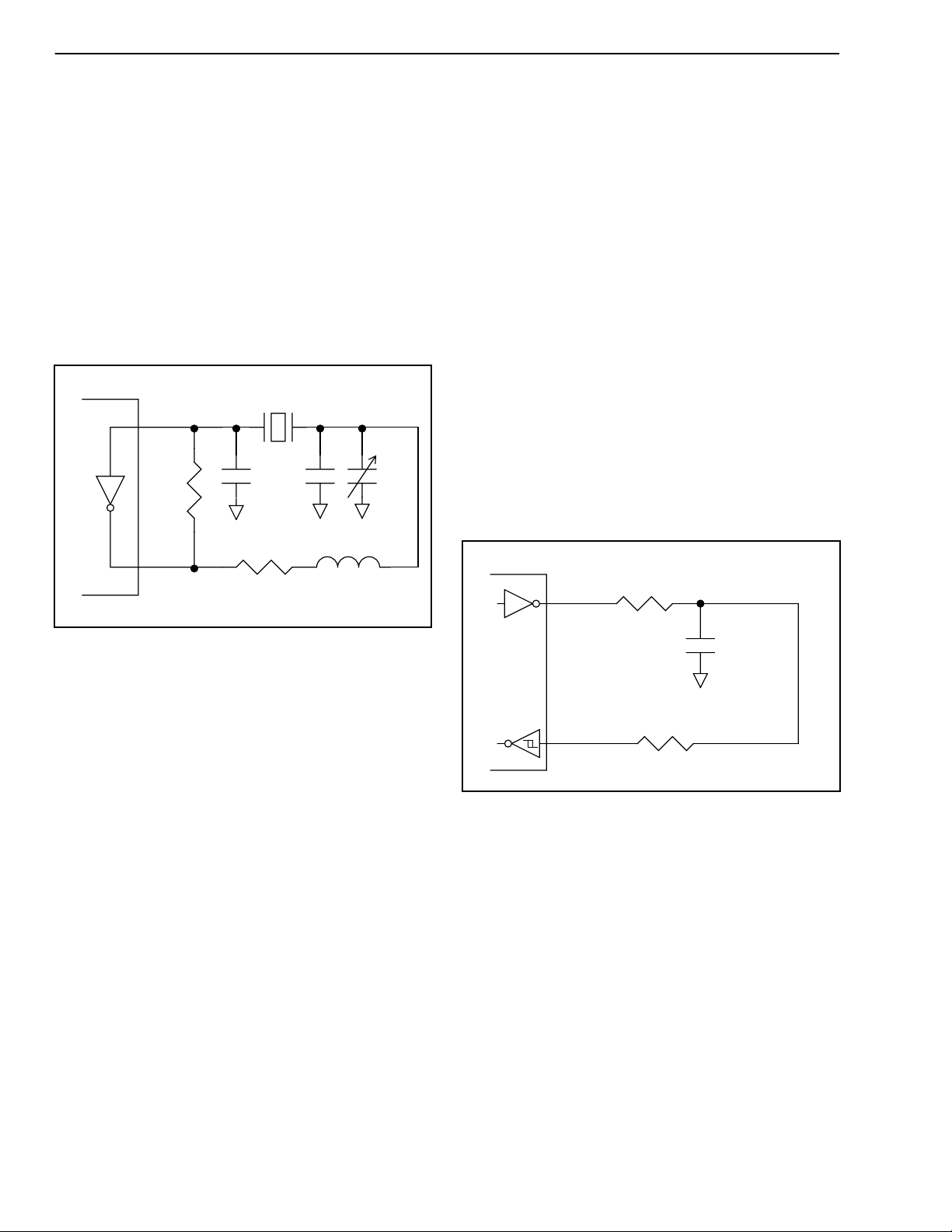

6 OSCo Oscillator Master Clock (CMOS Output). For crystal operation, a 20MHz crystal is

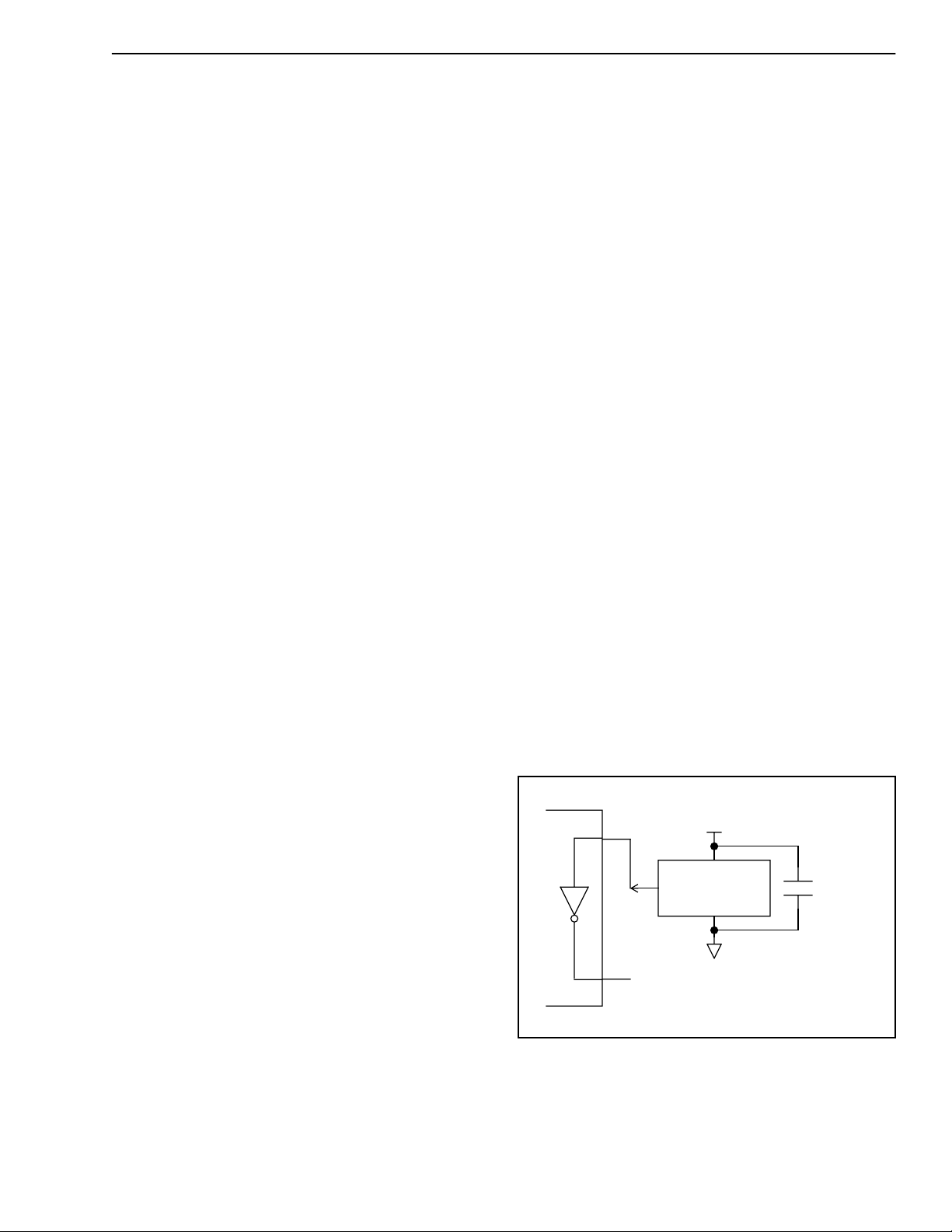

connected from this pin to OSCi, see Figure 10. For clock oscillator operation, this pin is left
unconnected, see Figure 9.

7 OSCi Oscillator Master Clock (CMOS Input). For crystal operation, a 20MHz crystal is

connected from this pin to OSCo, see Figure 10. For clock oscillator operation, this pin is
connected to a clock source, see Figure 9.

8 F16o Frame Pulse ST-BUS 16.384Mb/s (CMOS Output). This is an 8kHz 61ns active low

framing pulse, which marks the beginning of an ST-BUS frame. This is typically used for
ST-BUS operation at 16.384Mb/s. See Figure 20.

9 F0o Frame Pulse ST-BUS 2.048Mb/s (CMOS Output). This is an 8kHz 244ns active low

framing pulse, which marks the beginning of an ST-BUS frame. This is typically used for
ST-BUS operation at 2.048Mb/s and 4.096Mb/s. See Figure 20.

10 F8o Frame Pulse ST-BUS 8.192Mb/s (CMOS Output). This is an 8kHz 122ns active high

framing pulse, which marks the beginning of an ST-BUS frame. This is used for ST-BUS

operation at 8.192Mb/s. See Figure 20.
11 C1.5o Clock 1.544MHz (CMOS Output). This output is used in T1 applications.
12 C3o Clock 3.088MHz (CMOS Output). This output is used in T1 applications.
13 C2o Clock 2.048MHz (CMOS Output). This output is used for ST-BUS operation at 2.048Mb/s.
14 C4o Clock 4.096MHz (CMOS Output). This output is used for ST-BUS operation at 2.048Mb/s

and 4.096Mb/s.

2

Advance Information MT9042C

Pin Description

Pin # Name Description (see notes 1 to 5)

16 C8o Clock 8.192MHz (CMOS Output). This output is used for ST-BUS operation at 8.192Mb/s.
17 C16o Clock 16.384MHz (CMOS Output). This output is used for ST-BUS operation at 16.384Mb/

s.

19 GTi Guard Time (Schmitt Input). This input is used by the MT9042B state machine in both

Manual and Automatic modes. The signal at this pin affects the state changes between
Primary Holdover Mode and Primary Normal Mode, and Primary Holdover Mode and
Secondary Normal Mode. The logic level at this input is gated in by the rising edge of F8o.
See Tables 4 and 5.

20 GTo Guard Time (CMOS Output). The LOS1 input is gated by the rising edge of F8o, buffered

and output on GTo. This pin is typically used to drive the GTi input through an RC circuit.

21 LOS2 Secondary Reference Loss (TTL Input). This input is normally connected to the loss of

signal (LOS) output signal of a Line Interface Unit (LIU). When high, the SEC reference
signal is lost or invalid. LOS2, along with the LOS1 and GTi inputs control the MT9042B
state machine when operating in Automatic Control. The logic level at this input is gated in
by the rising edge of F8o.

22 LOS1 Primary Reference Loss (TTL Input). Typically , external equipment applies a logic high to

this input when the PRI reference signal is lost or inv alid. The logic le vel at this input is gated
in by the rising edge of F8o. See LOS2 description.

23 MS2 Mode/Control Select 2 (TTL Input). This input, in conjunction with MS1, determines the

device’ s mode (Automatic or Manual) and state (Normal, Holdover or F reerun) of operation.
The logic level at this input is gated in by the rising edge of F8o. See Table 3.

24 MS1 Mode/Control Select 1 (TTL Input). The logic level at this input is gated in by the rising

edge of F8o. See pin description for MS1.

25 RSEL Reference Source Select (TTL Input). In Manual Control, a logic low selects the PRI

(primary) reference source as the input reference signal and a logic high selects the SEC
(secondary) input. In Automatic Control, this pin must be at logic low. The logic level at this
input is gated in by the rising edge of F8o. See Table 2.

26 FS2 Frequency Select 2 (TTL Input). This input, in conjunction with FS1, selects which of three

possible frequencies (8kHz, 1.544MHz, or 2.048MHz) may be input to the PRI and SEC

inputs. See Table 1.
27 FS1 Frequency Select 1 (TTL Input). See pin description for FS2.
28 RST Reset (Schmitt Input). A logic low at this input resets the MT9042B. To ensure proper

operation, the device must be reset after changes to the method of control, reference signal

frequency changes and power-up. TheRST pin should be held low for a minim um of 300ns.

While the RST pin is low, all frame and clock outputs are at logic high. F ollowing a reset, the

input reference source and output clocks and frame pulses are phase aligned as shown in

Figure 19.

Notes:

1. All inputs are CMOS with either TTL compatible logic levels, CMOS compatible logic levels or Schmitt trigger compatible logic levels
as indicated in the Pin Description.

2. All outputs are CMOS with CMOS compatible logic levels.

3. See DC Electrical Characteristics for static logic threshold values.

4. See AC Electrical Characteristics - Timing Parameter Measurement Voltage Levels for dynamic logic threshold values.

5. Unless otherwise stated, all unused inputs should be connected to logic high or logic low and all unused outputs should be left open
circuit.

3

MT9042C Advance Information

Functional Description

The MT9042C is a Multitrunk System Synchronizer,
providing timing (clock) and synchronization (frame)
signals to interface circuits for T1 and E1 Primary
Rate Digital Transmission links.

Figure 1 is a functional block diagram which is
described in the following sections.

Reference Select MUX Circuit

The MT9042C accepts two simultaneous reference
input signals and operates on their falling edges.
Either the primary reference (PRI) signal or the
secondary reference (SEC) signal can be selected
as input to the TIE Corrector Circuit. The selection is
based on the Control, Mode and Reference
Selection of the device. See Tables 1, 4 and 5.

Frequency Select MUX Circuit

The MT9042C operates with one of three possible
input reference frequencies (8kHz, 1.544MHz or

2.048MHz). The frequency select inputs (FS1 and
FS2) determine which of the three frequencies may
be used at the reference inputs (PRI and SEC). Both
inputs must have the same frequency applied to
them. A reset (RST) must be performed after every
frequency select input change. Operation with FS1
and FS2 both at logic low is reserved and must not
be used. See Table 1.

FS2 FS1 Input Frequency

0 0 Reserved
0 1 8kHz
1 0 1.544MHz
1 1 2.048MHz

Table 1 - Input Frequency Selection

Time Interval Error (TIE) Corrector Circuit

The TIE corrector circuit, when enabled, prevents a
step change in phase on the input reference signals
(PRI or SEC) from causing a step change in phase at
the input of the DPLL block of Figure 1.

During reference input rearrangement, such as
during a switch from the primary reference (PRI) to
the secondary reference (SEC), a step change in
phase on the output signals will occur. A phase step
at the input of the DPLL will lead to unacceptable
phase changes in the output signal.

As shown in Figure 3, the TIE Corrector Circuit
receives one of the two reference (PRI or SEC)
signals, passes the signal through a programmable
delay line, and uses this delayed signal as an
internal virtual reference, which is input to the DPLL.
Therefore, the virtual reference is a delayed version
of the selected reference.

During a switch, from one reference to the other, the
State Machine first changes the mode of the device

TRST

Resets Delay

PRI or SEC

from

Reference

Select Mux

Control

Circuit

Programmable

Delay Circuit

TIE Corrector

Enable

from

State Machine

Control Signal

Delay Value

Virtual

Reference

to DPLL

Compare

Circuit

Feedback

Signal from

Frequency

Select MUX

Figure 3 - TIE Corrector Circuit

4

Advance Information MT9042C

Virtual Reference

from

TIE Corrector

Frequency Select MUX

Phase

Detector

Feedback Signal

from

Limiter Loop Filter

State Select

Input Impairment Monitor

Figure 4 - DPLL Block Diagram

from Normal to Holdover. In Holdover Mode, the
DPLL no longer uses the virtual reference signal, but
generates an accurate clock signal using storage
techniques. The Compare Circuit then measures the
phase delay between the current phase (feedback
signal) and the phase of the new reference signal.
This delay value is passed to the Programmable
Delay Circuit (See Figure 3). The new virtual
reference signal is now at the same phase position
as the previous reference signal would have been if
the reference switch not taken place. The State
Machine then returns the device to Normal Mode.

The DPLL now uses the new virtual reference signal,
and since no phase step took place at the input of
the DPLL, no phase step occurs at the output of the
DPLL. In other words, reference switching will not
create a phase change at the input of the DPLL, or at
the output of the DPLL.

DPLL Reference

to

Output Interface Circuit

from

State Select

from

State Machine

Digitally

Controlled

Oscillator

Control

Circuit

The state diagrams of Figure 7 and 8 indicate under
which state changes the TIE Corrector Circuit is
activated.

Digital Phase Lock Loop (DPLL)

As shown in Figure 4, the DPLL of the MT9042C
consists of a Phase Detector, Limiter, Loop Filter,
Digitally Controlled Oscillator, and a Control Circuit.

Phase Detector - the Phase Detector compares the
virtual reference signal from the TIE Corrector circuit
with the feedback signal from the Frequency Select
MUX circuit, and provides an error signal
corresponding to the phase difference between the
two. This error signal is passed to the Limiter circuit.
The Frequency Select MUX allows the proper
feedback signal to be externally selected (e.g., 8kHz,

1.544MHz or 2.048MHz).

Since internal delay circuitry maintains the alignment
between the old virtual reference and the new virtual
reference, a phase error may exist between the
selected input reference signal and the output signal
of the DPLL. This phase error is a function of the
difference in phase between the two input reference
signals during reference rearrangements. Each time
a reference switch is made, the delay between input
signal and output signal will change. The value of
this delay is the accumulation of the error measured
during each reference switch.

The programmable delay circuit can be zeroed by
applying a logic low pulse to the TIE Circuit Reset
(TRST) pin. A minimum reset pulse width is 300ns.
This results in a phase alignment between the input
reference signal and the output signal as shown in
Figure 20. The speed of the phase alignment
correction is limited to 5ns per 125us, and
convergence is in the direction of least phase travel.

Limiter - the Limiter receives the error signal from the
Phase Detector and ensures that the DPLL responds
to all input transient conditions with a maximum
output phase slope of 5ns per 125us. This is well
within the maximum phase slope of 7.6ns per 125us
or 81ns per 1.326ms specified by AT&T TR62411.

Loop Filter - the Loop Filter is similar to a first order
low pass filter with a 1.9 Hz cutoff frequency for all
three reference frequency selections (8kHz,

1.544MHz or 2.048MHz). This filter ensures that the
jitter transfer requirements in ETS 300 011 and AT&T
TR62411 are met.

Control Circuit - the Control Circuit uses status and
control information from the State Machine and the
Input Impairment Circuit to set the mode of the
DPLL. The three possible modes are Normal,
Holdover and Freerun.

5

MT9042C Advance Information

Digitally Controlled Oscillator (DCO) - the DCO
receives the limited and filtered signal from the Loop
FIlter, and based on its value, generates a
corresponding digital output signal. The
synchronization method of the DCO is dependent on
the state of the MT9042C.

In Normal Mode, the DCO provides an output signal
which is frequency and phase locked to the selected
input reference signal.

In Holdover Mode, the DCO is free running at a
frequency equal to the last (less 30ms to 60ms)
frequency the DCO was generating while in Normal
Mode.

In Freerun Mode, the DCO is free running with an
accuracy equal to the accuracy of the OSCi 20MHz
source.

Output Interface Circuit

The output of the DCO (DPLL) is used by the Output
Interface Circuit to provide the output signals shown
in Figure 5. The Output Interface Circuit uses two
Tapped Delay Lines followed by a T1 Divider Circuit
and an E1 Divider Circuit to generate the required
output signals.

C1.5o
C3o

C2o
C4o
C8o
C16o
F0o
F8o
F16o

From

DPLL

Tapped

Delay

Line

Tapped

Delay

Line

T1 Divider

12MHz

E1 Divider

16MHz

The T1 Divider Circuit uses the 12.384MHz signal to
generate two clock outputs. C1.5o and C3o are
generated by dividing the internal C12 clock by four
and eight respectively. These outputs have a
nominal 50% duty cycle.

The frame pulse outputs (F0o, F8o, F16o) are
generated directly from the C16 clock.

The T1 and E1 signals are generated from a
common DPLL signal. Consequently, the clock
outputs C1.5o, C3o, C2o, C4o, C8o, C16o, F0o and
F16o are locked to one another for all operating
states, and are also locked to the selected input
reference in Normal Mode. See Figures 20 & 21.

All frame pulse and clock outputs hav e limited driving
capability, and should be buffered when driving high
capacitance (e.g., 30pF) loads.

Input Impairment Monitor

This circuit monitors the input signal to the DPLL and
automatically enables the Holdover Mode
(Auto-Holdover) when the frequency of the incoming
signal is outside the auto-holdover capture range (See
AC Electrical Characteristics - Performance). This
includes a complete loss of incoming signal, or a large
frequency shift in the incoming signal. When the
incoming signal returns to normal, the DPLL is
returned to Normal Mode with the output signal locked
to the input signal. The holdover output signal is
based on the incoming signal 30ms minimum to 60ms
prior to entering the Holdover Mode. The amount of
phase drift while in holdover is negligible because the
Holdover Mode is very accurate (e.g.,±0.05ppm). The
the Auto-Holdover circuit does not use TIE correction.
Consequently, the phase delay between the input and
output after switching back to Normal Mode is
preserved (is the same as just prior to the switch to
Auto-Holdover).

Automatic/Manual Control State Machine

Figure 5 - Output Interface Circuit Block

Diagram

Two tapped delay lines are used to generate a

16.384MHz signal and a 12.352MHz signal.

The E1 Divider Circuit uses the 16.384MHz signal to
generate four clock outputs and three frame pulse
outputs. The C8o, C4o and C2o clocks are
generated by simply dividing the C16o clock by two,
four and eight respectively. These outputs have a
nominal 50% duty cycle.

6

The Automatic/Manual Control State Machine allows
the MT9042C to be controlled automatically (i.e.,
LOS1, LOS2 and GTi signals) or controlled manually
(i.e., MS1, MS2, GTi and RSEL signals). With
manual control a single mode of operation (i.e.,
Normal, Holdover and Freerun) is selected. Under
automatic control the state of the LOS1, LOS2 and
GTi signals determines the sequence of modes that
the MT9042C will follow.

As shown in Figure 1, this state machine controls the
Reference Select MUX, the TIE Corrector Circuit, the

Advance Information MT9042C

DPLL and the Guard Time Circuit. Control is based
on the logic levels at the control inputs LOS1, LOS2,
RSEL, MS1, MS2 and GTi of the Guard Time Circuit
(See Figure 6).

RSEL
LOS1
LOS2

To

Reference

Select MUX

Automatic/Manual Control

MS1

To TIE

Corrector

Enable

State Machine

MS2

To DPLL

State

Select

To

and From

Guard Time

Circuit

Figure 6 - Automatic/Manual Control State

Machine Block Diagram

All state machine changes occur synchronously on
the rising edge of F8o. See the Controls and Modes
of Operation section for full details on Automatic
Control and Manual Control.

Guard Time Circuit

Control and Modes of Operation

The MT9042C can operate either in Manual or
Automatic Control. Each control method has three
possible modes of operation, Normal, Holdover and
Freerun.

As shown in Table 3, Mode/Control Select pins MS2
and MS1 select the mode and method of control.

Control RSEL Input Reference

MANUAL 0 PRI

1 SEC

AUTO 0 State Machine Control

1 Reserved

Table 2 - Input Reference Selection

MS2 MS1 Control Mode

0 0 MANUAL NORMAL

The GTi pin is used by the Automatic/Manual Control
State Machine in the MT9042C under either Manual
or Automatic control. The logic level at the GTi pin
performs two functions, it enables and disables the
TIE Corrector Circuit (Manual and Automatic), and it
selects which mode change takes place (Automatic
only). See the Applications - Guard Time section.

For both Manual and Automatic control, when
switching from Primary Holdover to Primary Normal,
the TIE Corrector Circuit is enabled when GTi=1, and
disabled when GTi=0.

Under Automatic control and in Primary Normal
Mode, two state changes are possible (not counting
Auto-Holdover). These are state changes to Primary
Holdover or to Secondary Normal. The logic level at
the GTi pin determines which state change occurs.
When GTi=0, the state change is to Primary
Holdover. When GTi=1, the state change is to
Secondary Normal.

Master Clock

The MT9042C can use either a clock or crystal as
the master timing source. For recommended master
timing circuits, see the Applications - Master Clock
section.

0 1 MANUAL HOLDOVER
1 0 MANUAL FREERUN
1 1 AUTO State Machine Control

Table 3 - Operating Modes and States

Manual Control

Manual Control should be used when either very
simple MT9042C control is required, or when
complex control is required which is not
accommodated by Automatic Control. For example,
very simple control could include operation in a
system which only requires Normal Mode with
reference switching using only a single input stim ulus
(RSEL). Very simple control would require no
external circuitry. Complex control could include a
system which requires state changes between
Normal, Holdover and Freerun Modes based on
numerous input stimuli. Complex control would
require external circuitry, typically a microcontroller.

Under Manual Control, one of the three modes is
selected by mode/control select pins MS2 and MS1.
The active reference input (PRI or SEC) is selected
by the RSEL pin as shown in Table 2. Refer to Table
4 and Figure 7 for details of the state change
sequences.

7

MT9042C Advance Information

Automatic Control

Automatic Control should be used when simple
MT9042C control is required, which is more complex
than the very simple control provide by Manual
Control with no external circuitry, but not as complex
as Manual Control with a microcontroller. For
example, simple control could include operation in a
system which can be accommodated by the
Automatic Control State Diagram shown in Figure 8.

Automatic Control is also selected by mode/control
pins MS2 and MS1. However, the mode and active
reference source is selected automatically by the
internal Automatic State Machine (See Figure 6).
The mode and reference changes are based on the
logic levels on the LOS1, LOS2 and GTi control pins.
Refer to Table 5 and Figure 8 for details of the state
change sequences.

Normal Mode

Normal Mode is typically used when a slave clock
source, synchronized to the network is required.

In Normal Mode, the MT9042C provides timing
(C1.5o, C2o, C3o, C4o, C8o and C16o) and frame
synchronization (F0o, F8o, F16o) signals, which are
synchronized to one of two reference inputs (PRI or
SEC). The input reference signal may have a
nominal frequency of 8kHz, 1.544MHz or 2.048MHz.

From a reset condition, the MT9042C will take up to
25 seconds for the output signal to be phase locked
to the selected reference.

When in Normal Mode, and locked to the input
reference signal, a numerical value corresponding to
the MT9042C output frequency is stored alternately
in two memory locations every 30ms. When the
device is switched into Holdover Mode, the value in
memory from between 30ms and 60ms is used to set
the output frequency of the device.

The frequency accuracy of Holdover Mode is
±0.05ppm, which translates to a worst case 35 frame
(125us) slips in 24 hours. This exceeds the AT&T
TR62411 Stratum 3 requirement of ±0.37ppm (255
frame slips per 24 hours).

Two factors affect the accuracy of Holdover Mode.
One is drift on the Master Clock while in Holdover
Mode, drift on the Master Clock directly affects the
Holdover Mode accuracy. Note that the absolute
Master Clock (OSCi) accuracy does not affect
Holdover accuracy, only the change in OSCi
accuracy while in Holdover. For example, a ±32ppm
master clock may have a temperature coefficient of
±0.1ppm per degree C. So a 10 degree change in
temperature, while the MT9042C is in Holdover
Mode may result in an additional offset (over the
±0.05ppm) in frequency accuracy of ±1ppm. Which
is much greater than the ±0.05ppm of the MT9042C.

The other factor affecting accuracy is large jitter on
the reference input prior (30ms to 60ms) to the
mode switch. For instance, jitter of 7.5UI at 700Hz
may reduce the Holdover Mode accuracy from

0.05ppm to 0.10ppm.

Freerun Mode

The selection of input references is control
dependent as shown in state tables 4 and 5. The
reference frequencies are selected by the frequency
control pins FS2 and FS1 as shown in Table 1.

Holdover Mode

Holdover Mode is typically used for short durations
(e.g., 2 seconds) while network synchronization is
temporarily disrupted.

In Holdover Mode, the MT9042C provides timing and
synchronization signals, which are not locked to an
external reference signal, but are based on storage
techniques. The storage value is determined while
the device is in Normal Mode and locked to an
external reference signal.

8

Freerun Mode is typically used when a master clock
source is required, or immediately following system
power-up before network synchronization is
achieved.

In Freerun Mode, the MT9042C provides timing and
synchronization signals which are based on the
master clock frequency (OSCi) only, and are not
synchronized to the reference signals (PRI and
SEC).

The accuracy of the output clock is equal to the
accuracy of the master clock (OSCi). So if a ±32ppm
output clock is required, the master clock must also
be ±32ppm. See Applications - Crystal and Clock
Oscillator sections.

Advance Information MT9042C

Description State

Input Controls Freerun

Normal

(PRI)

Normal

(SEC)

Holdover

(PRI)

Holdover

(SEC)

MS2 MS1 RSEL GTi S0 S1 S2 S1H S2H

0 0 0 0 S1 - S1 MTIE S1 S1 MTIE
0 0 0 1 S1 - S1 MTIE S1 MTIE S1 MTIE
0 0 1 X S2 S2 MTIE - S2 MTIE S2 MTIE
0 1 0 X / S1H / - /
0 1 1 X / S2H S2H / ­10 X X - S0 S0 S0 S0

Legend:

- No Change
/ Not Valid
MTIE State change occurs with TIE Corrector Circuit
Refer to Manual Control State Diagram for state changes to and from Auto-Holdover State

Table 4 - Manual Control State Table

S1

Normal

Primary

(000)

(GTi=0)

(GTi=1)

NOTES:
(XXX) MS2 MS1 RSEL
{A} Invalid Reference Signal

Movement to Normal State from any
state requires a valid input signal

{A} {A}

S1A

Auto-Holdover

Primary

(000)

S1H

Holdover

Primary

(010)

Phase Re-Alignment
Phase Continuity Maintained (without TIE Corrector Circuit)
Phase Continuity Maintained (with TIE Corrector Circuit)

S0

Freerun

(10X)

S2A

Auto-Holdover

Secondary

(001)

S2H

Holdover

Secondary

(011)

S2

Normal

Secondary

(001)

Figure 7 - Manual Control State Diagram

9

MT9042C Advance Information

Description State

Input Controls Freerun

Normal

(PRI)

Normal

(SEC)

Holdover

(PRI)

Holdover

(SEC)

LOS2 LOS1 GTi RST S0 S1 S2 S1H S2H

1 1 X 0 to 1 - S0 S0 S0 S0
X 0 0 1 S1 - S1 MTIE S1 S1 MTIE
X 0 1 1 S1 - S1 MTIE S1 MTIE S1 MTIE
0 1 0 1 S1 S1H - - S2 MTIE
0 1 1 1 S2 S2 MTIE - S2 MTIE S2 MTIE
1 1 X 1 - S1H S2H - -

Legend:

- No Change
MTIE State change occurs with TIE Corrector Circuit
Refer to Automatic Control State Diagram for state changes to and from Auto-Holdover State

Table 5 - Automatic Control (MS1=MS2=1, RSEL=0) State Table

(11X) RST=1

Reset

(X0X)

(11X)

S0

Freerun

(01X)

(X0X)

S1

Normal

Primary

(X00)

(X01)

NOTES:
(XXX) LOS2 LOS1 GTi
{A} Invalid Reference Signal

Movement to Normal State from any
state requires a valid input signal

(X0X)

{A}

(010 or 11X)

(010 or 11X)

(X0X)

S1A

Auto-Holdover

Primary

S1H

Holdover

Primary

Phase Re-Alignment
Phase Continuity Maintained (without TIE Corrector Circuit)
Phase Continuity Maintained (with TIE Corrector Circuit)

(X0X)

(X0X)
(011)

(011)

(11X)

(01X)

S2A

Auto-Holdover

Secondary

S2H

Holdover

Secondary

(01X)

{A}

(01X)

S2

Normal

Secondary

(11X)

(01X)

10

Figure 8 - Automatic Control State Diagram

Advance Information MT9042C

MT9042C Measures of Performance

The following are some synchronizer performance
indicators and their corresponding definitions.

Intrinsic Jitter

Intrinsic jitter is the jitter produced by the
synchronizing circuit and is measured at its output.
It is measured by applying a reference signal with no
jitter to the input of the device, and measuring its
output jitter. Intrinsic jitter may also be measured
when the device is in a non-synchronizing mode,
such as free running or holdover, by measuring the
output jitter of the device. Intrinsic jitter is usually
measured with various bandlimiting filters depending
on the applicable standards.

Jitter Tolerance

Jitter tolerance is a measure of the ability of a PLL to
operate properly (i.e., remain in lock and or regain
lock in the presence of large jitter magnitudes at
various jitter frequencies) when jitter is applied to its
reference. The applied jitter magnitude and jitter
frequency depends on the applicable standards.

Jitter Transfer

It should be noted that 1UI at 1.544MHz is 644ns,
which is not equal to 1UI at 2.048MHz, which is
488ns. Consequently, a transfer value using
different input and output frequencies must be
calculated in common units (e.g., seconds) as shown
in the following example.

What is the T1 and E1 output jitter when the T1 input
jitter is 20UI (T1 UI Units) and the T1 to T1 jitter
attenuation is 18dB?

A–



------ -



OutputT1 InputT1



OutputT 120

OutputE1 OutputT1

OutputE1 OutputT1

Using the above method, the jitter attenuation can be
calculated for all combinations of inputs and outputs
based on the three jitter transfer functions provided.



×10 2.5UI T 1()==

20

×10=

18–

-------- ­20

1UIT1()

----------------------

×=

1UIE 1()

-------------------

644ns()
488ns()

3.3UI T 1()=×=

Jitter transfer or jitter attenuation refers to the
magnitude of jitter at the output of a device for a
given amount of jitter at the input of the device . Input
jitter is applied at various amplitudes and
frequencies, and output jitter is measured with
various filters depending on the applicable
standards.

For the MT9042C, two internal elements determine
the jitter attenuation. This includes the internal

1.9Hz low pass loop filter and the phase slope
limiter. The phase slope limiter limits the output
phase slope to 5ns/125us. Therefore, if the input
signal exceeds this rate, such as for very large
amplitude low frequency input jitter, the maximum
output phase slope will be limited (i.e., attenuated) to
5ns/125us.

The MT9042C has eight outputs with three possible
input frequencies for a total of 24 possible jitter
transfer functions. However, the data sheet section
on AC Electrical Characteristics - Jitter Transfer
specifies transfer values for only three cases, 8kHz
to 8kHz, 1.544MHz to 1.544MHz and 2.048MHz to

2.048MHz. Since all outputs are derived from the
same signal, these transfer values apply to all
outputs.

Note that the resulting jitter transfer functions for all
combinations of inputs (8kHz, 1.544MHz, 2.048MHz)
and outputs (8kHz, 1.544MHz, 2.048MHz,

4.096MHz, 8.192MHz, 16.384MHz) for a given input
signal (jitter frequency and jitter amplitude) are the
same.

Since intrinsic jitter is always present, jitter
attenuation will appear to be lower for small input
jitter signals than for large ones. Consequently,
accurate jitter transfer function measurements are
usually made with large input jitter signals (e.g.,
75% of the specified maximum jitter tolerance).

Frequency Accuracy

Frequency accuracy is defined as the absolute
tolerance of an output clock signal when it is not
locked to an external reference, but is operating in a
free running mode. For the MT9042C, the Freerun
accuracy is equal to the Master Clock (OSCi)
accuracy.

11

MT9042C Advance Information

Holdover Accuracy

Holdover accuracy is defined as the absolute
tolerance of an output clock signal, when it is not
locked to an external reference signal, but is
operating using storage techniques. For the
MT9042C, the storage value is determined while the
device is in Normal Mode and locked to an external
reference signal.

The absolute Master Clock (OSCi) accuracy of the
MT9042C does not affect Holdov er accur acy, but the
change in OSCi accuracy while in Holdover Mode
does.

Capture Range

Also referred to as pull-in range. This is the input
frequency range over which the synchronizer must
be able to pull into synchronization. The MT9042C
capture range is equal to ±230ppm minus the
accuracy of the master clock (OSCi). For example, a

±32ppm master clock results in a capture range of
±198ppm.

Phase Continuity

Phase continuity is the phase difference between a
given timing signal and an ideal timing signal at the
end of a particular obser vation period. Usually, the
given timing signal and the ideal timing signal are of
the same frequency. Phase continuity applies to the
output of the synchronizer after a signal disturbance
due to a reference switch or a mode change. The
observation period is usually the time from the
disturbance, to just after the synchronizer has settled
to a steady state.

In the case of the MT9042C, the output signal phase
continuity is maintained to within ±5ns at the
instance (over one frame) of all reference switches
and all mode changes. The total phase shift,
depending on the switch or type of mode change,
may accumulate up to ±200ns over many frames.
The rate of change of the ±200ns phase shift is
limited to a maximum phase slope of approximately
5ns/125us. This meets the AT&T TR62411
maximum phase slope requirement of 7.6ns/125us
(81ns/1.326ms).

Lock Range

This is the input frequency range over which the
synchronizer must be able to maintain
synchronization. The lock range is equal to the
capture range for the MT9042C.

Phase Slope

Phase slope is measured in seconds per second and
is the rate at which a given signal changes phase
with respect to an ideal signal. The given signal is
typically the output signal. The ideal signal is of
constant frequency and is nominally equal to the
value of the final output signal or final input signal.

Time Interval Error (TIE)

TIE is the time delay between a given timing signal
and an ideal timing signal.

Maximum Time Interval Error (MTIE)

MTIE is the maximum peak to peak delay between a
given timing signal and an ideal timing signal within a
particular obser vation period.

Phase Lock Time

This is the time it takes the synchronizer to phase
lock to the input signal. Phase lock occurs when the
input signal and output signal are not changing in
phase with respect to each other (not including jitter).

Lock time is very difficult to determine because it is
affected by many factors which include:

i) initial input to output phase difference
ii) initial input to output frequency difference
iii) synchronizer loop filter
iv) synchronizer limiter

Although a short lock time is desirable, it is not
always possible to achieve due to other synchronizer
requirements. For instance, better jitter transfer
performance is achieved with a lower frequency loop
filter which increases lock time. And better (smaller)
phase slope performance (limiter) results in longer
lock times. The MT9042C loop filter and limiter were
optimized to meet the AT&T TR62411 jitter transfer
and phase slope requirements. Consequently,
phase lock time, which is not a standards
requirement, may be longer than in other
applications. See AC Electrical Characteristics ­Performance for maximum phase lock time.

MTIE S() TIEmax t() TIEmin t()–=

12

Advance Information MT9042C

MT9042C and Network Specifications

The MT9042C fully meets all applicable PLL
requirements (intrinsic jitter, jitter tolerance, jitter
transfer, frequency accuracy, holdover accuracy,
capture range, phase change slope and MTIE during
reference rearrangement) for the following
specifications.

1. AT&T TR62411 (DS1) December 1990 for
Stratum 3, Stratum 4 Enhanced and Stratum 4

2. ANSI T1.101 (DS1) February 1994 for
Stratum 3, Stratum 4 Enhanced and Stratum 4

3. ETSI 300 011 (E1) April 1992 for
Single Access and Multi Access

4. TBR 4 November 1995

5. TBR 12 December 1993

6. TBR 13 January 1996

7. ITU-T I.431 March 1993

Applications

This section contains MT9042C application specific
details for clock and crystal operation, guard time
usage, reset operation, power supply decoupling,
Manual Control operation and Automatic Control
operation.

Master Clock

The MT9042C can use either a clock or crystal as
the master timing source.

In Freerun Mode, the frequency tolerance at the
clock outputs is identical to the frequency tolerance
of the source at the OSCi pin. For applications not
requiring an accurate Freerun Mode, tolerance of the
master timing source may be ±100ppm. For
applications requiring an accurate Freerun Mode,
such as AT&T TR62411, the tolerance of the master
timing source must Be no greater than ±32ppm.

Another consideration in determining the accuracy of
the master timing source is the desired capture
range. The sum of the accuracy of the master timing
source and the capture range of the MT9042C will
always equal ±230ppm. For example, if the master
timing source is ±100ppm, then the capture range
will be ±130ppm.

Clock Oscillator - when selecting a Clock Oscillator,
numerous parameters must be considered. This
includes absolute frequency, frequency change over
temperature, output rise and fall times, output levels
and duty cycle. See AC Electrical Characteristics.

MT9042C

OSCi

OSCo

No Connection

+5V

+5V

20MHz OUT

GND 0.1uF

Figure 9 - Clock Oscillator Circuit

For applications requiring ±32ppm clock accuracy,
the following clock oscillator module may be used.

13

MT9042C Advance Information

CTS CXO-65-HG-5-C-20.0MHz
Frequency: 20MHz
Tolerance: 25ppm 0C to 70C
Rise & Fall Time: 8ns (0.5V 4.5V 50pF)
Duty Cycle: 45% to 55%

The output clock should be connected directly (not
AC coupled) to the OSCi input of the MT9042C, and
the OSCo output should be left open as shown in
Figure 9.

Crystal Oscillator - Alternatively, a Crystal
Oscillator may be used. A complete oscillator circuit
made up of a crystal, resistor and capacitors is
shown in Figure 10.

MT9042C

OSCi

56pF

20MHz

39pF

3-50pF

1MΩ

Load Capacitance: 32pF
Maximum Series Resistance: 35
Approximate Drive Level: 1mW
e.g., CTS R1027-2BB-20.0MHZ
(

±

20ppm absolute,±6ppm 0C to 50C, 32pF, 25Ω)

Ω

Guard Time Adjustment

AT&T TR62411 recommends that excessive switching
of the timing reference should be minimized. And that
switching between ref erences only be performed when
the primary signal is degraded (e.g., error bursts of 2.5
seconds).

Minimizing switching (from PRI to SEC) in the
MT9042C can be realized by first entering Holdover
Mode for a predetermined maximum time (i.e., guard
time). If the degraded signal returns to normal before
the expiry of the guard time (e.g., 2.5 seconds), then
the MT9042C is returned to its Normal Mode (with no
reference switch taking place). Otherwise, the
reference input may be changed from Primary to
Secondary.

OSCo

100Ω

1uH inductor: may improve stability and is optional

1uH

Figure 10 - Crystal Oscillator Circuit

The accuracy of a crystal oscillator depends on the
crystal tolerance as well as the load capacitance
tolerance. Typically, for a 20MHz crystal specified
with a 32pF load capacitance, each 1pF change in
load capacitance contributes approximately 9ppm to
the frequency deviation. Consequently, capacitor
tolerances, and stray capacitances have a major
effect on the accuracy of the oscillator frequency.

The trimmer capacitor shown in Figure 10 may be
used to compensate for capacitive effects. If
accuracy is not a concern, then the trimmer may be
removed, the 39pF capacitor may be increased to
56pF, and a wider tolerance crystal may be
substituted.

The crystal should be a fundamental mode type - not
an overtone. The fundamental mode crystal permits
a simpler oscillator circuit with no additional filter
components and is less likely to generate spurious
responses. The crystal specification is as follows.

MT9042C

GTo

R

150kΩ

GTi

R

1kΩ

+

C

10uF

P

Figure 11 - Symmetrical Guard Time Circuit

A simple way to control the guard time (using
Automatic Control) is with an RC circuit as shown in
Figure 11. Resistor RP is for protection only and
limits the current flowing into the GTi pin during
power down conditions. The guard time can be
calculated as follows.

V



DD

guard

guard

time

time

RC

RC 0.6×≈

--------------------------------- -

ln×=



V

–



DDVSIH

example

Frequency: 20MHz
Tolerance: As required
Oscillation Mode: Fundamental
Resonance Mode: Parallel

14

guard

•V

is the logic high going threshold level for the

SIH

GTi Schmitt Tr igger input, see DC Electrical
Characteristics

time

150k 10u× 0.6 0.9s=×≈

Advance Information MT9042C

SEC
SIGNAL
STATUS

LOS2

PRI
SIGNAL
STATUS

LOS1

GTo

GTi

MT9042C

STATE

NOTES:

1. TD represents the time delay from when the reference goes
bad to when the MT9042C is provided with a LOS indication.

GOOD

V

SIH

PRI

NORMAL

BAD

T

D

PRI

HOLDOVER

GOOD

NORMAL

GOOD

PRI

T

D

PRI

HOLDOVER

BAD

SEC

NORMAL

GOOD

PRI

NORMAL

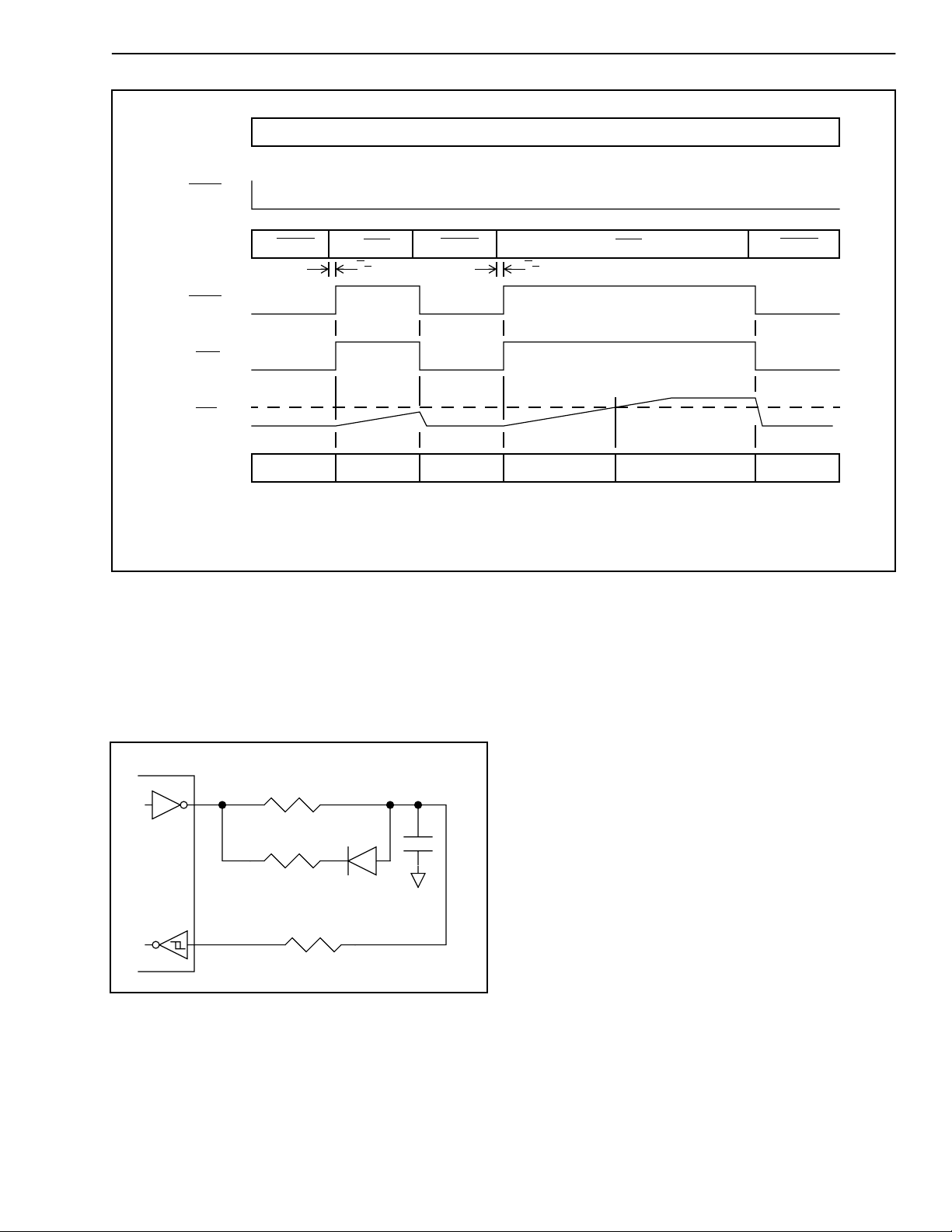

Figure 12 - Automatic Control, Unsymmetrical Guard Time Circuit Timing Example

In cases where fast toggling might be expected of
the LOS1 input, then an unsymmetrical Guard Time
Circuit is recommended. This ensures that reference
switching doesn’t occur until the full guard time value
has expired. An unsymmetrical Guard Time Circuit
is shown in Figure 12.

MT9042C

GTo

+

C

10uF

GTi

R

C

150kΩ

R

D

1kΩ

R

1kΩ

P

Figure 13 - Unsymmetrical Guard Time

Circuit

Figure 13 shows a typical timing example of an
unsymmetrical Guard Time Circuit with the
MT9042C in Automatic Control.

TIE Correction (using GTi)

When Primary Holdover Mode is entered for short
time periods, TIE correction should not be enabled.
This will prevent unwanted accumulated phase
change between the input and output. This is mainly
applicable to Manual Control, since Automatic
Control together with the Guard Time Circuit
inherently operate in this manner.

For instance, 10 Normal to Holdover to Normal mode
change sequences occur, and in each case Holdover
was entered for 2s. Each mode change sequence
could account for a phase change as large as 350ns.
Thus, the accumulated phase change could be as
large as 3.5us, and, the overall MTIE could be as
large as 3.5us.

Phase

hold

Phase

state

Phase

10

• 0.05ppm is the accuracy of Holdover Mode

• 50ns is the maximum phase continuity of the
MT9042C from Normal Mode to Holdover Mode

• 200ns is the maximum phase continuity of the
MT9042C from Holdover Mode to Normal Mode (with
or without TIE Corrector Circuit)

0.05ppm 2s× 100ns==

50ns 200ns 250ns=+=

10 250ns 100ns+()× 3.5us==

15

MT9042C Advance Information

To Line 1

To

TX Line

XFMR

To

RX Line

XFMR

To Line 2

To

TX Line

XFMR

To

RX Line

XFMR

MT9074

TTIP
TRING

RTIP
RRING

MT9074

TTIP
TRING

RTIP
RRING

DSTo

DSTi

F0i

C4i

E1.5o

LOS

DSTo

DSTi

F0i

C4i

E1.5o

LOS

+ 5V

1kΩ

MT9042C

PRI

SEC

LOS1
LOS2

MS1
MS2

RSEL
TRST
RST

10kΩ

10nF

F0o

C4o
C2o

FS1
FS2

GTo

GTi

OSCi

+ 5V

+ 5V

150kΩ

1kΩ

1kΩ

+

10uF

CLOCK

Out

20MHz ±32ppm

MT8985

STo0

STi0

STo1

STi1

F0i

C4i

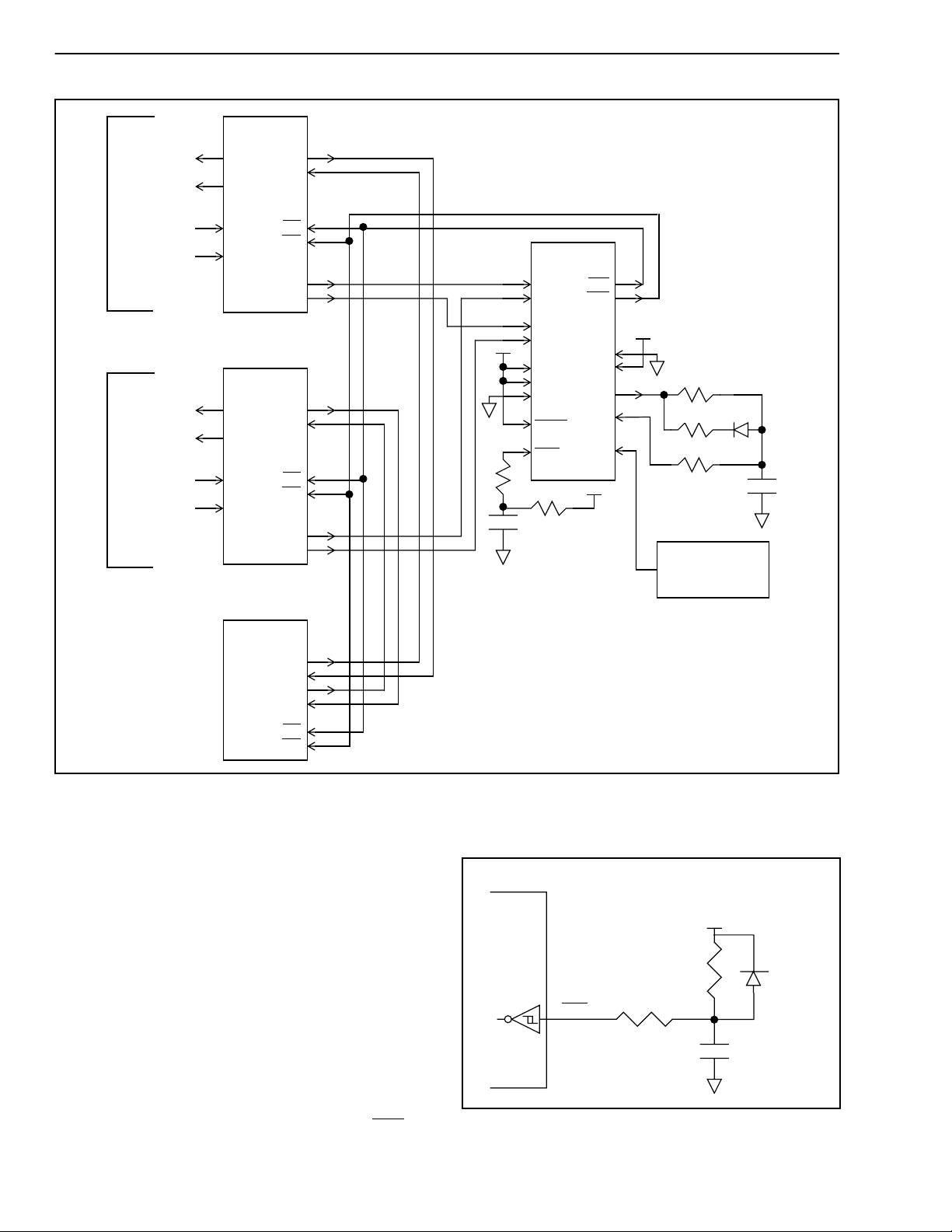

Figure 14 - Dual T1 Reference Sources with MT9042C in 1.544MHz Automatic Control

When 10 Normal to Holdover to Normal mode
change sequences occur without MTIE enabled, and
in each case holdover was entered for 2s, each
mode change sequence could still account for a
phase change as large as 350ns. However, there
would be no accumulated phase change, since the
input to output phase is re-aligned after every
Holdover to Normal state change. The overall MTIE
would only be 350ns.

Reset Circuit

A simple power up reset circuit with about a 50us
reset low time is shown in Figure 15. Resistor RP is
for protection only and limits current into the RST pin
during power down conditions. The reset low time is
not critical but should be greater than 300ns.

MT9042C

+5V

R

10kΩ

RST

R

P

1kΩ

Figure 15 - Power-Up Reset Circuit

C

10nF

16

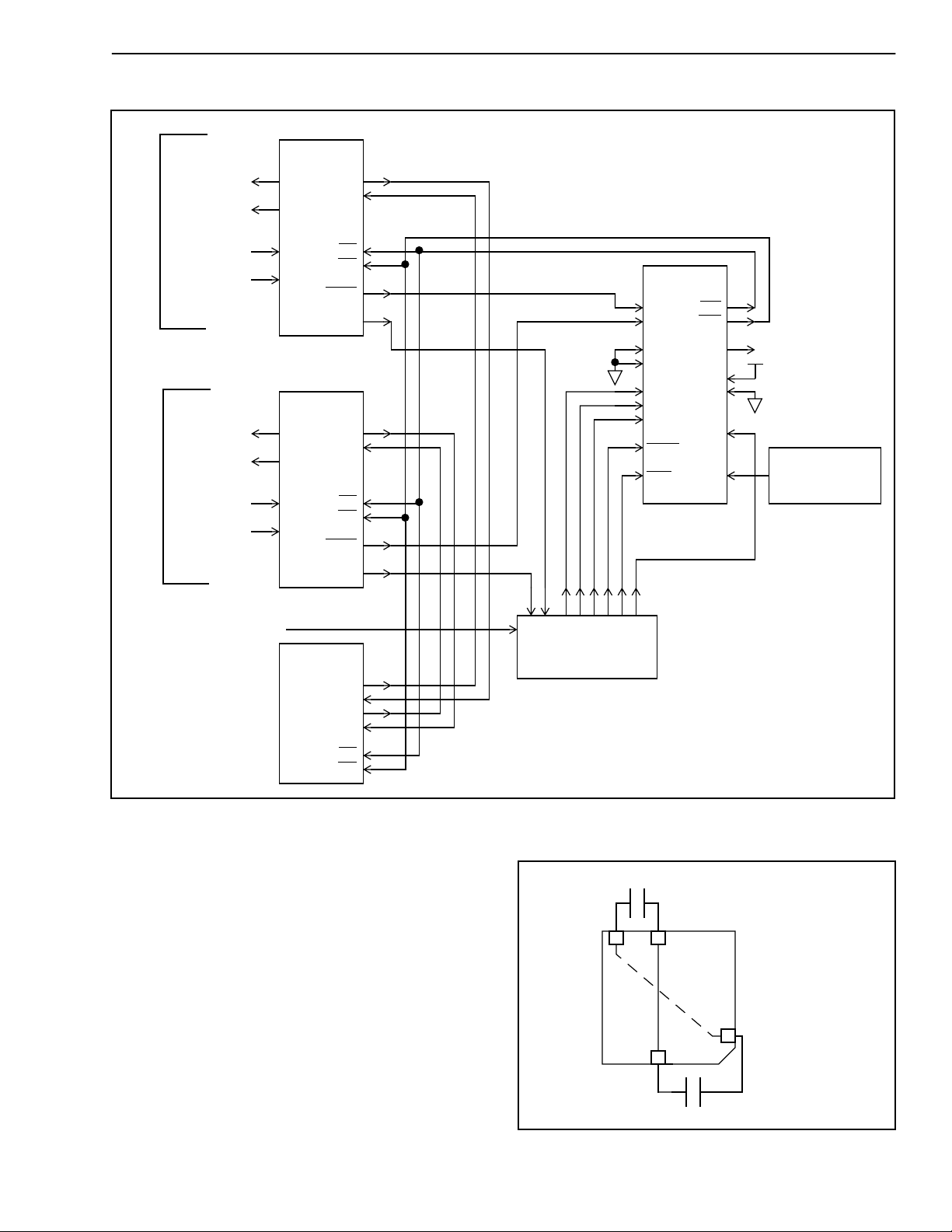

Advance Information MT9042C

To Line 1

To

TX Line

XFMR

To

RX Line

XFMR

To Line 2

To

TX Line

XFMR

To

RX Line

XFMR

MT9075

TTIP
TRING

RTIP
RRING

MT9075

TTIP
TRING

RTIP
RRING

DSTo

DSTi

F0i

C4i

RxFP

LOS

DSTo

DSTi

F0i

C4i

RxFP

LOS

MT9042C

PRI

SEC

LOS1
LOS2

MS1
MS2

RSEL
TRST
RST

F0o
C4o

C1.5o

FS1
FS2

GTi

OSCi

+ 5V

CLOCK

Out

20MHz ±32ppm

External Stimulus

MT8985

STo0

STi0

STo1

STi1

F0i

C4i

Figure 16 - Dual E1 Reference Sources with MT9042C in 8kHz Manual Control

Power Supply Decoupling

The MT9042C has two VDD (+5V) pins and two VSS
(GND) pins. Power and decoupling capacitors
should be included as shown in Figure 17.

CONTROLLER

C1

0.1uF

+

18

15

MT9042C

+

1

5

C2

0.1uF

Figure 17 - Power Supply Decoupling

17

MT9042C Advance Information

Absolute Maximum Ratings* - Voltages are with respect to ground (V

) unless otherwise stated.

SS

Parameter Symbol Min Max Units

1 Supply voltage V
2 Voltage on any pin V
3 Current on any pin I
4 Storage temperature T
5 PLCC package power dissipation P

* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.

DD

PIN

PIN

ST

PD

Recommended Operating Conditions* - * Voltages are with respect to ground (V

-0.3 7.0 V

-0.3 VDD+0.3 V
20 mA

-55 125 °C
900 mW

) unless otherwise stated.

SS

Characteristics Sym Min Max Units

1 Supply voltage V
2 Operating temperature T

DD

A

DC Electrical Characteristics* - * Voltages are with respect to ground (V

4.5 5.5 V

-40 85 C

) unless otherwise stated.

SS

Characteristics Sym Min Max Units Conditions/Notes

1 Supply current with: OSCi = 0V I
2 OSCi = Clock I
3 TTL high-level input voltage V
4 TTL low-level input voltage V
5 CMOS high-level input voltage V
6 CMOS low-level input voltage V
7 Schmitt high-level input voltage V
8 Schmitt low-level input voltage V

9 Schmitt hysteresis voltage V
10 Input leakage current I
11 High-level output voltage V
12 Low-level output voltage V

* Supply voltage and operating temperature are as per Recommended Operating Conditions.

DDS

DD

IH

IL

CIH

CIL

SIH

SIL

HYS

IL

OH

OL

2.0 V

0.7V

DD

2.3 V GTi, RST

0.4 V GTi, RST

-10 +10 uAVI=VDD or 0V

0.8V

DD

10 mA Outputs unloaded
60 mA Outputs unloaded

0.8 V

0.3V

DD

0.8 V GTi, RST

0.2V

DD

V OSCi
V OSCi

VIOH=4mA
VIOL=4mA

18

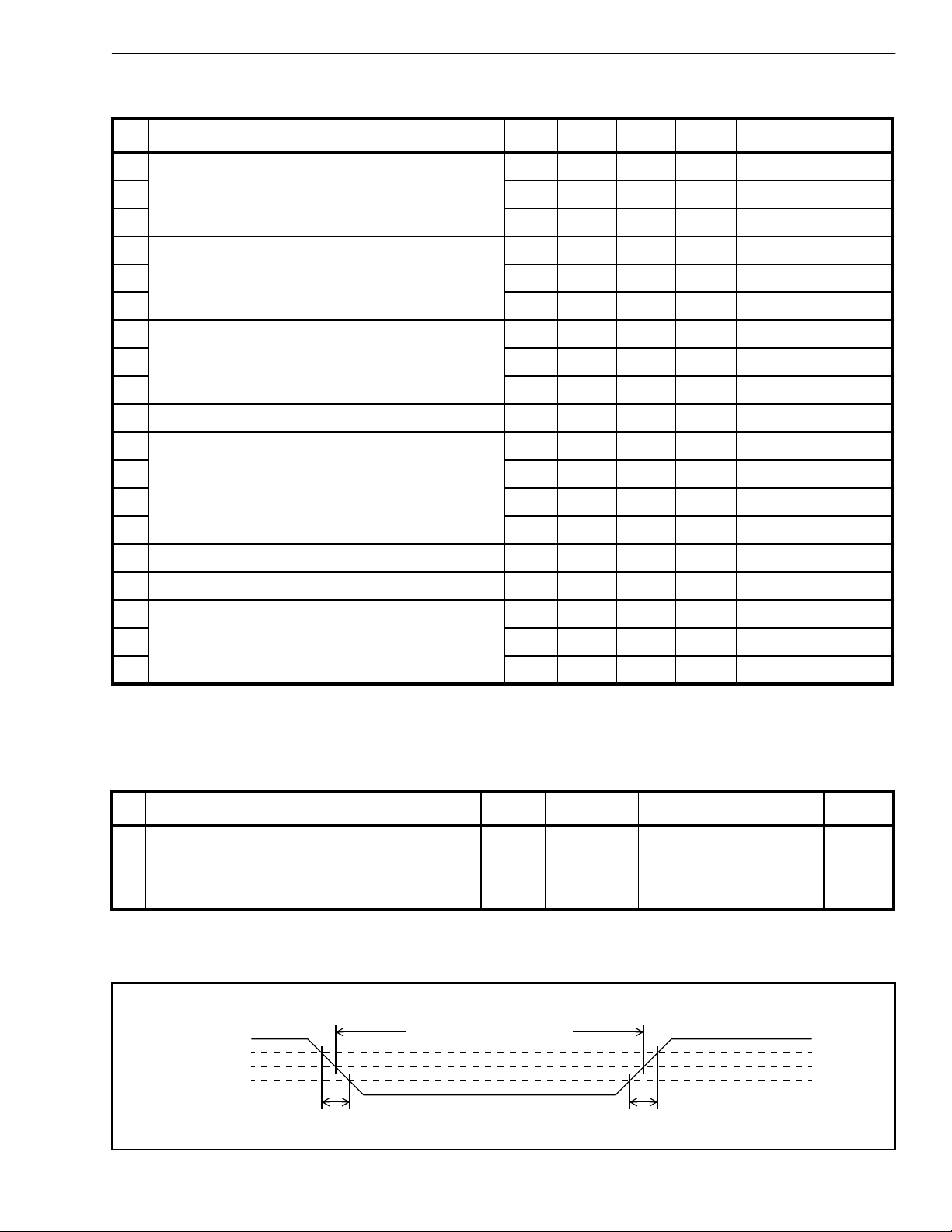

Advance Information MT9042C

AC Electrical Characteristics - Performance

Characteristics Sym Min Max Units Conditions/Notes†

1 Freerun Mode accuracy with OSCi at: ±0ppm -0 +0 ppm 5-8
2 ±32ppm -32 +32 ppm 5-8
3 ±100ppm -100 +100 ppm 5-8
4 Holdov er Mode accur acy with OSCi at: ±0ppm -0.05 +0.05 ppm 1,2,4,6-8,40
5 ±32ppm -0.05 +0.05 ppm 1,2,4,6-8,40
6 ±100ppm -0.05 +0.05 ppm 1,2,4,6-8,40
7 Capture range with OSCi at: ±0ppm -230 +230 ppm 1-3,6-8
8 ±32ppm -198 +198 ppm 1-3,6-8

9 ±100ppm -130 +130 ppm 1-3,6-8
10 Phase lock time 30 s 1-3,6-14
11 Output phase continuity with: reference switch 200 ns 1-3,6-14
12 mode switch to Normal 200 ns 1-2,4-14
13 mode switch to Freerun 200 ns 1-,4,6-14
14 mode switch to Holdover 50 ns 1-3,6-14
15 MTIE (maximum time interval error) 600 ns 1-14,27
16 Output phase slope 45 us/s 1-14,27
17 Reference input for Auto-Holdover with: 8kHz -18k +18k ppm 1-3,6,9-11
18 1.544MHz -36k +36k ppm 1-3,7,9-11
19 2.048MHz -36k +36k ppm 1-3,8-11

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - Timing Parameter Measurement Voltage Levels* - Voltages are

with respect to ground (VSS) unless otherwise stated.

Characteristics Sym Schmitt TTL CMOS Units

1 Threshold Voltage V
2 Rise and Fall Threshold Voltage High V
3 Rise and Fall Threshold Voltage Low V

* Supply voltage and operating temperature are as per Recommended Operating Conditions.
* Timing for input and output signals is based on the worst case result of the combination of TTL and CMOS thresholds.
* See Figure 18.

T

HM

LM

1.5 1.5 0.5V

2.3 2.0 0.7V

0.8 0.8 0.3V

DD
DD
DD

V
V
V

ALL SIGNALS

Timing Reference Points

t

IRF, tORF

t

IRF, tORF

Figure 18 - Timing Parameter Measurement Voltage Levels

V

HM

V

T

V

LM

19

MT9042C Advance Information

AC Electrical Characteristics - Input/Output Timing

Characteristics Sym Min Max Units

1 Reference input pulse width high or low t
2 Reference input rise or fall time t
3 8kHz reference input to F8o delay t
4 1.544MHz reference input to F8o delay t
5 2.048MHz reference input to F8o delay t
6 F8o to F0o delay t
7 F16o setup to C16o falling t
8 F16o hold from C16o rising t

9 F8o to C1.5o delay t
10 F8o to C3o delay t
11 F8o to C2o delay t
12 F8o to C4o delay t
13 F8o to C8o delay t
14 F8o to C16o delay t
15 C1.5o pulse width high or low t
16 C3o pulse width high or low t
17 C2o pulse width high or low t
18 C4o pulse width high or low t
19 C8o pulse width high or low t
20 C16o pulse width high or low t
21 F0o pulse width low t
22 F8o pulse width high t
23 F16o pulse width low t
24 Output clock and frame pulse rise or fall time t
25 Input Controls Setup Time t
26 Input Controls Hold Time t

† See "Notes" following AC Electrical Characteristics tables.

RW
IRF

R8D

R15D

R2D

F0D

F16S
F16H
C15D

C3D
C2D
C4D
C8D

C16D

C15W

C3W

C2W

C4W

C8W

C16WL

F0WL
F8WH

F16WL

ORF

S

H

100 ns

10 ns

-21 6 ns
337 363 ns
222 238 ns
110 134 ns

11 35 ns

020ns

-51 -37 ns

-51 -37 ns

-13 2 ns

-13 2 ns

-13 2 ns

-13 2 ns
309 339 ns
149 175 ns
230 258 ns
111 133 ns

52 70 ns

24 35 ns
230 258 ns
111 133 ns

52 70 ns

9ns
100 ns
100 ns

20

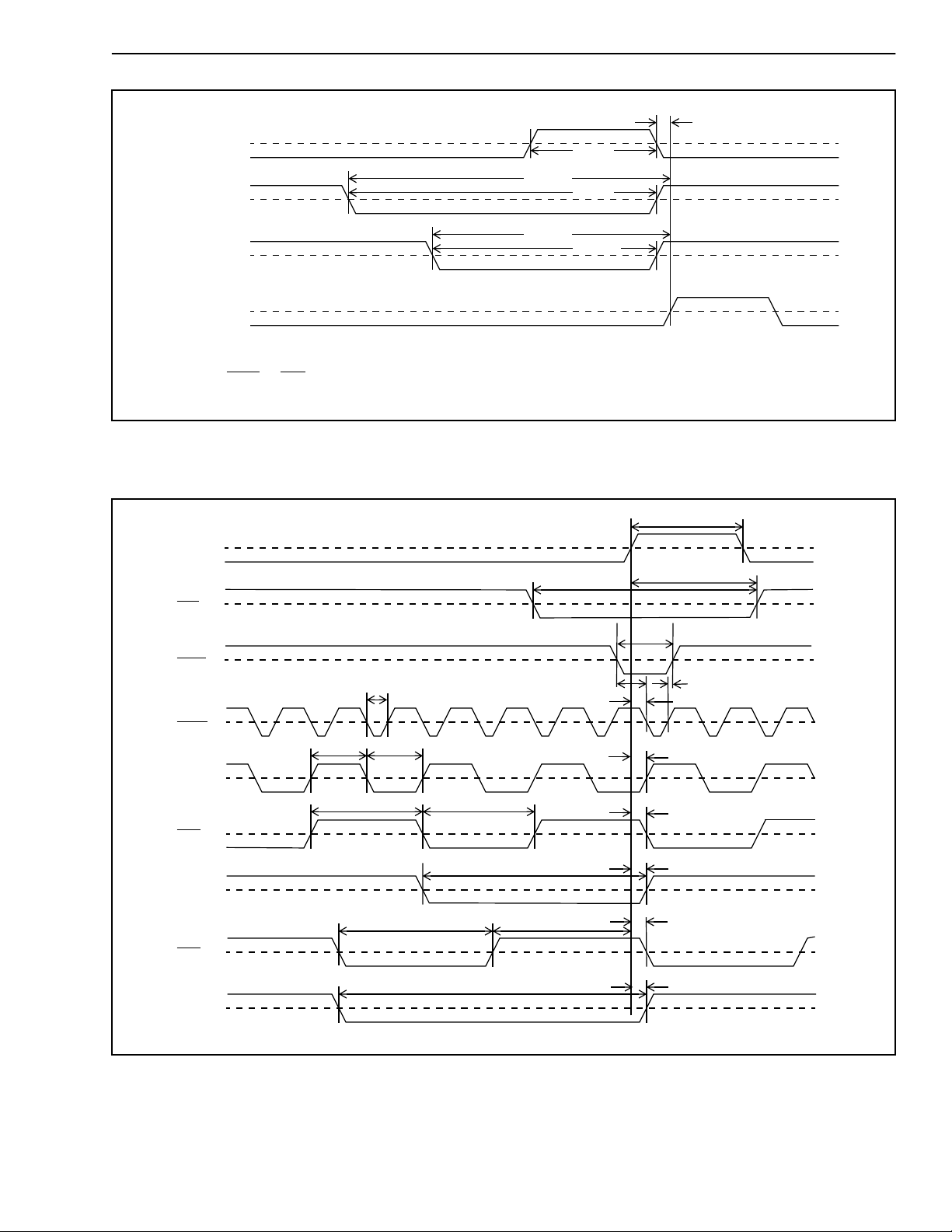

Advance Information MT9042C

t

PRI/SEC
8kHz

PRI/SEC

1.544MHz

PRI/SEC

2.048MHz

t

R15D

t

R2D

t

t

t

RW

RW

RW

R8D

V

T

V

T

V

T

NOTES:

F8o

1. Input to output delay values
are valid after a TRST or RST
with no further state changes

F8o

F0o

F16o

C16o

C8o

C4o

Figure 19 - Input to Output Timing (Normal Mode)

t

F8WH

t

t

C8D

t

C4D

F0D

t

C16D

t

C16WL

t

C8W

t

C4W

t

C8W

t

C4W

t

F0WL

t

F16S

t

F16WL

t

F16H

V

T

V

T

V

T

V

T

V

T

V

T

V

T

C2o

C3o

C1.5o

t

C2W

t

C3W

t

C15W

t

C3W

Figure 20 - Output Timing 1

t

C2D

t

C3D

t

C15D

V

T

V

T

V

T

21

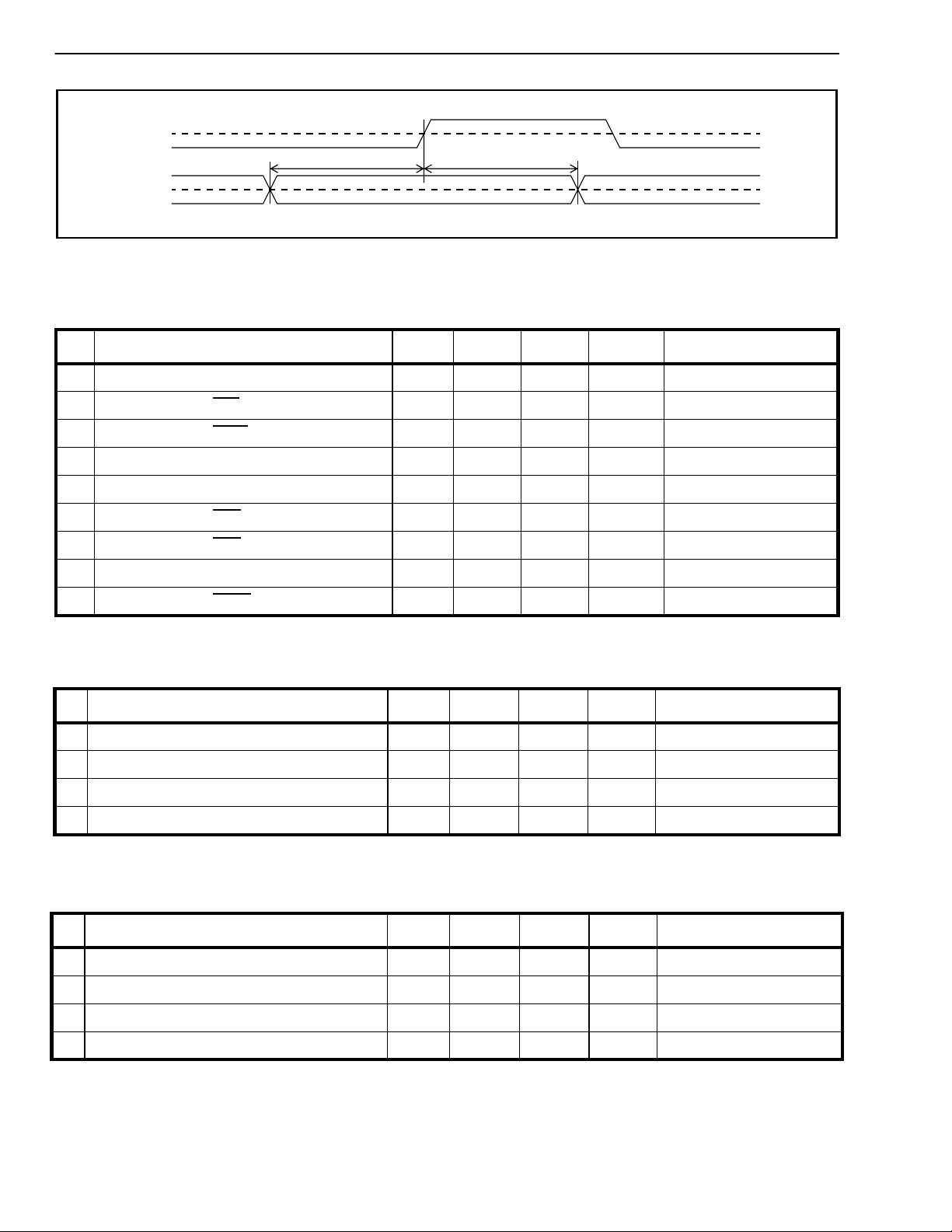

MT9042C Advance Information

F8o

MS1,2
LOS1,2
RSEL, GTi

t

S

t

H

Figure 21 - Input Controls Setup and Hold Timing

AC Electrical Characteristics - Intrinsic Jitter Unfiltered

Characteristics Sym Min Max Units Conditions/Notes†

1 Intrinsic jitter at F8o (8kHz) 0.0002 UIpp 1-14,21-24,28
2 Intrinsic jitter at F0o (8kHz) 0.0002 UIpp 1-14,21-24,28
3 Intrinsic jitter at F16o (8kHz) 0.0002 UIpp 1-14,21-24,28
4 Intrinsic jitter at C1.5o (1.544MHz) 0.030 UIpp 1-14,21-24,29
5 Intrinsic jitter at C2o (2.048MHz) 0.040 UIpp 1-14,21-24,30
6 Intrinsic jitter at C3o (3.088MHz) 0.060 UIpp 1-14,21-24,31
7 Intrinsic jitter at C4o (4.096MHz) 0.080 UIpp 1-14,21-24,32
8 Intrinsic jitter at C8o (8.192MHz) 0.160 UIpp 1-14,21-24,33

V

T

V

T

9 Intrinsic jitter at C16o (16.384MHz) 0.320 UIpp 1-14,21-24,34

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - C1.5o (1.544MHz) Intrinsic Jitter Filtered

Characteristics Sym Min Max Units Conditions/Notes†

1 Intrinsic jitter (4Hz to 100kHz filter) 0.015 UIpp 1-14,21-24,29
2 Intrinsic jitter (10Hz to 40kHz filter) 0.010 UIpp 1-14,21-24,29
3 Intrinsic jitter (8kHz to 40kHz filter) 0.010 UIpp 1-14,21-24,29
4 Intrinsic jitter (10Hz to 8kHz filter) 0.005 UIpp 1-14,21-24,29

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - C2o (2.048MHz) Intrinsic Jitter Filtered

Characteristics Sym Min Max Units Conditions/Notes†

1 Intrinsic jitter (4Hz to 100kHz filter) 0.015 UIpp 1-14,21-24,30
2 Intrinsic jitter (10Hz to 40kHz filter) 0.010 UIpp 1-14,21-24,30
3 Intrinsic jitter (8kHz to 40kHz filter) 0.010 UIpp 1-14,21-24,30
4 Intrinsic jitter (10Hz to 8kHz filter) 0.005 UIpp 1-14,21-24,30

† See "Notes" following AC Electrical Characteristics tables

22

Advance Information MT9042C

AC Electrical Characteristics - 8kHz Input to 8kHz Output Jitter Transfer

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter attenuation for 1Hz@0.01UIpp input 0 6 dB 1-3,6,9-14,21-22,24,28,35
2 Jitter attenuation for 1Hz@0.54UIpp input 6 16 dB 1-3,6,9-14,21-22,24,28,35
3 Jitter attenuation for 10Hz@0.10UIpp input 12 22 dB 1-3,6,9-14,21-22,24,28,35
4 Jitter attenuation for 60Hz@0.10UIpp input 28 38 dB 1-3,6,9-14,21-22,24,28,35
5 Jitter attenuation for 300Hz@0.10UIpp input 42 dB 1-3,6,9-14,21-22,24,28,35
6 Jitter attenuation for 3600Hz@0.005UIpp input 45 dB 1-3,6,9-14,21-22,24,28,35

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - 1.544MHz Input to 1.544MHz Output Jitter Transfer

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter attenuation for 1Hz@20UIpp input 0 6 dB 1-3,7,9-14,21-22,24,29,35
2 Jitter attenuation for 1Hz@104UIpp input 6 16 dB 1-3,7,9-14,21-22,24,29,35
3 Jitter attenuation for 10Hz@20UIpp input 12 22 dB 1-3,7,9-14,21-22,24,29,35
4 Jitter attenuation for 60Hz@20UIpp input 28 38 dB 1-3,7,9-14,21-22,24,29,35
5 Jitter attenuation for 300Hz@20UIpp input 42 dB 1-3,7,9-14,21-22,24,29,35
6 Jitter attenuation for 10kHz@0.3UIpp input 45 dB 1-3,7,9-14,21-22,24,29,35
7 Jitter attenuation for 100kHz@0.3UIpp input 45 dB 1-3,7,9-14,21-22,24,29,35

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - 2.048MHz Input to 2.048 MHz Output Jitter Transfer

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter at output for 1Hz@3.00UIpp input 2.9 UIpp 1-3,8,9-14,21-22,24,30,35
2 with 40Hz to 100kHz filter 0.09 UIpp 1-3,8,9-14,21-22,24,30,36
3 Jitter at output for 3Hz@2.33UIpp input 1.3 UIpp 1-3,8,9-14,21-22,24,30,35
4 with 40Hz to 100kHz filter 0.10 UIpp 1-3,8,9-14,21-22,24,30,36
5 Jitter at output for 5Hz@2.07UIpp input 0.80 UIpp 1-3,8,9-14,21-22,24,30,35
6 with 40Hz to 100kHz filter 0.10 UIpp 1-3,8,9-14,21-22,24,30,36
7 Jitter at output for 10Hz@1.76UIpp input 0.40 UIpp 1-3,8,9-14,21-22,24,30,35
8 with 40Hz to 100kHz filter 0.10 UIpp 1-3,8,9-14,21-22,24,30,36

9 Jitter at output for 100Hz@1.50UIpp input 0.06 UIpp 1-3,8,9-14,21-22,24,30,35
10 with 40Hz to 100kHz filter 0.05 UIpp 1-3,8,9-14,21-22,24,30,36
11 Jitter at output for 2400Hz@1.50UIpp input 0.04 UIpp 1-3,8,9-14,21-22,24,30,35
12 with 40Hz to 100kHz filter 0.03 UIpp 1-3,8,9-14,21-22,24,30,36
13 Jitter at output for 100kHz@0.20UIpp input 0.04 UIpp 1-3,8,9-14,21-22,24,30,35
14 with 40Hz to 100kHz filter 0.02 UIpp 1-3,8,9-14,21-22,24,30,36

† See "Notes" following AC Electrical Characteristics tables.

23

MT9042C Advance Information

AC Electrical Characteristics - 8kHz Input Jitter Tolerance

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter tolerance for 1Hz input 0.80 UIpp 1-3,6,9-14,21-22,24-26,28
2 Jitter tolerance for 5Hz input 0.70 UIpp 1-3,6,9-14,21-22,24-26,28
3 Jitter tolerance for 20Hz input 0.60 UIpp 1-3,6,9-14,21-22,24-26,28
4 Jitter tolerance for 300Hz input 0.20 UIpp 1-3,6,9-14,21-22,24-26,28
5 Jitter tolerance for 400Hz input 0.15 UIpp 1-3,6,9-14,21-22,24-26,28
6 Jitter tolerance for 700Hz input 0.08 UIpp 1-3,6,9-14,21-22,24-26,28
7 Jitter tolerance for 2400Hz input 0.02 UIpp 1-3,6,9-14,21-22,24-26,28
8 Jitter tolerance for 3600Hz input 0.01 UIpp 1-3,6,9-14,21-22,24-26,28

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - 1.544MHz Input Jitter Tolerance

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter tolerance for 1Hz input 150 UIpp 1-3,7,9-14,21-22,24-26,29
2 Jitter tolerance for 5Hz input 140 UIpp 1-3,7,9-14,21-22,24-26,29
3 Jitter tolerance for 20Hz input 130 UIpp 1-3,7,9-14,21-22,24-26,29
4 Jitter tolerance for 300Hz input 35 UIpp 1-3,7,9-14,21-22,24-26,29
5 Jitter tolerance for 400Hz input 25 UIpp 1-3,7,9-14,21-22,24-26,29
6 Jitter tolerance for 700Hz input 15 UIpp 1-3,7,9-14,21-22,24-26,29
7 Jitter tolerance for 2400Hz input 4 UIpp 1-3,7,9-14,21-22,24-26,29
8 Jitter tolerance for 10kHz input 1 UIpp 1-3,7,9-14,21-22,24-26,29
9 Jitter tolerance for 100kHz input 0.5 UIpp 1-3,7,9-14,21-22,24-26,29

† See "Notes" following AC Electrical Characteristics tables.

AC Electrical Characteristics - 2.048MHz Input Jitter Tolerance

Characteristics Sym Min Max Units Conditions/Notes†

1 Jitter tolerance for 1Hz input 150 UIpp 1-3,8,9-14,21-22,24-26,30
2 Jitter tolerance for 5Hz input 140 UIpp 1-3,8,9-14,21-22,24-26,30
3 Jitter tolerance for 20Hz input 130 UIpp 1-3,8,9-14,21-22,24-26,30
4 Jitter tolerance for 300Hz input 50 UIpp 1-3,8,9-14,21-22,24-26,30
5 Jitter tolerance for 400Hz input 40 UIpp 1-3,8,9-14,21-22,24-26,30
6 Jitter tolerance for 700Hz input 20 UIpp 1-3,8,9-14,21-22,24-26,30
7 Jitter tolerance for 2400Hz input 5 UIpp 1-3,8,9-14,21-22,24-26,30
8 Jitter tolerance for 10kHz input 1 UIpp 1-3,8,9-14,21-22,24-26,30
9 Jitter tolerance for 100kHz input 1 UIpp 1-3,8,9-14,21-22,24-26,30

† See "Notes" following AC Electrical Characteristics tables.

24

Advance Information MT9042C

AC Electrical Characteristics - OSCi 20MHz Master Clock Input

Characteristics Sym Min Max Units Conditions/Notes†

1 Frequency accuracy

(20 MHz nominal)

2 -32 +32 ppm 16,19

-0 +0 ppm 15,18

3 -100 +100 ppm 17,20

4 Duty cycle 40 60 %

5 Rise time 10 ns

6 Fall time 10 ns

† See "Notes" following AC Electrical Characteristics tables.

† Notes:

Voltages are with respect to ground (VSS) unless otherwise stated.
Supply voltage and operating temperature are as per Recommended Operating Conditions.
Timing parameters are as per AC Electrical Characteristics - Timing Parameter Measurement Voltage Levels

1. PRI reference input selected.

2. SEC reference input selected.

3. Normal Mode selected.

4. Holdover Mode selected.

5. Freerun Mode selected.

6. 8kHz Frequency Mode selected.

7. 1.544MHz Frequency Mode selected.

8. 2.048MHz Frequency Mode selected.

9. Master clock input OSCi at 20MHz ±0ppm.

10. Master clock input OSCi at 20MHz ±32ppm.

11. Master clock input OSCi at 20MHz ±100ppm.

12. Selected reference input at ±0ppm.

13. Selected reference input at ±32ppm.

14. Selected reference input at ±100ppm.

15. For Freerun Mode of ±0ppm.

16. For Freerun Mode of ±32ppm.

17. For Freerun Mode of ±100ppm.

18. For capture range of ±230ppm.

19. For capture range of ±198ppm.

20. For capture range of ±130ppm.

21. 25pF capacitive load.

22. OSCi Master Clock jitter is less than 2nspp, or 0.04UIpp where1UIpp=1/20MHz.

23. Jitter on reference input is less than 7nspp.

24. Applied jitter is sinusoidal.

25. Minimum applied input jitter magnitude to regain synchronization.

26. Loss of synchronization is obtained at slightly higher input jitter amplitudes.

27. Within 10ms of the state, reference or input change.

28. 1UIpp = 125us for 8kHz signals.

29. 1UIpp = 648ns for 1.544MHz signals.

30. 1UIpp = 488ns for 2.048MHz signals.

31. 1UIpp = 323ns for 3.088MHz signals.

32. 1UIpp = 244ns for 4.096MHz signals.

33. 1UIpp = 122ns for 8.192MHz signals.

34. 1UIpp = 61ns for 16.384MHz signals.

35. No filter.

36. 40Hz to 100kHz bandpass filter.

37. With respect to reference input signal frequency.

38. After a RST or TRST.

39. Master clock duty cycle 40% to 60%.

40. Prior to Holdover Mode, device was in Normal Mode and phase locked.

25

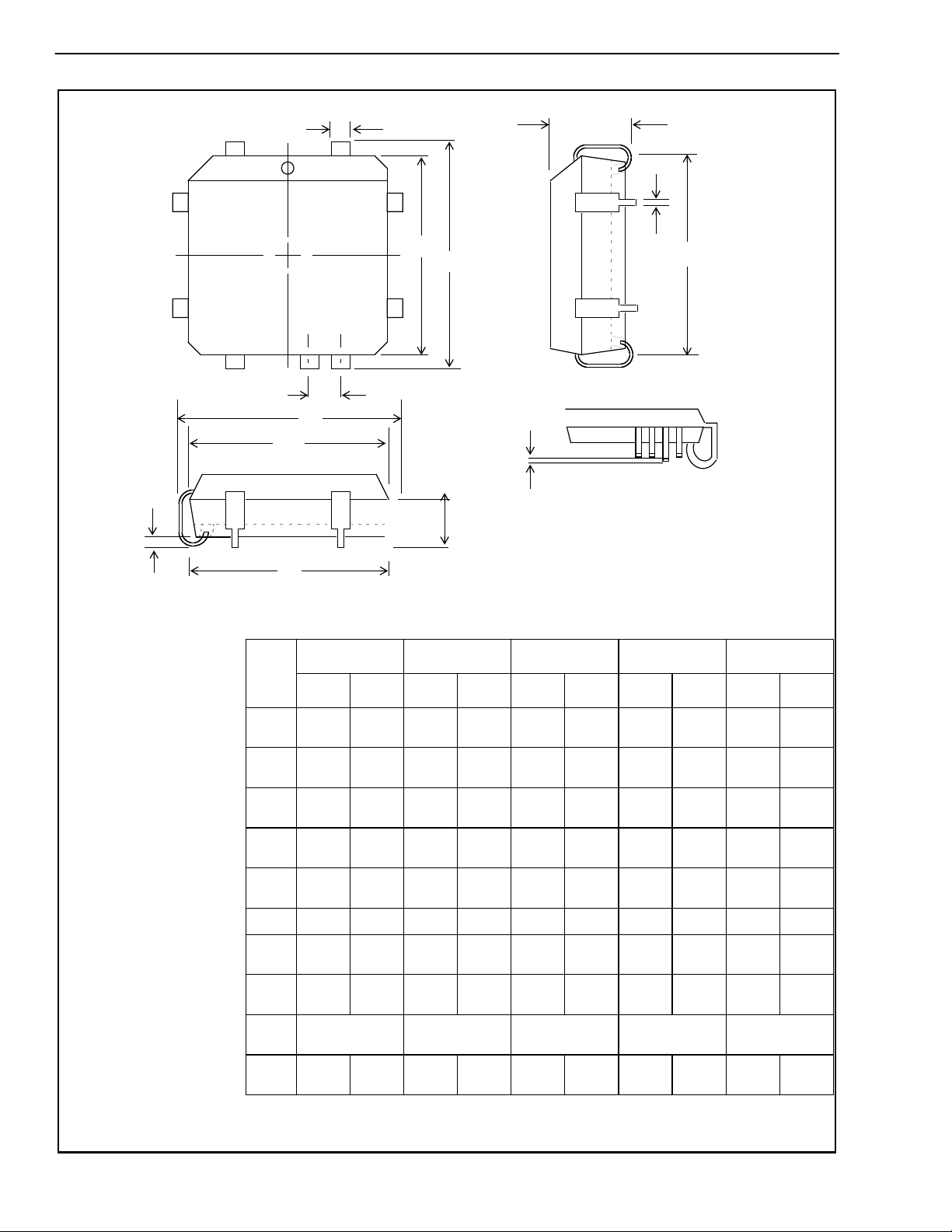

MT9042C Advance Information

F

D

1

D

H

E

E

1

e: (lead coplanarity)

A

1

I

E

2

Notes:

1) Not to scale

2) Dimensions in inches

3) (Dimensions in millimeters)

4) For D & E add for allowable Mold Protrusion 0.010"

A

G

D

2

Dim

A

A

D/E

D1/E

D2/E

e
F

G

H

I

20-Pin 28-Pin 44-Pin 68-Pin 84-Pin

Min Max Min Max Min Max Min Max Min Max

0.165

(4.20)

0.090

1

(2.29)

0.385

(9.78)

0.350

1

(8.890)

0.290

2

(7.37)

0.026

(0.661)

0.013

(0.331)

0.020

(0.51)

0.180

(4.57)

0.120

(3.04)

0.395

(10.03)

0.356

(9.042)

0.330

(8.38)

0 0.004 0 0.004 0 0.004 0 0.004 0 0.004

0.032

(0.812)

0.021

(0.533)

0.050 BSC
(1.27 BSC)

0.165
(4.20)

0.090
(2.29)

0.485

(12.32)

0.450

(11.430)

0.390
(9.91)

0.026

(0.661)

0.013

(0.331)

0.050 BSC

(1.27 BSC)

0.020
(0.51)

0.180

(4.57)

0.120
(3.04)

0.495

(12.57)

0.456

(11.582)

0.430

(10.92)

0.032

(0.812)

0.021

(0.533)

0.165

(4.20)

0.090

(2.29)

0.685

(17.40)

0.650

(16.510)

0.590

(14.99)

0.026

(0.661)

0.013

(0.331)

0.050 BSC
(1.27 BSC)

0.020

(0.51)

0.180
(4.57)

0.120
(3.04)

0.695

(17.65)

0.656

(16.662)

0.630

(16.00)

0.032

(0.812)

0.021

(0.533)

0.165
(4.20)

0.090
(2.29)

0.985

(25.02)

0.950

(24.130)

0.890

(22.61)

0.026

(0.661)

0.013

(0.331)

0.050 BSC
(1.27 BSC)

0.020
(0.51)

0.200
(5.08)

0.130
(3.30)

0.995

(25.27)

0.958

(24.333)

0.930

(23.62)

0.032

(0.812)

0.021

(0.533)

0.165
(4.20)

0.090
(2.29)

1.185

(30.10)

1.150

(29.210)

1.090

(27.69)

0.026

(0.661)

0.013

(0.331)

0.020
(0.51)

0.200
(5.08)

0.130
(3.30)

1.195

(30.35)

1.158

(29.413)

1.130

(28.70)

0.032

(0.812)

0.021

(0.533)

0.050 BSC
(1.27 BSC)

26

Plastic J-Lead Chip Carrier - P-Suffix

Advance Information MT9042C

Notes:

27

http://www.mitelsemi.com

World Headquarters - Canada

Tel: [phone]

Fax: [phone]

North America Asia/Pacific Europe, Middle East,

Tel: [phone] Tel: [phone] and Africa (EMEA)

Fax: [phone] Fax: [phone] Tel: [phone]

Fax: [phone]

Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.

This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form part of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.

M Mitel (design) and ST-BUS are registered trademarks of MITEL Corporation
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA

TECHNICAL DOCUMENTATION - NOT FOR RESALE
