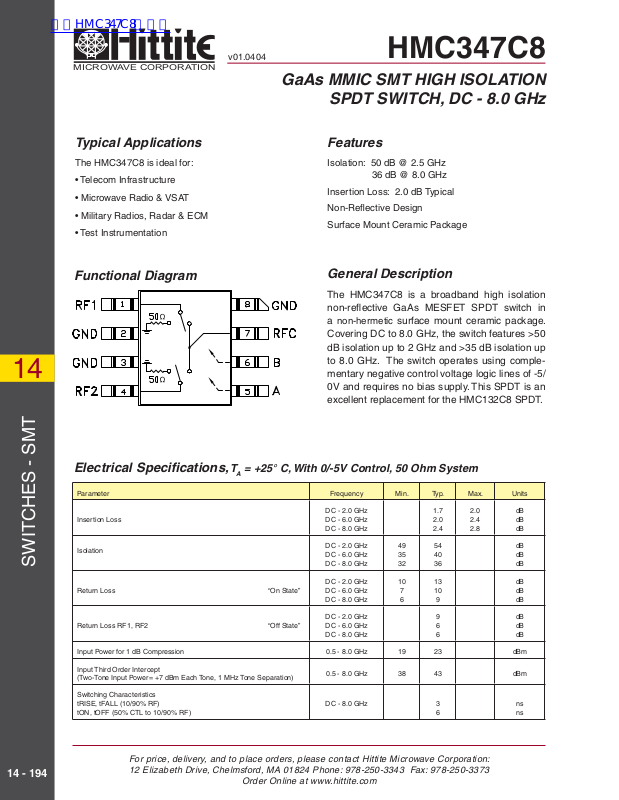

HMC347C8
SPDT SWITCH, DC - 8.0 GHz
Features
Isolation: 50 dB @ 2.5 GHz 36 dB @ 8.0 GHz
Insertion Loss: 2.0 dB Typical
Non-Refl ective Design
Surface Mount Ceramic Package
General Description
The HMC347C8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a non-hermetic surface mount ceramic package. Covering DC to 8.0 GHz, the switch features >50 dB isolation up to 2 GHz and >35 dB isolation up to 8.0 GHz. The switch operates using comple­mentary negative control voltage logic lines of -5/ 0V and requires no bias supply. This SPDT is an excellent replacement for the HMC132C8 SPDT.
Electrical Specifi cations, T
Parameter Frequency Min. Typ. Max. Units
Insertion Loss
Isolation
SWITCHES - SMT
Return Loss “On State”
Return Loss RF1, RF2 “Off State”
Input Power for 1 dB Compression 0.5 - 8.0 GHz 19 23 dBm
Input Third Order Intercept (Two-Tone Input Power= +7 dBm Each Tone, 1 MHz Tone Separation)
Switching Characteristics tRISE, tFALL (10/90% RF) tON, tOFF (50% CTL to 10/90% RF)
14 - 194
= +25° C, With 0/-5V Control, 50 Ohm System
A
DC - 2.0 GHz DC - 6.0 GHz DC - 8.0 GHz
DC - 2.0 GHz DC - 6.0 GHz DC - 8.0 GHz
DC - 2.0 GHz DC - 6.0 GHz DC - 8.0 GHz
DC - 2.0 GHz DC - 6.0 GHz DC - 8.0 GHz
0.5 - 8.0 GHz 38 43 dBm
DC - 8.0 GHz 3
49 35 32
10
7 6
1.7
2.0
2.4
54 40 36
13 10
2.0
2.4
2.8
9
9 6 6
6
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
dB dB dB
dB dB dB
dB dB dB
dB dB dB
ns ns
Page 2
v01.0404
HMC347C8
MICROWAVE CORPORATION
SPDT SWITCH, DC - 8.0 GHz
GaAs MMIC SUB-HARMONICALLY PUMPED MIXER 17 - 25 GHz
Insertion Loss Isolation
0
-1
-2
-3
+ 25C
INSERTION LOSS (dB)
-4
-5 012345678
+ 85C
- 40C
FREQUENCY (GHz)
0
-10
-20
-30
-40
ISOLATION (dB)
-50
-60
-70
012345678
RF1
RF2
FREQUENCY (GHz)

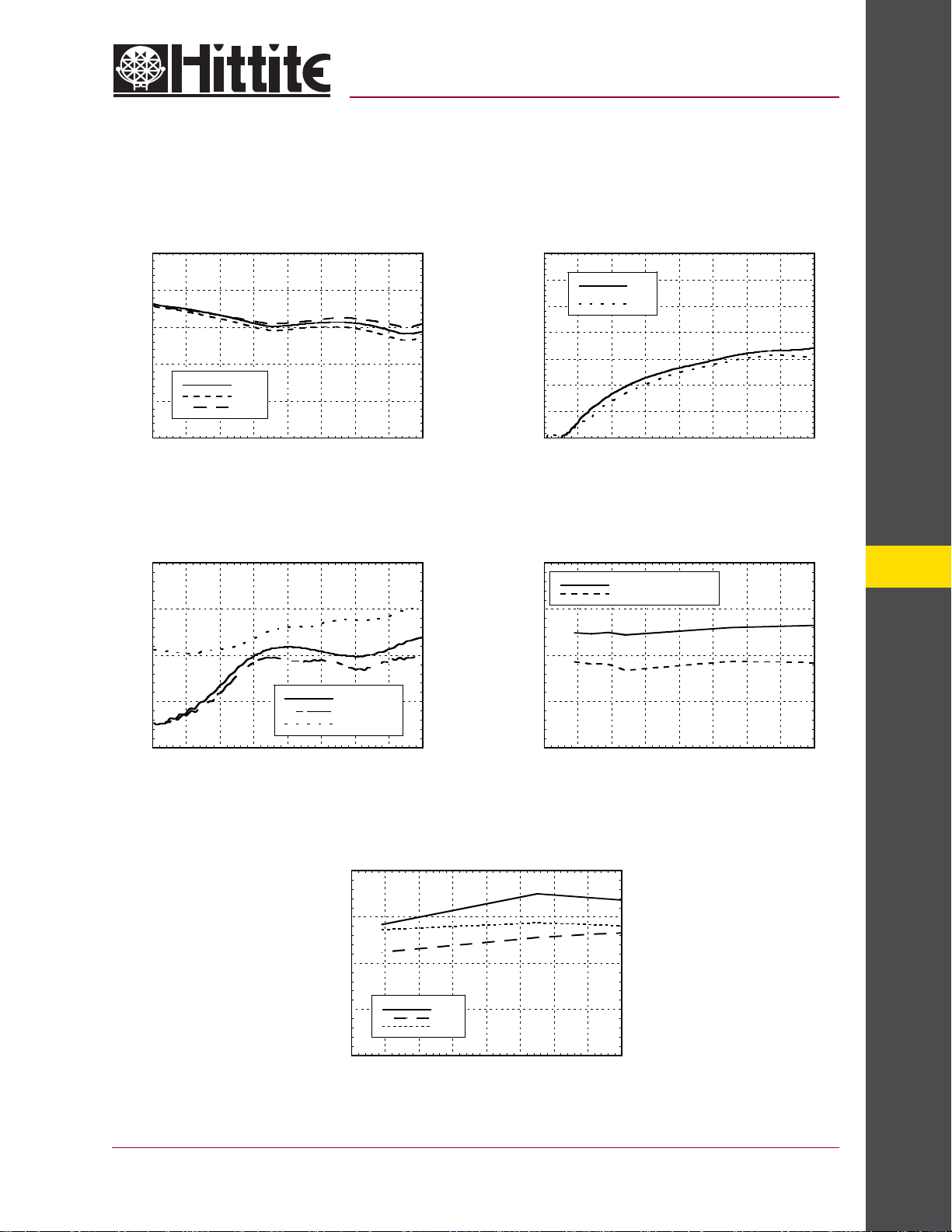

Return Loss 0.1 and 1 dB Input Compression Point
0
-5
-10
RETURN LOSS (dB)
-15
-20 012345678
FREQUENCY (GHz)
RFC
RF1, RF2 ON
RF1, RF2 OFF
30
1 dB Compression Point
25
20
INPUT P1dB (dBm)
15
10
012345678
0.1 dB Compression Point
FREQUENCY (GHz)
14
Input Third Order Intercept Point
50
45
40
INPUT IP3 (dBm)
35
30
012345678
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
+25C +85C
-40C
FREQUENCY (GHz)
SWITCHES - SMT
14 - 195
Page 3
MICROWAVE CORPORATION
v01.0404
HMC347C8
SPDT SWITCH, DC - 8.0 GHz
14
Control Voltages
State Bias Condition
Low 0 to -0.2V @ 10 uA Max.
High -5V @ 10 uA Typ. to -7V @ 40 uA Typ. (± 0.5 Vdc)
Absolute Maximum Ratings
RF Input Power (Vctl = -5V) +27 dBm
Control Voltage Range (A & B) +0.5V to -7.5 Vdc
Channel Temperature 150 °C
Thermal Resistance (Insertion Loss Path)
Thermal Resistance (Terminated Path)
Storage Temperature -65 to +150 °C
Operating Temperature -55 to +85 °C
440 °C/W
540 °C/W

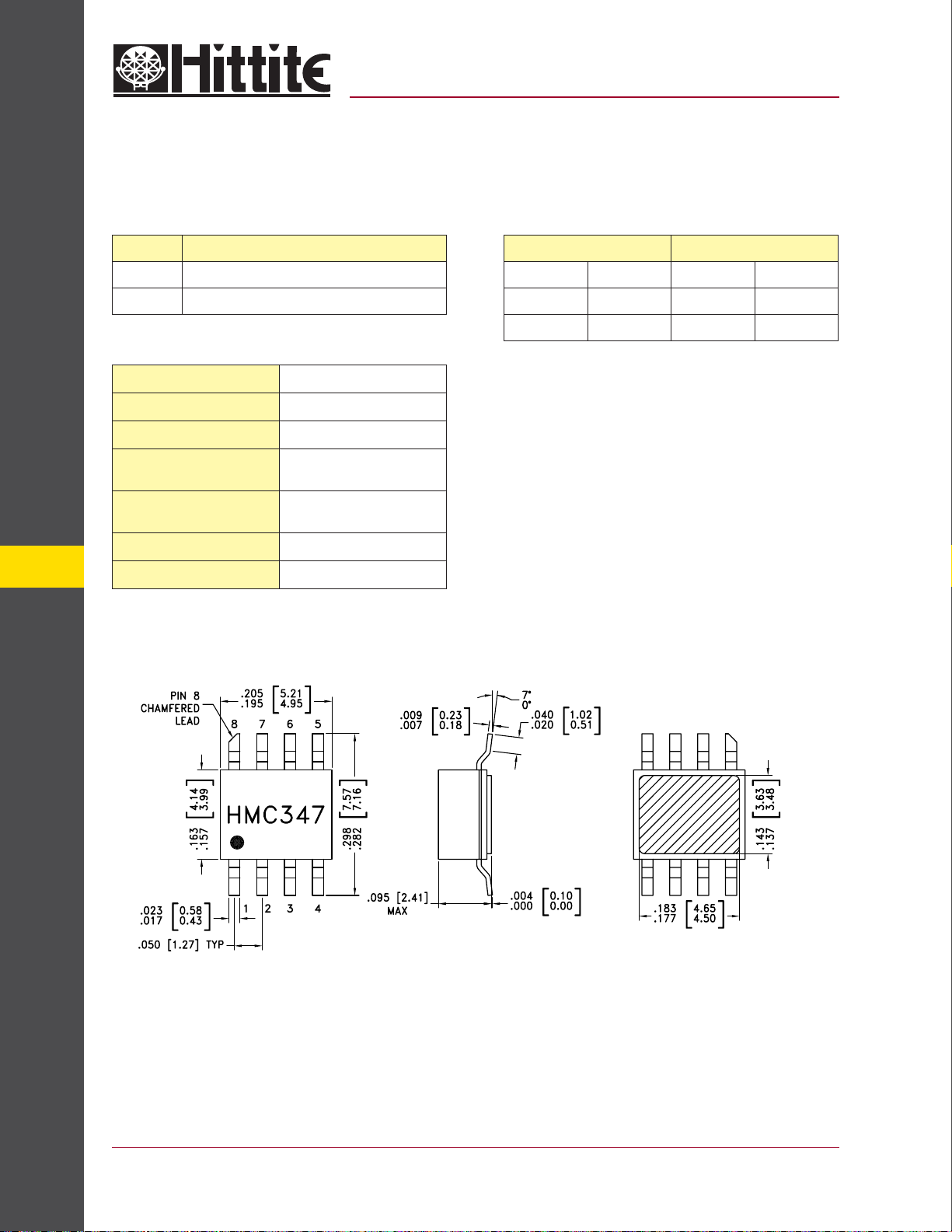

Outline Drawing
Truth Table
Control Input Signal Path State
A B RFC to RF1 RFC to RF2
High Low On Off
Low High Off On
Caution: Do not “Hot Switch” power levels greater than +13 dBm (Vctl = 0/-5 Vdc).
SWITCHES - SMT
14 - 196
NOTES:
1. PACKAGE BODY MATERIAL: WHITE ALUMINA 92%
2. LEAD, PACKAGE BOTTOM MATERIAL: COPPER
3. PLATING: ELECTROLYTIC GOLD 100-200 MICROINCHES, OVER
ELECTROLYTIC NICKEL 100-250 MICROINCHES.
4. DIMENSIONS ARE IN INCHES [MILLIMETERS].
5. PACKAGE LENGTH AND WIDTH DIMENSIONS DO NOT INCLUDE LID
SEAL PROTRUSION .005 PER SIDE.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
Page 4
MICROWAVE CORPORATION

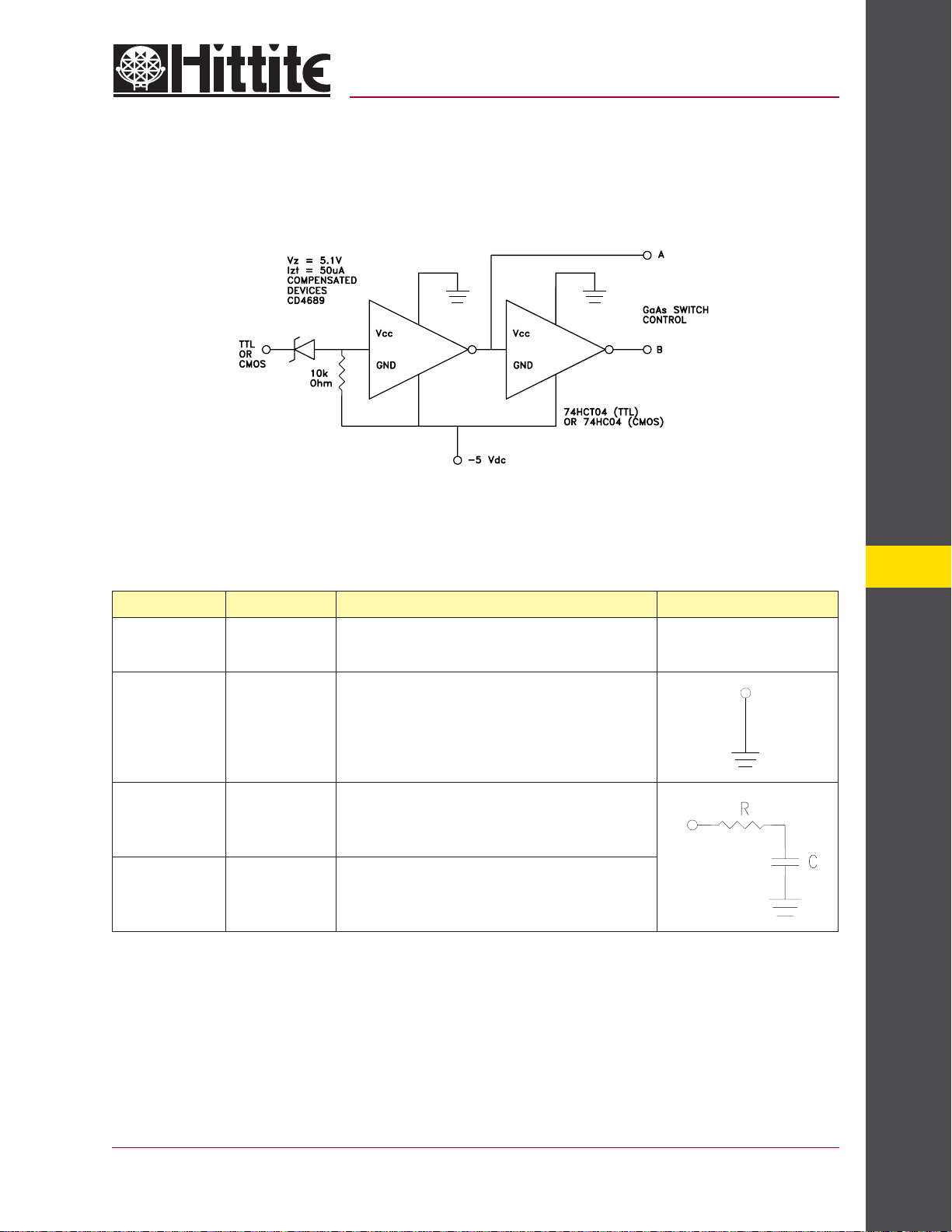

Suggested Driver Circuit
v01.0404
HMC347C8
SPDT SWITCH, DC - 8.0 GHz
Pin Descriptions
Pin Number Function Description Interface Schematic
1, 4, 7 RFC, RF1, RF2
2, 3, 8 GND
5 CTLA See truth table and control voltage table.
6 CTLB See truth table and control voltage table.
This pin is DC coupled and matched to 50 Ohm. Blocking
capacitors are required if RF line potential is not equal to 0V.
Package bottom must also
be connected to PCB RF ground.
14
SWITCHES - SMT
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
14 - 197
Page 5
MICROWAVE CORPORATION

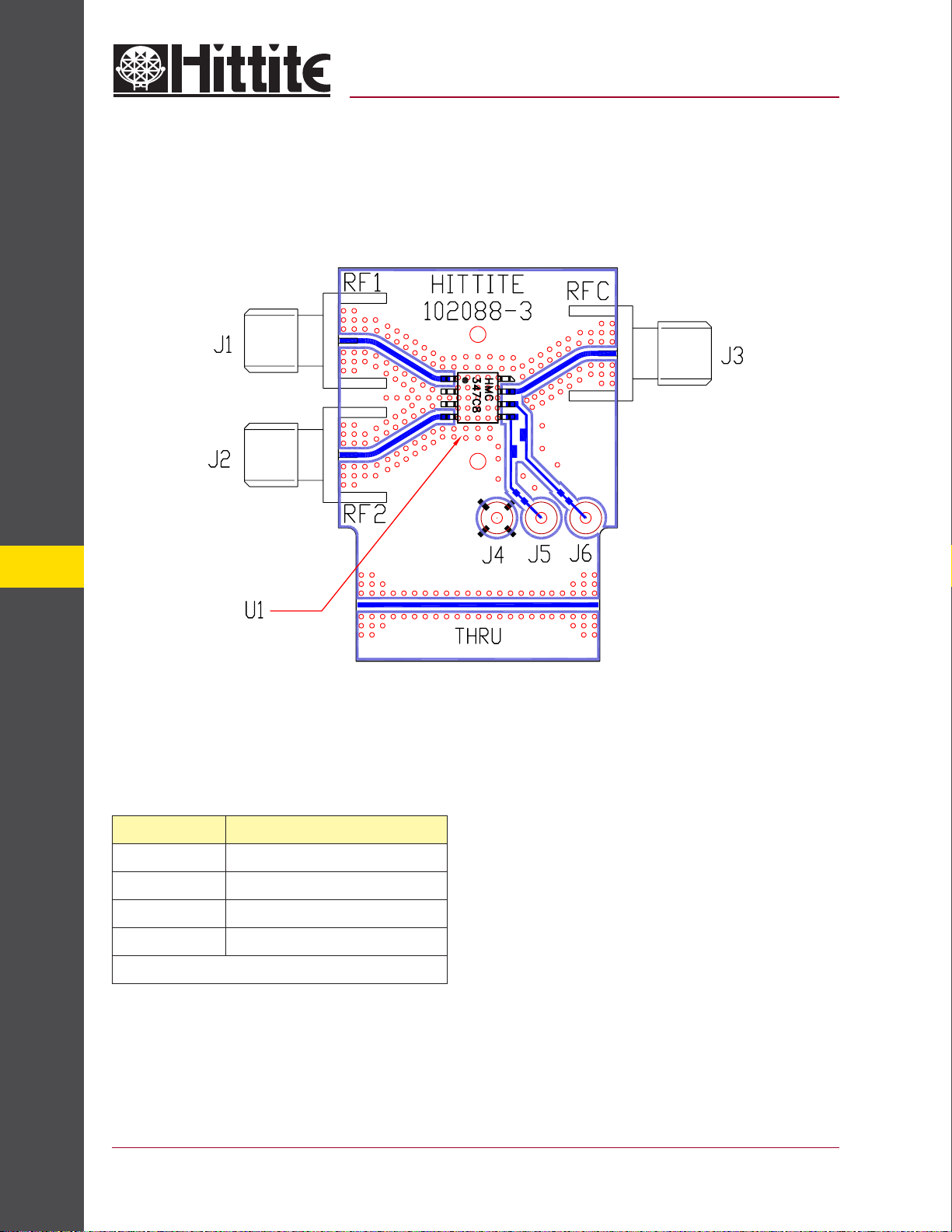

Evaluation PCB
v01.0404
HMC347C8
SPDT SWITCH, DC - 8.0 GHz
14
List of Material
Item Description
SWITCHES - SMT
J1 - J3 PC Mount SMA RF Connector
J4 - J6 DC Pin
U1 HMC347C8 SPDT Switch
PCB* 102088 Evaluation PCB
* Circuit Board Material: Rogers 4350
The circuit board used in the fi nal application should be generated with proper RF circuit design techniques. Signal lines at the RF port should have 50 ohm impedance and the package ground leads and package bottom should be connected directly to the ground plane similar to that shown above. The evaluation circuit board shown above is avail­able from Hittite Microwave Corporation upon request.
14 - 198
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
Page 6
MICROWAVE CORPORATION
Notes:
v01.0404
HMC347C8
SPDT SWITCH, DC - 8.0 GHz
14
SWITCHES - SMT
For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
14 - 199
