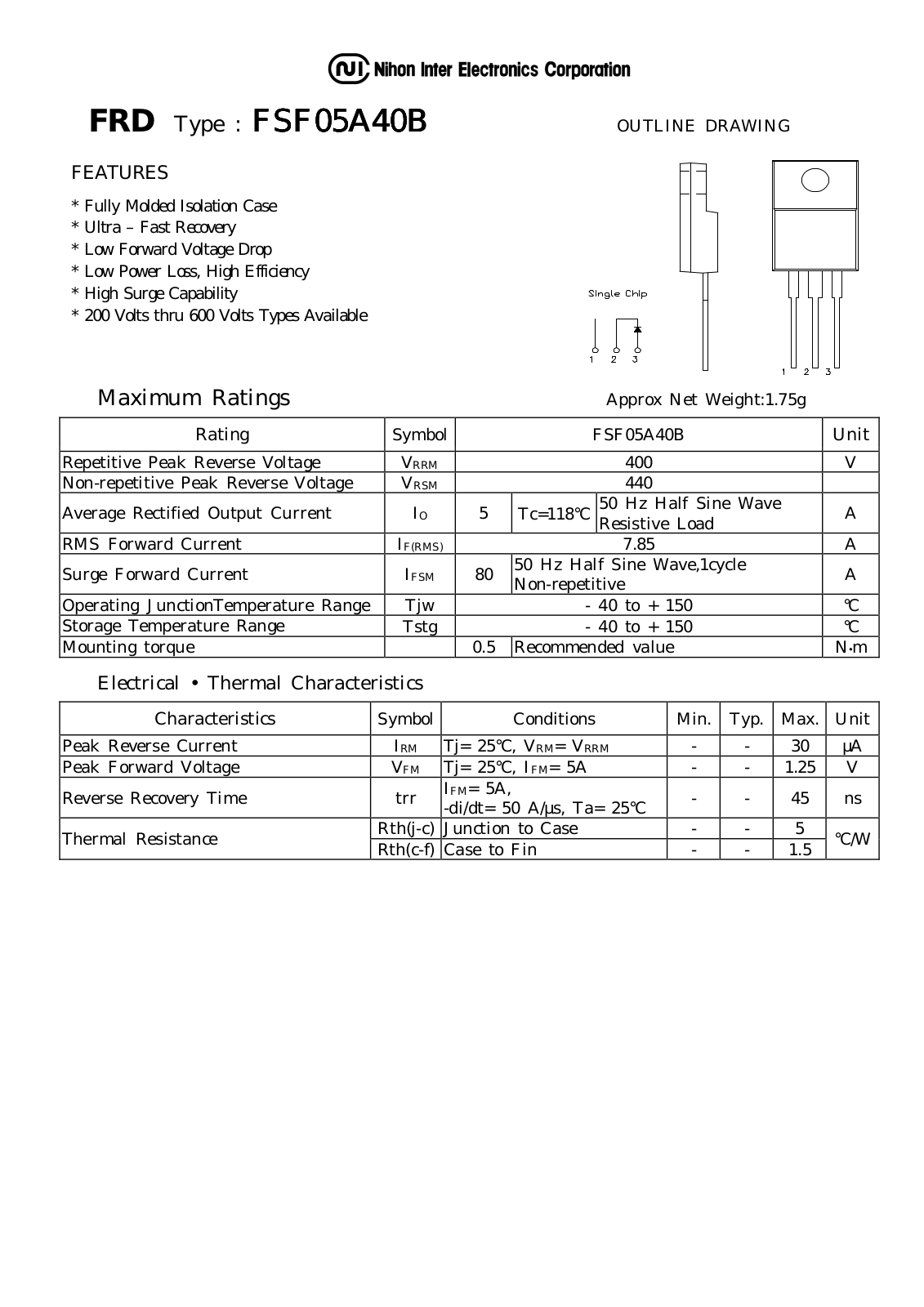

FRD Type : FSF05A40B
FSF05A40B OUTLINE DRAWING
FSF05A40B FSF05A40B
FEATURES
* Fully Molded Isolation Case
* Ultra – Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
Maximum Ratings Approx Net Weight:1.75g
Rating
Repetitive Peak Reverse Voltage V
Non-repetitive Peak Reverse Voltage V
Average Rectified Output Current IO 5
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque 0.5 Recommended value N•m
Symbol FSF05A40B
400 V
RRM
440
RSM
Tc=118°C
7.85 A
F(RMS)
80
FSM
50 Hz Half Sine Wave,1cycle
Non-repetitive
50 Hz Half Sine Wave
Resistive Load
Tjw - 40 to + 150
Tstg - 40 to + 150
Unit
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Symbol Conditions Min. Typ. Max. Unit
I
RM
V
FM
Reverse Recovery Time trr
Thermal Resistance
Rth(j-c) Junction to Case - - 5
Rth(c-f) Case to Fin - - 1.5
Tj= 25°C, V
Tj= 25°C, I
= 5A,
I
FM
RM
FM
= V
= 5A
RRM
-di/dt= 50 A/µs, Ta= 25°C
- - 30
µA
- - 1.25 V
- - 45 ns
°C/W
Page 2

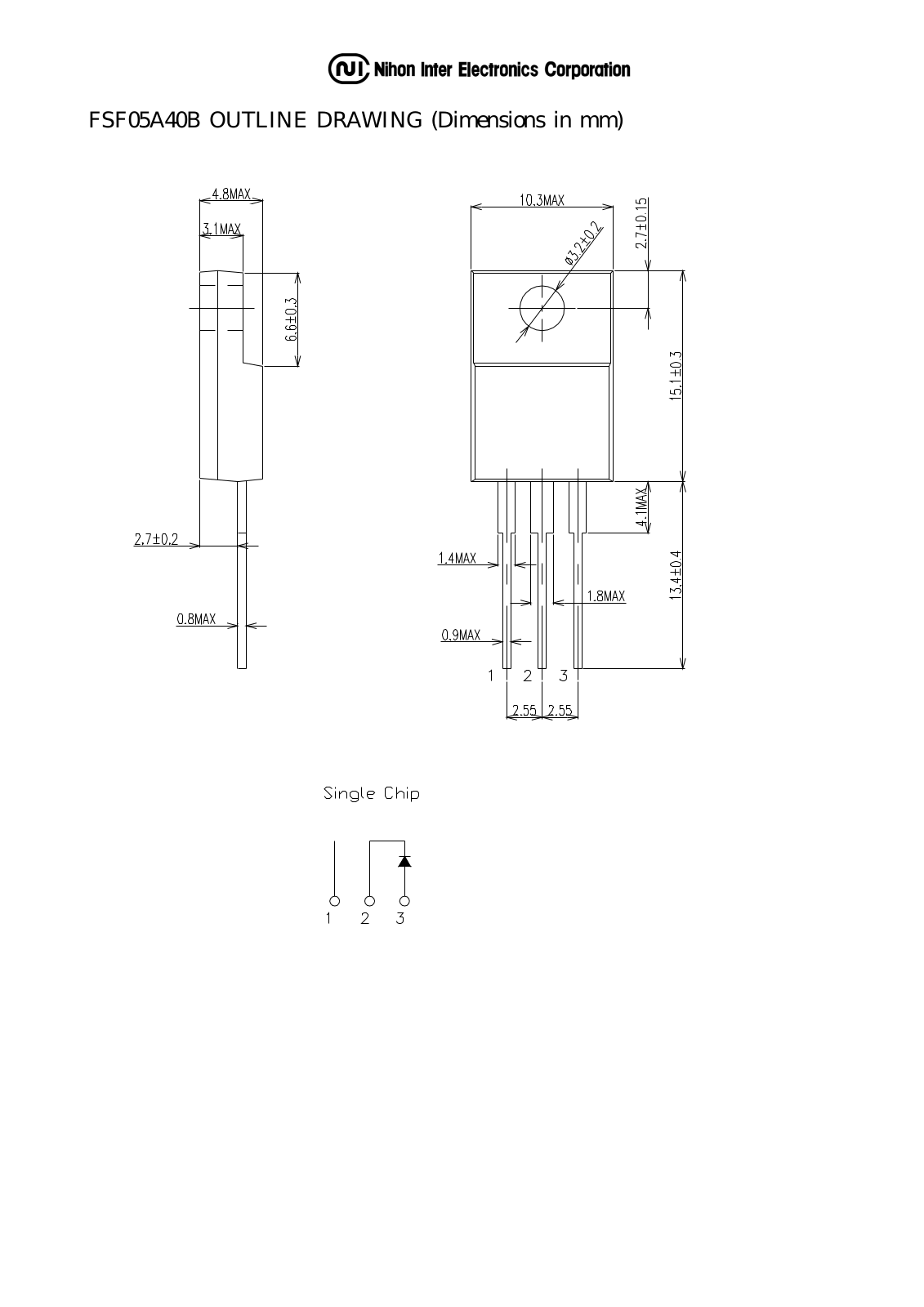

FSF05A40B OUTLINE DRAWING (Dimensions in mm)
