FSAV332
Quad Video Switch wit h Individual En ables
FSAV332 Quad Video Switch with Individual Enables
April 2004
Revised July 2005
General Description
The Fairchild video switch FSAV332 is a quad high speed
video switch. Low On Resistance a llows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.
The device is o rganized as four 1-bit switches wi th separate output enable (OE) pins. Whe n OE is LOW, the switch
is ON and Port A is connected to Port B. When OE is
HIGH, the switch is OPEN and a HIGH-Impedance state
exists between the two ports.
Features
O
Wide bandwidth: 368 MHz
O
84 dB non adjacent channel crosstalk at 10MHz
O
49 dB Off Isolation at 10MHz
O3:
typical On Resistance (RON)
O
Low power consumption (3uA maximum)
O
Control input: TTL compatible
Applications
• Y/C video or CVBS video switch in LCD, plasma, and
projector displays
Ordering Code:
Order Package
Number Number
FSAV332QSC MQA16A 16-Lead Quarter Size Small Outline Package (QSOP), JEDEC MO-137, 0.150" Wide
FSAV332MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
FSAV332MTC_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also availab l e in Tape and Reel. Specify by appending the suffix let t er “X” to the ordering code.
Pb-Free package per JEDEC J-STD-020B.
Package Description
Logic Diagram
© 2005 Fairchild Semiconductor Corporation DS500803 www.fairchildsemi.com
Page 2
Connection Diagrams
Pin Assignment for TSSOP
FSAV332
Pin Assignment for QSOP
Pin Descriptions
Pin Name Description
OE
, OE2, OE3, OE4Bus Switch Enables
1
1A, 2A, 3A, 4A Bus A
1B, 2B, 3B, 4B Bus B
NC Not Connected
Truth Table
Inputs Inputs/Outputs
OE
LA
HZ
A,B
B
www.fairchildsemi.com 2
Page 3
Absolute Maximum Ratings(Note 1) Recommended Operating
Supply Voltage (VCC)
DC Switch Voltage (V
DC Input Voltage (V
S
) (Note 2)
IN
DC Input Diode Current
) (Note 2)
0.5V to 7.0V
0.5V to VCC 0.5V
0.5V to 7.0V
50 mA
DC Output Current 128 mA
Storage Temperature Range (T
STG
)
65q
C to 150qC
ESD (Human Body Model) 4000V
Conditions
Supply Voltage (V
Control Input Voltage 0V to V
Switch Input Voltage 0V to V
Operating Temperature
Thermal Resistance
(TSSOP) 115
(QSOP) 127
Note 1: The “Absolute Maximum Ratings” are those value s beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these lim its. The parametric values defin ed in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recomm ended O peratin g Con ditions ” table will defin e the condition s
for actual device operation.
Note 2: The input and output negative voltage ratings may be exceeded if
the input and ou t put diode current ratings are obser v ed.
Note 3: Unused control inputs m ust b e held H IGH o r LOW. They may n ot
float.
(Note 3)
) 4.75V to 5.25V
CC
40q
CC
CC
C to 85qC
q
C/W
q
C/W
FSAV332
DC Electrical Characteristics All typical values are for V
V
Symbol Parameter
V
ANALOG
V
IK
V
IH
V
IL
I
IN
I
OZ
R
ON
I
CC
Note 4: Measured by the voltage drop between A and B pins at the indicated cu rrent through the switc h. On Resistance is determ ined by the lower of the
voltages on the two (A or B Ports).
Analog Signal Range 4.75 to 5.25 0 2.0 V
Clamp Diode Voltage 4.75
Input Voltage HIGH 4.75 to 5.25 2.0 V
Input Voltage LOW 4.75 to 5.25 0.8 V
Control Input Leakage 5.25
OFF State Leakage Current 5.25
Switch On Resistance 4.75 3.0 7.0
(Note 4) 4.75 7.0 10.0 V
Quiescent Supply Current 5.25 3.0
CC
(V) Min Typ Max
TA 40 qC to 85 qC
5V @ 25qC unless otherwise specified.
CC
Units Conditions
1.2 V IIN 18 mA
r
1.0
r
1.0
P
AVIN 0V to V
P
A0 d A, B d V
VIN 1V, RL 75:, ION 13 mA
:
P
2V, RL 75:, ION 26 mA
IN
AVIN 0V VCC or I
CC
CC
OUT
0
3 www.fairchildsemi.com
Page 4
AC Electrical Characteristics All typical value are for V
V
Symbol Parameter
FSAV332
t
Turn ON Time 4.75 to 5.25 1.0 5.0 ns VI 7V for t
ON
t
Turn OFF Time 4.75 to 5.25 1.0 5.0 ns VI 7V for t
OFF
Propagation Delay
t
PLH
t
(Note 5)
PHL
CC
(V) Min Max Number
4.75 to 5.25 0.1 ns VI OPEN
DG Differential Gain 4.75 to 5.25 0.29 % R
TA 40qC to 85qC
5V @ 25qC unless otherwise specified.
CC
Units Conditions
PZL
PLZ
150:, f 3.58MHz
L
DP Differential Phase 4.75 to 5.25 0.10 Degree RL 150:, f 3.58MHz
O
OFF-Isolation 4.75 to 5.25
IRR
Non Adjacent Channel Crosstalk 4.75 to 5.25
X
TALK
BW3dB Bandwidth 4.75 to 5.25 368 MHz RL 150
Note 5: This specification is gu aranteed by design.
84.0 dB f 10MHz, RL 150
54.0 dB RL 150:, f 10MHz Figure 4
:
Capacitance
Symbol Parameter
C
IN
C
ON
C
OFF
Control Pin Input Capacitance 3.0 pF VCC 5.0V
A/B ON Capacitance 30.0 pF VCC 5.0V, OE 0V
Port B OFF Capacitance 5.0 pF VCC and OE 5.0V
TA 40qC to 85qC
Typ Units Conditions
and VI OPEN for t
and VI OPEN for t
:
PZH
PHZ
Figure
Figures
1, 2
Figures
1, 2
Figures
1, 2
Figure 3
Figure 5
www.fairchildsemi.com 4
Page 5
AC Loading and Waveforms
FSAV332
Test Diagrams
Note: Input driven by 50 : source terminated in 50
Note: CL includes load and stray capacitance
Note: Input PRR
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
1.0 MHz, tW 500ns
:
FIGURE 3. OFF Isolation Test
FIGURE 4. Crosstalk Test
FIGURE 5. Bandwidth Test
5 www.fairchildsemi.com
Page 6
Physical Dimensions inches (millimeters) unless otherwise noted
FSAV332

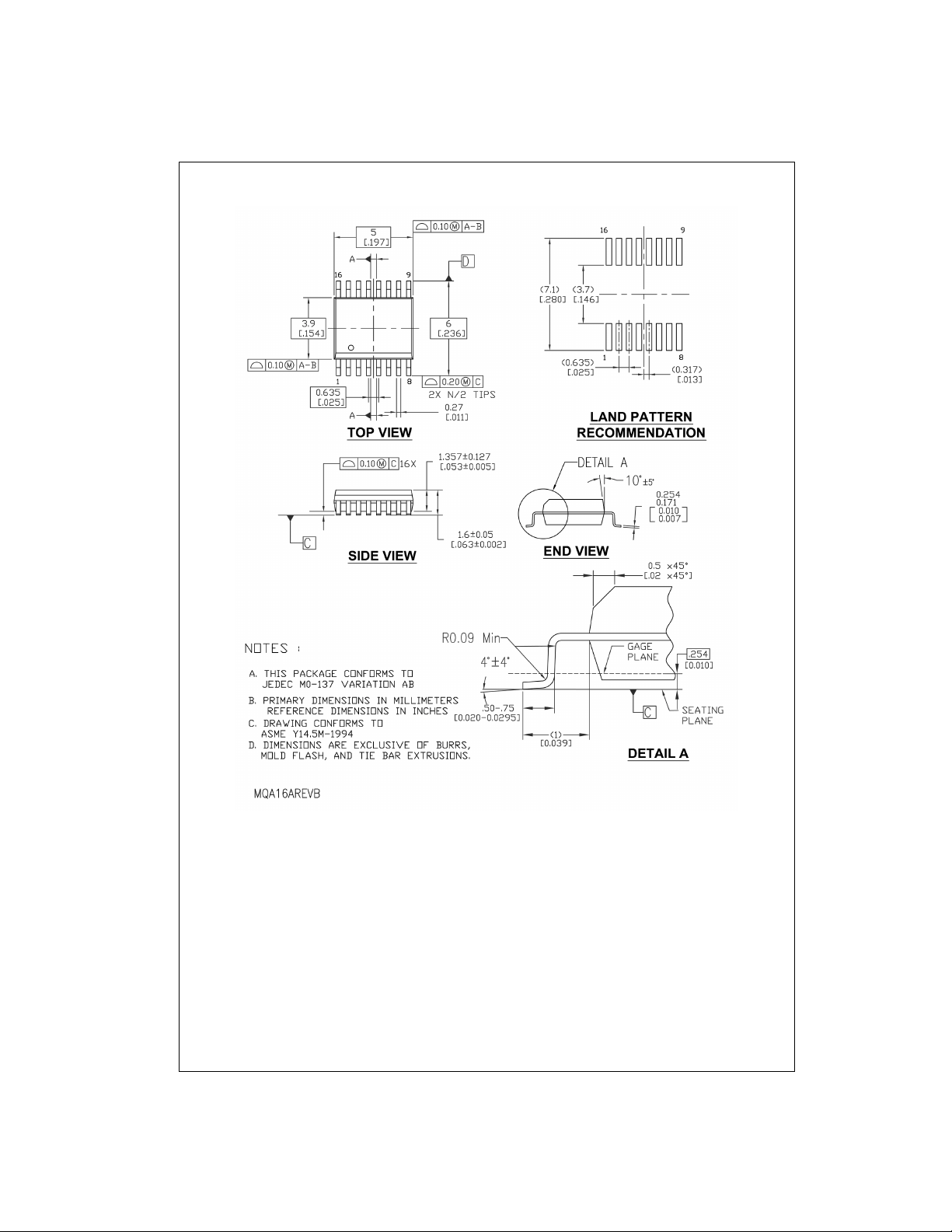

16-Lead Quarter Size Small Outline Package (QSOP), JEDEC MO-137, 0.150" Wide
www.fairchildsemi.com 6
Package Number MQA16A
Page 7
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
FSAV332 Quad Video Switch with Individual Enables

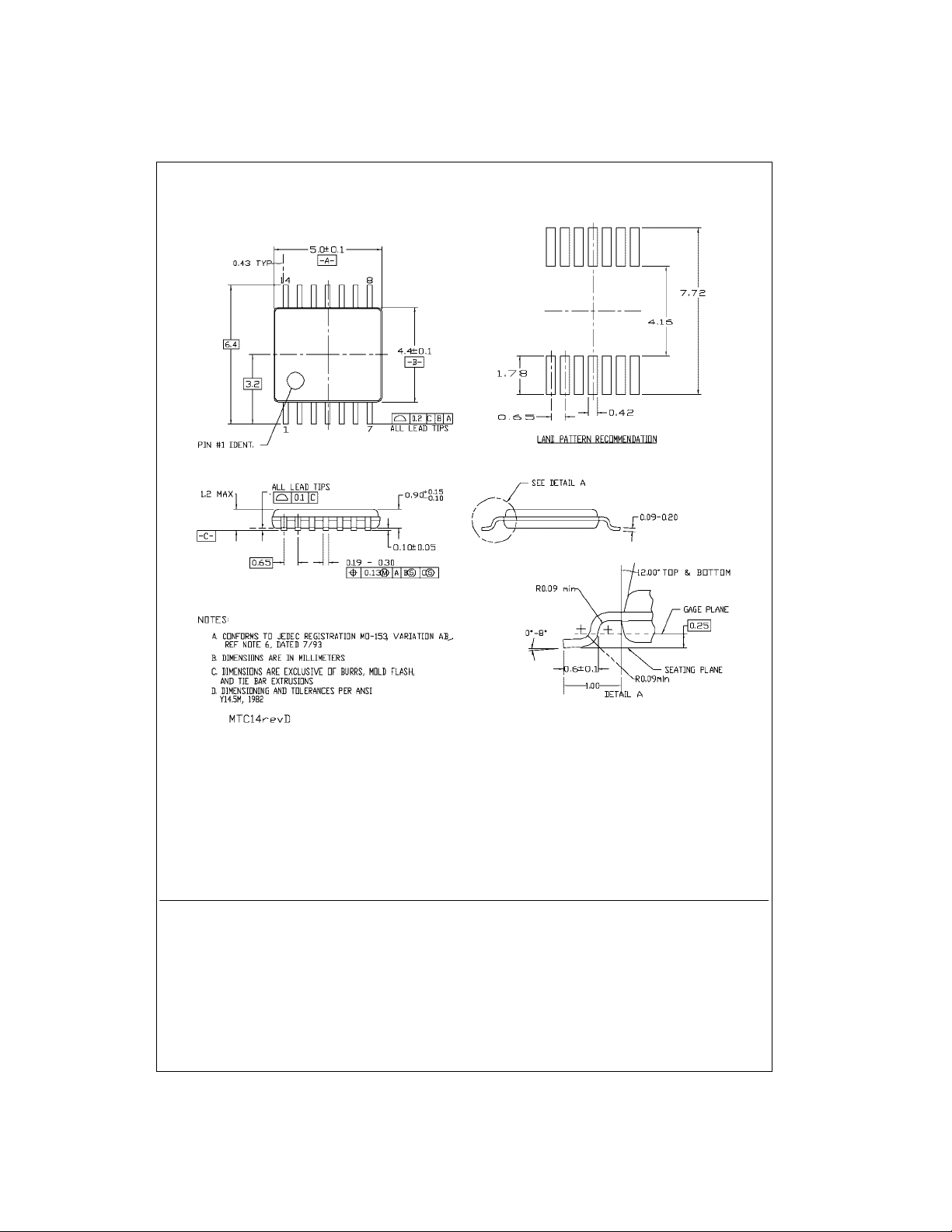

14-Lead Thin Shrin k Small Ou tlin e Pack age (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC14
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s prove n switch technology use d for several years in its
74LVX3L384 (FST3384) bus switch product.
Fairchild does not assume any responsibility for use of any circ uitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices o r syst ems are dev ic es or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provide d in the l abe ling, can be reasonably expected to result in a significant injury to the
user.
2. A critical compo nent in any com ponen t of a life s upp ort
device or system whose failure to perform can be reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
