Datasheet EMC1182 Datasheet

EMC1182

CPU / GPU

EMC1182

Host

DP

DN

SMDATA

Thermal
Junction

SMCLK

SMBus

Interface

THERM / ADDR

ALERT / THERM2

Power Control

VDD

GND

VDD = 3.3V

1.8V – 3.3V

1.8V

THERM / ADDR

ALERT / THERM2

Internal

Temp Diode

Switching

Current

Analog

Mux

Internal

Temperature

Register

Digital Mux

Digital Mux

Limit Comparator

Low Limit Registers
High Limit Registers

Conversion Rate Register

Interupt Masking

Status Registers

Configuration Register

SMBus Interface

SMCLK
SMDATA

DP

1

D

N1

V

DD

GND

External

Temperature

Register(s)

ΔΣADC

THERM Limit Register

THERM Hysteresis

Register

SMBus Address Decode

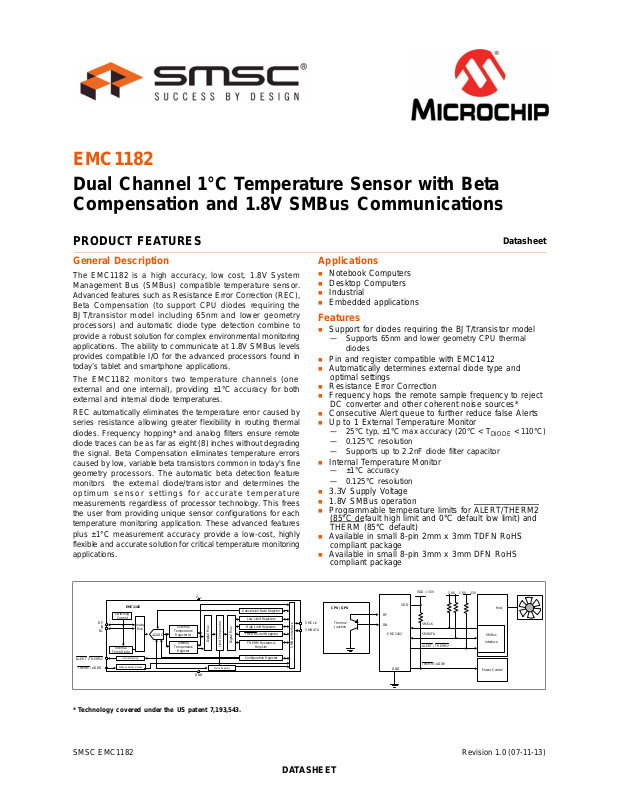

EMC1182

Dual Channel 1°C Temperature Sensor with Beta
Compensation and 1.8V SMBus Communications

PRODUCT FEATURES

General Description

The EMC1182 is a high accuracy, low cost, 1.8V System
Management Bus (SMBus) compatible temperature sensor.
Advanced features such as Resistance Error Correction (REC),
Beta Compensation (to support CPU diodes requiring the
BJT/transistor model including 65nm and lower geometry
processors) and automatic diode type detection combine to
provide a robust solution for complex environmental monitoring
applications. The ability to communicate at 1.8V SMBus levels
provides compatible I/O for the advanced processors found in
today’s tablet and smartphone applications.

The EMC1182 monitors two temperature channels (one
external and one internal), providing ±1°C accuracy for both
external and internal diode temperatures.

REC automatically eliminates the temperature error caused by
series resistance allowing greater flexibility in routing thermal
diodes. Frequency hopping* and analog filters ensure remote
diode traces can be as far as eight (8) inches without degrading
the signal. Beta Compensation eliminates temperature errors
caused by low, variable beta transistors common in today's fine
geometry processors. The automatic beta detection feature
monitors the external diode/transistor and determines the
optimum sensor settings for accurate temperature
measurements regardless of processor technology. This frees
the user from providing unique sensor configurations for each
temperature monitoring application. These advanced featu res
plus ±1°C measurement accuracy provide a low-cost, highly
flexible and accurate solution for critical temperature monitoring
applications.

Datasheet

Applications

 Notebook Computers
 Desktop Computers
 Industrial
 Embedded applications

Features

 Support for diodes requiring the BJT/transistor model

— Supports 65nm and lower geometry CPU thermal

diodes

 Pin and register compatible with EMC1412
 Automatically determines external diode type and

optimal settings

 R esistance Error Correction
 Frequency hops the remote sample frequency to reject

DC converter and other coherent noise sources*

 Consecutive Alert queue to further reduce false Alerts
 Up to 1 External Temperature Monitor

— 25°C typ, ±1°C max accuracy (20°C < T
— 0.125°C resolution
— Supports up to 2.2nF diode filter capacitor

 Internal Temperature Monitor

— ±1°C accuracy
— 0.125°C resolution

 3.3V Supply Voltage
 1.8V SMBus operation
 Programmable temperature limits for ALERT/THERM2

(85°C default high limit and 0°C default low limit) and
THERM

 Available in small 8-pin 2mm x 3mm TDFN RoHS

(85°C default)

compliant package

 Available in small 8-pin 3mm x 3mm DFN RoHS

compliant package

DIODE

< 110°C)

DATASHEET

* Technology covered under the US patent 7,193,543.

SMSC EMC1182 Revision 1.0 (07-11-13)

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Ordering Information:

ORDERING NUMBER PACKAGE FEATURES

SMBUS

ADDRESS

EMC1182-A-AC3-TR 8-pin TDFN 2mm x 3mm

(RoHS compliant)

EMC1182-1-AIA-TR 8-pin DFN 3mm x 3mm

(RoHS compliant)

EMC1182-1-AC3-TR 8-pin TDFN 2mm x 3mm

(RoHS compliant)

EMC1182-2-AIA-TR 8-pin DFN 3mm x 3mm

(RoHS compliant)

EMC1182-2-AC3-TR 8-pin TDFN 2mm x 3mm

(RoHS compliant)

This product meets the halogen maximum concentration values per IEC 61249-2-21

For RoHS compliance and environmental information, please visit www.smsc.com/rohs

Please contact your SMSC sales representative for additional documentation related to this product
such as application notes, anomaly sheets, and design guidelines.

Two temperature sensors, ALERT/THERM2

and THERM

Two temperature sensors, ALERT

pins, fixed SMBus address

/THERM2

and THERM pins, fixed SMBus address

Two temperature sensors, ALERT

/THERM2

and THERM pins, fixed SMBus address

Two temperature sensors, ALERT

/THERM2

and THERM pins, fixed SMBus address

Two temperature sensors, ALERT

/THERM2

and THERM pins, fixed SMBus address

Selectable via

THERM pull-up

1001_100(r/w

1001_100(r/w

1001_101(r/w

1001_101(r/w

)

)

)

)

Copyright © 2013 SMSC or its subsidiaries. All rights reserved.
Circuit diagrams and other information relating to SMSC products are included as a means of illustr ating typical applications. Conse quently, complete information sufficient for

construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMS C
reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications
before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent
rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated
version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors
known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not
designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property
damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of
this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered
trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders.

The Microchip name and logo, and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE
OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL
DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGAR DLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRAC T;
TORT; NEGLIGENCE OF SMSC OR OTHERS; ST RICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD
TO HAVE FAILED OF ITS ES SENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE P OSSIBILITY OF SUCH DAMAGES.

Revision 1.0 (07-11-13) 2 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Table of Contents

Chapter 1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 2 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 3 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1 Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.2 Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.3 SMBus Electrical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Chapter 4 System Management Bus Interface Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1 Communications Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1.1 SMBus Start Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1.2 SMBus Address and RD / WR

4.1.3 THERM

4.1.5 SMBus Data Bytes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.1.6 SMBus ACK and NACK Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.1.7 SMBus Stop Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1.8 SMBus Timeout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1.9 SMBus and I

4.2 SMBus Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2.1 Write Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.2 Read Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.3 Send Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.4 Receive Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.3 Alert Response Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Pin Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2

C Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 5 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.1 Modes of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2 Conversion Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.3 Dynamic Averaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.4 THERM

5.5 ALERT / THERM2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.6 Temperature Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.7 Diode Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.8 Consecutive Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.9 Digital Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.10 Temperature Measurement Results and Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.4.1 THERM

5.5.1 ALERT

5.5.2 ALERT

5.6.1 Beta Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.6.2 Resistance Error Correction (REC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.6.3 Programmable External Diode Ideality Factor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Pin Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

/ THERM2 Pin InterruptALERT Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

/ THERM2 Pin ComparatorTHERM Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 6 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 Data Read Interlock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2 Temperature Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 Status Register 02h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SMSC EMC1182 3 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.4 Configuration Register 03h / 09h. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.5 Conversion Rate Register 04h / 0Ah. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6.6 Limit Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.7 Scratchpad Registers 11h and 12h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.8 One Shot Register 0Fh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.9 Therm Limit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.10 Channel Mask Register 1Fh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.11 Consecutive ALERT Register 22h. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6.12 Beta Configuration Register 25h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.13 External Diode Ideality Factor Register 27h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.14 Filter Control Register 40h. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.15 Product ID Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.16 SMSC ID Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.17 Revision Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

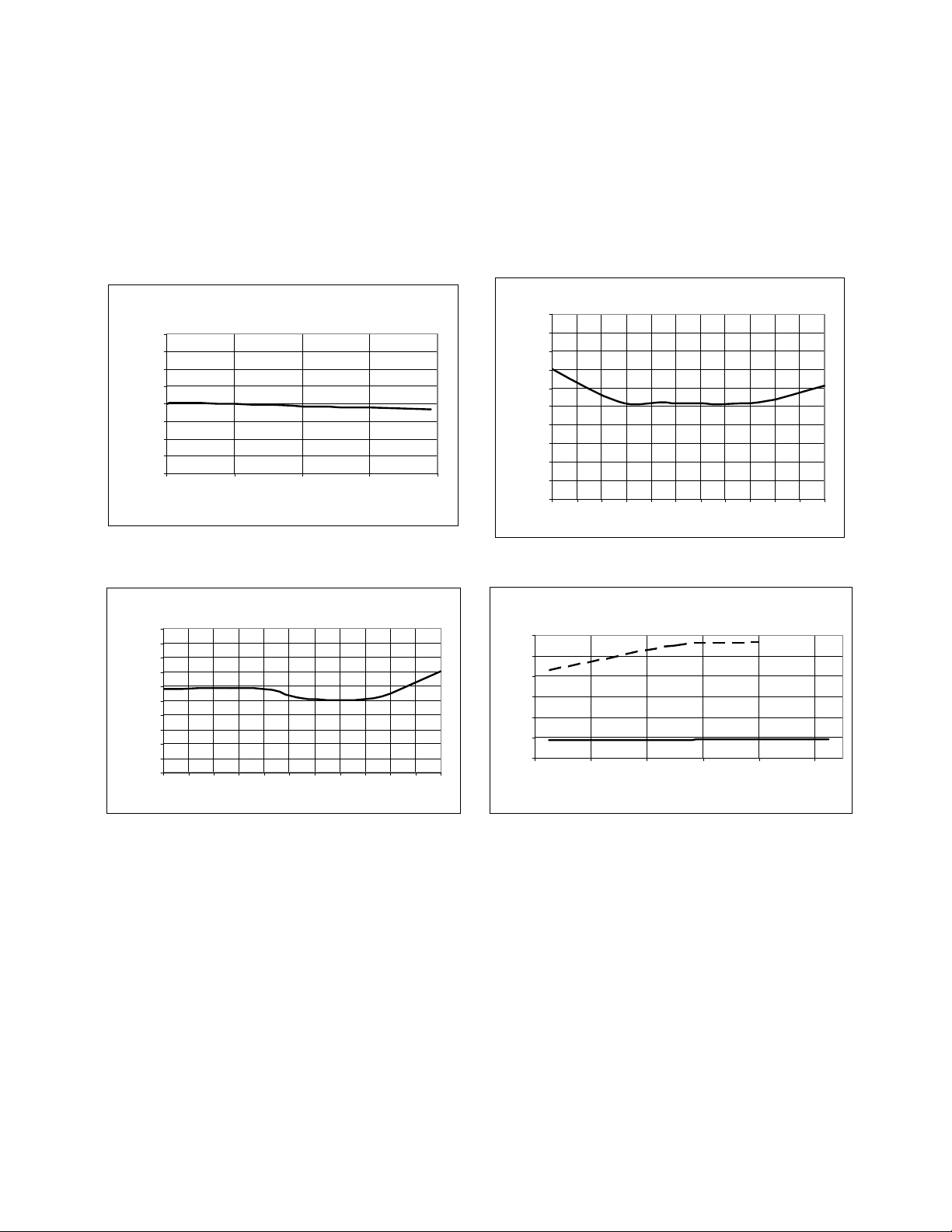

Chapter 7 Typical Operating Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 8 Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

8.1 Package Markings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter 9 Datasheet Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Revision 1.0 (07-11-13) 4 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

List of Figures

Figure 1.1 EMC1182 Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 2.1 EMC1182 Pin Diagram, TDFN-8 2mm x 3mm / DFN-8 3mm x 3mm . . . . . . . . . . . . . . . . . . . 8

Figure 4.1 SMBus Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 4.4 Isolating the THERM pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

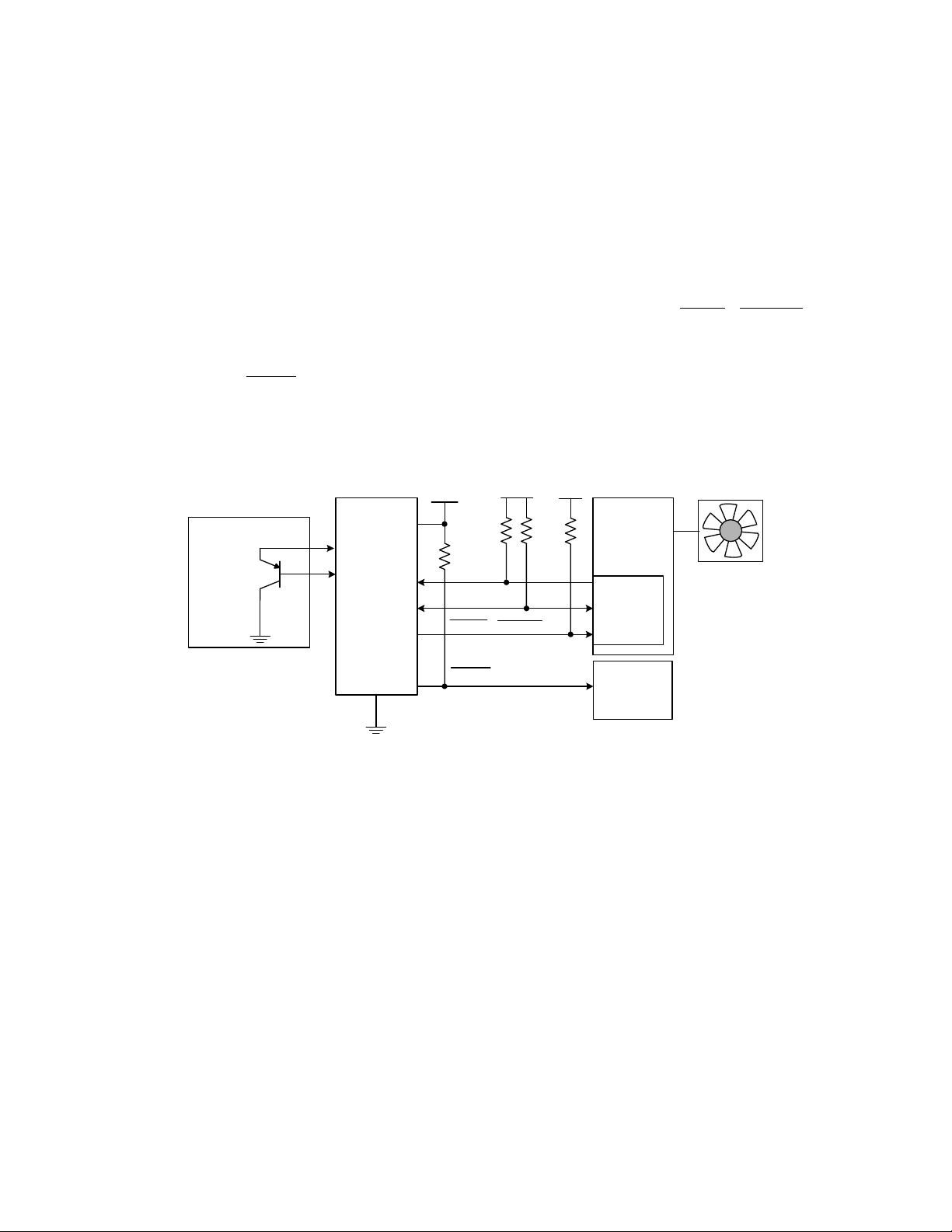

Figure 5.1 System Diagram for EMC1182 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

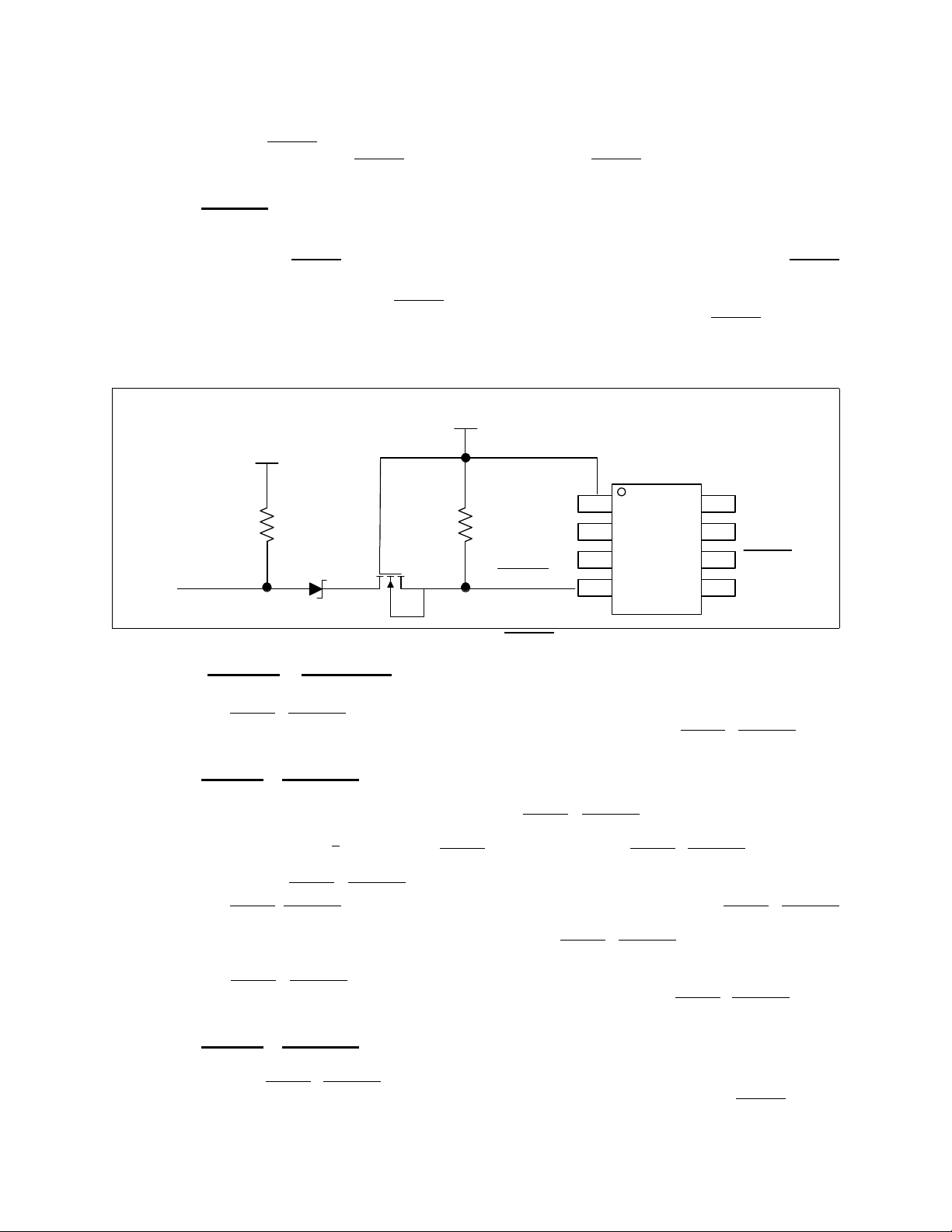

Figure 5.2 Isolating THERM
Figure 5.3 Isolating ALERT

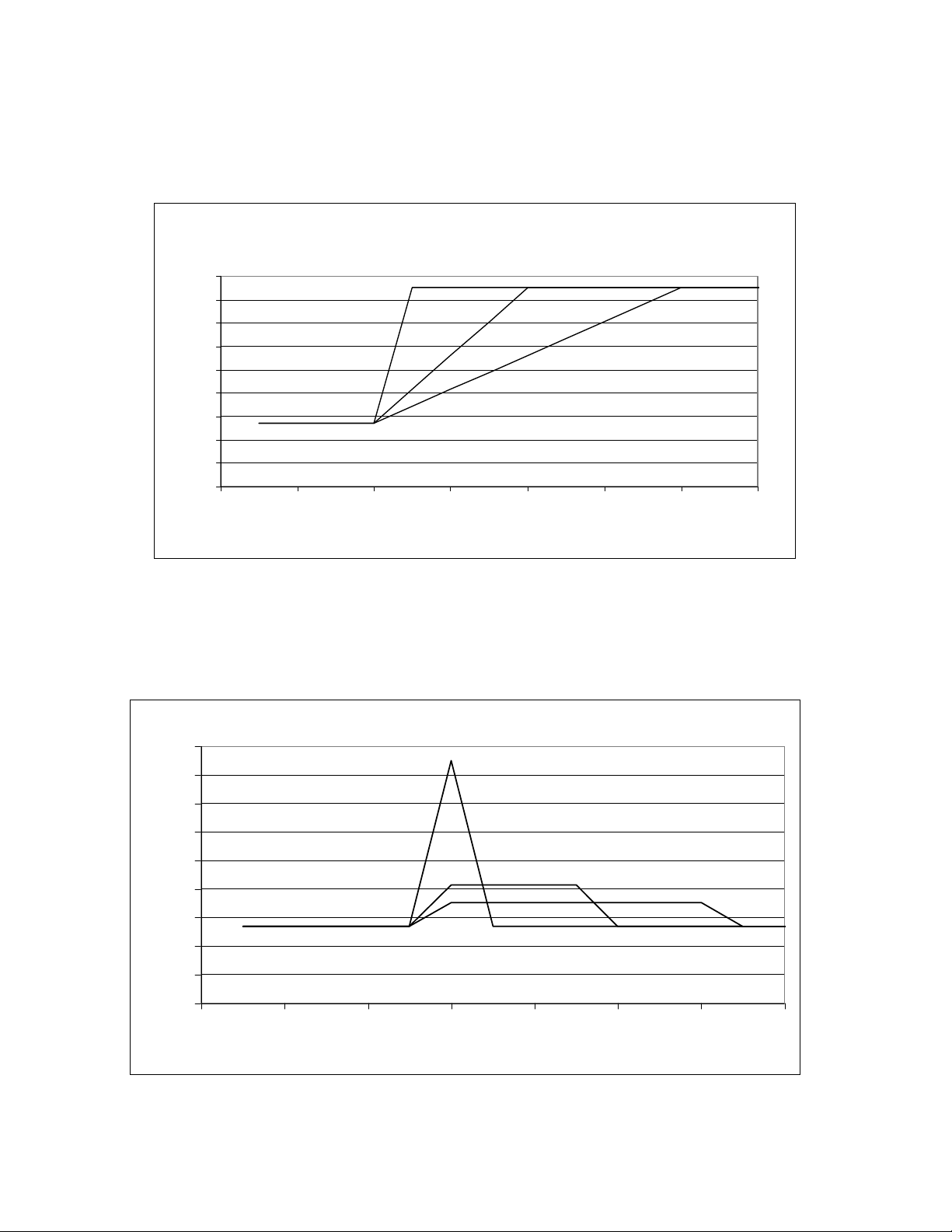

Figure 5.4 Temperature Filter Step Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 5.5 Temperature Filter Impulse Response. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

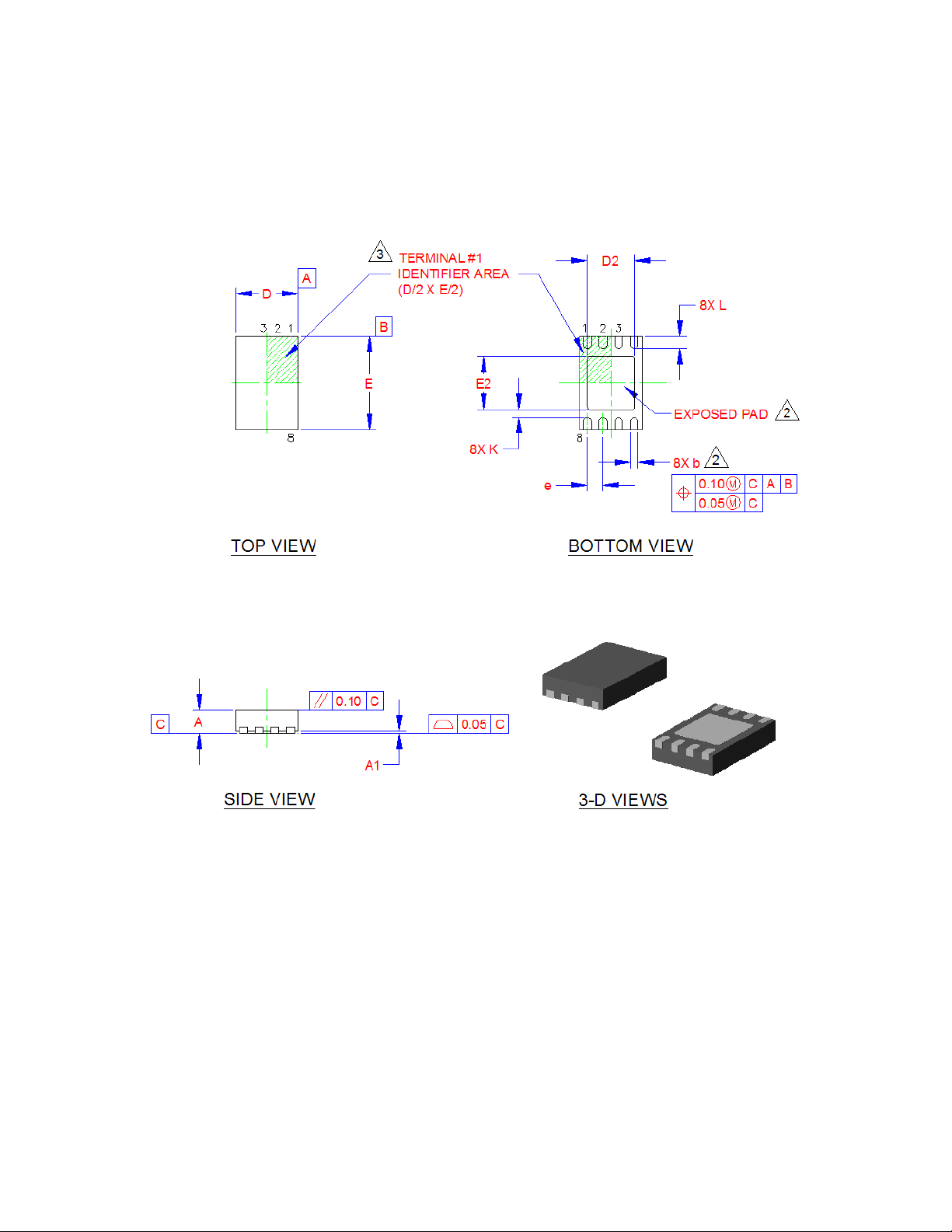

Figure 8.1 2mm x 3mm TDFN Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

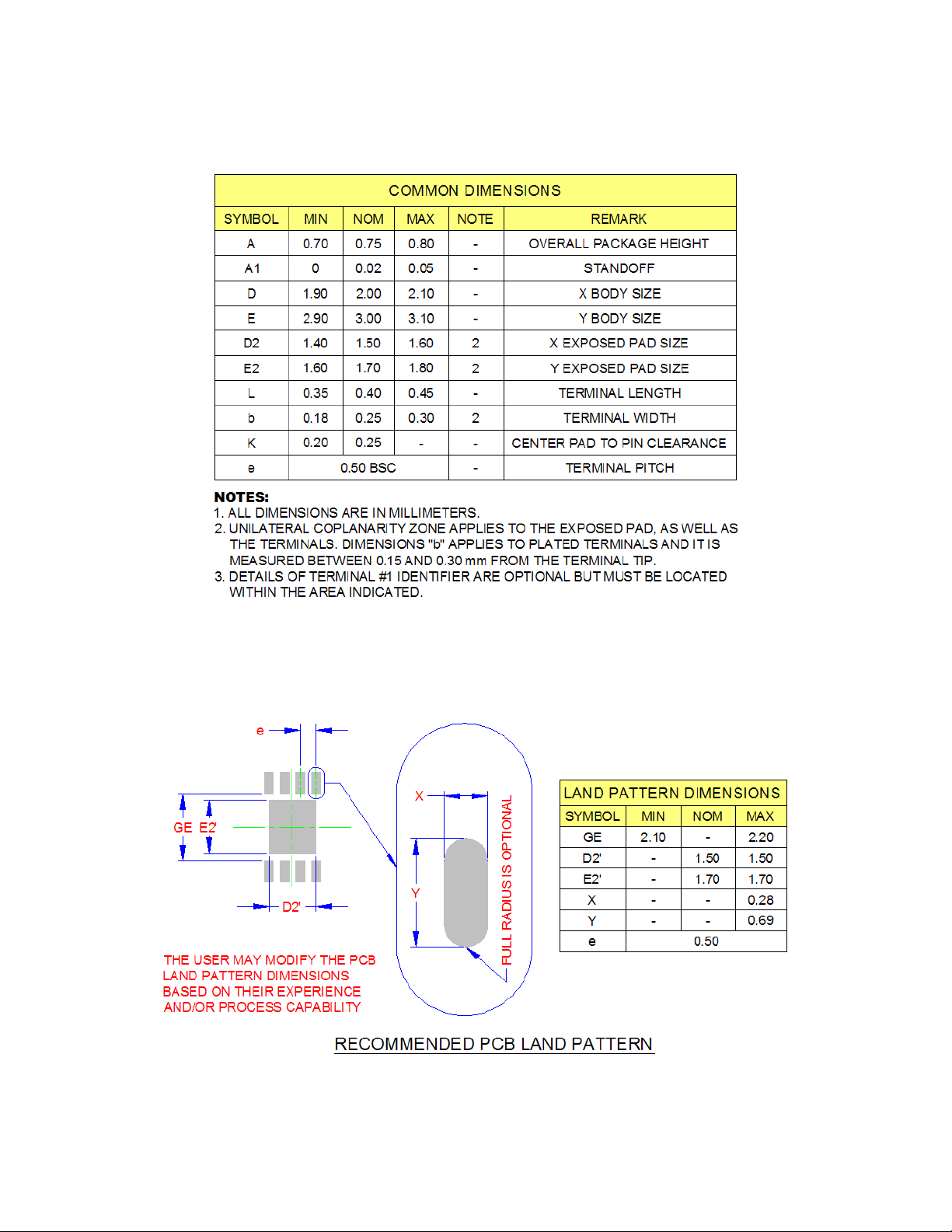

Figure 8.3 2mm x 3mm TDFN Package PCB Land Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Figure 8.2 2mm x 3mm TDFN Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

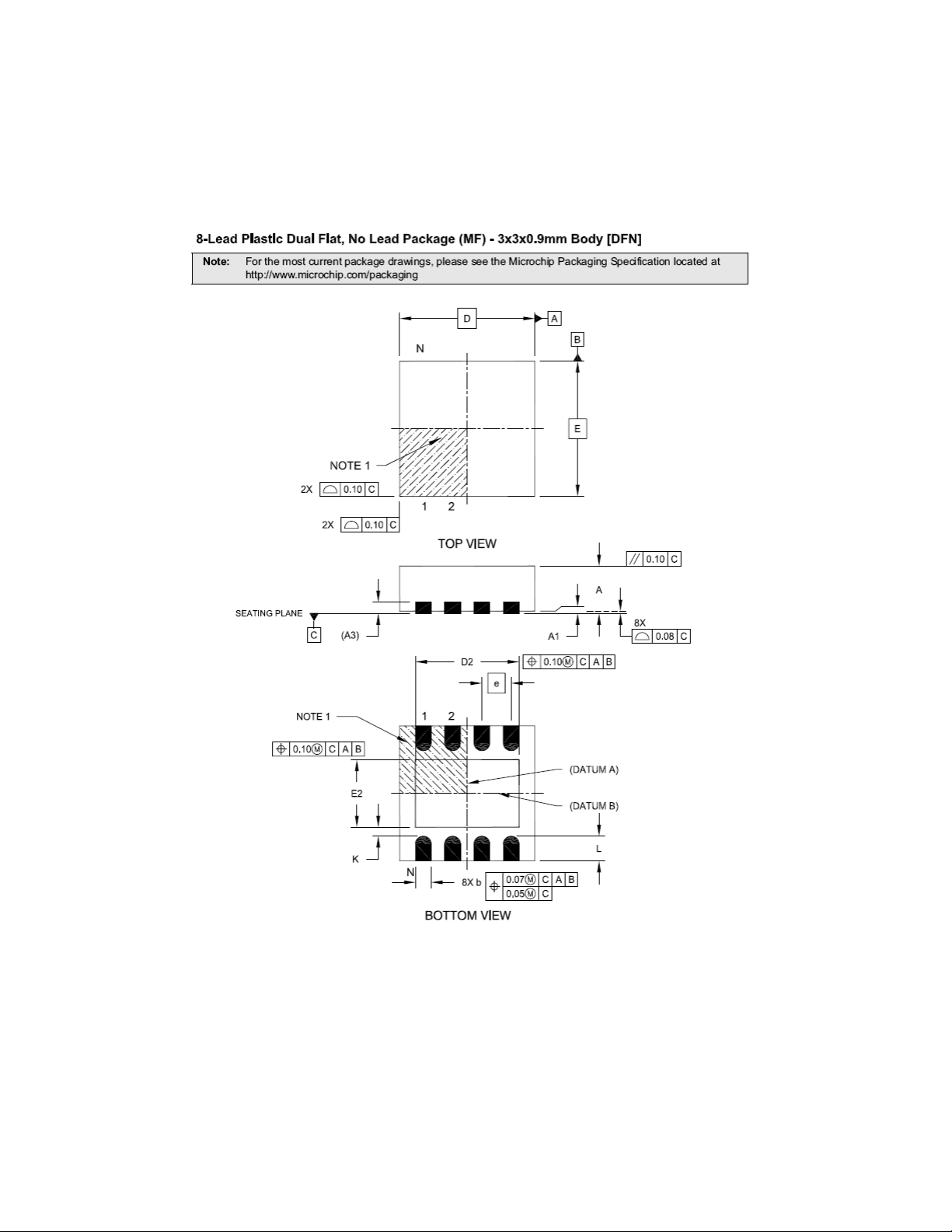

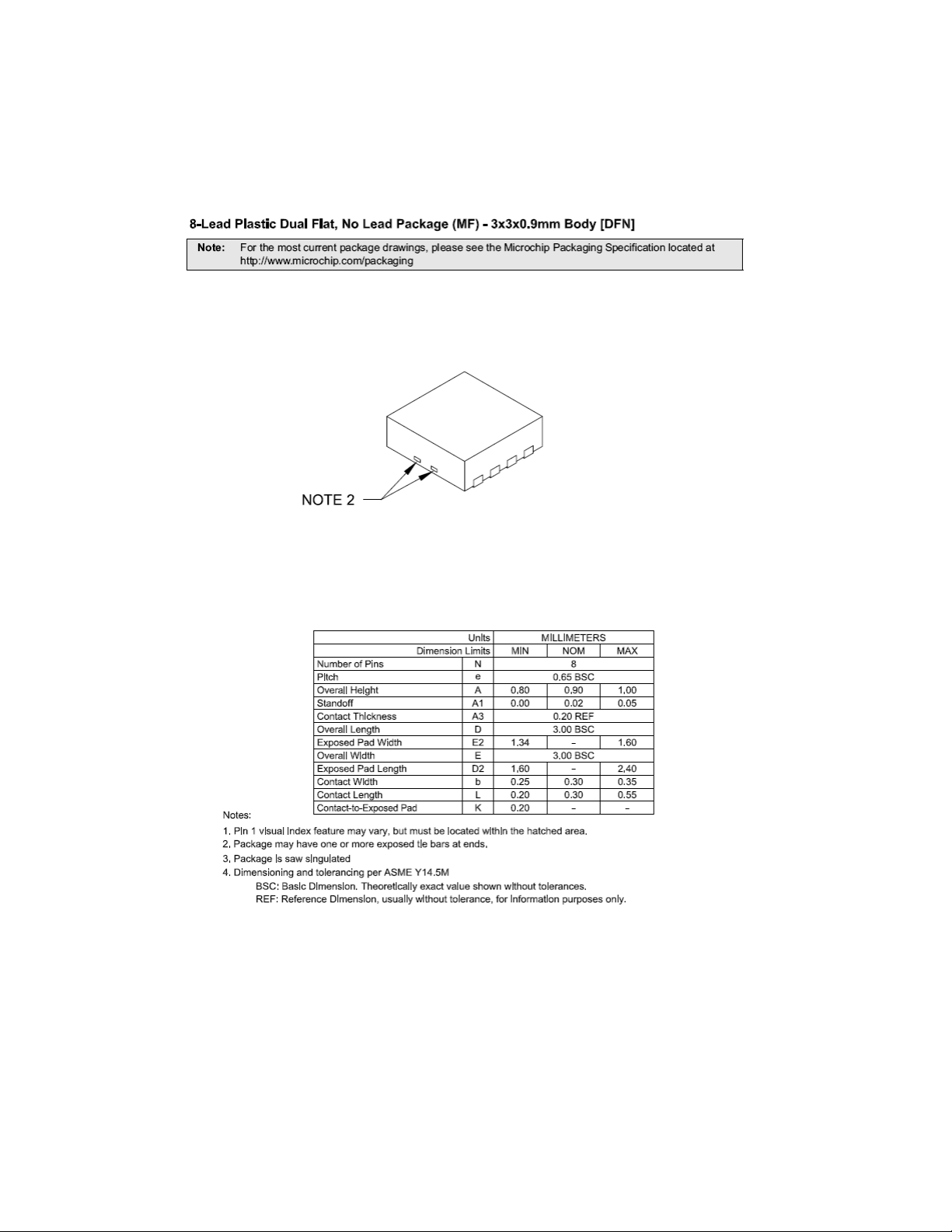

Figure 8.4 3mm x 3mm DFN Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 8.5 3mm x 3mm DFN Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

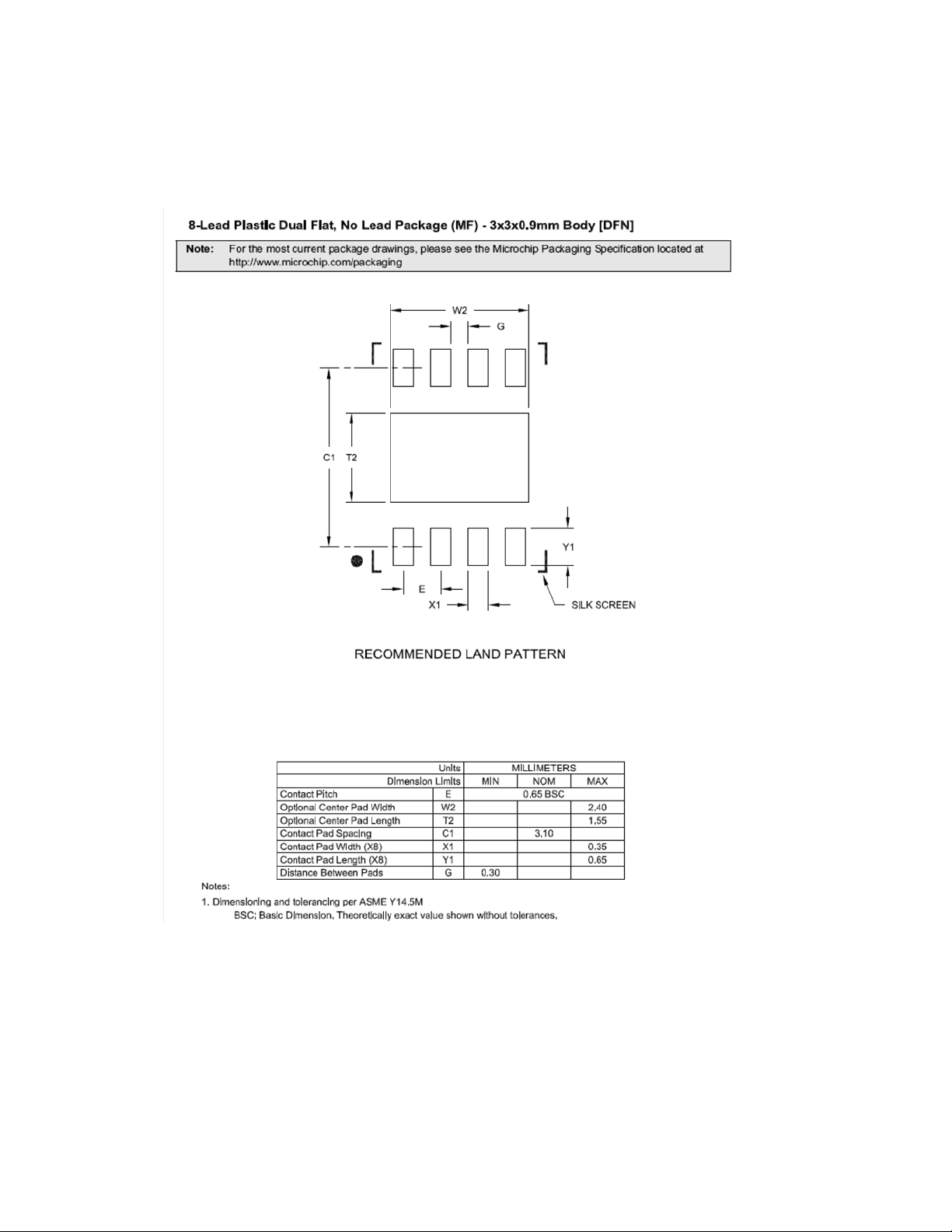

Figure 8.6 8 Pin DFN PCB Footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 8.7 EMC1182-1 8-Pin TDFN Package Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 8.8 EMC1182-2 8-Pin TDFN Package Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 8.9 EMC1182-A 8-Pin TDFN Package Markings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 8.10 EMC1182-1 8-Pin DFN Package Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 8.11 EMC1182-2 8-Pin DFN Package Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

and SYS_SHDN Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SMSC EMC1182 5 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

List of Tables

Table 2.1 EMC1182 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 2.2 Pin Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 3.1 Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 3.2 Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 3.3 SMBus Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 4.1 SMBus Address Decode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 4.1 Protocol Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 4.2 Write Byte Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4.3 Read Byte Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4.4 Send Byte Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4.5 Receive Byte Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4.6 Alert Response Address Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 5.1 Supply Curr en t vs. Co nve r sion Rat e for EMC11 82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 5.2 Temperature Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 6.1 Register Set in Hexadecimal Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 6.2 Temperature Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 6.3 Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 6.4 Configuration Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 6.5 Conversion Rate Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 6.6 Conversion Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 6.7 Temperature Limit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 6.8 Scratchpad Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 6.9 Therm Limit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 6.10 Channel Mask Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 6.11 Consecutive ALERT Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 6.12 Consecutive Alert / Therm Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 6.13 Beta Configuration Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 6.14 Ideality Configuration Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 6.15 Ideality Factor Look-Up Table (Diode Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 6.16 Substrate Diode Ideality Factor Look- Up Table (BJT Model) . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 6.17 Filter Configuration Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 6.18 FILTER Decode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 6.19 Product ID Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 6.20 Manufacturer ID Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 6.21 Revision Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 9.1 Customer Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Revision 1.0 (07-11-13) 6 SMSC EMC1182

DATASHEET

Internal Temp

Diode

Switching

Current

Analog

Mux

Internal

Temperature Register

Digital Mux

Digital Mux

Limit Comparator

Low Limit Registers

High Limit Registers

Conversion Rate Register

Interupt Masking

Status Registers

Configuration Register

SMBus Interface

SMCLK

SMDATA

DP

DN

V

DD

GND

External Temperature

Register(s)

ΔΣ ADC

THERM Limit Register

THERM Hysteresis Register

SMBus Address Decode

ALERT

EMC1182

THERM / ADDR

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Chapter 1 Block Diagram

Datasheet

Figure 1.1 EMC1182 Block Diagram

SMSC EMC1182 7 Revision 1.0 (07-11-13)

DATASHEET

SMDATA

SMCLK

1
2
3
4

ALERT / THERM2

DN

THERM / ADDR

GND

Exposed pad

DP

VDD

8
7
6
5

EMC1182

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Chapter 2 Pin Description

Figure 2.1 EMC1182 Pin Diagram, TDFN-8 2mm x 3mm / DFN-8 3mm x 3mm

Table 2.1 EMC1182 Pin Description

PIN NUMBER NAME FUNCTION TYPE

1 VDD Power supply Power
2 DP External diode positive (anode) connection AIO
3 DN External diode negative (cathode) connection AIO

THERM

4 THERM

5 GND Ground Power

6ALERT

7SMDATA

8 SMCLK SMBus Clock input - requires pull-up resistor DI (5V)

/ ADDR

/ THERM2

signal - requires pull-up resistor
ADDR - Selects SMBus address based on pull-

up resistor

Active low digital ALERT / THERM2 output
signal - requires pull-up resistor

SMBus Data input/output - requires pull-up
resistor

- Active low Critical THERM output

OD (5V)

OD (5V)

OD (5V)

DIOD (5V)

Bottom Pad Exposed Pad

Revision 1.0 (07-11-13) 8 SMSC EMC1182

Not internally connected, but recommend
grounding.

-

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

The pin types are described Table 2.2.

Ta ble 2.2 Pin Typ es

PIN TYPE DESCRIPTION

Power This pin is used to supply power or ground to the device.

AIO Analog Input / Output -This pin is used as an I/O for analog signals.

DI Digital Input - This pin is used as a digital input. This pin is 5V tolerant.

Datasheet

DIOD Digital Input / Open Drain Output - This pin is used as a digital I/O. When it is used as

an output, it is open drain and requires a pull-up resi stor. This pin is 5V tolerant.

OD Open Drain Digital Output - This pin is used as a digital output. It is open drain and

requires a pull-up resistor. This pin is 5V tolerant.

SMSC EMC1182 9 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Chapter 3 Electrical Specifications

3.1 Absolute Maximum Ratings

Table 3.1 Abso lute Maximum Ratings

DESCRIPTION RATING UNIT

Supply Voltage (V
Voltage on 5V tolerant pins (V
Voltage on 5V tolerant pins (|V
Voltage on any other pin to Ground -0.3 to V

) -0.3 to 4.0 V

DD

) -0.3 to 5.5 V

5VT_pin

- VDD|) (see Note 3.1)0 to 3.6 V

5VT_pin

+0.3 V

DD

Operating Temperature Range -40 to +125 °C
Storage Temperature Range -55 to +150 °C
Lead Temperature Range Refer to JEDEC Spec. J-STD-020
Package Thermal Characteristics for TDFN-8

Thermal Resistance (θ

)89°C/W

j-a

ESD Rating, All pins HBM 2000 V

Note: Stresses at or above those listed could cause permanent damage to the device. This is a stress

rating only and functional operation of the device at any other conditio n above those indicated
in the operation sections of this specification is not implied.

Note 3.1 For the 5V tolerant pins that have a pull-up resistor (SMCLK, SMDATA, THERM

ALERT

/ THERM2), the pull-up voltage must not exceed 3.6V when the device is

unpowered.

, and

3.2 Electrical Specifications

Table 3.2 Electrical Specifications

V

= 3.0V to 3.6V, TA = -40°C to 125°C, all typical values at TA = 27°C unless otherwise noted.

DD

CHARACTERISTIC SYMBOL MIN T YP MAX UNITS CONDITIONS

DC Power
Supply Voltage V
Supply Current I

Revision 1.0 (07-11-13) 10 SMSC EMC1182

DD

DD

3.0 3.3 3.6 V
200 410 µA 0.0625 conversion / sec, dynamic

averaging disabled

215 425 µA 1 conversion / sec, dynamic

averaging disabled

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Table 3.2 Electrical Specifications (co ntinu ed)

V

= 3.0V to 3.6V, TA = -40°C to 125°C, all typical values at TA = 27°C unless otherwise noted.

DD

CHARACTERISTIC SYMBOL MIN TYP MAX UNITS CONDITIONS

Datasheet

325 465 µA 4 conversions / sec, dynamic

averaging disabled

890 1050 µA 4 conversions / sec, dynamic

averaging enabled

1120 µA > 16 conversions / sec, dynamic

averaging enabled

Standby Supply Current I

DD

170 230 µA Device in Standby mode, no SMBus

communications, ALERT and
THERM pins not asserted.

Internal Temperature Monitor

Temperature Accuracy ±0.25 ±1 °C -5°C < TA < 100°C

±2 °C -40°C < T

< 125°C

A

Temperature Resolution 0.125 °C

External Temperature Monitor

Temperature Accuracy ±0.25 ±1 °C +20°C < T

0°C < TA < 100°C

±0.5 ±2 °C -40°C < T

DIODE

DIODE

< +110°C

< 127°C
Temperature Resolution 0.125 °C
Conversion Time all

Channels

t

CONV

190 ms default settings

Capacitive Filter C

Output Low Voltage V
Leakage Current I

FILTER

OL

LEAK

ALERT

0.4 V I

2.2 2.7 nF Connected across external diode

/ THERM2 and THERM pins

= 8mA

SINK

±5 µA ALERT / THERM2 and SYS_SHDN

pins
Device powered or unpowered
TA < 85°C
pull-up voltage < 3.6V

SMSC EMC1182 11 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

3.3 SMBus Electrical Characteristics

Table 3.3 SMBus Electrical Specifications

V

= 3.0 to 3.6V, TA = -40°C to 125°C, all typical values are at TA = 27°C unless otherwise noted.

DD

CHARACTERISTIC SYMBOL MIN TYP MAX UNITS CONDITIONS

SMBus Interface

Input High Voltage V

Input Low Voltage V

Leakage Current I

IH

IL

LEAK

1.4 V

V 5V Tolerant. Voltage threshold

DD

-0.3 0.8 V 5V Tolerant. Voltage threshold

±5 µA Powered or unpowered

Hysteresis 50 mV
Input Capacitance C
Output Low Sink Current I

OL

IN

8.2 15 mA SMDATA = 0.4V

5pF

SMBus Timing
Clock Frequency f
Spike Suppression t
Bus Free Time Stop to

Start
Hold Time: Start t
Setup Time: Start t
Setup Time: Stop t
Data Hold Time t
Data Hold Time t
Data Setup Time t
Clock Low Period t
Clock High Period t
Clock/Data Fall time t
Clock/Data Rise time t
Capacitive Load C
Timeout t

SMB

SP

t

BUF

HD:STA

SU:STA

SU:STO

HD:DAT

HD:DAT

SU:DAT

LOW

HIGH

FALL

RISE

LOAD

TIMEOUT

10 400 kHz

50 ns

1.3 µs

0.6 µs

0.6 µs

0.6 µs
0 µs When transmitting to the master

0.3 µs When receiving from the master
100 ns

1.3 µs

0.6 µs
300 ns Min = 20+0.1C
300 ns Min = 20+0.1C
400 pF per bus line

25 35 ms Disabled by default

based on 1.8V operation

based on 1.8V operation

TA < 85°C

ns

LOAD

ns

LOAD

Revision 1.0 (07-11-13) 12 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

SMDATA

SMCLK

T

BUF

P

S

S - Start Condition

P - Stop Condition

PS

T

HIGH

T

LOW

T

HD:STA

T

SU:STO

T

HD:STA

T

HD:DAT

T

SU:DAT

T

SU:STA

T

FALL

T

RISE

Datasheet

Chapter 4 System Management Bus Interface Protocol

4.1 Communications Protocol

The EMC1182 communicates with a host controller, such as an SMSC SIO, through the SMBus. The
SMBus is a two-wire serial communication protocol between a computer host and its peripheral
devices. A detailed timing diagram is shown in

For the first 15ms after power-up the device may not respond to SMBus communications.

.

Figure 4.1.

Figure 4.1 SMBus Timing Diagram

4.1.1 SMBu s Start Bit

The SMBus Start bit is defined as a transition of the SMBus Data line from a logic ‘1’ state to a logic
‘0’ state while the SMBus Clock line is in a logic ‘1’ state.

4.1.2 SMBus Add ress and RD / WR Bit

The SMBus Address Byte consists of the 7-bit client address followed by the RD / WR indicator bit. If
this RD / WR bit is a logic ‘0’, the SMBus Host is writing da ta to the client device. If this RD / WR bit
is a logic ‘1’, the SMBus Host is reading data from the client device.

The EMC1182-A SMBus slave address is determined by the pull-up resistor on the THERM pin as
shown in

The Address decode is performed by pulling known currents from VDD through the external resistor
causing the pin voltage to drop based on the respective curre nt / resistor relationship. This pin voltage
is compared against a threshold that determines the value of the pull-up resisto r.

SMSC EMC1182 13 Revision 1.0 (07-11-13)

Table 4.1, "SMBus Address Decode".

T able 4.1 SMBus Address Decode

PULL UP RESISTOR ON

THERM

PIN (±5%) SMBUS ADDRESS

4.7k 1 111_100(r/w

6.8k 1011_100(r/w

DATASHEET

)b
)b

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

+3.3V

Shared THERM

22K

4.7K ­33K

+2.5 - 5V

EMC1182

8

7

6

5

SMDATA

SMCLK

1

2

3

4

ALERT / ADDR

VDD

DP

DN

THERM

GND

Datasheet

Ta ble 4.1 SMBus Add ress Decode (continued)

PULL UP RESISTOR ON

THERM

PIN (±5%) SMBUS ADDRESS

10k 1001_100(r/w)b
15k 1101_100(r/w
22k 0011_100(r/w
33k 01 11_100(r/w

The EMC1182-1 SMBus address is hard coded to 1001_100(r/w).
The EMC1182-2 SMBus address is hard coded to 1001_101(r/w).

4.1.3 THERM Pin Considerations

Because of the decode method used to determine the SMBus Address, it is important that the pull-up
resistance on the
resistor on the THERM pin must be connected to the same 3.3V suppl y that drives the VDD pin.

For 15ms after power up, the THERM pin must not be pulled low or the SMBus address will not be
decoded properly. If the system requirements do not permit these conditions, the THERM pin must be
isolated from its hard-wired OR’d bus during this time.

One method of isolating this pin is shown in Figure 4.4, "Isolating the THERM pi n".

THERM pin be within the tolerances shown in Table 4.1. Additionally, the pull-up

)b
)b
)b

Figure 4.4 Isolating the THERM

pin

4.1.5 SMBus Data Bytes

All SMBus Data bytes are sent most significant bit first and composed of 8-bits of information.

4.1.6 SMBus ACK and NACK Bits

The SMBus client will acknowledge all data bytes that it receives. This is done by the cl ient device
pulling the SMBus data line low after the 8th bit of each byte that is transmitted. This applies to the
Write Byte protocol.

Revision 1.0 (07-11-13) 14 SMSC EMC1182

The Host will NACK (not acknowledge) the last data byte to be received from the client by holding the
SMBus data line high after the 8th data bit has been sent.

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

4.1.7 SMBus Stop Bit

The SMBus Stop bit is defined as a transition of the SMBus Data line from a logic ‘0’ state to a logic
‘1’ state while the SMBus clock line is in a logic ‘1’ state. When the device detects an SMBus Stop bit
and it has been communicating with the SMBus protocol, it will rese t its client interface and prepare
to receive further communications.

4.1.8 SMBus Timeout

Datasheet

The EMC1182 supports SMBus Timeout. If the clock line is held low for longer than t
device will reset its SMBus protocol. This function can be enabled by setting the TIMEOUT bit (see

Section 6.11, "Consecutive ALERT Register 22h").

4.1.9 SMBus and I2C Compatibility

The EMC1182 is compatible with SMBus and I2C. The major differences between SMBus and I2C
devices are highlighted here. For more information, refer to the SMBus 2.0 and I2C specifications. For
information on using the EMC1182 in an I2C system, refer to SMSC AN 14.0 SMSC Dedicated Slave
Devices in I

1. EMC1182 supports I2C fast mode at 400kHz. This covers the SMBus max time of 100kHz.

2. Minimum frequency for SMBus communications is 10kHz.

3. The SMBus client protocol will reset if the clock is held at a logic ‘0’ for longer than 30ms. This
timeout functionality is disabled by default in the EMC1182 and can be enabled by writing to the
TIMEOUT bit. I2C does not have a timeout.

4. I2C devices do not support the Alert Response Address functionality (which is op tiona l for SMBus).

Attempting to communicate with the EMC1182 SMBus interface with an invalid slave address or invalid
protocol will result in no response from the device and will not affect its register contents. Stretching
of the SMCLK signal is supported, provided other devices on the SMBus control the timing.

2

C Systems.

4.2 SMBus Protocols

The device supports Send Byte, Read Byte, Write Byte, Receive Byte, and the Alert Response Address
as valid protocols as shown below.

All of the below protocols use the convention in Table 4.1.

TIMEOUT

, the

Ta ble 4.1 Protocol Format

DATA SENT
TO DEVICE

# of bits sent # of bits sent

SMSC EMC1182 15 Revision 1.0 (07-11-13)

DATASHEET

DATA SENT TO

THE HOST

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

4.2.1 Write Byte

The Write Byte is used to write one byte of data to the registers, as shown in Table 4.2.

Table 4.2 Write Byte Protocol

START

SLAVE

ADDRESS WR

ACK

REGISTER

ADDRESS ACK

REGISTER

DATA ACK STOP

1 -> 0 YYYY_YYY 0 0 XXh 0 XXh 0 0 -> 1

4.2.2 Read Byte

The Read Byte protocol is used to read one byte of data from the registers as show n in Table 4.3.

Table 4.3 Read Byte Protocol

START SLAVE

ADDRESS

1 -> 0 YYYY_

YYY

WR ACK REGISTER

ADDRESS

ACK START SLAVE

ADDRESS

0 0 XXh 0 1 -> 0 YYYY_

YYY

RD ACK REGISTER

DATA

NACK STOP

10 XX 10 -> 1

4.2.3 Send Byte

The Send Byte protocol is used to set the internal address register pointer to the correct address
location. No data is transferred during the Send Byte protocol as shown in Table 4.4.

Table 4.4 Send Byte Protocol

REGISTER

ADDRESS ACK STOP

START

SLA VE

ADDRESS WR

ACK

1 -> 0 YYYY_YYY 0 0 XXh 0 0 -> 1

4.2.4 Receive Byte

The Receive Byte protocol is used to read data from a register when the internal register address
pointer is known to be at the right location (e.g. set via Send Byte). This is used for consecutive reads
of the same register as shown in

SLA VE

START

ADDRESS RD ACK REGISTER DATA NACK STOP

1 -> 0 YYYY_YYY 1 0 XXh 1 0 -> 1

Revision 1.0 (07-11-13) 16 SMSC EMC1182

Table 4.5.

Table 4.5 Receive Byte Protocol

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

4.3 Alert Response Address

The ALERT output can be used as a processor interrupt or as an SMBus Alert.
When it detects that the ALERT pin is asserted, the host will send the Alert Response Address (ARA)

to the general address of 0001_100xb. All devices with active interrupts will respond with their client
address as shown in

ALERT

RESPONSE

START

ADDRESS RD

1 -> 0 0001_100 1 0 YYYY_YYY 1 0 -> 1

The EMC1182 will respond to the ARA in the following way:

1. Send Slave Address and verify that full slave address was sent (i.e. the SMBus communication
from the device was not prematurely stopped due to a bus contention event).

2. Set the MASK_ALL bit to clear the ALERT pin.

Table 4.6.

Ta ble 4.6 Alert Respo nse Address Protocol

DEVICE

ACK

ADDRESS NACK STOP

Datasheet

APPLICATION NOTE: The ARA does not clear the Status Register and if the MASK_ALL bit is cleared prior to the

Status Register being cleared, the ALERT

pin will be reasserted.

SMSC EMC1182 17 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

CPU / GPU

EMC1182

Host

DP

DN

SMDATA

Thermal
Junction

SMCLK

SMBus

Interface

THERM / ADDR

ALERT / THERM2

Power

Control

VDD

GND

VDD = 3.3V

1.8V 1.8V – 3.3V

Datasheet

Chapter 5 Product Description

The is an SMBus temperature sensor. The EMC1182 monitors one internal diode and one externally
connected temperature diode.

Thermal management is performed in cooperation with a host device. This consists of the host reading
the temperature data of both the external and internal temperature diodes of the EMC 1182 and using
that data to control the speed of one or more fans.

The EMC1182 has two levels of monitoring. The first provides a maskable ALERT / THERM2 signal
to the host when the measured temperatures exceeds user programmable limits. This allows the
EMC1182 to be used as an independent therma l watchdog to warn the host of temperature hot spots
without direct control by the host. The second level of monitoring provides a non-maskable interrupt

THERM pin if the measured temperatures meet or exceed a second programmable l imit.

on the

Figure 5.1 shows a system level block diagram of the EMC1182.

Figure 5.1 System Diagram for EMC1182

5.1 Modes of Operation

The EMC1182 has two modes of operation.

 Active (Run) - In this mode of operation, the ADC is converting on all temperature cha nnels at the

programmed conversion rate. The temperature data is updated at the end of every conversion and
the limits are checked. In Active mode, writing to the one-shot register will do nothing.

 Standby (Stop) - In this mode of operation, the majority o f circuitry is powered down to reduce

supply current. The temperature data is not updated and the limits are not checked. In this mode
of operation, the SMBus is fully active and the part will return requested data. Writing to the one­shot register will enable the device to up date all temperature channels. Once al l the channels are
updated, the device will return to the Standby mode.

Revision 1.0 (07-11-13) 18 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

5.2 Conversion Rates

The EMC1182 may be configured for different conversion rates based on the system requirements.
The conversion rate is configured as described in
conversions per second. Other available conversion rates are shown in Table 6.6, "Conversion Rate".

5.3 Dynamic Averaging

Dynamic averaging causes the EMC1182 to measure the external diode channels for an extended time
based on the selected conversion rate. This functionality can be disabled for increased power savings
at the lower conversion rates (see
averaging is enabled, the device will automatically adjust the samp ling and measurement time for the
external diode channels. This allows the device to average 2x or 16x longer tha n the normal 11 bit
operation (nominally 21ms per channel) while still maintaining the selected conversion rate. The
benefits of dynamic averaging are improved noise rejection due to the longer integration time as well
as less random variation of the temperature measurement.

When enabled, the dynamic averaging applies when a one-sh ot command is issued. The device will
perform the desired averaging during the one-shot operation according to the selected conversion rate.

When enabled, the dynamic averaging will affect the average supply current based on the chosen
conversion rate as shown in Table 5.1.

Datasheet

Section 6.5. The default conversion rate is 4

Section 6.4, "Configuration Register 03h / 09h"). When dynamic

Ta ble 5.1 Supp ly Curr ent vs. Conversion Rate for EMC1182

AVERAGE SUPPLY CURRENT

(TYPICAL)

ENABLED

CONVERSION RATE

1 / 16 sec 210uA 200uA 16x 1x

1 / 8 sec 265uA 200uA 16x 1x
1 / 4 sec 330uA 200uA 16x 1x
1 / 2 sec 395uA 200uA 16x 1x

1 / sec 460uA 215uA 16x 1x

4 / sec (default) 890uA 325uA 8x 1x

8 / sec 1010uA 630uA 4 x 1x
16 / sec 1120uA 775uA 2x 1x
32 / sec 1200uA 1050uA 1x 1x
64 / sec 1400uA 1100uA 0.5x 0.5x

(DEFAULT) DISABLED

AVERAGING FACTOR (BASED ON

11-BIT OPERATION)

ENABLED

(DEFAULT) DISABLED

5.4 THERM Output

The THERM output is asserted indepe ndently of the ALERT output and cannot be masked. Whenever
any of the measured temperatures exceed the user programmed Therm Limit values for the
programmed number of consecutive measurements, the
asserted, it will remain asserted until all measured temperatures drop below the Therm Limit minus
the Therm Hysteresis (also programmable).

SMSC EMC1182 19 Revision 1.0 (07-11-13)

DATASHEET

THERM output is asserted. Once it has been

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

EMC1182

SMDATA

SMCLK

ALERT

VDD

DP

DN

THERM /

ADDR

GND

1
2
3
4

8

7

6
5

+3.3V

Shared THERM

22

K

4.7K ­33

K

+2.5 - 5V

Datasheet

When the THERM pin is asserted, the THERM status bits will likewise be set. Reading these bits will
not clear them until the THERM pin is deasserted. Once the THERM pin is deasserted, the THERM
status bits will be automatically cleared.

5.4.1 THERM Pin Considerations

Because of the decode method used to determine the SMBus Address, it is important that the pull-up
resistance on
pin must be connected to the same 3.3V supply that drives the VDD pi n.

For 15ms after power up, the THERM pin must not be pulled low or the SMBus Address will not be
decoded properly. If the system requirements do not permit these conditions, the THERM pin must be
isolated from the bus during this time. One method of isolating this pin is shown in

.

THERM pin be within ±10% tolerance. Ad ditionally, the pull-up resi stor on the THERM

Figure 5.2.

Figure 5.2 Isolating THERM Pin

5.5 ALERT / THERM2 Output

The ALERT / THERM2 pin is an open dr ain output and requires a pull-up resistor to VDD and has two
modes of operation: interrupt mode and comparator mode. The mode of the ALERT / THERM2 output
is selected via the ALERT / COMPALERT/THERM bit in the Configuration Register (see Section 6.4).

5.5.1 ALERT / THERM2 Pin InterruptALERT Mode

When configured to operate in interru pt mode, the ALERT / THERM2 pin asserts low when an out of
limit measurement (
detected, functioning as any standard
asserted as long as an out-of-limit condition remains. Once the out-of-limit condition has been
removed, the ALERT / THERM2 pin will remain asserted until the appropriate status bits are cleared.

The ALERT/ THERM2 pin can be masked by setting the MASK_ALL bit. Once the ALERT / THERM2
pin has been masked, it will be de-asserted and remain de-asserted until the MASK_ALL bit is cleared
by the user. Any interrupt conditions that occur while the ALERT / THERM2 pin is masked wi ll update
the Status Register normally. There are also individual channel masks (see

The ALERT / THERM2 pin is used as an interrupt signal or as an SMBus Alert signal that allows an
SMBus slave to communicate an error condition to the master. One or more
can be hard-wired together.

5.5.2 ALERT / THERM2 Pin ComparatorTHERM Mode

When the ALERT / THERM2 pin is configured to operate in comparator mode, it will be asserted if any
of the measured temperatures exceeds the respective high limit, acting as a second

Revision 1.0 (07-11-13) 20 SMSC EMC1182

> high limit or < low limit) is detected on any diode or when a diode fault is

ALERT in on the SMBus. The ALERT / THERM2 pin will remain

Section 6.10).

ALERT / THERM2 outputs

THERM function

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

in. The ALERT / THERM2 pin will remain asserted until all temperatures drop below the corresponding
high limit minus the Therm Hysteresis value.

When the ALERT / THERM2 pin is asserted in comparator mode, the corresponding high limit status
bits will be set. Reading these bits will not clear them until the
Once the

The MASK_ALL bit will not block the ALERT / THERM2 pin in this mode; however, the individual
channel masks (see Section 6.10) will prevent the respective channel from asserting the ALERT/
THERM2 pin.

ALERT pin is deasserted, the status bits will be automatically cleared.

5.6 Temperature Measurement

The EMC1182 can monitor the temperature of one externally connected diode.
The device contains programmable High, Low, and Therm limits for all measured temperature

channels. If the measured temperature goes below the Lo w limit or above the High limit, the ALERT
pin can be asserted (based on user settings). If the measured temperature meets or exceeds the
Therm Limit, the THERM pin is asserted unconditionally, providing two tiers of temperature detection.

5.6.1 Beta Compensation

Datasheet

ALERT / THERM2 pin is deasserted.

The EMC1182 is configured to monitor the temperature of basic diodes (e.g., 2N3904) or CPU thermal
diodes. For External Diode 1, it automatically detects the type of external diode (CPU diode or diode
connected transistor) and determines the optimal setting to reduce temperatur e errors introduced by
beta variation. Compensating for this error is also known as implementing the transistor or BJT model
for temperature measurement.

For discrete transistors configured with the collector and base shorted together, the beta is generally
sufficiently high such that the percent change in beta variation is very small. For example, a 10%
variation in beta for two forced emitter currents with a transistor whose ideal beta is 50 would contri bute
approximately 0.25°C error at 100°C. However for substrate transistors where the base-emitter junction
is used for temperature measurement and the collector is tied to the substrate, the proportional beta
variation will cause large error. For example, a 10% variation in beta for two forced emitter currents
with a transistor whose ideal beta is 0.5 would contribute approximately 8.25°C error at 100°C.

5.6.2 Resistance Error Correction (REC)

Parasitic resistance in series with the external diodes will limit the accuracy obtainable from
temperature measurement devices. The voltage developed across this resistance by the switching
diode currents cause the temperature measurement to read higher than the true temperature.
Contributors to series resistance are PCB trace resistance, on die (i.e. on the processor) metal
resistance, bulk resistance in the base and emitter of the temperature transisto r. Typically, the error
caused by series resistance is +0.7°C per ohm. The EMC1182 automatically corrects up to 100 ohms
of series resistance.

5.6.3 Programmable External Diode Ideality Factor

The EMC1182 is designed for external diodes with an ideality factor of 1.008. Not all external diodes,
processor or discrete, will have this exact value. This variation of the ideal ity factor introduces error in
the temperature measurement which must be corrected for. This correction is typically done using
programmable offset registers. Since an ideality factor mismatch introduces an error that is a function
of temperature, this correction is only accurate within a small range of temperatures. To provide
maximum flexibility to the user, the EMC1182 provides a 6-bit reg ister for each external diode where
the ideality factor of the diode used is programmed to eliminate errors across all temperatures.

SMSC EMC1182 21 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

APPLICATION NOTE: When monitoring a substrate transistor or CPU d iode and beta compensation is enabled, the

Ideality Factor should not be adjusted. Beta Compensation automatically corrects for most
ideality errors.

5.7 Diode Faults

The EMC1182 detects an open on the DP and DN pins, and a short across the DP and DN pins. For
each temperature measurement made, the device checks for a diode fault on the external diode
channel(s). When a diode fault is detected, the

Section 5.8) and the temperature data reads 00h in the MSB and LSB registers (note: the low limi t will

not be checked). A diode fault is defined as one of the followin g: an open betwee n DP and DN, a sho rt
from VDD to DP, or a short from VDD to DN.

If a short occurs across DP and DN or a short occurs from DP to GND, the low limit status bit is set
and the ALERT / THERM2 pin asserts (unless masked). This condition is indistinguishable from a
temperature measurement of 0.000°C (-64°C in extended ran ge) resulting in temperature data of 00h
in the MSB and LSB registers.

If a short from DN to GND occurs (with a diode connected), temperature measurements will continue
as normal with no alerts.

ALERT / THERM2 pin asserts (unless masked, see

5.8 Consecutive Alerts

The EMC1182 contains multiple consecutive alert counters. One set of counters applies to the ALERT
/ THERM2 pin and the second set of counters applies to the THERM pin. Each temperature
measurement channel has a separate consecutive alert counter for each of the
THERM pins. All counters are user programmable and determine the number of consecutive
measurements that a temperature channel(s) must be out-of-limi t or reporting a diode fault before the
corresponding pin is asserted.

See Section 6.11, "Consecutive ALERT Register 22h" for more details on the consecutive alert
function.

5.9 Digital Filter

To reduce the effect of noise and temperature spikes on the reported temperat ure, the External Diode
channel uses a programmable digital filter. This filter can be configured as Level 1, Level 2, or Disabled
(default) (see Section 6.14). The typical filter performance is shown in Figure 5.4 and Figure 5.5.

ALERT / THERM2 and

Revision 1.0 (07-11-13) 22 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Filter Step Response

0

10

20

30

40

50

60

70

80

90

02468101214

Samples

Temperature (C)

Disabled

Level1

Level2

Filter Impulse Response

0

10

20

30

40

50

60

70

80

90

02468101214

Samples

Temperatu r e (C)

Disabled

Level1

Level2

Datasheet

Figure 5.4 Temperature Filter Step Response

SMSC EMC1182 23 Revision 1.0 (07-11-13)

Figure 5.5 Temperature Filter Impulse Response

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

5.10 Temperature Measurement Results an d Data

The temperature measurement results are stored in the internal and external temperature registers.
These are then compared with the values stored in the hi gh and low limit registers. Both external and
internal temperature measurements are stored in 11-bit format with the eight (8) most significant bits
stored in a high byte register and the three (3) least significant bits stored in the three (3) MSB
positions of the low byte register. All other bits of the low byte register are set to zero.

The EMC1182 has two selectable temperature ranges. The default range is from 0°C to +127°C and
the temperature is represented as binary number able to report a temper ature from 0°C to +127 .875°C
in 0.125°C steps.

The extended range is an extended temperature ran ge from -64°C to +191°C. The data format is a
binary number offset by 64°C. The extended range is used to measure temperature diodes with a la rge
known offset (such as AMD processor diodes) where the diode temperature plus the offset would be
equivalent to a temperature higher than +127°C.

Table 5.2 shows the default and extended range formats.

Table 5.2 Temperature Data Format

TEMPERATURE (°C) DEFAULT RANGE 0°C TO 127°C EXTENDED RANGE -64°C TO 191°C

Diode Fault 000 0000 0000 000 0000 0000

-64 000 0000 0000 000 0000 0000

-1 000 0000 0000 001 1111 1000
0 000 0000 0000 010 0000 0000

0.125 000 0000 0001 010 0000 0001
1 000 0000 1000 010 0000 1000
64 010 0000 0000 100 0000 0000
65 010 0000 1000 100 0000 1000
127 011 1111 1000 101 1111 1000
12 7 . 8 7 5 011 1111 1111 10 1 1111 1111
128 011 1111 1111 110 0000 0000
190 011 1111 1111 111 1111 0000
191 011 1111 1111 111 1111 1000
>= 1 9 1 . 8 7 5 0 11 1111 1111 111 1111 1111

Revision 1.0 (07-11-13) 24 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Chapter 6 Register Description

The registers shown in Table 6.1 are accessible through the SMBus. An entry of ‘-’ indicates that the
bit is not used and will always read ‘0’.

Table 6.1 Register Set in Hexad ecimal Ord er

Datasheet

REGISTER
ADDRESS R/W REGISTER NAME FUNCTION

00h R

01h R

02h R-C Status

03h R/W Configuration

04h R/W Conversion Rate

05h R/W

06h R/W

07h R/W

Internal Diode Data

High Byte

External Diode Data

High Byte

Internal Diode High

Limit

Internal Diode Low

Limit

External Diode High

Limit High Byte

Stores the integer data for the

Internal Diode

Stores the integer data for the

External Diode

Stores status bits for the Internal

Diode and External Diode

Controls the general operation of

the device (mirrored at address

09h)

Controls the conversion rate for

updating temperature data

(mirrored at address 0Ah)

Stores the 8-bit high limit for the

Internal Diode (mirrored at address

0Bh)

Stores the 8-bit low limit for the

Internal Diode (mirrored at address

0Ch)

Stores the integer portion of the
high limit for the External Diode

(mirrored at register 0Dh)

DEFAULT

VALUE PAGE

00h

Page 27

00h

00h Page 28

00h Page 28

06h

(4/sec)

55h

(85°C)

00h

(0°C)

55h

(85°C)

Page 29

Page 30

08h R/W

09h R/W Configuration

0Ah R/W Conversion Rate

SMSC EMC1182 25 Revision 1.0 (07-11-13)

External Diode Low

Limit High Byte

Stores the integer portion of the

low limit for the External Diode

(mirrored at register 0Eh)

Controls the general operation of

the device (mirrored at address

03h)

Controls the conversion rate for

updating temperature data

(mirrored at address 04h)

DATASHEET

00h

(0°C)

00h

06h

(4/sec)

Page 28

Page 29

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Tabl e 6.1 Register Set in Hexadecimal Order (continued)

REGISTER
ADDRESS R/W REGISTER NAME FUNCTION

0Bh R/W

0Ch R/W

0Dh R/W

0Eh R/W

Internal Diode High

Limit

Internal Diode Low

Limit

External Diode High

Limit High Byte

External Diode Low

Limit High Byte

0Fh W One Shot

10h R

External Diode Data

Low Byte

11h R/W Scratchpad

12h R/W Scratchpad

Stores the 8-bit high limit for the

Internal Diode (mirrored at address

05h)

Stores the 8-bit low limit for the

Internal Diode (mirrored at address

06h)

Stores the integer portion of the
high limit for the External Diode

(mirrored at register 07h)

Stores the integer portion of the

low limit for the External Diode

(mirrored at register 08h)

A write to this register initiates a

one shot update.

Stores the fractional data for the

External Diode

Scratchpad register for software

compatibility

Scratchpad register for software

compatibility

DEFAULT

VALUE PAGE

55h

(85°C)

00h

(0°C)

Page 30

55h

(85°C)

00h

(0°C)

00h Page 31

00h Page 27

00h Page 31

00h Page 31

13h R/W

14h R/W

19h R/W

1Fh R/W

20h R/W

External Diode High

Limit Low Byte

External Diode Low

Limit Low Byte
External Diode

Therm Limit

Channel Mask

Register

Internal Diode Therm

Limit

21h R/W Therm Hysteresis

22h R/W Consecutive ALERT

25h R/W

27h R/W

External Diode1 Beta

Configuration

External Diode

Ideality Factor

Stores the fractional portion of the

high limit for the External Diode

Stores the fractional portion of the

low limit for the External Diode

Stores the 8-bit critical temperature

limit for the External Diode

Controls the masking of individual

channels

Stores the 8-bit critical temperature

limit for the Internal Diode

Stores the 8-bit hysteresis value

that applies to all Therm limits

Controls the number of out-of-limit

conditions that must occur before

an interrupt is asserted

Stores the Beta Compensation

circuitry settings for External

Diode1

Stores the ideality factor for the

External Diode

00h

Page 30

00h

55h

(85°C)

Page 32

00h Page 32

55h

(85°C

Page 32

0Ah

(10°C)

70h Page 33

08h Page 35

12h

(1.008)

Page 35

Revision 1.0 (07-11-13) 26 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Tabl e 6.1 Register Set in Hexadecimal Order (continued)

REGISTER
ADDRESS R/W REGISTER NAME FUNCTION

29h R

40h R/W Filter Control

FDh R Product ID

FEh R Manufacturer ID

FFh R Revision

Internal Diode Data

Low Byte

Stores the fractional data for the

Internal Diode

Controls the digital filter setting for

the External Diode channel

Stores a fixed value that identifies

the device

Stores a fixed value that

represents SMSC

Stores a fixed value that

represents the revision number

6.1 Data Read Interlock

When any temperature channel high byte register is read, the correspo nding low byte is copied into
an internal ‘shadow’ register. The user is free to read the low byte at any time an d be guaranteed that
it will correspond to the previously read high byte. Regardless if the low byte is read or not, reading
from the same high byte register again will automa tically refresh this stored low byte data.

6.2 Temperature Data Registers

DEFAULT

VALUE PAGE

00h Page 27

00h Page 37

20h Page 37

5Dh Page 37

07h Page 38

T able 6.2 Temperature Data Registers

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

00h R

29h R

01h R

10h R

As shown in Table 6.2, all temperature s are stored as an 11-bit value with the high byte representing
the integer value and the low byte representing the fracti onal value left justified to occupy the MSBits.

Internal Diode

High Byte

Internal Diode

Low Byte

External Diode

High Byte

External Diode

Low Byte

128 64 32 16 8 4 2 1 00h

0.5 0.25 0.125 - - - - - 00h

128 64 32 16 8 4 2 1 00h

0.5 0.25 0.125 - - - - - 00h

SMSC EMC1182 27 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.3 Status Register 02h

Table 6.3 Status Register

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

02h R-C Status BUSY IHIGH ILOW EHIGH ELOW FAULT ETHERM ITHERM 00h

The Status Register reports the operating status of the Internal Diode and External Diode channels.
When any of the bits are set (excluding the BUSY bit) either the ALERT / THERM2 or THERM pin is
being asserted.

The ALERT / THERM2 and THERM pins are controlled by the respective consecutive al ert counters
(see Section 6.11) and will not be asserted until the programmed consecutive alert count has been
reached. The status bits (except ETHERM and ITHERM) will remain set until read unless the ALERT
pin is configured as a second THERM output (see Section 5.4).

Bit 7 - BUSY - This bit indicates that the ADC is currently converting. This bit does not cause either
the ALERT / THERM2 or THERM pin to be asserted.

Bit 6 - IHIGH - This bit is set when the Internal Diode channel exceeds its programmed high limit.
When set, this bit will assert the ALERT / THERM2 pin.

Bit 5 - ILOW - This bit is set when the Internal Diode channel drops below its programmed low limit.
When set, this bit will assert the

Bit 4 - EHIGH - This bit is set when the External Diode channel exceeds its programmed high limit.
When set, this bit will assert the ALERT / THERM2 pin.

Bit 3 - ELOW - This bit is set when the External Diode channel drops below its programmed low limit.
When set, this bit will assert the ALERT / THERM2 pin.

Bit 2 - FAULT - This bit is asserted when a diode fault is detected. When set, th is bit will assert the
ALERT / THERM2 pin.

Bit 1 - ETHERM - This bit is set when the External Diode channel exceeds the programmed Therm
Limit. When set, this bit will assert the THERM pin. This bit will remain set until the THERM pin is
released at which point it will be automatically cleared .

Bit 0 - ITHERM - This bit is set when the Internal Diode channel exceeds the programmed Therm Limit.
When set, this bit will assert the
at which point it will be automatically cleared.

ALERT / THERM2 pin.

THERM pin. This bit will remain set until the THERM pin is released

6.4 Configuration Register 03h / 09h

Ta ble 6.4 Configu ration Register

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

03h

R/W Configuration

09h

The Configuration Register controls the basic operation of the devic e. This register is fully accessible
at either address.

Revision 1.0 (07-11-13) 28 SMSC EMC1182

MASK_

ALL

RUN/

STOP

ALERT

THERM2

DATASHEET

/

RECD - RANGE

DAVG_

DIS

- 00h

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Bit 7 - MASK_ALL - Masks the ALERT / THERM2 pin from asserting.

 ‘0’ - (default) - The ALERT / THERM2 pin is not masked. If any of the appropriate status bits are

set the ALERT

 ‘1’ - The ALERT/ THERM2 pin is masked. It will not be asserted for any interrupt condition unless

/ THERM2 pin will be asserted.

it is configured in comparator mode. The Status Registers will be updated normally.

Bit 6 - RUN / STOP - Controls Active/Standby modes.

 ‘0’ (default) - The device is in Active mode and converting on all cha nnels.
 ‘1’ - The device is in Standby mode and not converting.

Bit 5 - ALERT/THERM2 - Controls the operation of the ALERT / THERM2 pin.

 ‘0’ (default) - The ALERT / THERM2 acts as an Alert pin and has interrupt behavior as described

in Section 5.5.1.

 ‘1’ - The ALERT / THERM2 acts as a THERM pin and has comparator behavior as described in

Section 5.5.2. In this mode the MASK_ALL bit is ignored.

Bit 4 - RECD - Disables the Resistance Error Correction (REC) for the External Diode.

 ‘0’ (default) - REC is enabled for the External Diode.
 ‘1’ - REC is disabled for the External Diode.

Bit 2 - RANGE - Configures the measurement range and data format of the temperature channels.

 ‘0’ (default) - The temperature measurement range is 0°C to +127.875°C and the data format is

binary.

 ‘1’ -The temperature measurement range is -64°C to +191.875°C and th e data format is offset

binary (see Table 5.2).

Bit 1 - DAVG_DIS - Disables the dynamic averaging feature on all temperature channels.

 ‘0’ (default) - The dynamic averag ing feature is enabled. All temperature channels will be converted

with an averaging factor that is based on the conversion rate as shown in Table 6.6.

 ‘1’ - The dynamic averaging feature is disabled. All temperature channels will be converted with a

maximum averaging factor of 1x (equivalent to 11-bit conversion). For higher conversion rates, this
averaging factor will be reduced as shown in Table 6.6.

6.5 Conversion Rate Register 04h / 0Ah

Tabl e 6.5 Conversion Rate Register

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

04h

R/W

0Ah

The Conversion Rate Register controls how often the temperature measurement cha nnels are updated
and compared against the limits. This register is fully accessible at either address.

Bits 3-0 - CONV[3:0] - Determines the conversion rate as shown in Table 6.6.

SMSC EMC1182 29 Revision 1.0 (07-11-13)

Conversion

Rate

- - - - CONV[3:0]

DATASHEET

06h

(4/sec)

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Table 6.6 Conversion Rate

CONV[3:0]

0h 0 0 0 0 / 16
1h 0 0 0 1 1 / 8
2h 0 0 1 0 1 / 4
3h 0 0 1 1 1 / 21
4h 0 1 0 0 1
5h 0 1 0 1 2
6h 0 1 1 0 4 (default)
7h 0 1 1 1 8

CONVERSIONS / SECONDHEX 3 2 1 0

8h 1 0 0 0 16
9h 1 0 0 1 32
Ah 1 0 1 0 64

Bh - Fh All others 1

6.6 Limit Registers

Table 6.7 Temperature Limit Registers

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

05h

R/W

0Bh
06h

R/W

0Ch

07h

R/W

0Dh

Internal Diode

High Limit

Internal Diode

Low Limit

External

Diode High

Limit High

Byte

128643216 8 42 1

128643216 8 42 1

128643216 8 42 1

55h

(85°C)

00h

(0°C)

55h

(85°C)

External

13h R/W

Diode High

Limit Low

0.5 0.25 0.125 - - - - - 00h

Byte

Revision 1.0 (07-11-13) 30 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Tabl e 6.7 Tempe rature Limit Registers (continued)

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

08h

R/W

0Eh

14h R/W

The device contains both high and low limi ts for all temperature channels. If the measured temp erature
exceeds the high limit, then the corresponding status bit is set and the ALERT / THERM2 pin is
asserted. Likewise, if the measured temperature is less than or equal to the low limit, the
corresponding status bit is set and the

The data format for the limits must match the selected data format for the temperature so that if the
extended temperature range is used, the limits must be programmed in the extended data format.

The limit registers with multiple addresses are fully accessible at eith er address.
When the device is in Standby mode, updating the limit registers will have no effect until the next

conversion cycle occurs. This can be initiated via a write to the One Shot Register (see

"One Shot Register 0Fh") or by clearing the RUN / STOP bit (see Secti on 6.4, "Configuration Register
03h / 09h").

External

Diode Low

Limit High

Byte

External

Diode Low

Limit Low

Byte

128643216 8 42 1

0.5 0.25 0.125 - - - - - 00h

ALERT / THERM2 pin is asserted.

6.7 Scratchpad Registers 11h and 12h

00h

(0°C)

Section 6.8,

Table 6.8 Scratchpad Register

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

11h R/W Scratchpad 7 6 5 4 3 2 1 0 00h

12h R/W Scratchpad 7 6 5 4 3 2 1 0 00h

The Scratchpad Registers are Read / Write registers that are used for place holders to be software
compatible with legacy programs. Reading from the registers will return what is written to them.

6.8 One Shot Register 0Fh

The One Shot Register is used to initiate a one shot comman d. Writing to the one shot register when
the device is in Standby mode and BUSY bit (in Status Register) is ‘0’, will immediate ly cause the ADC
to update all temperature measurements. Writing to the One Shot Register while the device is in Active
mode will have no effect.

SMSC EMC1182 31 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.9 Therm Limit Registers

Table 6.9 Therm Limit Registers

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

19h R/W

20h R/W

21h R/W

External

Diode Therm

Limit

Internal Diode

Therm Limit

Therm

Hysteresis

128 64 32 16 8 4 2 1

128 64 32 16 8 4 2 1

128 64 32 16 8 4 2 1

55h

(85°C)

55h

(85°C)

0Ah

(10°C)

The Therm Limit Registers are used to determine wheth er a critical thermal event has occurred. If the
measured temperature exceeds the Therm Limit, the THERM pin is asserted. The limit setting mu st
match the chosen data format of the temperature reading registers.

Unlike the ALERT / THERM2 pin, the THERM pin cannot be masked. Additionally, the THERM pin will
be released once the temperature drops below the corresponding threshold minus the Therm
Hysteresis.

6.10 Channel Mask Register 1Fh

Table 6.1 0 Channel Mask Register

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

1Fh R/W

Channel

Mask

---- - -

EXT

MASK

INT

MASK

00h

The Channel Mask Register controls individual channel masking. When a channel is masked, the
ALERT / THERM2 pin will not be asserted when the masked channel reads a diode fault or out of limit
error. The channel mask does not mask the

THERM pin.

Bit 1 - EXTMASK - Masks the ALERT / THERM2 pin from asserting when the External Diode channel
is out of limit or reports a diode fault.

 ‘0’ (default) - The External Diode channel will cause the ALERT / THERM2 pin to be asserted if it

is out of limit or reports a diode fault.

 ‘1’ - The External Diode channel will not cause the ALERT / THERM2 pin to be asserted if it is out

of limit or reports a diode fault.

Bit 0 - INTMASK - Masks the ALERT / THERM2 pin from asserting when the Internal Diode
temperature is out of limit.

 ‘0’ (default) - The Internal Diode channel will cause the ALERT / THERM2 pin to be asserted if it

is out of limit.

 ‘1’ - The Internal Diode channel will not cause the ALERT / THERM2 pin to be asserted if it is out

of limit.

Revision 1.0 (07-11-13) 32 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.11 Consecutive ALERT Register 22h

Table 6.11 Consecutive ALERT Register

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

22h R/W

The Consecutive ALERT Register determines how many times an out-of-limit error or diode fault must
be detected in consecutive measurements before the ALERT / THERM2 or THERM pin is asserted.
Additionally, the Consecutive ALERT Register controls the SMBus Timeout functionality.

An out-of-limit condition (i.e. HIGH, LOW, or FAULT) occurring on the same temperature channel in
consecutive measurements will increment the consecutive alert counter. The counters will also be reset
if no out-of-limit condition or diode fault conditio n occurs in a consecutive reading.

When the ALERT / THERM2 pin is configured as an interrupt, when the consecutive alert counter
reaches its programmed value, the following will occur: the STATUS bit(s) for that chan nel and the last
error condition(s) (i.e. EHIGH) will be set to ‘1’, the
consecutive alert counter will be cleared, and measurements will co ntinue.

When the ALERT / THERM2 pin is configured as a comparator, the consecutive alert counter will
ignore diode fault and low limit errors and only increment if the measured temperature exceeds the
High Limit. Additionally, once the consecutive alert counter reaches the programmed limit, the
THERM2 pin will be asserted, but the counter will not be reset. It will remain set until the temperature
drops below the High Limit minus the Therm Hysteresis value.

For example, if the CALRT[2:0] bits are set for 4 consecutive alerts on an EMC1182 device, the high
limits are set at 70°C, and none of the channels are masked, the
asserted after the following four measurements:

1. Internal Diode reads 71°C and the external diode reads 69°C. Consecutive alert counter for INT is

2. Both the Internal Diode and the External Diode read 71°C. Consecutive alert counter for INT is

Consecutive

ALERT

TIME

OUT

CTHRM[2:0] CALRT[2:0] - 70h

incremented to 1.

incremented to 2 and for EXT is set to 1.

ALERT / THERM2 pin will be asserted, the

ALERT/

ALERT / THERM2 pin will be

3. The External Diode reads 71°C and the Internal Diode reads 69°C. Consecutive alert counter for
INT is cleared and EXT is incremented to 2.

4. The Internal Diode reads 71°C and the external diode reads 71°C. Consecutive alert counter for
INT is set to 1 and EXT is incremented to 3.

5. The Internal Diode reads 71°C and the external diode reads 71°C. Consecutive alert counter for
INT is incremented to 2 and EXT is in cremented to 4. The appropriate status bits are set for EXT
and the

ALERT / THERM2 pin is asserted. EXT counter is reset to 0 and all other counters hold

the last value until the next temperature measurement.

Bit 7 - TIMEOUT - Determines whether the SMBus Timeout function is enabled.

 ‘0’ (default) - The SMBus Timeout feature is disabled. The SMCLK line can be held low in definitely

without the device resetting its SMBus protocol.

 ‘1’ - The SMBus Timeout feature is enabled. If the SMCLK line is held low for more than t

TIMEOUT

the device will reset the SMBus protocol.

Bits 6-4 CTHRM[2:0] - Determines the number of consecutive measurements that must exceed the
corresponding Therm Limit and Hardware Thermal Shutdown Limit before the

SYS_SHDN pin is
asserted. All temperature channels use this value to set the respective counters. The consecutive
THERM counter is incremented whenever any of the measurements exceed the correspo nding Therm
Limit or if the External Diode measurement exceeds the Hardware Thermal Shutdown Limi t.

SMSC EMC1182 33 Revision 1.0 (07-11-13)

DATASHEET

,

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

If the temperature drops below the Therm Limit or Hardware Thermal Shutdown Limit, the counter is
reset. If the programmed number of consecutive measurements exceed the Therm Limit or Hardware
Thermal Shutdown Limit, and the appropriate channel is linked to the SYS_SHDN pin, the SYS_SHDN
pin will be asserted low.

Once the SYS_SHDN pin is asserted, the consecutive Therm counter will not reset until the
corresponding temperature drops below the appropriate limit minus the correspond ing hysteresis.

Bits 6-4 - CTHRM[2:0] - Determines the number of consecutive measurements that must e xceed the
corresponding Therm Limit before the

THERM pin is asserted. All temperature channels use this value
to set the respective counters. The consecutive Therm counter is incremented whenever any
measurement exceed the corresponding Therm Limit.

If the temperature drops below the Therm Limit, the counter is reset. If a number of consecutive
measurements above the Therm Limit occurs, the

THERM pin is asserted low.

Once the THERM pin has been asserted, the consecutive therm counter will not reset until the
corresponding temperature drops below the Therm Limit minus the Therm Hysteresis value.

The bits are decoded as shown in Table 6.12. The default setting is 4 consecutive out of limit
conversions.

Bits 3-1 - CALRT[2:0] - Determine the number of consecutive measurements that must have an out of
limit condition or diode fault before the

ALERT / THERM2 pin is asserted. Both temperature channels
use this value to set the respective counters. The bits are decoded as shown in Table 6.12. The default
setting is 1 consecutive out of limit conversion.

Table 6.12 Consecutive Alert / Therm Settings

NUMBER OF CONSECUTIVE OUT OF LIMIT

210

000

MEASUREMENTS

1

(default for CALRT[2:0])
001 2
011 3

111

(default for CTHRM[2:0])

4

6.12 Beta Configuration Register 25h

Table 6.13 Beta Configuration Register

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

25h R/W

External

Diode Beta

Configuration

- - - - ENABLE BETA[2:0] 08h

This register is used to set the Beta Compensation factor that is used for the external diode channel.

 ‘0’ - The Beta Compensation Factor auto-detection circuitry is disabl ed.

‘1’ (default) - The Beta Compensation factor auto-detection circuitry is enabled. At the beginning of
every conversion, the optimal Beta Compensation factor setting will be determined an d applied.

Revision 1.0 (07-11-13) 34 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.13 External Diode Ideality Factor Register 27h

Table 6.14 Ideality Configuration Registers

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

External

27h R/W

Diode

Ideality

Factor

This register stores the ideality factors that are applied to the external diode. Table 6.15 defines each
setting and the corresponding ideality factor. Beta Compensation and Resistance Error Correction
automatically correct for most diode ideality errors; therefore, it is not recommended that these settings
be updated without consulting SMSC.

Ta ble 6.15 Ideality Factor Look-Up Table (Diode Mode l)

SETTING FACTOR SETTING FACTOR SETTING FACTOR

- - IDEALITY[5:0] 12h

08h 0.9949 18h 1.0159 28h 1.0371

09h 0.9962 19h 1.0172 29h 1.0384
0Ah 0.9975 1Ah 1.0185 2Ah 1.0397
0Bh 0.9988 1Bh 1.0200 2Bh 1.0410
0Ch 1.0001 1Ch 1.0212 2Ch 1.0423
0Dh 1.0014 1Dh 1.0226 2Dh 1.0436
0Eh 1.0027 1Eh 1.0239 2Eh 1.0449
0Fh 1.0040 1Fh 1.0253 2Fh 1.0462

10h 1.0053 20h 1.0267 30h 1.0475

11h 1.0066 21h 1.0280 31h 1.0488

12h 1.0080 22h 1.0293 32h 1.0501

13h 1.0093 23h 1.0306 33h 1.0514

14h 1.0106 24h 1.0319 34h 1.0527

15h 1.0119 25h 1.0332 35h 1.0540

16h 1.0133 26h 1.0345 36h 1.0553

17h 1.0146 27h 1.0358 37h 1.0566

For CPU substrate transistors that require the BJT transistor model, the ideal ity factor behaves slightly
differently than for discrete diode-connected transistors. Refer to

Table 6.16 when using a CPU

substrate transistor.

SMSC EMC1182 35 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Ta ble 6.16 Subs trate Diode Ideality Factor Look-Up Table (BJT Model)

SETTING FACTOR SETTING FACTOR SETTING FACTOR

08h 0.9869 18h 1.0079 28h 1.0291

09h 0.9882 19h 1.0092 29h 1.0304
0Ah 0.9895 1Ah 1.0105 2Ah 1.0317
0Bh 0.9908 1Bh 1.0120 2Bh 1.0330
0Ch 0.9921 1Ch 1.0132 2Ch 1.0343
0Dh 0.9934 1Dh 1.0146 2Dh 1.0356
0Eh 0.9947 1Eh 1.0159 2Eh 1.0369
0Fh 0.9960 1Fh 1.0173 2Fh 1.0382

10h 0.9973 20h 1.0187 30h 1.0395

11h 0.9986 21h 1.0200 31h 1.0408

12h 1.0000 22h 1.0213 32h 1.0421

13h 1.0013 23h 1.0226 33h 1.0434

14h 1.0026 24h 1.0239 34h 1.0447

15h 1.0039 25h 1.0252 35h 1.0460

16h 1.0053 26h 1.0265 36h 1.0473

17h 1.0066 27h 1.0278 37h 1.0486

APPLICATION NOTE: When measuring a 65nm Intel CPU, the Ideali ty Settin g should be the default 12h . When

measuring a 45nm Intel CPU, the Ideality Settin g should be 15h.
Bit 1 - E1HIGH - This bit is set when the External Diode 1 channel exceeds its programmed high limit.
Bit 0 - IHIGH - This bit is set when the Internal Diode channel exceeds its programmed high limit.
Bit 1 - ELOW - This bit is set when the External Diode channel drops below its programmed low limit.
Bit 0 - ILOW - This bit is set when the Internal Diode channel drops below its programmed low limit.
Bit 1 - ETHERM - This bit is set when the External Diode channel exceeds its programmed Therm

Limit. When set, this bit will assert the THERM pin.
Bit 0- ITHERM - This bit is set when the Internal Diode channel exceeds its programmed Therm L imit.

When set, this bit will assert the

THERM pin.

Revision 1.0 (07-11-13) 36 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

6.14 Filter Control Register 40h

Table 6.17 Filter Configuration Register

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

40h R/W Filter Control - - - - - - FILTER[1:0] 00h

The Filter Configuration Register controls the digital filter on the External Diode channel.
Bits 1-0 - FILTER[1:0] - Control the level of digital filtering that is applied to the External Diode

temperature measurement as shown in Table 6.18. See Figure 5.4 a nd Figure 5.5 for examples on the
filter behavior.

Table 6.18 FILTER Decode

FILTER[1:0]

AVERAGING10

Datasheet

0 0 Disabled (default)
0 1 Level 1
1 0 Level 1
1 1 Level 2

6.15 Prod uct ID Register

Table 6.19 Product ID Register

ADDR R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

FDh R Product ID 0 0 1 0 0 0 0 0 20h

The Product ID Register holds a unique value that ide ntifies the device.

6.16 SMSC ID Register

Table 6.20 Manufacturer ID Register

ADDR.R/WREGISTERB7B6B5B4B3B2B1B0DEFAULT

FEh RSMSC ID01011101 5Dh

The Manufacturer ID register contains an 8-bit word that identifies th e SMSC as the manufacturer of
the EMC1182.

SMSC EMC1182 37 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

6.17 Revision Register

Table 6.21 Revision Register

ADDR. R/W REGISTER B7 B6 B5 B4 B3 B2 B1 B0 DEFAULT

FFh R Revision00000111 07h

The Revision register contains an 8-bit word that identifies the die revision .

Revision 1.0 (07-11-13) 38 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Temperature Error vs. Filter Capacitor

(2N3904, TA = 27°C, T

DIODE

= 27°C, VDD = 3.3V)

-1.0

-0.8

-0.5

-0.3

0.0

0.3

0.5

0.8

1.0

0 1000 2000 3000 4000

Filter Capacitor (pF)

Temperature Error (°C)

Temperature Error vs. Ambient Temperature

(2N3904, T

DIODE

= 42.5°C, VDD = 3.3V)

-1.0

-0.8

-0.6

-0.4

-0.2

0.0

0.2

0.4

0.6

0.8

1.0

-40 -25 -10 5 20 35 50 65 80 95 110 125

Ambient Temperature (°C)

Temperature Error (°C)

Temperature Error vs. External Diode Temperature

(2N3904, TA = 42.5°C, VDD = 3.3V)

-1.0

-0.8

-0.6

-0.4

-0.2

0.0

0.2

0.4

0.6

0.8

1.0

-40 -25 -10 5 20 35 50 65 80 95 110 125

External Diode Temperature (°C)

Temperature Error (°C)

Temperature Error vs. CPU Temperature

Typical 65 nm CP U from major vendor

(TA = 27°C, VDD = 3.3V, BETA = 011, C

FILTER

= 470pF)

-1

0

1

2

3

4

5

20 40 60 80 100 120

CP U Temp erat u re (°C )

Temperature Error (°C)

Beta Compensation

Disabled

Beta Compensation Enabled

Chapter 7 Typical Operating Curves

Datasheet

SMSC EMC1182 39 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Chapter 8 Package Information

Figure 8.1 2mm x 3mm TDFN Package Drawing

Revision 1.0 (07-11-13) 40 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Figure 8.2 2mm x 3mm TDFN Package Dimensions

Figure 8.3 2 mm x 3mm TDFN Package PCB Land Pattern

SMSC EMC1182 41 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Figure 8.4 3mm x 3mm DFN Package Drawing

Revision 1.0 (07-11-13) 42 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Figure 8.5 3mm x 3mm DFN Package Dimensions

SMSC EMC1182 43 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Figure 8.6 8 Pin DFN PCB Footprint

Revision 1.0 (07-11-13) 44 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

BOTTOM

LINE 1: Preface, First digit of Device Code

LINE 2: Second digit of Device Code, Revision

TOP

PIN 1

E3

BOTTOM MARKING IS NOT ALLOWED

CR

BOTTOM

LINE 1: Preface, First dig it of Device Code

LINE 2: Second digit of Device Code, Revision

TOP

PIN 1

E3

BOTTOM MARKING IS NOT ALLOWED

DR

8.1 Package Markings

The EMC1182 devices will be marked as shown in Figure 8.7, Figure 8.8., Figure 8.9, Figure 8.10 and

Figure 8.11.

Datasheet

Figure 8.7 EMC1182-1 8-Pin TDFN Package Markings

Figure 8.8 EMC1182-2 8-Pin TDFN Package Markings

SMSC EMC1182 45 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

BOTTOM

LINE 1: Preface, First digit of Device Code

LINE 2: Second digit of Device Code, Revision

TOP

PIN 1

E3

BOTTOM MARKING IS NOT ALLOWED

AR

BOTTOM

LINE 1: Device Code, First two digits of 6

digits of lot number

LINE 2: Last 4 digits of lot number

TOP

PIN 1

44

BOTTOM MARKING IS NOT ALLOWED

LL

LLLL

Datasheet

Figure 8.9 EMC1182-A 8-Pin TDFN Package Markings

Figure 8.10 EMC1182-1 8-Pin DFN Package Markings

Revision 1.0 (07-11-13) 46 SMSC EMC1182

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

BOTTOM

LINE 1: Device Code, First two digits of 6

digits of lot number

LINE 2: Last 4 digits of lot number

TOP

PIN 1

44

BOTTOM MARKING IS NOT ALLOWED

LL

LLLL

Datasheet

Figure 8 .11 EMC1182-2 8-Pin DFN Package Markings

SMSC EMC1182 47 Revision 1.0 (07-11-13)

DATASHEET

Dual Channel 1°C Temperature Sensor with Beta Compensation and 1.8V SMBus Communications

Datasheet

Chapter 9 Datasheet Revision History

T able 9.1 Customer Revision History

REVISION LEVEL & DATE SECTION/FIGURE/ENTRY CORRECTION

Rev. 1.0 (07-11-13) Formal document release

Revision 1.0 (07-11-13) 48 SMSC EMC1182

DATASHEET
