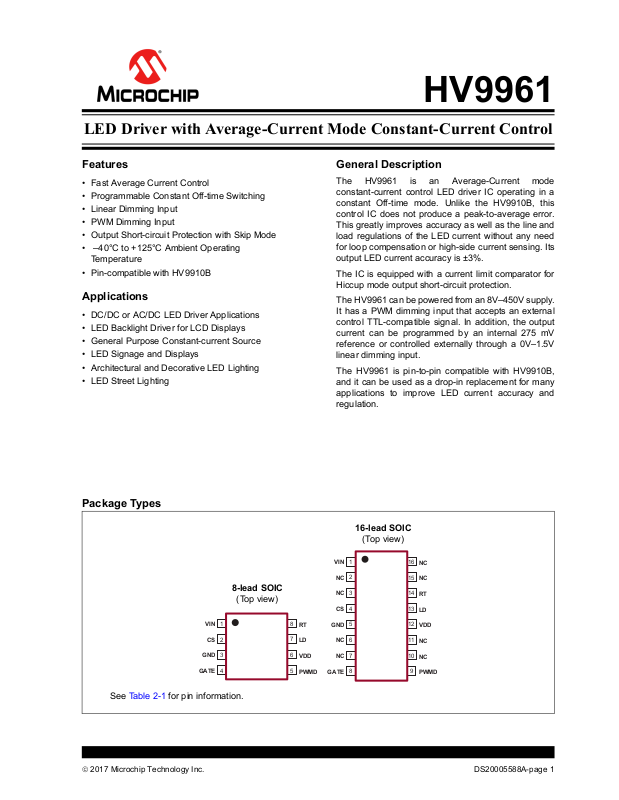

Datasheet HV9961 Datasheet

HV9961

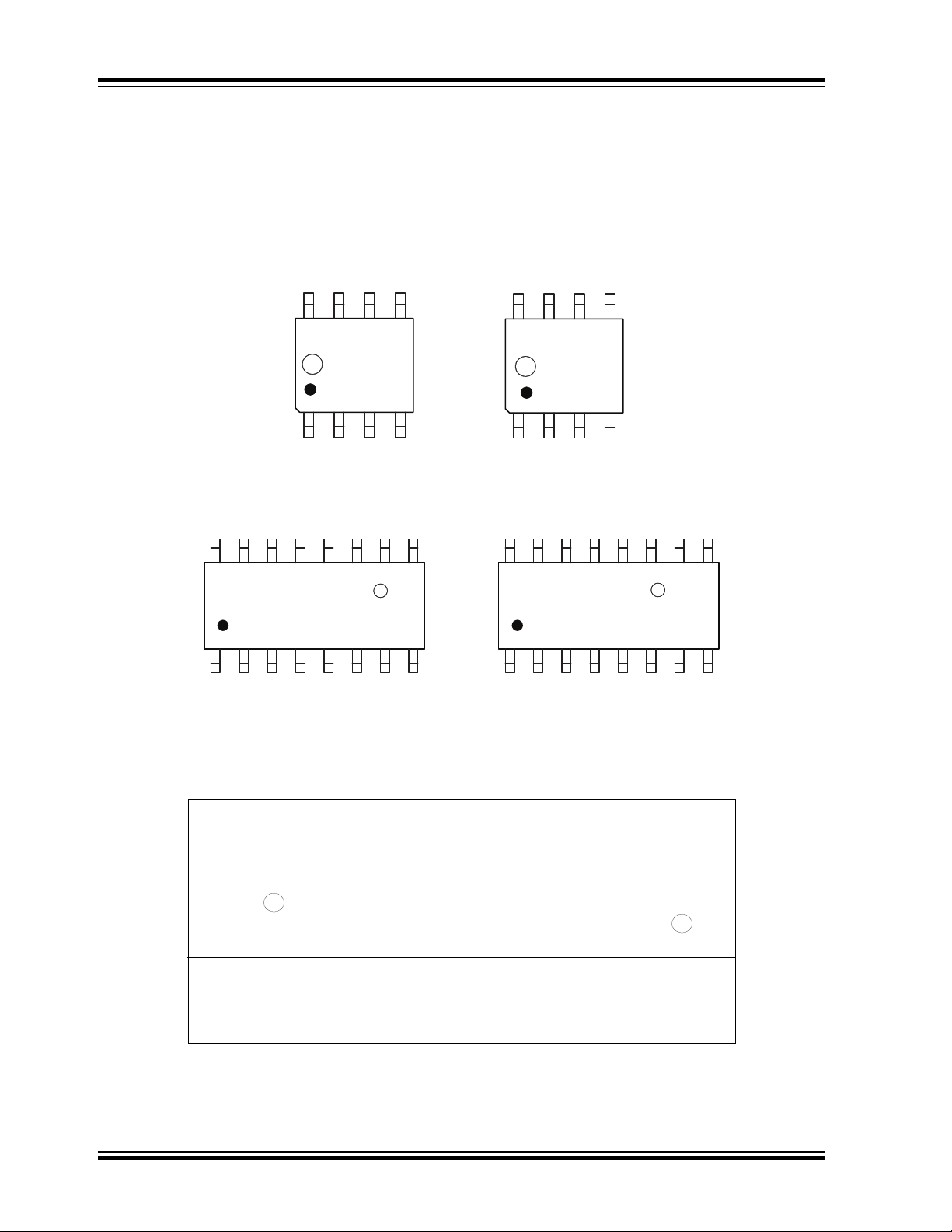

16-lead SOIC

(Top view)

8-lead SOIC

(Top view)

See Table 2-1 for pin information.

LED Driver with Average-Current Mode Constant-Current Control

Features

• Fast Average Current Control

• Programmable Constant Off-time Switching

• Linear Dimming Input

• PWM Dimming Input

• Output Short-circuit Protection with Skip Mode

• –40°C to +125°C Ambient Operating
emperature

T

• Pin-compatible with HV9910B

Applications

• DC/DC or AC/DC LED Driver Applications

• LED Backlight Driver for LCD Displays

• General Purpose Constant-current Source

• LED Signage and Displays

• Architectural and Decorative LED Lighting

• LED Street Lighting

General Description

The HV9961 is an Average-Current mode
constant-current control LED driver IC operating in a
constant Off-time mode. Unlike the HV9910B, this
control IC does not produce a peak-to-average error.
This greatly improves accuracy as well as the line and
load regulations of the LED current without any need
for loop compensation or high-side current sensing. Its
output LED current accuracy is ±3%.

The IC is equipped with a current limit comparator for

mode output short-circuit protection.

Hiccup

The HV9961 can be powered from an 8V–450V supply.

has a PWM dimming input that accepts an external

It
control TTL-compatible signal. In addition, the output
current can be programmed by an internal 275 mV
reference or controlled externally through a 0V–1.5V
linear dimming input.

The HV9961 is pin-to-pin compatible with HV9910B,

d it can be used as a drop-in replacement for many

an
applications to improve LED current accuracy and
regulation.

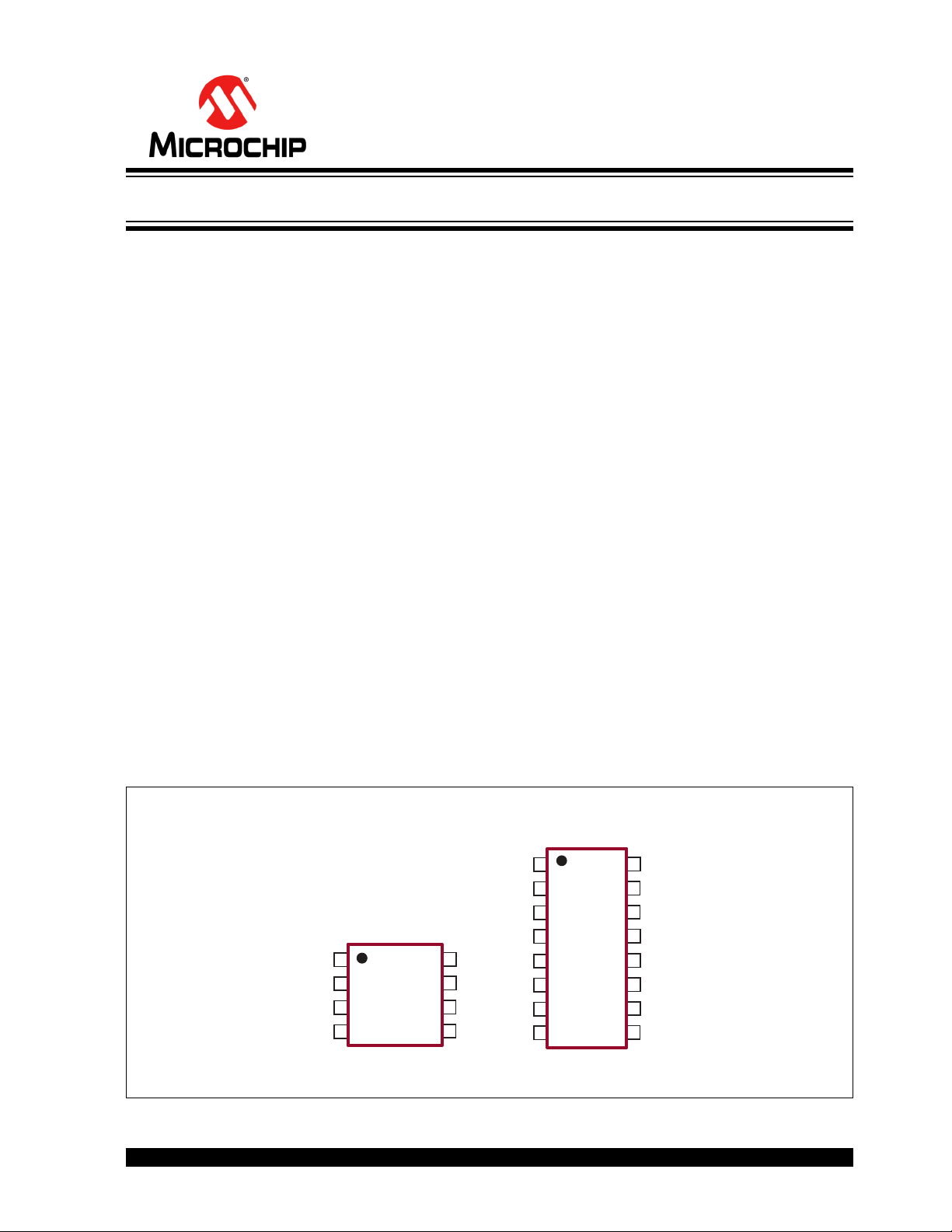

Package Type

 2017 Microchip Technology Inc. DS20005588A-page 1

s

VIN

CS

GND

GATE

1

VIN

2

NC

3

NC

4

1

2

3

4

8

RT

7

LD

6

VDD

5

PWMD

CS

GND

NC

NC

GATE

5

6

7

8

16

15

14

13

12

11

10

9

NC

NC

RT

LD

VDD

NC

NC

PWMD

HV9961

CS

RSQ

Q

T

OFF

Timer

L/E

Blanking

GATE

0.44V

MIN (V

LD

• 0.185, 0.275V)

LD

400µs

PWMD

RT

GND

Current

Mirror

i

Regulator

VIN

VDD

UVLO

POR

0.15/0.20V

Average Current

Control Logic

OUT

Auto-REF

HV9961

CLK

IN

Hiccup

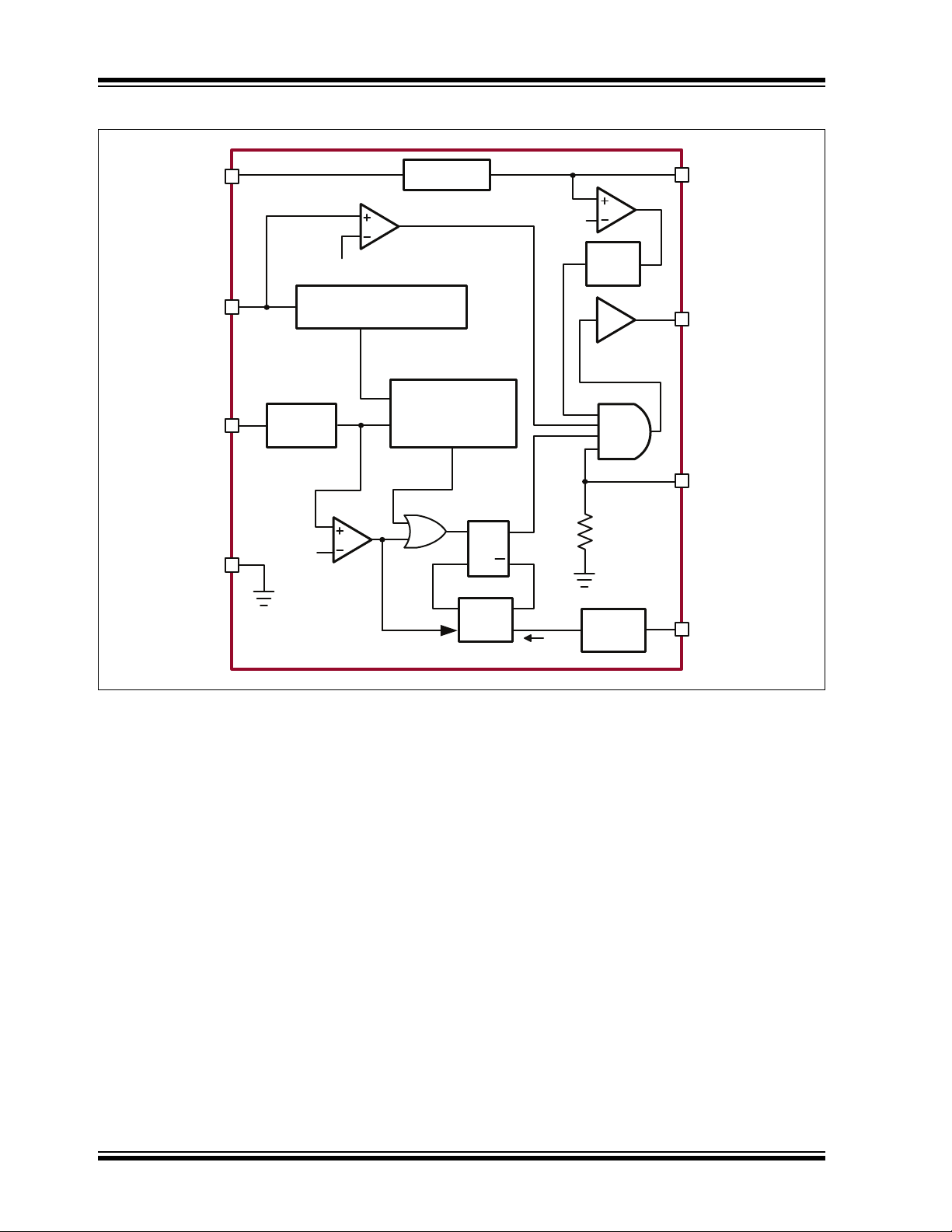

Functional Block Diagram

DS20005588A-page 2  2017 Microchip Technology Inc.

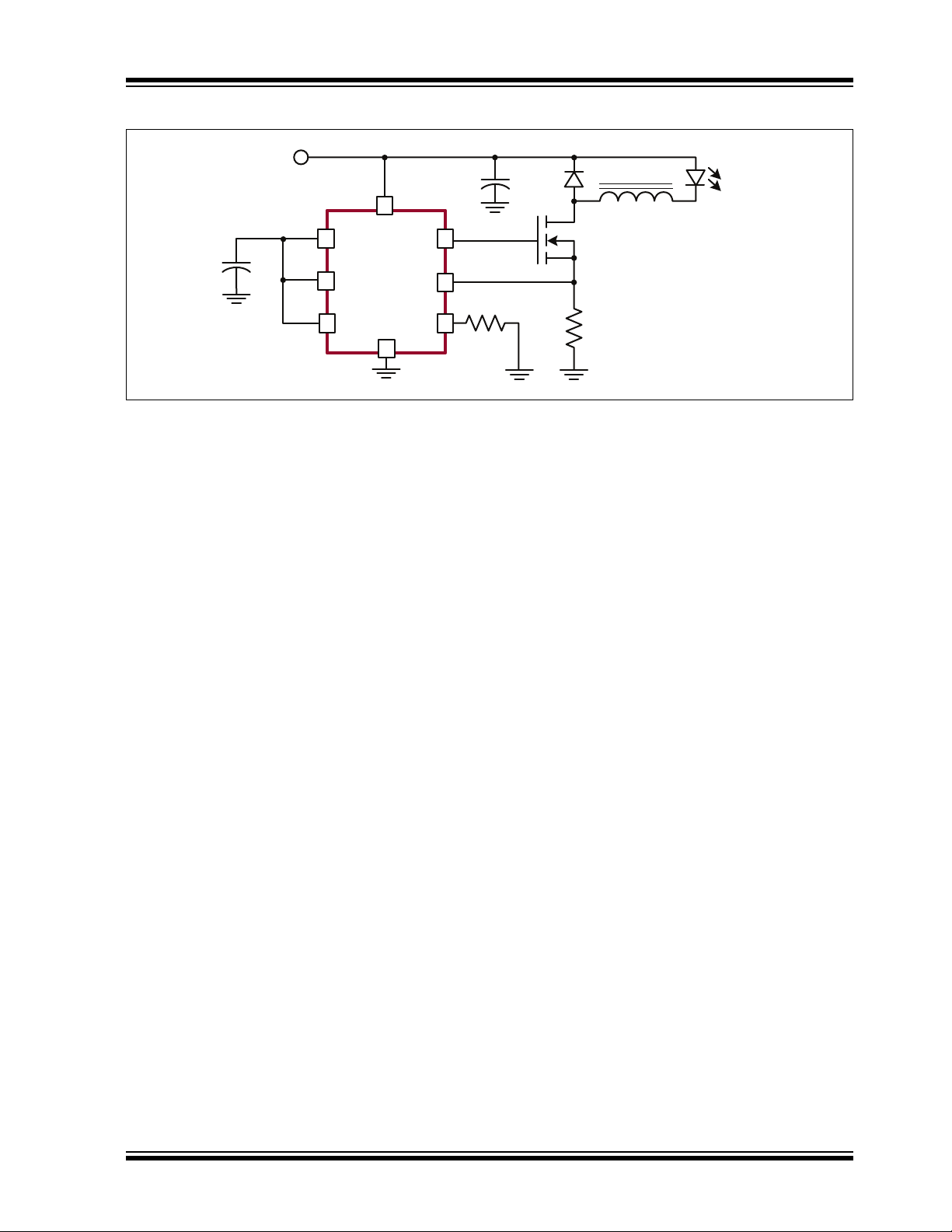

Typical Application Circuit

1

4

2

8

5

6

7

3

HV9961

VIN

GATEPWMD

LD

VDD

RT

CS

GND

LED

Load

Sets
LED
Current

8V–450V

R

CS

R

T

HV9961

 2017 Microchip Technology Inc. DS20005588A-page 3

HV9961

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings†

VIN to GND ............................................................................................................................................ –0.5V to +470V

to GND ............................................................................................................................................................ +12V

V

DD

CS, LD, PWMD, Gate, RT to GND.................................................................................................... –0.3V to VDD+0.3V

Junction Temperature, TJ .................................................................................................................... –40°C to +150°C

Storage Temperature, T
Continuous Power Dissipation (TA = +25°C):

8-lead SOIC ......................................................................................................................

16-lead SOIC ........................................................................................................................................ 1000 mW

..................................................................................................................... –65°C to +150°C

S

...................... 650 mW

† Notic

e: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the

device. This is a stress rating only, and functional operation of the device at those or any other conditions above those
indicated in the operational sections of this specification is not intended. Exposure to maximum rating conditions for
extended periods may affect device reliability.

ELECTRICAL CHARACTERISTICS

Electrical Specifications: TA = 25°C, VIN = 12V, VLD = VDD, and V

Parameter Sym. Min. Typ . Max. Unit Conditions

INPUT

Input DC Supply Voltage Range V

Shutdown Mode Supply Current I

INDC

INSD

8 — 450 V

— 0.5 1 mA

INTERNAL REGULATOR

Internally Regulated Voltage V

Line Regulation of V

Load Regulation of V

Undervoltage Lockout Upper

V

DD

DD

DD

Threshold
V

Undervoltage Lockout

DD

Hysteresis

Maximum Input Current
(Limited by UVLO)

V

V

V

V

I

IN, MAX

DD

DD, line

DD, load

UVLO

UVLO

7.25 7.5 7.75 V

0 — 1 V

0 — 100 mV

6.45 6.7 6.95 V VIN rising (Note 2)

— 500 — mV VIN falling

3.5 — —

1.5 — — V

PWM DIMMING

PWMD Input Low Voltage V
PWMD Input High Voltage V
PWMD Pull-down Resistance R

PWMD(LO)

PWMD(HI)

PWMD

— — 0.8 V VIN = 8V–450V (Note 2)

2.2 — — V VIN = 8V–450V (Note 2)

50 100 150 k V

AVERAGE-CURRENT SENSE LOGIC

Current Sense Reference Voltage V
LD-to-CS Voltage Ratio A

LD-to-CS Voltage Offset AV x V

CST

V(LD)

LD(OFFSET)

268 275 286 mV VLD = 1.5V

0.182 0.185 0.188 — VLD = 1.2V

0 — 10 mV

Note 1: Also limited by package power dissipation limit, whichever is lower

2: Den

otes specifications which apply over the full operating ambient temperature range of 

–40°C < TA < +125°C

pecification is obtained by characterization and is not 100% tested.

3: S

= VDD unless otherwise specified.

PWMD

DC input voltage 
(Note 1 and Note 2)

Pin PWMD connected to
GND (Note 2)

V

= 8V, I

IN

500 pF at gate, RT = 226 k
VIN = 8V–450V,

I

= 0 mA,

DD(EXT)

500 pF at gate, RT = 226 k
I

= 0 mA–1 mA,

DD(EXT)

500 pF at gate, RT = 226 k

VIN = 8V, TA = 25°C (Note 3)

mA

= 8V, TA = 125°C (Note 3)

IN

= 5V

PWMD

Offset = V

= 1.2V

V

LD

DD(EXT)

– A

CS

= 0 mA ,

x VLD,

V(LD)

DS20005588A-page 4  2017 Microchip Technology Inc.

ELECTRICAL CHARACTERISTICS (CONTINUED)

Electrical Specifications: TA = 25°C, VIN = 12V, VLD = VDD, and V

Parameter Sym. Min. Typ. Max. Unit Conditions

CS Threshold Temperature
Regulation

LD Input Shutdown Threshold
Voltage

V

CST(TEMP)

V

LD Input Enable Threshold Voltage V
Current Sense Blanking Interval T
Minimum On-time T

Maximum Steady-state Duty Cycle D

LD(OFF)

LD(EN)

BLANK

ON(MIN)

MAX

— — 5 mV (Note 2)

— 150 — mV V

— 200 — mV V

150 — 320 ns (Note 2)

— — 1000 ns VCS = V

75 — — %

SHORT-CIRCUIT PROTECTION

Hiccup Threshold Voltage V
Current Limit Delay CS-to-Gate T
Short-circuit Hiccup Time T
Minimum On-time (Short-circuit) T

T

TIMER

OFF

ON(MIN),SC

Off-time T

CSH

DELAY

HICCUP

OFF

410 440 470 mV

— — 150 ns VCS = V

350 400 550 s

— — 430 ns VCS = V

32 40 48

8 10 12 R

GATE DRIVER

Gate Sourcing Current I

SOURCE

Gate Sinking Current I
Gate Output Rise Time t
Gate Output Fall Time t

SINK

r

f

0.165 — — A V

0.165 — — A V
— 30 50 ns C
— 30 50 ns C

Note 1: Also limited by package power dissipation limit, whichever is lower

2: Denotes specifications which apply over the full operating ambient temperature range of 

–40°C < T

< +125°C

A

3: Specification is obtained by characterization and is not 100% tested.

= VDD unless otherwise specified.

PWMD

s

HV9961

falling

LD

rising

LD

+ 30 mV

CST

Reduction in output LED
current may occur beyond
this duty cycle

+ 30 mV

CSH

DD

RT = 1 M

= 226 k

T

= 0V, VDD = 7.5V

GATE

= VDD, V

GATE

= 500 pF, VDD = 7.5V

GATE

= 500 pF, VDD = 7.5V

GATE

DD

= 7.5V

TEMPERATURE SPECIFICATIONS

Parameter Sym. Min. Typ. Max. Unit Conditions

TEMPERATURE RANGES

Operating Ambient Temperature T

Maximum Junction Temperature T

Storage Temperature T

A

J(MAX)

S

PACKAGE THERMAL RESISTANCE

8-lead SOIC 

16-lead SOIC 

 2017 Microchip Technology Inc. DS20005588A-page 5

JA

JA

–40 — +125 °C

— — +150 °C

–65 — +150 °C

— 101 — °C/W

— 83 — °C/W

HV9961

2.0 PIN DESCRIPTION

The details on the pins of HV9961 are listed on

Table 2-1. Refer to Package Types for the location of

pins.

TABLE 2-1: PIN FUNCTION TABLE

Pin Number

8-lead SOIC 16-lead SOIC

1 1 VIN This pin is the input of an 8V–450V linear regulator.

2 4 CS

3 5 GND

4 8 Gate

5 9 PWMD

6 12 V

7 13 LD

8 14 RT

—

2, 3, 6, 7, 10,

1, 15 and16

1

Pin Name Description

This pin is the current sense pin use
an external sense resistor.

Ground return for all internal circuitry. This pin must be electrically

nnected to the ground of the power train.

co
This pin is the output of gate driver for driving an external N-chan-

nel power MOSFET.
This is the PWM dimming input of the IC. When this pin is pulled to

GND, the
gate driver operates normally.

DD

NC No connection

This is the power supply pin for all internal circuits. It must be
bypassed with a low ESR capacitor to GND (at least 0.1 F).

This pin is the linear dimming input, and
threshold as long as the voltage at this pin is less than 1.5V. If volt­age at LD falls below 150 mV, the gate output is disabled. The gate

gnal recovers at 200 mV at LD.

si
A resistor connected between this pin a

off-time.

gate driver is turned off. When the pin is pulled high, the

d to sense the FET current with

it sets the current sense

nd GND programs the gate

DS20005588A-page 6  2017 Microchip Technology Inc.

HV9961

T

OFF

s

RTk

25

------------------ -

0.3+=

within the range of 30 k  RT  1 M

I

LED

0.275V
R

CS

-----------------

=

When the voltage at the LD input VLD  1.5V

I

LED

VLD0.185

R

CS

----------------------------- -

=

When the voltage at the LD input 0.2V  VLD < 1.5V

L

O

V

OMAXTOFF



0.4 I

O



---------------------------------------- -

=

3.0 APPLICATION INFORMATION

3.1 General Description

Peak current control (as in HV9910B) is the simplest
and the most economical way to regulate a buck
converter's output current. However, it suffers accuracy
and regulation problems that arise from
peak-to-average current error, contributed by the
current ripple in the output inductor and the
propagation delay in the current sense comparator.
The full inductor current signal is unavailable for direct
switch current sensing across the sense resistor at the
ground path in this low-side switch buck converter
when the control switch is at the ground potential
because the switch is turned off. While it is very simple
to detect the peak current in the switch, controlling the
average inductor current is usually implemented by
level translating the sense signal from +V
this is practical for a relatively low-input voltage, VIN,
this type of average-current control may become
excessively complex and expensive in the offline AC or
other high-voltage DC applications.

The HV9961 uses a proprietary

control scheme that
allows fast and accurate control of the average current
in the buck inductor by sensing the switch current only.
No compensation of the current control loop is
required. The output LED current’s response to PWMD
input is similar to that of the HV9910B. The effect of
inductor current ripple amplitude on this control
scheme is insignificant. Therefore, the LED current is
independent of the variation in inductance, switching
frequency or output voltage. Constant off-time control
of the buck converter is used for stability and improving
the LED current regulation over a wide range of input
voltages. Unlike HV9910B, the HV9961 does not

ort Constant Frequency mode.

supp

. Although

IN

3.3 Average-Current Control Feedback and Output Short-circuit Protection

The current through the switching Metal-oxide
Semiconductor Field-effect Transistor (MOSFET)
source is averaged and used to give constant-current
feedback. This current is detected with a sense resistor
at the CS pin. The feedback operates in a fast
Open-loop mode. No compensation is required. Output
current is programmed as seen in Equation 3-2.

EQUATION 3-2:

If the voltage at the LD input is less than 1.5V, the
output current is computed as specified in

Equation 3-3.

EQUATION 3-3:

The above equations are only valid for continuous
conduction of the output inductor. It is good design
practice to choose the inductance of the inductor such
that the peak-to-peak inductor current is 30% to 40% of
the average DC full-load current. Hence, the
recommended inductance can be calculated as shown
in Equation 3-4.

EQUATION 3-4:

3.2 Off Timer

The timing resistor connected between RT and GND
determines the off-time of the gate driver. Wiring this
resistor between RT and Gate as with HV9910B is no
longer supported. Refer to Equation 3-1 for the

ation of the gate output’s off-time.

comput

EQUATION 3-1:

 2017 Microchip Technology Inc. DS20005588A-page 7

The duty-cycle range of the current control feedback is
limited to D  0.75. A reduction in the LED current may
occur when the desired LED string voltage VO is
greater than 75% of the input voltage V

of the

IN

HV9961 LED driver.

Reducing the targeted output LED string voltage V
below V

O(MIN)

= V

IN

x D

, where D

MIN

= 1 µs/(T

MIN

O

OFF

+1 µs), may also result in the loss of regulation of the
LED current. This condition, however, causes an
increase in the LED current and can potentially trip the
short-circuit protection comparator.

The typical output characteristic of the HV9961 LED

r is shown in Figure 3-1. The corresponding

drive
HV9910B characteristic is given for the comparison.

HV9961

V

IN MAX

T

JMAXTA

–

R

 JA

IIN

------------------------------- -

=

396V=

Where:

Ambient temperature: TA = 25°C
Maximum working junction temperature: T

J(MAX)

= 125°C
Junction-to-ambient thermal resistance:
R

,JA

= 101°C/W

0.60

0.55

0.50

0.45

0.40

0.35

LED Current (A)

0.30

0.25
0 10 20 30 40 50 60

Output Characteristics

VIN = 170VDC

HV9961

HV9910B

Output Voltage (V)

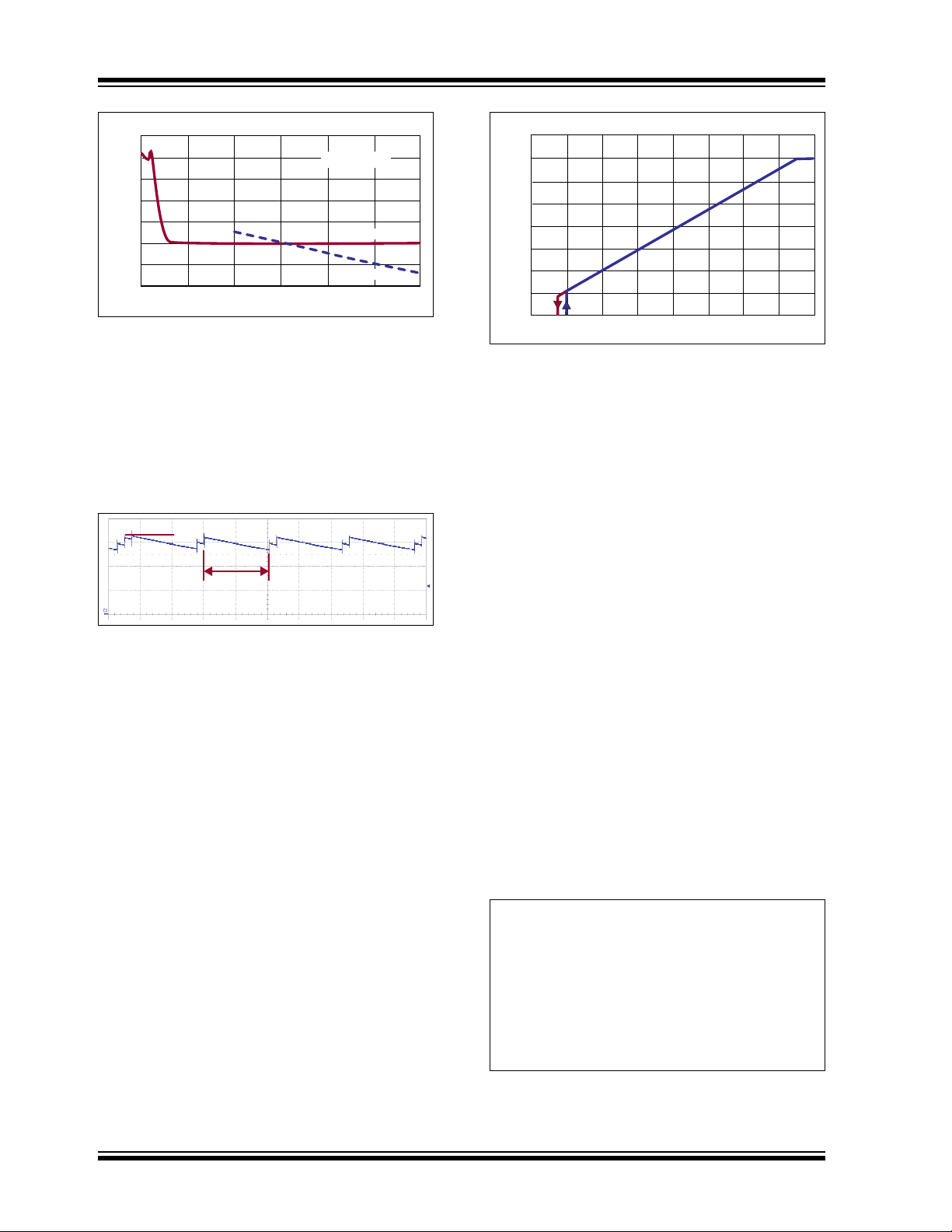

FIGURE 3-1: Typical Output Characteristic of an HV9961 LED Driver.

The short-circuit protection comparator trips when the
voltage at CS exceeds 0.44V. When this occurs, the
short-circuit gate off-time T

= 400 µs is

HICCUP

generated to prevent the staircasing of the inductor
current and, potentially, its saturation due to insufficient
output voltage. The typical short-circuit inductor current
is shown in the waveform of Figure 3-2.

0.44V/R

CS

400µs

FIGURE 3-2: Short-circuit Inductor Current.

A leading-edge blanking delay is provided at CS to
prevent false triggering of the current feedback and the
short-circuit protection.

3.4 Linear Dimming

When the voltage at LD falls below 1.5V, the internal
275 mV reference to the constant-current feedback
becomes overridden by VLD x 0.185. As long as the
current in the inductor remains continuous, the LED
current is given by Equation 3-3. However, when V
falls below 150 mV, the gate output becomes disabled.
The gate signal recovers when V

exceeds 200 mV. It

LD

is required in some applications to use the same
brightness control signal input to shut off the lamp. The
typical linear dimming response is shown in Figure 3-3.

LD

0.40

0.35

0.30

0.25

0.20

0.15

LED Current (A)

0.10

0.05

0

0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

FIGURE 3-3:

LD Response Characteristics

LD (V)

Typical Linear Dimming

Response of an HV9961 LED Driver.

The linear dimming input could also be used for
“mixed-mode” dimming to expand the dimming ratio. In
such case, a pulse-width modulated signal with an
amplitude below 1.5V should be applied to LD.

3.5 Input Voltage Regulator

The HV9961 can be powered directly from an
8 VDC–450 VDC supply through its VIN input. When this
voltage is applied at the VIN pin, the HV9961 maintains
a constant 7.5V level at V
to power the IC and external circuitry connected to V
within the rated maximum current or within the thermal
ratings of the package, whichever limit is lower. The

pin must be bypassed by a low ESR capacitor to

V

DD

provide a low-impedance path for the high-frequency
current of the gate output. The HV9961 can also be

wered through the VDD pin directly with a voltage

po
greater than the internally regulated 7.5V, but less than
12V.

Despite the instantaneous voltage rating of 450V,

uous voltage at VIN is limited by the power

contin
dissipation in the package. For example, when HV9961
draws I

= 2.5 mA from the VIN input, and the 8-pin

IN

SOIC package is used, the maximum continuous
voltage at VIN is limited to the value shown in

Equation 3-5.

EQUATION 3-5:

. This voltage can be used

DD

DD

DS20005588A-page 8  2017 Microchip Technology Inc.



In such cases, when it is needed to operate the

IIN1mA QGfS+

Where:

fS = Switching frequency

Q

G

= Gate charge of the external FET (obtained from

the manufacturer’s data sheet)

CH4 = Inductor Current

CH3 = Inductor Current
of HV9910B
for comparison

CH2 = V

PWMD

HV9961 from a higher voltage, a resistor or a Zener
diode can be added in series with the VIN input to divert
some of the power loss from the HV9961. In the above

e, using a 100V Zener diode will allow the circuit

exampl
to work up to 490V. The input current drawn from the

pin is represented by Equation 3-6.

V

IN

EQUATION 3-6:

3.6 Gate Output

The gate output of the HV9961 is used to drive an
external MOSFET. It is recommended that the gate
charge Q
for switching frequencies 100 kHz and less than
15 nC for switching frequencies >100 kHz.

of the external MOSFET be less than 25 nC

G

HV9961

3.7 PWM Dimming

Due to the fast open-loop response of the
average-current control loop of the HV9961, its PWM
dimming performance nearly matches that of the
HV9910B. The inductor current waveform comparison
is shown in Figure 3-4.

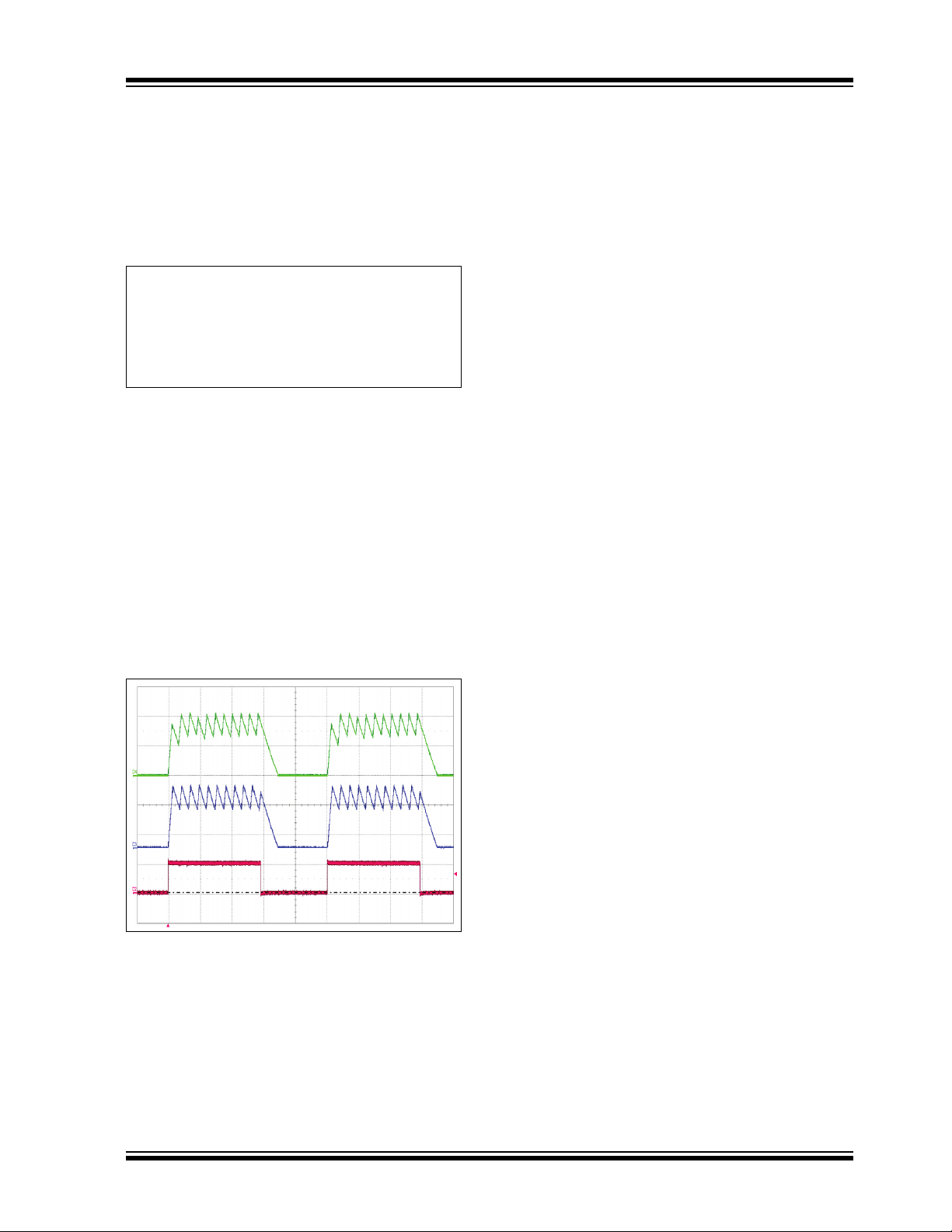

FIGURE 3-4: Typical PWM Dimming Response of an HV9961 LED Driver.

The rising and falling edges are limited by the current
slew rate in the inductor. The first switching cycle is
terminated upon reaching the 275 mV or V
level at CS. The circuit is further reaching its
steady-state within 3–4 switching cycles regardless of
the switching frequency.

x 0.185

LD

 2017 Microchip Technology Inc. DS20005588A-page 9

HV9961

Legend: XX...X Product Code or Customer-specific information

Y Year code (last digit of calendar year)
YY Year code (last 2 digits of calendar year)
WW Week code (week of January 1 is week ‘01’)
NNN Alphanumeric traceability code
Pb-free JEDEC

®

designator for Matte Tin (Sn)

* This package is Pb-free. The Pb-free JEDEC designator ( )

can be found on the outer packaging for this package.

Note: In the event the full Microchip part number cannot be marked on one line, it will

be carried over to the next line, thus limiting the number of available
characters for product code or customer-specific information. Package may or
not include the corporate logo.

e3

e3

e3

e

3

4.0 PACKAGING INFORMATION

4.1 Package Marking Information

8-lead SOIC

XXXXXXXX

YYWW
NNN

16-lead SOIC

XXXXXXXXX
YYWWNNN

Example

HV9961LG

1725
888

Example

HV9961NG
1714789

3

e

3

e

DS20005588A-page 10  2017 Microchip Technology Inc.

HV9961

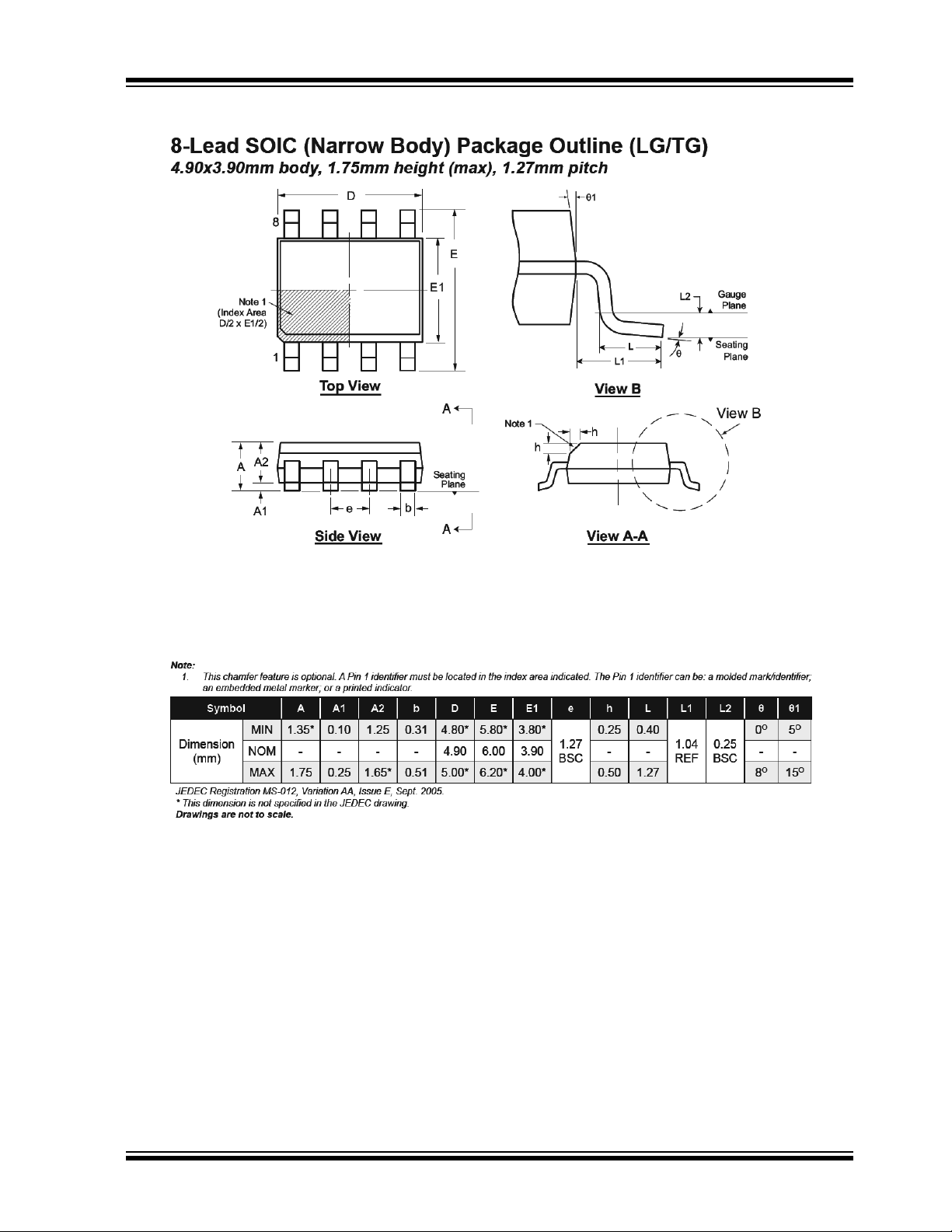

Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.

 2017 Microchip Technology Inc. DS20005588A-page 11

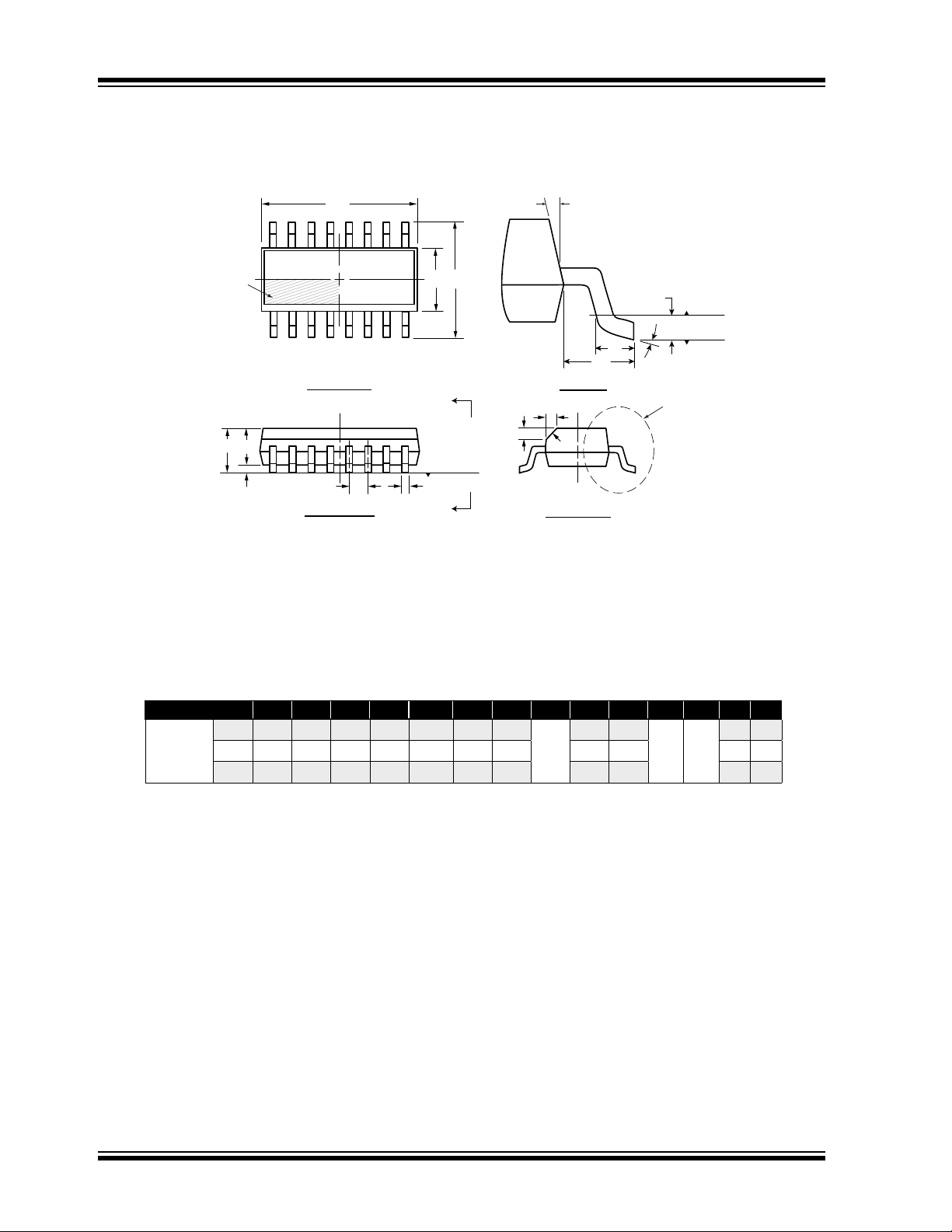

16-Lead SOIC (Narrow Body) Package Outline (NG)

9.90x3.90mm body, 1.75mm height (max), 1.27mm pitch

Symbol A A1 A2 b D E E1 e h L L1 L2 șș

Dimension

(mm)

MIN

1.35* 0.10 1.25 0.31 9.80* 5.80* 3.80*

1.27
BSC

0.25 0.40

1.04
REF

0.25

BSC

0

O5O

NOM - - - - 9.90 6.00 3.90 - - - -

MAX 1.75 0.25 1.65* 0.51 10.00* 6.20* 4.00* 0.50 1.27 8

O15O

JEDEC Registration MS-012, Variation AC, Issue E, Sept. 2005.

7KLVGLPHQVLRQLVQRWVSHFL¿HGLQWKH-('(&GUDZLQJ

Drawings are not to scale.

D

Seating

Plane

Gauge

Plane

L

L1

L2

Top View

Side View

View A-A

View B

View

B

θ1

θ

E1

E

A

A2

A1

A

A

Seating

Plane

e

b

h

h

16

1

Note 1

Note 1

(Index Area

D/2 x E1/2)

Note:

1. 7KLVFKDPIHUIHDWXUHLVRSWLRQDO,ILWLVQRWSUHVHQWWKHQ D3LQLGHQWL¿HUPXVWEHORFDWHGLQWKHLQGH[DUHDLQGLFDWHG7KH3LQLGHQWL¿HUFDQEH
DPROGHGPDUNLGHQWL¿HUDQHPEHGGHGPHWDOPDUNHURUDSULQWHGLQGLFDWRU

HV9961

Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.

DS20005588A-page 12  2017 Microchip Technology Inc.

APPENDIX A: REVISION HISTORY

Revision A (November 2017)

• Converted Supertex Doc# DSFP-HV9961 to
Microchip DS20005588A

• Changed the package marking format

• Changed the packaging quantity of the LG pack­age from 2500/Reel to 3300/Reel

• Changed the packaging quantity of the NG M901
media type from 1000/Reel to 2600/Reel

• Changed the packaging quantity of the NG M934
media type from 2500/Reel to 2600/Reel

• Made minor text changes throughout the docu­ment

HV9961

 2017 Microchip Technology Inc. DS20005588A-page 13

HV9961

Examples:

a) HV9961LG-G: LED Driver with Average-

Current Mode Constant­Current Control, 8-lead
SOIC, 3300/Reel

b) HV9961NG-G: LED Driver with Average-

Current Mode Constant­Current Control, 16-lead
SOIC, 45/Tube

c) HV9961NG-G-M901: LED Driver with Average-

Current Mode Constant­Current Control, 16-lead
SOIC, 2600/Reel

d) HV9961NG-G-M934: LED Driver with Average-

Current Mode Constant­Current Control, 16-lead
SOIC, 2600/Reel

PART NO.

Device

Device: HV9961 = LED Driver with Average-Current Mode

Constant-Current Control

Packages: LG = 8-lead SOIC

NG = 16-lead SOIC

Environmental: G = Lead (Pb)-free/RoHS-compliant Package

Media Types: (blank) = 3300/Reel for an LG Package

(blank) = 45/Tube for an NG Package

M901 = 2600/Reel for an NG Package

M934 = 2600/Reel for an NG Package

Note: For Media Types M901 and M934, the base quantity for tape and reel

was standardized to 2600/reel. Both options will result in the delivery of
the same number of parts/reel.

XX

Package

-

X - X

Environmental

Media Type

Options

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.

DS20005588A-page 14  2017 Microchip Technology Inc.

Note the following details of the code protection feature on Microchip devices:

YSTEM 

CERTIFIEDBYDNV

== ISO/TS16949==

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.

Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.

®

MCUs and dsPIC® DSCs, KEELOQ

®

code hopping

QUALITYMANAGEMENTS

Trademarks

The Microchip name and logo, the Microchip logo, AnyRate, AVR,
AVR logo, AVR Freaks, BeaconThings, BitCloud, CryptoMemory,
CryptoRF, dsPIC, FlashFlex, flexPWR, Heldo, JukeBlox, KEELOQ,
KEELOQ logo, Kleer, LANCheck, LINK MD, maXStylus,
maXTouch, MediaLB, megaAVR, MOST, MOST logo, MPLAB,
OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, Prochip
Designer, QTouch, RightTouch, SAM-BA, SpyNIC, SST, SST
Logo, SuperFlash, tinyAVR, UNI/O, and XMEGA are registered
trademarks of Microchip Technology Incorporated in the U.S.A.
and other countries.

ClockWorks, The Embedded Control Solutions Company, EtherSynch, Hyper Speed Control, HyperLight Load, IntelliMOS, mTouch, Precision Edge, and Quiet-Wire are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any
Capacitor, AnyIn, AnyOut, BodyCom, chipKIT, chipKIT logo,
CodeGuard, CryptoAuthentication, CryptoCompanion,
CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average
Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial
Programming, ICSP, Inter-Chip Connectivity, JitterBlocker,
KleerNet, KleerNet logo, Mindi, MiWi, motorBench, MPASM, MPF,
MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach,
Omniscient Code Generation, PICDEM, PICDEM.net, PICkit,
PICtail, PureSilicon, QMatrix, RightTouch logo, REAL ICE, Ripple
Blocker, SAM-ICE, Serial Quad I/O, SMART-I.S., SQI,
SuperSwitcher, SuperSwitcher II, Total Endurance, TSHARC,
USBCheck, VariSense, ViewSpan, WiperLock, Wireless DNA, and
ZENA are trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2017, Microchip Technology Incorporated, All Rights Reserved.

ISBN: 978-1-5224-2317-1

 2017 Microchip Technology Inc. DS20005588A-page 15

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: [phone]
Fax: [phone]
Technical Support:

http://www.microchip.com/
support

Web Address:

www.microchip.com

Atlanta

Duluth, GA
Tel: [phone]
Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA
Tel: [phone]
Fax: [phone]

Chicago

Itasca, IL
Tel: [phone]
Fax: [phone]

Dallas

Addison, TX
Tel: [phone]
Fax: [phone]

Detroit

Novi, MI
Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN
Tel: [phone]
Fax: [phone]
Tel: [phone]

Los Angeles

Mission Viejo, CA
Tel: [phone]
Fax: [phone]
Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]
Tel: [phone]

Canada - Toronto

Tel: [phone]
Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Vietnam - Ho Chi Minh

Tel: [phone]

EUROPE

Austria - Wels

Tel: [phone]
Fax: [phone]

Denmark - Copenhagen

Tel: [phone]
Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]
Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]
Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra’anana

Tel: [phone]

Italy - Milan

Tel: [phone]
Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]
Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]
Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]
Fax: [phone]

DS20005588A-page 16  2017 Microchip Technology Inc.

10/25/17
