DAIKIN ROOM AIR CONDITIONER
Operation Manual
MODELS
FTXG25CVMAW FTXG25CVMAS
FTXG35CVMAW FTXG35CVMAS
CONTENTS
READ BEFORE OPERATION
Safety precautions ......................................... 2
Names of parts............................................... 4
Preparation Before Operation ........................ 7
OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
Adjusting the Air Flow Direction ................... 12
POWERFUL Operation ................................ 14
OUTDOOR UNIT SILENT Operation .......... 15
INTELLIGENT EYE Operation ..................... 16
TIMER Operation ......................................... 18
CARE
Care and Cleaning ....................................... 20
TROUBLE SHOOTING
Trouble Shooting.......................................... 23
... 10
1
READ BEFORE OPERATION
Safety precautions
•
Keep this manual where the operator can easily find them.
•
Read this manual attentively before starting up the unit.
•
For safety reason the operator must read the following cautions carefully.
•
This manual classifies precautions into WARNINGS and CAUTIONS. Be sure to follow all precautions below: they are
all important for ensuring safety.
WARNING
If you do not follow these instructions exactly, the unit may
cause property damage, personal injury or loss of life.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner.
Never touch the air conditioner (including the remote
controller) with a wet hand.
If you do not follow these instructions exactly, the unit may
cause minor or moderate property damage or personal injury.
Never cause the air conditioner (including the remote
controller) to get wet.
CAUTION
WARNING
•
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which flammable or
corrosive gases, are detected near the unit.
•
It is not good for health to expose your body to the air flow for a long time.
•
Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high speed, it will
cause injury.
•
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric
shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
•
Do not insert fingers, poles, or other objects into the moving parts of the top front panel or the bottom front panel.
•
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some
reason any refrigerant happens to leak into the room, make sure it does not come in contact
with any flame as of gas heaters, kerosene heaters or gas range.
•
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
•
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage, electric shocks or
fire. For installation, consult the dealer or a qualified technician.
•
In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire, stop the operation and
turn off the breaker. And call your dealer for instructions.
CAUTION
•
The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do not connect the
earth line to a gas pipe, water pipe, lightning rod, or a telephone earth line.
•
In order to avoid any quality deterioration, do not use the unit for cooling precision instruments, food, plants, animals or works of art.
•
Never expose little children, plants or animals directly to the air flow.
•
Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the
indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
2
•
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
•
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard.
•
Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions,
moisture in the air may condense and drip.
•
After a long use, check the unit stand and fittings for damage.
•
Do not touch the air inlet and aluminum fins of outdoor unit. It may cause injury.
•
The appliance is not intended for use by young children or infirm persons without supervision.
•
Young children should be supervised to ensure that they do not play with the appliance.
•
To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used
together with the air conditioner.
•
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.
•
Do not connect the air conditioner to a power supply different from the one as specified. It may cause trouble or fire.
•
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leakage breaker may
result in electric shocks.
•
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the building, furniture
etc.
•
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around
the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can cause malfunctions, smoke or fire when making contact with electrical parts.
•
Do not operate the air conditioner with wet hands.
•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
•
Do not place things such as vessels containing water or anything else on top of the unit. Water may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
Installation site
■
To install the air conditioner in the following types of environments, consult the dealer.
•
Places with an oily ambient or where steam or soot occurs.
•
Salty environment such as coastal areas.
•
Places where sulfide gas occurs such as hot springs.
•
Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
Consider nuisance to your neighbours from noises
■ For installation, choose a place as described below.
•
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy
your neighbours
.
Electrical work
•
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
System relocation
•
Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if relocation is necessary for moving or remodeling.
3
Names of parts
Indoor Unit
■
134
2
7 8 9
5
6
(With the panel closed)
11
18
17
14
15
16
4
13
12
10
Outdoor Unit
■
19
21
22
20
■■■■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
• These filters are attached to the inside of
the air filters.
3. Air inlet
4. Top front panel
5. Supporting plate:
• The supporting plate is used to support
the front panel during maintenance.
6. Panel tab
7. Flap (horizontal blade): (page 12.)
8. Air outlet
9. Louvers (vertical blades):
• The louvers are inside of the air outlet.
(page 12.)
10. Bottom front panel
11. Display
12. Indoor Unit ON/OFF switch: (page 10.)
Push this switch once to start operation.
•
Push once again to stop it.
23
• The operation mode refers to the following
table.
Mode
AUTO
•
This switch is useful when the remote controller
is missing.
13. Room temperature sensor:
•
It senses the air temperature around the unit.
14. Operation lamp (green)
15. TIMER lamp (yellow): (page 18.)
INTELLIGENT EYE lamp (green)
16.
17. INTELLIGENT EYE sensor:
It detects the movements of people and auto-
•
matically switches between normal operation
and energy saving operation. (page 16.)
18. Signal receiver:
It receives signals from the remote controller.
•
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed ..........beep
•
Operation stop ..............beeeeep
Temperature
setting
25°C
: (page 16.)
Air flow
rate
AUTO
■■■■
Outdoor Unit
19. Air inlet: (Back and side)
20. Air outlet
21. Refrigerant piping and inter-unit cable
Appearance of the outdoor unit may differ from some models.
22. Drain hose
23. Earth terminal:
• It is inside of this cover.
5
Remote Controller
■
2
3
4
7
1
5
6
9
10
8
13
14
15
<
ARC433A41
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. SENSOR button: for INTELLIGENT EYE
operation (page 16.)
4. POWERFUL button:
for POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
Press this button once to start operation.
•
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
11
12
16
17
>
8. SILENT button: for OUTDOOR UNIT
SILENT operation
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button: (page 12.)
• Flap (Horizontal blade)
11. SWING button: (page 12.)
• Louvers (Vertical blades)
12. COMFORT AIRFLOW mode button:
(page 13.)
13. ON TIMER button: (page 19.)
14. OFF TIMER button: (page 18.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button: (page 9.)
(page 15.)
6
Preparation Before Operation
To set the batteries
■
1. Press with a finger and slide the
front cover to take it off.
2. Set two dry batteries (AAA).
3. Set the front cover as before.
Position + and
– correctly!
2
3
1
ATTENTION
■■■■ About batteries
•
When replacing the batteries, use batteries of the same type, and replace the two old batteries
together.
•
When the system is not used for a long time, take the batteries out.
•
We recommend replacing once a year, although if the remote controller display begins to fade or if
reception deteriorates, please replace with new alkali batteries. Using manganese batteries reduces
the lifespan.
•
The attached batteries are provided for the initial use of the system.
The usable period of the batteries may be short depending on the manufactured date of the air
conditioner.
7
Preparation Before Operation
To operate the remote controller
■
• To use the remote controller, aim the transmitter at the
indoor unit. If there is anything to block signals
between the unit and the remote controller, such as a
curtain, the unit will not operate.
• Do not drop the remote controller. Do not get it wet.
•
The maximum distance for communication is about 7 m.
To fix the remote controller holder on the wall
■
1. Choose a place from where the signals
reach the unit.
2. Fix the holder to a wall, a pillar, or similar
location with the screws procured
locally.
3. Place the remote controller in the
remote controller holder.
Turn on the power breaker
■
• Turning on the power breaker will cause the panel and
flap to open once and then close again.
(This is a normal procedure.)
Set.
●
To remove, pull it upwards.
Receiver
Remote controller
holder
Panel
CAUTION
• During operation (i.e. when the panel is open or being opened or closed), do not touch the
panel with your hands.
ATTENTION
■■■■
About remote controller
• Never expose the remote controller to direct sunlight.
•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such
as inverter-type lamps) is in the room. Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance
to somewhere else, or consult the shop.
8
Flap

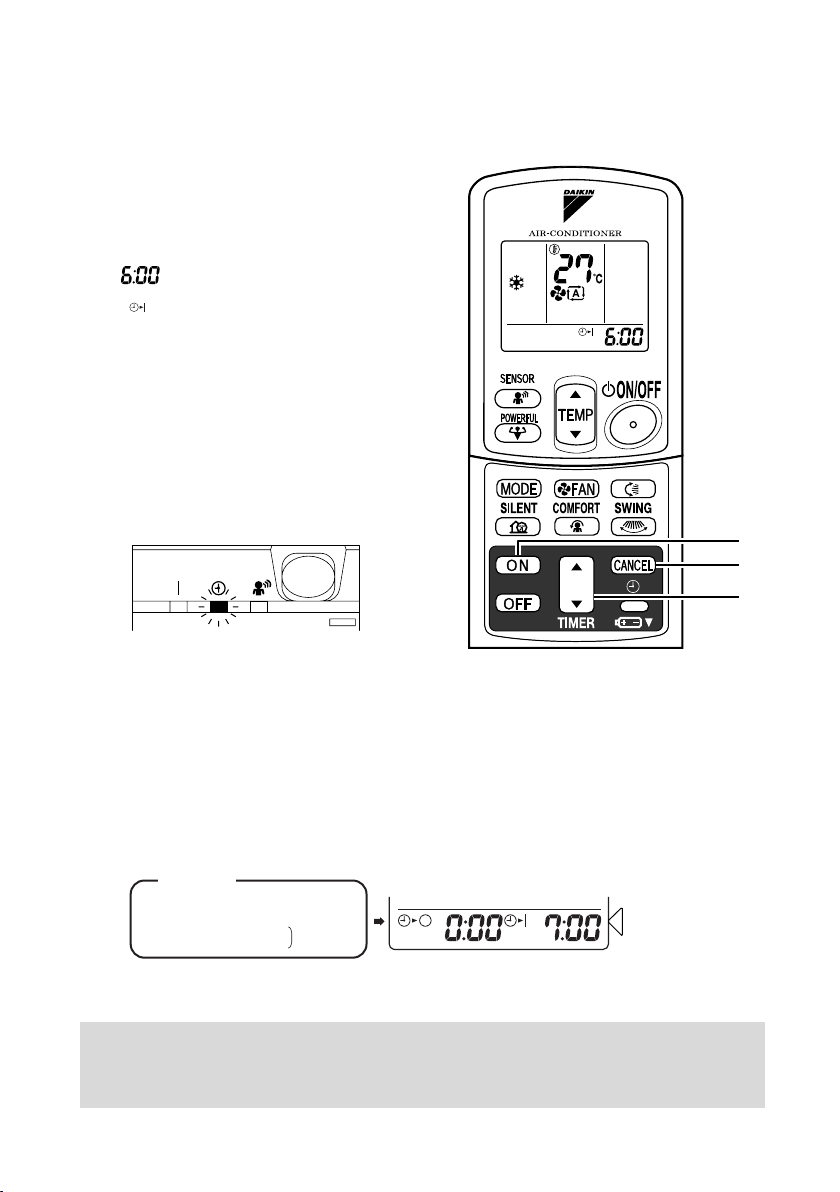

To set the clock
■
1. Press “CLOCK button”.
is displayed.
blinks.
2. Press “TIMER setting button” to
set the clock to the present time.
Holding down “” or “” button rapidly
increases or decreases the time display.
3. Press “CLOCK button”.
blinks.
2
1.3
NOTE
■■■■ Tips for saving energy
• Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
■■■■ Please note
• The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
• Use the air conditioner in the following conditions.
Mode Operating conditions If operation is continued out of this range
COOL
Outdoor temperature: 10 to 46 °C
Indoor temperature: 18 to 32 °C
Indoor humidity: 80% max.
HEAT
Outdoor temperature: –15 to 21 °C
Indoor temperature: 10 to 30 °C
DRY
Outdoor temperature: 10 to 46 °C
Indoor temperature: 18 to 32 °C
Indoor humidity: 80% max.
• Operation outside this humidity or temperature range may cause a safety device to disable the system.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
• A safety device may work to stop the operation.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
Recommended temperature setting
For cooling:26°C – 28
For heating:20°C – 24°C
°°°°
C
9
OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation mode of
your choice.
From the next time on, the air conditioner will operate
with the same operation mode.
To start operation
■
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button” .
• The operation lamp will light up and the panel will open.
4
2, 3
1
5
To stop operation
■
3. Press “ON/OFF button” again.
• The operation lamp will go off and the panel will close.
To change the temperature setting
■
4. Press “TEMPERATURE adjustment button”
DRY or FAN mode AUTO or COOL or HEAT mode
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
The temperature setting is not variable.
Set to the temperature you like.
10
To change the air flow rate setting
■
5. Press “FAN setting button”.
DRY mode AUTO or COOL or HEAT or FAN mode
Five levels of air flow rate setting from “ ” to “ ”
The air flow rate setting is not variable.
• Indoor unit quiet operation
When the air flow is set to “ ”, the noise from the indoor unit will become quieter.
Use this when making the noise quieter.
The unit might lose capacity when the air flow rate is set to a weak level.
plus “ ” “ ” are available.
NOTE
■■■■ Note on HEAT operation
•
Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating
capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.
•
The heat pump system heats the room by circulating hot air around all parts of the room. After the
start of heating operation, it takes some time before the room gets warmer.
•
In heating operation, frost may occur on the outdoor unit and lower the heating capacity. In that case,
the system switches into defrosting operation to take away the frost.
•
During defrosting operation, hot air does not flow out of indoor unit.
■■■■ Note on DRY operation
• The computer chip works to rid the room of humidity while maintaining the temperature as
much as possible. It automatically controls temperature and air flow rate, so manual
adjustment of these functions is unavailable.
■■■■ Note on AUTO operation
•
In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the
room temperature at the start of the operation.
•
The system automatically reselects setting at a regular interval to bring the room temperature to usersetting level.
•
If you do not like AUTO operation, you can manually select the operation mode and setting
you like.
■■■■ Note on air flow rate setting
•
At smaller air flow rates, the cooling (heating) effect is also smaller.
11
Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your
comfort.
To adjust the horizontal
■
blade (flap)
1. Press “SWING button ”.
•“ ” is displayed on the LCD.
2. When the flap has reached the
desired position,
press “SWING button ” once
more.
• The flap will stop moving.
To adjust the vertical
■
blades (louvers)
1, 2
3, 4
5, 6
3. Press “SWING button ”.
•“ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
To 3-D Airflow
■
1. 3. Press the “SWING button ” and the “SWING button ”:
the “” and “” display will light up and the flap and louvers will
move in turn.
To cancel 3-D Airflow
■
2. 4. Press either the “SWING button ” or the “SWING button ”
12
To start COMFORT AIRFLOW operation
■
5. Press “COMFORT AIRFLOW button”.
The flap orientation will change, preventing air from blowing directly on the
occupants of the room.
•“ ” is displayed on the LCD.
〈COOL/DRY〉 The flap will go up.
〈HEAT〉 The flap will go down.
To cancel COMFORT AIRFLOW operation
■
6. Press “COMFORT AIRFLOW button” again.
Note
• When “SWING button ” is selected, the flap swinging
range depends on the operation mode. (See the figure.)
Three-Dimensional (3-D) Airflow
• Using three-dimensional airflow circulates cold air, which
tends to collected at the bottom of the room, and hot air,
which tends to collect near the ceiling, throughout the
room, preventing areas of cold and hot developing.
Comfort Airflow
• The air flow is set automatically.
• The air direction is as shown in the figure at right.
■■■■
ATTE NT IO N
• Always use a remote controller to adjust the flap angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
• Always use a remote controller to adjust the louvers
angles.
In COOL or DRY mode
In HEAT or FAN mode
5˚
In COMFORT AIRFLOW mode
10˚
COOL/DRY
40˚
approx. 10˚~40˚
30˚
75˚
80˚
FAN
approx. 5˚~80˚
STOP
STOP
HEAT
approx. 30˚~75˚
COOL
5˚
HEAT
80˚
STOP
13
POWERFUL Operation
POWERFUL operation quickly maximizes the
cooling (heating) effect in any operation mode.
You can get the maximum capacity .
To start POWERFUL
■
operation
1. Press “POWERFUL button”.
•
POWERFUL operation ends in 20 minutes.
Then the system automatically operates
again with the settings which were used
before POWERFUL operation.
• When using POWERFUL operation,
there are some functions which are not
available.
•“ ” is displayed on the LCD.
To cancel POWERFUL
■
operation
2. Press “POWERFUL button”
again.
1, 2
NOTE
■■■■
Notes on POWERFUL operation
• In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased
and the air flow rate be fixed to the maximum setting.
The temperature and air flow settings are not variable.
• In DRY mode
The temperature setting is lowered by 2.5°C and the air flow rate is slightly increased.
• In FAN mode
The air flow rate is fixed to the maximum setting.
• POWERFUL operation and COMFORT AIR FLOW cannot be used at the same time.
The operation selected last is given priority.
14
OUTDOOR UNIT SILENT Operation
OUTDOOR UNIT SILENT operation lowers the noise
level of the outdoor unit by changing the frequency and
fan speed on the outdoor unit. This function is
convenient during night.
To start OUTDOOR UNIT
■
SILENT operation
1. Press “SILENT button”.
•“ ” is displayed on the LCD.
To cancel OUTDOOR UNIT
■
SILENT operation
2. Press “SILENT button” again.
1, 2
NOTE
■■■■ Note on OUTDOOR UNIT SILENT operation
•
This function is available in COOL, HEAT, and AUTO modes.
(This is not available in FAN and DRY mode.)
• POWERFUL operation and OUTDOOR UNIT SILENT operation cannot be used at the
same time.
Priority is given to POWERFUL operation.
• If operation is stopped using the remote controller or the main unit ON/OFF switch when
using OUTDOOR UNIT SILENT operation, “ ” will remain on the remote controller
display.
15
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT
■
EYE operation
1. Press “SENSOR button”.
•“ ” is displayed on the LCD.
To cancel the
■
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
[EX.]
When somebody in the room
• Normal operation.
•
The INTELLIGENT EYE lamp lights up.
1, 2
When nobody in the room
20 min. after, start
•
operation
•
The INTELLIGENT EYE lamp goes off.
Somebody back in the room
Back to normal operation.
•
•
The INTELLIGENT EYE lamp lights up.
16
energy saving
.
“INTELLIGENT EYE” is useful for Energy Saving
■■■■ Energy saving operation
• Change the temperature –2°C in heating / +2°C in cooling / +2°C in dry mode from set temperature.
• Decrease the air flow rate slightly in fan operation. (In FAN mode only)
Notes on “INTELLIGENT EYE”
• Application range is as follows.
Vertical angle 90˚
(Side View)
Horizontal angle 110˚
(Top View)
90˚
7m
• Sensor may not detect moving objects further than 7m away. (Check the application range)
• Sensor detection sensitivity changes according to indoor unit location, the speed of
passersby, temperature range, etc.
• The sensor also mistakenly detects pets, sunlight, fluttering curtains and light reflected off of
mirrors as passersby.
• INTELLIGENT EYE operation will not go on during powerful operation.
• Night set mode (page 18.) will not go on during you use INTELLIGENT EYE operation.
55˚ 55˚
7m
CAUTION
• Do not place large objects near the sensor.
Also keep heating units or humidifiers outside the sensor’s detection area. This sensor can
detect objects it shouldn’t as well as not detect objects it should.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and
malfunction.
17
TIMER Operation
Timer functions are useful for automatically switching
the air conditioner on or off at night or in the morning.
You can also use OFF TIMER and ON TIMER in
combination.
To use OFF TIMER
■
operation
• Check that the clock is correct.
If not, set the clock to the present time.
(page 9.)
1. Press “OFF TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button” until
the time setting reaches the point
you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
3. Press “OFF TIMER button” again.
• The TIMER lamp lights up.
4
2
1, 3
To cancel the OFF TIMER operation
■
4. Press “CANCEL button”.
• The TIMER lamp goes off.
Notes
•
When TIMER is set, the present time is not displayed.
•
Once you set ON, OFF TIMER, the time setting is kept in the memory. (The memory is canceled when
remote controller batteries are replaced.)
•
When operating the unit via the ON/OFF Timer, the actual length of operation may vary from the time
entered by the user.
■■■■ NIGHT SET MODE
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C
up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) for your pleasant sleep.
18
To use ON TIMER operation
■
• Check that the clock is correct. If not, set the
clock to the present time
(page 9.).
1. Press “ON TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button” until
the time setting reaches the point
you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
3. Press “ON TIMER button” again.
•
The TIMER lamp lights up.
To cancel ON TIMER
■
operation
1, 3
4
2
4. Press “CANCEL button”.
• The TIMER lamp goes off.
To combine ON TIMER and OFF TIMER
■
• A sample setting for combining the two timers is shown below.
(Example)
Present time: 11:00 PM
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m.
Combined
ATTENTION
■■■■ In the following cases, set the timer again.
•
After a breaker has turned OFF.
•
After a power failure.
•
After replacing batteries in the remote controller.
Display
19
CARE
Care and Cleaning
•
CAUTION
Units
Indoor unit, Outdoor unit and Remote controller
■
1. Wipe them with dry soft cloth.
Top front panel
■
1. Open the top front panel.
• Open the top front panel by placing a finger on the
panel tab on either side of the top front panel.
2. Remove the top front panel.
•
With the top front panel open so that it is almost
horizontal, slide it to the right.
The revolving axis on the left will come off.
The revolving axis on the right can be removed by
sliding the top front panel to the left.
3. Clean the top front panel
•
Wipe it with a soft cloth soaked in water.
•
Only neutral detergent may be used.
•
In case of washing the top front panel with water, dry it
with cloth, dry it up in the shade after washing.
4. Attach the top front panel
•
Place the revolving axes on either side of the top
front panel into the holes and slowly close.
(Press either side of the top front panel.)
Before cleaning, be sure to stop the operation and turn the breaker OFF.
•
Always shut down the unit (and close the panel) before doing any work.
Opening the panel during operation may cause the panel to fall off.
CAUTION
•
Don’t touch the metal parts of the indoor unit. If you touch those parts, this may cause an injury.
•
When removing or attaching the top front panel, use a robust and stable stool and watch your steps carefully.
•
When removing or attaching the top front panel, support the top front panel securely with hand to prevent it from falling.
•
For cleaning, do not use hot water above 40 °C, benzine, gasoline, thinner, nor other volatile oils,
polishing compound, scrubbing brushes, nor other hand stuff.
• After cleaning, make sure that the top front panel is securely fixed.
20
Filters
1. Open the top front panel.
•
Open the top front panel by placing a finger on the
panel tab on either side of the top front panel and
then secure it using the supporting plate on the right.
2. Pull out the air filters.
• Push a little upwards the tab at the center of
each air filter, then pull it down.
3. Take off the Titanium Apatite
Photocatalytic Air-Purifying Filter.
• Hold the recessed parts of the frame and
unhook the four claws.
4. Clean or replace each filter.
See figure.
5. Set the air filter and the Titanium Apatite
Photocatalytic Air-Purifying Filter as they
were and close the front grille.
• Be sure to insert the two tabs below.
• Return the supporting plate to its previous position.
• Press either side of the top front panel.
Air Filter
■
1. Wash the air filters with water or clean them with
vacuum cleaner.
•
If the dust does not come off easily, wash them with neutral detergent
thinned with lukewarm water, then dry them up in the shade.
• It is recommended to clean the air filters every two weeks.
Titanium Apatite
Photocatalytic
Air-Purifying Filter
Filter frame
Push
Supporting plate
Air filter
Ta b
Titanium Apatite Photocatalytic
■
Air-Purifying Filter
The Titanium Apatite Photocatalytic Air-Purifying Filter can be renewed
by washing it with water once every 6 months. We recommend replacing it once every 3 years.
. (gray)
[ Maintenance ]
1. Remove dust with a vacuum cleaner and wash lightly with water.
2. If it is very dirty, soak it for 10 to 15 minutes in water mixed with a neutral cleaning agent.
3. Do not remove filter from frame when washing with water.
4. After washing, shake off remaining water and dry in the shade.
5. Since the material is made out of paper, do not wring out the filter when removing water from it.
[ Replacement]
1. Remove the tabs on the filter frame and replace with a new filter.
• Dispose of the old filter as flammable waste.
Ta b
21
Check
Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded.
Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit.
Check that the drain comes smoothly out of the drain hose during COOL or DRY operation.
• If no drain water is seen, water may be leaking from the indoor unit.
Stop operation and consult the service shop if this is the case.
Before a long idle period
■
1. Operate the “FAN only” for several hours on a fine day to dry out the
inside.
• Press “MODE selector button” and select “FA N” operation.
• Press “ON/OFF button” and start operation.
2. After operation stops, turn off the breaker for the room air conditioner.
3. Clean the air filters and set them again.
4. Take out batteries from the remote controller.
NOTE
• Operation with dirty filters:
(1) cannot deodorize the air. (2) cannot clean the air.
(3) results in poor heating or cooling. (4) may cause odour.
• To order Titanium Apatite Photocatalytic Air-Purifying Filter contact to the service shop
there you bought the air conditioner.
• Dispose of old filters as burnable waste.
Item Part No.
Titanium Apatite Photocatalytic Air-Purifying Filter.
(with frame) 1 set
Titanium Apatite Photocatalytic Air-Purifying Filter.
(without frame) 1 set
22
KAF952B41
KAF952B42
TROUBLE SHOOTING
Trouble Shooting
These cases are not troubles.
The following cases are not air conditioner troubles but have some reasons. You may just continue using it.
Case Explanation
Operation does not start soon.
• When ON/OFF button was
pressed soon after
operation was stopped.
• When the mode was
reselected.
Hot air does not flow out soon
after the start of heating
operation.
The heating operation stops
suddenly and a flowing sound
is heard.
The outdoor unit emits water or
steam.
Mists come out of the indoor
unit.
The indoor unit gives out odour. ■ This happens when smells of the room, furniture, or
The outdoor fan rotates while
the air conditioner is not in
operation.
The operation stopped
suddenly.
(OPERATION lamp is on)
• This is to protect the air conditioner.
You should wait for about 3 minutes.
• The air conditioner is warming up. You should wait for 1 to 4
minutes.
(The system is designed to start discharging air only after it
has reached a certain temperature.)
• The system is taking away the frost on the outdoor unit.
You should wait for about 3 to 8 minutes.
■ In HEAT mode
• The frost on the outdoor unit melts into water or steam
when the air conditioner is in defrost operation.
■ In COOL or DRY mode
• Moisture in the air condenses into water on the cool
surface of outdoor unit piping and drips.
■ This happens when the air in the room is cooled into mist by
the cold air flow during cooling operation.
cigarettes are absorbed into the unit and discharged with the
air flow.
(If this happens, we recommend you to have the indoor unit
washed by a technician. Consult the service shop where you
bought the air conditioner.)
■ After operation is stopped:
• The outdoor fan continues rotating for another 60
seconds for system protection.
■ While the air conditioner is not in operation:
• When the outdoor temperature is very high, the out door
fan starts rotating for system protection.
■ For system protection, the air conditioner may stop
operating on a sudden large voltage fluctuation.
It automatically resumes operation in about 3 minutes.
23
Check again.
Please check again before calling a repair person.
Case Check
The air conditioner does not
operate.
(OPERATION lamp is off)
Cooling (Heating) effect is poor. • Are the air filters clean?
Operation stops suddenly.
(OPERATION lamp flashes.)
An abnormal functioning
happens during operation.
The top front panel and bottom
front panel will not open.
(OPERATION lamp flashes.)
• Hasn’t a breaker turned OFF or a fuse blown?
• Isn’t it a power failure?
• Are batteries set in the remote controller?
• Is the timer setting correct?
• Is there anything to block the air inlet or the outlet of the
indoor and the outdoor units?
• Is the temperature setting appropriate?
• Are the windows and doors closed?
• Are the air flow rate and the air direction set appropriately?
• Is the unit set to the INTELLIGENT EYE mode?
(page 16.)
• Are the air filters clean?
• Is there anything to block the air inlet or the outlet of the
indoor and the outdoor units?
Clean the air filters or take all obstacles away and turn the
breaker OFF. Then turn it ON again and try operating the air
conditioner with the remote controller. If the lamp still flashes,
call the service shop where you bought the air conditioner.
• The air conditioner may malfunction with lightning or radio
waves. Turn the breaker OFF, turn it ON again and try
operating the air conditioner with the remote controller.
• Is there something caught in the panel?
• Remove the object and attempt operation again using the
remote control.
If the panel still does not open, contact your dealer if the
operation lamp is still flashing.
24
Call the service shop immediately.
WARNING
■
When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF.
Continued operation in an abnormal condition may result in troubles, electric shocks or fire.
Consult the service shop where you bought the air conditioner.
■ Do not attempt to repair or modify the air conditioner by yourself.
Incorrect work may result in electric shocks or fire.
Consult the service shop where you bought the air conditioner.
If one of the following symptoms takes place, call the service shop immediately.
The power cord is abnormally hot or damaged.
■
An abnormal sound is heard during operation.
■
The safety breaker, a fuse, or the earth leakage breaker
■
cuts off the operation frequently.
A switch or a button often fails to work properly.
■
There is a burning smell.
■
Water leaks from the indoor unit.
■
Turn the breaker
OFF and call the
service shop.
■ After a power failure
The air conditioner automatically resumes
operation in about 3 minutes. You should just
wait for a while.
■ Lightning
If lightning may strike the neighbouring area,
stop operation and turn the breaker OFF for
system protection.
Disposal requirements
Dismantling of the unit, treatment of the refrigerant, oil and eventual other parts, should be done in
accordance with the relevant local and national regulations.
We recommend periodical maintenance
In certain operating conditions, the inside of the air conditioner may get foul after several seasons of
use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist
aside from regular cleaning by the user. For specialist maintenance, contact the service shop where
you bought the air conditioner.
The maintenance cost must be born by the user.
25
MEMO
26
MEMO
27
MEMO
28
3P119312-2B
M03B039A
(0507)
HT
Loading...
