Daewoo DWF-752M User Manual

Full-Auto Electric Washing Machine

Model: DWF-752M

INSTRUCTION MANUAL

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise

design.

■Before operating this washer, please read this instruction completely. Thank you

CONTENTS Page

PARTS AND FEATURES.........................................................................................................................................2

WASHER SAFETY.................................................

INSTALLATION INSTRUCTIONS..........................

ELECTRICAL REQUIREMENTS............................................................................................................................5

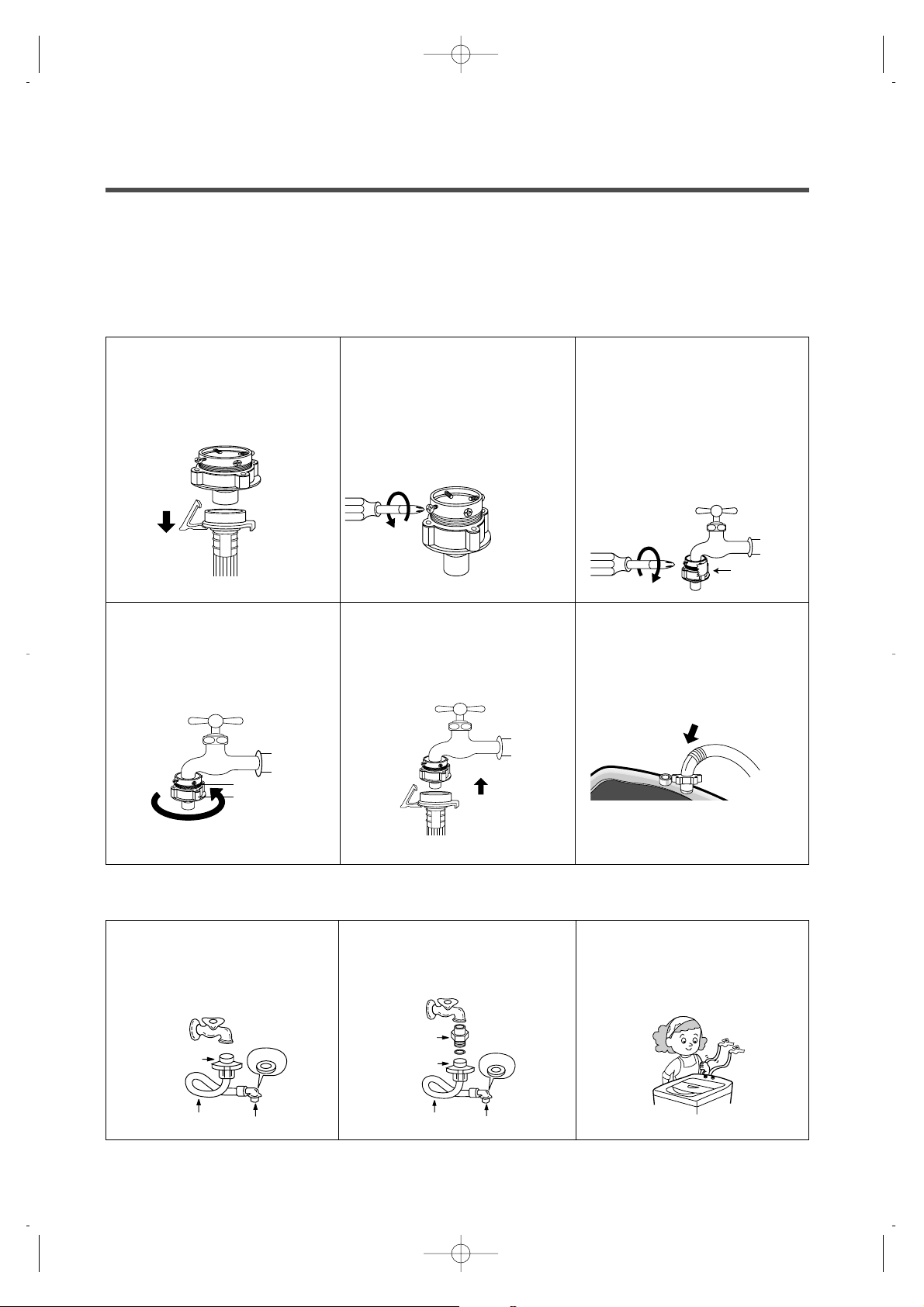

INLET HOSE CONNECTION..................................................................................................................................6

OPERATING YOUR WASHER.........................................

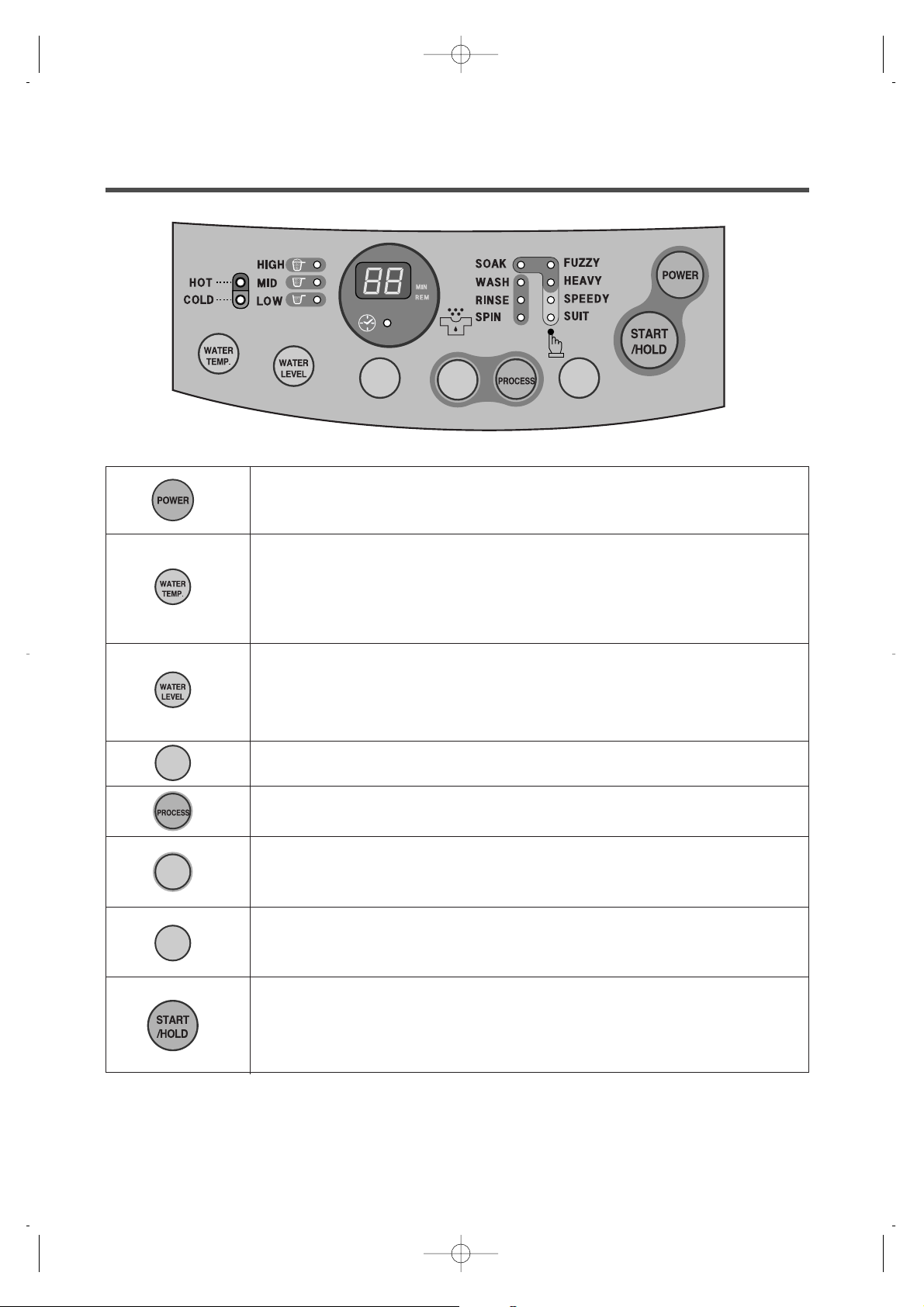

THE FUNCTIONS OF THE CONTROL PANEL....................................................................................................8

WASHING PROCEDURE AND PROGRAM SELECTION

GENERAL PROCEDURE FOR OPERATION.....................................................................................................11

CARING FOR YOUR WASHER..............................

HOW TO CLEAN THE FILTER.............................

REMOVING STAINS..............................................................................................................................................14

TROUBLE SHOOTING..........................................................................................................................................15

SPECIFICATION.....................................................

A NOTE TO YOU

Thank you for buying a DAEWOO appliance. DAEWOO washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

.................................................................................

......

...............................................................................

..................................................................................

...................................................................................

.................3

................4

............12

..............13

............16

.....7

..9

• GROUND WIRE In case of 3-wire

power cord, ground

wire will not be

provided

• POWER CORD

• DRAIN HOSE

• LINT FILTER

• COLD WATER TAP

After using the washer,

close the water tap

• DETERGENT CASE

• ADJUSTABLE LEG

• SOFTENER INLET

• BLEACH INLET

• CONTROL PANEL

• POWER SWITCH

• CONTROL PANEL

• PULSATOR

PARTS AND FEATURES

ACCESSORIES

DRYTEN (OPTION) COVER UNDER (OPTION) WATER TAP ADAPTER

In case of screw-shaped inlet hoses, water tap adapters will not be provided.

INLET HOSE

HOSE DRAIN (FOR NON-PUMP)

HOSE CONNECTOR (OPTION)

HOSE DRAIN (FOR PUMP) CONNECTOR INLET(OPTION)

DRYTEN

The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book, Your model may not include all features.

• HOT WATER TAP After using the washer, close the water tap. In case of the single valve model, there is no hot water valve.

DWF-800W/802W/750M/752M 00.5.25 10:45 AM ˘`2

Read all instructions before using your washer

Save these instructions

Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer, follow basic precautions including the following:

Understanding your responsibilities

• Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.

• Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer.

• Do not wash fiberglass materials.

Small particles can stick to fabrics and cause skin irritation.

• Do not use hot water that temperature is over 50

°C (120°F).

It can cause a deformation of plastic parts.

• Do not spray water on the control panel and back cover of the washer. It can cause a fire or an electric shock.

temperature is selected as hot or warm, there can be water leakage from unconnected water inlet valve.

• In case of the dual valve model, if you connect only cold water inlet valve, while water

• Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be used or stored in or near your washer. Do not add flammable fluids to your wash water.These substances give off vapors that can create a fire hazard or explosion.

• Do not allow children to operate, play with, or crawl on or inside your washer. Supervise children closely when your washer is used near them.

• After starting a cycle, do not reach into the spin basket unless all motion stops.

• Do not tamper with the controls.

Please ...

• Have only a qualified person install, repair, or replace parts on washer.

• Maintain washer properly.

• Protect washer from the weather and

keep it where the temperature will not fall below freezing.

• Do not install the washer at a place of extremely high humidity. It could cause an Electrical shock or a short circuit.

• Connect washer to the correct outlet, electrical supply, water supply, and drain.

• Ground washer properly.

WASHER SAFETY

DWF-800W/802W/750M/752M 00.5.25 10:45 AM ˘`3

Non-Pump Model Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything necessary for correct installation. Proper installation is your responsibility.

•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer. The packing box is opened, there are a drain hose.

INSTALLATION INSTRUCTIONS

• Connect the drain hose to the drain outlet at the back side of the washer.

Drain hose

Drain Outlet

Drain hose

If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and cause a malfunction. If washer is not level, adjust the front leg(A) up or down for horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1m of the upper back of the washer cabinet and provide water pressure 0.3kgf/cm

-8kgf/cm2 (2.94N/cm2-78.4N/cm2).

UP DOWN

NOTES

• The opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

DWF-800W/802W/750M/752M 00.5.25 10:45 AM ˘`4

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

Non-Pump Model

1In case that it goes over

a door sill. Don’t let the height of the drain hose exceed 20cm from the bottom of washer.

2In case of extending the

drain hose. Don’t let the total length exceed 3m.

3Be careful that the end

of the drain hose is not immersed in water.

• Top of tub must be at least 86cm (34inches) high and no higher than 130cm from bottom of washer (A)

• Needs a 3cm minimum diameter

standpipe with minimum carry away capacity of 30liters per minute.

• Top of tub must be at least 86cm

(34inches) high and no higher than 130cm from bottom of washer (B)

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed. This washer is equipped with a power supply cord (A) having a earthing plug (B). To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle (C). If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.

•

Electrical earth is required on this washer

•

If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

•

Don’t earth to a gas pipe

•

Don’t change the power supply cord plug.

•

Check with a qualified electrician if you are not

sure the washer is properly earthed.

electrical shock hazard:failure to follow these instructions could result in

death or serious injury.

B A

DWF-800W/802W/750M/752M 00.5.25 10:45 AM ˘`5

20Cm
