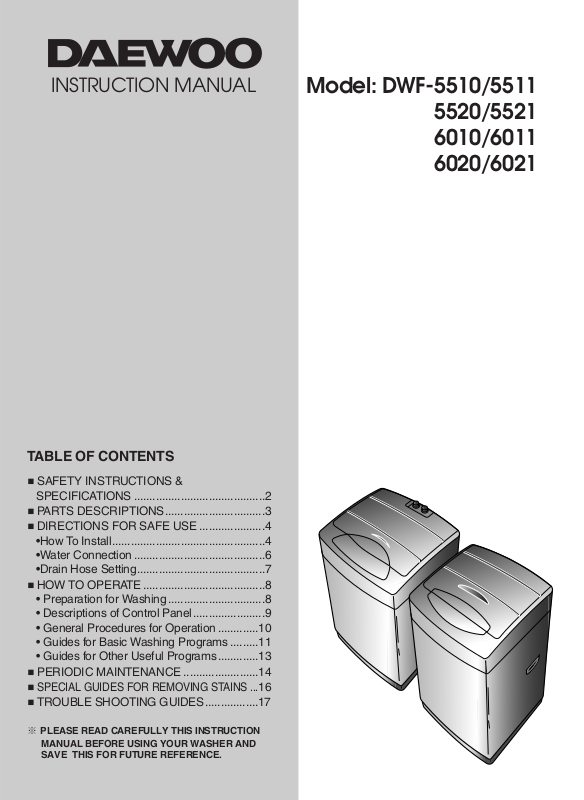

Daewoo DWF-5520 User Manual

INSTRUCTION MANUAL

Model: DWF-5510/5511

5520/5521
6010/6011
6020/6021

=

■SAFETY INSTRUCTIONS &

SPECIFICATIONS ..........................................2

■PARTS DESCRIPTIONS................................3

■DIRECTIONS FOR SAFE USE .....................4

•How To Install.................................................4

•Water Connection..........................................6

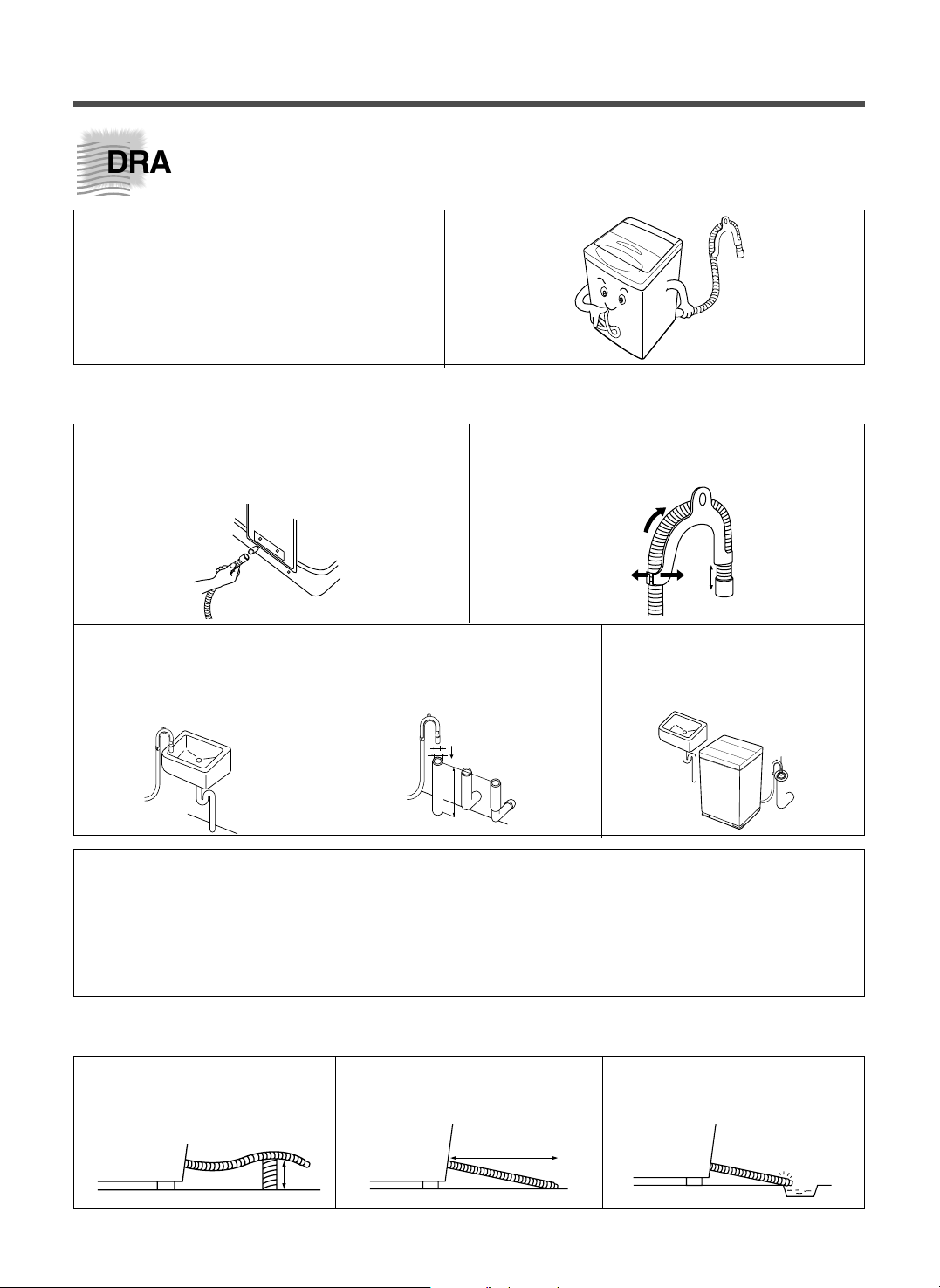

•Drain Hose Setting.........................................7

■HOW TO OPERATE .......................................8

• Preparation for Washing ...............................8

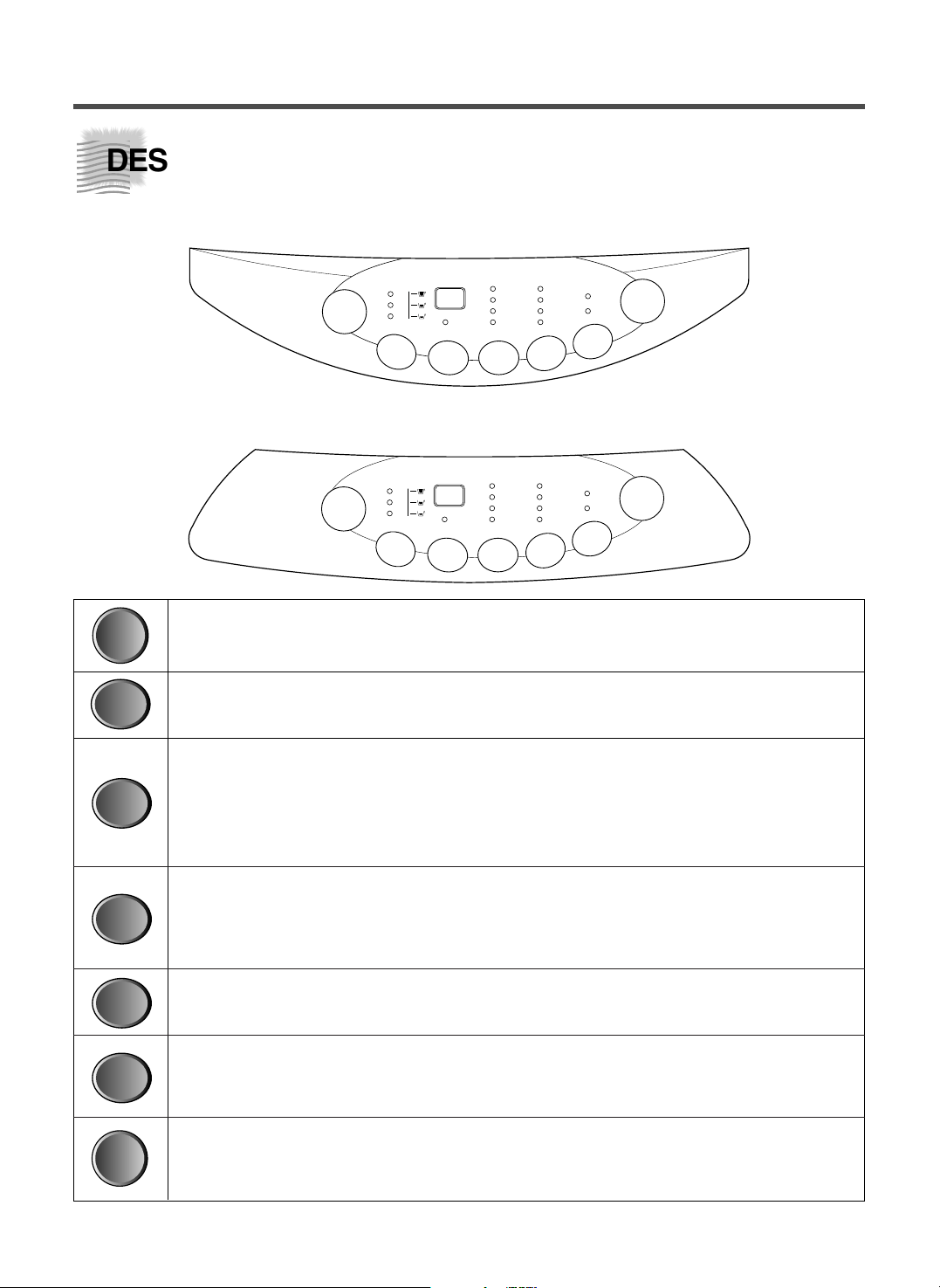

• Descriptions of Control Panel.......................9

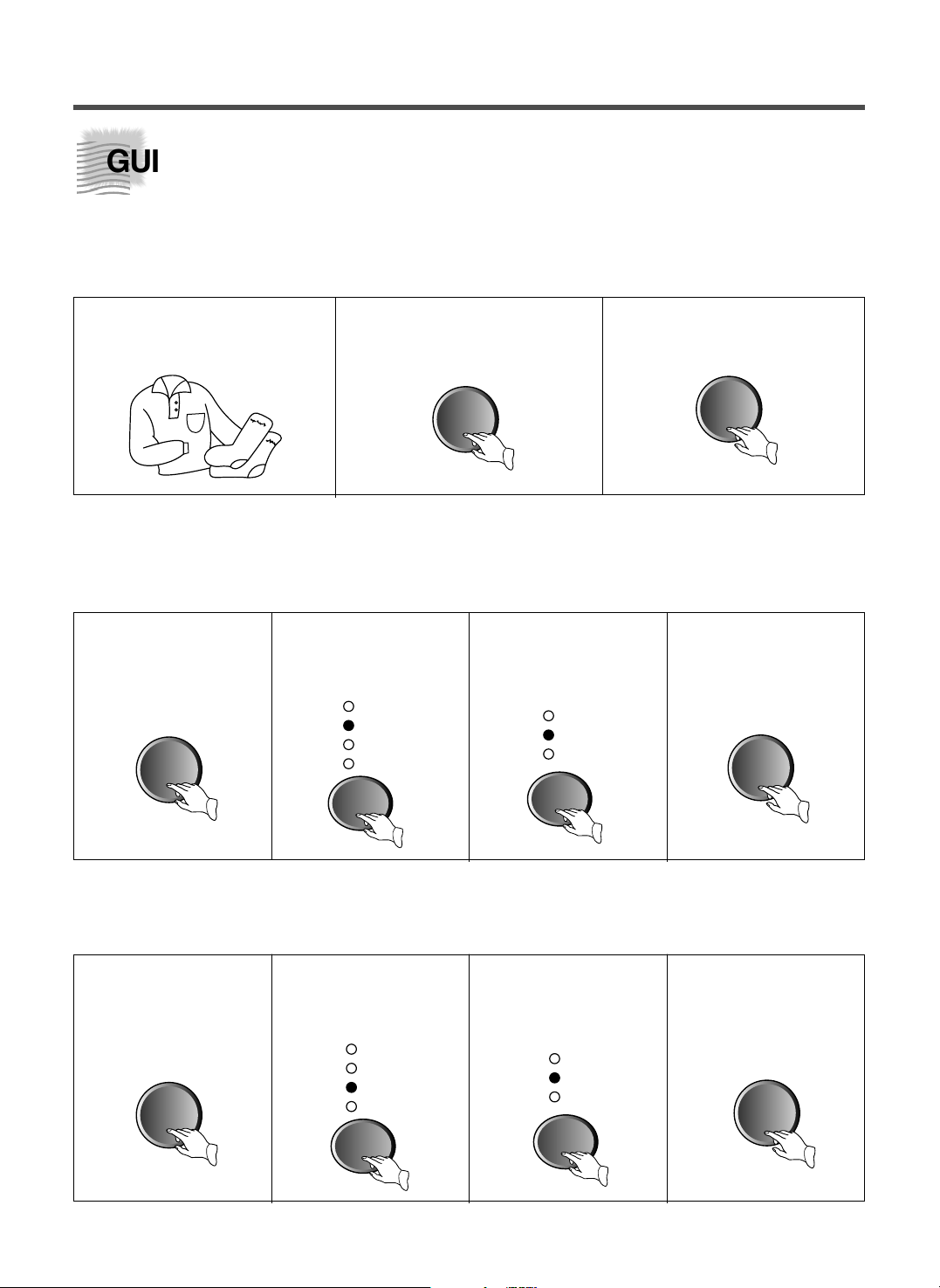

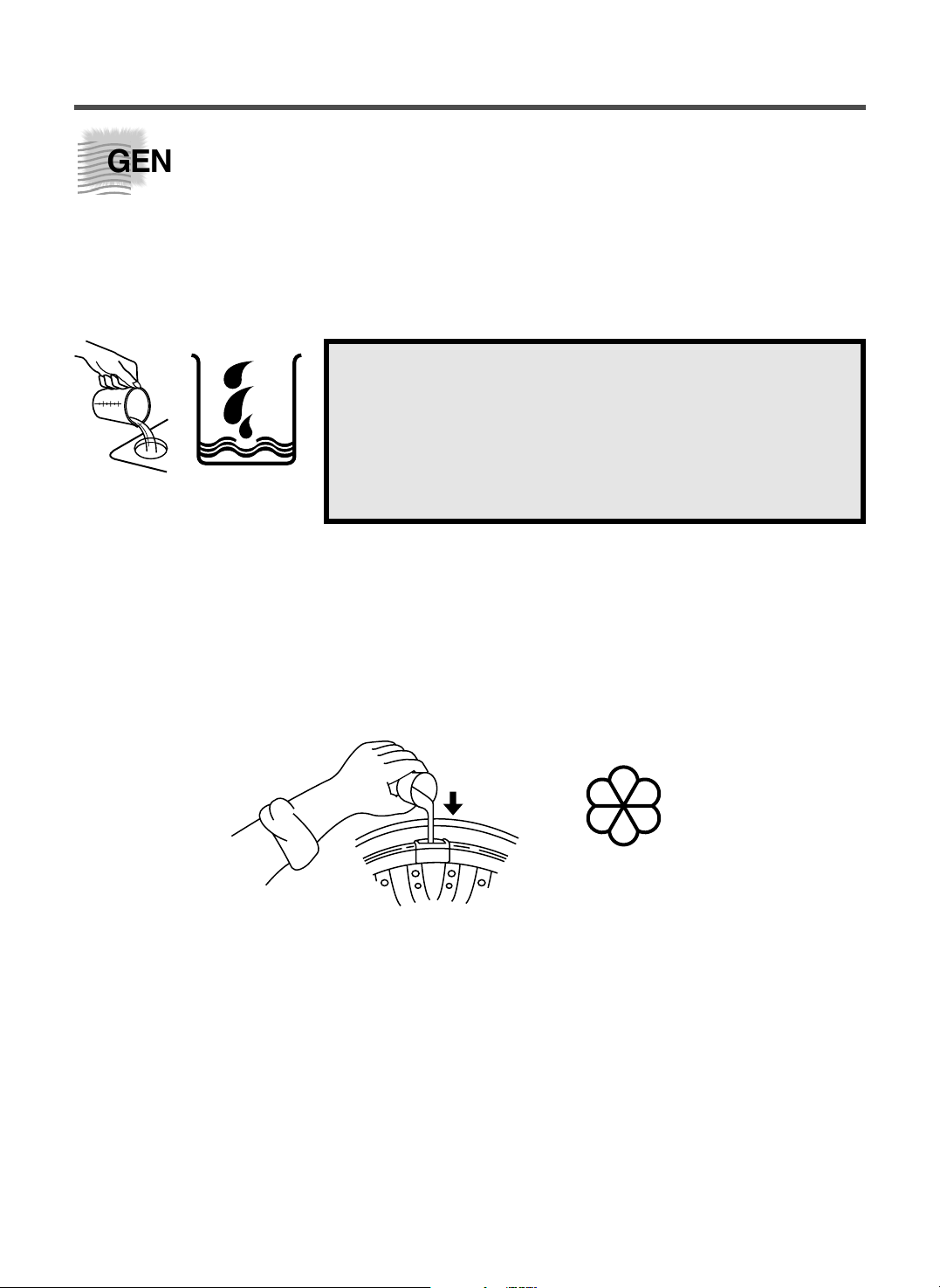

• General Procedures for Operation .............10

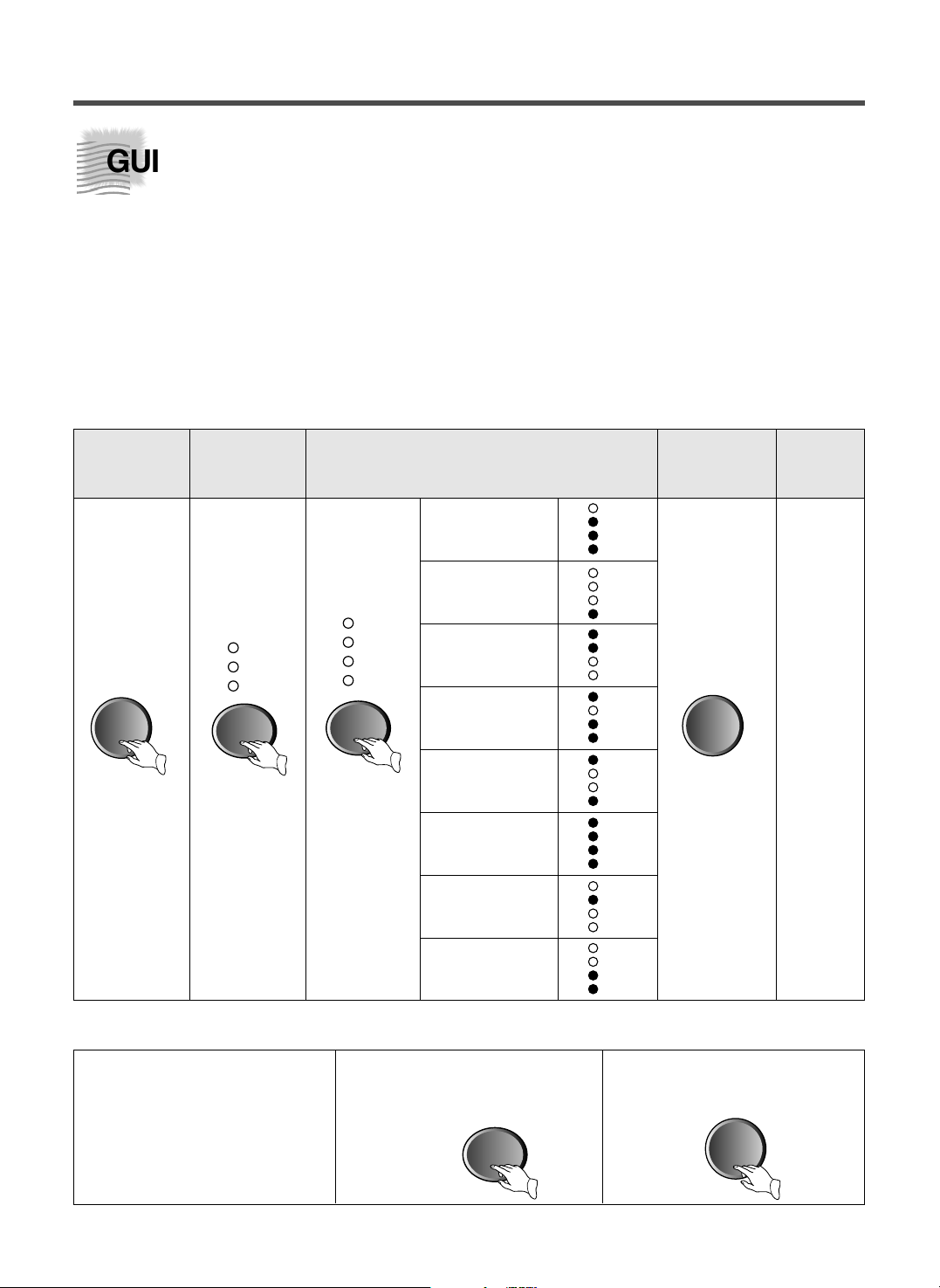

• Guides for Basic Washing Programs .........11

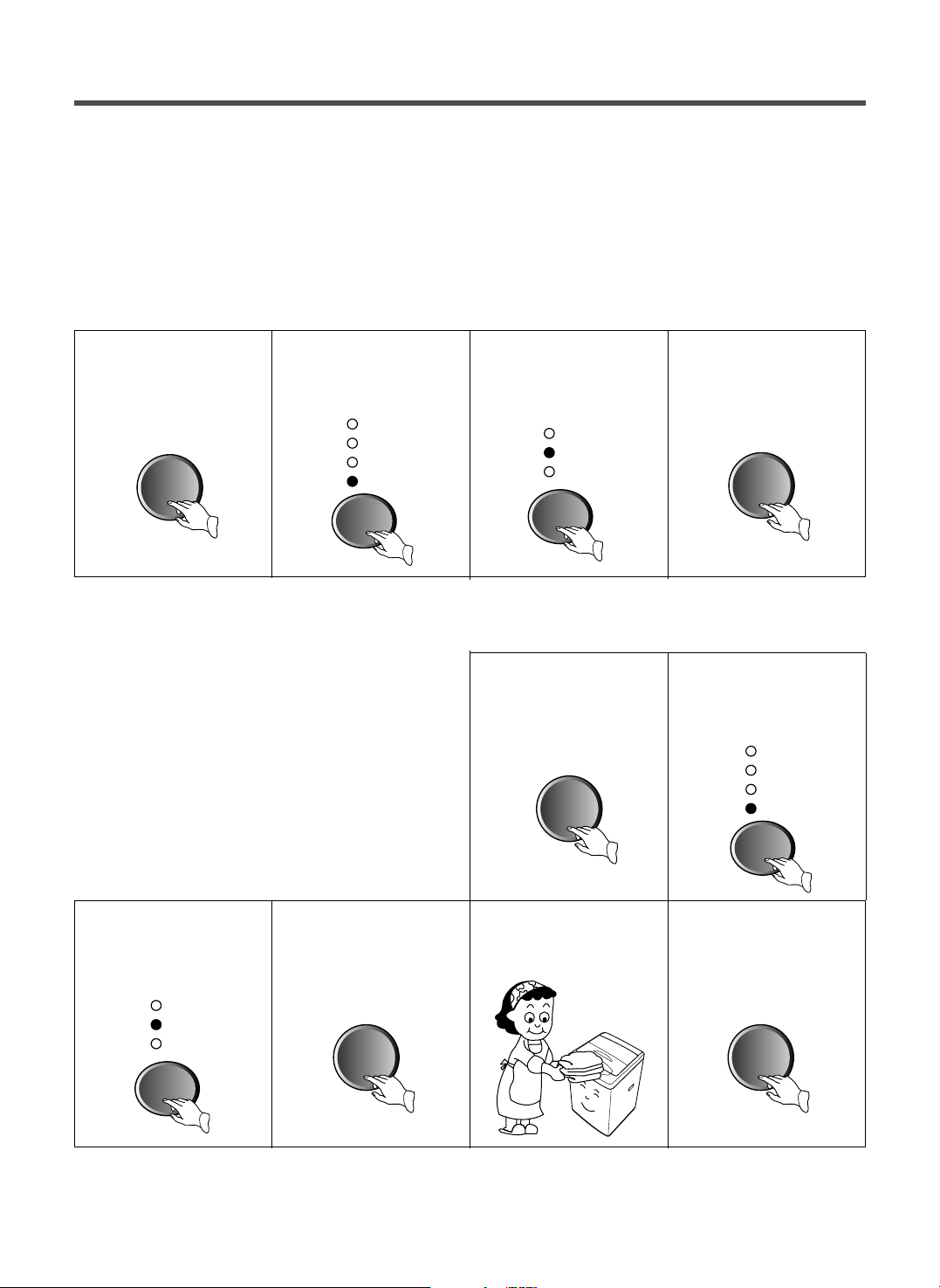

• Guides for Other Useful Programs.............13

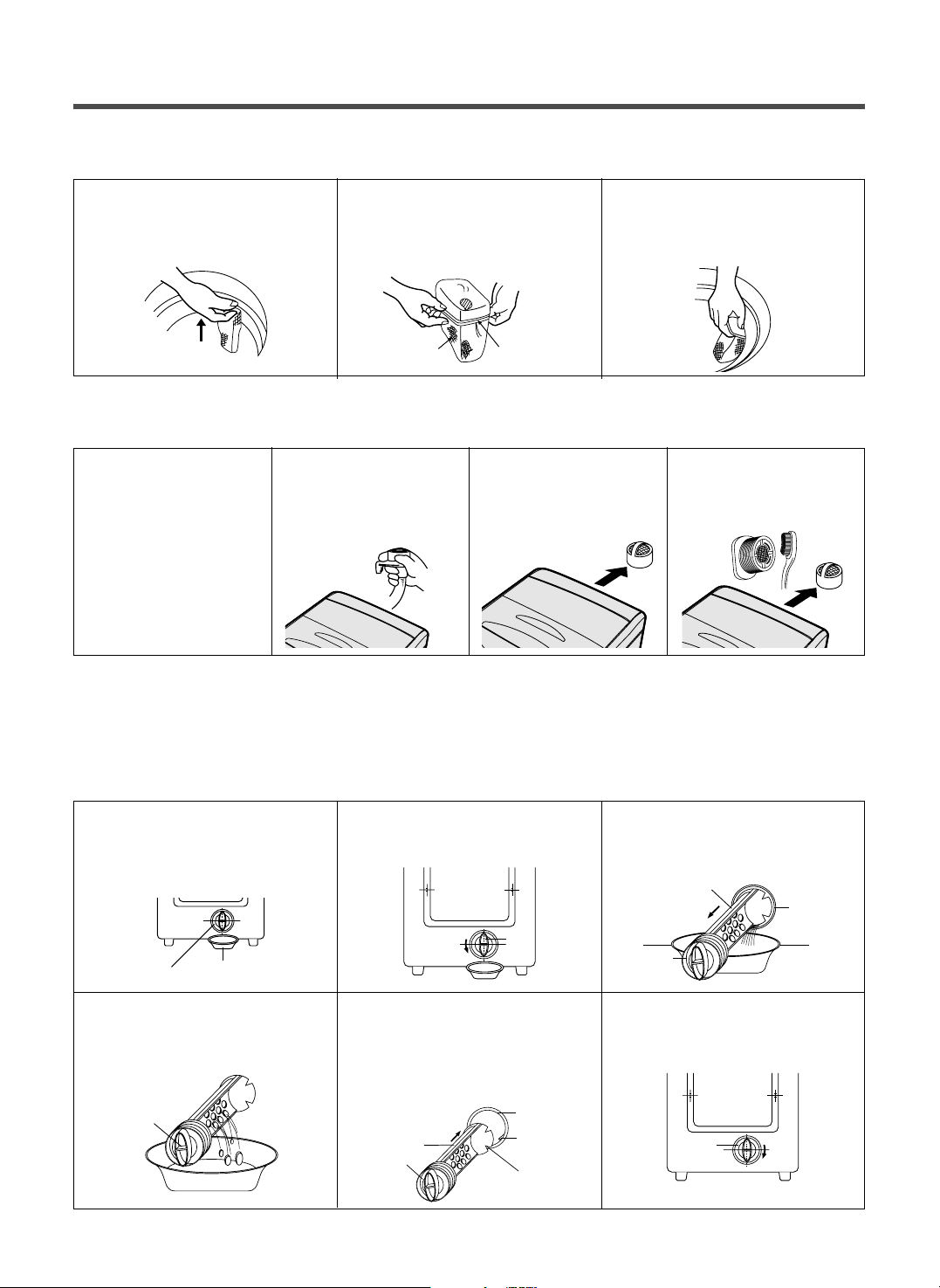

■PERIODIC MAINTENANCE ........................14

■

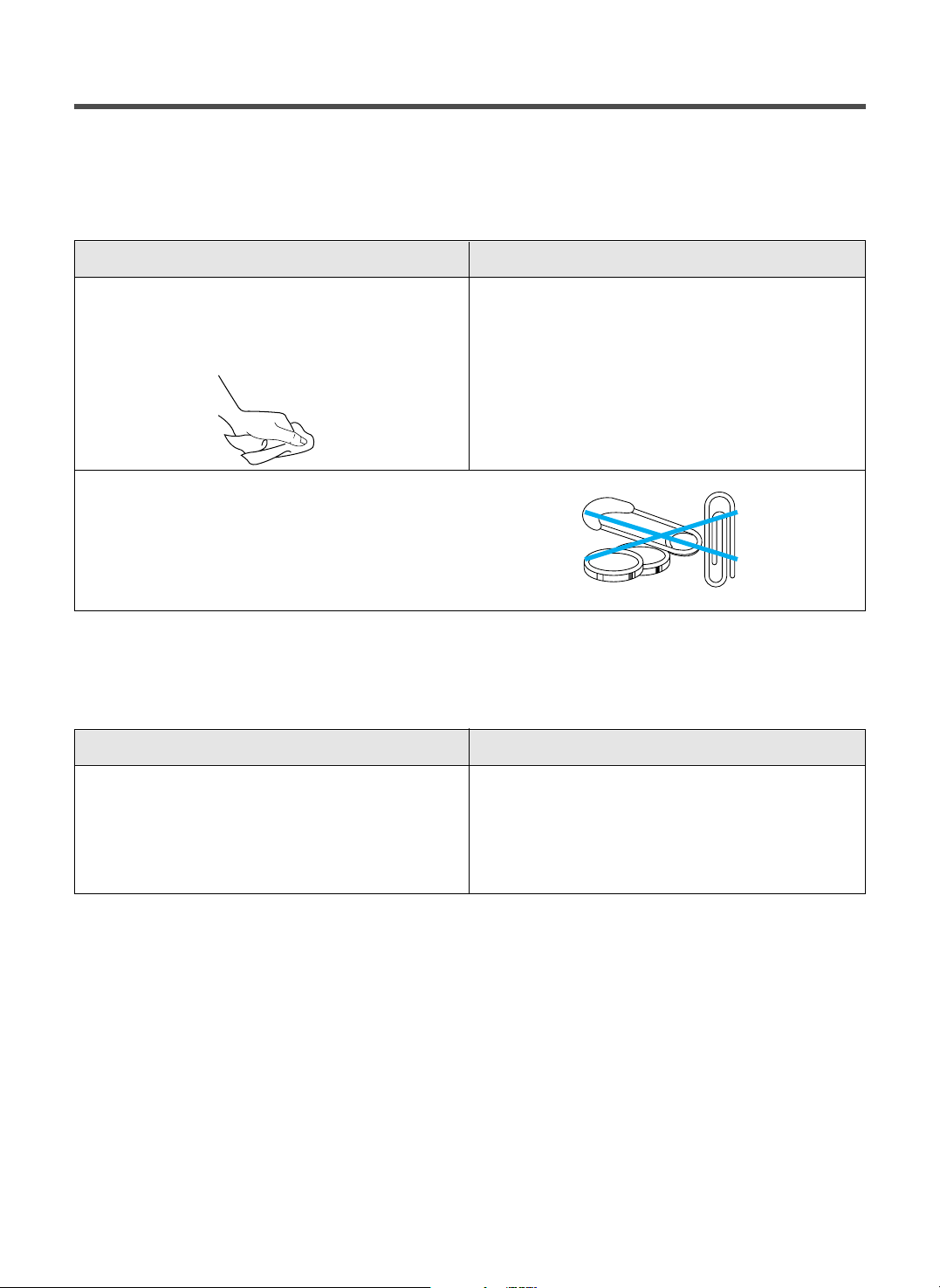

SPECIAL GUIDES FOR REMOVING STAINS ...

16

■TROUBLE SHOOTING GUIDES .................17

TABLE OF CONTENTS

※ PLEASE READ CAREFULLY THIS INSTRUCTION

MANUAL BEFORE USING YOUR WASHER AND
SAVE THIS FOR FUTURE REFERENCE.

※ Your safety is important to us.※

Read all instructions before using your washer.

☞ Do not wash items cleaned, washed, soaked in, or spotted with wax, paint, gasoline, oil, or other flammable

fluids. The fumes can create a fire hazard or explosion.

☞ Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.) should not be used or stored in or near

your washer. Do not add flammable fluids to your wash water. These substances give off vapors that can
create a fire hazard or explosion.

☞ Do not allow children to operate, play with, or crawl on or inside your washer.

Supervise children closely when your washer is used near them.

☞ Do not reach into the wash tub unless

START/HOLD

button is pressed and all motion stops, while spinning.

☞ Do not use chlorine bleach and ammonia or acids (such as vinegar or rust remover) in the same wash.

Hazardous fumes can form.

☞ Unplug power supply cord before attempting to service your washer.

☞ Do not pour water on the control panel.

☞ Remove foreign objects (such as coin, pin, knife, other metallic materials, etc.) inside your wash load.

They may damage any fabric.

☞ Do not overload your washer to avoid poor cleaning, wrinkling and/or any abnormal operation.

SAFETY INSTRUCTIONS & SPECIFICATIONS

2

MODEL NO DWF-5510 DWF-5511 DWF-5520 DWF-5521 DWF-6010 DWF-6011 DWF-6020 DWF-6021

Power Source Please refer to the rating label at the back of your washer.

Power Consumption 250W

Width ✕ Depth (mm) 532 ✕ 542

Height (mm) 855 920 877 952 855 920 887 952

Net Weight (Kg) 32 32.5 32.5 33 32.5 33 33 33.5

Maximum Mass of Textile 5.5kg 6.0kg

Material of Internal Tub Recyclable Poly Propylene Anti-Rust Stainless Steel

Water Consumption Approx. 135 Liters/Cycle Approx. 130 Liters/Cycle

Washing Capacity Please refer to the rating label at the back of your washer.

Washing Program 4 Programs

Water Level High (55 Liters), Medium (45 Liters), Low (31 Liters)

Direction of Inlet Valve Backward Upward Backward Upward

Operating Water Pressure 0.3Kgf/cm

2

~8Kgf/cm2(2.94N/cm2~78.4N/cm2)

Pulsator Provided with 6 Spouting Holes for Powerful Upward Water Stream

1. Air Bubble Generator

Optional Features 2. Reserved Washing with Display for remaining time

3. Signal Buzzer for the Operation of Control Button

Coin Filter Only in Pump Model identified with ‘P’ added to Model No. (e.g., DWF-5510NP)

※ The above specifications and features are subject to change without prior notice.

SAFETY INSTRUCTIONS

SPECIFICATIONS

3

PARTS DESCRIPTIONS

◆ The drawings in this book may vary from your washer model. They are designed to show the
different features of all models covered by this book. Your model may not include all features.

Drain Hose

Inlet Hose

(option)

Dryten

(option)

Hose Adapter

Under Cover

(option)

Hose Clamp

In case of screw-shaped inlet hoses water

tap adapters will not be provided.

Non-Pump Model Pump Model

DETERGENT CASE (Symbol )

WATER CONNECTOR

(Blue Color: Cold,

Pink Color: Hot)

DOOR

DRAIN HOSE

LINT FILTER

PLUG

ADJUSTABLE LEG

(Optional)

GROUND WIRE

(This will not be

provided in

case of 3-wire

power cord)

FABRIC SOFTNER INLET
(Symbol, See page 10)

LIQUID BLEACH INLET
(Symbol, See page 10)

CONTROL PANEL
(88 display and some
buttons may be excluded)

WASH TUB

PULSATOR

BASE
(Height is optional)

ACCESSORIES

UP

4

Before installing your washer, remove the
pad from the bottom of the cabinet.
Then, separate under cover from rear side
of cabinet by unscrewing and insert it into
the base.

Push the under-base cover into the end,
which decrease the noise made by this
washer.

Installation of the Under Base Cover (Option)

-DWF-5510/5511/6010/6011

Location

Place your washer on a level and solid floor,
considering the length of inlet hose, drain
hose and power supply cord.

Do not place or store your washer below 0°C(32°F) to avoid
any damage from freezing.
Do not place your washer where it may be splashed during
bathing.

If washer is not level, it should be corrected
by the adjustable leg (provided optionally) in
the front-right side under the base and/or, a
thin block or brick.

DIRECTIONS FOR SAFE USE

HOW TO INSTALL

å∫

SCREW

After the packing box is opened, there is
a under-base cover at the top of
the washer.

Push the under-base cover into the end,
which decrease the noise made by this
washer.

-DWF-5520/5521/6020/6021

å∫

After installing the washing machine, assemble
the under-base cover.

NOTES:

The opening muse not be obstructed by carpeting when
the washing machine is installed on a carpeted floor.

* Before plugging the plug into wall

receptacle, check the voltage rating is
in the range of rating, marked on the
label at the back side of your washer.

Power Supply

LABEL

5

Grounding

• If your water tap or water pipe
is not made of metal, connect
the ground wire to a copper
plate or a metal rod and bury
it in the earth.

• If both your water tap and
water pipe are made of metal,
connect the ground wire to the
base of the water tap.

• It is of no use connecting the
ground wire to the water pipe
made of plastic.

• In case of using 3-core cord,
there is no need for
grounding.

• Never connect it to a gas pipe because of danger
of a explosion.

• Never connect it to a telephone wire or a lightning
rod because of os very dangerous at a

thunderbolt.

Never Connect the Ground Wire to Such a Thing

Gas Pipe Telephone Wire

20Cm

6

Be careful not to confuse hot water inlet (pink color) and cold water inlet (blue color),
if your washer is provided with dual water inlets.
Also if you have only one water tap, connect the inlet hose with cold water inlet (blue color).

* In case that your washer is not provided with collar compartment, procedure # and % is not

necessary.

For normal tap

! Pull down the collar of the

inlet hose to separate it
from the hose adapter.

@ Loosen the four screws

properly in fitting into
water tap.

#

Fit the hose adapter into the water
tap and tighten the four screws
evenly while pushing up the
adapter so that the rubber packing
can stick to the water tap tightly.

$ Remove the tape, and

screw connector B into
connector A tightly.

% Connect the inlet hose to

the hose adapter, pulling
down the collar of hose
end.

^ Connect the opposite end

of the hose to water inlet
of your washer tightly.

• Please check the rubber
packing is inside the
hose end.

TAPE

Connector B

Connector A

WATER CONNECTION

For Thread-Fitting Type

! Connect the inlet hose to the thread of

water tap or water pipe by tightening.

@ For the opposite end, connect it to water

inlet as the above procedure ^.

Connector

Connector

Rubber
Packing

Hose

Turn on the water completely to check for any leakage. If any leakage, turn off the water, try
again as the above procedures.
For the special tap, call a qualified plumber for the installation.

Leak Test
