DVD Recorder + VCR

DRV-6705

User Manual

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` A mac001 1200DPI 100LPI

INTRODUCTION

Safety Instructions

Please keep the product’s guarantee sheet and receipt in a safe place.

Precautions

• Read this booklet carefully.

• Make sure the rating of your household electricity supply matches that shown on the back of your product.

• Read this page and chapter ‘Setting up your product’ to help you set up and adjust your product correctly.

• Do not put the product in a hot or humid place.

• Do not open the product. Get a qualified technician to carry out any repairs.

• Do not connect the product to the power supply if you have just moved it from a cold environment to a warm room. This can lead to condensation inside the product, which can damage it. Wait for approx. 2 hrs for it to reach room temperature.

• Make sure the product is placed at least 10 cm apart from other home appliances or obstacles to ensure sufficient ventilation.

• The product should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on top of the product.

• Before a storm and/or lightning, unplug the product from the mains supply and aerial.

• Put the product on a steady flat surface.

• Only clean the product with a soft, lint-free cloth. Do not use harsh or alcohol- based cleaning agents.

For your own Safety

• There are no components in this product you can service or repair yourself.

• Do not open the case of the product. Only allow a qualified engineer to repair or service your product.

• This product is designed to work continuously. Switching it off (stand-by mode) does not disconnect it from the mains. To disconnect it from the mains you have to unplug it.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 1 mac001 1200DPI 100LPI

Important Safeguards

IMPORTANT FOR LASER PRODUCTS

LASER

This Digital Video Disc Player employs a Laser System. To ensure proper use of this product please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure.

Use of control adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser radiation when open and interlocks defeated. DO NOT STARE INTO THE BEAM.

DANGER Visible laser radiation when open and

interlock failed or defeated. Avoid direct exposure to beam.

CAUTION Do not open the top cover. There are no

user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

CLASS 1 LASER PRODUCT

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION Any changes or modification in

construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 2 mac001 1200DPI 100LPI

INTRODUCTION

Important Safeguards

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

1 READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2 RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3 HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4 FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5 CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6 ATTACHMENTS

Do not use attachments unless recommended by the unit’s manufacturer as they may cause hazards.

7 WATER AND MOISTURE

Do not use this unit near water- for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

8 ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult as well as serious damage to the unit. Use this unit only with a cart, stand , tripod, bracket, or table recommended by the manufacturer.

8A A unit and cart combination

should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9 VENTILATION

Slots and openings in the case are provided for

ventilation to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. These openings must not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat radiator. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10 POWER SOURCES

This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

11 POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, mains sockets, and the point where they exit from the unit.

12 LIGHTNING

For added protection for this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

13 DISC TRAY

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

14 OVERLOADING

Do not overload wall outlets of extension cords as this can result in a risk of fire or electric shock.

15 OBJECT AND LIQUID ENTRY

Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or ‘short-out’ parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

16 BURDEN

Do not place a heavy object on or step on the product. The object may fall, causing serious

PORTABLE CART WARNING

(symbol provided by RETAC)

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 3 mac001 1200DPI 100LPI

Important Safeguards

personal injury and serious damage to the product.

17 DISC

Do not use a cracked, deformed or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

18 SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19 DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the

following conditions. A. When the power-supply cord or plug is damaged. B. If liquid has been spilled, or objects have fallen

into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not operate normally by following

the operating instructions. Adjust only those

controls that are covered by the operating

instructions. Improper adjustment of other controls

may result in damage and will often require

extensive work by a qualified technician to restore

the unit to its normal operation. E. If the unit has been dropped or the cabinet has

been damaged. F. When the unit exhibits a distinct change in

performance-this indicates a need for service.

20 REPLACEMENT PARTS

When replacement parts are required, have the

service technician verify that the replacements he

uses have the same safety characteristics as the

original parts. Use of replacements specified by

the unit manufacturer can prevent fire, electric

shock, or other hazards.

21 SAFETY CHECK

Upon completion of any service or repairs to this

unit, ask the service technician to perform safety

checks recommended by the manufacturer to

determine that the unit is in safe operating

condition.

22 WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling

only as recommended by the manufacturer.

23 HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

24 To prevent battery electrolyte leakage, which may

result in injury and damage to the unit or other objects, observe the following precautions;

A. All batteries must be installed with the proper

polarity. B. Do not mix new with old or used batteries. C. Only use batteries of the same type and brand. D. Remove the batteries when they are not to be

used for a long period time. E. When the batteries have become discharged, they

must be disposed of in a safe manner which

complies with all applicable laws.

25 WEEE (Waste of electrical and electronic

equipment)

The meaning of the symbol on

the product, its accessory or

packaging indicates that this

product shall not be treated as

household waste. Please,

dispose of this equipment at

your applicable collection point

for the recycling of electrical & electronic

equipments waste. In the European Union and

Other European countries which there are

separate collection systems for used electrical and

electronic product. By ensuring the correct

disposal of this product, you will help prevent

potential hazards to the environment and to

human health, which could otherwise be caused

by unsuitable waste handling of this product. The

recycling of materials will help conserve natural

resources. Please do not therefore dispose of

your old electrical and electronic equipment with

your household waste. For more detailed

information about recycling of this product, please

contact your local city office, your household

waste disposal service or the shop where you

purchased the product.

26 RoHS (Directive 2002/95/EC) Compliant

This environment-friendly product does not contain the EU RoHS restricted substances(Pb,Hg,Cd,Cr6+, PBB,and PBDE).

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 4 mac001 1200DPI 100LPI

INTRODUCTION

Recording

Basic Recording ________________________45

Recording to TV 45 One Touch Record (OTR) 45 Checking the Recording Time 46 To Pause the Recording 46 One Touch Copy - DVD to VHS 46 Copy Edit (DVD

➝ VCR) 46

One Touch Copy - VHS to DVD 47 Copy Edit (VCR

➝ DVD) 47

Timer Recording ________________________48

Timer Recording using Manual Set Record Screen 48

Timer Recording using ShowView system 49

Canceling a Timer Recording 50 Stopping a Timer Recording in Progress 50 Timer Recording Troubleshooting 50

Recording from an External Input __________51

DVD Editing

DVD Playback and Editing ________________52

Playing a DVD title 52 Erasing a DVD title 52 Protecting a DVD title 53 Renaming (Labeling) a DVD title 53 Dividing a DVD title 54 A-B Erase 54 Set Index Picture 55

Reference

Troubleshooting ________________________56

Technical Specifications _________________59

Safety Instructions ______________________1

Important Safeguards ____________________2

Table of Contents _______________________5

Overview ______________________________6

Identification of Controls _________________10

Introduction

Connecting Antenna/Cable _______________15

Connecting a TV ________________________15

Connecting an Amplifier/Receiver __________17

Connecting Optional Equipment __________18

Connecting a Digital Camcorder ___________18

Connections

Initial Installation ________________________19

Setup menu ____________________________20

Setup Menu Overview 20 Menu Navigation 20 INSTALLATION Settings 20 RECORDING Options Settings 23 LANGUAGE Settings 23 Preference > Video Setting 24 Preference > Audio Setting 25 Preference > Parental Control 26 Preference > Auto Setting 27 Preference > VCR 28 System > System Info 29 System > DivX(R) VOD DRM 29 System > Restore Default 29 Disc > Format 30 Disc > Finalise 30 Disc > Protect 31 Disc > Disc Label 31 Disc > Disc Info 32

On-Screen Display Overview ______________33

Setup

VCR Playback __________________________35

DVD Playback __________________________37

Playing a Picture, Audio or DivX files _______39

Playback

Table of Contents

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 5 mac001 1200DPI 100LPI

About the Symbol

‘ ’ may appear on the TV screen during operation. This icon means the function explained in this User's Guide is not available on that specific disc.

DVD, DVD+R, DVD+RW?

Overview

What is a DVD?

DVD (Digital Versatile Disc) is a storage medium that combines the convenience of the compact disc with the latest digital video technology. DVD video uses modern MPEG2 data compression technology that enables an entire feature film to be stored on a single five inch disc.

How good is the resolution of DVD compared with VHS?

The razor-sharp digital images have more than 500 lines of resolution at 720 pixels per line. This is more than twice as high as VHS and even better than laser disc quality. DVD picture quality is easily comparable to the digital masters produced in recording studios.

What is a DVD+RW?

DVD+ReWritable uses ‘phase change’ media, the same technology on which rewritable CDs are based. A high-performance laser is used to change the reflective properties of the recording layer; this process can be repeated more than a thousand times.

What is a DVD+R?

Unlike a DVD+RW disc, a DVD+R (write-once DVD) can only be written to once. If it is not finalised after a recording, further recordings can be added to it. Old recordings can be deleted but they can no longer be overwritten. The deleted recordings (titles) are marked 'deleted title'.

Before a DVD+R can be played in a DVD player, it must be finalised in the DVD Recorder + VCR. Once this process is complete, no further recordings can be added.

What can I do with my DVD Recorder + VCR?

Your DVD Recorder + VCR is a machine for recording and playing back digital video discs with ‘two-way’ compatibility with the universal DVD video standard. This means:

• existing DVD video discs can be played on the recorder.

• recordings made on your DVD Recorder + VCR can be played on other DVD video players and DVD-ROM drives.

If the region number on your DVD disc does not correspond to the region number of this player, the disc cannot be played.

ALL

Supporting Disc ±RW / ±R Recording Format ±Disc + VR format Finalise -RW, -R, +R After finalising other DVD playback

All discs can playback

Consumer Does not need selection

(recording format)

Remark :

A DVD Recorder that supports ‘dual media’ recording allows DVD+RW format recording (+VR) on either DVD-R, DVD-RW, DVD+R or DVD+RW media. Any editing feature that is available with the +RW logical format is available on any of the media types. This system allows the flexibility for the consumer to use any of the above media formats for recording in the same system. Since the +VR format is DVD-Video compatible, the consumer can take any disk recorded on this platform and should be capable of playing it back on the majority of DVD players on the market.

Dual Media

Regional code

About Symbols

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 6 mac001 1200DPI 100LPI

INTRODUCTION

Overview

The following discs can be used in your DVD Recorder + VCR:

Playback and recording

DVD+RW (Digital Versatile Disc + ReWritable) DVD-RW (DVD-Rerecordable) DVD+R (Digital Versatile Disc + Recordable) DVD-R (DVD-Recordable)

Playback only

DVD Video (Digital Versatile Disc) VCD (Video CD) Audio CD (Compact Disc Digital Audio) CD-R (CD recordable) Audio/ CD-RW (CD rewritable)

Audio Video Format : JPEG Audio Format : CDDA / MP3

Which discs you can use

Not all recordable CDs may be played by your player.

Title

The main film, accompanying feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.

Chapter

Sections of a movie or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a number to enable you to easily locate the chapter you want. Depending on the disc, chapters may not be labeled.

Track (Audio CD only)

Sections of a movie or a musical piece on an audio CD. Each track is assigned a number, enabling you to easily locate the track you want.

Disc-related Terms

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 7 mac001 1200DPI 100LPI

Overview

Using DV, also known as i.LINK, you can connect a DV-equipped camcorder to the DVD Recorder + VCR using a single DV cable for input and output of audio, video, data and control signals.

The i.LINK interface is also known as IEEE 1394-

1995. ‘i.LINK’ and the ‘i.LINK’ logo are trademarks.

• The DVD Recorder + VCR is only compatible with DV-format (DVC-SD) camcorders. Digital satellite tuners and Digital VHS video recorders are not compatible.

• You cannot connect more than one DV camcorder at a time to the DVD Recorder + VCR.

• It may not always be possible to control the connected camcorder via the DV IN jack.

• Audio input to the DV IN jack should be 32 or 48kHz (not 44.1kHz).

• Picture disturbance on the recording may occur if the source component pauses playback or plays an unrecorded section of tape, or if the power fails in the source component, or if the DV cable becomes disconnected.

Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision corporation. Reverse engineering or disassembly is prohibited.

About DVD Recording

Notes on Recording

• The recording times shown are not exact because the DVD Recorder + VCR uses variable bit-rate video compression. This means that the exact recording time will depend on the material being recorded.

• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording times may be shorter.

• Discs recorded at high speeds (equal to or greater than 2X) may not be recognized.

• If you record still pictures or audio only, the recording time may be longer.

• The displayed times for recording and time remaining may not always add up to the exact length of the disc.

• The available recording time may decrease if you heavily edit a disc.

• When using a DVD+R disc, you can keep recording until the disc is full, or until you finalise the disc. Before you start a recording session, check the amount of recording time left on the disc.

Recording TV Audio Channels

The DVD Recorder + VCR can record one or two channel audio. For TV broadcasts, this usually means mono or stereo, but some programs are broadcast in bilingual audio channel. You can record either BIL I or BIL II.

Restrictions on Video Recording

• You cannot record copy-protected video using this DVD Recorder + VCR. Copy-protected video includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will pause or stop automatically and an error message will be displayed on-screen.

• Audio and video recordings you make using the DVD Recorder + VCR are for your personal use only. You may not sell, lend, or rent them to other people.

• This product incorporates copyright protection technology that is protected by U.S.patents and other intellectual property rights owned by

What is DV?

DF-H7BD2D-JB-I(GB) 2008.4.11 1:52 PM ˘ ` 8 mac001 1200DPI 100LPI

INTRODUCTION

Overview

Handling the Unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packaged at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Cleaning the Unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinners, as these might damage the surface of the unit.

To obtain a clear picture

The DVD Recorder + VCR is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

Distance: Within 23 ft (7 m) of the remote sensor. Angle: Within 30° in each direction of the remote

sensor.

Remote Control Battery Installation

Detach the battery cover on the rear of the remote

control, and insert two AAA batteries. Make sure the polarities (+ and -) are aligned correctly.

Precautions

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of

heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car, which could distort the disc.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre outward.

Do not use strong solvents such as alcohol, benzine, thinners, commercially available cleaners, or anti-static spray intended for older vinyl records.

NoYes

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 9 mac001 1200DPI 100LPI

) Front Panel Display

Shows the current status of the DVD Recorder + VCR.

1 COPY

Copies from DVD to VCR (or from VCR to DVD).

2 PR+/–

Scans up or down through memorized channels. Also moves up and down in menus.

3 SELECT DVD/VCR

Toggles control between the DVD mode and the VCR mode.

4 OPEN/CLOSE (DVD)

Opens or closes the disc tray.

5 AVF Input (VIDEO, L-AUDIO-R)

Connects to the audio/video output of an external source (VCR, Camcorder, etc.).

6 DV Input

Connects to the DV output of an external source (VCR, Camcorder, etc.).

! STANDBY/ON

Turns the DVD Recorder + VCR on and off.

@ Cassette Compartment (VCR deck)

Insert a video cassette here.

# Disc Tray (DVD deck)

Insert a disc here.

$ VCR EJECT

Ejects the tape in the VCR deck.

% REC

Starts recording. Press repeatedly to set the recording time.

^ STOP

Stops playback or recording.

& PLAY/PAUSE

Starts playback of a disc or tape. Pauses playback or recording temporarily.

* REW

DVD: Skips to previous chapter. VCR: Rewinds the tape during Stop mode. Press

during Play mode for fast reverse picture search.

( FF

DVD: Skips to next chapter. VCR: Advances the tape during Stop mode.

Press during Play mode for fast forward picture search.

Identification of Controls

Front Panel

! @ #

%$&^(

4 6

3) 21

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 10 mac001 1200DPI 100LPI

INTRODUCTION

Front Panel Display

Identification of Controls

Channel

PR23

TV Channel

Input mode

Recording on disc

Recording on tape

Indicates a DVD Timer recording is set.

Indicates a DVD Timer Recording is in standby mode.

Indicates the DVD is recording.

Recording Pause mode

OTR Recording mode

Indicates a VCR Timer Recording is set.

Indicates a VCR Timer Recording is in standby mode.

Indicates the VCR is recording.

OTR Recording mode

Recording Pause mode

Indicates when the DVD Recorder+ VCR is locked.

Indicates the DVD Recorder+VCR is in VCR mode (set by [TV/VCR] button).

Indicates the DVD Recorder+VCR is in TV mode (set by [TV/VCR] button).

Others

AV-1

AV1 input

AV-2

AV2 input

Copy

DVD to VCR copying

VCR to DVD copying

F-AV

Front - AV input

DV input

COPY

11:15

0:30

11:15

REC

RECP

11:15

0:30

11:15

REC

RECP

SAFE

VCR

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 11 mac001 1200DPI 100LPI

Remote Control

Identification of Controls

Starts recording. Press repeatedly to set the recording time. For more details, Refer to One Touch Record (OTR) on page 45.

- Starts playback.

- Pauses playback or recording temporarily. Press again to exit Pause mode.

Selects Recording mode:

- DVD : Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4 Hours (EP mode), 8 Hours (SEP mode)

- VCR : SP or LP.

Selects a subtitle language, if available.

Selects an audio language (DVD), audio channel (CD) or audio type (TV).

Turns the DVD Recorder+VCR on and off.

- Opens and closes the disc tray in DVD mode.

- Ejects the tape in the VCR deck in VCR mode.

Switches the DVD Recorder+VCR input to TV tuner, AV1, AV2, FAV or DV.

Selects DVD mode.

Selects VCR mode.

Displays or exits the Setup menu.

Displays information about the currently loaded disc, VHS tape, or TV channel.

Displays the Timer Recording menu.

Confirms menu selections.

-œ √…† : Selects menu options.

- PR(+/–) : Selects channels.

Accesses DVD disc menus.

- Selects numbered options in menus.

- Selects TV channels.

- Manually adjusts tracking.

Resets the tape counter in VCR mode.

Switches between the DVD Recorder+VCR tuner and your TV tuner.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 12 mac001 1200DPI 100LPI

INTRODUCTION

Identification of Controls

- DVD: Searches backward/forward.

- VCR: Rewinds/advances during Stop mode. Press during Play mode for fast

reverse/forward picture search.

Enlarges the DVD video image.

Displays a disc’s Title menu, if available.

Selects a DVD camera angle, if available.

Commercial Skip skips forward 30 seconds.

Repeats the current chapter, track, title or the entire disc.

Repeats playback between two points (A and B).

Increases or decreases the slow motion speed when playing a DVD or VHS tape.

Skips to the next or previous chapter/track.

Stops playback or recording.

Progressive Scan Mode

• If your TV supports Progressive Scan, you can view high quality video by setting the DVD Recorder+VCR to Progressive Scan mode. If your TV does not support Progressive Scan, do NOT change to Progressive Scan mode.

• When video output mode is changed from RGB to Interlace or Progressive (Scart 1) will not be correct colour for Component video.

• As component outputs have their own Jacks on the back side, change the TV input into Component input, after connecting the component cables from the DVD Recorder+VCR to TV.

• Changing from Interlace or Progressive to RGB, should be the opposite of above.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY 'WITH THIS DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTRE.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 13 mac001 1200DPI 100LPI

! AC Power Cord

Plug into a power outlet.

@ AUDIO OUT (L, R)

Connect to a TV or other equipment with audio inputs.

# COMPONENT VIDEO OUT (Y Pb Pr)

Connect to a TV with Component Video (Y Pb Pr) inputs.

$ Scart socket 2

Connection of an additional device (satellite receiver, set-top box, video recorder, camcorder, etc.)

% RF IN (FROM ANT.)

Connect to your antenna or cable TV outlet.

^ RF OUT (TO TV)

Connect to a TV with an RF input.

& Scart socket 1

Connection of a TV set. Composite-output and RGB-output

* COAXIAL (Digital Audio Out)

Connect to an amplifier with a coaxial digital audio input.

Rear panel

Caution

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the DVD Recorder + VCR.

Identification of Controls

! @# $ %

* & ^

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 14 mac001 1200DPI 100LPI

INTRODUCTION CONNECTIONS

If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your TV and attach it to the RF IN (FROM ANT.) jack on the rear panel of the DVD Recorder + VCR.

Use the supplied RF cable to connect between the DVD Recorder + VCR’s OUT (TO TV) jack and the antenna input jack on your TV. With this connection, you can receive all midband, superband, and hyperband channels (all cable channels).

Connections

Connecting Antenna/Cable

Disconnect the antenna/cable from the rear of your TV.

2 Connect this cable to the jack marked RF IN

(FROM ANT.) on the rear panel of the DVD Recorder + VCR.

• There are a variety of ways to connect the DVD Recorder + VCR to your TV and other equipment. Use only one of the connections described below. Whichever TV connection you use will work with all input sources.

• Please refer to the manuals for your TV, VCR, stereo system, or other devices as necessary to make the best connections.

• For better sound reproduction, connect the DVD Recorder + VCR’s AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo, or audio/video equipment. See ‘Connecting an Amplifier/Receiver‘ on page 17.

Caution

• Make sure the DVD Recorder + VCR is connected directly to the TV, and the TV is set to the correct video input.

• Do not connect the DVD Recorder + VCR’s AUDIO OUT jack to the phone in jack (record deck) of your audio system.

• Do not connect the DVD Recorder + VCR via your VCR. The DVD image could be distorted by the copy protection system.

Antenna

Cable TV Wall Jack

Flat Wire

(300ohm)

300/75ohm Adapter

(Not supplied)

or or

Rear of DVD Recorder + VCR

To enable you to set up your new DVD recorder+VCR, it must be connected it to your TV using either a SCART cable or a COMPONENT and associated AUDIO cable.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 15 mac001 1200DPI 100LPI

Component Video Connection

• If your television is a high-definition or ‘digital ready’ television, you may take advantage of the DVD Recorder + VCR’s Progressive Scan output for the highest video resolution possible.

• If your TV does not accept the Progressive Scan format, the picture will appear scrambled.

1 Connect the COMPONENT VIDEO OUT jacks on

the DVD Recorder + VCR to the corresponding in jacks on your TV using a Y Pb Pr cable (C) if the component (Y, Pb, Pr) is available on your TV.

2 Connect the Left and Right AUDIO OUT jacks

from the DVD Recorder + VCR to the left/right audio in jacks on your TV using the audio cables.

Connections

• Be sure to set the DVD Recorder + VCR to Progressive Scan mode by changing the ‘Video Output’ in the Setup Menu; see page

24.

• Progressive Scan does not work with the RF, Audio/Video or S-Video connections.

Scart Connection

1 Plug a scart cable into the scart socket EURO

AV1 at the back of the DVD Recorder + VCR and the corresponding scart socket at the back of the TV set. (V)

2 Plug a scart cable into the blue scart socket

EURO AV2/DECODER at the back of the DVD Recorder+VCR and the corresponding scart socket at the back of a satellite decoder or set top box.

Connecting a TV

Choose one of the following TV connections, depending on the capabilities of your equipment.

RF Connection

Connect the RF OUT (TO TV) jack on the DVD Recorder + VCR to the antenna in jack on your TV using the supplied 75-ohm RF cable (R).

This set doesn’t have a modulator output. However it still applies the RF through Output.

Rear of DVD Recorder + VCR

Rear of TV

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 16 mac001 1200DPI 100LPI

S-VIDEO

INPUT

COMPONENT/PROGRESSIVE VIDEO INPUT

HDMI

ANTENNA

INPUT

CONNECTIONS

Connections

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/Pro Logic

Connect the Left and Right AUDIO OUT jacks on the DVD Recorder + VCR to the left and right audio in jacks on your amplifier, receiver, or stereo system, using the supplied audio cables (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

Connect the DVD Recorder + VCR’s DIGITAL AUDIO OUT jack (Coaxial) to the corresponding in jack on your amplifier. Use an optional digital coaxial audio cable. (X)

2 You will need to activate the DVD Recorder +

VCR’s digital output; see ‘Audio’ Settings on page

25.

Digital Multi-Channel Sound?

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio/video receiver that supports one or more of the audio formats provided by your DVD Recorder + VCR (MPEG 2, Dolby Digital, and DTS). Check the receiver manual and the logos on the front of the receiver.

• Due to the DTS Licensing agreement, the digital output will be in DTS digital out when the DTS audio stream is selected.

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

• 5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped with a digital multi-channel decoder.

• To see the audio format of the current DVD on the on-screen display, press [AUDIO].

The DVD Recorder + VCR does not perform µ (2channel) decoding of DTS sound tracks. To enjoy DTS multi-channel surround, you must connect the DVD Recorder + VCR to a DTS compatible receiver via one of the DVD Recorder + VCR’s digital audio outputs.

Connecting an Amplifier / Receiver

Amplifier (Receiver)

AUDIO INPUT DIGITAL INPUT

COAXIAL

A X

Rear of DVD Recorder + VCR

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 17 mac001 1200DPI 100LPI

To receive audio/video signals from other equipment, connect the AVF (Audio/Video Front) jacks on the DVD Recorder + VCR to the audio/video out jacks on your external component, using optional audio/video cables.

Connecting Optional Equipment

Connections

Front of DVD Recorder + VCR

Jack Panel of Accessory Component (VCR,

Analog Camcorder, etc.)

Using the front panel DV IN jack, it is possible to connect a DV digital camcorder, video deck or DVD+R/RW recorder and digitally transfer DV tapes or DVD+R/RW discs to DVD+R, DVD+RW.

Use a DV cable (not supplied) to connect the DV In/Out jack of your DV camcorder/video deck to the front panel DV IN jack of the DVD Recorder + VCR.

Connecting a Digital Camcorder

This jack is for connection to DV equipment only. It is not compatible with digital satellite tuners or DVHS video decks.

DV IN

IN/OUT

Front of DVD Recorder + VCR

DV Digital Camcorder

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 18 mac001 1200DPI 100LPI

CONNECTIONS SETUP

After successfully connecting your DVD Recorder + VCR to your TV and other devices, this chapter will show you how to complete the initial installation.

1 A ‘Welcome’ message is displayed on the screen. Make sure the RF cable from

your antenna or cable TV jack is connected. Press [ENTER] to begin initial installation.

2 Select the desired language for the on-screen menu using […†]. Press [ENTER]

to confirm.

3 Select the desired country using […†]. Press [ENTER] to confirm.

4 The DVD Recorder + VCR detects channels automatically and stores them in

memory.

5 After finishing Auto Channel Search, adjust channels. You can move up, move

down, delete and edit channels. Press [œ] to select ‘Move Up’, ‘Move Down’, ‘Delete’ or ‘Edit’ while a channel is

selected. If you press [ENTER] while ‘Move Up’ or ‘Move Down’ is selected, the channel’s

order will move up or down. If you want to delete the channel, press [ENTER] while ‘Delete’ is selected. When you want to edit the channel, press [ENTER] while ‘Edit’ is selected.

Keyboard screen will appear. To enter characters, see page 31~32.

6 Set the clock after adjusting channels.

Use [

œ√] to move left/right and use […†] to change the settings.

7 After setting the clock, press [ENTER] to confirm. If you cancel the process during

Initial Installation, you should repeat this procedure.

You must follow the initial installation process to set the time, date, channels, and language preferences for the DVD Recorder + VCR.

Initial Installation

Re-Installation

This set is equipped with a multi-tuner for receiving many countries' broadcasts. In order to receive broadcasts when in different countries, follow as below.

1 Press [SETUP] and select the 'Restore Defaults' using [

œ√]. Then, RESET the

set. (see page 29) 2 Power On, then you see the 'Initial Installation'. 3 Select the country which you want to (see step 3), then repeat the steps 4~7.

Welcome 1/7

Before using the recorder,

please finish the Initial Wizard.

Next Exit

ENTER SETUP

Finish 7/7

Finished the Initial Wizard!

Please enjoy using the recorder.

OSD Language 2/7

Select an OSD language.

Prev Next Exit

ENTER

SETUP

French

Spanish

Portuguese

…

†

English

Country Setting 3/7

Select your current country.

India

Italy

…

†

Greece

Hungary

Auto Scan 4/7

Auto scan the channels.

Channels found :1

Adjust Channels 5/7

Move Up

Move Down

Delete

Edit

†

No Name

1 BBC1 2 RTP1 3 - - - -

†

Cancel

Clock Setting 6/7

Set the system time.

Date : Time:

31 / 08 / 2010 01 : 50 : 42

…

†

Rename

0 1 2 3 4 5 6 7 8 9 a b c d e f g h i _ j k l m n o p q r . s

Backspace Save Cancel

t u v w x y z Space

BBC1

a Page

A Page

Symbol

Prev Next Exit

ENTER

SETUP

Prev Next Exit

ENTER

SETUP

Prev Next Exit

ENTER

SETUP

Prev Next Exit

ENTER

SETUP

Prev Next

ENTER

Confirm Back Clear

CLEAR

ENTER MENU

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 19 mac001 1200DPI 100LPI

The DVD Recorder + VCR Setup menu includes six categories, including: Installation, Recording Options, Languages, Preference, System Info and Disc Options. Press [SETUP] and [

…†] on the remote control unit to view the first and second levels of the Setup menu.

Setup Menu Overview

Setup menu

1 Press [SETUP]. The Setup menu appears. 2 Use […†] to select the desired category. 3 While the desired category is selected, press [√]

to move to the second level.

4 Press [ENTER] to move to the third level. 5 Use […†] to select the desired setting, then

press [ENTER] to confirm your selection. Some items require additional steps. Press [MENU] at any time to return to the previous menu.

6 Press [SETUP] to exit the Setup menu.

Menu Navigation

Manual Set

To complete the set-up of your DVD Recorder + VCR when the auto set has not stored all of the channels or when you wish to store a new channel.

1 Press [SETUP]. The Setup menu appears. 2 Use […†] to select ‘Installation’ and press

[ENTER] to confirm.

3 While ‘Installation’ is selected, press […†] to

select ‘Manual Set’.

4 Press [ENTER]. The ‘Manual Set’ menu appears. 5 Use […†] to select ‘Standard’.

6 Use [œ√] to select the desired ‘Standard’ (PAL-

BG, PAL-II or PAL-DK).

7 Use […†] to select ‘Reception’. 8 Use [œ√] to select the desired broadcast system

(Antenna or Cable).

Antenna: If you are using a standard antenna to

receive channels.

Cable TV: If you are using basic cable to receive

channels.

9 Use […†] to select ‘Auto Search’. 10 Search the real channel number by pressing [œ

√

11 Select ‘Fine Tune’. You can adjust the fine tuning.

INSTALLATION Settings

Installation

Confirm Back Exit

ENTER MENU SETUP

†

Manual Set

Auto Set

Clock Setting

Adjust Channels

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder OFF Store Channel PR-1 Program Name - - - -

†

This set is equipped with a Multi-Tuner. You can search broadcasts when in other countries. If the set can not search the channels, please Re-Install. (see page 19.)

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder OFF Store Channel PR-1 Program Name - - - -

†

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder OFF Store Channel PR-1 Program Name - - - -

†

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 20 mac001 1200DPI 100LPI

SETUP

Auto Set

The DVD Recorder + VCR has a frequency synthesized tuner capable of receiving channels that include VHF Low E2~S6, VHF High S7~S36, and UHF S37~E69.

Preparation:

Connect the DVD Recorder + VCR to the desired type of antenna or cable TV system, as shown in ‘Connecting Antenna/Cable’ on page 15.

1 Press [SETUP]. The Setup menu appears. 2 Use […†] to select ‘Installation’. 3 While ‘Installation’ is selected, press [√] or

[ENTER] to select ‘Auto Set’.

After Auto Set is complete, follow the instructions above to make sure that the Tuning Band is set correctly.

Auto Scan

Channels found : 6

22%

Cancel

4 Press [ENTER] to begin the channel search.

The tuner will automatically search for all available channels in your area and place them in the tuner’s memory.

Installation

Confirm Back Exit

ENTER MENU SETUP

†

Manual Set

Auto Set

Clock Setting

Adjust Channels

18 After adjusting all items, move cursor to ‘Store

Channel’ using [

…†].

19 Press [ENTER] to store settings.

12 Use […†] to select ‘Decoder’. 13 When the program is encoded (and you have a

decoder connected to socket EURO AV2), press [

œ√] to select ‘On’.

14 Use […†] to select ‘Store Channel‘. 15 Use [œ√] to select program number to store .

16 Use […†] to select ‘Program Name‘. Press [√]

to move to the second level. If your DVD Recorder + VCR is showing no station name or is showing a station name incorrectly, you can correct this.

17 Keyboard screen will appear when you press [√]

to move to the second level. You can create the station name and enter 4 digit

name. To enter characters, see page 31~32.

Setup menu

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder OFF Store Channel PR-1 Program Name - - - -

†

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder ON Store Channel PR-1 Program Name - - - -

†

Installation > Manual Set

Confirm Back Exit

ENTER MENU SETUP

Standard PAL-II Reception Antenna Auto Search 2 Fine Tune 0

Decoder ON Store Channel PR-1 Program Name - - - -

†

Rename

0 1 2 3 4 5 6 7 8 9

a b c d e f g h i _

j k l m n o p q r .

Backspace Save Cancel

t u v w x y z Space

BBC1

a Page

A Page

Symbol

Confirm Back Clear

CLEAR

ENTER

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 21 mac001 1200DPI 100LPI

Clock Setting

1 Follow steps 1-2 as shown under ‘Manual Set’.

2 Use […†] to select ‘Clock Setting‘.

3 Press [ENTER]. The ‘Clock Setting’ menu

appears.

4 Enter the date and time.

œ√(left/right): Moves the cursor to the previous or next column.

…†(up/down): Changes the setting at the current cursor position.

5 Press [ENTER] to confirm your setting, then press

[SETUP] to exit the Setup menu.

Installation

Confirm Back Exit

ENTER MENU SETUP

†

Manual Set

Auto Set

Clock Setting

Adjust Channels

Installation > Clock Setting

Confirm Back Exit

ENTER MENU SETUP

Please set the clock.

Date :

01 / 12 / 2006

TIme :

04 : 11 : 33

†

Setup menu

Adjust Channels

1 Follow steps 1-2 as shown under ‘Manual Set’. 2 Use […†] to select ‘Adjust Channels’.

3 Press [ENTER]. The Adjust Channels menu

appears.

4 Use […†] to select the PR number you want to

adjust. Then press [ENTER].

Move Up/Down

After tuning TV stations into your DVD Recorder + VCR, you may wish to change the order of PR's you have in your set, to your preference.

1 Use […†] to select 'Move Up' (or ‘Move Down’)

and press [ENTER].

2 The selected PR will be moved up or moved

down.

Edit

After tuning TV stations into your DVD Recorder + VCR, you may wish to put a name (4 digits) into any channel you want to.

1 Use […†] to select 'Edit' and press [ENTER]. 2 Keyboard screen will appear. To enter characters,

see page 31~32.

Delete

After tuning TV stations into your DVD Recorder + VCR, you may wish to delete a station.

1 Use […†] to select 'Delete' and press [ENTER].

Installation

Confirm Back Exit

ENTER MENU SETUP

†

Manual Set

Auto Set

Clock Setting

Adjust Channels

Installation > Adjust Channels

Confirm Back Exit

ENTER MENU SETUP

No Name

PR-1 BBC1

PR-2 - - - -

PR-3 - - - -

PR-4 - - - -

PR-5 - - - -

PR-6 - - - -

Move Up

Move Down

Edit

Delete

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 22 mac001 1200DPI 100LPI

SETUP

Setup menu

RECORDING Options Settings

VCR Record Quality

You can set the default VCR recording quality to SP (Standard Play) or LP (Long Play). SP is higher quality, but LP provides 2 times the recording time; e.g., a 2 hour tape will record for 4 hours in LP mode.

1 Press [SETUP]. The Setup menu appears. 2 Use […†] to select ‘Recording’. 3 While ‘Recording’ is selected, press [√] to select

‘VCR Quality’.

4 Press [ENTER] to move to the second level. 5 Use […†] to select the desired Record Quality

(SP or LP).

6 Press [ENTER] to confirm your selection, then

press [SETUP] to exit the menu.

Chapter Mark

During recording, chapter markers are added automatically at fixed intervals.

You can set this interval to 5 minutes, 10 minutes, 15 minutes or 20 minutes.

To turn off automatic chapter marking, select ‘Off’. Follow the same procedure as the ‘VCR Record

Quality’.

Recording

Confirm Back Exit

ENTER MENU SETUP

Recording

Confirm Back Exit

ENTER MENU SETUP

LANGUAGE Settings

OSD Language

Select a language for the DVD Recorder + VCR Setup menu and on-screen displays.

1 Press [SETUP]. The Setup menu appears. 2 Use […†] to select ‘Language’. 3 While ‘Language’ is selected, press [√] to select

‘OSD Language’.

4 Press [ENTER] to move to the second level. 5 Use […†] to select the desired language. 6 Press [ENTER] to confirm your selection, then

press [SETUP] to exit the menu.

Menu/Subtitle/Audio Language

Select your preferred language for Disc Menus, Subtitles, and Audio soundtracks.

Follow the same procedure as the OSD Language.

Default : The disc’s default language is selected.

Language

Confirm Back Exit

ENTER MENU SETUP

†

VCR Quality √SP

DVD Quality LP

Chapter Mark

VCR Quality Off

DVD Quality √ 5 min

Chapter Mark 10 min

15 min

20 min

DVD Record Quality

You can set the default DVD recording quality to: HQ (High Quality - 1 hr/disc), SP (Standard Quality - 2 hrs/disc), EP (Extended Play - 4 hrs/disc) or SEP (Very Low Quality - 8 hrs/disc).

Follow the same procedure as the ‘VCR Record Quality’.

Recording

Confirm Back Exit

ENTER MENU SETUP

†

VCR Quality HQ

DVD Quality √SP

Chapter Mark EP

SEP

†

OSD Language √ English

Menu Language French

Audio Language Spanish

Subtitle Language Portuguese

Italian

German

Dutch

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 23 mac001 1200DPI 100LPI

TV Aspect Ratio

1 Use [ENTER] to select ‘TV Aspect‘ while the

‘Video‘ submenu is displayed.

2 Press [ENTER] or [√] to go to the second level. 3 Use […†] to select the desired ‘TV Aspect’.

4 Press [ENTER] to confirm your selection. 5 Press [SETUP] to exit the menu.

4:3 LB : Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars above and below the picture. The default TV screen is set to 4:3 LB.

4:3 PS : Select when a standard 4:3 TV is connected.

Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off.

16:9 : Select when a 16:9 wide screen TV is

connected.

Video Output

The default video output is set to 576i (interlaced scan mode).

RGB : Only if the DVD Recorder + VCR is in RGB

interlace mode, you can watch RGB signal with connecting the recorder to analog television using the SCART jacks.

Interlace (576i) or Progressive (576p) : If you

connect the DVD Recorder + VCR to a digital television (DTV) or Monitor using the COMPONENT jacks, set Video Output to ‘576i’ or ‘576p’

(i : Interlaced

scan mode, p : Progressive scan mode)

Follow the same procedure as ‘TV Aspect’ to change the ‘Video Output’.

1 Press [SETUP]. 2 Use [œ√] to select ‘Preference‘. 3 While ‘Preference‘ is selected, press [√] to select

‘Video‘.

4 Press [ENTER]. The ‘Video‘ submenu is

displayed.

Preference > Video Setting

Setup menu

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video

Audio

Parental Control

Change Password

Auto Setting

VCR

Preference > Video

Confirm Back Exit

ENTER MENU SETUP

Preference > Video

Confirm Back Exit

ENTER MENU SETUP

†

TV Aspect 576i

Video Output 576p

√ RGB

†

TV Aspect 4:3 PS

Video Output √ 4:3 LB

16:9

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 24 mac001 1200DPI 100LPI

SETUP

Follow the same procedure as ‘Video’ Settings to select ‘Audio’ Settings.

Digital Output

1 Use [ENTER] to select ‘Digital Output‘ while the

‘Audio’ submenu is displayed.

2 Press [ENTER] or [√] to go to the second level. 3 Use […†] to select the desired digital output

type.

4 Press [ENTER] to confirm your selection. 5 Press [SETUP] to exit the menu.

Bitstream

Select when connected to a Dolby Digital or DTS decoder (or an amplifier or other equipment with a Dolby Digital or DTS decoder).

PCM

Select when connected to a 2 channel digital stereo amplifier. The DVD Recorder + VCR's digital audio signal will be output in the PCM 2ch format when you play a DVD recorded with a Dolby Digital (only for DVD) or MPEG soundtrack. If the DVD is recorded with a DTS sound track then no sound will be heard.

Setup menu

Preference > Audio Setting

Dynamic Range

While watching DVD movies, you may wish to compress the dynamic range of the audio output (the difference between the loudest and quietest passages). This allows you to listen to a movie at a lower volume without losing clarity of sound.

Set ‘Dynamic‘ to ‘Full’, ‘Middle’ or ‘Off’ for this effect. Follow the same procedure as ‘Digital Output‘ to set

the ‘Dynamic’.

Preference > Audio

Confirm Back Exit

ENTER MENU SETUP

Preference > Audio

Confirm Back Exit

ENTER MENU SETUP

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video

Audio

Parental Control

Change Password

Auto Setting

VCR

†

Digital Output Bitstream

Dynamic √ PCM

†

Digital Output Full

Dynamic Middle

√ Off

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 25 mac001 1200DPI 100LPI

6 Enter your new password.

7 Use […†] to select the desired parental level

and press [ENTER] to confirm.

Adult to Kid safe: Some discs contain scenes

not suitable for children. If you set a rating for the DVD Recorder + VCR, all scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

8 Press [ENTER] to confirm your rating selection,

then press [SETUP] to exit the menu.

Setup menu

Set Parental Level

The Parental Controls feature allows you to prevent DVDs from being played based on their ratings or to have certain discs played with alternative scenes. You can set the parental level from ‘Adult’ to ‘Kid safe’.

1 Press [SETUP]. 2 Use […†] to select ‘Preference‘. 3 While ‘Preference‘ is selected, press […†] to

select ‘Parental Control‘. And press [ENTER].

4 Use […†] to select parental level and press

[ENTER]. The Password Input dialog will appear. Enter a 4-

digit password using the [0-9] buttons. If this is the first time you have entered a password, you will be prompted to enter the password again to confirm it.

5 After setting the password, press [ENTER].

The initial password is ‘0000‘. You must enter this password before you can change the Parental Level.

Set the new password to something other than '0000'.

Preference > Parental Control

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video 1 KID SAFE

Audio 2 G

Parental Control 3 PG

Change Password 4 PG 13

Auto Setting 5 PGR

VCR 6 R

7 NC 17

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video 8 ADULT

Audio

Parental Control

Change Password

Auto Setting

Preference

Confirm Back Exit

ENTER MENU SETUP

Password :

- - - -

Enter the password with

digit keys.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 26 mac001 1200DPI 100LPI

SETUP

Change Password

1 While ‘Preference‘ is selected, press […†] to

select ‘Change Password‘.

2 Press [ENTER]. The ‘Change Password‘

submenu appears.

3 The ‘Change Password’ submenu appears. Enter

your current 4-digit password.

4 Enter a new 4-digit password. Re-enter the new

password to confirm, press [ENTER].

• Master Password : If you forget your

password, press 3,3,0,8 on the remote control and then press [ENTER].

• Set the new password to something other than '0000'.

Setup menu

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video

Audio

Parental Control

Change Password

Auto Setting

VCR

Preference > Change Password

Confirm Back Exit

ENTER MENU SETUP

Old Password

* * * *

New Password

* * * *

Confirm New Password

* * - -

Preference > Auto Setting

1 While ‘Preference‘ is selected, press […†] to

select ‘Auto Setting‘.

2 Press [ENTER] to display the submenu.

Auto Clock Setting

Auto Clock enables the DVD Recorder + VCR to set the clock automatically whenever it is in Standby mode (plugged in but powered off).

Auto Clock is only available for models with the VPS/PDC function.

Some broadcasting stations may send the time and date along with the VPS/PDC data. The video will automatically use this time and date during the initial setting up procedure during normal use, and every time you switch the video off at the mains. If you find that this time and date is incorrect you can remove this feature by following the steps below changing it to the OFF mode, you will then have to manually set the time and date, see above.

1 Use […†] to select 'Auto Clock Setting' and

press [ENTER].

2 Use […†] to change the 'Auto Clock Setting'

status, and press [ENTER] to confirm.

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video

Audio

Parental Control

Change Password

Auto Setting

VCR

Preference > Auto Setting

Confirm Back Exit

ENTER MENU SETUP

†

Auto Clock Setting √On

VPS/PDC Off

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 27 mac001 1200DPI 100LPI

Setup menu

VPS/PDC

VPS/PDC is a service provided by some stations to enable you to perform timer recordings precisely even if the broadcaster delays the start time of the program slightly. The time you enter is the VPS/PDC time so this must match exactly the start time of the programme as advertised.

NB: Do not allow 5 mins before the correct start time otherwise the machine will not record.

Not all stations offer VPS/PDC, in which case the player will start at the time you enter and not the actual start time of the programme.

If you wish to start recording at a specific time with it being adjusted by the VPS/PDC system in the event of a delay, switch VPS/PDC on.

Follow the same procedure as ‘Auto Clock Setting’ to set the ‘VPS/PDC’ status.

This feature enables you to search for Index marks or specific times on your VHS tapes.

1 While ‘Preference‘ is selected from the setup

menu, press [

†] to select ‘VCR‘.

2 Press [ENTER]. 3 The ‘VCR‘ submenu is displayed. 4 Select ‘Index+’, ‘Index–’ or ‘Go To Zero’.

If you select ‘Index+’ (or ‘Index–’) and press [ENTER], your DVD Recorder+VCR will locate your index mark and begin playback.

If you select ‘Go To Zero’ and press [ENTER], your DVD Recorder+VCR will wind to the position 0:00:00 and stop.

"VPS/PDC" and "Auto Clock Set" is not provided in some countries.

Preference > Auto Setting

Confirm Back Exit

ENTER MENU SETUP

†

√

†

Auto Clock Setting On

VPS/PDC Off

Preference

Confirm Back Exit

ENTER MENU SETUP

†

Video Index +

Audio Index -

Parental Control Go To Zero

Change Password

Auto Setting

VCR

Preference > VCR

The VCR menu is activated only when a video cassette tape is inserted and DVD Recorder+VCR is in VCR mode.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 28 mac001 1200DPI 100LPI

SETUP

If you wish, you can reset the DVD Recorder + VCR to its original factory settings.

1 While ‘System‘ is selected, press [†] to select

‘Restore Default‘.

2 Press [ENTER]. 3 The ‘Restore Default’ menu will appear. Use

[

…/†] to select ‘OK’ and press [ENTER].

System > Restore DefaultSystem > System Info

‘System Info’ helps service personnel identify key firmware information about your DVD Recorder + VCR in case service is required.

• Some options cannot be reset, including Parental Controls and Password.

• After Restoring Defaults, the unit is powered off automatically. At this time, if you power on again, the Installation menu appears. You must set the country, language, channel, and clock settings again.

Restore Default

Do you want to Restore Default?

OK Cancel

Setup menu

System > DivX(R) VOD DRM

We provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

System > DivX(R) VOD DRM

Confirm Back Exit

ENTER MENU SETUP

DivX (R) Video On Demand

Your registration code is :

MRRRZQZT

To learn more visit www.divx.com/vod

System > System Info

Confirm Back Exit

ENTER MENU SETUP

Version

FD300007TCU-070716

Loader Version

BH07T A100

Micom Software

02.09

System

Confirm Back Exit

ENTER MENU SETUP

†

System Info

DivX (R) VOD DRM

Restore Default

System

Confirm Back Exit

ENTER MENU SETUP

†

System Info

DivX (R) VOD DRM

Restore Default

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 29 mac001 1200DPI 100LPI

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format DVD+VR

Finalize

Protect

Disc Label

Disc Info

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format

Finalize

Protect

Disc Label

Disc Info

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format DVD+VR

Finalize

Protect

Disc Label

Disc Info

Format

Formatting DVD, please wait...

80%

Finalize/Unfinalize

Do you want to finalize this disc?

OK Cancel

Setup menu

If you load a completely blank disc to the DVD Recorder + VCR, the recorder will initialise the disc to DVD+VR mode.

Also, you can reformat the DVD-RW/DVD+RW from the Setup menu as below.

1 Press [SETUP]. 2 Use […/†] to select ‘Disc’. 3 While ‘Disc’ is selected, press […/†] to select

‘Format’. And press [ENTER].

4 Press [ENTER] to start formatting the disc.

• If you want to change the disc format, everything recorded on the disc will be erased.

• While the disc is initialising, the red disc mark appears on the TV screen.

Finalising ‘fixes’ the recordings in place so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.

Finalising a Video mode disc creates a menu screen for navigating the disc. This is accessed by pressing [MENU].

1 Press [SETUP]. 2 Use […/†] to select ‘Disc‘. 3 While ‘Disc’ is selected, press […/†] to select

‘Finalise’. And press [ENTER].

4 The Finalise menu will appear. Select ‘OK‘ and

press [ENTER]. The recorder starts finalizing the disc.

Once you have finalised a DVD-R and DVD+R disc, you cannot edit or record anything else on that disc except on a DVD+RW disc. However, you can record and edit a DVD-RW disc by choosing ‘Unfinalize’ option.

Disc > Format Disc > Finalise

Finalize/Unfinalize

Finalizing disc, please wait...

80%

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 30 mac001 1200DPI 100LPI

SETUP

Setup menu

When recording on a DVD-RAM / DVD+RW /+R disc or VR mode formatted DVD-RW disc, set to 'Protect' to prevent accidental recording, editing or deleting of the disc loaded. If you need to unlock the disc to make edits, select 'Unprotect'.

Use this to enter a name for the disc. This name appears when you load the disc and when you display disc information on-screen.

The disc name can be up to 32 characters long. For discs formatted on a different recorder, you will

see only a limited character set.

1 Press [SETUP]. 2 Use […/†] to select ‘Disc‘. 3 While ‘Disc‘ is selected, press […/†] to select

‘Disc Label‘. And press [ENTER].

4 Keyboard menu appears.

Enter a name for the label. Use [

…†œ √] to select a character then press [ENTER] to confirm your selection.

Save

: Save a new label after finishing entering

characters. Space

: Inserts a space at the cursor position.

Backspace

: Deletes the previous character at the

cursor position. Cancel

: Cancel the keyboard.

Disc > Protect Disc > Disc Label

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format

Finalize

Protect

Disc Label

Disc Info

Protect

Do you want to protect this disc?

OK Cancel

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format

Finalize

Unprotect

Disc Label

Disc Info

Unprotect

Do you want to unprotect this disc?

OK Cancel

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format

Finalize

Protect

Disc Label

Disc Info

Protect

Protecting DVD, please wait...

80%

Unprotect

Unprotecting DVD, please wait...

80%

Disc Label

0 1 2 3 4 5 6 7 8 9 a b c d e f g h i _

j k l m n o p q r .

Backspace Save Cancel

t u v w x y z

Space

BBC1

a Page

A Page

Symbol

Confirm Back Clear

CLEAR

ENTER

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 31 mac001 1200DPI 100LPI

Setup menu

Tip:

Remote control buttons for entering a name [MENU]: Back to the previous menu. [CLEAR]: Cancels all entered characters. [ENTER]: Confirm the character.

Names can be up to 64 characters long. For discs formatted on a different recorder, you will

see only a limited character set. When recording on DVD-R, DVD+R or DVD-RW

discs, the entered name is displayed on the DVD player only after finalisation.

Disc Info includes : Label, numbers of titles, media type, status, space, remainder.

Disc > Disc Info

Disc

Confirm Back Exit

ENTER MENU SETUP

†

Format

Finalize

Protect

Disc Label

Disc Info

Disc > Disc Info

Confirm Back Exit

ENTER MENU SETUP

Label No label Title No. 2 Media DVD+RW Status Recordable (PAL) Space 2595/4418MB Remainder SP : 48 minutes

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 32 mac001 1200DPI 100LPI

SETUP PLAYBACK

Title

Shows the current title number and total number of titles, and skips to the desired title number.

1 Press [DISPLAY] during playback.

The on-screen display appears on the TV screen.

2 Use […†] to select the ‘Title‘ icon on the on-

screen display.

3 Use [œ √] to change the numbers.

Chapter

Shows the current chapter number and total number of chapters, and skips to the desired chapter number.

1 Press [DISPLAY] during playback. The on-screen

display appears on the TV screen.

2 Use […†] to select the ‘Chapter‘ icon on the on-

screen display.

3 Use [œ √] to change the numbers.

Elapsed

Shows the elapsed playing time, and skips to the desired time.

1 Press [DISPLAY] during playback. The on-screen

display appears on the TV screen.

2 Use […†] to select the ‘Elapsed‘ icon on the on-

screen display.

3 Press [ENTER] to search by time. Use [0~9] to

change the numbers.

4 Press [ENTER] to confirm the start time. Playback

starts from the selected time on the disc. For the title recorded without DVD navigation

information, such as the one from broadcast or line input, ‘Elapsed‘ function does not work.

Audio

Shows selected audio language (DVD VIDEO only) or audio channel (STEREO, MONO, RIGHT or LEFT).

Subtitle

Shows the current subtitle language, and changes the setting.

1 Press [DISPLAY] during playback. The on-screen

display appears on the TV screen.

The On-Screen Display provides feedback on the status of the DVD Recorder + VCR and/or the currently loaded disc or VCR. To access the OnScreen Display (or OSD), press [DISPLAY].

To display information about the currently loaded disc or VCR:

Displaying information while watching TV

During viewing the TV, press [DISPLAY] to display/remove the information displayed on-screen.

See the descriptions below for detailed explanations of the on-screen displays for each media type.

Displaying Disc/VCR Information

On-Screen Display Overview

Some discs may not provide all the features shown in the on-screen display examples.

Temporary Feedback Icons

Action prohibited or not available

Disc Information options for DVD

PR1 : RTP1 13:18 PDC MONO VCR

Indicates the number of channel, station name

Current time

VPS/PDC

Audio signal (STEREO, MONO, BIL)

Indicates operation mode (DVD or VCR)

Record mode

VPS/PDC is provided by some stations. If 'VPS' or ‘PDC’ appears on the screen, it means the station provides the VPS/PDC service.

DVD+VR

†

1/4

1/1

00:00:04

Stereo

Off

A-B Off

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 33 mac001 1200DPI 100LPI

You can change the TV audio using the [AUDIO] button.

Press [AUDIO] repeatedly to change the TV audio, according to the Broadcast audio signal as shown below.

• STEREO Audio Signal

STEREO ➝ MONO ➝ STEREO

• BIL (Bilingual) Audio Signal

BIL- I ➝ BIL- II ➝ BIL- I

• MONO Audio Signal

MONO

The current audio channel is displayed on-screen.

• If the sound is poor quality when set to Stereo, you can often improve it by changing to Mono.

• When an external input is selected, the audio channel can be switched only to Stereo.

Changing the TV Audio Channel

When your DVD Recorder+VCR is in live mode, you can change TV channels using the [0-9] or [PR+/–] buttons on the remote control or [PR+/–] buttons on the front panel.

Changing TV Channels

2 Use […†] to select the ‘Subtitle‘ icon on the on-

screen display.

3 Use [œ √] repeatedly to select desired subtitle

language.

Repeat

1 Press [DISPLAY] during playback. The on-screen

display appears on the TV screen.

2 Use […†] to select the ‘REPEAT’ icon on the on-

screen display.

3 Use [œ √] repeatedly to select a desired repeat

mode. [DVD] Title

➝Chapter ➝ All ➝ Off

[Video CD / Audio CD] Random

➝Single ➝

Repeat One ➝Repeat Folder ➝ Off [MP3] Random

➝Single ➝ Repeat One ➝

Repeat Folder ➝Off

A-B Repeat

1 Press [DISPLAY] during playback. The on-screen

display appears on the TV screen.

2 Use […†] to select the ‘A-B REPEAT’ icon on

the on-screen display.

3 Use [œ √] repeatedly to set a desired repeat

part.

On-Screen Display Overview

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 34 mac001 1200DPI 100LPI

PLAYBACK

1 Press the [VCR] button to set the remote control

to operate the VCR deck.

2 Turn the TV on and select the video input source

connected to it from the DVD Recorder+VCR. Audio system: Turn the external audio system on

if connected and select the input source connected to it from the DVD Recorder+VCR.

Before You Begin

VCR Playback

1 Insert a prerecorded video cassette.

If the DVD Recorder+VCR is powered off, it will power on automatically.

Make sure the TIMER indicator on the front panel display is not lit. If it is, press [POWER] once.

If a tape without a safety tab is inserted, the DVD Recorder+VCR will start playback automatically.

2 Press [PLAY].

The PLAY icon appears on the TV screen. It is not necessary to select the tape speed (SP, LP) for playback. It will be automatically selected by the DVD Recorder+VCR.

3 Press [STOP] to stop playback.

The STOP icon appears on the TV screen. If the tape reaches the end before [STOP] is pressed, the DVD Recorder+VCR will automatically stop and rewind.

Playing a VHS Tape

Auto Tracking

The automatic tracking function adjusts the picture to remove snow or streaks. It works in the following cases:

• When a tape is played for the first time.

• When the tape speed (SP, LP) changes.

• When streaks or snow appear because of scratches on the tape.

Manual Tracking

If noise appears on the screen during playback, press and hold the [TRACKING +/-] buttons on the remote control until the noise on the screen is reduced.

• If vertical jitter occurs, adjust these controls very carefully.

• Tracking is automatically reset to normal when the tape is ejected or the power cord is unplugged for more than 3 seconds.

Tracking Control

If the DVD Recorder+VCR is powered on by inserting a video cassette with a safety tab, playback will not start automatically.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 35 mac001 1200DPI 100LPI

VCR Playback

Fast Forward/Backward

This function lets you visually search forward and backward for a desired scene on your tape.

1 Press [REW] or [FF] during playback and Search

mode will be activated. If the DVD Recorder+VCR is left in Search mode

for more than 3 minutes, the DVD Recorder+VCR will automatically resume Play mode to protect the tape and video heads.

2 To return to normal playback, press [PLAY].

Still Picture

1 Press [PLAY/PAUSE] during playback.

A still picture appears on the TV screen. If a still picture vibrates vertically, stabilize it by

using the [TRACKING +/-] buttons on the remote control.

If the DVD Recorder+VCR is left in still mode for more than 5 minutes, the DVD Recorder+VCR will automatically resume Play mode to protect the tape and video heads.

2 To return to normal playback, press [PLAY].

Slow Motion

1 Press [SLOW+] for Slow Motion playback. 2 Press [SLOW+] and [SLOW-] repeatedly to adjust

the Slow Motion playback speed.

Counter Memory Function

This is useful if there is a section of tape you want to view immediately after recording or if you want to return to the same point several times.

1 Begin recording or playing a tape. 2 At the point you want to locate later, reset the real-

time counter to 0:00:00 by pressing [CLEAR]. Continue to play or record.

3 Press [STOP] when recording or playback

finishes.

4 You can make the tape automatically stop when

the counter returns to about ‘0:00:00‘ by selecting "Go-to-Zero" function in the ‘SETUP’

➝

’Preferences’ ➝’VCR’. See page 28.

Notes on special playback features (EG: FFW or FBWD)

Horizontal lines (noise bars) will appear on the TV screen. This is normal.

The audio is automatically muted during special playback modes, so there is no sound during search, slow motion, etc.

During high-speed picture search, a short time is needed to stabilise the tape speed when reentering Play mode. Slight interference may be observed during this time.

Special Playback Features

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 36 mac001 1200DPI 100LPI

PLAYBACK

Still Picture and Frame-by-Frame Playback

1 Press [PLAY/PAUSE] during playback. The DVD

Recorder + VCR will go into Still mode.

2 You can back up or advance the picture frame-by-

frame by pressing [

NEXT ∞

] repeatedly during

Still mode.

Fast Forward/Backward

1 Press [√√] or [œœ] during playback. The DVD

Recorder + VCR will go into Search mode.

2 Press [√√] or [œœ] to select the desired speed:

√√ X2, √√ X4, √√X8, √√ X16, √√ X32

(forward) or

œœ X2, œœ X4, œœX8, œœ X16,

œœ X32 (backward).

Slow Motion

Press [SLOW+] or [SLOW-] to select the desired speed: 1/16, 1/8, 1/4,1/2 ...(forward), or 1/16, 1/8, 1/4,1/2 ... (backward).

Changing the Audio Language

Press [AUDIO] and then press [AUDIO] repeatedly during playback to hear a different audio language or audio track.

Subtitles

Press [SUBTITLE] and then press [SUBTITLE] repeatedly during playback to select available subtitle languages.

Zoom

The Zoom function allows you to magnify the video image and scroll around the enlarged image.

1 Press [ZOOM] during Play mode to activate the

Zoom function.

1 Press [DVD] to set the remote control to operate

the DVD. Turn the TV on and select the video input source

connected to it from the DVD Recorder+VCR. Audio system: Turn the external audio system on

(if being used) and select the input source connected to it from the DVD Recorder+VCR.

2 Press [OPEN/CLOSE] to open the disc tray.

3 Load your disc in the tray with the playback

side down (label side up).

4 Press [OPEN/CLOSE] to close the tray.

'LOAD' appears on the front panel display, and playback starts automatically (when using DVD VIDEO and finalised discs).

If playback does not start, press [PLAY (

√)]. In

some cases, the Disc menu may appear instead.

Playing a DVD

When a DVD+RW or unfinalised DVD+R/-R/-RW is inserted, no title is played automatically but the current TV channel displays on the screen.

If you want to play a title on the DVD+R (+RW), you must press [MENU] or [PLAY] to display the disc menu. Select a title to play then press [ENTER].

Playing a DVD

DVD Playback

If a Disc menu is displayed

• A Disc menu may be displayed when you load a DVD. Use the [

œ √…†] buttons to select

the title/chapter you want to view, then press [ENTER] to start playback. Press [MENU] to return to the Disc menu.

• The DVD Recorder + VCR will not play discs with Region codes different from the DVD Recorder + VCR. The Region code for this DVD Recorder + VCR is 2 (two).

• Unless stated otherwise, all operations described below use the remote control. Some features may also be available in the Setup menu.

• A disc which is recorded by computer at high speeds (greater than or equal to 2x) may not be recognised.

• A disc which is recorded with unauthorised movie material may not be played.

• A disc which is recorded by another recorder or not recorded correctly may not be recognised or played.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 37 mac001 1200DPI 100LPI

Each press of the [ZOOM] button changes the Zoom level as follows: x1 (normal size)

➝x2 ➝

x3 ➝x4 ➝ x1 (normal size)

2 Use the [œ √…†] buttons to scroll around the

zoomed picture.

3 To resume normal playback, press [ZOOM]

repeatedly until the X1 (normal picture) appears.

Repeat

1 To repeat the currently playing title, press

[REPEAT]. ‘Title’ appears on the TV screen.

2 To repeat the currently playing chapter, press

[REPEAT] twice. ‘Chapter’ appears on the TV screen.

3 To repeat the whole disc, press [REPEAT] three

times. ‘All’ appears on the TV screen.

4 Each press of the [REPEAT] button changes the

repeat mode as follows: [DVD] Title

➝Chapter ➝ All ➝ Off

[VCD, SVCD] Track

➝All ➝ Off

[CDDA, MP3] Random

➝Single ➝ Repeat One

➝Repeat Folder ➝ Off

A-B

You can repeat a scene between two points (A and B): 1 Press [PLAY/PAUSE] play to the start of the

desired scene.

2 Press [A-B] to mark the start point. 3 Use [œœ], [√√] to search the end point. 4 Press [A-B] to mark the end point. 5 The marked scenes are repeated continuously

until you stop the repeat by pressing [A-B] button again.

Selecting Titles

When a disc has more than one title, you can select among all available titles as follows:

1 Press [DISPLAY] and use […†] to select the

Title icon.

2 Use [œ √] to select the desired title number.

Selecting Chapters

When a title on a disc has more than one chapter, you can select among all available chapters as follows:

1 Press [PREV (§)] or [NEXT (∞)] briefly during

playback to select the next or previous chapter.

2 To skip directly to any chapter during playback,

press [DISPLAY]. Use [

…†] to select the Chapter icon.

Use [

œ √] to select the desired chapter number.

Disc Menu

Many DVDs contain Disc menus that allow you to access special features. To open a Disc menu, press [MENU]. Then use the [

…†œ √] buttons to highlight

your desired selection and press [ENTER].

1 Press [MENU]. The Disc menu is displayed. 2 To exit the Disc menu, press [STOP] or [SETUP].

Title Menu

1 Press [TITLE/PBC]. If the current title has a menu,

the Title menu will appear on the TV screen. Otherwise, the Disc menu may appear.

2 The Title menu may contain camera angles,

spoken languages and subtitle options, as well as the chapters for the title.

Angle

If a DVD contains scenes recorded at different camera angles, the angle icon displays automatically. You can select among these angles during playback.

1 Press [ANGLE] and then press it repeatedly

during playback to select the desired angle.

2 The number of the current angle appears on the

TV screen.

• The Zoom function may not work on some DVDs (ex. Jpg..)

DVD Playback

The Angle icon is displayed on the TV screen when alternate angles are available.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 38 mac001 1200DPI 100LPI

PLAYBACK

Playing a Picture, Audio or DivX files

Select ‘Playlist’ using […†] and press [ENTER]. The Playlist icon will appear in front of the

selected files.

6 Select ‘Play’ on the third menu and press

[ENTER].

7 Press [√√] or [œœ] during playback. The DVD

Recorder + VCR will go into Search mode. Press [

√√] or [œœ] to select the desired speed:

√√X2, √√X4, √√X8, √√X16, √√X32, √

PLAY (forward) or œœ X2, œœ X4, œœ X8, œœ X16, œœ X32, œ PLAY (backward)

8 Use [PLAY/PAUSE] to pause playback while the

title is playing.

9 To stop playback at any time, press [STOP]. 10 The second menu appears. You can select

‘Open’, ‘Playlist’ or ‘Cancel’.

Use [

…†] to select functions. Open : open the sub-folders. Playlist

: create a playlist with files in the folder.

Cancel : cancel the second menu.

The DVD Recorder + VCR can play DivX files on a disc such as CD-R/RW, DVD+R/RW or DVD-R/RW.

1 Prior to playing Divx files on disc, insert disc and

close the tray.

2 The Media Browser appears automatically. If it

doesn’t appear, press [MENU] to bring up the Media Browser.

3 Press [ENTER] and select the DivX category

using [

…†], then press [ENTER].

4 Use [√] and […†] to select a file, then press

[ENTER]. You could see the third menu when you press

[ENTER] on the selected files.

Play

: play the selected file. Playlist : add the selected file to playlist. Cancel

: cancel the third menu.

5 If you want to add a file to the playlist, press [√]

while the file is selected. After selecting files as many as you want, press

[ENTER] to go to the submenu.

DivX Playback

Disc Media

Picture Audio

DivX

????.avi drink.mpeg ??.mpeg drink.mpg ???.mpg ???-thens.mpg

Disc Media

Picture Audio

DivX

√

????.avi

drink.mpeg ??.mpeg drink.mpg ???.mpg ???-thens.mpg

Disc Media

Picture Audio

DivX

√

????.avi drink.mpeg

??.mpeg drink.mpg ???.mpg ???-thens.mpg

Play Playlist Cancel

/DivX Off

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Disc Media

Picture Audio

DivX

√

????.avi drink.mpeg

??.mpeg drink.mpg ???.mpg ???-thens.mpg

Play Playlist Cancel

/DivX Off

Move Select Back Command

MENU ENTER

Disc Media

Picture Audio

DivX

√

????.avi drink.mpeg

??.mpeg drink.mpg ???.mpg ???-thens.mpg

/DivX Off

Move Select Back Command

MENU ENTER

Item : 0003/0003

Disc Media

Picture Audio

DivX

????.avi drink.mpeg ??.mpeg drink.mpg ???.mpg ???-thens.mpg

Open

Playlist

Cancel

/DivX Off

Move Select Back Command

MENU ENTER

Item : 0003/0003

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 39 mac001 1200DPI 100LPI

Playing a Picture, Audio or DivX files

• Playable DivX files are ".avi",".divx" and playable DivX subtitles are ".srt", ".smi", ".mdsub", ".svsub", ".ssa", ".txt".

• The file size of the DivX subtitle is limited to 128KB.

• Playable MPEG 4 SP and ASP is XVID, DivX5.1, DivX5.05, DivX5.02, DivX4.1.2, DivX3.11.

• ASP does not support GMC & Qpel (Quarter Pixel).

• Playable biterates is to max. 4MBPS.

• Playable frame number of screens per a second is 30, 25, 24, 12, and 8.

• Playable resolution is from Min. 200X100 to max. 720X640.

• Playable audio stream formats are DTS, MPEG I Layer III, MPEG II, LPCM, WMA and AC-3.

• It may not be played according to a type of DivX files, a recording method, or a disc state. (The device was authenticated for DivX files from the DivX Networks, Inc. and it is available for playing a normal DivX but may be unavailable for playing the DivX files that have been manufactured with an illegal or abnormal Codec.)

• DivX,DivX certified and associated logos are trademarks of DivX Networks, Inc. and are used under license.

• When the image/sound structure of a recorded file have not been undergone the interleave, it will output either the image or the sound.

Subtitles

When the subtitles are not displayed provided although it has a file of subtitles:

1 Move to the Menu of DivX by pressing the [STOP]

button.

2 Use […†] to select a file of subtitles you want by

using it.

3 Select the file of subtitles at that time by pressing

the [ENTER] button.

4 After moving the file of DivX you want to play, play

it by pressing the [ENTER] button.

11 When the second menu appears while the DivX

category is selected, select ‘Open’ and press [ENTER].

Then you can see ‘Playlist’ among sub-folders. Select ‘Playlist’ using [

†] and press [ENTER] to

go to the command.

Play

: play the file(s) on the playlist.

Remove

: delete the file(s) from the playlist.

Cancel : cancel the submenu. If there is no file on the playlist, add files as it is

explained above.

Disc Media

DivX

Playlist

aac asf avi jpeg jpg mp3 mp3pro

????.avi drink.mpeg ??.mpeg drink.mpg ???.mpg ???-thens.mpg

Play

Remove

Playlist

Move

Cancel

/DivX Off

Move Select Back Command

MENU ENTER

Item : 0003/0003

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 40 mac001 1200DPI 100LPI

PLAYBACK

Playing a Picture, Audio or DivX files

Audio CD Playback

The DVD Recorder + VCR can play audio CDs on CDR/RW, DVD+R/RW, DVD-R/RW.

1 Insert the disc and close the tray. 2 The CD plays automatically. If it doesn’t playback,

press [PLAY].

3 Use […†] to select a track, then press [ENTER]

for the second menu. Select ‘Play’ on the second menu or just press [PLAY].

Playback will stop at the end of the disc.

4 You can select 'Play', 'Playlist', and 'Cancel' on the

second menu. For creating a playlist, check tracks by using [

√] then press [ENTER] to activate the second menu. Use [

…†] to select 'Playlist' and press [ENTER]. The usage of ‘Playlist’ is same with ‘DivX’ on the previous page.

5 While playing an Audio CD, use [√√] or [œœ] for

x2, x4, x8, x16, x32 speed playback.

6 Use [PLAY/PAUSE] to pause playback while the

disc is playing.

7 To stop playback at any time, press [STOP].

Audio CD

CDDA

Move Select Back Command

MENU ENTER

Item : 0001/0014

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 41 mac001 1200DPI 100LPI

Playing a Picture, Audio or DivX files

Use […†] to select functions. Open : open the sub-folders. Playlist

: create a playlist with files in the folder.

Cancel : cancel the second menu.

See ‘DivX playback’ on page 39~40 to know how to use playllist.

The DVD Recorder + VCR can play MP3 files on a disc such as CD-R/RW, DVD+R/RW or DVD-R/RW.

1 Prior to playing MP3 files on disc, insert disc and

close the tray.

2 The Media Browser appears automatically. If it

doesn’t appear, press [MENU] to bring up the Media Browser.

3 Press [ENTER] and select the ‘Audio’ category

using [

…†], then press [√].

4 Use […†] to select a track or a file, then press

[ENTER] and the second menu will appear.

5 You can select 'Play', 'Playlist' or 'Cancel'.

Play : play the selected file. Playlist

: add the selected file to playlist.

Cancel : cancel the third menu. Select ‘Play’ on the second menu or just press

[PLAY]. Playback will stop at the end of the media.

6 When the curser is on the Audio category, press

[ENTER]. The second menu appears.

MP3 Playback

• On the MP3 CD menu, you can display the folders on the disc. Use [

…†] to select the

folder icon on the MP3 CD menu then press [ENTER] and select ‘OPEN’. You can also display just the tracks in the folders. Use [

…†]

to select a folder then press [

√].

• Press [REPEAT] to repeat a track (file) and press again to repeat the whole media.

Disc Media


Audio

DivX

01_32kbps.mp3 02_40kbps.mp3 03_48kbps.mp3 04_56kbps.mp3 05_64kbps.mp3 06_80kbps.mp3 07_96kbps.mp3 08_112kbps.mp3 09_128kbps.mp3

/Audio Off

Disc Media


Audio

DivX

01_32kbps.mp3 02_40kbps.mp3 03_48kbps.mp3 04_56kbps.mp3 05_64kbps.mp3 06_80kbps.mp3 07_96kbps.mp3 08_112kbps.mp3 09_128kbps.mp3

/Audio Off

Open Playlist Cancel

Disc Media


Audio

DivX

/Audio Off

01_32kbps.mp3

02_40kbps.mp3 03_48kbps.mp3 04_56kbps.mp3 05_64kbps.mp3 06_80kbps.mp3 07_96kbps.mp3 08_112kbps.mp3 09_128kbps.mp3

Play Playlist Cancel

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Item : 0003/0003

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 42 mac001 1200DPI 100LPI

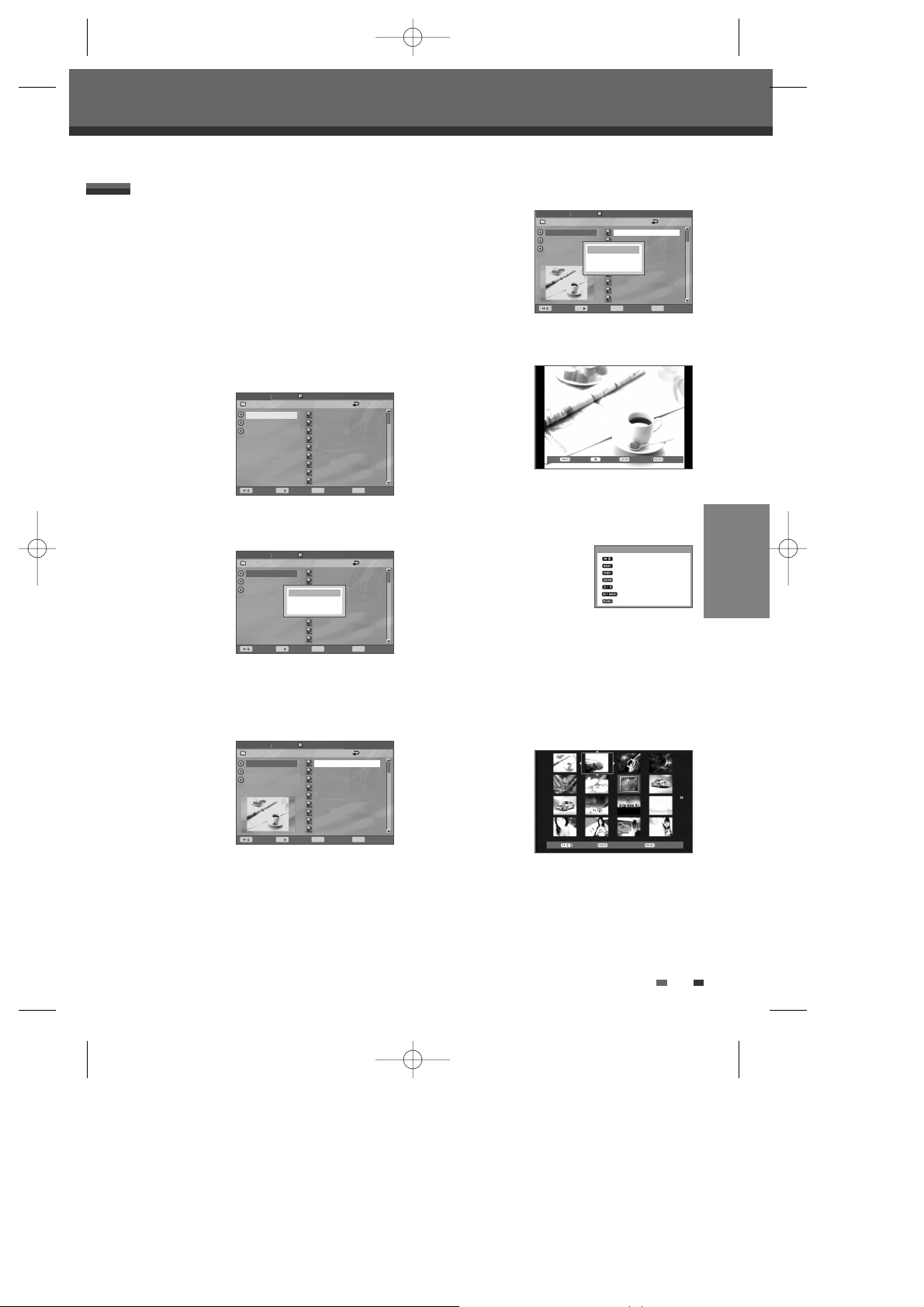

PLAYBACK

Playing a Picture, Audio or DivX files

The DVD Recorder + VCR can play JPEG Picture files on a disc such as CD-R/RW, DVD+R/RW or DVDR/RW.

1 Prior to playing JPEG files on disc, insert disc and

close the tray.

2 The Media Browser appears automatically. If it

doesn’t appear, press [MENU] to bring up the Media Browser.

3 Press [ENTER] and select the ‘Picture’ category

using [

…†]. And press [ENTER].

The second menu appears. It is same how to use the second menu in DivX playback.

4 Select the desired folder using […†] and press

[

√].

5 Select the thumbnail you want to display using

[

…†] and press [ENTER].

The third menu appears. It is same how to use the second menu in DivX playback.

6 Select ‘Play’ on the third menu and press

[ENTER]. The full size image will be displayed and a slide show starts automatically with a time interval of 5 seconds.

JPEG Playback

7 When a slide show starts, a menu bar will appear

at the bottom of the screen.

If you want to remove the menu bar, press [DISPLAY].

[TIMER]: The HELP menu appears.

[…†œ √]: Rotate the image (counter) clockwise.

[NEXT]/[PREV]: Manually skip to the next or previous image.

[ZOOM]: Enter / Exit zoom mode [0~9]: Jump to the index file [REC MODE]: Switch refresh mode [MENU]: Back to the Main Browser

[STOP]: Switch to the DIGEST screen and you can select the image using [

…†œ √].

Help Digest Zoom Back

Move Slide Show Menu

Help

Rotate Play the next time Play the previous picture Enter / Exit zoom mode Jump to the index file Switch refresh mode Return to main menu

Disc Media


Audio DivX




1006164514.jpeg 101148_wallpaper





/Picture Off

Disc Media


Audio DivX




1006164514.jpeg 101148_wallpaper





/Picture Off

Open Playlist Cancel

Disc Media


Audio DivX




1006164514.jpeg 101148_wallpaper





/Picture Off

Disc Media


Audio DivX




1006164514.jpeg 101148_wallpaper





/Picture Off

Play Playlist Cancel

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Move Select Back Command

MENU ENTER

Item : 0003/0003

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 43 mac001 1200DPI 100LPI

Playing a Picture, Audio or DivX files

You can enjoy a slide show while listening to MP3 music files.

1 Prepare the Disc which includes both MP3 and

JPEG files and insert the disc.

2 The Media Browser appears automatically. If it

doesn’t appear, press [MENU] to bring up the Media Browser.

3 And press [ENTER]. 4 Use […†] to select ‘Audio’ category and press

[

√]. Select a MP3 file. Playback it by selecting ‘Play’ on the third menu or

just pressing [PLAY].

5 During playback of the MP3 files, press [œ] to

return to the selected Media Browser. The music playback will not stop.

6 Go to Picture category, and select the image files

and press [ENTER]. Select ‘Play’ on the third menu to start slideshow.

7 The MP3 files you selected continue to playback

during the JPEG slide show.

Playing MP3 Files During a Slide Show

• The DVD Recorder + VCR can playback up to 1000 files per disc.

• Customers should note that permission is required in order to download MP3 and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

[ZOOM]: Enter the zoom mode

[FF]: Zoom In [REW]: Zoom Out [ZOOM]: Exit

8 Press [STOP] to exit the slideshow.

Zoom In Zoom Out Exit

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 44 mac001 1200DPI 100LPI

PLAYBACK

Recording to TV

Basic Recording

Follow the instructions below to record a TV program.

1 Turn on the DVD Recorder+VCR and load a

recordable disc or tape.

Make sure your TV input is set to view the DVD Recorder+VCR.

2 Set the desired Recording mode by pressing

[REC MODE] repeatedly.

DVD: HQ (High Quality - 1 hr/disc), SP (Standard Play - 2 hrs/disc), EP (Extended Play - 4 hrs/disc), or SEP (Super Long Play - 8 hrs/disc).

VCR: SP (Standard Play), LP (Long Play - 2 times SP)

3 If your DVD Recorder+VCR does not show a

TV program, press [INPUT] on the remote control. Use [PR+/–] to select the TV channel you wish to record.

4 Press [AUDIO] to select the audio channel to

record (Stereo, BIL, or Mono).

The table below shows what audio channel will be recorded with different settings and different types of broadcasts.

The last column (Monitor Audio) shows what you will hear during recording. For example, if the TV broadcast is in Stereo, then setting the DVD Recorder+VCR to Stereo will record the broadcast in Stereo, and the Monitor Audio will also be in Stereo.

5 Press [REC (●)] once.

Recording will start. The REC indicator lights on the front panel display.

Recording continues until you press [STOP] or the disc is full.

To record for a fixed length of time, see One Touch Record.

6 Press [STOP (■)] to stop recording.

Broadcast Audio Monitor

L Ch R Ch Audio

MONO MONO MONO MONO MONO

STEREO L R STEREO

MONO MONO MONO MONO

BIL I BIL I BIL I BIL I

BIL II BIL II BIL II BIL II

Broadcast

STEREO

BIL

Selected

Audio

• The maximum number of DVD titles per disc is

49. If the DVD Recorder+VCR is powered off during DVD recording, the recording will not be saved.

• If a DVD+RW or unfinalised DVD+R disc is

inserted in the tray, no title is played automatically after loading is finished.

• If you are recording to a blank DVD+R (+RW)

disc, it may take up to 7 minutes (it depends on disc) for post processing after recording.

RECORDING

One Touch Recording allows you to add recording time in fixed increments at the touch of a button.

1 Follow steps 1-4 under Recording from TV.

2 Press [REC (

●)] repeatedly to set the length of

the recording.

Recording starts after the first press. Each subsequent press increases the recording time by 30 minutes (DVD) within the available space or 30 minutes (VCR, to a maximum of 10 hours). The recording time is displayed on the front panel display.

One Touch Record (OTR)

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 45 mac001 1200DPI 100LPI

Total time and recorded time are displayed on the TV screen after pressing [DISPLAY].

Checking the Recording Time

1 Insert a Disc.

Insert the disc you wish to copy in the DVD deck and close the disc tray.

2 Insert a VHS Tape.

Insert a blank VHS videotape into the VCR deck.

3 Find the place on the DVD disc tape from

which you want to start recording using the [PLAY/PAUSE], [FF] and [REW] functions. And press [STOP].

4 Press [VCR

œœ DVD] on the front panel.

5 Press [ENTER] to select the desired Record

Mode in ‘Copy to Tape’ menu:

• SP (Standard Play)

• LP (Long Play, 2 times SP).

6 Press [VCR œœ DVD] again to start copying.

7 Stop the Copy Process

To stop copying at any time, press [STOP]. You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.

If the DVD you are attempting to copy is copyprotected, you will not be able to copy the disc. It is not permitted to copy Macrovision encoded DVDs.

If you want to start copy any point of disc

1. Find the place on the DVD (or Disc) from which you want to start recording using the [PLAY/PAUSE], [REW] and [FF] functions.

2. Press [COPY] while DVD is in resume stop (» STOP) mode.

3. Follow the same procedure 5-7.

One Touch Copy - DVD to VHS

Basic Recording

During one touch copy you can search or change REC SPEED and resume copy.

1 During One Touch Copy, press [PLAY/PAUSE] to

enter COPY EDIT mode.

Copy Edit (DVD ➝VCR)

Copy to Tape

Choose quality and press COPY key

SP LP

■ Exit

1 Press [PLAY/PAUSE] to pause the disc or tape

during recording.

2 When you want to continue recording, press

[PLAY/PAUSE] or [REC] in DVD mode and press [REC] in VCR mode.

To Pause the Recording

Note

• To quit One Touch Recording, press [STOP]. To confirm, select ‘OK’. To cancel, select ‘Cancel’.

• The DVD Recorder+VCR will automatically power off when One Touch Recording ends.

Tip (VCR mode only)

• Always use [PLAY/PAUSE] for best results when making changes during recording.

For example: To change channels during recording, first press [PLAY/PAUSE] to put the unit in Pause mode. Then select the desired channel on the DVD Recorder+VCR, and press [REC] again to resume recording.

• You cannot record on the VCR deck and DVD deck at the same time.

• While the VCR is recording, DVD playback is impossible. And, while the DVD is recording, all VCR functions are disabled.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 46 mac001 1200DPI 100LPI

RECORDING

During one touch copy you can search and resume copy.

1 Press [PLAY/PAUSE] to enter COPY EDIT mode. 2 Press [PLAY/PAUSE] again to playback. 3 Search with [FF/REW] button. 4 Press [VCR √√ DVD] to resume copy.

Copy Edit (VCR ➝DVD)

Basic Recording

You can copy the contents of a VHS tape to a DVD±R or DVD±RW. This allows you to archive your old VHS tapes to DVD.

1 Insert a VHS Tape.

Insert the VHS videotape you wish to copy into the VCR deck.

2 Insert a DVD±R or DVD±RW disc.

Insert a blank DVD±R or DVD±RW disc in the DVD deck and close the disc tray.

3 Find the place on the VHS tape from which

you want to start recording using the [PLAY/PAUSE], [FF] and [REW] functions. And press [STOP].

4 Press [VCR

√√ DVD] on the front panel.

5 Press [ENTER] to select the desired Record

Mode in ‘Copy to Disc’ menu:

• HQ (High Quality - 1 hr/disc)

• SP (Standard Play - 2 hrs/disc)

• EP (Extended Play - 4 hrs/disc)

• SEP (Very Low Quality - 8 hrs/disc)

6 Press [VCR √√ DVD] again to start copying.

7 Stop the Copy Process

To stop copying at any time, press [STOP]. Copying will stop automatically when the VHS

tape ends.

If the VHS videotape you are attempting to copy is copy-protected, you will not be able to copy the tape. It is not permitted to copy Macrovision encoded tapes.

When using a DVD+RW disc, you must initialise before copying; see page 30.

One Touch Copy - VHS to DVD

Copy to Disc

Choose quality and press COPY key

SP EP

SEP

■ Exit

2 Search with [FF/REW] or [NEXT/PREV] button. 3 Press [VCR œœ DVD] and you can change REC

SPEED.

4 Press [VCR œœ DVD] again to resume copy.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 47 mac001 1200DPI 100LPI

Timer Recording

The Timer Recording function allows you to record up to 16 programs within a period of one month.

1 Insert recordable media such as DVD±R,

DVD±RW, recordable VHS tape.

2 Press [TIMER].

The ‘Timer Recording’ menu appears.

3 Select ‘Timer Recording’ with […/†] and

confirm with [ENTER].

The ‘Timer Recording’ menu appears.

Use [

…†] to move to a timer recording slot, and

press [ENTER] to modify it. If it is the first time to use ‘Timer Recording’, there

is only one timer recording slot.

If you did not set the clock on the DVD Recorder + VCR, you must do so before programming a timer recording.

• Target – Choose desired media (DVD or VCR) using [

…†].

• Date – Choose a date up to 1 month in advance, or select a daily or weekly program.

• Start

– Set the recording start time.

• Stop – Set the recording end time.

• PR No. – Choose the desired channel, or one of the external inputs from which to record.

• Mode

– Choose a Record mode. [DVD] HQ, SP, EP or SEP [VCR] SP or LP

• Repeat

– Choose frequency of the recording.

Once, Daily, Weekly, Weekday, Weekend.

Timer Recording using Manual Set Record Screen

4 Enter the necessary information for your

Timer Recording(s).

• œ √ – Moves the cursor left/right.

• …† – Changes the setting of the current cursor position.

• Press [MENU] to go back to the previous step.

• Press [ENTER] after filling in all the program information.

• Press [TIMER] to exit the Timer Record menu.

5 If you modify the saved timer record list, select a

slot you want to modify by using [

…†].

Press [ENTER] on the selected slot then, the menu will appear.

Edit

: to edit each item. Delete : to delete the selected slot. Disable/Enable

: To be invalid/valid the selected

slot. Cancel

: cancel the menu.

6 Press [ENTER] to save the program.

The Timer Record List will appear.

7 Press [TIMER] to exit the Timer Record List.

8 Timer indicator will light or start blinking. You

must power off the DVD Recorder + VCR to start the Timer Recording.

Timer Recording

Move Confirm Exit

… †

ENTER TIMER

†

Timer Recording

Showview

Timer Recording List 1/1 28/11/2010 13:09:33

Edit Back Exit

ENTER MENU TIMER

Target Date Start Stop PR No. Mode Repeat

- - - - -/- - --- - -:- - - -:- - - - - - - - - - -

Timer Recording List 1/1 28/11/2010 13:09:33

Confirm Back Exit

ENTER MENU TIMER

Target Date Start Stop PR No. Mode Repeat

DVD 28/11 Tue - -:- - - -:- - - - - - - - - - -

Timer Recording List 1/1 28/11/2010 13:09:33

Confirm Back Exit

ENTER MENU TIMER

Target Date Start Stop PR No. Mode Repeat

DVD 28/11 Tue 13:20 14:13 PR2 SP Once

- - - - -/- - --- - -:- - - -:- - - - - - - - - - -

Edit

Delete Disable Cancel

Move

… †

Move

… †

Move

… †

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 48 mac001 1200DPI 100LPI

RECORDING

Timer Recording

Thanks to this programming system, you no longer need to tediously enter the date, programme number, start and end time. All the information needed by the DVD Recorder + VCR for programming is contained in the ShowView programming number. This ShowView number is found in most TV listings.

1 Insert recordable media such as DVD±R,

DVD±RW, recordable VHS tape.

2 Press [TIMER].

The ‘Timer Recording’ menu appears.

3 Select ‘ShowVIew’ with […/†] and confirm

with [ENTER].

The ‘ShowVIew’ menu appears.

Enter the entire ‘ShowView’ number. This number is up to 9 digits long and can be found next to the start time of the TV programme in your TV listings magazine.

e.g.: 5-234-89 or 5 234 89 Enter 523489 for the ‘ShowView’ number. If you make a mistake, you can clear it with [

œ].

You can also select Target, Quality and Repeat by using [

œ √]. To change status of each item,

use [

…†].

4 Press [ENTER] to confirm.

5 The decoded information appears after

confirmation. You can go back at any time to change the information by pressing [ENTER] and select ‘Edit’ on the menu as explained above. Select the appropriate input field using [

…†]. If

required, change the information using [

…†].

If all the information is correct, press the [ENTER] button. The programming information is stored in a TIMER block.

Timer Recording using ShowView system

Timer Recording

†

Target Quality Repeat

DVD SP Once

ShowView No. 523_ _____

Timer Recording List 1/1 28/11/2010 13:09:33

Confirm Back Exit

ENTER MENU TIMER

Target Date Start Stop PR No. Quality Repeat

DVD 28/11 Tue 13:20 14:13 PR2 SP Once

Timer Recording List 1/1 28/11/2010 13:09:33

Confirm Back Exit

ENTER MENU TIMER

Target Date Start Stop PR No. Quality Repeat

DVD 28/11 Tue 13:20 14:13 PR2 SP Once DVD 28/11 Tue 14:20 18:05 PR3 HQ Once

- - - - -/- - --- - -:- - - -:- - - - - - - - - - -

Edit

Delete

Disable

Cancel

6 Press [TIMER] to exit the Timer Record List.

7 Timer indicator will light or start blinking. You

must power off the DVD Recorder + VCR to start the Timer Recording.

ShowView is not available for some countries.

Timer Recording

Move Confirm Exit

… †

ENTER TIMER

Move Confirm Exit

… †

ENTER TIMER

†

Timer Recording

Showview

Move

… †

Move

… †

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 49 mac001 1200DPI 100LPI

Timer Recording

You can clear a Timer Recording any time before the recording actually starts.

• Use [

…†] to select the program you want to erase on the Timer Recorder List, then press [ENTER] to modify it. Use [

…†] to select 'Delete'

then press [ENTER].

Canceling a Timer Recording

After a Timer Recording has started, you can still cancel the program by pressing [STOP]. To confirm, select ‘OK’. To cancel, select ‘Cancel’.

Stopping a Timer Recording in Progress

Even if a Timer Recording is set, the DVD Recorder + VCR will not record if:

• A protected disc is in the tray; see ‘Disc’ settings on a page 31.

• There are already 49 titles recorded on the disc.

You cannot enter a Timer Recording if:

• A recording (copying) or playing titles is already under way.

• The start time has already passed.

• 16 Timer Recordings have already been set.

If two or more Timer Recordings overlap:

• Two or more Timer Recordings are overlapped.

If the disc is damaged, the recording may not complete successfully.

Timer Recording Troubleshooting

Recording Priority

• Timer Recording and OTR (One Touch Record) have the same priority but they have lower priority than manual recording. During manual recording, Timer Recording or OTR will be ignored.

• The Timer indicator lights on the front panel display when the DVD Recorder + VCR is ready for the Timer Recording.

• The timer indicator will flash if any of the following conditions occur;

- Empty or non-recordable disc is found in the

tray when DVD Timer recording starts.

- When you go into Main Browser, SETUP,

Timer Recording menu after Timer Recording setup.

- When you record the TV signal after Timer

Recording setup.

- When you play titles after Timer Recording

setup.

• The DVD Recorder + VCR will automatically power off when the Timer Recording ends.

• There is a short delay when a timer recording finishes to confirm the recorded program. If two timer recordings are set to record sequentially (one right after the other), the very beginning of the later program may not be recorded.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 50 mac001 1200DPI 100LPI

RECORDING

You can record from an external component, such as a camcorder, VCR or Digital Camera, connected to any of the DVD Recorder + VCR’s external inputs.

1 Make sure the component you want to record

from is connected properly to the DVD Recorder + VCR; see pages 15~18.

2 Use [PR+/–] or [INPUT] to select the external

input to record from.

3 Load a recordable disc or tape.

When you load a new, blank recordable disc (DVD±RW, DVD±R), the recorder will take a moment to initialise it for recording.

4 Set the desired Recording mode by pressing

[REC MODE] repeatedly.

5 Press [REC (

●)] once.

Recording will start. The REC indicator lights on the front panel display.

Recording continues until you press [STOP] or the disc is full.

To record for a fixed length of time, see ‘One Touch Record‘ on page 45.

6 Press [STOP (■)] to stop recording.

Recording from External Components

You can record from a digital camcorder connected to the DV IN jack on the front panel of the DVD Recorder+VCR.

You can use the DVD Recorder+VCR remote to control both the camcorder and the DVD Recorder+VCR.

1 Before recording, make sure your digital

camcorder is connected to the front panel DV IN jack; see page 18.

2 Press [INPUT] repeatedly to select the DV

input.

DV appears on the front panel display and the TV screen.

Recording from a Digital Camcorder

• If your source is copy-protected, you will not be able to record it using the DVD Recorder + VCR. See ‘Copyright Notice‘ on page 7 for more details.

Recording from an External Input

3 Find the place on the camcorder tape from

which you want to start recording.

For best results, pause playback at the point you want to start recording. Depending on your camcorder, you can use the DVD Recorder+VCR remote to control the camcorder using the STOP, PLAY, and PAUSE functions.

4 Press [REC] once to start recording.

Recording is automatically stopped if the DVD Recorder+VCR detects no signal. You can pause or stop the recording by pressing [PLAY/PAUSE] or [STOP]. You cannot control the camcorder from the remote control during recording.

The source signal must be DVC SD format. Some camcorders cannot be controlled using the

DVD Recorder+VCR remote. If you connect a second DVD recorder using a DV

cable, you cannot control the second recorder from this one.

You cannot control the DVD Recorder+VCR remotely from a component connected to the DV IN jack.

You cannot record date and time information from a DV cassette.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 51 mac001 1200DPI 100LPI

Follow these instructions to erase a title from the Title List.

1 Select the title to be erased using […†œ √] and

press [ENTER].

2 Then select ‘Erase‘ using [… †] on the left side

menu.

3 Press [ENTER] to erase the title. 4 Select 'Erase Title' and a confirming message

appears.

Select ‘OK’ by using [

œ √] and press [ENTER].

Erasing a DVD title

If you want to erase all titles, select 'Erase All' instead of selecting 'Erase Title'.

Confirm Back Exit

Title List

Play

Protect

Edit √

Confirm Back Exit

Title List

Erase Title

œ Erase All

Erase Title

Erasing title, please wait...

80%

Erase

Do you want to erase this title?

OK Cancel

Confirm Back Exit

Title List

œ Erase Title

Erase All

Erase

Follow these instructions to play back a scene from the Title List.

1 Select the title to playback using […†œ √] and

press [ENTER].

2 Then select ‘Play‘ using [… †] on the left side

menu of the screen. Press [ENTER] to play the title.

Or press [PLAY/PAUSE] to play the title.

3 To stop playback at any time, press [STOP]. Then

it will return to the TV screen.

Repeat

While playing the DVD, each press of the [REPEAT] button changes the repeat mode as follows: Title

➝

Chapter ➝All ➝ Off ➝Title ...

DVD Playback and Editing

This section explains various functions of DVD editing.

Playing a DVD title

Confirm Back Exit

Title List

Play

Erase √

Protect

Edit √

DVD+VR

†

DVD+VR

†

DVD+VR

†

DVD+VR

Wiederg. Ändern Text Ende

Title List Page : 1 / 1

Recent First

DVD+VR No label

18%

SP 01H 11M

Move Play Edit Exit

ENTERPLAY SETUP

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 52 mac001 1200DPI 100LPI

DVD EDITING

DVD Playback and Editing

Protecting a DVD title

If you want to protect a title from accidental recording, editing, or erasing, you can protect the title. Later, if you change your mind, you can unprotect the title.

1 Select the title to be protected using […†œ √]

and press [ENTER].

2 Then select ‘Protect‘ using […†] on the left side

menu.

3 Press [ENTER] to protect the title. 4 Select ‘OK’ by using [œ √] and press [ENTER].

5 Protect icon will appear on the thumbnail of the

title.

6 To ‘Unprotect’ the title, select ‘Unprotect’ in step 5.

Follow these instructions to rename a title list name,i.e., to edit the title of a recorded program.

1 Select the title to be labeled using […†œ √] and

press [ENTER].

2 Then select ‘Edit‘ using […†] on the left side

menu.

3 Press [ENTER] to go to submenu. 4 Select 'Rename’ using […†].

5 Press [ENTER] to change the title name. 6 The Keyboard Menu will be displayed. Use [œ

√…†

] to select a character or function and

press [ENTER]. See pages 31~32.

7 After the new title name is complete, select

‘SAVE’ and press [ENTER].

Renaming (Labeling) a DVD title

Protect

Protecting title, please wait...

80%

Confirm Back Exit

Title List

Play

Erase √

Edit √

Protect

Would you like to protect this title?

OK Cancel

Confirm Back Exit

Title List

Play

Erase √

Protect

Edit

DVD+VR

†

Confirm Back Exit

Title List

Play

Erase √

Edit

Unprotect

DVD+VR

†

DVD+VR

Rename Title

0 1 2 3 4 5 6 7 8 9 a b c d e f g h i _

j k l m n o p q r .

Backspace Save Cancel

t u v w x y z Space

PR 5

a Page

A Page

Symbol

Confirm Back Exit

Title List

œ A-B Erase

œ Set Idx Pic

Rename

œ Divide

†

DVD+VR

Confirm Back Clear

CLEAR

ENTER

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 53 mac001 1200DPI 100LPI

Follow these instructions to erase a certain part. 1 Select the title to be edited using […†œ √] and

press [ENTER].

2 Then select ‘Edit‘ using […†] on the left side

menu.

3 Press [ENTER] to go to submenu. 4 Select 'A-B Erase’ using […†].

5 Press [PLAY] to start playing and the curser will

be on the 'Set Point A'.

6 Press [ENTER] when the part you want to erase

begins and the curser will be on the 'Set Point B'.

Confirm Play Back

Title List

Set Point B

Set Point A

Cancel

A-B Erase Title:8

DVD+VR

Use to divide the title into two separate titles. Follow these instructions.

1 Select the title to be divided using […†œ √] and

press [ENTER].

2 Then select ‘Edit‘ using […†] on the left side

menu.

3 Press [ENTER] to go to submenu. 4 Select 'Divide’ using […†].

5 Press [ENTER] to divide the title in two separate

titles.

6 Press [PLAY] to start dividing and the curser will

be on the 'Divide'.

7 Press [ENTER] when the scene you want to

divide into two parts appears. You can use [PREV/NEXT]or [

œœ/√√] to search the scene you want to divide into two parts.

8 Press [ENTER] while the curser is on the 'OK'.

Dividing a DVD title

Confirm Back Exit

Title List

œ Rename

Divide

œ A-B Erase

œ Set Idx Pic

Divide

Dividing title, please wait...

80%

DVD+VR

†

Confirm Play Back

Title List

Divide

Cancel

Confirm Pause Back

Title List

Divide

Cancel

Confirm Pause Back

Title List

Divide

Cancel

Divide Title:7

DVD+VR

A-B Erase

DVD Playback and Editing

Confirm Back Exit

Title List

œ Rename

œ Divide

A-B Erase

œ Set Idx Pic

DVD+VR

†

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 54 mac001 1200DPI 100LPI

DVD EDITING

7 Press [ENTER] when the part you want to erase

ends and the curser will be on the 'OK'.

8 Press [ENTER] to confirm.

DVD Playback and Editing

• Please note that any edits made will not be in effect until [MENU] or [STOP] button is pressed. During this time, the DVD Recorder + VCR will update the title with the edits made. Once the update is complete, the edits will be available the next time the title edited is played back.

• Press [MENU] or [STOP] to exit from editing menu.

A-B Erase

A-B Erasing, please wait...

80%

Confirm Play Back

Title List

Set Point B

Set Point A

Cancel

A-B Erase Title:8

DVD+VR

Confirm Pause Back

Title List

Set Point B

Set Point A

Cancel

A-B Erase Title:8

DVD+VR

Follow these instructions to set an index picture.

1 Select the title to be edited using […†œ √] and

press [ENTER].

2 Then select ‘Edit‘ using […†] on the left side

menu.

3 Press [ENTER] to go to submenu. 4 Select 'Set Idx Pic’ using […†].

5 Press [PLAY] to start playing and the curser will

be on the 'Set Idx Pic'.

6 Press [ENTER] when the scene you want to set

an index picture appears and the curser will be on the 'OK'.

7 Press [ENTER] to confirm.

Set Index Picture

Confirm Back Exit

Title List

œ Rename

œ Divide

œ A-B Erase

Set Idx Pic

Setting Index picture, please wait...

80%

DVD+VR

†

Confirm Pause Back

Title List

Set Idx Pic

Cancel

Set Index Picture Title:8

Confirm Play Back

Title List

Set Idx Pic

Cancel

Set Index Picture Title:7

Original Current

DVD+VR

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 55 mac001 1200DPI 100LPI

Check the following guide for the possible cause of a problem before contacting customer support.

Symptom Cause Solution

Plug the power cord into the wall outlet securely. Select the appropriate video input on the TV so the picture from the DVD Recorder + VCR appears on the TV screen. Connect the video cable securely.

Turn on the TV. Select the correct input mode on the audio receiver so you can listen to the sound from the DVD Recorder + VCR if not using the TV speakers. Connect the audio cables securely.

Turn on the equipment connected with the audio cable. Replace with new ones. Clean the disc. Clean the video heads. Use [Tracking +/–] for manual tracking adjustment while a tape is playing. Insert a disc or tape. (Check that the disc indicator on the front panel display is lit.) Insert a playable disc. (Check the disc type, colour system, and regional code.) Place the disc with the playback side down. Place the disc on the disc tray correctly inside the guide. Clean the disc. Cancel the Parental Control function or change the rating level. You cannot connect via the DVD Recorder + VCR. Connect the component directly to your TV. Use the ‘Adjust Channels’ feature to restore channels.

Tighten connections or replace cable. Try all ‘Auto Set‘ options; see page 21 for details. Turn camcorder on and operate properly.

Use [INPUT] to select AV input channel (AV1, AV2, AVF, or DV).

The power cord is disconnected.

The TV is not set to receive DVD Recorder + VCR signal output.

The video cable is not connected securely. The TV power is turned off. The equipment connected with the audio cable is not set to receive DVD Recorder + VCR signal output.

The audio cables are not connected securely. The power on the equipment connected with the audio cable is turned off. The audio cables are damaged. The disc is dirty. Tape heads are dirty. Tape is a rental or was recorded on another VCR. No disc is inserted. Nor tape is inserted.

An unplayable disc is inserted.

The disc is placed upside down. The disc is not placed within the guide.

The disc is dirty. The Parental Control level is set.

The video signal from the external component is copy-protected.

The skipped channels were deleted with the ‘Adjust Channels’ feature.

Antenna or cables are loose. Wrong Tuning Band is selected in the DVD Recorder + VCR Setup menu. Camcorder is off.

The DVD Recorder + VCR’s source is not set to AV1, AV2, AVF, or DV.

No power.

No picture.

No sound.

Playback picture is poor.

DVD Recorder + VCR does not start playback.

Picture from external input is distorted.

Some channels are skipped over when using [PR+/–]. Picture or sound of broadcasting channel is weak or missing. Camcorder image not shown. Camcorder image via A/V input to DVD Recorder + VCR is not shown on TV screen.

Troubleshooting

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 56 mac001 1200DPI 100LPI

REFERENCE

Troubleshooting

Symptom Cause Solution

RESET :

If the set is in malfunctions, unplug the power cord, and then plug it in after 5 seconds. As this set is a Digital

Multimedia Product, malfunction may occur.

Finalise the disc; see page 30.

No solution.

Use another disc.

You cannot record the source.

Select the channel on the DVD Recorder + VCR’s built-in TV tuner. Set clock to correct time. See ‘Set Clock‘ on page 22. Reprogram Timer. See ‘Timer Recording‘ on page 48~50. Reprogram Timer.

No solution. No solution.

Make A/V connections. Stereo is available only via A/V output from DVD Recorder + VCR. Select AUX or A/V source as TV input. Set TV audio channel mode to Stereo. See ‘Changing the TV Audio Channel‘ on page 34. Point the remote control at the remote sensor of the DVD Recorder + VCR.

Operate the remote control within 23 ft (7m).

Remove the obstacle.

Replace the batteries.

The disc was not finalised (or not made compatible if using a DVD+RW). Some players will not play even a finalised disc. Discs recorded with copy-once material cannot be played on other players. The remaining blank space on the disc is insufficient. The source you are trying to record is copy-protected. When setting the recording channel, the channel is tuned on your TV’s tuner. Clock in DVD Recorder + VCR is not set to correct time. Timer has been programmed incorrectly. TIMER indicator light does not appear after programming timer. TV is not Stereo-compatible. Broadcast program is not in stereo format. DVD Recorder + VCR A/V Out jacks are not connected to TV A/V In jacks.

DVD Recorder + VCR Audio/Video Out is not selected for viewing at the TV. DVD Recorder + VCR’s TV audio channel is set to BIL or MONO. The remote control is not pointed at the remote sensor of the DVD Recorder + VCR. The remote control is too far from the DVD Recorder + VCR. There is an obstacle in the path of the remote control and the DVD Recorder + VCR. The batteries in the remote control are dead.

Can’t play disc recorded on this DVD Recorder + VCR on another DVD player.

Cannot record or did not record successfully.

Timer Recording not possible.

Stereo Audio Record and/or Playback not present.

Remote control does not work properly.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 57 mac001 1200DPI 100LPI

Troubleshooting

When the DVD Recorder + VCR is moved from a cold place to a warm place.

Under extremely humid conditions.

Keep the DVD Recorder + VCR plugged into an AC power outlet with the power on. This will help prevent condensation.

When condensation has occurred, wait a few hours for the DVD Recorder + VCR to dry before using it.

Moisture Condensation

Moisture condensation can occur: In locations where moisture condensation may

occur:

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 58 mac001 1200DPI 100LPI

REFERENCE

General

Power requirements 200–240V~, 50/60 Hz Power consumption Max 26W

Operation : 23W

Standby : 5W Dimensions(approx.) 430 *92 *312 (w*h*d) Mass (approx.) 4.96 Kg Operating temperature

5°C to 35°C Operating humidity 5% to 90% Signal system PAL Colour

Recording

Recording formats DVD Video Recording, DVD-

VIDEO Recordable discs DVD±R, DVD±RW Recordable time [DVD] (Approx.) 1 hour (HQ

mode), 2 hours (SP mode), 4

hours (EP mode), 8 hours

(SEP mode)

[VCR] SP: 3 Hours (E-180),

LP : 6 Hours (E-180)

Video recording format

Sampling frequency 27MHz Compression format MPEG 2

Audio recording format

Sampling frequency 48kHz Compression format MPEG1 Layer2

VCR Specifications

Head system 4 Head Video, 2 Head Hi-Fi

helical scan azimuth system Timer 24-hour display type Tape speed SP: 23.39 mm/sec

LP: 11.70 mm/sec Tape width 12.7 mm Rewind time less than 150 sec (E-180) Channel coverage VHF:2-12,13-20, 74-80 /

UHF:21-69 / CATV:1-41 Frequency range 20Hz to 20kHz Signal-to-noise ratio 43 dB Dynamic range 75 dB Channel separation 45 dB

DVD Specifications

Laser system Semiconductor laser,

wavelength 650 nm Frequency response DVD (PCM 48 kHz): 8 Hz to 22

kHz, CD: 8 Hz to 20 kHz Video S/N More than 60 dB Audio S/N More than 90 dB

Harmonic distortion Less than 0.06% Dynamic range More than 90 dB Resolution Over 500 lines (HQ Recording)

Inputs

Antenna In Antenna or CATV input, 75 Ω Video In 1.0 Vp-p 75 Ω, sync negative,

RCA jack x 2

Audio In -8.8 dBm more than 47 k, RCA

jack (L, R) x 2

DV IN 4pin (i.LINK/IEEE 1394

standard)

Outputs

Video Out Composite output (1.0 Vp-p,

unbalanced) RGB output (75 in load, R:0.7Vp-p, G:0.7Vp-p, B:0.7Vp-p)

Component Video Out (Progressive Scan)

(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1 (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Audio Out Digital audio : 0.5 V (p-p), 75

Ω, RCA jack x 1 Analog audio : 1.1 Vrms (1kHz,

-6 dB), 600 Ω, RCA jack (L, R) x 2

Accessories

RF cable .................................................................. 1

Remote control ........................................................ 1

Batteries .................................................................. 2

Design and specifications are subject to change

without notice.

Technical Specifications

Manufactured under license from Dolby Laboratories. ‘Dolby‘ and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent # : 5,451,942 and other U.S. and worldwide patents issued and pending.

DF-H7BD2D-JB-I(GB) 2008.4.11 1:53 PM ˘ ` 59 mac001 1200DPI 100LPI
