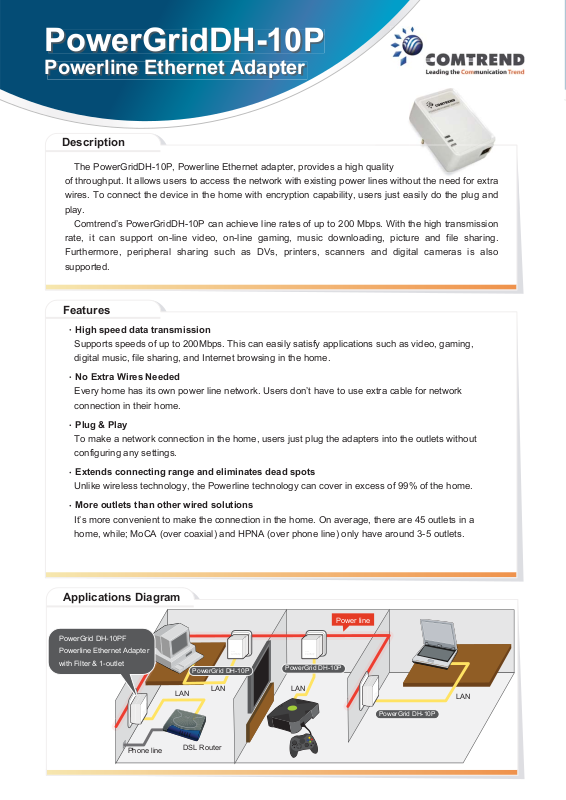

Comtrend POWERGRIDDH-10P DATASHEET
PowerGridDH-10P
Powerline Ethernet Adapter
Description
The PowerGridDH-10P, Powerline Ethernet adapter, provides a high quality
of throughput. It allows users to access the network with existing power lines without the need for extra
wires. To connect the device in the home with encryption capability, users just easily do the plug and
play.
Comtrend’s PowerGridDH-10P can achieve line rates of up to 200 Mbps. With the high transmission
rate, it can support on-line video, on-line gaming, music downloading, picture and file sharing.
Furthermore, peripheral sharing such as DVs, printers, scanners and digital cameras is also
supported.
Features
High speed data transmission
Supports speeds of up to 200Mbps. This can easily satisfy applications such as video, gaming,
digital music, file sharing, and Internet browsing in the home.
No Extra Wires Needed
Every home has its own power line network. Users don’t have to use extra cable for network
connection in their home.
Plug & Play
To make a network connection in the home, users just plug the adapters into the outlets without
configuring any settings.
Extends connecting range and eliminates dead spots
Unlike wireless technology, the Powerline technology can cover in excess of 99% of the home.
More outlets than other wired solutions
It’s more convenient to make the connection in the home. On average, there are 45 outlets in a
home, while; MoCA (over coaxial) and HPNA (over phone line) only have around 3-5 outlets.
Applications Diagram
PowerGrid DH-10PF
Powerline Ethernet Adapter
with Filter & 1-outlet
INE
ERL
ASP
POW
er
Pow
PLC Link/Act
Link/A
Eth
Phone line
Power line
Power
PLC Link/Activity
Eth Link/Activity
PowerGrid DH-10P
ET
ERN
ETH
TER
ty
ivi
y
vit
cti
LAN
LAN LAN
Power
PLC Link/Activity
Eth Link/Activity
PowerGrid DH-10P
ERNET
ETH
INE
TER
ERL
ASP
ty
POW
ivi
/Act
y
Power
vit
cti
k/A
PLC Link
Lin
Eth
PowerGrid DH-10P
LAN
DSL Router
PowerGridDH-10P
Powerline Ethernet Adapter
Specifications
Interface
RJ-45 X 1 for Ethernet connection
Ethernet
Standard IEEE 802.3, IEEE 802.3u
10/100 BaseT Auto-sense
MDI/MDX support Yes
Modulation
OFDM, 1536 Carriers
Flexible frequency configuration
Data Rate
Up to 200Mbps
Management
HTTP Web-based management; Firmware upgrade via TFTP
Security
Mixed DES/3DES encryption guarantees total data security
Network Protocols
802.1D Ethernet Bridge Yes
802.1Q VLAN Yes
Quality of Service (QoS) Yes
Power Requirement
110-240 VAC; 0.1A
Environment Conditions
Operating temperature 0 ~ 40 degrees Celsius
Relative humidity 10 ~ 90% (non-condensing)
Dimensions
64.8 mm (W) x 35.3 mm (H) x 95.7 mm (D)
Certifications
FCC, CE, UL
Note: Specifications are subject to change without notice.
Global contact: sales@comtrend.com
Website: www.comtrend.com
DS_PowerGridDH-10P_R1.1_011007
