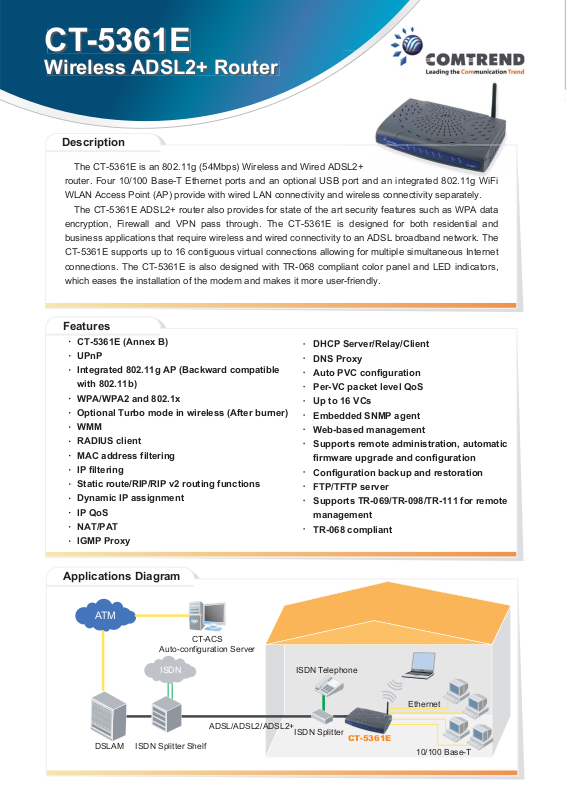

Comtrend CT-5361E DATASHEET

CT-5361E

Wireless ADSL2+ Router

Description

The CT-5361E is an 802.11g (54Mbps) Wireless and Wired ADSL2+

router. Four 10/100 Base-T Ethernet ports and an optional USB port and an integrated 802.11g WiFi

WLAN Access Point (AP) provide with wired LAN connectivity and wireless connectivity separately.

The CT-5361E ADSL2+ router also provides for state of the art security features such as WPA data

encryption, Firewall and VPN pass through. The CT-5361E is designed for both residential and

business applications that require wireless and wired connectivity to an ADSL broadband network. The

CT-5361E supports up to 16 contiguous virtual connections allowing for multiple simultaneous Internet

connections. The CT-5361E is also designed with TR-068 compliant color panel and LED indicators,

which eases the installation of the modem and makes it more user-friendly.

Features

CT-5361E (Annex B)

UPnP

Integrated 802.11g AP (Backward compatible

with 802.11b)

WPA/WPA2 and 802.1x

Optional Turbo mode in wireless (After burner)

WMM

RADIUS client

MAC address filtering

IP filtering

Static route/RIP/RIP v2 routing functions

Dynamic IP assignment

IP QoS

NAT/PAT

IGMP Proxy

Applications Diagram

DHCP Server/Relay/Client

DNS Proxy

Auto PVC configuration

Per-VC packet level QoS

Up to 16 VCs

Embedded SNMP agent

Web-based management

Supports remote administration, automatic

firmware upgrade and configuration

Configuration backup and restoration

FTP/TFTP server

Supports TR-069/TR-098/TR-111 for remote

management

TR-068 compliant

ATM

DSLAM

CT-ACS

Auto-configuration Server

ISDN

ISDN Splitter Shelf

ADSL/ADSL2/ADSL2+

ISDN Telephone

ISDN Splitter

Ethernet

CT-5361E

10/100 Base-T

CT-5361E

Wireless ADSL2+ Router

Specifications

Hareware Interface

RJ-11 X1 for ADSL, RJ-45 X 4 for LAN, Reserved USB X 1 for LAN, Reset button X 1, Power switch X 1,
Wi-Fi Antenna X 1

WAN Interface

ADSL standard ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ANSI T1.413 Issue 2
G.992.5 (ADSL2+) Downstream : 24 Mbps Upstream : 1.3 Mbps
G.992.3 (ADSL2) Downstream : 12 Mbps Upstream : 1.3 Mbps
G.DMT Downstream : 8 Mbps Upstream : 832 Kbps
AnnexM

LAN Interface

Standard IEEE 802.3, IEEE 802.3u
10/100 BaseT Auto-sense
MDI/MDX support Yes

WLAN Interface

Standard IEEE802.11g, backward compatible with 802.11b
Encryption 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
Channels 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
Data Rate Up to 54Mbps
WPA/WPA2 Yes
IEEE 802.1x Yes
Afterburner mode (Turbo mode) Yes (this feature is optional)
WMM Yes

ATM Attributes

RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE); RFC 1577 (IPoA), Annex M
Support PVCs 16
AAL type AAL5
ATM service class UBR/CBR/VBR
ATM UNI support UNI3.1/4.0
OAM F4/F5 Yes

Management

SNMP, Telnet, Web-based management, Configuration backup and restoration
Software upgrade via HTTP, TFTP server, or FTP server
Supports TR-069/TR-098/TR-111 for Remote Management

Bridge Functions

Transparent bridging and learning IEEE 802.1d
VLAN support Yes
Spanning Tree Algorithm Yes
IGMP Proxy Yes

Routing Functions

Static route, RIP, and RIPv2, NAT/PAT, DHCP Server/DHCP Relay/DHCP Client, DNS Proxy, ARP

Security Functions

Authentication protocols PAP, CHAP, TCP/IP/Port filtering rules, Port triggering/Forwarding,
Packet and MAC address filtering, Access control, SSH

QoS

L3 policy-based QoS, IP QoS, ToS

Application Passthrough

PPTP, L2TP, IPSec, VoIP, Yahoo messenger, ICQ, RealPlayer, NetMeeting, MSN, X-box, etc

Power Supply

External power adapter 100 - 240 Vac

Environment Condition

Operating temperature 0 ~ 50 degrees Celsius
Relative humidity 5 ~ 95% (non-condensing)

Dimensions

205 mm(W) x 48 mm (H) x 145 mm (D)

Kit Weight (1*CT-5361E, 1*RJ11 cable, 1*RJ45 cable, 1*power adapter, 1*CD-ROM)

1.1 KG

Note: Specifications are subject to change without notice.

Global contact: [e-mail]
Website: www.comtrend.com

DS_CT5361E_R1.0_110507
