Comnet CNGE2MC User Manual

CNGE2MC

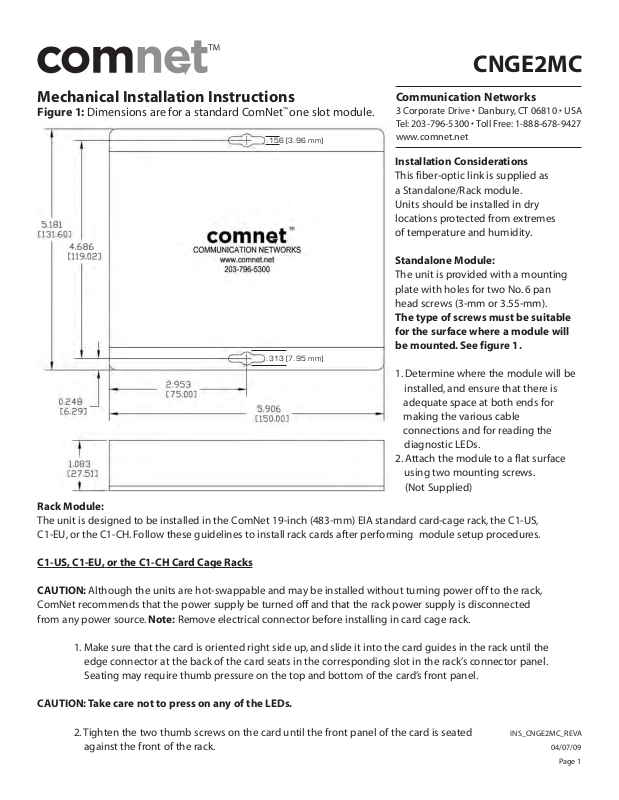

Mechanical Installation Instructions

Figure 1: Dimensions are for a standard ComNet™one slot module.

.156 [3.96 mm]

.313 [7.95 mm]

Communication Networks

3 Corporate Drive • Danbury, CT 06810 • USA
Tel:[phone] • Toll Free: 1-888-678-9427
www.comnet.net

Installation Considerations

This fiber-optic link is supplied as

tandalone/Rack module.

a S
Units should be installed in dry
locations protected from extremes
of temperature and humidity.

Standalone Module:

The unit is provided with a mounting

te with holes for two No.6 pan

pla
head screws (3-mm or 3.55-mm).

The type of screws must be suitable

or the surface where a module will

f
be mounted. See figure 1.

1. Determine where the module will be
installed, and ensure that there is

adequate spac
making the various cable
connections and for reading the

diagnostic LEDs.

2. Attach the module to a flat surface
using two mounting screws.
(Not Supplied)

e at both ends for

Rack Module:

The unit is designed to be installed in the ComNet 19-inch (483-mm) EIA standard card-cage rack, the C1-US,
C1-EU,

C1-US,

CAUTION: Although the units are hot-swappable and may be installed without turning power off to the rack,

ComNet recommends that the power supply be turned off and that the rack power supply is disconnected
from any power source.Not

CAUTION:Take care not to press on any of the LEDs.

or the C1-CH. Follow these guidelines to install rack cards after performing module setup procedures.

C1-EU, or the C1-CH Card Cage Racks

e: Remove electrical connector before installing in card cage rack.

1. Make sure that the card is oriented right side up, and slide it into the card guides in the rack until the
edge connector at the back of the card seats in the corresponding slot in the rack’s connector panel.
Seating may require thumb pressure on the top and bottom of the card’s front panel.

2. Tighten the two thumb screws on the card until the front panel of the card is seated
against the fr

ont of the rack.

INS_CNGE2MC_REVA

04/07/09

Page 1

CNGE2MC

INSTALLATION INSTRUCTIONS

LINK A: YELLOW: Link = Highest Data Rate (1000 Mb/s)

GREEN: Solid = No Activity

Blinking = Activity

GREEN

YELLOW

RJ45

10/100/1000 Mbps ETHERNET 2 PORT

MEDIA CONVERTER

GREEN = Powered On

RJ45: YELLOW: Link = Highest Data Rate (1000 Mb/s)

GREEN: Solid = No Activity

Blinking = Activity
Off = No Link

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.
WARNING: This unit should be installed in a restricted access location; available through the use of a lock and key or other

means of secur
to the location. Any and all precautions should be taken and controlled by the authority responsible for the location.

IMPORTANT SAFEGUARDS:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,

the op

erating ambient temperature of the rack environment may be greater than room ambient.
Therefore,consideration should be given to installing the equipment in an environment compatible with
the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installa
required for safe operation of the equipment is not compromised.

ity. Access should be limited to service personnel who have been instructed about the reasons for the restrictions

tion of the equipment in a rack should be such that the amount of air flow

BLACK WITH WHITE STRIPE

BLACK

INS_CNGE2MC_REVA

04/07/09

Page 2

CNGE22MC

INSTALLATION INSTRUCTIONS

LINK A/B: YELLOW: Link = Highest Data Rate (1000 Mb/s)

GREEN: Solid = No Activity

Blinking = Activity

RJ45

GREEN

YELLOW

RJ45

GREEN

DUAL 10/100/1000 Mbps MEDIA CONVERTER

YELLOW

GREEN = Powered On

RJ45: YELLOW: Link = Highest Data Rate (1000 Mb/s)

GREEN: Solid = No Activity

Blinking = Activity
Off = No Link

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.
WARNING: This unit should be installed in a restricted access location; available through the use of a lock and key or other

means of secur
to the location. Any and all precautions should be taken and controlled by the authority responsible for the location.

IMPORTANT SAFEGUARDS:

A) Elevated Op

the opera
Therefore,consideration should be given to installing the equipment in an environment compatible with
the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installa
required for safe operation of the equipment is not compromised.

ity. Access should be limited to service personnel who have been instructed about the reasons for the restrictions

erating Ambient - If installed in a closed or multi-unit rack assembly,

ting ambient temperature of the rack environment may be greater than room ambient.

tion of the equipment in a rack should be such that the amount of air flow

BLACK WITH WHITE STRIPE

BLACK

INS_CNGE22MC_REVA

05/07/09

Page 2

CNGE2MC-M

INSTALLATION INSTRUCTIONS

GREEN

GIGABIT MEDIA CONVERTER

LINK GREEN:

Solid = No Activity

Blinking = Activity

Off = No Link

YELLOW

RJ45

RJ45: YELLOW: Link = Highest Data Rate (1000 Mb/s)

GREEN: Solid = No Activity

Blinking = Activity
Off = No Link

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.

WARNING: This unit should be installed in a restricted acc

means of security. Access should be limited to service personnel who have been instructed about the reasons for the restrictions
to the location. Any and all precautions should be taken and controlled by the authority responsible for the location.

ess location; available through the use of a lock and key or other

BLACK WITH WHITE STRIPE

BLACK

GREEN = Power On

Communication Networks

3 Corporate Drive • Danbury, CT 06810 • USA
Tel:[phone] • Toll Free: 1-888-678-9427
www.comnet.net

INS_CNGE2MC-M_REVA

04/07/09

Page 1

SFP-(x) Installation/Removal

CAUTION:

- The Fiber Optic sub-module is static sensitive. Use static handling precautions when installing or removing the sub-module.

- Protect your SFP sub-modules by inserting clean dust plugs into the SFP sub-modules after the optical fiber is extracted from

them. Be sure to clean the optic surfaces of the optical fiber before you plug them back into the optical bores of another SFP
sub-module. Avoid getting dust and other contaminants into the optical bores of your SFP sub-modules.The optics will not
work correctly when obstructed by dust.

SFP Module:

- The SFP sub-module installs in the connector cage located on

the unit corresponding to the port assignment to be used.

- The SFP sub-module is keyed and can only be installed

in one orientation.

- The SFP sub-module (see Figure 1) has a bale clasp that you

use t

o secure the SFP sub-module in a connector cage.

The photos used in the following sequence are intended to aid
in the installation and removal of the SFP sub-module and may
not match your particular model.

Figure 1

Installation:

Figure 2

e

Removal:

e

To remov
cage, perform the following steps:

Step 1 - Disconnect the optical fiber from the SFP

Step 2 - Open the bale clasp on the SFP

Step 3 - Grasp the SFP sub-module between your

Step 4 - Install the rubber plugs back into the SFP

e an SFP sub-module from a connector

sub-module.

sub-module by pressing it down with

your index finger as shown in Figure 3.

thumb and index finger and carefully

remove it from the connector cage as
shown in Figure 4.

sub-module optical bores, and place the

SFP sub-module in anti-static protective
packaging.

Figure 3

To insert an SFP sub-module into a connector cage,
perform the following steps:

Step 1 - F

Step 2 - Line up the SFP sub-module with the

Step 3 - When you are ready to attach the optical

Note: When installed properly the SFP

lip the bale clasp up before inserting the

SFP module.

ort and slide it into the port.

p

(see Figure 2)

fiber,remove the rubber plugs from the
sub-module and save for future use.

sub-module will lock in place.

Figure 4

e

INS_CNGE2MC-M_REVA

04/07/09

Page 2
