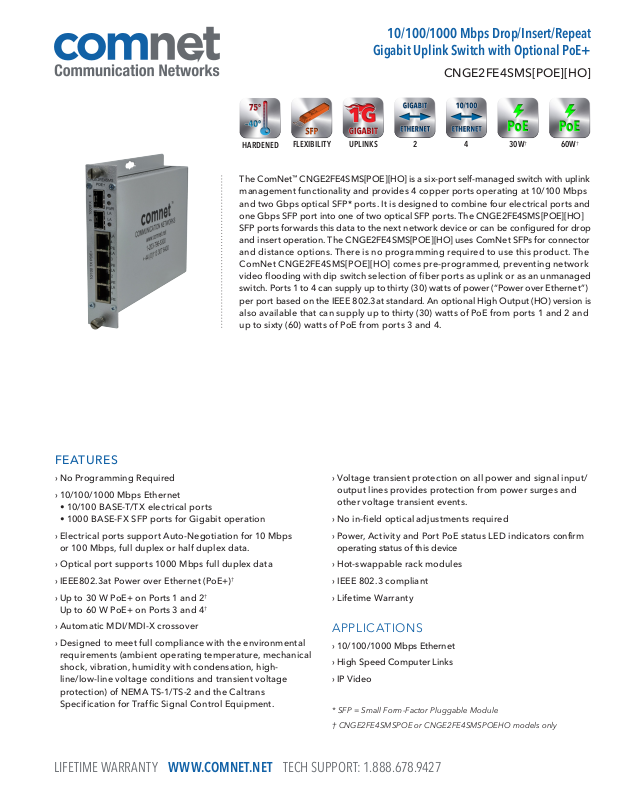

Comnet CNGE2FE4SMS, CNGE2FE4SMSPoE, CNGE2FE4SMSPoEHO Specsheet
10/100/1000 Mbps Drop/Insert/Repeat
Gigabit Uplink Switch with Optional PoE+
CNGE2FE4SMS[POE][HO]
HARDENED
The ComNet™ CNGE2FE4SMS[POE][HO] is a six-port self-managed switch with uplink
management functionality and provides 4 copper ports operating at 10/100 Mbps
and two Gbps optical SFP* ports. It is designed to combine four electrical ports and
one Gbps SFP port into one of two optical SFP ports. The CNGE2FE4SMS[POE][HO]
SFP ports forwards this data to the next network device or can be configured for drop
and insert operation. The CNGE2FE4SMS[POE][HO] uses ComNet SFPs for connector
and distance options. There is no programming required to use this product. The
ComNet CNGE2FE4SMS[POE][HO] comes pre-programmed, preventing network
video flooding with dip switch selection of fiber ports as uplink or as an unmanaged
switch. Ports 1 to 4 can supply up to thirty (30) watts of power (“Power over Ethernet”)
per port based on the IEEE 802.3at standard. An optional High Output (HO) version is
also available that can supply up to thirty (30) watts of PoE from ports 1 and 2 and
up to sixty (60) watts of PoE from ports 3 and 4.
FLEXIBILIT Y
42UPLINKS
30W
†
60W
†
FEATURES
› No Programming Required
› 10/10 0/1000 Mbps Ethernet
• 10/100 BASE-T/TX electrical ports
• 1000 BASE-FX SFP ports for Gigabit operation
› Electrical ports support Auto-Negotiation for 10 Mbps
or 100 Mbps, full duplex or half duplex data.
› Optical port supports 1000 Mbps full duplex data
› IEEE802.3at Power over Ethernet (PoE+)
› Up to 30 W PoE+ on Ports 1 and 2†
Up to 60 W PoE+ on Ports 3 and 4
› Automatic MDI/MDI-X crossover
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, highline/low-line voltage conditions and transient voltage
protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
†
†
› Voltage transient protection on all power and signal input/
output lines provides protection from power surges and
other voltage transient events.
› No in-field optical adjustments required
› Power, Activity and Port PoE status LED indicators confirm
operating status of this device
› Hot-swappable rack modules
› IEEE 802.3 compliant
› Lifetime Warranty
APPLICATIONS
› 10/100/1000 Mbps Ethernet
› High Speed Computer Links
› IP Video
* SFP = Small Form-Factor Pluggable Module
† CNGE2FE4SMSPOE or CNGE2FE4SMSPOEHO models only
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNGE2FE4SMS[POE][HO]
SPECIFICATIONS
10/100/1000 Mbps Drop/Insert/Repeat
Gigabit Uplink Switch with Optional PoE+
Data
Data Interface Ethernet
Data Rate 10/100/1000 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Ports/Full
Duplex Optical Port
Electrical CNGE2FE4SMSPOE Ports 1 – 4: 30 W Max
CNGE2FE4SMSPOEHO Ports 1 and 2: 30 W Max
CNGE2FE4SMSPOEHO Ports 3 and 4: 60 W Max
Fibers1 SFP Dependent
Connectors
Optical Requires selection of sold-separately SFP
modules. See ComNet data sheet for number
and description of SFP modules.
Power Terminal Block
Data RJ45
POE Pin Assignment RJ45 port supports IEEE802.3at
End-point Positive (VCC+): RJ45 pin 1, 2
(RJ45 pin 1,2 and 4,5 on 60W ports)
Negative (VCC-): RJ45 pin 3, 6
(RJ45 pin 3,6 and 7,8 on 60W ports)
LED Indicators - Optical Link/Data Activity
- Electrical Link/Data Activity
- Power - PoE
Power
Operating Voltage 48 to 57 VDC PoE, 12 to 24 VDC non-PoE
Current Draw 5A max, with PoE, 1A w/out PoE
Electrical & Mechanical
Surface Mount Wall or Flat Sur face Screw Attachment
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm)
Shipping Weight <2 lbs./0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)
ORDERING INFORMATION
Part Number Description
CNGE2FE4SMS 6 Port Gigabit and 10/100 Mbps Ethernet Self-managed Switch 2 SFP FX, 4T X
CNGE2FE4SMSPOE 6 Port Gigabit and 10/100 Mbps Ethernet Self-managed Switch 2 SFP FX, 4T X with 30W of PoE+ power
CNGE2FE4SMSPOEHO 6 Port Gigabit and 10/100 Mbps Ethernet Self-managed Switch, 2 SFP FX, 2TX with 60W of PoE+ power, 2TX with 30W of PoE+ power
Included Accessories DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz (included with CNGE2FE4SMS only)
Options Power Supply for PoE Models (Extra charge, order model PS48VDC-5ADIN)
[1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)
1
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J. In a continuing effort to improve and advance technology, product
specifications are subject to change without notice.
TYPICAL APPLICATION
CNGE2FE4SMS
IP
Network
OPTICAL FIBER
CNGE2MC
1000FX
Fiber
Power Power Power
6
5
4
3
2
1000FX Fiber 1000FX Fiber
...
Fast Ethernet
...
1
COPPER CABLE
3 CORPORATE DRIVE
8 TURNBERRY PARK ROAD
© 2014 Communic ation Netwo rks. All Righ ts Reserv ed. “ComNet ” and the “ComNe t Logo” are regi stered tra demarks of Com munication Ne tworks.
|
DANBURY, CONNECTICUT 06810
|
GILDERSOME
|
MORLEY
CNGE2FE4SMSPOE CNGE2FE4SMSPOEHO
6
5
4
3
2
...
...
Fast Ethernet
30W PoE
1
......
4 11
4
INSERTINSERT INSERT
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
6
5
60W PoE
60W PoE
4
3
2
1
30W PoE
30W PoE
Fast Ethernet
|
INFO@COMNET.NET
|
INFO-EUROPE@COMNET.NET
07 Jul 2014
