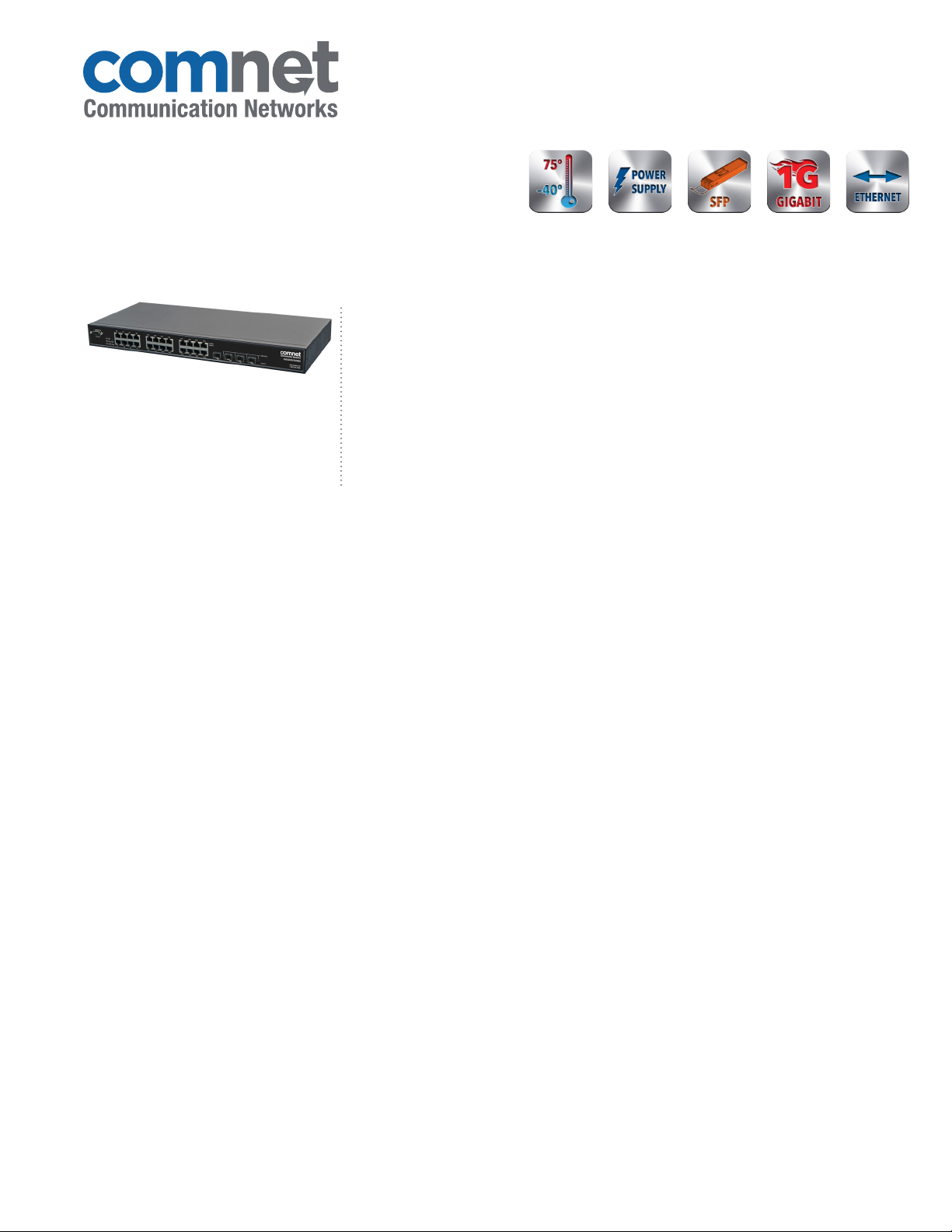

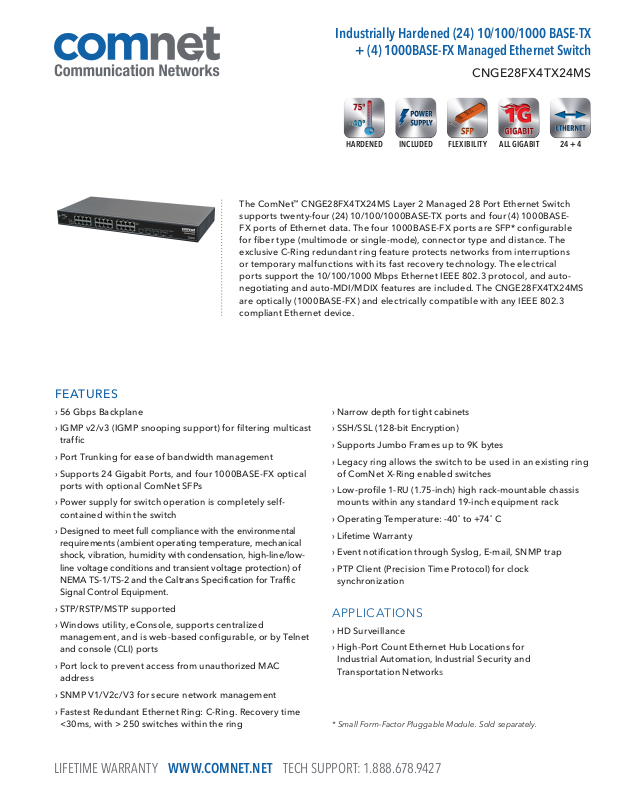

Page 1
Industrially Hardened (24) 10/100/1000 BASE-TX
+ (4) 1000BASE-FX Managed Ethernet Switch
CNGE28FX4TX24MS
24 + 4FLEXIBILIT YINCLUDEDHARDENED ALL GIGABIT
The ComNet™ CNGE28FX4TX24MS Layer 2 Managed 28 Port Ethernet Switch
supp orts t wenty-four (24) 10/100/100 0BASE-TX ports and four (4) 1000BASEFX ports of Ethernet data. The four 1000BASE-FX ports are SFP* configurable
for fiber type (multimode or single-mode), connector type and distance. The
exclusive C-Ring redundant ring feature protects networks from interruptions
or temporary malfunctions with its fast recovery technology. The electrical
ports suppor t the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and autonegotiating and auto-MDI/MDIX features are included. The CNGE28FX4TX24MS
are optically (1000BASE-FX) and elec trically compatible with any IEEE 802.3
compliant Ethernet device.
FEATURES
› 56 Gbps Backplane
› IGMP v2/v3 (IGMP snooping support) for filtering multicast
traffic
› Port Trunking for ease of bandwidth management
› Supports 24 Gigabit Ports, and four 1000BASE-FX optical
ports with optional ComNet SFPs
› Power supply for switch operation is completely self-
contained within the switch
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of
NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
Signal Control Equipment.
› STP/RSTP/MSTP supported
› Windows utility, eConsole, supports centralized
management, and is web-based configurable, or by Telnet
and console (CLI) ports
› Port lock to prevent access from unauthorized MAC
address
› SNMP V1/V2c/V3 for secure network management
› Fastest Redundant Ethernet Ring: C-Ring. Recovery time
<30ms, with > 250 switches within the ring
› Narrow depth for tight cabinets
› SSH/SSL (128-bit Encryption)
› Supports Jumbo Frames up to 9K bytes
› Legacy ring allows the switch to be used in an existing ring
of ComNet X-Ring enabled switches
› Low-profile 1-RU (1.75-inch) high rack-mountable chassis
mounts within any standard 19-inch equipment rack
› Operating Temperature: -40˚ to +74˚ C
› Lifetime Warranty
› Event notification through Syslog, E-mail, SNMP trap
› PTP Client (Precision Time Protocol) for clock
synchronization
APPLICATIONS
› HD Surveillance
› High-Port Count Ethernet Hub Locations for
Industrial Automation, Industrial Security and
Transportation Networks
* Small Form-Factor Pluggable Module. Sold separately.
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
Page 2
CNGE28FX4TX24MS
SPECIFICATIONS
Industrially Hardened (24) 10/100/1000 BASE-TX
+ (4) 1000BASE-FX Managed Ethernet Switch
Ethernet Ports
RJ-45 Port s (24) 10/100/1000Base-TX,
with Auto MDI/MDIX
SFP Ports (4) 1000Base-FX
Ethernet Standards Supported
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
Switch Properties
Switching Latency 7 μs
Switching Bandwidth 56 Gbps
Max. VLANs Available 256
IGMP Multicast Groups 128 for each VL AN
Port Rate Limiting User Defined
MAC Table 8000 MAC addresses available
Priority Queues 4
Processing Store-and-Forward
Jumbo Frame Up to 9600 Bytes
Security Features
Device Binding Security
Enable/Disable Ports, MAC based port security
Port-Based Network Access Control: 802.1x
VLAN (802.1Q): To segregate and secure network traffic
Radius Centralized Password Management
SNMPv3 Encrypted Authentication and Access Security
SSH
TACACS+
Software Features
STP/RSTP/MSTP (IEEE 802.1D/w/s)
C-Ring Redundant Ring: Recovery time <30ms, with over 250 switches within
ring network
TOS/Diffserv Supported
Quality of Service (802.1p) for Real-Time Traffic
VLAN (802.1Q) with VLAN Tagging and GVRP Supported
IGMP Snooping for Multicast Filtering
Port Configuration, Status, Statistics, Monitoring, & Security
DHCP Server / Client support
IP-Based Bandwidth Management
Application-Based QoS Management
DOS/DDOS Auto Prevention
Network Redundancy
C-Ring
Legacy Ring
RSTP
STP
MSTP
Alarms & Monitoring Systems
Syslog Server / Client To record and view events
SMTP For event warning notifications via email
Event Selection Support
RS-232 Serial
Console DB-9 Port: RS-232 @ 115,200 bps, with console cable
(included).
LED Status Indicators
Power For AC operating power
System Ready Indicates switch is in the “ready” mode, or switch
is upgrading firmware
Ring Master Indicates switch is operating in the C-Ring Master
mode
C-Ring (Ring) Indicates switch is operating in the C-Ring mode.
A flashing LED in this mode indicates the network
ring has broken or faulty.
System Running Switch is operating continuously
Supervisor Log-In Switch is being accessed remotely
Reset to Default (DEF) Switch is reset to the default configuration
Ping Command to the Switch Switch is processing a Ping request
RJ-45 Port Bi-color LED indicates 1000 Mbps
or 10/100 Mbps port/link activity
SFP Port Port/link activity
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) Class A
EMS EN61000-4-2
ESD EN61000-4-3
RS EN61000-4-4
EFT EN61000-4-5
Electrical Surge EN61000-4-6
CS EN61000-4-8, EN61000-4-11
Mechanical Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
Page 3
CNGE28FX4TX24MS
SPECIFICATIONS
Industrially Hardened (24) 10/100/1000 BASE-TX
+ (4) 1000BASE-FX Managed Ethernet Switch
Power
Operating Voltage Range 100 to 240 VAC, 50-60 Hz
Power Consumption, Typical 36 Watts
Electrical & Mechanical
Current Protection Overload Current Protected
Enclosure 1-RU high, 19-inch rack-mountable
Size (L×W×H) 17.47 × 7.88 × 1.73 in
(44.37 × 20.00 × 4.4 cm)
Shipping Weight <13 lbs./6 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ to +75˚ C (-40˚ to +167˚ F)
Storage Temp -40˚ to +85˚ C (-40 to +185°F)
Relative Humidity 5% to 95% (non-condensing)
Compliance
Fully compliant with the environmental requirements (ambient operating
temperature, storage temperature, mechanical shock, vibration, humidity
with condensation, high-line/low-line voltage conditions, and voltage
transient protection) of NEMA TS-1/TS-2 and the Caltrans specification for
Traffic Signal Control Equipment.
ORDERING INFORMATION
Part Number Description
CNG E28FX 4TX24MS (24) 10/100/1000 BASE-TX + (4) 1000BASE-FX Managed Switch
Options/Accessories [1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
Rack-mount installation kit (Included)
Console cable (Included)
AC Power cable (Included)
1
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J. In a continuing effort to
improve and advance technology, product specifications are subject to change without notice.
3 CORPORATE DRIVE
8 TURNBERRY PARK ROAD
© 2015 Communic ation Networ ks. All Right s Reserve d. “ComNet ” and the “ComNe t Logo” are regis tered tra demarks of Comm unication Net works.
|
DANBURY, CONNECTICUT 06810
|
GILDERSOME
|
MORLEY
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
|
INFO-EUROPE@COMNET.NET
|
INFO@COMNET.NET
09 Jan 2015
