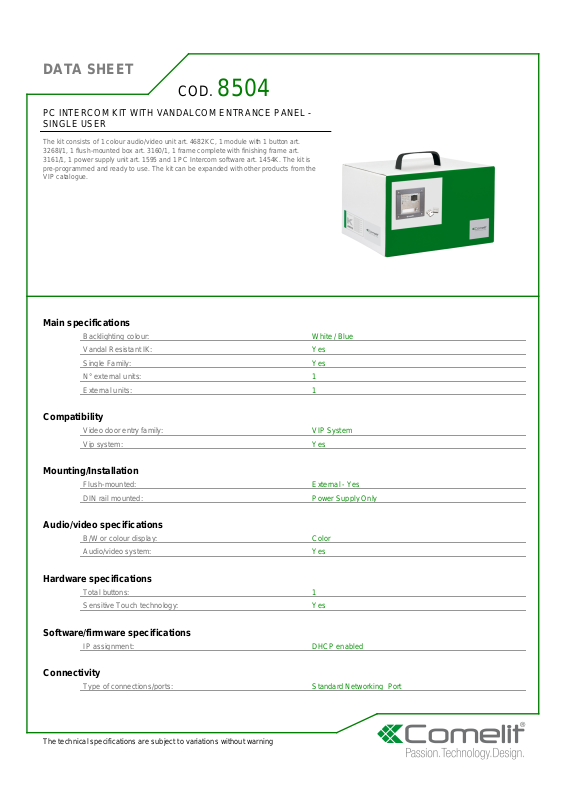

DATA SHEET

COD.

8504

PC INTERCOM KIT WITH VANDALCOM ENTRANCE PANEL ­SINGLE USER

The kit consists of 1 colour audio/video unit art. 4682KC, 1 module with 1 button art.
3268I/1, 1 flush-mounted box art. 3160/1, 1 frame complete with finishing frame art.
3161/1, 1 power supply unit art. 1595 and 1 PC Intercom software art. 1454K. The kit is
pre-programmed and ready to use. The kit can be expanded with other products from the
VIP catalogue.

Main specifications

Backlighting colour: White / Blue
Vandal Resistant IK: Yes
Single Family: Yes
N° external units: 1
External units: 1

Compatibility

Video door entry family: VIP System
Vip system: Yes

Mounting/Installation

Flush-mounted: External - Yes
DIN rail mounted: Power Supply Only

Audio/video specifications

B/W or colour display: Color
Audio/video system: Yes

Hardware specifications

Total buttons: 1
Sensitive Touch technology: Yes

Software/firmware specifications

IP assignment: DHCP enabled

Connectivity

Type of connections/ports: Standard Networking Port

The technical specifications are subject to variations without warning

DATA SHEET

Functions - Settings

Actuator control function: Yes
Privacy conversation function: Yes
Intercom function: Yes
Privacy function: Yes
Key button function: Yes
Full Duplex hands-free function: Yes
Loudspeaker volume control: Yes
Microphone volume control: Yes
Ringtone volume control: Yes

Technical properties

Temperature range (°C): (-25) (+55)

Electrical specifications

Direct voltage output A (V): 1595 - 33 Volts DC / 1441 - 55 Volts DC

General info

Self-ignition: Yes
Customisable ringtone: Yes
Type of finish: Aluminum - External
Product height (mm): External - 4.5 Inches
Product width (mm): External - 4.5 Inches
Product weight: External - 3.5 Pounds
Product colour: Stainless Steel Finish - External / Black or White - Internal

The technical specifications are subject to variations without warning
