Comelit 6754 Specsheet
6750W/U
DOOR ENTRY SYSTEMS
MINI HANDSET AUDIO
1/4
OVERVIEW

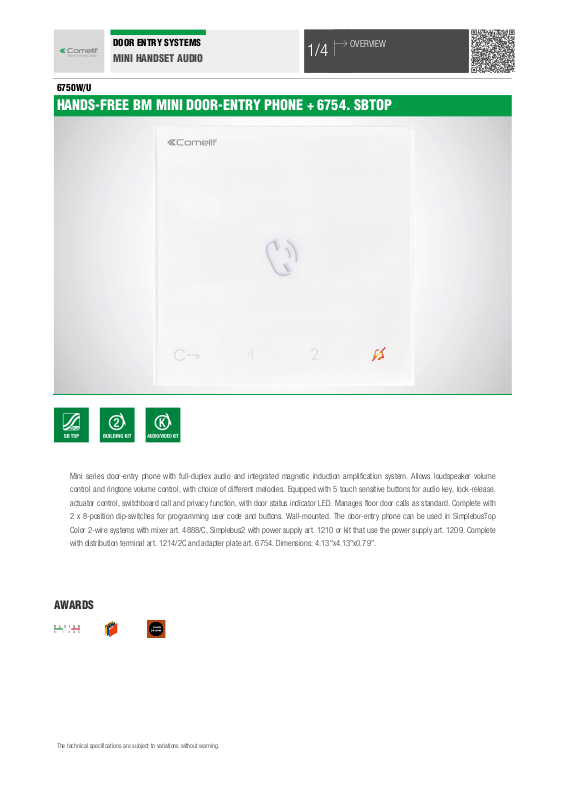

HANDS-FREE BM MINI DOOR-ENTRY PHONE + 6754. SBTOP
Mini series door-entry phone with full-duplex audio and integrated magnetic induction amplification system. Allows loudspeaker volume
control and ringtone volume control, with choice of different melodies. Equipped with 5 touch sensitive buttons for audio key, lock-release,
actuator control, switchboard call and privacy function, with door status indicator LED. Manages floor door calls as standard. Complete with
2 x 8-position dip-switches for programming user code and buttons. Wall-mounted. The door-entry phone can be used in SimplebusTop
Color 2-wire systems with mixer art. 4888/C, Simplebus2 with power supply art. 1210 or kit that use the power supply art. 1209. Complete
with distribution terminal art. 1214/2C and adapter plate art. 6754. Dimensions: 4.13"x4.13"x0.79".
AWARDS
The technical specifications are subject to variations without warning.
DOOR ENTRY SYSTEMS
MINI HANDSET AUDIO
2/4
FUNCTION AND GENERAL DATA
6750W/U
HANDS-FREE BM MINI DOOR-ENTRY PHONE + 6754. SBTOP
MAIN FEATURES
Wall-mounted: Yes
Desk base-mounted: Yes
Hands-free function: Yes
Induction loop function: Yes
Product colour: White
Sensitive Touch technology: Yes
Total buttons: 5
LED signaling (no.): 3
FUNCTIONS
Actuator control function: Yes
Switchboard call function: Yes
Priority calls: Yes
Intercom function: Yes
Selective intercom call: Yes
Call to multiple addresses: Yes
Privacy function: Yes
Doctor: Yes
Floor door call function: Yes
Electronic bell: Yes
Key button function: Yes
HARDWARE SPECIFICATIONS
Removable terminals: Yes
Type of finish: Plastic
GENERAL DATA
Product height (inch): 4.13
Product width (inch): 4.13
Product depth (inch): 0.79
COMPATIBILITY
Simplebus Top audio/video system: Yes
Building Kit audio/video system: Yes
Kit audio/video system: Yes
TECHNICAL CHARACTERISTICS
Power supply voltage (VDC): 22 ÷ 35
The technical specifications are subject to variations without warning.
