Comelit 6402B Specsheet

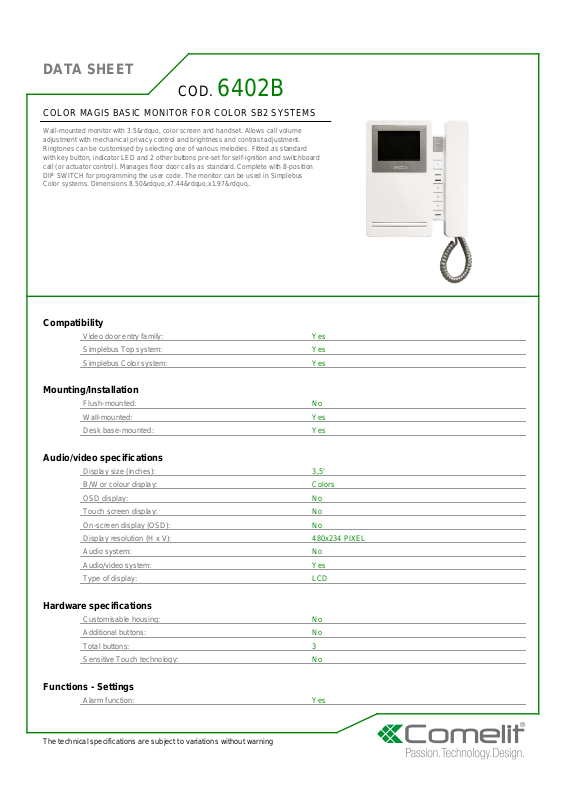

DATA SHEET

COD.

6402B

COLOR MAGIS BASIC MONITOR FOR COLOR SB2 SYSTEMS

Wall-mounted monitor with 3.5&rdquo, color screen and handset. Allows call volume
adjustment with mechanical privacy control and brightness and contrast adjustment.
Ringtones can be customised by selecting one of various melodies. Fitted as standard
with key button, indicator LED and 2 other buttons pre-set for self-ignition and switchboard
call (or actuator control). Manages floor door calls as standard. Complete with 8-position
DIP SWITCH for programming the user code. The monitor can be used in Simplebus
Color systems. Dimensions 8.50&rdquo,x7.44&rdquo,x1.97&rdquo,.

Compatibility

Video door entry family: Yes
Simplebus Top system: Yes
Simplebus Color system: Yes

Mounting/Installation

Flush-mounted: No
Wall-mounted: Yes
Desk base-mounted: Yes

Audio/video specifications

Display size (inches): 3,5'
B/W or colour display: Colors
OSD display: No
Touch screen display: No
On-screen display (OSD): No
Display resolution (H x V): 480x234 PIXEL
Audio system: No
Audio/video system: Yes
Type of display: LCD

Hardware specifications

Customisable housing: No
Additional buttons: No
Total buttons: 3
Sensitive Touch technology: No

Functions - Settings

Alarm function: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Switchboard call function: Yes
Floor door call function: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Induction loop function: No
Intercom function: No
Privacy function: Yes
Key button function: Yes
Hands-free function: No
Display colour control: Yes
Display brightness control: Yes
Loudspeaker volume control: No
Microphone volume control: No
Ringtone volume control: Yes

Technical properties

Temperature range (°C): -5/55

Electrical specifications

Maximum current absorption (mA): 200mA

General info

Self-ignition: Yes
EAN product code: 8023903233605
Intrastat code: 85176910
Customisable ringtone: Yes
Product height (mm): 216
Product width (mm): 189
Product depth (mm): 50
Product colour: WHITE RAL 9003

Packaging

Single pack height (mm): 90
Single pack width (mm): 275
Single pack depth (mm): 248
Single pack volume (dm3): 6,138

The technical specifications are subject to variations without warning
