Code 3 NarrowStik User Manual

INSTALLATION
& OPERATION
MANUAL

NASL547/39
NASL847/39
NAS3547/39
NAS3847/39
NarrowStik
LCC547/39
LC847/39
LC-Stik

NARROWSTIK

™

LC-STIK

3-Up OPTIX

TM

NARROWSTIK

™

™

™

LED NarrowStik

IMPORTANT:

LED LC-Stik

Contents:

Introduction (with

Models ................................................................ 2

Unpacking & Pre-installation .............................. 2

Installation & Mounting ....................................... 3

Permanent Mounting .......................................... 3

Code 3 LP 6000 Series Frame ...................... 3

Code 3 XL 5000 Series Frame ..................... 3

Wiring Instructions ........................................... 4-7

Specifications...................................................... 7

Maintenance ....................................................... 8

Troubleshooting .................................................. 8

Notes ............................................................. 9-11

Warranty ........................................................... 12

Read all instructions and warnings before installing and using.

INSTALLER: This manual must be delivered to the end user of this equipment.

warnings

) .............................. 2

Introduction

The LED NarrowStik® and the LC-Stik are both traffic directing devices that will mount in many locations
including the back of a lightbar or rear panel of a truck. Each Stik is a series of lights that point traffic
away from the scene of an accident or work site.
The LED NarrowStik option utilizes state-of-the-art High-Flux LED lightheads. The LC-Stik utilizes more
economical and less bright Superflux LEDs. These lightheads last longer and use much less current than
standard incandescent lamps.

The use of this or any warning device does not insure that all drivers can or will observe or react
to an emergency warning signal. Never take the right-of-way for granted. It is your responsibility
to be sure you can proceed safely before entering an intersection, driving against traffic,
responding at a high rate of speed, or walking on or around traffic lanes.
The effectiveness of this warning device is highly dependent upon correct mounting and wiring.
Read and follow the manufacturer’s instructions before installing or using this device. The vehicle
operator should insure daily that all features of the device operate correctly. In use, the vehicle
operator should insure the projection of the warning signal is not blocked by vehicle components
(i.e.: open trunks or compartment doors), people, vehicles, or other obstructions.

!

WARNING!

This equipment is intended for use by authorized personnel only. It is the user’s responsibility
to understand and obey all laws regarding emergency warning devices. The user should check
all applicable city, state and federal laws and regulations.
Public Safety Equipment, Inc., assumes no liability for any loss resulting from the use of this
warning device.
Proper installation is vital to the performance of this warning device and the safe operation of the
emergency vehicle. It is important to recognize that the operator of the emergency vehicle is
under psychological and physiological stress caused by the emergency situation. The warning
device should be installed in such a manner as to: A) Not reduce the output performance of the
system, B) Place the controls within convenient reach of the operator so that he can operate
the system without losing eye contact with the roadway.
Emergency warning devices often require high electrical voltages and/or currents. Properly
protect and use caution around live electrical connections. Grounding or shorting of electrical
connections can cause high current arcing, which can cause personal injury and/or severe
vehicle damage, including fire.
PROPER INSTALLATION COMBINED WITH OPERATOR TRAINING IN THE PROPER USE
OF EMERGENCY WARNING DEVICES IS ESSENTIAL TO INSURE THE SAFETY OF
EMERGENCY PERSONNEL AND THE PUBLIC.

Models:

1: NASL847/39: Standard LED-X™ 8-position Amber 47" or 39" NarrowStik

2: NASL847/39XX: LED-X™ 6-position Amber in center, flashing LEDs on the outside positions
3: NASL547/39: LED-X™ 5-position Amber 47" or 39" Narrowstik

4: LC847/39: Standard LED 8-position Amber 47" or 39" LC-Stik
5: LC547/39: LED 5-position Amber 47" or 39" LC-Stik

6: NAS3847/39: Standard 3-Up OPTIX™ 8-position Amber 47" or 39" NarrowStik
7: NAS3847/39XX: 6-position 3-Up OPTIX™Amber in center, flashing LEDs on the outside positions

8: NAS3547/39: LED 5-position 3-Up OPTIX™Amber 47" or 39" Narrowstik

Unpacking & Pre-installation

After unpacking the items, carefully inspect the unit and its associated parts for any damage that may
have been caused in transit. Report any damage to the carrier immediately.

2

Installation & Mounting

The LC-Stik and the NarrowStik™ was designed with a flexible mounting system to allow its use with
as many lightbars as possible. The following installation instructions provide direction for mounting the LC­Stik and NarrowStik to the Code 3® XL 5000TM Series and LP 6000TM Series Lightbar frames. Information
is given, however, so that mounting on other lightbar systems should be possible. Questions about a
specific application should be directed to the Technical Hotline number given on the last page of this
manual.

Permanent Mounting

Prior to mounting, consideration must be given to cable location. The cable should exit the endcap on the
driver's side unless otherwise specified.

LP 6000TM Series Frame:

See Figure 2 ,Figure 3 and Figure 4 below:

"

5

MOUNTING BOLT

16

"

5

FLAT WASHER

16

MOUNTING BRACKET

"

5

MOUNTING BOLT

16

"

5

FLAT WASHER

16

MOUNTING BRACKET

PLASTIC SHIMS

FIGURE 2

LP 6000 SERIES

(EARLY MODEL)

MOUNTING BRACKET

XL 5000TM Series Frame:

See Figure 5 below:

¼" FLAT

WASHER

¼" SPLIT

WASHER

¼" ACORN NUT

FIGURE 4

"

5

ACORN NUT

16

PLASTIC SHIM

MOUNTING BRACKET

"

5

CARRIAGE

16

BOLT

FIGURE 3

LP 6000 SERIES

(LATE MODEL)

FIGURE 5

3

Wiring Instructions

Refer to the manual packaged with the 8 Output LED Narrowstik® Controller
for detailed control head wiring, installation and operation instructions.

Larger wires and tight connections will provide longer service life for components. For high
current wires it is highly recommended that terminal blocks or soldered connections be used
with shrink tubing to protect the connections. Do not use insulation displacement connectors
(e.g. 3M® Scotchlock type connectors). Route wiring using grommets and sealant when
passing through compartment walls. Minimize the number of splices to reduce voltage drop.
High ambient temperatures (e.g. underhood) will significantly reduce the current carrying
capacity of wires, fuses, and circuit breakers. Use "SXL" type wire in engine compartment.

!

WARNING!

All wiring should conform to the minimum wire size and other recommendations of the
manufacturer and be protected from moving parts and hot surfaces. Looms, grommets, cable
ties, and similar installation hardware should be used to anchor and protect all wiring.
Fuses or circuit breakers should be located as close to the power takeoff points as possible
and properly sized to protect the wiring and devices.
Particular attention should be paid to the location and method of making electrical connections
and splices to protect these points from corrosion and loss of conductivity.
Ground terminations should only be made to substantial chassis components, preferably
directly to the vehicle battery.
The user should install a fuse sized to approximately 125% of the maximum Amp capacity in
the supply line to protect against short circuits. For example, a 30 Amp fuse should carry a
maximum of 24 Amps.
DO NOT USE 1/4" DIAMETER GLASS FUSES AS THEY ARE NOT SUITABLE FOR
CONTINUOUS DUTY IN SIZES ABOVE 15 AMPS.
Circuit breakers are very sensitive to high temperatures and will "false trip" when mounted in
hot environments or operated close to their capacity.

1. After installing the Narrowstik / LC Stik, route the 11-wire cable into the vehicle to where the control
head will be mounted.

2. Cut the cable to length and strip back the cable insulation on the 11- wire cable.

3. Connect the red and red/white wires in the 11- wire cable, to the positive (+12V) side of the battery
through a user supplied 15 amp fuse or breaker using an 16 gauge minimum wire or larger.

4. Route a minimum 16 gauge black wire to the battery negative ( ground) (earth). Use the 1/4" insulated
quickslide located in control head parts bag and connect the black 16 gauge wire control head.

5. Remove the 14 position terminal plug from the back of the control head. Connect the remaining
wires, in the 11-wire cable, to the plug as shown in Figure 5, page 5. Connect power to the control head.
See control head manual for auxiliary wire functions.

Note: When installing the Narrowstik / LC-Stik as a Front Facing system, or if it is desired to have

the cable exit from the Passenger side, the LED module control wires will be reversed. See Figure
5, page 5, for details.

6. Check all connections for frayed or shorted wires. Insert the plug back into the Narrowstik control
head.

WARNING!

!

This Product contains high intensity LED devices. To prevent eye damage,
DO NOT stare into light beam at close range.

4

Blue

Yellow

Grey Green TanViolet Orange Brown

DRIVER SIDE PASSENGER SIDE

STANDARD REAR FACING MOUNTING

Input Cable

Blue Yellow Grey Green TanViolet Orange Brown

PASSENGER
SIDE

OPTIONAL FRONT FACING MOUNTING

11-Wire Cable Wire Designations

RED, RED/WHITE Narrowstik® / LC-Stik Power (+12V)
WHITE DIM Control wire
BROWN
ORANGE
TAN INDIVIDUAL
VIOLET L.E.D. MODULE CONTROL WIRES
GREEN (SEE FIGURE 5)
GREY
YELLOW
BLUE

DRIVER
SIDE

Input Cable

VIOLET

GREEN

ORANGE

TAN

TAN

ORANGE

BROWN

WHITE

CONT HD PWR (+12V)

Rear Facing
System

GREY

GREEN

VIOLET

BLUE

YELLOW

GREY

YELLOW

BLUE

WHITE

CONT HD PWR (+12V)

Front Facing
System

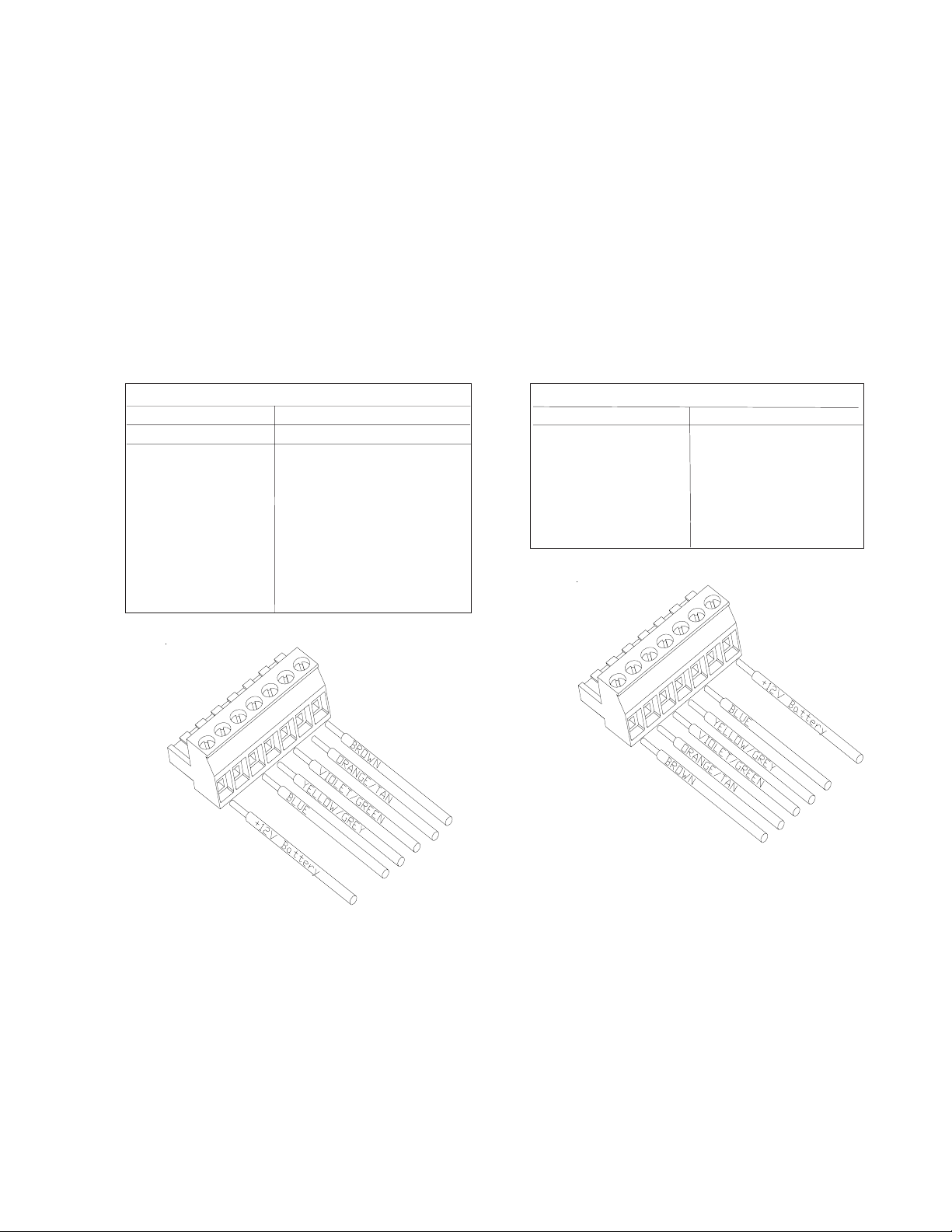

Figure 5

LED Narrowstik / LC-Stik wire designations for front / rear facing
mounting

5

BROWN

Connecting An 11-wire LED Narrowstik cable

to a 5 Output Control Head or RLS System

It may be necessary to retrofit the new 11-wire cable to a 5 output control system. The required connections
are shown below, in Fig. 6, to connect a 5 output control head or a 5 output RLS. Stand alone LED Narrowstiks
and internal Lightbar LED Narrowstiks will follow the same wire designations. Refer to the 5 output control

head user manual, or RLS manual, for control head operation.

New Standard 11-Wire Cable Designations

RED, RED/WHITE Power (+12V) wires
WHITE LED DIM Control
BROWN
ORANGE
TAN Individual
VIOLET LED Control
Wires
GREEN
GREY
YELLOW
BLUE

Existing 7-Wire Cable
Designations

RED, RED/WHITE Power (+12V)wires

BROWN
ORANGE Individual LED control
VIOLET Wires
YELLOW
BLUE

RLS 5 Output Connections

NASLDC, 5 Output Control Head Connections

As shown, the Orange and Tan, Violet and Green, and the Grey and Yellow wires will need to be paired
into each single output as indicated. Note that the each wire shown with two color designations is

actually representing two individual wires into a single output.

Fig. 1

6

Wiring for Narrowstik™ / LC-Stik models with outboard flashing
modules:

When independently flashing modules are selected to replace the standard modules in the outboard positions
the BLUE and the Brown wires will be used to activate these modules and will not be connected to the Blue /
Brown outputs on the control head as usual. Instead the Blue* ( positive) wire can be connected to +12V
and the Brown* ( negative ) wire can be connected to the AUX output on the control head. When the AUX
button is activated the flashing modules will be enabled. Refer to the control head manual for further details on
use of the AUX function.

Alternatively the Blue (positive) wire can be connected through a switch to +12V and the Brown ( negative )
wire can connected to ground. When the switch is closed the Flashing modules will be enabled.

Dual Color LC-Stik models:

To enable the Red/Blue half of the dual color heads, touch the White wire to ground. To disable
the red/blue half of the dual color heads when the control head is active, you will need the LC-Stik
override circuit ( S81499) which is included with all dual color LC-Stik models. When installed this
module will disable the red/blue half of the LC-Stik. See the override circuit manual for specific
wiring details.

Note: The White wire on a dual color LC-Stik module
is not for dimming. There is no dimming feature on an
LC-Stik.

Dimming

All Narrowstik models come equipped with a DIM, low power, mode as standard that allows the
user to reduce the L.E.D. intensity, if desired. The current consumption is also significantly reduced
in this mode ( approximately 60% ). Dim mode is controlled by the White wire in the 11-wire cable,
see figure 5, page 5. When +12V is applied to this white wire the modules will DIM until removed.
The Narrowstik control head has an output dedicated to provide this +12V, see the Control Head
manual for details.
Note: This feature is not available on LC-Stik models.

The Dim setting reduces the light output of emergency warning lights reducing the
effectiveness of them especially in brightly lit areas. Failure to use adequate light

WARNING!

!

WARNING!

for the circumstances can cause motorists to
fail to see the emergency vehicle and lead to serious personal injury or death.
Never use the DIM setting in a brightly lit area. Use of the DIM setting may cause
emergency lights to not comply with applicable emergency warning light standards.
Use caution when using the DIM setting to assure that motorists can clearly see
the emergency vehicle.

Specifications

NASL-847 & LC847

LC/NASL-847 Size: 48-1/2" L, 2-7/8" W, 2" H

Operating Voltage : 10 - 16VDC

Current Draw : 8 Head NASL 5 Head NASL 8 Head LC 5 Head LC

Average : 4 A 2.5A 1.0A .625A
Maximum : 8 A 5 A 2.0A 1.2A

Note: Current consumption is reduced by approximately 60% when in DIM mode. LC-Stik versions do not have
a DIM mode.

7

Maintenance

The NarrowStik™ and LC-Stik require minimal routine maintenance. Occasional cleaning of the lens is all that is
required to sustain maximum light output. Water or Code 3® lens polish and a very soft cloth is needed for cleaning.
The plastic scratches easily, so cleaning is recommended only when necessary. The lens should not be removed
at any time.

Parts List

Name Type Part Number
LED Lightheads Narrowstik Contact Code 3 for Replacements

LC-Stik Amber T07090
LC-Stik Red/Amber T07549
LC-Stik Blue/Amber T07550

Chassis Extrusion 39" T07964

47" T07965

Cable 22' Narrowstik T09695

LC-Stik T13195

Endcap T09502

Troubleshooting

Verify that all connections for the Narrowstik / LC-Stik are correct as detailed in this manual. Each
head can be checked by placing POWER on the red and red/white wires while grounding each
individual LED control wire (see figure 5, page 5).If any heads do not light replace with a new L.E.D.
module or return the entire unit for service. If all heads are functioning refer to the control head
manual for troubleshooting details related to the control head. Refer to the back page of this manual
for service information.

8

NOTES

9

NOTES

10

NOTES

11

WARRANTY

Code 3, Inc. L.E.D. emergency devices are tested and found to be operational at the time of
manufacture. Provided they are installed and operated in accordance with manufacturer's
recommendations, Code 3 , Inc. guarantees all parts and components to a period of 5 years (unless
otherwise expressed) from the date of purchase or delivery, whichever is later. Units demonstrated
to be defective within the warranty period will be repaired or replaced at the factory service center
at no cost.

Use of inappropriate or inadequate wiring or circuit protection causes this warranty to become void.
Failure or destruction of the product resulting from abuse or unusual use and/or accidents is not covered
by this warranty. Code 3, Inc. shall in no way be liable for other damages including consequential, indirect
or special damages whether loss is due to negligence or breach of warranty.

CODE 3, INC. MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY INCLUDING, WITH­OUT LIMITATION, WARRANTIES OF FITNESS OR MERCHANTABILITY, WITH RESPECT TO THIS
PRODUCT.

PRODUCT RETURNS

In order to provide you with faster service, if you are going to return a product for repair or replace­ment*, please contact our factory to obtain a Return Goods Authorization Number (RGA number) before
you ship the product to Code 3® . Write the RGA number clearly on the package near the mailing label.
Be sure you use sufficient packing materials to avoid damage to the product being returned while in
transit.

*Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for
expenses incurred for the removal and/or reinstallation of products requiring service and/or repair.; nor for the packaging,
handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.

NEED HELP? Call our Technical Assistance Hotline - [phone].

10986 N. Warson Road

www.code3pse.com

©2001-6, Code 3, Inc. Printed in USA

LP 6000, XL5000 and NarrowStik are trademarks of Code 3, Inc. a subsidiary of Public Safety Equipment, Inc.
3M is a registered trademark of 3M Company

St. Louis, Missouri 63114-2029—USA

Revision 11, 02/2006- Instruction Book Part No.T05765

Code 3, Inc.
