Cobra CP706 User Manual

OPERATING INSTRUCTIONS FOR YOUR

C O R D L E S S T E L E P H O N E

MODEL CP-706

How To Use Your

Cordless Telephone Model CP-706

U.S. PATENT 4876709

Introduction

Thank you for your purchase of a Cobra® INTENNA® Cordless Telephone
— the world’s first and only full-range-power cordless telephone without

any external antennas!

No more extending, bending, or breaking the telescopic metal antennas
found on traditional cordless phones — your Cobra INTENNA conceals its
antenna systems inside the handset and base, where they should be, out of
your way.

Now you can install your new Cobra INTENNA cordless phone virtually
anywhere. Without cumbersome external antennas to worry about, put your
new phone anywhere a corded phone can go! Then enjoy the freedom of
using your new cordless phone all over the house as well as outside in your
yard.

Your new Cobra Model CP-706 is the first INTENNA to be equipped with
the new Privacy Feature, which uses voice scrambling to ensure totally
private telephone conversations. It has ten selectable channels (the maxi­mum number available) for optimum interference-free use. And its patented
Cobra Clear Call® PLUS Circuitry with compander noise-reduction system
ensures corded-phone sound quality.

Please take a moment to review this booklet and become familiar with all of
the many user-friendly convenience features built into your new Cobra
INTENNA Cordless Phone.

If you need further assistance installing or using your new INTENNA
Cordless Telephone, please call our toll-free consumer “hotline” at 1-800-
COBRA 22 (1-800-262-7222), open 8:00 a.m. to 9:00 p.m. (Central Time)
Monday through Friday, 8:30 a.m. to 5:00 p.m. Saturday and Sunday(except
holidays).

1

Cobra

®

®

Cordless Telephone Model CP-706

Table of Contents

SUBJECT PAGE

Introduction................................................................................................................ 1

Installation Information ............................................................................................ 3

Quick Set-Up Guide .................................................................................................. 4

Wall-Mounting Instructions..................................................................................... 5

Using Your Phone...................................................................................................... 6

Answering/Placing Calls at the Base...................................................... 6

Answering/Placing Calls Away From The Base................................... 6

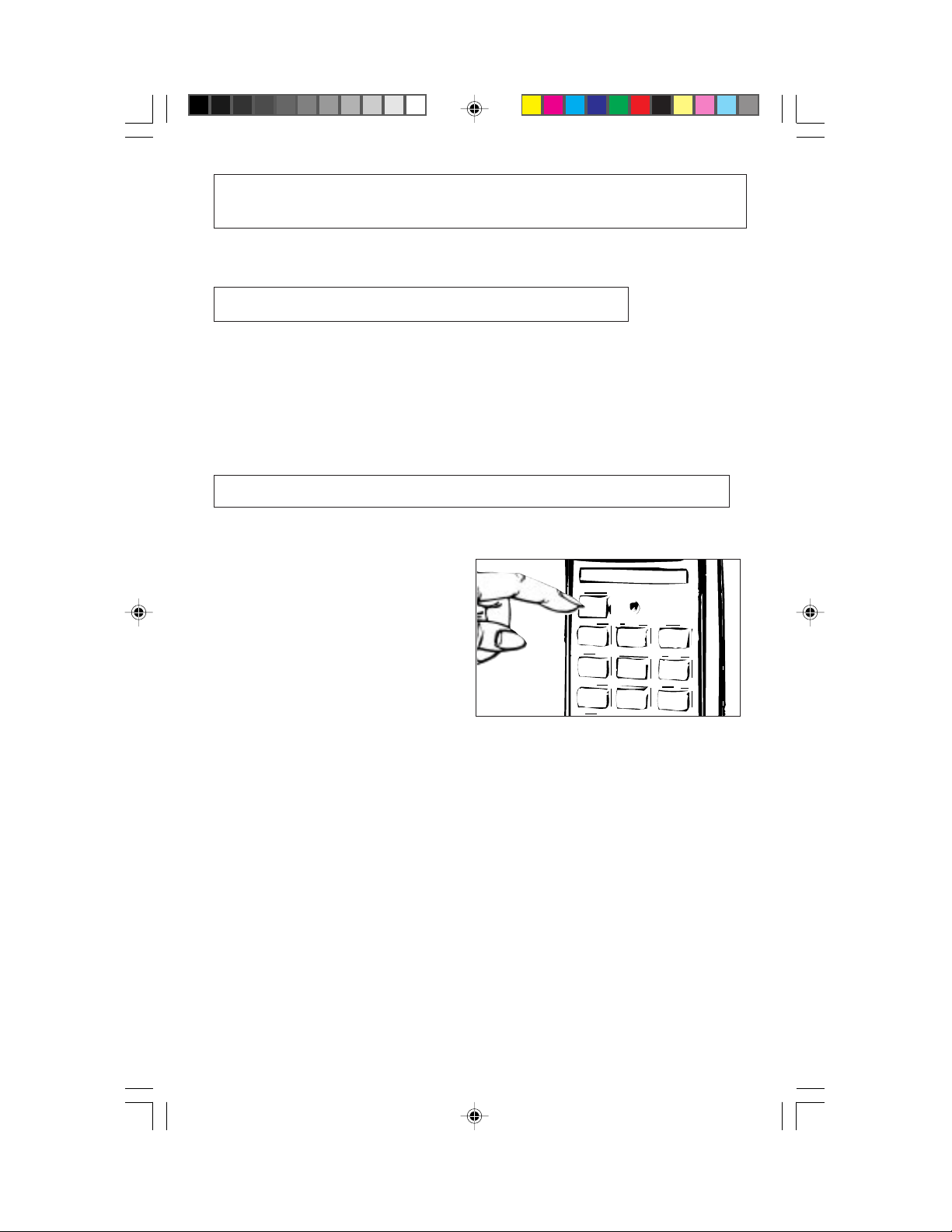

Cordless Phone Operational Features .................................................................... 7

Battery Saver Circuitry .............................................................................. 7

Channel Selection....................................................................................... 7

Compander Noise Reduction................................................................... 7

Digital Security ........................................................................................... 8

Display Window ........................................................................................ 8

Flash ............................................................................................................. 8

Hearing Aid Compatibility....................................................................... 8

INTENNA System ..................................................................................... 8

Last Number Redial................................................................................... 8

Out-of-Range Signal................................................................................... 8

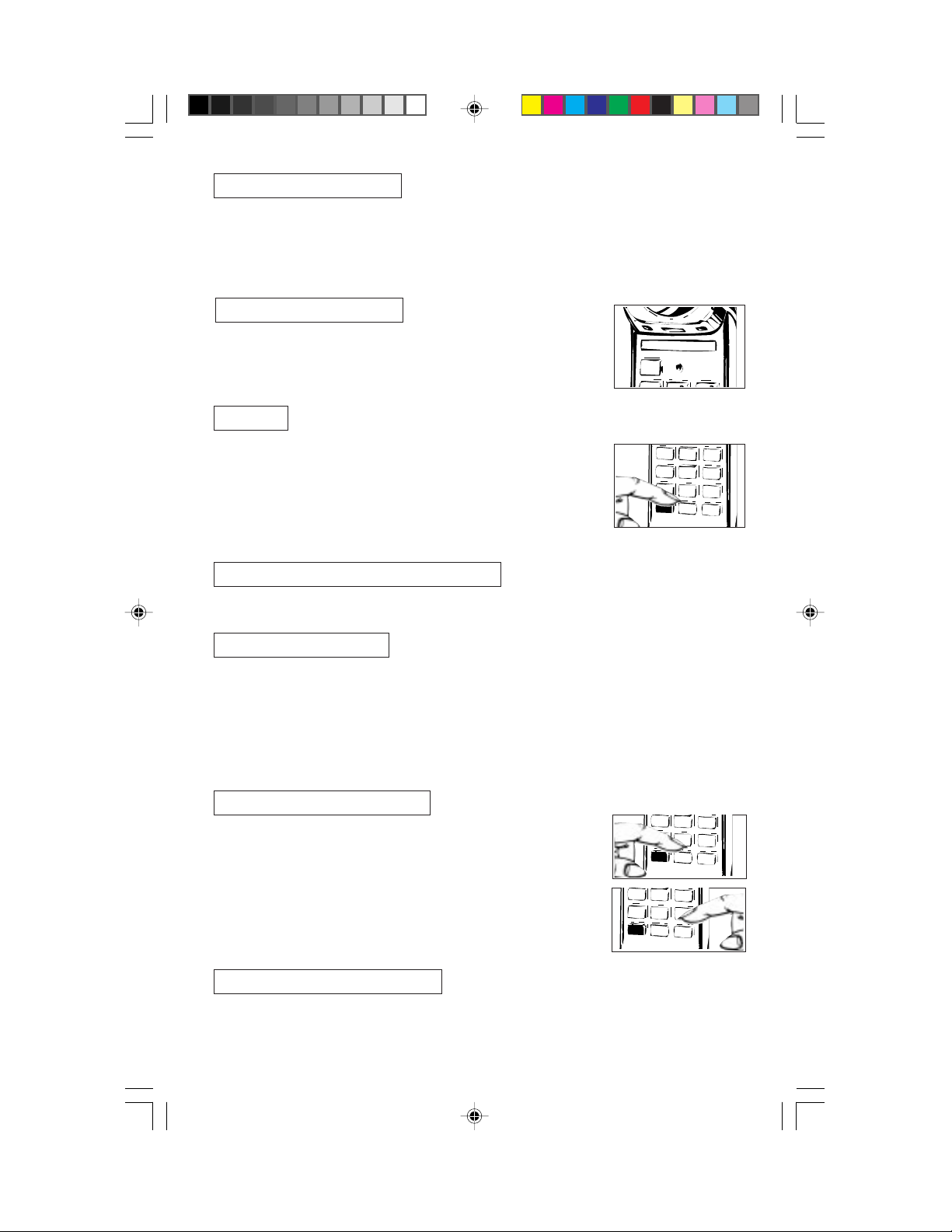

Page/Find.................................................................................................... 9

Power Failure Reset ................................................................................... 9

Privacy Feature ........................................................................................... 9

Pulse/Tone Switch ..................................................................................... 9

Ringer Switch .............................................................................................. 9

Secur-Loc

Rechargeable Battery Information ........................................................................ 10

Battery Recharging................................................................................... 10

Replacing the Battery......................................................................... 10, 11

Battery Disposal........................................................................................ 11

Cleaning The Charging Contacts .......................................................................... 11

About Cordless Phone Performance..................................................................... 12

INTENNA Cordless Telephone Troubleshooting Guide .................................. 13

Important Safety Instructions .......................................................................... 14, 15

If You Think You Need Service ............................................................................. 16

Registered with the FCC......................................................................................... 16

Limited One-Year Warranty .................................................................................. 17

Cordless Phone Accessories ....................................................... Inside Back Cover

®

.................................................................................................................................... 9

2

Installation Information

Maximum range is obtained by installing the base unit in the highest living

area of your home. The location you choose must be near an electrical outlet
and a telephone wall jack.

HANDSET

BASE UNIT

CHARGE INDICATOR

TALK BUTTON

TALK & BATTERY
LOW INDICATOR

CHANNEL
BUTTON

10 CHANNEL

TALK

A
B

1

2

C

G

J

H

K

4

I

5

L

P

T

R

U

78

S

V

O
P

0

R

✱

CHAN

FLASH

Cobra

INTENNA

10 CHANNEL

TALK/BAT

D
E
F

M

N
O

W
X
Y

#

REDIAL

®

G
H
I

3
6
9

ACCESSORIES

PHONE
NUMBER
DISPLAY
WINDOW

REDIAL BUTTON

FLASH BUTTON

POWER 9V DC

RINGER ON/OFF
SWITCH

Cobra

INTENNA

PRIVATE CALL

10 CHANNEL

®

®

™

AC ADAPTER (1)

PULSE/TONE
SWITCH

CHARGE

PHONE

PAGE / FIND

3

PHONE (IN USE)
INDICATOR

PAGE/FIND
BUTTON

Quick Set-Up Guide

The following basic steps enable quick and easy installation of your new
Cobra INTENNA Cordless Phone for use on a desk or countertop. You are
encouraged to review this complete instruction manual to become familiar
with all of the operating instructions and features of your new phone.

NOTE: Before using, connect your new system to AC power (see instruc­tions below) to charge it overnight (at least 12 hours) for optimum condi­tioning of the rechargeable battery inside the cordless handset.

1. Insert round connector of power adapter into POWER jack (at rear of

cordless phone’s base; see diagram #1 below). Plug power adapter into a
standard 110 VAC household electrical outlet. Then place handset in
base so CHARGE indicator lights (see p. 10).

BASE UNIT—
REAR VIEW

ON/OFF

➂

RINGER SWITCH

PULSE/TONE

√

SWITCH

①

HANDSET

Diagram #1

Connecting

power and

telephone

AC POWER JACK

①

≠

ELECTRICAL OUTLET

2. After charging, remove the twist-tie from the phone cord and plug the

modular telephone connector into the phone jack on your wall (see
above).

3. Make sure that the RINGER switch is ON (located on base; see p. 9 for

details).

4. Set the PULSE/TONE switch (at the rear of the base) for proper opera-

tion (see page 9 for details).

Note: Make sure you have charged handset in base 12 hours before
using.

4

MODULAR PHONE JACK

≠

Wall Mounting Instructions

The following steps enable installation on a new or existing telephone wall­mounting plate or directly onto a wall. (Your Cobra INTENNA is designed

to be used with any AT&T, GTE, local phone company or other wall-mount­ing plates that can be purchased from most local electronics stores.)

• Press telephone cord into slots under the base and wrap around cord­storage area (as shown in diagram #2, below).

• Plug modular phone connector into telephone wall jack; attach the
power adapter to the POWER connection (on the base of the phone) and
plug into to a household AC power outlet.

• Align mounting studs on the plate to the holes on the bottom of the
INTENNA base; push base onto studs and slide down on the wall plate.

Modular Phone Jack

Cord

Storage Area

Mounting Studs

To install directly on any wall, you’ll need to provide two screws and wall
anchors; follow these steps:

• Drill two holes 3 1/4” apart and insert the wall anchors.

• Drive the screws into the anchors until the head of each screw is
protruding about 1/8” from the wall.

• Align the holes in the cordless base over the screw heads; push base

Diagram #2:

Installation on a

telephone wall­mounting plate

in and slide down on screws (see diagram #3).

• Plug modular phone connector into telephone wall jack; attach the
power adapter to the POWER connection (on the base of the phone; see
p. 4) and plug into to a household AC power outlet.

Note: Make sure you have charged the handset at least 12 hours before use.

Screw Heads

Diagram #3:

Installation

directly on a wall

Modular Phone Jack

5
