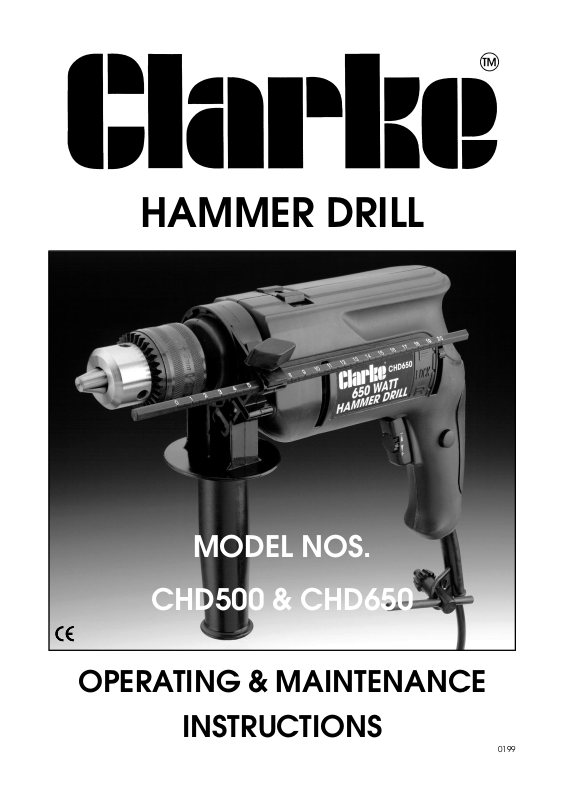

HAMMER DRILL
MODEL NOS.
CHD500 & CHD650
OPERATING & MAINTENANCE
INSTRUCTIONS
0199
Thank you for purchasing this CLARKE 13mm Electronic Hammer Drill.
Please read this booklet thoroughly. Your Clarke Hammer Drill will give excellent service if it
is used carefully and in accordance with the following advice and recommendations.
Never use excessive force and as with all tools, it should be treated with care and respect.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase. This guarantee
is invalid if the product is found to have been abused or tampered with in any way, or not
used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to
us without prior permission. This guarantee does not effect your statutory rights.
TECHNICAL DATA
CHD 500 CHD650
Motor 230V 50Hz 230V 50Hz
Power Input 500Watts 650Watts
Chuck Capacity 1.5 - 13mm 1.5 - 13mm
Speed Range 0 - 2,200RPM 0 - 2,800RPM
Sound Pressure Level LPA 82 dB(A) LPA 82 dB(A)
Vibration a
Weight 1.5kg 2.2kg
Part No. 6480020 6480030
w
10 m/s
2
10 m/s
2
Please note that the details and specifications contained herein, are correct at the time of going to
print. However, CLARKE International reserve the right to change specifications at any time without
prior notice. Always consult the machine’s data plate
SPARE PARTS AND AFTER SALES SERVICE
For Spare Parts and Servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS - 0181 558 6696 : SERVICE - 0181 556 4443
PARTS & SERVICE FAX - 0181 558 3622
PARTS E-MAIL - Parts@clarkeint.co.uk
SERVICE E-MAIL - Service@clarkeint.co.uk
2
GENERAL SAFETY PRECAUTIONS
• Keep your Clarke drill and all other power tools out of reach of children.
• Keep the drill dry - do not use near water, steam or flammable liquids.
• When drilling into walls, ceilings and floors, check first for concealed services, i.e. Water,
Electric and Gas.
• Always wear safety goggles*. Take particular care when drilling overhead.
• We recommend the use of an appropriate dust mask*.
• Loose clothing and long hair can prove a danger if caught up in machinery. take
suitable precautions.
• The level of noise may exceed 85 dB(A) when hammer drilling into concrete/masonry
etc,. in which case we strongly recommend the use of ear defenders*.
• Always disconnect from the mains supply when changing bits and for all adjustments
and maintenance work.
• Always protect the mains cable, be aware of your suroundings. Do not allow the cable
to rest on hot surfaces, sharp edges, in oil or acids etc.
• Before plugging in to the mains supply, ensure the operating switch IS NOT LOCKED.
• When using an extension cable, ensure it is completely unwound from the drum.
• DO NOT carry the drill by the cable.
• DO NOT pull on the mains cable to disconnect from the mains supply.
• Always make sure you have a firm and secure stance when using the drill particularly
when on a ladder or scaffold.
• Ensure that all workpieces are firmly secured before commencing operations
*Contact your CLARKE dealer for information regarding the various safety products available.
GENERAL ADVICE ON DRILLING
• Many different types of drill bits are now available to cope with different materials and
situations. We recommend you always follow manufacturers instructions for their use.
• After drilling material to the full depth, do not simply pull out the drill but maintain
chuck rotation to ease withdrawal.
• Keep drill bits sharpened for optimum performance.
• Replace any drill or screw bits which break or become badly worn.
• Always drill directly in line with the bit. Do not use sideways movement as this may
damage the drill or cause the bit to break.
ASSEMBLY
Slide the auxiliary handle over the chuck sothat it is either to the left or to the right, to suit
your requirement, with the locking screw uppermost.
Before tightening the locking screw, slide the depth gauge into its holder.
It is a simple matter to slacken the locking screw so that the handle may be rotated to the
most comfortable position for the job in hand and then re-tightened.
3
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard 230Volt (50Hz) electrical supply through a BS 1363
approved, 13 amp plug, or suitably fused isolator switch.
WARNING! THIS APPLIANCE IS DOUBLE INSULATED
IMPORTANT:The wires in the mains lead are coloured in accordance with the following
code:
Blue - Neutral
Brown - Live
As the colours of the flexible cord of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:
Connect BROWN cord to terminal marked with a letter ‘L’ or coloured RED
Connect BLUE cord to terminal marked with a letter ‘N’ or coloured BLACK
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. nonrewirable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the the correct
replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.
FUSE RATING
The fuse in the plug for this appliance must be rated at 5 amps.
MAINTENANCE
• Always keep the drill clean - free from dirt, grease, oil or other contaminants.
• Do not use solvents to clean plastic parts.
• If sparking within the housing becomes excessive, clean the carbon brushes.
(If necessary, consult your Clarke dealer).
• Always ensure the ventillation holes are kept clear.
• Inspect the mains cable frequently and have it renewed if damage is apparent.
CHUCK REPLACEMENT
Open up the jaws of the chuck and, holding the chuck securely to prevent it from turning,
undo the centre screw within, using a cross head screwdriver, noting that it has a LEFT HAND
thread. With the securing screw removed, unscrew the chuck from the drive shaft, noting it
has a right hand thread.
NOTE: The CHD650 has a ‘lock’ facility incorporated in the Forward/Reverse switch, which
may be used to lock the motor in order to facilitate removal of the chuck.
4
CONTROLS ~ CHD500
ON/OFF Switch
To switch ON: Press switch A
Continuous Operation: Press switch A and lock by
pressing button B
To switch OFF: Press switch A briefly and
then release
NOTE: The speed is varied by applying more or less
pressure on switch A. The speed may be pre-selected
by turning the knurled knob C, within switch A
Forward/Reverse Selection
Push lever switch (D) to either F (Forward) or R
(Reverse)
DO NOT operate this switch unless the drill has
completely stopped.
Hammer Selection
Push the slide switch, on top of the
drill, to the ‘Hammer’ position ~
denoted by a hammer symbol.
For all normal drilling oprerations,
select the ‘Drill’ position (particularly
when drilling tiles, ceramics etc).
DO NOT operate this switch until the
drill has stopped.
Selector switch: Hammer/Drill
5
CONTROLS ~ CHD650
ON/OFF Switch
To switch ON: Press switch A
Continuous Operation: Press switch A and
lock by pressing
button B
To switch OFF: Press switch A briefly and
then release
NOTE: The speed is varied by applying more or less
pressure on switch A. The speed may be pre-selected
by turning the knurled knob C, within switch A
Forward/Reverse Selection
Forward: Push the Forward/
Reverse lever to
position F
Reverse: Push the Forward/
Reverse lever to
position R
Lock: Push the Forward/
Reverse lever to
‘LOCK’ position to
lock motor.
Hammer Selection
Push the slide switch, on top of the
drill, to the ‘Hammer’ position ~
denoted by a hammer symbol.
For normal drilling the switch should
be in the ‘Drill’ position (particularly
when drilling tiles, ceramics etc).
DO NOT operate this switch until the
drill has stopped.
Selector switch: Hammer/Drill
6
CHD 500 & 650
No. Description Part No.
1 Chuck .......................................................................... NJ425860002
2 Chuck Security Screw ................................................ NJ425860001
3 Auxiliary Handle complete ....................................... NJ500001
4 Depth Gauge ............................................................. NJ425890006
5 Chuck Key................................................................... NJ425890026
6 Cable Shroud w/chuck key holder ......................... NJ425880023
7 Mains cable complete .............................................. NJ443020050
- Brush set (CHD 500) .................................................... NJ500002
- Brush set (CHD 650) .................................................... NJ425850010
7
