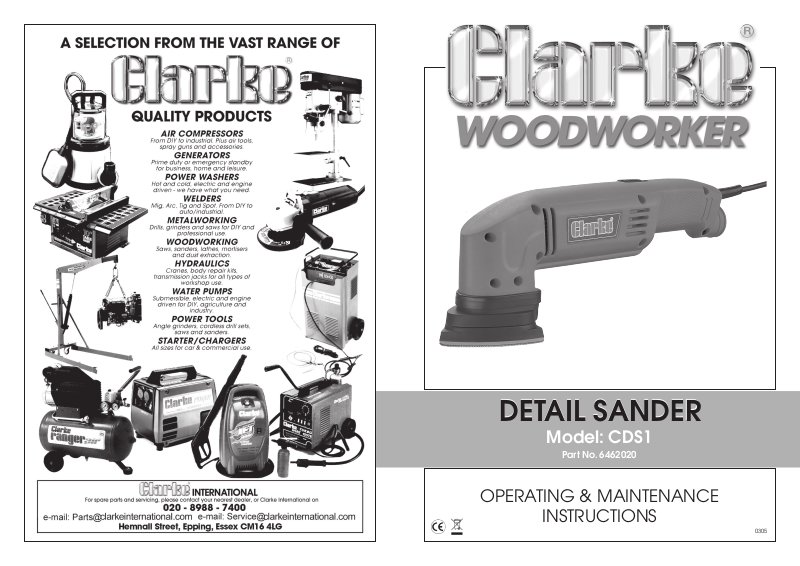

DETAIL SANDER

DETAIL SANDER

Model: CDS1

Part No. 6462020

OPERATING & MAINTENANCE

INSTRUCTIONS

0305

You will note that a third value is given in the specification - the highest measured
reading in a single plane. This is the maximum level of vibration measured during testing
in one of the axes, and this should also be taken into account when making a risk
assessment.

‘a’ values in excess of 2.5 m/s2 are considered hazardous when used for prolonged
periods. A tool with a vibration value of 2.8 m/s2 may be used for up to 8 hours
(cumulative) per day, whereas a tool with a value of 11.2 m/s2 may be used for ½ hour
per day only.

The graph below shows the vibration value against the maximum time the respective
tool may be used, per day.

When disposing of this product, ensure it is disposed of according to all local ordinances

-1-

The uncertainty factor should also be taken into account when assessing a risk. The two
figures ‘a’ and ‘K’may be added together and the resulant value used to assess the risk.

It should be noted that if a tool is used under abnormal, or unusual conditions, then the
vibration level could possibly increase significantly. Users must always take this into
account and make their own risk assessment, using the graph above as a reference.

Some tools with a high vibration value, such as impact wrenches, are generally used for
a few seconds at a time, therefore the cumulative time may only be in the order of a few
minutes per day. Nevertheless, the cumulative ef fect, particularly when added to that of
other hand held power tools that may be used, must always be taken into account when
the total daily dose rate is determined.

-10-

Vibration Emissions

HAND-ARM VIBRATION

Employers are advised to refer to the HSE publication “Guide for Employers”.

Thank you for purchasing this CLARKE Detail Sander, which is designed for DIY and light
workshop use only.

Before attempting to use the machine, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to the Sander giving you long and satisfactory
service.

All hand held power tools vibrate to some extent, and this vibration is transmitted to the
operator via the handle, or hand used to steady the tool. V ibration from about 2 to 1500
herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz.

Operators who are regularly exposed to vibration may suffer from Hand Arm Vibration
Syndrome (HA VS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’. These
are painful conditions and are widespread in industries where vibrating tools are used.

The health risk depends upon the vibration level and the length of time of exposure to
it……in effect, a daily vibration dose.

Tools are tested using specialised equipment, to approximate the vibration level generated
under normal, acceptable operating conditions for the tool in question. For example, a
grinder used at 45° on mild steel plate, or a sander on softwood in a horizontal plane etc.

These tests produce a value‘a’, expressed in metres per second per second, which
represents the average vibration level of all tests taken, in three axes where necessary,
and a second figure ‘K’, which represents the uncertainty factor, i.e. a value in excess of
‘a’, to which the tool could vibrate under normal conditions. These values appear in the
specification panel below.

MODEL No: CDS1

DESCRIPTION: DETAIL SANDER

Declared vibration emmission value in accordance

with EN12096

Measured vibration emmission value -

Uncertainty value -

K:

a:

3.7m/s

1.48m/s

Highest measured reading in a single plane m/s

2

2

2

Values determined according to EN28622-1

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the
date of purchase. Please keep your receipt which will be required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in
any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to
us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Elec. Supply .............................................................. 230V 50Hz 1 ph

Power Rating ........................................................... 280 watt motor

Fuse Rating ............................................................... 5amp

Orbits/min ................................................................. 7,000

Net Weight ............................................................... 1.5kg

Vibration Emissions....................................................Refer to notes on pages 10 & 11

This Product Conforms To 98/37EEC Regulations

Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE

International reserve the right to change specifications at any time without prior notice.

PARTS & SERVICE

For Spare Parts and Service, please contact your nearest dealer, or CLARKE International,

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

PARTS: [e-mail]

SERVICE: [e-mail]

on one of the following numbers.

or e-mail as follows:

-9-

-2-

SAFETY PRECAUTIONS

WARNING:

As with all machinery, there are certain hazards involved with their operation

and use. Exercising respect and caution will considerably lessen the risk of

personal injury. However, if normal safety precautions are overlooked or

ignored, personal injury to the operator or damage to property, may result.

1. ALWAYS Learn the machines’ applications, limitations and the specific potential hazards
peculiar to it. Read and become familiar with the entire operating
manual.

2. ALWAYS use a face or dust mask if operation is particularly
dusty.

3. ALWAYS check for damage. Before using the machine, any damaged
part, should be checked to ensure that it will operate properly, and
perform its intended function.
Check for alignment of moving parts, breakage of parts, mountings, and any other
condition that may affect the machines’ operation. Any damage should be properly
repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your
local dealer.

4. ALWAY S disconnect the tool/machine from the power supply before servicing and when
changing accessories.

5. ALWAYS wear safety goggles, manufactured to the latest European Safety Standards.
Everyday eyeglasses do not have impact resistant lenses, they are not safety glasses.

6. ALWAYS keep work area clean. Cluttered areas and benches
invite accidents.

7. ALWAYS ensure that adequate lighting is available. A minimum
intensity of 300 lux should be provided. Ensure that lighting is
placed so that you will not be working in your own shadow.

8. ALWAYS keep children away. All visitors should be kept a safe distance from the work
area, especially whilst operating the machine.

9. ALWAYS maintain machine in top condition. Keep tools/machines
clean for the best and safest performance. Follow maintenance
instructions.

10. ALWAYS handle with extreme care do not carry the tool/machine
by its’ electric cable, or yank the cable to disconnect it from the
power supply .

11. ALWAYS ensure the switch is off before plugging in to mains. Avoid accidental starting.

12. ALWAYS concentrate on the job in hand, no matter how
trivial it may seem. Be aware that accidents are caused
by carelessness due to familiarity.

13. ALWAYS keep your proper footing and balance at all times
don’t overreach. For best footing, wear rubber soled
footwear. keep floor clear of oil, scrap wood, etc.

Parts Diagram

-3-

-8-

Parts List

Item Part No Description Qty Item Part No Description Qty

1 GRCDS1001 Cable 1
2 GRCDS1002 Cable Support 1
3 GRCDS1003 Screw 2
4 GRCDS1004 Cable Grip 1
5 GRCDS1005 Brush Holder 2
6 GRCDS1006 Brush Lining 2
7 GRCDS1007 Spring 2
8 GRCDS1008 Carbon Brush 2

9 GRCDS1009 Governor 1
10 GRCDS1010 Switch 1
11 GRCDS1011 Pusher 2
12 GRCDS1012 Right Housing 1
13 GRCDS1013 Nameplate 1 1
14 GRCDS1014 Screw 2
15 GRCDS1015 Circuit Board 1
16 GRCDS1016 Stator 1
17 GRCDS1017 Bearing 1
18 GRCDS1018 Rotor 1
19 GRCDS1019 Bearing 1
20 GRCDS1020 Pin 1
21 GRCDS1021 Small Gear 1
22 GRCDS1022 Nut 1

Accessories

23 GRCDS1023 Bearing 1
24 GRCDS1024 Large Gear 1
25 GRCDS1025 Output Shaft 1
26 GRCDS1026 Pin 1
27 GRCDS1027 Bearing 1
28 GRCDS1028 Back Support 1
29 GRCDS1029 Fore Support 1
30 GRCDS1030 Eccentric Wheel 1
31 GRCDS1031 Bearing 1
32 GRCDS1032 Bushing 1
33 GRCDS1033 Spring 1
34 GRCDS1034 Grinding Head 1
35 GRCDS1035 Screw 4
36 GRCDS1036 Grinding Plate 1
37 GRCDS1037 Gasket 1
38 GRCDS1038 Screw 1
39 GRCDS1039 Felt Layer 1
40 GRCDS1040 Screw 3
41 GRCDS1041 Sanding Paper 1
42 GRCDS1042 Screw 9
43 GRCDS1043 Nameplate 2 1
44 GRCDS1044 Left Housing 1

14. ALWAYS wear proper apparel. loose clothing or jewellery may
get caught in moving parts. wear protective hair covering to
contain long hair.

15. ALWAYS use recommended accessories. the use of improper
accessories could be hazardous.

16. ALWAYS remove plug from electrical outlet when adjusting,
changing parts, or working on the machine.

17. NEVER operate machine while under the influence of drugs, alcohol or any medication.

18. NEVER leave machine running unattended. turn power off. Do
not leave the machine until it comes to a complete stop.

19. NEVER force the machine. it will do a better and safer job at
the rate for which it was designed.

20. NEVER use power tools in damp or wet locations or expose
them to rain. Keep your work area well illuminated. do not use
in explosive atmosphere (around paint, flammable liquids etc.).
Avoid dangerous environment.

Additional Precautions For Power Tools

1. ALWAY S wear ear protectors/defenders as the noise level of this machine can exceed

85dB (A).

2. ALWAY S use the appropriate sanding pads for the work being done. Replacement

pads are available from your CLARKE dealer (see parts list for details).

3. ALWAY S keep the mains cable well away from the machine and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by the length of
the cable.

4. ALWAY S switch the machine OFF immediately the task is completed.

5. NEVER allow the ventilation slots in the machine to become blocked.

6. DO NOT use the machine if the electric cable, plug or motor is in poor condition.

7. DONOT exert pressure on the sander to stop quickly, allow it to stop normally.

A wide range of accessories is available from your nearest CLARKE dealer, for further
information, contact your nearest dealer, or telephone CLARKE International Sales
department on 01992 565300.

PARTS & SERVICE TEL: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

-7-

Additionally, please keep these instructions in a safe place for future reference.

DUST EXTRACTION

The sander is provided with a dust extraction facility, where a vacuum extractor, or dust
bag (not supplied), may be connected to the outlet at the rear of the machine. Please
note however, that this does not preclude the user from wearing a face mask to prevent
the inhalation of dust particles.

It is an EEC requirement that a dust extraction facility be provided on power tools, however,
due to the nature of the tool, some of the dust produced will be forced into the surrounding
atmosphere, and will not be collected.

-4-

Electrical Connections

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for
connection to a standard, domestic electrical supply. Should the plug need changing at
any time, ensure that a plug of identical specification is used.

WARNING

This appliance is Double Insulated, and the two wires in the mains lead should

be wired up in accordance with the following colour code:

BLUE - NEUTRAL

BROWN - LIVE

•

Connect the BLUE coloured cord to the plug terminal marked a letter “N”

• Connect the BROWN coloured cord to the plug terminal marked a letter “L”

If this appliance is fitted with a plug which is moulded on
to the electric cable (i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the
electric cable. There is a danger

of electric shock if it is subsequently
inserted into a socket outlet.

2. Never use the plug without the fuse
cover fitted.

3. Should you wish to replace a
detachable fuse carrier, ensure that
the correct replacement is used (as
indicated by marking or colour code).

4. Replacement fuse covers can be
obtained from your local Clarke dealer or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating (5 amps) and this
replacement must be ASTA approved to BS1362.

If in doubt, consult a qualified electrician. Do not attempt any electrical repairs yourself.

CABLE EXTENSION.

Always use an approved cable extension suitable for the power rating of this tool (see
specifications), the conductor size should also be at least the same size as that on the

machine, or larger. When using a cable reel, always unwind the cable completely.

Operation

1. Fitting Sanding Pad.

a) Select pad to be used. (MUST be correct pads with velcro fitting ability).

b) Ensure sander is switched OFF and plug is removed from socket.

c) Line up holes in pad with those on machine pad. (this is necessary for dust

extraction), press pad firmly onto machine pad to secure it.

2. Dust Collection.

The dust collection bag/suction, (not supplied), is fitted to sander duct on sander
handgrip, below the mains cable.

Note :

If using a dust bag, it must be emptied regularly, do not wait until it is completely full.

To operate, insert the plug into the mains socket and switch ON, Holding the sander with
both hands, slide ON/OFF switch (located on top of the machine) forwards, the motor will
now run at full speed.

Offer sander to workpiece and work slowly backwards and forwards across the area to be
sanded until finished. Remove sander from workpiece and slide switch backwards to switch
OFF, (Wait until machine has stopped completely before putting it down.

Maintenance

Always inspect the tool before use, and ensure it is in top condition.

Ensure all air vents are clear, (use compressed air to clean the machine where possible).

Check the power cable to ensure it is sound and free from cracks, bare wires etc. avoid
using solvents when cleaning plastic parts, most plastics are susceptible to damage from
the various types of commercial solvents.

All bearings etc., in this tool are lubricated with a sufficient amount of high grade lubricant
for the tools lifetime under normal operating conditions, therefore no further lubrication is
required.

Trouble Shooting

Sander is overheating

This indicates the machine is dirty. Clean the ventilation holes, and blow out with compressed
air or clean with a dry cloth.

Overloading the machine will also cause overheating. Do not use for heavy duty work, and
do not apply excessive pressure.

-5-

Excessive sparking occurs

This indicates worn brushes. This problem is quickly remedied but you should consult your
CLARKE dealer for parts and advice.

Sander does not operate when switched ON

Check to ensure the fuse is sound and replace if necessary. If the fuse is sound or the blows

-6-
