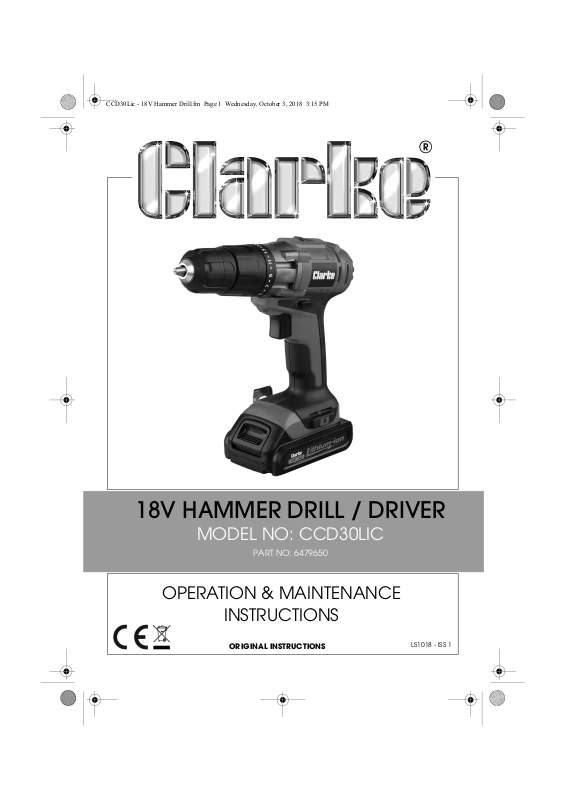

CCD30Lic - 18V Hammer Drill.fm Page 1 Wednesday, October 3, 2018 3:15 PM

18V HAMMER DRILL / DRIVER

MODEL NO: CCD30LIC

PART NO: 6479650

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS

LS1018 - ISS 1

CCD30Lic - 18V Hammer Drill.fm Page 2 Wednesday, October 3, 2018 3:15 PM

INTRODUCTION

Thank you for purchasing this CLARKE 18V Hammer Drill / Driver.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

CARTON CONTENTS

The following items should be supplied in the carton. If any parts are missing or
damaged, please see your Clarke dealer.

1 x 18 V Cordless Hammer Drill / Driver

1 x Battery Charger

2 x Li-Ion Battery Packs (2000 mAh)

1 x Belt Hook

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 3 Wednesday, October 3, 2018 3:15 PM

SAFETY PRECAUTIONS

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR 18V HAMMER DRILL / DRIVER.

1. WORK AREA

a. Keep work area clean and well lit. Cluttered and dark areas invite

accidents.

b. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a. Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges or refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

b. Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

c. When operating a power tool outdoors, use an extension cord suitable

for outdoor use. Use of a cord suitable for outdoor use reduces the risk

of electric shock.

3. PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid safety shoes, or hearing protection used for
appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the off position before

connecting to the power supply.

d. Do not overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

e. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 4 Wednesday, October 3, 2018 3:15 PM

4. POWER TOOL USE AND CARE

a. Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at

the rate which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any

power tool that cannot be controlled with the switch is dangerous and
must be repaired.

c. Disconnect the battery before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d. Store idle tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the
power tools operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power

tools.

f. Keep cutting tools sharp and clean. Poorly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool and accessories in accordance with these

instructions and in the manner intended for the particular type of power
tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended

could result in a hazardous situation.

5. BATTERY TOOL USE AND CARE

a. Recharge only with the charger specified by the manufacturer. A

charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of

any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects,

like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery;

avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 5 Wednesday, October 3, 2018 3:15 PM

6. SERVICE

a. Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power

tool is maintained.

ENVIRONMENTAL PROTECTION

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

SAFETY SYMBOLS

Read instruction
manual before use

Class 2 Double
Insulated

CE Mark Do not Incinerate

WEEE Symbol Do not immerse in

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Indoor Use Only

Maximum Temperature

water

CCD30Lic - 18V Hammer Drill.fm Page 6 Wednesday, October 3, 2018 3:15 PM

BATTERY CHARGING

WARNING: WHEN THE BATTERY IS REMOVED FROM THE DRILL AFTER USE, IT
MAY BE HOT. ALWAYS ALLOW TO COOL BEFORE RECHARGING. DO NOT
RECHARGE A HOT BATTERY.

• The battery pack must be charged before operating the drill.

• The battery should be charged at ambient air temperatures of
between -10

TO CHARGE THE BATTERY PACK, PROCEED AS FOLLOWS.

1. Connect the charger to the mains
supply.

• The green power indicator will

light up.

o

C and 40oC.

2. Slide the battery onto the battery
charger.

• The green power indicator will

go out and the red charging
LED will light up.

3. When the battery is fully charged,
the red charging LED will go out
and the green power LED will light
up.

4. Switch off the charger at the
mains and remove the battery from the charger.

NOTE: Whilst charging, the battery pack and charger may become warm.

This is normal and should be expected.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 7 Wednesday, October 3, 2018 3:15 PM

BEFORE USE

FITTING THE BATTERY

1. Slide the battery pack onto the
base of the handle until it ‘clicks’
into position.

REMOVE THE BATTERY

1. Press and hold the release button
on top of the battery.

2. Slide the battery away from the
base of the handle.

INSERTING DRILL BITS OR SCREWDRIVER BITS

WARNING: BEFORE REMOVING ANY BITS, MAKE SURE THAT THE
FORWARD/REVERSE SWITCH IS IN THE CENTRAL LOCKED OFF POSITION.

1. Hold the chuck collar and twist
the front of the chuck in an anti­clockwise direction.

2. Place the bit in the jaws as far as it
will go.

3. Hold the chuck collar and twist
the chuck sleeve in a clockwise
direction until it grips the bit tightly.

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 8 Wednesday, October 3, 2018 3:15 PM

ADJUSTMENTS

FORWARD/REVERSE

The forward/reverse switch is used to select the direction of rotation.

1. Use the forward/reverse switch to
select the direction of rotation.

2. Reverse should only be selected
when removing screws.

SAFETY LOCK OFF

The forward/reverse switch can be
used as the safety lock off button by
pushing it half way through the drill
body.

WARNING: ALWAYS LOCK THE TRIGGER SWITCH IN THE OFF POSITION
WHEN THE DRILL IS NOT BEING USED OR ADJUSTMENTS ARE BEING MADE
TO THE SPEED OR TORQUE SETTINGS. THIS IS AN IMPORTANT SAFETY
FEATURE AND MUST BE OBSERVED.

SPEED RANGE

Use the speed range selector to
select the range you want to use.

• Setting 1 - 0-400 rpm

• Setting 2 - 0-1500 rpm

NOTE: Only use the speed range

selector when the chuck is
stationary.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 9 Wednesday, October 3, 2018 3:15 PM

SELECTING THE DRILLING MODE

WARNING: DO NOT CHANGE THE DRILLING MODE WHILE THE CHUCK IS
ROTATING.

The drill is equipped with two drilling modes.

Hammer drilling mode Rotary drill mode

CAUTION: WHEN IN THE HAMMER DRILLING MODE YOU SHOULD ONLY
USE MASONRY DRILL BITS (NOT SUPPLIED).

1. To select hammer action mode,
rotate the mode selector until the
hammer symbol is aligned with
the arrow on the drill.

2. To select the drilling mode, rotate
the mode selector until the drill bit
symbol, is aligned with the arrow
on the drill.

CAUTION: NEVER USE THE HAMMER MODE FOR DRILLING MATERIALS
OTHER THAN CONCRETE AND MASONRY.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 10 Wednesday, October 3, 2018 3:15 PM

TORQUE ADJUSTMENT

To select the correct torque setting for screwdriving:

1. Set the Speed Range selector ring
to 1.

2. Set the mode selector ring to 1.

3. Fit and tighten the first screw,

4. If the clutch starts to ratchet
before the screw is correctly
seated, rotate the mode selector
ring to a higher number until the
clutch ratchets only when the
head of the screw is flush with the
surface of the material.

CAUTION: DO NOT ADJUST THE MODE SELECTOR WHILE THE CHUCK IS
ROTATING.

OPERATING THE DRILL

1. Make sure that the forward/reverse switch is positioned in either the
forward, or reverse position. See page 8.

NOTE: The trigger will not operate if the direction control switch is in the

central position.

2. Squeeze the trigger.

• The drill will start.

• The speed can be increased by increasing the pressure on the

trigger up to the maximum speed (Setting 1 - 400 rpm, Setting 2 ­1500 rpm).

3. Release the trigger to stop the drill.

• The drill is fitted with an electric brake which stops the motor when

the trigger is released.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 11 Wednesday, October 3, 2018 3:15 PM

DRILLING TIPS

• Always use sharp, good quality drill bits. The performance of your drill
is dependant on the quality of the bits used.

• After drilling material to the full depth, do not simply pull out the drill
but maintain chuck rotation to ease withdrawal.

• Reduce the pressure on the drill bit when it is about to break through.
This will prevent the drill from jamming.

• If drilling a large hole, first drill a pilot hole using a smaller drill bit.

• Always apply pressure to your drill bit in a straight line and, where
possible, at right angles to the workpiece.

• When drilling holes or driving screws into walls, floors etc., always
make sure that there are no live electrical wires in the path of the bit.

• When drilling in metal, the materials being drilled can become hot.
To reduce overheating use a suitable cooling lubricant. No cooling
lubricant is necessary when drilling cast iron or brass as they should
be drilled dry.

• When drilling metal, the harder the metal the slower the drill speed.
Similarly, the bigger the drill bit the slower the speed.

• Always start drilling at a slow speed to prevent the drill from slipping
out of the pop mark or indent, gradually increasing speed until the
optimum cutting speed is achieved whilst maintaining a MODERATE
pressure ONLY. NEVER force the drill bit into the work. This will
overheat the tip and cause it to dull very quickly.

• To prevent the drill bit from slipping when starting to drill a hole in
metal, use a centre punch to make an indentation at the start point.

• When drilling in wood, clamp a piece of scrap wood to the
underside of the material to avoid splintering.

• Always drill directly in line with the bit. Do not use sideways
movement as this may damage the drill or cause the bit to break.

• Large holes should be drilled with wood augers, flat wood bits or
hole saws.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 12 Wednesday, October 3, 2018 3:15 PM

SCREWDRIVING TIPS

• Place the screwdriver bit in the head of the screw and apply light
pressure to the drill.

• If the screw head is not flush with the material, increase the torque
and start again.

• Make sure that the screwdriver bit is inserted straight and upright in
the screw head or the screw may be damaged.

• When driving wood screws, pre-drill pilot holes to make driving easier
and to prevent splitting the material.

• Select the forward direction to drive screws in and reverse direction
to take them out.

MAINTENANCE AND SERVICING

WARNING: ALWAYS REMEMBER TO POSITION THE DIRECTION CONTROL
SWITCH IN THE CENTRAL LOCKED OFF POSITION AND REMOVE THE
BATTERY PACK BEFORE CLEANING THE DRILL.

• After use, remove the drill or screwdriver bit, open the chuck jaws
and tap the side of the chuck to remove any dust or chippings etc.

• Keep the cooling vents clear.

• Clean the motor housing with a soft cloth.

• Keep the handle clean and free from oil and grease.

• Keep the charger clean and free from dust and grease.

• Worn or damaged parts must be replaced by qualified personnel.

• There are no user serviceable parts inside the drill.

REMOVING THE CHUCK

1. Open the jaws as far as possible.

2. Using a cross head screwdriver (inserted, down through the jaws), remove
the securing screw. The screw has a LEFT HAND THREAD and must therefore
be turned CLOCKWISE.

3. Grasp the chuck and unscrew it from the drill in the normal manner, i.e., by
screwing it anticlockwise.

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 13 Wednesday, October 3, 2018 3:15 PM

SPECIFICATIONS

Model Number CCD30LIC

Part Number 6479650

Charger voltage 230V~50Hz

Battery voltage 18 volts (2000 mAh)

Charging time 1.67h

Keyless chuck capacity 0.8 mm -10 mm

Torque settings 22

No load speed Setting 1 - 0 - 400 RPM

Setting 2 - 0 - 1500 RPM

Maximum Drilling Capacity: Wood - 25 mm

Steel - 10 mm

Masonry - 10 mm

Sound Pressure Level 77 dB LpA

Sound Power Level 88 dB L

Vibration Level 0.52 m/s

Dimensions (Drill with battery

WA

2

225 X 90 X 226 mm

fitted)

Weight 1.36 kg

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 14 Wednesday, October 3, 2018 3:15 PM

DECLARATION OF CONFORMITY

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 15 Wednesday, October 3, 2018 3:15 PM

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CCD30Lic - 18V Hammer Drill.fm Page 16 Wednesday, October 3, 2018 3:15 PM
