Clarke CBS 16, 6480230 User guide

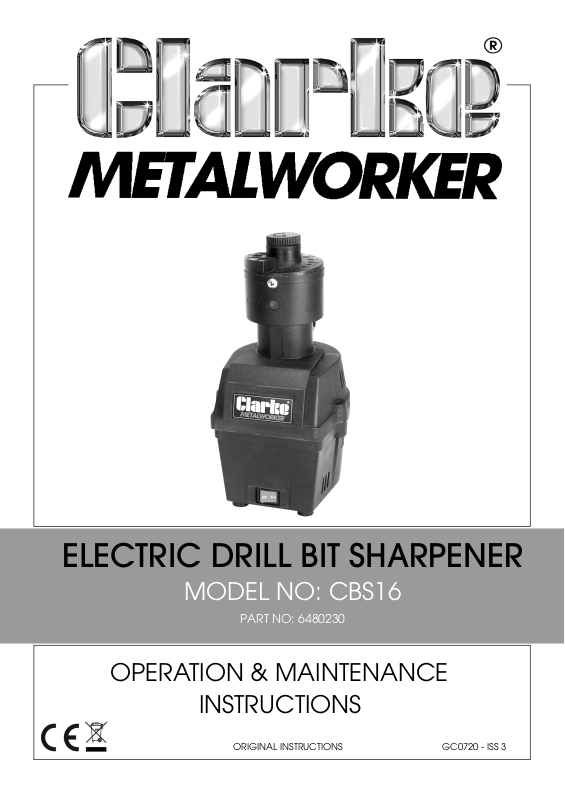

ELECTRIC DRILL BIT SHARPENER

MODEL NO: CBS16

PART NO: 6480230

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0720 - ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE electric drill bit sharpener.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using
this product. Please pay particular attention to all sections of these instructions
that display warning symbols and notices.

WARNING: THIS IS A WARNING SYMBOL. THIS SYMBOL IS USED
THROUGHOUT THE USER GUIDE WHENEVER THERE IS A RISK OF
PERSONAL INJURY. ENSURE THAT THESE WARNINGS ARE READ AND
UNDERSTOOD AT ALL TIMES.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

WARNING: WHEN USING ELECTRIC TOOLS, MACHINES, OR EQUIPMENT,
BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.

1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries. Keep work area well lit.

2. NEVER use power tools in damp, wet, or poorly lit locations. Don't expose to rain. Do
not use electrically powered tools in the presence of flammable gases or liquids.

3. KEEP CHILDREN AWAY. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cable.

4. STORE IDLE EQUIPMENT. When not in use, tools must be locked up in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.

5. DO NOT FORCE THE TOOL. It will do the job better and more safely at the rate for
which it was intended.

6. DRESS PROPERLY. Do not wear loose clothing or jewellery which could be caught in
moving parts.

7. USE EYE AND HAND PROTECTION. Always wear approved impact safety goggles.

8. DO NOT ABUSE THE POWER CABLE. Do not yank it to disconnect it from the socket. Do
not carry tools by the cable.

9. DISCONNECT POWER. Unplug when not in use, before servicing, and when changing
accessories.

10. AVOID UNINTENTIONAL STARTING. Be sure the switch is in the OFF position when not in
use and before plugging in.

11. STAY ALERT. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.

12. CHECK DAMAGED PARTS. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform
its intended function. Do not use the tool if the switch does not turn on and off
properly.

13. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces
such as pipes, radiators.

14. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use
accessories intended for use with this tool.

15. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. If there is
any doubt, do not operate the tool.

16. KEEP AWAY FROM LIQUIDS. Tool is designed for dry sharpening operations only.

17. HEAT PRODUCED WHEN SHARPENING. The sharpening head and any bits being
sharpened will become hot. Be careful when handling; allow drill tips to cool before
storing.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

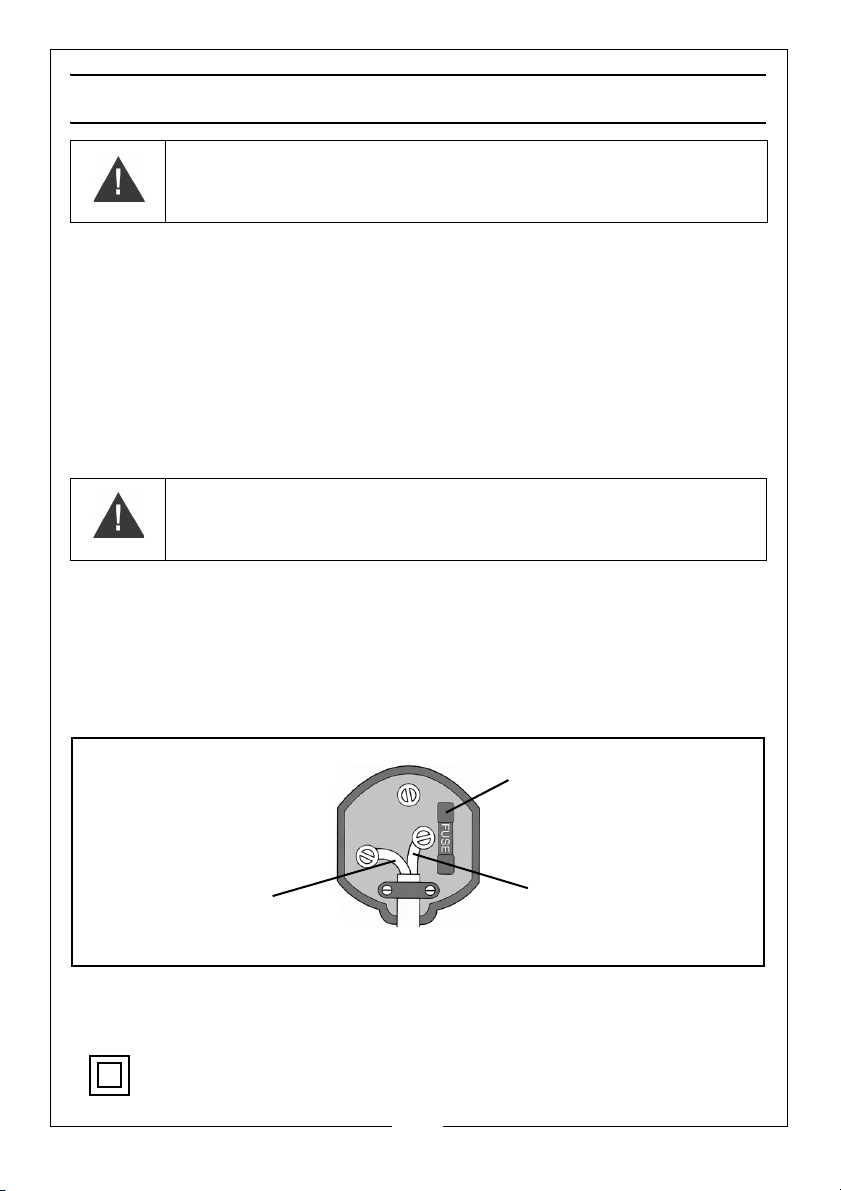

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal which is marked N or

coloured Black.

•The Brown wire must be connected to the terminal which is marked L or

coloured Red.

We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

This symbol indicates that this is a Class II product, and does not require an earth
connection.

4

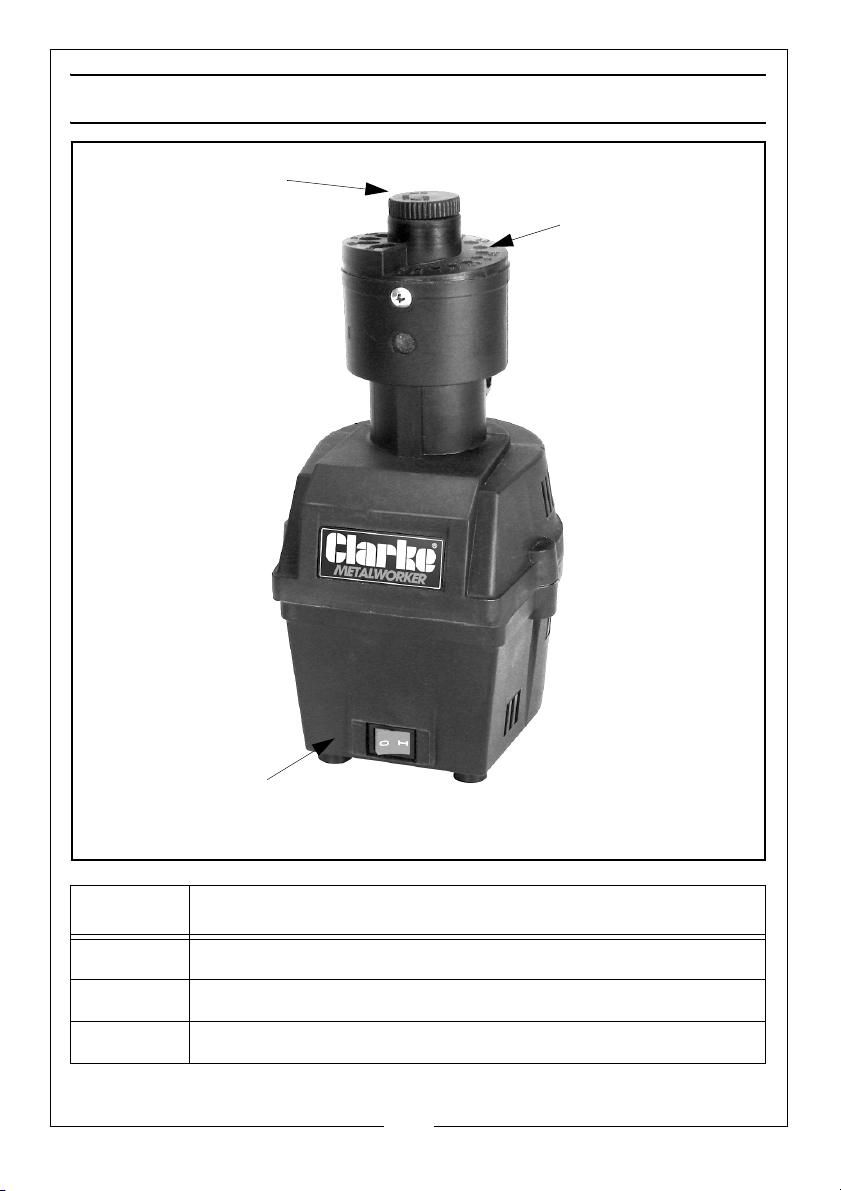

PRODUCT OVERVIEW

1

2

3

NO DESCRIPTION

1 Grinding Wheel Height Adjustment Knob

2 Head Assembly

3On/Off Switch

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5

OPERATIONS

PROPERLY SHARPENED BITS

Your bit is properly sharpened when it has the following characteristics.

• A sharp point in the center of the bit.

• Two sharp and equal cutting edges

• Two trailing edges that are slightly lower than the cutting edges.

SHARPENING PROCEDURE

1. Place sharpener on a flat, sturdy surface and plug in.

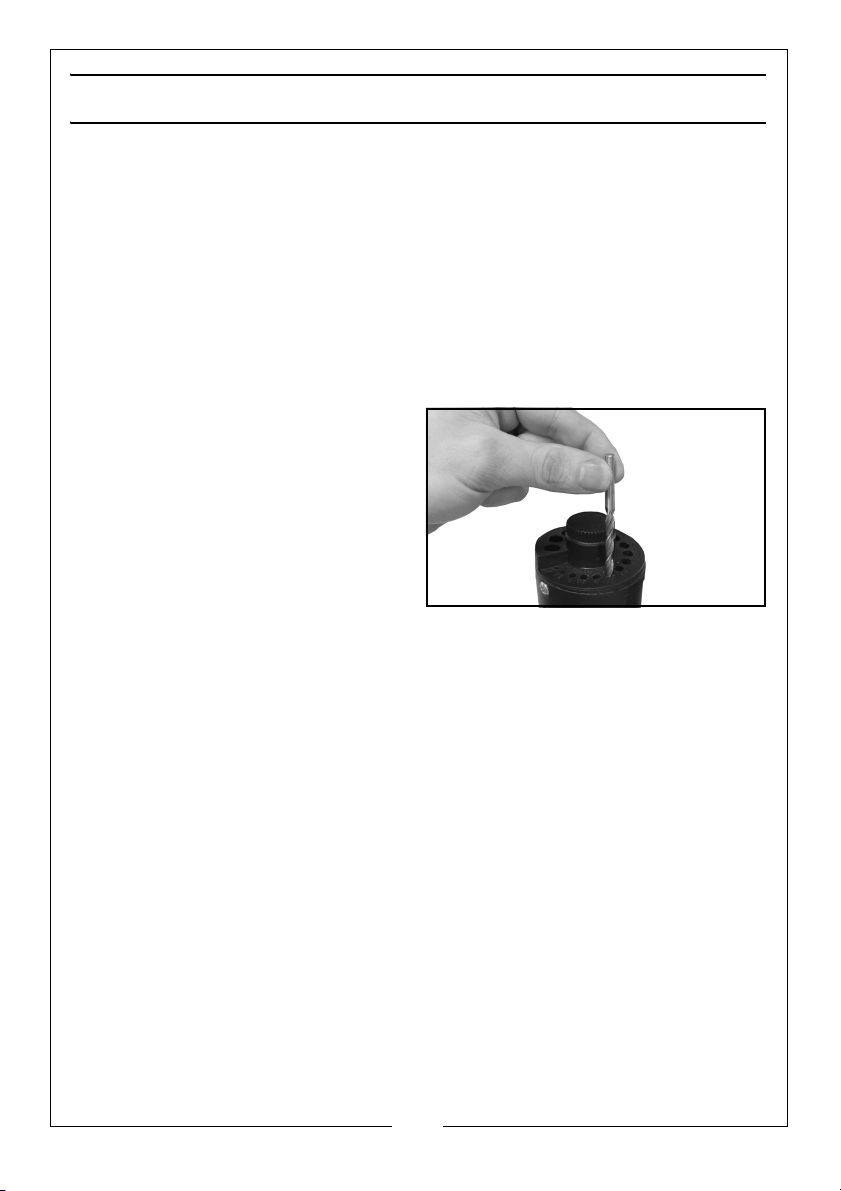

2. Put a single drill bit (HSS only) into
the appropriate hole

3. Turn the unit on.

• Exert a slight downward

pressure onto the bit and rotate
the bit back and forth about 20
degrees while sharpening.

• The bit must be kept in motion

whilst in the machine.

4. Turn unit off after approximately 5-10 seconds of sharpening.

• Examine bit according to the “Sharpening Hints” section below.

5. Ensure both sides of the drill bit are sharpened using the same amount of
time and pressure.

6. Repeat the above steps as necessary.

7. Do not run the machine for longer than 2 minutes at a time.

SHARPENING HINTS

• If the tip of bit starts to turn blue, it is overheating. Reduce the

amount of pressure and sharpening time. Cool the bit in water
between sharpening cycles.

• If one edge is longer than the other, sharpen the drill bit a little more.

• If you are sharpening a broken (rather than blunt) bit and the time

required to restore the shape is too long, rough the bit into shape first
using a bench grinder.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

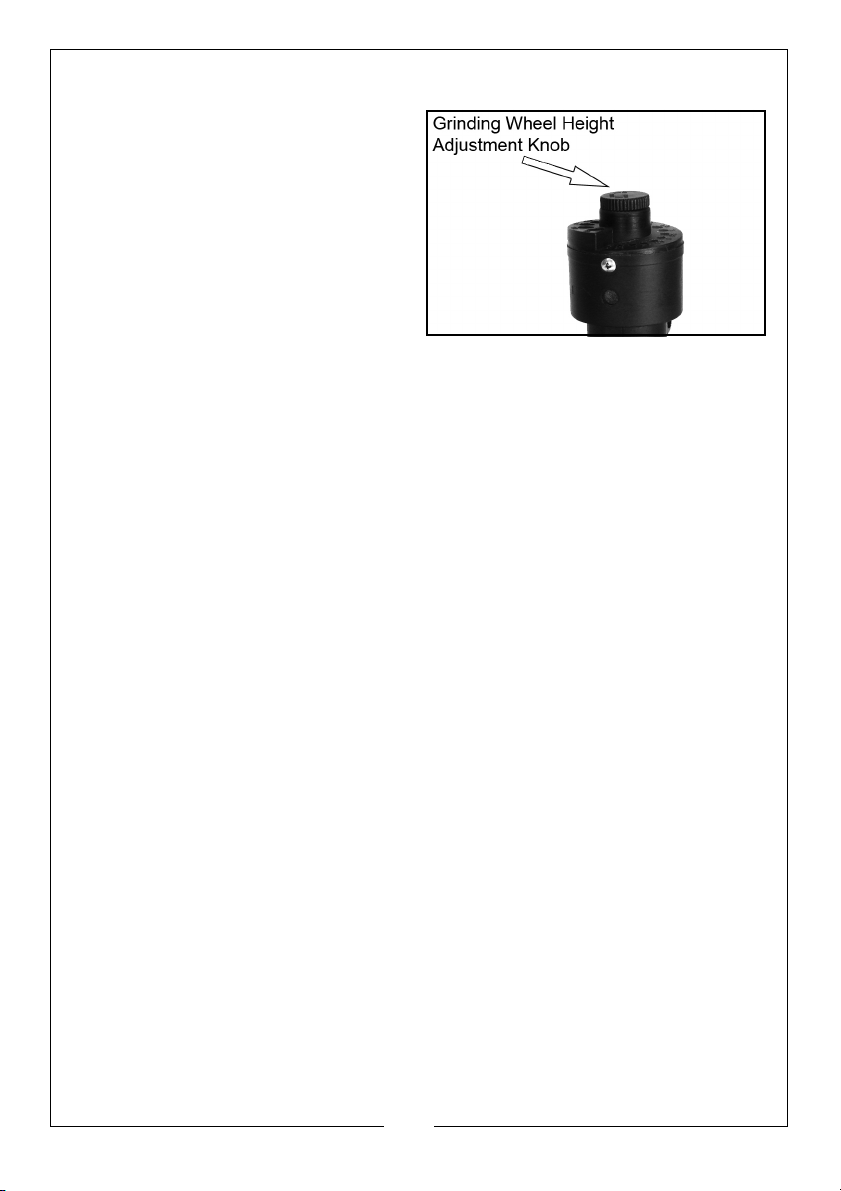

ADJUSTING THE GRINDING WHEEL

1. Turn the grinding wheel height
adjustment knob clockwise to
raise the wheel.

• This will give you an aggressive

cutting action. This is also useful
when you are working with
short bits.

2. Lower the wheel by turning the
adjusting knob to the left.

• This will produce a finer ground

edge, though it will take longer and require more repetitions.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

CHANGING THE WHEEL

1. Make sure that the sharpener is switched off and disconnected from the
mains power supply.

2. Remove the two screws that hold
the head assembly in place and
remove the head assembly.

3. Remove the wheel assembly.

• Make sure the spring

underneath stays in place.

4. Unscrew the adjustment cylinder
from the wheel base by turning
clockwise.

5. Prise out the washer (#6).

6. Pop out the wheel base and
remove the worn grinding wheel.

7. Press new grinding wheel onto the
wheel base, replace the washer,
and screw the adjustment
cylinder back in.

8. Replace wheel assembly onto the
unit.

• Make sure that the inner flats of

the adjustment cylinder line up
with the outer flats of the drive spindle.

9. Replace the head assembly and screws.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CLEANING

1. Keep the surface of your sharpener free of grit, dirt, and grease. Use soapy
water or non-toxic solvents. Do not use petroleum based solvents.

2. Keep the air vents free of foreign matter at all times.

3. If the motor does not operate, it needs to be serviced or replaced by a
qualified technician.

TROUBLESHOOTING

If the motor turns on, but the wheel does not spin, make sure the adjustment
cylinder's inner flats line up with the outer flats of the spindle as described in
“Changing The Wheel” on page 8.

SPECIFICATION

Model Number CBS16

Voltage 230 V @ 50Hz

Operating Temperature

Drill Bit Sizes And Type 3.0 mm to 10 mm HSS

Duty Cycle S3 20% (2 minutes on, 8 minutes off)

No Load Speed 1600 rpm

Sound Pressure Level (L

Guaranteed Sound Power (L

pA dB) 61 dB(A)

wA dB) 74 dB(A)

Dimensions (L x W x H) 140 x 130 x 240 mm

Weight 2.2 Kg

o

C - +40oC

-15

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST AND DIAGRAM

ID DESCRIPTION PART NO ID DESCRIPTION PART NO

4A Adjustment Knob HTCBS1604A 16 Connector (Male) HTCBS16016

1 Index HTCBS16001 17 Upper Motor Housing HTCBS16017

2 Cap Ring HTCBS16002 18 Bolt HTCBS16018

5 Adjustment Cylinder HTCBS16005 19 Motor HTCBS16019

6 Washer HTCBS16006 20 Cover HTCBS16020

7 Grinding Wheel HTCBS16007 21 Terminal HTCBS16021

8 Wheel Base HTCBS16008 22 Capacitor HTCBS16022

9 Spring HTCBS16009 23 Lower Motor Housing HTCBS16023

10 Screw HTCBS16010 24 Switch HTCBS16024

11 Cover HTCBS16011 25 Screw HTCBS16025

12 Housing HTCBS16012 26 Cable HTCBS16026

13 Ball Bearing HTCBS16013 27 Rubber Pad HTCBS16027

14 Drive Spindle HTCBS16014 28 Screw HTCBS16028

15 Nut HTCBS16015

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

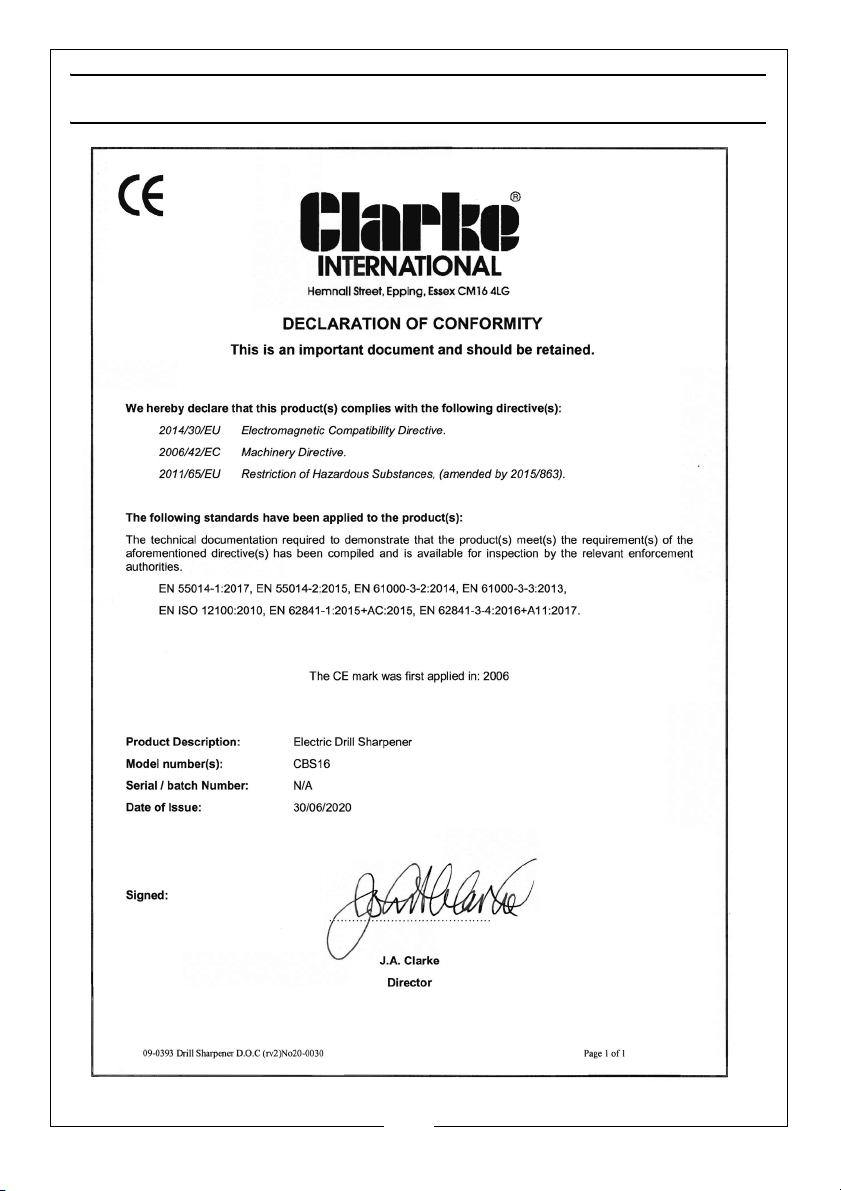

DECLARATION OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
