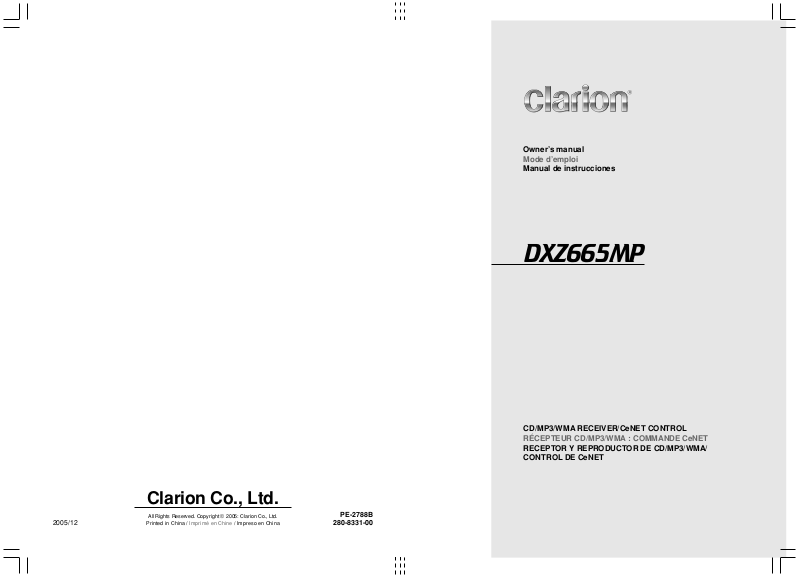

Owner’s manual
Mode d’emploi
Manual de instrucciones
DXZ665MP
CD/MP3/WMA RECEIVER/CeNET CONTROL
RÉCEPTEUR CD/MP3/WMA : COMMANDE CeNET
RECEPTOR Y REPRODUCTOR DE CD/MP3/WMA/
CONTROL DE CeNET
Thank you for purchasing this Clarion product.
English
∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗ This manual includes the operating procedures of the iPod interface, CD changer, Satellite Radio
Receiver and TV tuner connected via the CeNET cable. The iPod interface, CD changer and TV
tuner have their own manuals, but no explanations for operating them are described.
Contents
1. FEATURES...................................................................................................................................... 2
2. PRECAUTIONS .............................................................................................................................. 3
Motorized Face ................................................................................................................................ 4
Handling Compact Discs ................................................................................................................. 4
3. CONTROLS .................................................................................................................................... 5
4. NOMENCLATURE .......................................................................................................................... 6
Names of the Buttons and their Functions ...................................................................................... 6
Major Button Operations When External Equipment is Connected to This Unit .............................. 7
Display Items ................................................................................................................................... 9
5. DCP ................................................................................................................................................ 11
6. REMOTE CONTROL ..................................................................................................................... 12
Inserting the Battery ...................................................................................................................... 12
Functions of Remote Control Unit Buttons .................................................................................... 13
7. OPERATIONS ............................................................................................................................... 14
Basic Operations ........................................................................................................................... 14
Radio Operations ........................................................................................................................... 16
CD/MP3/WMA Operations ............................................................................................................. 18
Operations Common to Each Mode .............................................................................................. 21
8. OPERATIONS OF ACCESSORIES .............................................................................................. 26
CD Changer Operations ................................................................................................................ 26
TV Operations ............................................................................................................................... 27
9. IN CASE OF DIFFICULTY ............................................................................................................ 28
10. ERROR DISPLAYS ....................................................................................................................... 29
11. SPECIFICATIONS ......................................................................................................................... 30
1. FEATURES
• Full dot VF display & 728-variable color illuminated key
• Motorized Detachable Faceplate & Smart Control Operation
• “Z-ENHANCER” sound customisation & “MAGNA BASS EX” dynamic bass enhancement
2 DXZ665MP
2. PRECAUTIONS
Bottom View of Source Unit
Ball-point pen
Roughness
1. When the inside of the car is very cold and the
player is used soon after switching on the
heater moisture may form on the disc or the
optical parts of the player and proper playback
may not be possible. If moisture forms on the
disc, wipe it off with a soft cloth. If moisture
forms on the optical parts of the player, do not
use the player for about one hour. The
condensation will disappear naturally allowing
normal operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer or
an experienced radio/TV technician for help.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT
BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
DXZ665MP 38 DXZ665MP
Motorized Face
English
This unit uses motorized face to make large-screen displays possible.
When you use the motorized face, be sure to close it.
CAUTION
BE CAREFUL NOT TO GET YOUR FINGERS
CAUGHT WHEN OPENING AND CLOSING
THE MOTORIZED FACE.
1. For safety’s sake, always close the
MOTORIZED FACE before leaving this unit
unused for a prolonged period or switching
OFF the ignition key.
If you switch OFF the ignition key with the
MOTORIZED FACE tilted, the MOTORIZED
FACE does not close.
2. Before the MOTORIZED FACE closes, there
may be a braking sound from the safety
mechanism. This is normal.
3. If you move the MOTORIZED FACE by hand,
this may create play. To correct this play, with
the power on for the unit, press the [Q]
button to close the MOTORIZED FACE.
4. After a disc is ejected, the MOTORIZED
FACE automatically returns to the tilted or
closed state. If there is any obstruction when
the MOTORIZED FACE tries to close, the
safety mechanism is triggered and the
MOTORIZED FACE returns to the open state.
If this happens, remove the obstruction, then
press the [Q] button.
5. To avoid scratching the compact disk, keep
the 12 or 8 cm CD level when inserting or
removing them.
Handling Compact Discs
•
Use only compact discs bearing the or
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded in CD-R/CD-RW mode
may not be usable.
Handling
•
Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played. Therefore,
do not leave them for a long time in the car.
• New discs may have some roughness around
the edges. If such
discs are used, the
player may not work
or the sound may
skip. Use a ball-point
pen or the like to
remove any
roughness from the
edge of the disc.
•
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
• Never play a compact disc with any
cellophane tape or other glue on it or with
peeling off marks. If you try to play such a
compact disc, you may not be able to get it
back out of the CD player or it may damage
the CD player.
Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.
Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or damage.
•
To remove a compact disc from its storage case,
press down on the center of the case and lift the
disc out, holding it carefully by the edges.
• Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
cause breakdown of the internal mechanism.
Storage
• Do not expose compact discs to direct sunlight
or any heat source.
• Do not expose compact discs to excess
humidity or dust.
• Do not expose compact discs to direct heat
from heaters.
Cleaning
•To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the compact disc to the circumference.
• Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
• After using special compact disc cleaner, let
the compact disc dry off well before playing it.
Cerciórese de desplegar y de leer la página siguiente.
English
DXZ665MP 4
English
3.CONTROLS / LES COMMANDES / CONTROLES
Source unit / Appareil pilote / Unidad fuente
Français
[
RELEASE
]
[
ADJ
[
]
ROTARY
]
]
[
]
[
Español
[
,
[
A-M
]
]
]
[
ISR
[
]
SRC
[
SCN
]
[
RPT
]
[
RDM
[
]
DIRECT
]
[
], [DN]
[
UP
[
]
D
[
SENSOR
]
BND
[
]
C
[
]
Z
[
]
T
]
English
4. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).
Names of the Buttons and Their Functions
[RELEASE] button
• Deeply push in the button to unlock the DCP.
[ADJ] button
• Press the button to enter the adjust mode.
[ROTARY] knob
• Adjust the volume by turning the knob
clockwise or counterclockwise.
• Use the knob to perform various settings.
[ ] button
• Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
• Play or pause a CD while in the CD/MP3/
WMA mode.
• Corfirm various settings.
[Q] button
• Press to open the MOTORIZED FACE and
insert a CD into the CD SLOT.
• Press to eject a CD loaded in the unit.
[C] button
• Button’s color change to multicolor.
With the MOTORIZED FACE opened / Ouvrez la FACE MOTORISÉE
Apertura del FRONTAL MOTORIZADO
[
CD SLOT
]
• Press and hold the button for 1 second or
longer to go into the user color adjustment.
[Z] button
•
Use the button to select one of the 3 types of
sound characteristics already stored in memory.
[T] button
• Use the button to input a title in the radio, CD
mode.
• Use the button to switch the user titles or
track titles, while in the CD/MP3/WMA mode.
• Use the button to scroll the title during the CDtext play, while in the CD/MP3/WMA mode.
[D] button
• Switch the display indication (Main display,
spectrum analyzer display and Clock
display).
• Press and hold the button for 1 second or
longer (do not over 4 seconds) to enter the
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
display adjust mode.
• Press and hold the button for 4 seconds or
longer to turn off the display while in the
usual play, ISR mode, telephone interrupt.
[SENSOR]
• Receiver for remote control unit.
(Operating range: 30° in all directions.)
[BND] button
• Switch the band, or seek tuning or manual
tuning while in the radio mode.
6 DXZ665MP
• Play a first track while in the CD/MP3/WMA
mode.
• Press the button to change the character.
[UP], [DN] buttons
• Select the folder while in the MP3/WMA mode.
[DIRECT] buttons
• Store a station into memory or recall it directly
while in the radio mode.
[RDM] button
• Perform random play while in the CD/MP3/
WMA mode.
• Press and hold the button for 1 second or
longer to perform folder random play while in
the MP3/WMA mode.
[RPT] button
• Perform repeat play while in the CD/MP3/
WMA mode.
• Press and hold the button for 1 second or
longer to perform folder repeat play while in
the MP3/WMA mode.
[SCN] button
• Perform scan play for 10 seconds of each
track while in the CD/MP3/WMA mode.
• Press and hold the button for 1 second or
longer to perform folder scan play while in the
MP3/WMA mode.
[SRC] button
• Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn off the power.
• Switch the operation mode among the radio
mode, etc.
[ISR] button
• Recall ISR radio station in memory.
•
Press and hold for 2 seconds or longer: Store
current station into ISR memory (radio mode only).
[A-M] button
• Use the button to switch to the audio mode
(bass, treble, balance, fader).
• Press and hold for 1 second or longer to turn
on or off the MAGNA BASS EXTEND mode.
[å, ∂] lever
•
Selects a station while in the radio mode or
selects a track while in the CD/MP3/WMA
mode. This lever is used to make various
settings.
•
Press the lever upward or downward and hold
in position for 1 second or longer to enter the
fast-forward or fast-backward mode.
[CD SLOT]
• CD insertion slot.
Major Button Operations When External Equipment is Connected to This Unit
English
●When the CD/DVD changer/
iPod interface is connected
∗ For details, see the section “CD Changer
Operations”. For the DVD changer, refer
to the Owner’s Manual provided with the
DVD changer.
For the iPod interface, refer to the Owner’s
Manual provided with the iPod interface.
∗ Hereinafter, “iPod interface” is abbreviated
as iPod BB.
Regarding iPod BB (EA-1251B)
The iPod BB allows connection of an iPod
that can then be operated in the same way
as a 6 disc CD changer.
• When an iPod is connected to the iPod
BB, subsequent operations are as
performed from the main unit.
• Not all iPod functions can be controlled
from the main unit.
• iPod models usable with the iPod BB
include models supporting the following
software versions:
… iPod 3rd generation software Ver. 2.2
or later.
… iPod 4th generation software Ver. 3.0.1
or later.
… iPod mini software Ver. 1.2 or later.
… iPod photo (images cannot be
displayed).
* See your iPod Owner’s manual regarding
what software version is supported by
your iPod.
Notes:
• Scan play cannot be performed with the iPod
BB.
• In order to operate the iPod like a 6-disc CD
changer, a playlist must be constructed
beforehand.
• When connecting the iPod BB and CD
changer, set the address switch on the side
of the CD changer to “2”.
• For other precautions, consult the iPod BB
Owner’s manual.
•“iPod” is a trademark of Apple Computer,
Inc., registered in the U.S. and other
countries.
[ ] button
• Play or pause a CD, DVD or iPod BB.
[T] button
• Press the button, switches the user titles or
track titles, etc. while in the CD changer
mode.
• Use the button to input a title in the CD
changer mode.
• Use the button to scroll the title during CDtext play.
[BND] button
• Move the next disc in increasing order.
[UP], [DN] buttons
• Select the disc.
[RDM] button
• Perform random play. Also perform disc
random play when the button is pressed and
held.
[RPT] button
• Perform repeat play. When this button is
pressed and held, disc repeat play is performed.
[SCN] button
• Perform scan play for 10 seconds of each
track. Disc scan play is performed when the
button is pressed and held.
[å, ∂] lever
• Select a track when listening to a disc.
• Press the lever upward or downward and hold
in position for 1 second or longer to enter the
fast-forward or fast-backward mode.
DXZ665MP 75 DXZ665MP
Bottom View of Source Unit
Ball-point pen
Roughness
Major Button Operations When External Equipment is Connected to This Unit
English
●When the TV is connected
∗
For details, see the section “TV Operations”.
[ADJ] button
• Press and hold the button for 1 second or
longer to switch to the TV picture mode or
VTR (external) picture mode.
[ ] button
• Perform preset scan while in the TV mode.
When the button is pressed and held, auto
store is performed.
[BND] button
• Switch the band.
• When the button is pressed and held, switch
seek tuning or manual mode.
●When the Satellite Radio
receiver is connected
∗ For details, refer to the Owner’s Manual
provided with the Satellite Radio receiver.
[DIRECT] buttons
• Stores a station into memory or recall it
directly.
[SRC] button
• Press the button to switch the operation
mode.
[ISR] button
• Select the CAT (Category).
[å, ∂] lever
• Select a station.
[DIRECT] buttons
• Store a station into memory or recall it
directly.
[å, ∂] lever
• Select a station.
Display Items
English
Background indication
• Motion image (1 pattern), wallpaper (5 patterns) (Page 21)
• Demo mode with screen saver (Page 22)
Operation status indication
Titles, Spectrum analyzer,
clock time are displayed.
■ Displayed when changing
source
TUNER : radio mode
SIRIUS
XM
CD/MP3 : CD/MP3 mode
CD A/C1 : CD changer (iPod BB)
mode
* When connecting iPod
BB.
CD A/C1 : CD changer mode
(2, 3, 4)
DVD A/C : DVD changer mode
TV : TV mode
VTR : VTR mode
AUX : AUX mode
ACCESORY : accesory mode
TELEPHONE : telephone mode
: Satellite radio mode
MB :
Z3 :
ST :
MANU :
MAGNA BASS EXTEND indication
Z-ENHANCER 1,2,3
ST (radio only), MP3, WMA indication
Manual indication
DXZ665MP 9
Display Items
English
Operation status indication
Displays icon corresponding
to playback or selection.
Band / disc No. /
folder No. indication
Preset channel /
track No. indication
Receiving frequency or
channel / play time indication
Items within parentheses ( ) are displayed during
operation as the “Operation status indication”.
• P.SCAN (PRESET SCN) : Preset scan
• AS (AUTO STORE) : Auto store
• C.SCAN (CAT SCAN) : Category scan
• SCAN (TRACK SCAN) : Track scan
• RPT (TRACK RPT) : Track repeat
• RDM (TRACK RDM) : Track random
• D.SCAN (DISC SCAN) : Disc
• D.RPT (DISC RPT) : Disc repeat
• D.RDM (DISC RDM) : Disc random
• SCAN (CHAPTER SCN) : Chapter
• RPT (CHAPTER RPT) : Chapter repeat
• T.RPT (TITLE RPT) : DVD title repeat
• F.SCAN (FOLDER SCN) : Folder
• F.RPT (FOLDER RPT) : Folder repeat
• F.RDM (FOLDER RDM) : Folder random
scan
scan
scan
■ Displayed when changing titles
U
USER : Radio / TV user title
: CD user title
DISC : CD-TEXT disc title
A
ARTIST : CD-TEXT artist title
TRACK : CD-TEXT track title
FOLDER : MP3 folder name
TRACK : MP3 file name
ALBUM : MP3 album tag
A
ARTIST : MP3 artist tag
T
TITLE : MP3 title tag
■ Example of spectrum analyzer
display (Page 22)
Spectrum analyzer display-1
Spectrum analyzer display-2
10 DXZ665MP
5. DCP
English
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. With the MOTORIZED FACE closed, turn off
the power.
2. Press the [RELEASE] button deeply to open
the DCP.
[RELEASE] button
3. Pull the DCP toward you and remove it.
DCP
CAUTION
• Always close the MOTORIZED FACE
before removing the DCP.
• If you remove the DCP with the
MOTORIZED FACE open, the MOTORIZED
FACE closes immediately. Be careful not to
get your fingers caught.
Attaching the DCP
1. Insert the DCP so that the A section on the
right side of the DCP catches on the hook B
on the unit.
2. Press the left side C of the DCP carefully to
fit it in place.
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• If the [RELEASE] button is pressed and the
DCP is not locked into place, it may fall out
from vibration of the car. This can break
the DCP, so after removing it, either install
it on the unit or put it in its DCP case.
• The connector connecting the unit and the
DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
DXZ665MP 11
English
6. REMOTE CONTROL
[
]
SRC
[
], [ ]
[
]
MUTE
[
]
ISR
[
]
SCN
Inserting the Battery
Signal transmitter
[
BND
[
[
[
DISP
[
RDM
[
RPT
]
]
], [ ]
]
]
]
1 Turn over the remote control unit and slide the cover
in the direction indicated by the arrow in the
illustration.
2 Insert the battery (CR2025) into the insertion guides,
with the printed side (+) facing upwards.
3 Press the battery in the direction indicated by the
arrow so that it slides into the compartment.
4 Replace the cover and slide in until it clicks into place.
Notes:
Misuse may result in rupture of the battery, producing
leakage of fluid and resulting in personal injury or
damage to surrounding materials. Always follow these
safety precautions:
• Use only the designated battery.
• When replacing the battery, insert properly, with +/–
polarities oriented correctly.
• Do not subject battery to heat, or dispose of in fire or
water. Do not attempt to disassemble the battery.
• Dispose of used batteries properly.
12 DXZ665MP
Insertion guide
R
2
C
0
2
5
Functions of Remote Control Unit Buttons
English
Mode
Button
[SRC]
[BND]
[ ] , [ ]
[ ] , [ ]
[ ]
[MUTE]
[ISR]
[DISP]
[SCN]
Radio/Satellite CD/MP3/WMA
Switches among radio, Satellite Radio Receiver, CD/MP3/WMA, iPod BB, CD changer, DVD
changer, TV and AUX.
Switches reception
band.
Increases and decreases volume (in all modes).
Moves preset
channels up and
down.
No function.
Turns mute on and off.
Recalls ISR radio station in memory.
Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode only).
Switches among main display, spectrum analyzer display and clock time display.
When pressed and held for 1 second or longer: Switches the titles (except in the radio, DVD
changer, TV mode).
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
Plays the first track.
To p play.
Moves tracks up and down.
When pressed and held for 1 second:
Fast-forward/fast-backward.
Switches between playback and pause.
Scan play.
Press and hold the
button for 1 second
or longer to perform
folder scan play while
in the MP3/WMA
mode.
CD changer
(iPod BB)
DVD changer
Moves the next disc
in increasing order.
Scan play.
When pressed and
held for 1 second:
Disc scan play.
* Cannot operate via
iPod BB.
TV
Switches reception
band.
Moves preset
channels up and
down.
No function.
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
[RPT]
[RDM]
∗ Some of the corresponding buttons on the main unit and remote control unit have different functions.
No function.
No function.
Repeat play.
Press and hold the
button for 1 second
or longer to perform
folder Repeat play
while in the
MP3/WMA mode.
Random play.
Press and hold the
button for 1 second
or longer to perform
folder Random play
while in the
MP3/WMA mode.
Repeat play.
When pressed and
held for 1 second:
Disc repeat play.
Random play.
When pressed and
held for 1 second:
Disc random play.
No function.
Switches between TV
and VTR.
DXZ665MP 13
English
7. OPERATIONS
Basic Operations
Note:Be sure to read this chapter referring to the front diagrams of
chapter “3. CONTROLS” on page 5 (unfold).
CAUTION
Be sure to lower the volume before
switching off the unit power or the ignition
key. The unit remembers its last volume
setting. If you switch the power off with the
volume up, when you switch the power back
on, the sudden loud volume may hurt your
hearing and damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [SRC] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [SRC] button for 1
second or longer to turn off the power for the
unit.
Note:
• System check
The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power is
turned on, the “SYSTEM CHECK” appears in the
display, then the unit returns to the clock display
mode. The system check starts within the unit.
When the system check is complete, press the
[SRC] button again.
Adjusting the volume
1. Press the front part of the [ROTARY] knob.
The knob will pop up.
2. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
∗ The volume level is from 0 (minimum) to 33
(maximum).
Switching the display
Press the [D] button to select the desired
display.
●When the power is turned on
∗ Press and hold the [D] button for 4 seconds or longer
to turn off the display while in the usual play, ISR
mode, telephone interrupt. And press the button to
return to the previous mode.
Each time you press the [D] button, the display
switches in the following order:
• Main display
• Spectrum analyzer display
• Clock time display
Selecting a mode
1. Press the [SRC] button to change the
operation mode.
2. Each time you press the [SRC] button, the
operation mode changes in the following
order:
Radio mode ➜ Satellite mode ➜ CD/MP3/
WMA mode ➜ CD changer (iPod BB) mode
➜ CD changer mode ➜ DVD changer mode
➜ TV mode ➜ AUX mode ➜ Radio mode...
∗ External equipment not connected with
CeNET is not displayed.
14 DXZ665MP
∗ Once selected, the preferred display becomes
the display default. When a function adjustment
such as volume is made, the screen will
momentarily switch to that function’s display,
then revert back to the preferred display
several seconds after the adjustment.
∗ If the button operation is performed with the
screen saver function on, the operation
display corresponding to the button operation
is shown for about 30 seconds and the display
returns to the screen saver display.
Basic Operations
For details, refer to the subsection “Turning the
screen saver function on or off” in section
“Operations Common to Each Mode.”
●When the power is turned off
1. Each time you press the [D] button, the clock
time appears or disappears in the display.
Setting the Z-Enhancer
This unit are provided with 3 types of sound
tone effects stored in memory. Select the one
you prefer.
∗ The factory default setting is “OFF”.
Each time you press the [Z] button, the tone
effect changes in the following order:
“OFF” ➜ “BASS BOOST” ➜ “IMPACT” ➜
“EXCITE” ➜ “OFF” ...
• BASS BOOST : bass emphasized
• IMPACT : bass and treble emphasized
• EXCITE : bass and treble emphasized
mid deemphasized
• OFF : no sound effect
Adjusting the tone
Press the [A-M] button and select the item to
adjust. Each time you press the [A-M] button,
the item changes as following order:
●When “BASS BOOST” is set
“BALANCE 0” ➜ “FADER 0” ➜ Last
function mode.
●When “IMPACT” is set
“BALANCE 0” ➜ “FADER 0” ➜ Last
function mode.
●When “EXCITE” is set
“BALANCE 0” ➜ “FADER 0” ➜ Last
function mode.
●When “OFF” is set
“BASS 0” ➜ “TREB 0” ➜ “BALANCE 0” ➜
“FADER 0” ➜ “Last function mode.
English
Adjusting the bass
The bass gain can be adjusted as follows.
1. Press the [A-M] button and select “BASS 0”.
2. Turn the [ROTARY] knob to adjust the gain,
–6 to 7 (The factory default setting is “0”).
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the treble
The treble gain can be adjusted as follows.
1. Press the [A-M] button and select “TREB 0”.
2. Turn the [ROTARY] knob to adjust the gain,
–6 to 6 (The factory default setting is “0”).
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the balance
1. Press the [A-M] button and select
“BALANCE 0”.
2. Turning the [ROTARY] knob clockwise
emphasizes the sound from the right
speaker; turning it counterclockwise
emphasizes the sound from the left speaker.
∗ The factory default setting is “0”. (Adjustment
range: L13 to R13)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the fader
1. Press the [A-M] button and select “FADER 0”.
2. Turning the [ROTARY] knob clockwise
emphasizes the sound from the front
speakers; turning it counterclockwise
emphasizes the sound from the rear
speakers.
∗ The factory default setting is “0”. (Adjustment
range: F12 to R12)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Note:
• During A-M adjustment mode, if no operation is
performed for more than 7 seconds, this mode
can be cancelled and return to previous mode.
DXZ665MP 15
Basic Operations
English
Adjusting MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust
the low sound area like the normal sound
adjustment function, but emphasizes the deep
bass sound area to provide you with a dynamic
sound.
∗ The factory default setting is off.
1. Press and hold the [A-M] button for 1
second or longer to turn on the MAGNA
BASS EXTEND effect. “M-BASS ON”
appears in the display.
2. Press and hold the [A-M] button for 1 second
or longer to turn off the MAGNA BASS
EXTEND effect. “M-BASS OFF” appears in
the display.
Radio Operations
Listening to the radio
1. Press the [SRC] button and select the radio
mode. The frequency appears in the display.
2. Press the [BND] button and select the radio
band. Each time the button is pressed, the
radio reception band changes in the
following order:
F1 (FM1) ➜ F2 (FM2) ➜ F3 (FM3) ➜ A (AM)
➜ F1 (FM1)...
3. Press the [å, ∂] lever upward or
downward to tune in the desired station.
Tuning
There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the
desired band (FM or AM).
∗ If “MANU” is lit in the display, press and hold
the [BND] button for 1 second or longer.
“MANU” in the display goes off and seek
tuning is now available.
2. Press the [å, ∂] lever upward or
downward to start automatic station tuning.
When the lever is pressed upward, search
will be performing in the direction of higher
frequencies. When the lever is pressed
downward, search will be performed in the
direction of lower frequencies.
16 DXZ665MP
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the
frequency changes one step at a time. In the
quick tuning mode, you can quickly tune the
desired frequency.
1. Press the [BND] button and select the
desired band (FM or AM).
∗ If “MANU” is not lit in the display, press and
hold the [BND] button for 1 second or longer.
“MANU” is lit in the display and manual tuning
is now available.
2. Tune into a station.
●Quick tuning:
Press the [å, ∂] lever upward or
downward and hold in position for 1 second
or longer to begin station tuning.
●Step tuning:
Press the [å, ∂] lever upward or
downward to perform manual tuning.
Radio Operations
Recalling a preset station
A total of 24 preset positions (6-FM1, 6-FM2, 6FM3, 6-AM) exists to store individual radio
stations in memory. Pressing the corresponding
[DIRECT] button recalls the stored radio
frequency automatically.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press the corresponding [DIRECT] button to
recall the stored station.
∗ Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store that station
into preset memory.
Manual memory
1. Select the desired station with seek tuning,
manual tuning or preset tuning.
2. Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
station into preset memory.
Auto store
Auto store is a function for storing up to 6
stations that are automatically tuned in
sequentially. If 6 receivable stations cannot be
received, a previously stored station remains
unoverwritten at the memory position.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press and hold the [ ] button for 2
seconds or longer. The stations with good
reception are stored automatically to the
preset channels.
∗ If auto store is performed in the FM bands, the
stations are stored in FM3 even if FM1 or FM2
was chosen for storing stations.
English
Instant station recall (ISR)
Instant station recall is a special radio preset
that instantly accesses a favorite radio station at
a touch of a button. The ISR function even
operates with the unit in other modes.
●ISR memory
1. Select the station that you wish to store in ISR
memory.
2. Press and hold the [ISR] button for 2 seconds
or longer.
●Recalling a station with ISR
In any mode, press the [ISR] button to turn on
the radio function and tune the selected radio
station. “ISR” appears in the display. Press the
[ISR] button again to return to the previous
mode.
Preset scan
Preset scan receives the stations stored in
preset memory in order. This function is useful
when searching for a desired station in memory.
1. Press the [ ] button.
2. When a desired station is tuned in, press the
[ ] button again to continue receiving that
station.
Note:
• Be careful not to press and hold the
for 2 seconds or longer, otherwise the auto store
function is engaged and the unit starts storing
stations.
[ ]
button
DXZ665MP 17
CD/MP3/WMA Operations
English
MP3/WMA
What is MP3?
MP3 is an audio compression method and
classified into audio layer 3 of MPEG standards.
This audio compression method has penetrated
into PC users and become a standard format.
This MP3 features the original audio data
compression to about 10 percent of its initial
size with a high sound quality. This means that
about 10 music CDs can be recorded on a CDR disc or CD-RW disc to allow a long listening
time without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media
Audio, an audio file format developed by
Microsoft Corporation.
Notes:
• If you play a file with DRM (Digital Rights
Management) for WMA remaining ON, no audio
is output (The WMA indicator blinks).
•Windows Media™, and the Windows ® logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
●
To disable DRM (Digital Rights Management):
1. When using Windows Media Player 8, click
on TOOLS ➜ OPTIONS ➜ COPY MUSIC
tab, then under COPY SETTINGS, unclick
the check box for PROTECT CONTENT.
Then, reconstruct files.
2. When using Windows Media Player 9, click
on TOOL ➜ OPTIONS ➜ MUSIC RECORD
tab, then under Recording settings, unclick
the Check box for RECORD PROTECTED
MUSIC. Then, reconstruct files.
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating MP3/
WMA disc
● Usable sampling rates and bit rates:
1. MP3: Sampling rate 11.025 kHz-48 kHz,
Bit rate: 8 kbps-320 kbps / VBR
2. WMA: Bit rate 48 kbps-192 kbps
● File extensions
1. Always add a file extension “.MP3” or
“.WMA” to MP3 or WMA file by using single
byte letters. If you add a file extension other
than specified or forget to add the file
extension, the file cannot be played.
2. Files without MP3/WMA data will not play.
The indication “––:––” appears in the play
time display if you attempt to play files
without MP3/WMA data.
● Logical format (File system)
1. When writing MP3/WMA file on a CD-R disc
or CD-RW disc, please select “ISO9660 level
1, 2 or JOLIET or Romeo” as the writing
software format. Normal play may not be
possible if the disc is recorded on another
format.
2. The folder name and file name can be
displayed as the title during MP3/WMA play
but the title must be within 64 single byte
alphabetical letters and numerals (including
an extension).
3. Do not affix a name to a file inside a folder
having the same name.
● Folder structure
1. A disc with a folder having more than 8
hierarchical levels will be impossible.
● Number of files or folders
1. Up to 255 files can be recognized per folder.
Up to 512 files can be played.
2. Tracks are played in the order that they were
recorded onto a disc. (Tracks might not
always be played in the order displayed on
the PC.)
3. Some noise may occur depending on the
type of encoder software used while
recording.
Multisession function
When a disc contains both normal CD type tracks
and MP3/WMA type tracks mixedly, you can
select which type of the recorded tracks to play.
● Default value is “CD”.
Each time you press and hold the [BND] button
for 1 second or longer, the mixed mode is
switched between CD type or MP3/WMA type.
The following indication appears in the title
display when switching the track type to be
played.
● Display when CD type
track is selected:
● Display when MP3/WMA
type track is selected:
1. Types of recording that can be played are as
follows.
M-SESS CD
M-SESS MP3
18 DXZ665MP
CD/MP3/WMA Operations
Disc
Mixed with CD and
MP3/WMA type tracks
CD type track only
MP3/WMA type track only
2. After making these settings, remove the disc
3. When a mixed mode CD is loaded and CD is
Note:
• When playing a CCCD (Copy Control CD), set the
setting to CD type. When this is set to MP3/WWA
type, the CD cannot be played normally in some
cases.
Setting
and then reinsert it.
set, the track to be played first is MP3/WMA
file data and no sound is heard.
Set to CD
Play CD
Play CD Play CD
Play MP3/WMA
Set to MP3/WMA
Play MP3/WMA
Play MP3/WMA
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn the
power to the unit and start playing the disc automatically when the disc is inserted even if the
power is not turned on.
CAUTION
• Do not try to put your hand or fingers in the
disc insertion slot. Also never insert
foreign objects into the slot.
• Do not insert discs where adhesive comes
out from cellophane tape or a rental CD
label, or discs with marks where
cellophane tape or rental CD labels were
removed. It may be impossible to extract
these discs from the unit and they may
cause the unit to break down.
Backup Eject function
Just pressing the [Q] button ejects the disc
even if the power to the unit was not turned on.
1. Press the [Q] button. The MOTORIZED
FACE opens and a CD ejects. “EJECT”
appears in the display.
CAUTION
Be careful not to get your fingers caught
when opening and closing the MOTORIZED
FACE.
2. Remove the CD and press the [Q] button to
close the MOTORIZED FACE.
Notes:
• Be sure to close the MOTORIZED FACE after
removing the CD.
•
The MOTORIZED FACE closes automatically 30
seconds
•
•
•
after removing the CD.
If a CD (12 cm) is left in the ejected position for 15
seconds, the CD is automatically reloaded. (Auto
reload)
8 cm CDs are not auto reloaded. Be sure to remove
it when ejected.
If you force a CD into before auto reloading, this can
damage the CD.
Listening to a disc already loaded
in the unit
Press the [SRC] button to select the CD/MP3/
WMA mode.
When the unit enters the CD/MP3/WMA mode,
play starts automatically.
If there is no disc loaded, the indication “NO
DISC” appears in the title display.
∗ The mode changes each time the [SRC] button is
pressed. (Modes are not displayed for equipment
that is not connected.)
Radio ➜ (Satellite radio) ➜ CD/MP3/WMA ➜
(CD changer (iPod BB)) ➜ (CD changer) ➜
(DVD changer) ➜ (TV) ➜ AUX ➜ Radio...
Loading a CD
1. Press the [Q] button. The MOTORIZED
FACE opens.
CAUTION
Be careful not to get your fingers caught
when opening and closing the MOTORIZED
FACE.
2. Insert a CD into the center of the CD SLOT
with the labeled side facing up. The CD plays
automatically after loading.
Notes:
• Never insert foreign objects into the CD SLOT.
•
If the CD is not inserted easily, there may be another
CD in the mechanism or the unit may require service.
• Discs not bearing the or mark and
CD-ROMs cannot be played by this unit.
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
Loading 8 cm compact discs
∗ No adapter is required to play an 8 cm CD.
∗
Insert the 8 cm CD into the center of the CD SLOT.
3. After loading a CD, the MOTORIZED FACE
closes automatically.
DXZ665MP 19
English
CD/MP3/WMA Operations
English
Notes:
• Note that MOTORIZED FACE closes immediately
after a CD is inserted into CD SLOT.
• If no CD is loaded in the MOTORIZED FACE, it
closes after 30 seconds.
Pausing play
1. Press the [ ] button to pause play.
“PAUSE” appears in the display.
2. To resume CD play, press the [ ] button
again.
Fast-forward/fast-backward
●Fast-forward
Press the [å, ∂] lever upward and hold in
position for 1 second or longer.
●Fast-backward
Press the [å, ∂] lever downward and hold in
position for 1 second or longer.
∗ For MP3/WMA discs, it takes some time until the
start of searching and between tracks. In addition,
the playing time may have a margin of error.
Displaying CD titles
This unit can display title data for CD-text/MP3/
WMA disc and user titles input with this unit.
1. Press the [D] button to display the title.
2. Each time you press the [T] button, the title
display changes in the following order:
● CD-TEXT disc
User title (disc) ➜ CD-text title (disc) ➜ Artist
name ➜ CD-text title (track) ➜ User title
(disc)...
● MP3/WMA disc
Folder ➜ Track ➜ Album TAG ➜ Artist TAG ➜
Title TAG ➜ Folder...
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “ ” appears in the display.
• If MP3/WMA disc is not input TAG, “ A” appears
in the display.
• For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.
•Tag displays give priority to V2.3 / 2.2.
• In the case of album Tags for WMA, the
information written into the extension header is
displayed.
• Only ASCII characters can be displayed in Tags.
Selecting a track
●Track-up
1. Press the [å, ∂] lever upward to move
to the beginning of the next track.
2. Each time the [å, ∂] lever is pressed
upward, playback proceeds to another track
in the advancing direction.
●Track-down
1. Press the [å, ∂] lever downward to
move the beginning of the current track.
2. Press the [å, ∂] lever downward twice to
move to the beginning of the previous track.
Folder Select
This function allows you to select a folder
containing MP3/WMA files and start playing
from the first track in the folder.
1. Press the [DN] or the [UP] button.
Press the [DN] button to move the previous
folder. Press the [UP] button to move the
next folder.
Root folder
1
2
3
4
5
∗ Press the [UP] button while in the final folder
to shift to the first folder.
∗ Folder without an MP3/WMA file is not
selectable.
2. To select a track, press the [å, ∂] lever
upward or downward.
Top function
The top function resets the CD player to the first
track of the disc. Press the [BND] button to play
the first track (track No. 1) on the disc.
∗ In case of MP3/WMA, the first track of a folder being
played will be returned.
20 DXZ665MP
CD/MP3/WMA Operations
Other various play functions
● Scan play
This function allows you to locate and play the first
10 seconds of all the tracks recorded on a disc.
1. Press the [SCN] button to perform scan play.
“SCAN” appears in the display.
∗ Scan play starts from the next track after the
track currently being played.
● Folder scan play
This function allows you to locate and play the
first 10 seconds of the first track of all the
folders on an MP3/WMA disc.
1. Press and hold the [SCN] button for 1
second or longer to perform folder scan play.
“F.SCAN” appears in the display.
∗ Folder scan play starts from the next track
after the track currently being played.
● Repeat play
This function allows you to play the current track
repeatedly.
1.
Press the [RPT] button to perform repeat play.
“RPT”
appears
● Folder repeat play
This function allows you to play a track currently
being played in the MP3/WMA folder repeatedly.
1. Press and hold the [RPT] button for 1 second
or longer to perform folder repeat play.
“F.RPT” appears in the display.
● Random play
This function allows you to play all tracks
recorded on a disc in a random order.
1. Press the [RDM] button to perform random
play.
“RDM”
● Folder random play
This function allows you to play all the tracks of
all the folders recorded on an MP3/WMA disc in
a random order.
1. Press and hold the [RDM] button for 1
second or longer to perform folder random
play.
“F.RDM” appears in the display.
● To cancel play
1. Press the operating button previously
selected.
appears
in the display.
in the display.
Operations Common to Each Mode
To change display setting
1. Press and hold the [D] button for 1
second or longer to switch to the
adjustment selection display.
2. Press the [å, ∂] lever upward or
downward to select the “item name”.
“CLOCK” ↔ “BGV” ↔ “S-A PTN” ↔
“S-A SENS” ↔ “S-A SPEED” ↔
“POWER MSG” ↔ “SCRN SVR” ↔
“MSG INPUT” ↔ “AUTO SCRL” ↔
“DIMMER”
3. Turn the [ROTARY] knob to select the
“desired setting value”.
∗ IIn the case of item names appearing with
the “PUSH ENT” suffix, after the item name,
the [ ] button must be pressed to display
the setting value.
∗ After completing settings, press the [D]
button to return to the previous mode.
● Setting the clock
2-1. Select “ CLOCK ”.
3-1. Press the [ ] button.
3-2. Press the [å, ∂] lever upward or
downward to select the hour or the minute.
3-3. Turn the [ROTARY] knob to set the correct
time.
∗ The clock is displayed in 12-hour format.
3-4. Press the [ ] button to store the time into
memory.
Note:
•
You cannot set the clock when it is displayed with
only the ignition on. If you drain or remove the car’s
battery or take out this unit, the clock is reset. While
setting the clock, if another button or operation is
selected, the clock set mode is canceled.
● Setting the background vision
This function allows you to change the
background vision in the display.
∗ The factory default setting is “SCAN”.
2-1. Select “ BGV”.
3-1. Turn the [ROTARY] knob to select the
setting.
Each time you turn the [ROTARY] knob,
the setting changes in the following order:
“SCAN” ↔ “MOVIE” ↔ “WALL 1” ↔
“WALL 2” ↔ “WALL 3” ↔ “WALL 4” ↔
“WALL 5” ↔ “OFF”
English
DXZ665MP 21
Operations Common to Each Mode
English
● Setting the spectrum analyzer pattern
∗ The factory default setting is “PTN 1”
2-1. Select “ S-A PTN”.
3-1. Turn the [ROTARY] knob to select the
setting.
Each time you turn the [ROTARY] knob,
the setting changes in the following order:
“PTN 1” ↔ “PTN 2”
● Setting the sensitivity of the spectrum
analyzer
This function allows you to adjust the sensitivity
of the spectrum analyzer.
∗ The factory default setting is “MID”
2-1. Select “ S-A SENS”.
3-1. Turn the [ROTARY] knob to select the
setting.
Each time you turn the [ROTARY] knob,
the setting changes in the following order:
“HIGH” ↔ “MID” ↔ “LOW”
● Setting the speed of the spectrum
analyzer
This function allows you to adjust the speed of
the spectrum analyzer.
∗ The factory default setting is “HIGH”
2-1. Select “ S-A SPEED”.
3-1. Turn the [ROTARY] knob to select the
setting.
Each time you turn the [ROTARY] knob,
the setting changes in the following order:
“HIGH” ↔ “MID” ↔ “LOW”
● Setting the power message
You can set the power message “ON” or “OFF”.
The message is “Clarion”.
∗ The factory default setting is “ON”.
2-1. Select “ POWER MSG”.
3-1. Turn the [ROTARY] knob to select “ON” or
“OFF”.
• ON:
When the power is on or off, the message
will appear in the display.
• OFF:
When the power is on or off, the message
won’t appear in the display.
● Turning the screen saver function on
or off
This unit is provided with the screen saver
function which allows you to show various kinds
of patterns and characters in the operation
status indication area of the display in a random
order. You can turn on or off this function. If the
button operation is performed with the screen
saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
∗ The factory default setting is “OFF”.
2-1. Select “ SCRN SVR”.
3-1. Turn the [ROTARY] knob to select the
setting.
Each time you turn the [ROTARY] knob,
the setting changes in the following order:
“OFF” ↔ “MSG INFO” ↔ “DEMO”
● Entering MESSAGE INFORMATION
Message up to 30 characters long can be stored
in memory and displayed as a type of screen
saver setting.
∗ The factory default setting is “Welcome to Clarion”.
2-1. Select “ MSG INPUT ”.
3-1. Press the [ ] button.
3-2. Press and hold the [BND] button for 1
second or longer to clear the old message.
3-3. Press the [å, ∂] lever upward or
downward to move the cursor.
3-4. Press the [BND] button to select a
character. Each time you press the [BND]
button, the character changes in the
following orders:
Capital letters ➜ Small letters ➜ Numbers/
Symbols ➜ Umlaut ➜ Capital letters…
3-5. Turn the [ROTARY] knob to select the
desired character.
3-6. Repeat step 3-3 to 3-5 to enter up to 30
characters for message.
3-7.
Press and hold the [ ] button for 2
seconds or longer to store the message in
memory and cancel input message mode.
Press and hold the [BND] button for 1
second or longer to cancel the input
message. Then press and hold the [ ]
button for 2 seconds or longer to store the
message and the message return to default
setting.
22 DXZ665MP
Operations Common to Each Mode
● Setting the method for title scroll
Set how to scroll in CD-TEXT, MP3/WMA title.
∗ The factory default setting is “ON”.
2-1. Select “ AUTO SCRL”.
3-1. Turn the [ROTARY] knob to select “ON” or
“OFF”.
• ON:
To scroll automatically.
• OFF:
To scroll just 1 time when the title was
changed or the [T] button was pressed for 1
second or longer.
● Dimmer control
You can set the dimmer control “ON” or “OFF”.
∗ The factory default setting is “ON”.
2-1. Select “ DIMMER”.
3-1. Turn the [ROTARY] knob to select “ON” or
“OFF”.
To change other settings
1. Press the [ADJ] button to switch to the
adjustment selection display.
2. Press the [å, ∂] lever upward or
downward to select the “item name”.
Each time the [å, ∂] lever is pressed
up/down, the item display changes in the
following order:
“ BLINK LED” ↔ “ AMP CANCEL”
↔ “ SID DISP” ↔ “ AUX SENS” ↔
“ SYSTEM”
3. Turn the [ROTARY] knob to select the
“desired setting item”.
∗ After completing settings, press the [ADJ]
button to return to the previous mode.
English
● Setting the external amplifier
∗ The factory default setting is “OFF”.
2-1. Select “ AMP CANCEL”.
3-1. Turn the [ROTARY] knob to select “ON” or
“OFF”.
• ON:
Use with connected AMP.
• OFF:
Use with inside AMP.
● Displaying the Satellite ID No.
∗ This function only applies when a Satellite receiver
is connected.
∗ The factory default setting is the upper 6 digits.
2-1. Select “ SID DISP”.
3-1. Turn the [ROTARY] knob to switch between
the display for the upper 6 digits and lower
6 digits.
● Selecting AUX IN sensitivity
Make the following settings to select the
sensitivity when sounds from external devices
connected to this unit are difficult to hear even
after adjusting the volume.
∗ The factory default setting is “MID”.
2-1. Select “ AUX SENS”.
3-1. Turn the [ROTARY] knob to select “LOW”,
“MID” or “HIGH”.
● Performing a system check
This function allows you to perform a system
check from the adjust mode when required.
2-1. Select “ SYSTEM ”.
3-1. Press and hold the [ ] button for 1
second or longer.
“SYSTEM CHECK” appears in the display,
then the unit returns to the previous
operation mode.
● Anti-theft indicator
The red Anti-theft indicator is a function for
preventing theft. When the DCP is removed
from the unit, this indicator blinks.
∗ The factory default setting is “OFF”.
2-1. Select “ BLINK LED”.
3-1. Turn the [ROTARY] knob to select “ON” or
“OFF”.
DXZ665MP 23
Operations Common to Each Mode
English
Entering titles
Titles up to 9 characters long can be stored in
memory and displayed for CD, CD changer,
Radio stations and TV stations. The number of
titles that can be entered for each mode are as
follows.
Mode Number of titles
CD mode 50 titles
TV mode 20 titles
Radio mode 30 titles
CD changer mode Number of titles
DCZ625 connected 100 titles
CDC655Tz connected 100 titles
1. Press the [SRC] button to select the mode
you want to enter a title (Radio, CD, CD
changer or TV).
2. Select and play a CD in the CD changer or
tune in to a TV station or Radio for which you
want to enter the title.
3. Press the [D] button and display the title
display.
4. Press and hold the [T] button for 1 second or
longer.
The display switches to the title input display.
5. Press the [å, ∂] lever upward or
downward to move the cursor.
6. Press the [BND] button to select a character.
Each time you press the [BND] button, the
character changes in the following order:
Capital letters ➜ Small letters ➜ Numbers/
Symbols ➜ Umlaut ➜ Capital letters…
7. Turn the [ROTARY] knob to select the
desired character.
8. Repeat steps 5 to 7 to enter up to 9
characters for the title.
9. Press and hold the [ ] button for 2
seconds or longer to store the title into
memory and cancel title input mode.
Clearing titles
1. Select and play a CD in the CD changer or
tune in to a TV station or TUNER for which
you want to clear the title.
2. Press the [D] button and display the title
display.
3. Press and hold the [T] button for 1 second or
longer.
The display switches to the title input display.
4. Press and hold the [BND] button for 1
second or longer.
All characters in the title disappear.
5. Press and hold the [ ] button for 2
seconds or longer to clear the title and
cancel title input mode.
Triggered audio mute for cellular
telephones
This unit requires special wiring to mute the
audio signal automatically when a cellular
telephone rings in the car.
∗ This function is not compatible with all cellular
telephones Contact your local authorized Clarion
dealer for information on proper installation and
compatibility.
AUX function
This system has an external input jack so you
can listen to sounds and music from external
devices connected to this unit.
Setting the button illumination
Press the [C] button to select a color type. Each
time you press the [C] button, the type changes
in the following orders:
COLOR SCAN ➜ IndigoBlue ➜ SurfBlue ➜
SilkyWhite ➜ AquaGreen ➜ FreshGreen ➜
LeafGreen ➜ WarmAmber ➜ PassionRed ➜
VividPink ➜ PalePink ➜ DarkViolet ➜
PurePurple ➜ USER 1 ➜ USER 2 ➜ USER 3
➜ COLOR SCAN ...
24 DXZ665MP
Operations Common to Each Mode
●Setting COLOR SCAN mode
As selecting “COLOR SCAN”, the color
automatically changes.
∗ The factory default setting is “COLOR SCAN”.
∗ After 3 seconds the color changes to the other.
●Setting USER mode
The factory default setting is “RED 8”, “GREEN
8”, “BLUE 8”.
As selecting “USER 1, 2, 3”, press and hold the
[C] button for 1 second or longer to enter the
setting.
1. Press the [å, ∂] lever upward or
downward to select “ RED” ➜ “ GREEN”
➜ “ BLUE”.
2. Turn the [ROTARY] knob to select from 0 to 8.
3. Press and hold the [ ] button for 2
seconds or longer to store the color in
memory and cancel setting mode.
English
COLOR
IndigoBlue
SurfBlue
SilkyWhite
AquaGreen
FreshGreen
LeafGreen
WarmAmber
PassionRed
VividPink
PalePink
DarkViolet
PurePurple
USER 1
USER 2
USER 3
R
G
B
0
0
8
0
4
8
8
8
7
0
8
2
0
8
0
3
8
0
8
3
0
8
0
0
8
0
3
8
2
3
3
0
8
6
0
8
8
8
8
8
8
8
8
8
8
DXZ665MP 25
English
8. OPERATIONS OF ACCESSORIES
CD Changer Operations
Note:
• The following operations are the same as for CD
mode:
∗
Pause
∗
Track selection
∗
Fast-forward/fast-backward
∗
Scan play
∗
Repeat play
∗
Random play
See “CD/MP3/WMA Operations” (page 18-21)
for details.
CD changer functions
When an optional CD changer is connected
through the CeNET cable, this unit controls all
CD changer functions. This unit can control a
total of 2 changers.
Press the [SRC] button and select the CD
changer mode to start play. If 2 CD changers
are connected, press the [SRC] button to select
the CD changer for play.
∗ If “NO MAG” appears in the display, insert the
magazine into the CD changer. “DISC CHECK”
appears in the display while the player loads
(checks) the magazine.
∗ If “NO DISC” appears in the display, eject the
magazine and insert discs into each slot. Then,
reinsert the magazine back into the CD changer.
Note:
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
CAUTION
CD-ROM discs cannot be played from every
CD changer, it’s depended on the model.
Displaying CD titles
This unit can display title data for CD-text CDs
and user titles input with this unit.
∗ Title data for CD-text CDs can be displayed with
this unit only when it is connected to CDC655Tz.
1. Press the [D] button to display the title.
2. Each time you press the [T] button, the title
display changes in the following order:
User title (disc) ➜ CD-text title (disc) ➜ Artist
name ➜ CD-text title (track) ➜ User title
(disc)
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “ ” appears in the display.
• If a CD-text CD is not input its disc title or a track
title, “ ” or “ ” appears in the display.
Procedure to scroll a title
Set “AUTO SCRL” to “ON” or “OFF”.
(The factory default setting is “ON”. Refer to the
subsection “Setting the method for title scroll”
in section “Operations Common to Each
Mode”.)
●When set to “ON”
The title is automatically kept scrolling.
●When set to “OFF”
To scroll just 1 time when the title was changed
or the [T] button was pressed for 1 second or
longer.
Selecting a CD
Press the [UP] or [DN] button to select the
desired disc.
∗ If a CD is not loaded in a slot of magazine, pressing
the [UP] or [DN] button can not work.
Other various play functions
● Disc scan play
Disc scan play locates and plays the first 10
seconds of the first track on each disc in the
currently selected CD changer. This function
continues automatically until it is cancelled.
∗ Disc scan play is useful when you want to select a
desired CD.
1. Press and hold the [SCN] button for 1
second or longer. “D.SCAN” appears in the
display and disc scan play starts.
● Disc repeat play
After all the tracks on the current disc have
been played, disc repeat play automatically
replays the current disc over from the first track.
This function continues automatically until it is
cancelled.
1. Press and hold the [RPT] button for 1 second
or longer. “D.RPT” appears in the display
and disc repeat play starts.
26 DXZ665MP
CD Changer Operations
● Disc random play
The disc random play selects and plays
individual tracks or discs automatically in no
particular order. This function continues
automatically until it is cancelled.
1. Press and hold the [RDM] button for 1
second or longer. “D.RDM” appears in the
display and disc random play starts.
● To cancel play
1. Press the operating button previously
selected.
TV Operations
Note:
• The following operations are performed the same
as for radio mode:
∗
Channel selection
∗
Storing channels in memory
∗
Calling channels from memory
∗
Auto store
∗
Preset scan
See “Radio Operations” (page 16-17) for details.
TV tuner functions
When an optional TV tuner is connected through
the CeNET cable, this unit controls all TV tuner
functions. To watch TV requires a TV tuner and
monitor.
Watching a TV
1.
Press the [SRC] button and select the TV mode.
2. Press the [BND] button to select the desired
TV band (TV1 or TV2). Each time the button
is pressed, the input selection toggles
between TV1 and TV2.
3. Press the [å, ∂] lever upward or
downward to tune in the desired TV station.
Watching a video
The TV tuner has a VTR input terminal to which
1 external device can be connected. Connect a
12 V video cassette player (VCP) or video
cassette recorder (VCR) to the TV tuner input
terminal.
1. Press and hold the [ADJ] button for 1 second
or longer to select VTR.
2. To return to the TV broadcast, press and
hold the [ADJ] button for 1 second or longer.
English
Setting the TV diver
You can change the reception setting for the TV
antenna connected to the TV tuner.
1. Press the [ADJ] button to switch to the
adjustment selection display.
2. Press the [å, ∂] lever upward or
downward to select “ TV DIVER”.
3. Turn the [ROTARY] knob clockwise to set to
“ON” or counterclockwise to set to “OFF”.
● ON:
Sets the diver setting to ON.
● OFF:
Sets the diver setting to OFF.
4. Press the [ADJ] button to return to the
previous mode.
DXZ665MP 27
English
9. IN CASE OF DIFFICULTY
Problem
Power does not
turn on.
(No sound is
produced.)
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Nothing happens
when buttons are
pressed.
General
Display is not
accurate.
No sound heard
No sound heard
Sound skips or is
noisy.
Sound is cut or
skipped.
Noise is
CD/MP3/WMA
generated or
noise is mixed
with sound.
Sound is bad
directly after
power is turned
on.
Wrong filename
Cause Measure
Fuse is blown.
Incorrect wiring.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
The microprocessor has
malfunctioned due to noise,
etc.
DCP or main unit connectors
are dirty.
The speaker protection
circuit is operating.
MP3/WMA files are absent in
a disc.
Files are not recognized as
an MP3/WMA file.
File system is not correct.
Compact disc is dirty.
Compact disc is heavily
scratched or warped.
MP3/WMA files are not
encoded properly.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
File system is not correct.
Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.
Consult your store of purchase.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the
power antenna lead one by one. If the amplifiers
turn off before all wires are attached, use an
external relay to provide remote-on voltage
(excessive current required).
Turn off the power, then press
the [RELEASE] button and
remove the DCP.
Press the reset button for
about 2 seconds with a thin
rod.
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
1. Turn down sound volume. Function can also be
restored by turning the power off and on again.
(Speaker volume is reduced automatically when
the speaker protection circuit operates).
2. If the sound is muted again, consult our service
department.
Write MP3/WMA files onto the disc properly.
Use MP3/WMA files encoded properly.
Use ISO9660 level 1, 2 or JOLIET or Romeo file system.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Use MP3/WMA files encoded properly.
Let dry for about 1 hour with the power on.
Use ISO9660 level 1, 2 or JOLIET or Romeo file system.
Reset button
28 DXZ665MP
10. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to eliminate the problem.
English
ERROR 2
ERROR 3
ERROR 6
CD/MP3/WMA
ERROR 2
ERROR 3
CD changer
ERROR 6
ERROR 2
ERROR 3
ERROR 6
DVD changer
ERROR P
ERROR R
CauseError Display
A CD is caught inside the CD deck and is
not ejected.
A CD cannot be played due to scratches,
etc.
A CD is loaded upside-down inside the CD
deck and does not play.
A CD inside the CD changer is not loaded.
A CD inside the CD changer cannot be
played due to scratches, etc.
A CD inside the CD changer cannot be
played because it is loaded upside-down.
A DISC inside the DVD changer cannot be
played.
A DISC cannot be played due to scratches,
etc.
A DISC inside the DVD changer cannot be
played because it is loaded upside-down.
Parental level error
Region code error
Measure
This is a failure of CD deck’s mechanism and
consult your store of purchase.
Replace with a non-scratched,
non-warped-disc.
Eject the disc then reload it properly.
This is a failure of CD changer’s mechanism
and consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
Eject the disc then reload it properly.
This is a failure of DVD mechanism and
consult your store of purchase.
Retry or replace with a non-scratched, nonwarped-disc.
Eject the disc then reload it properly
Set the correct Parental level.
Eject the disc and replace correct region
code disc.
If an error display other than the ones described above appears, press the reset button. If the problem
persists, turn off the power and consult your store of purchase.
DXZ665MP 29
English
11. SPECIFICATIONS
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1710 kHz
Usable Sensitivity: 25 µV
CD Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response (±1 dB): 5 Hz to 20 kHz
Dynamic Range (1 kHz): 95 dB
Harmonic Distortion: 0.01%
Note:
• Specifications and design are subject to change without notice for further improvement.
Audio
Maximum Power Output: 212 W (53 W ✕ 4 ch)
Bass Control Action (80 Hz): +14 dB, –12 dB
Treble Control Action (10 kHz): +14 dB, –12 dB
Line Output Level (CD 1 kHz): 1.8 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 Ω (4 Ω to 8 Ω allowable)
Weight / Source unit: 2.75 lb. (1.55 kg)
Weight / Remote control unit:
1.41 oz. (40 g) (including battery)
Dimensions / Source unit:
7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)
[178 (W) ✕ 50 (H) ✕ 155 (D) mm]
Dimensions / Remote control unit:
1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 7/16"
(Depth)
[44 (W) ✕ 110 (H) ✕ 11 (D) mm]
Power Output :
19 W RMS x 4 Channels at 4 Ω
and 1 % THD+N
Signal to Noise Ratio:
81 dBA (reference: 1 W into 4 Ω)
30 DXZ665MP
2005/12
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2005: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
PE-2788B
280-8331-00
Loading...
