Owner’s manual
Mode d’emploi
Manual de instrucciones
DXZ54 5MP
AM/FM CD/MP3/WMA PLAYER
•
RADIO AM/FM-LECTEUR CD/MP3/WMA
•
REPRODUCTOR DE AM/FM CD/MP3/WMA
Thank you for purchasing this Clarion product.
English
∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗ This manual includes the operating procedures of the CD changer, TV tuner connected via the
CeNET cable. The CD changer, TV tuner have their own manuals, but no explanations for operating them are described.
Contents
1. FEATURES ...................................................................................................................................... 2
2. PRECAUTIONS ............................................................................................................................... 3
Handling Compact Discs ................................................................................................................. 4
3. CONTROLS ..................................................................................................................................... 5
4. NOMENCLATURE .......................................................................................................................... 6
Names of the Buttons and their Functions ...................................................................................... 6
Major button operations when external equipment is connected to this unit ................................... 7
Display Items ................................................................................................................................... 8
LCD Screen ..................................................................................................................................... 8
5. DCP ................................................................................................................................................. 9
6. REMOTE CONTROL..................................................................................................................... 10
Inserting the Batteries ................................................................................................................... 10
Functions of Remote Control Unit Buttons .................................................................................... 11
7. OPERATIONS ............................................................................................................................... 12
Basic Operations ........................................................................................................................... 12
Radio Operations ........................................................................................................................... 14
CD/MP3/WMA Operations ............................................................................................................. 16
Different pieces of music heard by plural listeners (2-ZONE function) .......................................... 20
Operations Common to Each Mode .............................................................................................. 21
8. OPERATIONS OF ACCESSORIES .............................................................................................. 24
CD Changer Operations ................................................................................................................ 24
TV Operations................................................................................................................................ 26
9. IN CASE OF DIFFICULTY ............................................................................................................ 28
10. ERROR DISPLAYS ....................................................................................................................... 29
11. SPECIFICATIONS ......................................................................................................................... 30
1. FEATURES
• MP3 and WMA File Playable with ID3-TAG and WMA-TAG Display
• Visible Blue Negative LCD and White Illuminated Buttons
• Aluminum Detachable Faceplate
• Z-Enhancer Plus with 2 Band PEQ
• MAGNA BASS EX for Dynamic Bass Tuning
• 4ch RCA Output and 2ch AUX Input with 3 Level Adjustments
• CeNET with Balanced Audio Line Transmission and Dynamic Noise Cancelling
• Sirius Control
2 DXZ545MP
2. PRECAUTIONS
English
1. When the inside of the car is very cold and the
player is used soon after switching on the
heater moisture may form on the disc or the
optical parts of the player and proper playback
may not be possible. If moisture forms on the
disc, wipe it off with a soft cloth. If moisture
forms on the optical parts of the player, do not
use the player for about one hour. The condensation will disappear naturally allowing normal
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to consult the dealer or an experienced radio/TV technician for help.
2. Driving on extremely bumpy roads which cause
severe vibration may cause the sound to skip.
3. This unit uses a precision mechanism. Even in
the event that trouble arises, never open the
case, disassemble the unit, or lubricate the rotating parts.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER and MINI DISC
PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL
VIOLATE FCC APPROVAL.
Bottom View of Source Unit
DXZ545MP 3
Handling Compact Discs
Use only compact discs bearing the or
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded in CD-R/CD-RW mode
may not be usable.
Handling
•
Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played. Therefore,
do not leave them for a long time in the car.
• New discs may have some roughness around
the edges. If such
discs are used, the
player may not work
or the sound may
skip. Use a ball-point
pen or the like to remove any roughness
from the edge of the
disc.
•
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
• Never play a compact disc with any cellophane tape or other glue on it or with peeling
off marks. If you try to play such a compact
disc, you may not be able to get it back out of
the CD player or it may damage the CD
player.
Ball-point pen
Roughness
•
Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or damage.
•
To remove a compact disc from its storage case,
press down on the center of the case and lift the
disc out, holding it carefully by the edges.
• Do not use commercially available CD protection sheets or discs equipped with stabilizers,
etc. These may damage the disc or cause
breakdown of the internal mechanism.
Storage
• Do not expose compact discs to direct sunlight
or any heat source.
• Do not expose compact discs to excess humidity or dust.
• Do not expose compact discs to direct heat
from heaters.
Cleaning
• To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the compact disc to the circumference.
• Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
• After using special compact disc cleaner, let
the compact disc dry off well before playing it.
English
Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
DXZ545MP 4
English
[
ROTARY
]
[a], [d]
[ ]
[
SCN
]
[
RPT
]
[
RDM
]
[
PLAY LIST
]
[
DIRECT
]
[DN], [UP]
[
DISP
]
[
ISR
]
Source unit / Appareil pilote / Unidad fuente
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
[
RELEASE
]
[
P/A
]
[T]
[FNC]
[A-M]
[BND]
[Z+]
[]
[Q]
[CD SLOT]
3.CONTROLS / LES COMMANDES / CONTROLES
Français
Español
5 DXZ545MP
English
4. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).
Names of the Buttons and their Functions
[RELEASE] button
• Deeply push in [RELEASE] button to unlock
DCP.
[ROTARY] knob
• Adjust the volume by turning the knob clockwise or counterclockwise.
• Use the knob to perform various settings.
[CD SLOT]
• CD insertion slot.
[Q] button
• Eject a CD when it is loaded into the unit.
[ ] button
• Press and hold for 1 second or longer to turn
on or off the 2-ZONE mode.
• Press to switch the control zone between
main zone or sub zone while 2-ZONE mode
on.
[Z+] button
• Use the button to select one of the 4 types of
sound characteristics already stored in
memory.
[ISR] button
• Recall ISR radio station in memory.
• Press and hold for 2 seconds or longer: Store
current station into ISR memory (radio mode
only).
•
Press and hold the button for 1 second or
longer to switch the main and sub zone sound
source. (only while 2-ZONE mode on)
[DISP] button
• Switch the display indication (Main display,
Clock display).
[T] button
• Use the button to input a title in the Tuner, CD
mode.
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[P/A] button
• Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
[UP], [DN] buttons
• Select the Folder. (MP3/WMA disc only)
[DIRECT] buttons
• Store a station into memory or recall it directly while in the radio mode.
[PLAY LIST] button
• Press and hold for 1 second or longer to turn
on or off the play list mode. (MP3/WMA disc
only)
[RDM] button
• Perform random play while in the CD mode.
• Press and hold the button for 1 second or
longer to perform folder random play while in
the MP3/WMA mode.
[RPT] button
• Repeat play while in the CD mode.
• Press and hold the button for 1 second or
longer to perform folder repeat play while in
the MP3/WMA mode.
[SCN] button
• Perform scan play for 10 seconds of each
track while in the CD mode.
• Press and hold the button for 1 second or
longer to perform folder scan play while in the
MP3/WMA mode.
[ ] button
• Play or pause a CD while in the CD mode.
[a], [d] buttons
• Select a station while in the radio mode or
select a track when listening to a CD. These
buttons are used to make various settings.
• Press and hold the button for 1 second or
longer to switch the fast-forward/fast-backward.
[BND] button
• Switch the band, or seek tuning or manual
tuning while in the radio mode.
• Play a first track while in the CD mode.
[A-M] button
• Use the button to switch to the audio mode
(bass/treble, balance/fader Z-Enhancer Plus)
• Press and hold for 1 second or longer to turn
on or off the MAGNA BASS EXTENED.
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
• Switches the operation mode among the radio mode, etc.
6 DXZ545MP
Major button operations when external equipment is
connected to this unit
English
● When the CD/DVD changer is
connected
∗ For details, see the section “CD changer
operations”. For the DVD changer, refer to
the Owner’s Manual provided with the
DVD changer.
[DISP] button
• When the button is pressed and held,
switches the user titles or track titles, etc.
while in the CD changer mode.
[T] button
• Use the button to input a title in the CD
changer mode.
•
Use the button to scroll the title during CD-text play.
[UP], [DN] buttons
• Select the disc.
[RDM] button
•
Perform random play. Also perform disc random play when the button is pressed and held.
[RPT] button
•
Perform repeat play. When this button is pressed
and held, disc repeat play is per-formed.
[SCN] button
• Perform scan play for 10 seconds of each
track. Disc scan play is performed when the
button is pressed and held.
[BND] button
• Move the next disc in increasing order.
[ ] button
• Play or pause a CD or DVD.
[a], [d] buttons
• Select a track when listening to a disc.
•
Press and hold the button for 1 second or
longer to switch the fast-forward/fast-backward.
● When the TV is connected
∗
For details, see the section “TV operations”.
[P/A] button
• Perform preset scan while in the TV mode.
When the button is pressed and held, auto
store is performed.
[DIRECT] buttons
• Store a station into memory or recall it directly.
[ ] button
• Switch the TV picture mode or VTR (external)
picture mode.
[a], [d] buttons
• Select a station.
[BND] button
• Switch the band.
• When the button is pressed and held, switch
seek tuning or manual mode.
● When the Sirius Satellite
Radio is connected
∗ For details, refer to the Owner’s Manual
provided with the Sirius Satellite Radio.
[P/A] button
• Performs category scan while in the SIRIUS
mode. When the button is pressed and held,
preset scan is performed.
[DIRECT] buttons
• Stores a station into memory or recall it di-
rectly while in the SIRIUS mode.
[ ] button
• Select a category.
[a], [d] button
• Press the button to selects a station.
[FNC] button
• Press the button to switch the operation
mode among the SIRIUS mode, etc.
What is Sirius Satellite Radio?
Sirius is radio the way it was meant to be: Up to
100 new channels of digital quality programming
delivered to listeners coast to coast via satellite.
That means 50 channels of completely commercial-free music. Plus up to 50 more channels of
news, sports, and entertainment from names like
CNBC, Discovery, SCI-FI Channel, A&E, House
of Blues, E!, NPR, Speedvision and ESPN.
Sirius is live, dynamic entertainment, completely
focused on listeners. Every minute of every day of
every week will be different. All 50 commercialfree music channels are created in-house and
hosted by DJs who know and love the music. Do
you like Reggae? How about Classic Rock or New
Rock? Sirius has an array of choices spanning a
vast range of musical tastes including the hits of
the 50’s, 60’s, 70’s, & 80’s as well as Jazz, Country, Blues, Pop, Rap, R&B, Bluegrass, Alternative,
Classical, Heavy Metal, Dance and many others...
From its state-of-the-art, digital broadcasting facility in Rockefeller Center, New York City, Sirius
will deliver the broadest, deepest mix of radio
entertainment from coast to coast.
Sirius will bring you music and entertainment
programming that is simply not available on traditional radio in any market across the country.
It’s radio like you’ve never heard before.
So Get Sirius and Listen Up! For more information, visit siriusradio.com.
DXZ545MP 7
Z-Enhancer Plus indication
: Manual indication
: Stereo indication
: MAGNA BASS EXTEND indication
: MP3 indication
: WMA indication
: 2-ZONE indication
: Main indication
: Sub indication
: Satellite indication
: Disc folder indication
: Scan indication
: Repeat indication
: Random indication
Function mode indication
The names of modes being selected, etc.
are displayed.
: Mute indication
: Preset channel indication (1 to 6)
Disc number indication (1 to 12)
Operation status indication
Titles, clock, etc. are displays.
Display Items
English
LCD Screen
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.
8 DXZ545MP
5. DCP
English
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [FNC] button for 1 second or
longer to switch off the power.
2. Press in the [RELEASE] button.
[RELEASE] button
3. Remove the DCP.
DCP
Attaching the DCP
1. Insert the right side of the DCP into the
Source unit.
2. Insert the left side of the DCP into the
Source unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orientation.)
DCP
DCP case
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• When the Release button is pressed and
the DCP is unlocked, the car’s vibrations
may cause it to fall. To prevent damage to
the DCP, always store it in its case after detaching it. (ee figure below.)
• The connector connecting the Source unit
and the DCP is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc.
DCP Rear Panel Source Unit Front
DCP
connector
Source unit connector
2.
DCP
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
1.
DXZ545MP 9
English
6. REMOTE CONTROL
Receiver for remote control unit
Remote control unit
[
]
FUNC
[ ],[ ]
[
]
ISR
[
]
MUTE
[
]
SCN
[
]
RPT
Operating range: 30˚ in all directions
Signal transmitter
[
[]
[ ],[ ]
[
[
[
2-ZONE
BAND
]
DISP
]
RDM
]
]
Inserting the Batteries
1.Turn the remote control unit over, then slide the
rear cover in the direction of the arrow.
2.Insert the AA (SUM-3, IECR-6/1.5V) batteries
that came with the remote control unit facing in
the directions shown in the figure, then close the
rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
• When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
10 DXZ545MP
AA (SUM-3, IECR-6/1.5V)
Batteries
Rear cover
Rear side
Functions of Remote Control Unit Buttons
English
Mode
Button
[FUNC]
[BAND]
[ ] , [ ]
[ ] , [ ]
[ ]
[MUTE]
[ISR]
[DISP]
[SCN]
Radio/SIRIUS CD/MP3/WMA
Switches among radio, SIRIUS tuner, CD/MP3/WMA, CD changer, DVD changer, TV and
AUX.
Switches reception
band.
Increases and decreases volume (in all modes).
Moves preset
channels up and
down.
No function.
Turns mute on and off.
Recalls ISR radio station in memory.
Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode only).
Press and hold the button for 1 second or longer to switch the main and sub zone sound
source.(only while 2-ZONE mode on)
Switches among main display, clock display.
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
Plays the first track.
Top play.
Moves tracks up and down.
When pressed and held for 1 second:
Fast-forward/fast-backward.
Switches between playback and pause.
Scan play.
Press and hold the
button for 1 second
or longer to perform
folder scan play while
in the MP3/WMA
mode.
CD changer
DVD changer
Moves the next disc
in increasing order.
Scan play.
When pressed and
held for 1 second:
Disc scan play.
TV
Switches reception
band.
Moves preset
channels up and
down.
No function.
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
[RPT]
[RDM]
[2-ZONE]
∗ Some of the corresponding buttons on the main unit and remote control unit have different functions.
No function.
No function.
Press and hold for 1 second or longer to turn on or off the 2-ZONE mode.
Press to switch the control zone between main zone or sub zone while 2-ZONE mode on.
Repeat play.
Press and hold the
button for 1 second
or longer to perform
folder Repeat play
while in the
MP3/WMA mode.
Random play.
Press and hold the
button for 1 second
or longer to perform
folder Random play
while in the
MP3/WMA mode.
Repeat play.
When pressed and
held for 1 second:
Disc repeat play.
Random play.
When pressed and
held for 1 second:
Disc random play.
No function.
Switches between TV
and VTR.
DXZ545MP 11
English
7. OPERATIONS
Basic Operations
Note:Be sure to read this chapter referring to the front diagrams of
chapter “3. CONTROLS” on page 5 (unfold).
CAUTION
Be sure to lower the volume before switching off the unit power or the ignition key. The
unit remembers its last volume setting. If you
switch the power off with the volume up,
when you switch the power back on, the sudden loud volume may hurt your hearing and
damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [FNC] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [FNC] button for 1 second
or longer to turn off the power for the unit.
Note:
• System check
The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power is
turned on, “SYSTEM CHK” and “Push POWER”
appear in the display alternately, so press the
[FNC] button. The system check starts within the
unit. When the system check is complete, press
the [FNC] button again.
Selecting a mode
1. Press the [FNC] button to change the opera-
tion mode.
2. Each time you press the [FNC] button, the
operation mode changes in the following order:
Radio mode ➜ SIRIUS mode ➜ CD/MP3/
WMA mode ➜ CD changer mode ➜ DVD
changer mode ➜ TV mode ➜ AUX mode ➜
Radio mode...
∗ External equipment not connected with
CeNET is not displayed.
Adjusting the volume
Turning the [ROTARY] knob clockwise increases
the volume; turning it counterclockwise decreases the volume.
∗ The volume level is from 0 (minimum) to 33 (maxi-
mum).
Switching the display
Press the [DISP] button to select the desired display.
Each time you press the [DISP] button, the display switches in the following order:
Main display ➜ Clock display ➜ Main display ...
∗ Once selected, the preferred display becomes
the display default. When a function adjustment such as volume is made, the screen will
momentarily switch to that function’s display,
then revert back to the preferred display several seconds after the adjustment.
∗ When you have entered a title in a CD, it ap-
pears in the main display. If you have not entered a title, “NO TITLE” appears in the title
display instead. For information on how to enter a title, refer to the subsection “Entering
titles” in section “Operations Common to
Each Mode”.
Setting the Z-Enhancer Plus
This unit are provided with 4 types of sound tone effects stored in memory. Select the one you prefer.
∗ The factory default setting is “Z+ OFF”.
Each time you press the [Z+] button, the tone effect changes in the following order:
“Z+ OFF” ➜ “BASS BOOST” ➜ “IMPACT” ➜
“EXCITE” ➜ “CUSTOM” ➜ “Z+ OFF” ...
• BASS BOOST : bass emphasized
• IMPACT : bass and treble emphasized
• EXCITE : bass and treble emphasized mid de-emphasized
• CUSTOM : user custom
• Z+ OFF : no sound effect
Adjusting the Z-Enhancer Plus
1. Press the [Z+] button and select the Z-En-
hancer Plus mode to adjust.
12 DXZ545MP
2. Press the [A-M] button and turning the
[ROTARY] knob clockwise adjusts in the +
direction; tuning it counterclockwise adjusts
in the – direction.
● When “B-BOOST 0” selected, you can ad-
just the bass in the range of –3 to 3.
● When “IMPACT 0” selected, you can adjust
the bass and treble in the range of –3 to 3.
● When “EXCITE 0” selected, you can adjust
the bass and treble in the range of –3 to 3.
∗ When Z-Enhancer Plus is selected, press and
hold the [Z+] button for 1 second or longer to
change to the “CUSTOM” mode.
Bass/treble characteristics become flat and
the indication “Z+ FLAT” is shown in the dis-
play.
Adjusting the tone
Press the [A-M] button and select the item to
adjust. Each time you press the [A-M] button,
the item changes as following order:
● When “BASS BOOST” is set
“SW-VOL 0” ➜ “B-BOOST 0” ➜ “BAL 0” ➜
“FADER 0” ➜ Last function mode.
● When “IMPACT” is set
“SW-VOL 0” ➜ “IMPACT 0” ➜ “BAL 0” ➜
“FADER 0” ➜ Last function mode.
● When “EXCITE” is set
“SW-VOL 0” ➜ “EXCITE 0” ➜ “BAL 0” ➜
“FADER 0” ➜ Last function mode.
● When “CUSTOM” is set
“SW-VOL 0” ➜ “BASS” ➜ “TREBLE” ➜
“BAL 0” ➜ “FADER 0” ➜ Last function
mode.
● When “Z+ OFF” is set
“SW-VOL 0” ➜ “BAL 0” ➜ “FADER 0” ➜
Last function mode.
∗ If subwoofer is effective, “SW-VOL 0” can be se-
lected.
Adjusting the subwoofer
When you default select one of mode (LPF50,
LPF80, LPF120)
1. Press the [A-M] button and select
“SW-VOL 0”.
2. Turning the [ROTARY] knob clockwise or
counterclockwise to adjust the subwoofer
volume.
∗ The factory default setting is “SW-VOL 0”.
(Adjustment range: -6 to +6)
Basic Operations
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the bass (Gain,
Frequency, Q-curve)
This adjustment can be performed when the ZEnhancer Plus is set to “CUSTOM”.
1.
Press the [A-M] button and select “BASS”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the bass; turning it counterclockwise attenuates the bass.
∗ The factory default setting is “B
ÅÅ
Å
ÅÅ
GAIN 0
ÎÎ
Î
ÎÎ
”.
(Adjustment range: –6 to +8)
3. Press the [a] or [d] button to select
“B
ÅÅ
Å
ÅÅ
FREQ 50
ÎÎ
Î
ÎÎ
”.
Turning the [ROTARY] knob clockwise or
counterclockwise to select the frequency.
∗ The factory default setting is “B
ÅÅ
Å
ÅÅ
FREQ 50
ÎÎ
Î
ÎÎ
(Adjustment 50/80/120 Hz)
ÅÅ
Å
4.
Press the [a] or [d] button to select “B
ÅÅ
Q 1
Turning the [ROTARY] knob clockwise or
counterclockwise to select the Q-curve.
ÅÅ
ÎÎ
Å
Î
ÅÅ
∗ The factory default setting is “B
Q 1
ÎÎ
”.
(Adjustment 1/1.25/1.5/2)
5. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the treble (Gain,
Frequency)
This adjustment can be performed when the ZEnhancer Plus is set to “CUSTOM”.
1.
Press the [A-M] button and select “TREBLE”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the treble; turning it counterclockwise attenuates the treble.
∗ The factory default setting is “T
(Adjustment range: –6 to +6)
3. Press the [a] or [d] button to select
ÅÅ
Å
ÅÅ
FREQ 12k
“T
ÎÎ
Î
ÎÎ
”.
Turning the [ROTARY] knob clockwise or
counterclockwise to select the frequency.
∗ The factory default setting is “T
(Adjustment 8 kHz/12 kHz)
4. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
ÅÅ
Å
ÅÅ
GAIN 0
ÅÅ
Å
ÅÅ
FREQ 12k
ÎÎ
Î
ÎÎ
”.
”.
ÎÎ
Î
ÎÎ
”.
ÎÎ
Î
ÎÎ
”.
English
DXZ545MP 13
Basic Operations
English
Adjusting the balance
1. Press the [A-M] button and select “BAL 0”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the sound from the right speaker;
turning it counterclockwise emphasizes the
sound from the left speaker.
∗ The factory default setting is “BAL 0”. (Adjust-
ment range: L13 to R13)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the fader
1.
Press the [A-M] button and select “FADER 0”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the sound from the front speakers;
turning it counterclockwise emphasizes the
sound from the rear speakers.
∗ The factory default setting is “FADER 0”. (Ad-
justment range: F12 to R12)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust
the low sound area like the normal sound adjustment function, but emphasizes the deep
bass sound area to provide you with a dynamic
sound.
∗ The factory default setting is off.
1. Press and hold the [A-M] button for 1 second or longer to turn on the MAGNA BASS
EXTEND effect. “M-B EX” lights in the display.
2. Press and hold the [A-M] button for 1 second
or longer to turn off the MAGNA BASS EXTEND effect. “M-B EX” goes off from the display.
Radio Operations
FM reception
For enhanced FM performance the
tuner includes signal actuated stereo control,
Enhanced Multi AGC, Impulse noise reduction
curcuits and Multipath noise reduction circuits.
Listening to the radio
1. Press the [FNC] button and select the radio
mode. The frequency appears in the display.
2. Press the [BND] button and select the radio
band. Each time the button is pressed, the radio reception band changes in the following
order:
FM1 ➜ FM2 ➜ FM3 ➜ AM ➜ FM1...
3. Press the [a] or [d] button to tune in the
desired station.
Tuning
There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the de-
sired band (FM or AM).
∗ If “MANU” is lit in the display, press and hold
the [BND] button for 1 second or longer.
“MANU” in the display goes off and seek tuning is now available.
2. Press the [a] or [d] button to automatically
seek a station.
When the [d] button is pressed, the station is
sought in the direction of higher frequencies; if
the [a] button is pressed, the station is sought
in the direction of lower frequencies.
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the frequency changes one step at a time. In the quick
tuning mode, you can quickly tune the desired
frequency.
1. Press the [BND] button and select the de-
sired band (FM or AM).
∗ If “MANU” is not lit in the display, press and
hold the [BND] button for 1 second or longer.
“MANU” is lit in the display and manual tuning
is now available.
2. Tune into a station.
®
14 DXZ545MP
● Quick tuning:
Press and hold the [a] or [d] button for 1
second or longer to tune in a station.
● Step tuning:
Press the [a] or [d] button to manually
tune in a station.
Recalling a preset station
A total of 24 preset positions (6-FM1, 6-FM2, 6FM3, 6-AM) exists to store individual radio stations in memory. Pressing the corresponding
[DIRECT] button recalls the stored radio frequency automatically.
1. Press the [BND] button and select the de-
sired band (FM or AM).
2. Press the corresponding [DIRECT] button to
recall the stored station.
∗ Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store that station
into preset memory.
Manual memory
1. Select the desired station with seek tuning,
manual tuning or preset tuning.
2. Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
station into preset memory.
Radio Operations
Note:
• Be careful not to press and hold the [P/A] button
for 2 seconds or longer, otherwise the auto store
function is engaged and the unit starts storing
stations.
Instant station recall (ISR)
Instant station recall is a special radio preset
that instantly accesses a favorite radio station at
a touch of a button. The ISR function even operates with the unit in other modes.
● ISR memory
1. Select the station that you wish to store in ISR
memory.
2. Press and hold the [ISR] button for 2 seconds
or longer.
● Recalling a station with ISR
In any mode, press the [ISR] button to turn on
the radio function and tune the selected radio
station. “ISR” appears in the display. Press the
[ISR] button again to return to the previous
mode.
English
Auto store
Auto store is a function for storing up to 6 stations that are automatically tuned in sequentially.
If 6 receivable stations cannot be received, a
previously stored station remains unoverwritten
at the memory position.
1. Press the [BND] button and select the de-
sired band (FM or AM).
2. Press and hold the [P/A] button for 2 seconds or longer. The stations with good reception are stored automatically to the preset
channels.
Preset scan
Preset scan receives the stations stored in preset memory in order. This function is useful
when searching for a desired station in memory.
1. Press the [P/A] button.
2. When a desired station is tuned in, press the
[P/A] button again to continue receiving that
station.
DXZ545MP 15

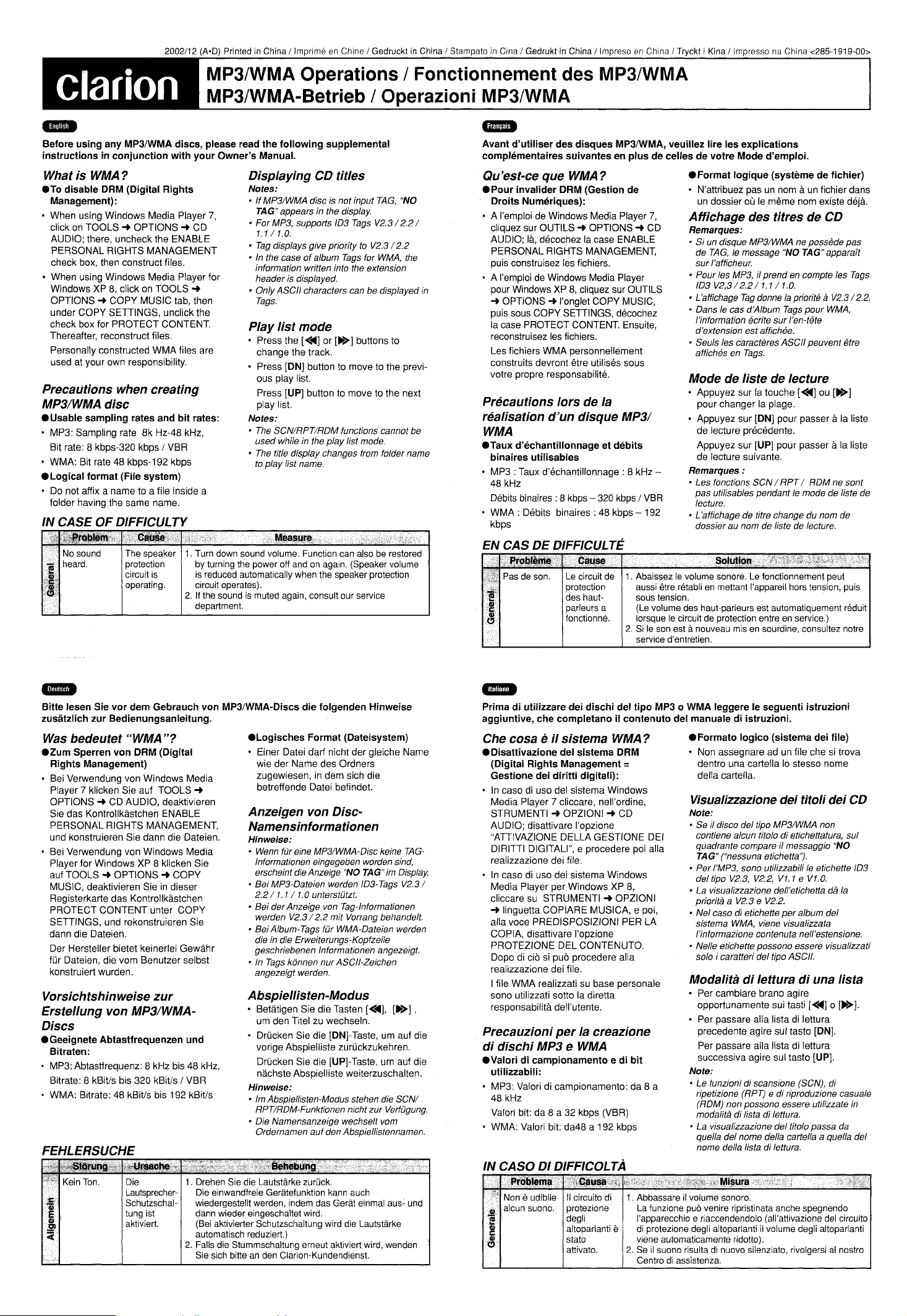

CD/MP3/WMA Operations
English
MP3/WMA
What is MP3?
MP3 is an audio compression method and classified into audio layer 3 of MPEG standards.
This audio compression method has penetrated
into PC users and become a standard format.
This MP3 features the original audio data compression to about 10 percent of its initial size
with a high sound quality. This means that about
10 music CDs can be recorded on a CD-R disc
or CD-RW disc to allow a long listening time
without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media Audio, an audio file format developed by Microsoft
Corporation.
Notes:
• If you play a file with DRM (Digital Rights Man-
agement) for WMA remaining ON, no audio is
output.
• Windows Media™, and the Windows® logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
● To disable DRM (Digital Rights Manage-
ment):
1. When using Windows Media Player 8, click
on TOOLS ➜ OPTIONS ➜ COPY MUSIC
tab, then under COPY SETTINGS, unclick
the check box for PROTECT CONTENT.
Then, reconstruct files.
2. When using Windows Media Player 9, click
on TOOL ➜ OPTIONS ➜ MUSIC RECORD
tab, then under Recording settings, unclick
the Check box for RECORD PROTECTED
MUSIC. Then, reconstruct files.
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating MP3/WMA disc
● Usable sampling rates and bit rates:
1. MP3: Sampling rate 11.025 kHz-48 kHz,
Bit rate: 8 kbps-320 kbps / VBR
2. WMA: Bit rate 48 kbps-192 kbps
● File extensions
1. Always add a file extension “.MP3” or “.WMA”
to MP3 or WMA file by using single byte letters. If you add a file extension other than
specified or forget to add the file extension ,
the file cannot be played.
2. Files without MP3/WMA data will not play.
The indication “––:––” appears in the play
time display if you attempt to play files without MP3/WMA data.
● Logical format (File system)
1.
When writing MP3/WMA file on a CD-R disc
or CD-RW disc, please select “ISO9660 level
1, 2 or JOLIET or Romeo” as the writing software format. Normal play may not be possible
if the disc is recorded on another format.
2. The folder name and file name can be displayed as the title during MP3/WMA play but
the title must be within 128 single byte alphabetical letters and numerals (including an extension).
3. Do not affix a name to a file inside a folder
having the same name.
● Folder structure
1. A disc with a folder having more than 8 hierarchical levels will be impossible.
● Number of files or folders
1. Up to 255 files can be recognized per folder.
Up to 500 files can be played.
2.
Tracks are played in the order that they were
recorded onto a disc. (Tracks might not always
be played in the order displayed on the PC.)
3.
Some noise may occur depending on the type
of encoder software used while recording.
Multisession function
When a disc contains both normal CD type tracks
and MP3/WMA type tracks mixedly, you can select which type of the recorded tracks to play.
● Default value is “CD”.
Each time you press and hold the [BND] button
for 1 second or longer, the mixed mode is
switched between CD type or MP3/WMA type.

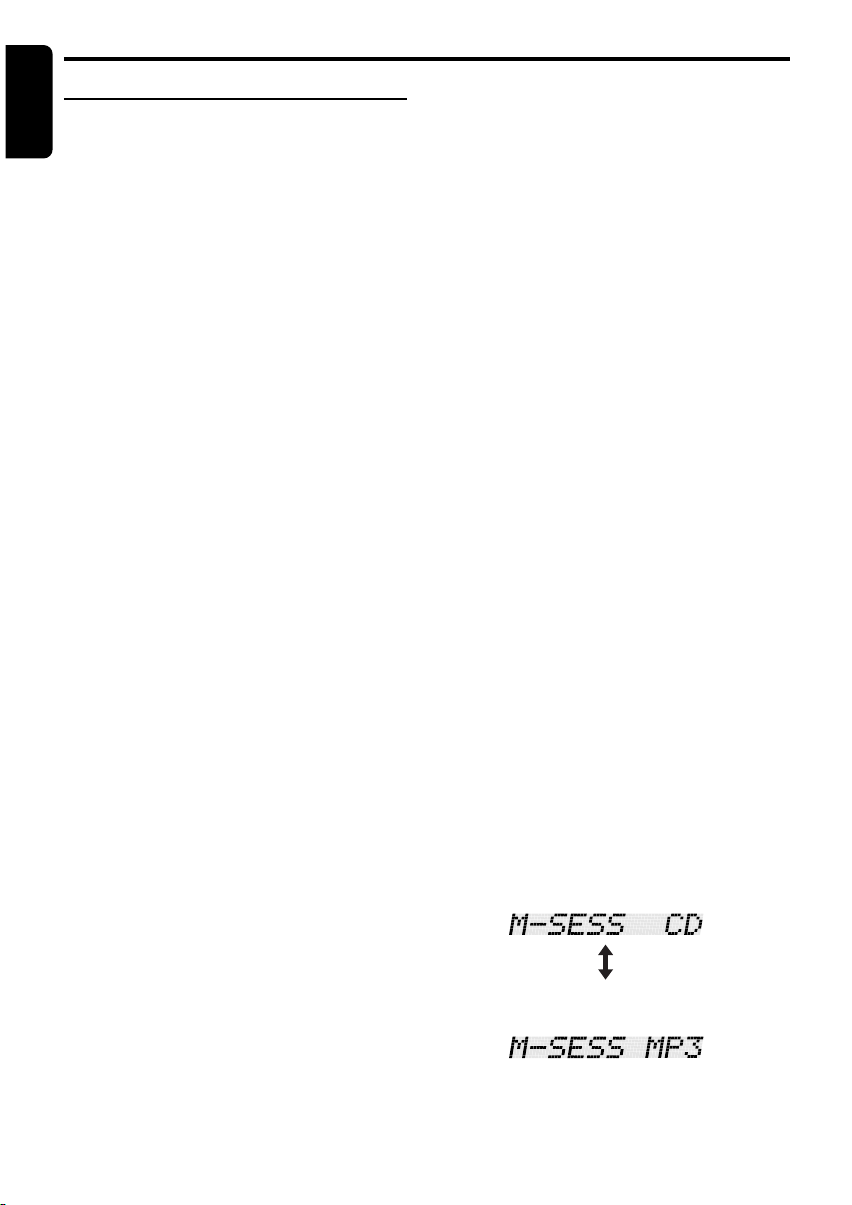

The following indication appears in the title display when switching the track type to be played.
● Display when CD type track is selected:
● Display when MP3/WMA type track is se-
lected:
1. Types of recording that can be played are as
follows.
16 DXZ545MP
Disc
Mixed with CD and
MP3/WMA type tracks
CD type track only
MP3/WMA type track only
2. After making these settings, remove the disc
3. When a mixed mode CD is loaded and CD is
Note:
• When playing a CCCD (Copy Control CD), set the
setting to CD type. When this is set to MP3/WWA
type, the CD cannot be played normally in some
cases.
Setting
and then reinsert it.
set, the track to be played first is MP3/WMA
file data and no sound is heard.
Set to CD
Play CD
Play CD Play CD
Play MP3/WMA
Set to MP3/WMA
Play MP3/WMA
Play MP3/WMA
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn the
power to the unit and start playing the disc automatically when the disc is inserted even if the
power is not turned on.
CAUTION
• Do not try to put your hand or fingers in the
disc insertion slot. Also never insert foreign objects into the slot.
• Do not insert discs where adhesive comes out
from cellophane tape or a rental CD label, or
discs with marks where cellophane tape or
rental CD labels were removed. It may be impossible to extract these discs from the unit
and they may cause the unit to break down.
CD/MP3/WMA Operations
If there is no disc loaded, the indication “
DISC
” appears in the title display.
∗ The mode changes each time the [FNC] button is
pressed. (Modes are not displayed for equipment
that is not connected.)
Radio (SIRIUS)
AUX
(TV)
NO
CD/MP3/WMA
(CD changer)
(DVD changer)

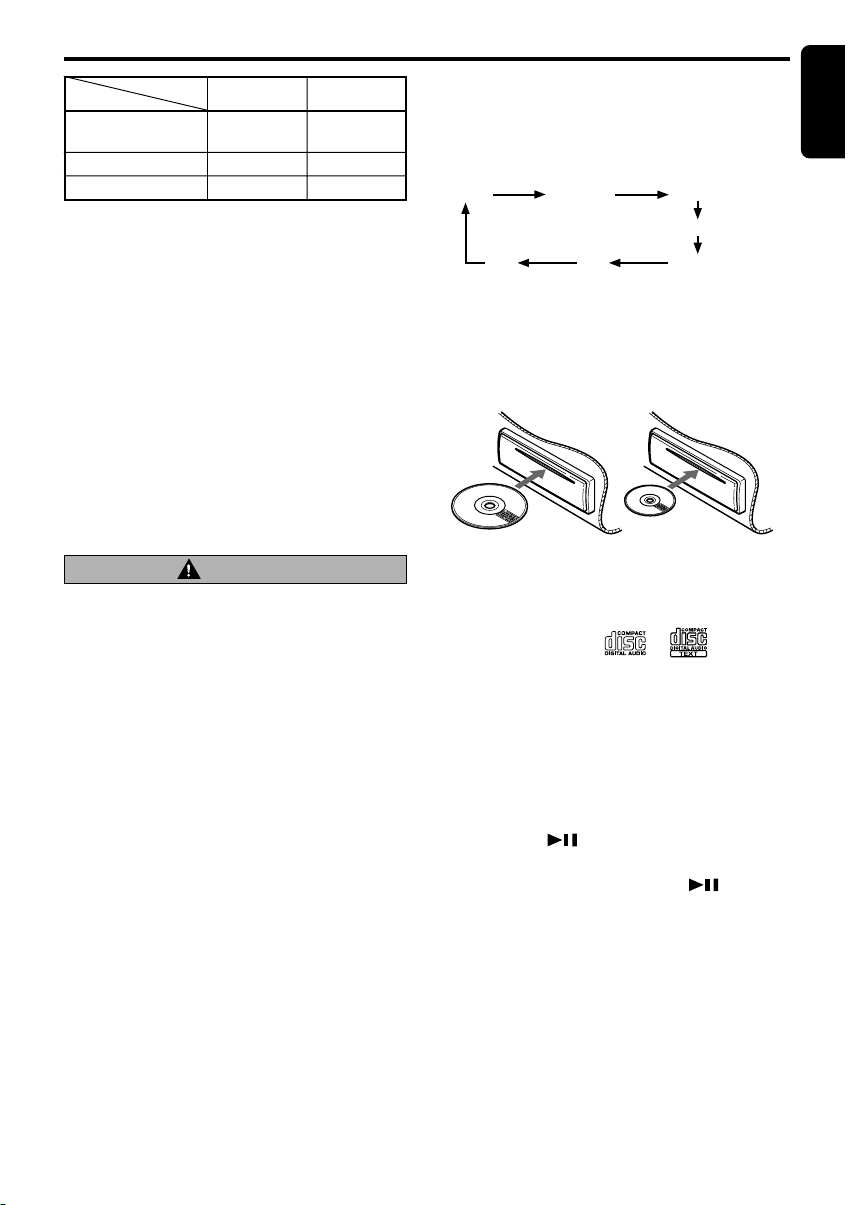

Loading a CD
Insert the disc into the CD insertion slot with its labeled side facing up, then the CD will start playing.
For 5-inch (12 cm) CD For 3-inch (8 cm) single CD
Notes:
• Never insert foreign objects into the CD SLOT.
•
If the CD is not inserted easily, there may be another
CD in the mechanism or the unit may require service.
• Discs not bearing the or mark and
CD-ROMs cannot be played by this unit.
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
Loading 8 cm compact discs
∗ No adapter is required to play an 8 cm CD.
∗
Insert the 8 cm CD into the center of the inser tion slot.
English
Backup Eject function
Just pressing the [Q] button ejects the disc even
if the power to the unit was not turned on.
Press the [Q] button, then the CD will be ejected.
Note:
• If the ejected CD is left as it is, it will be reloaded
after 15 seconds. However, single CDs will not be
reloaded, so make sure to remove them.
Listening to a disc already loaded
in the unit
Press the [FNC] button to select the CD/MP3/
WMA mode.
When the unit enters the CD/MP3/WMA mode,
play starts automatically.
Pausing play
1. Press the [ ] button to pause play.
“PAUSE” appears in the display.
2. To resume CD play, press the [ ] button
again.
Displaying CD titles
This unit can display title data for CD-text/MP3/
WMA disc and user titles input with this unit.
1. Press the [DISP] button to display the title.
2. Each time you press and hold the [DISP] button for 1 second or longer, the title display
changes in the following order:
DXZ545MP 17
CD/MP3/WMA Operations
English
● CD-TEXT disc
User title (disc) ➜ CD-text title (disc) ➜ Artist
name ➜ CD-text title (track) ➜ User title (disc)...
● MP3/WMA disc
Folder ➜ File ➜ Album TAG ➜ Artist TAG ➜
Title TAG ➜ Folder...
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “NO TITLE” appears in the
display.
• If MP3/WMA disc is not input TAG, “NO TAG” ap-
pears in the display.
• For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.
• Tag displays give priority to V2.3 / 2.2
• In the case of album Tags for WMA, the information written into the extension header is displayed.
• Only ASCII characters can be displayed in Tags.
1

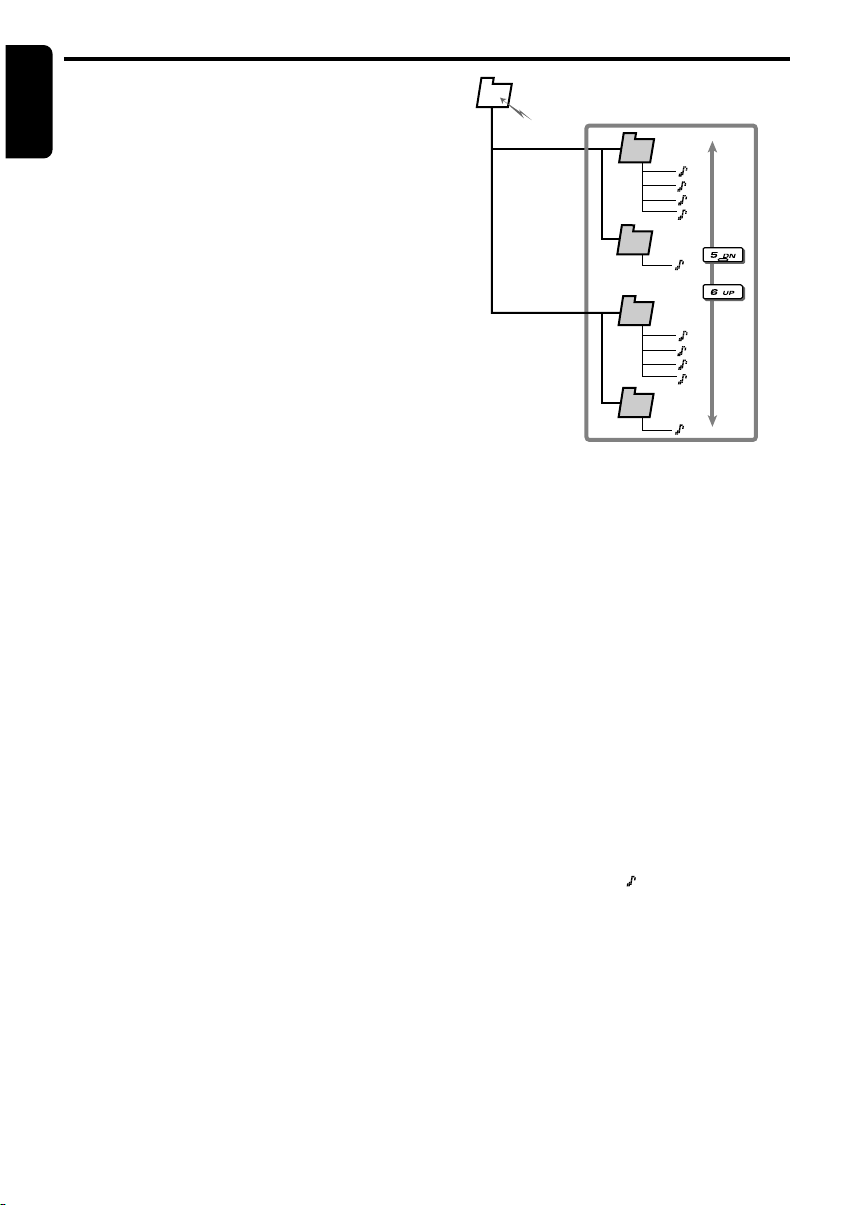

Root folder
2
3
4
5
Selecting a track
● Track-up
1. Press the [d] button to move ahead to the
beginning of the next track.
2. Each time you press the [d] button, the
track advances ahead to the beginning of the
next track.
● Track-down
1. Press the [a] button to move back to the
beginning of the current track.
2. Press the [a] button twice to move to the
beginning of the previous track.
Fast-forward/fast-backward
● Fast-forward
Press and hold the [d] button for 1 second or
longer.
● Fast-backward
Press and hold the [a] button for 1 second or
longer.
∗ For MP3/WMA discs, it takes some time until the
start of searching and between tracks. In addition,
the playing time may have a margin of error.
Folder Select
This function allows you to select a folder containing MP3/WMA files and start playing from
the first track in the folder.
1. Press the [DN] or the [UP] button.
Press the [DN] button to the previous folder.
Press the [UP] button to the next folder.
∗ Press the [UP] button while in the final folder
to shift to the first folder.
∗ Folder without an MP3/WMA file is not select-
able.
2. To select a track, press the [a] or [d] but-
ton.
Top function
The top function resets the CD player to the first
track of the disc. Press the [BND] button to play
the first track (track No. 1) on the disc.
∗ In case of MP3/WMA, the first track of a folder be-
ing played will be returned.
Scan play
This function allows you to locate and play the
first 10 seconds of all the tracks recorded on a
disc.
1. Press the [SCN] button to perform scan play.
The indication “SCN” lights up in the display,
TRK SCAN”
and “
searching for a track in the MP3/WMA file)
appears in the title display for about 2 seconds, then scan play starts.
∗ Scan play starts from the next track after the
track currently being played.
2. To cancel scan play, press the [SCN] button
again.
The play status indication such as “SCN” dis-
appears from the display and the current
track is played.
(or “
-SCAN”
when
18 DXZ545MP
Folder scan play
This function allows you to locate and play the
first 10 seconds of the first track of all the folders
on an MP3/WMA disc.
1. Press and hold the [SCN] button for 1 second or longer to perform folder scan play.
The indications “FOLDER” and “SCN” light
up in the display and “
about 2 seconds in the title display, and then
folder scan play starts.
∗ Folder scan play starts from the next track af-
ter the track currently being played.
2. To cancel folder scan play, press the [SCN]
button again.
The play status indications such as
“FOLDER” and “SCN” disappear from the
display and the current track is played.
-SCAN”
appears for
CD/MP3/WMA Operations
Random play
This function allows you to play all tracks recorded on a disc in a random order.
1. Press the [RDM] button to perform random
play.
The indication “RDM” lights up in the display
and “
TRK RANDOM”
performing random play for tracks on a MP3/
WMA disc) appears in the title display for about
2 seconds, and then random play starts. The
tracks on the disc are then played in a random
order.
2. To cancel random play, press the [RDM] but-
ton again.
The play status indication such as “RDM” disappears from the display and normal play resumes from the track currently being played.
(or “
-RANDOM”
when
English
Repeat play
This function allows you to play the current track
repeatedly.
1.
Press the [RPT] button to perform repeat play.
The indication “RPT”lights up in the display
TRK REPEAT”
and “
performing repeated play for a track in the
MP3/WMA file) appears for about 2 seconds
in the title display, and then repeat play starts.
2. To cancel repeat play, press the [RPT] button
again.
The play status display such as “RPT” disappears from the display and normal play resumes from the track currently being played.
(or “
-REPEAT”
when
Folder repeat play
This function allows you to play a track currently
being played in the MP3/WMA folder repeatedly.
1. Press and hold the [RPT] button for 1 second
or longer to perform folder repeat play.
The indications “FOLDER” and “RPT” light
up in the display and “
for about 2 seconds in the title display, and
then folder repeat play starts.
2. To cancel folder repeat play, press the [RPT]
button again.
The play status indications such “FOLDER”
and “RPT” disappear from the display and
normal play resumes from the track currently
being played.
-REPEAT”
appears
Folder random play
This function allows you to play all the tracks of
all the folders recorded on an MP3/WMA disc in
a random order.
1. Press and hold the [RDM] button for 1 second or longer to perform folder random play.
The indications “FOLDER” and “RDM” light
up in the display and “
in the title display for about 2 seconds, and
then folder random play starts.
2. To cancel folder random play, press the
[RDM] button again.
The play status indications such as
“FOLDER” and “RDM” disappear from the
display and normal play resumes from the
track currently being played.
-RANDOM”
appear
Play list mode
This function allows you to play tracks, up to latest 5 time stamps, by reading the play list information written on the disc.
1. Press and hold the [PLAY LIST] button for 1
second or longer to turn on or off the play list
mode.
∗ Play list play is possible only when there is a
file whose extension is “.M3U” or “.ASX” on
the CDR-RW.
∗ Up to 5 play lists can be recognized, and up to
255 files can be recognized per play list.
2. Press the [a] or [d] button to change the
track.
3. Press the [DN] button to move to the previ-
ous play list.
DXZ545MP 19
CD/MP3/WMA Operations
English
Press the [UP] button to move to the next
play list.
Notes:
• The SCN/RPT/RDM functions cannot be used
while in the play list mode.
• The title display changes from folder name to play
list name.
Making a play list
1. Write desired tracks to a CD-R/RW, etc. Be
sure to use alphanumeric/ASCII characters
for all file names.
2. Make a play list by using a multimedia player,
etc. and save the data. The file format must
be M3U or ASX.
3. Again, write this play list to the CD-R/RW,
etc.
Notes:
• When writing to a CD-R/RW, etc., be sure to use
alphanumeric/ASCII characters.
• Up to 5 layers can be recognized as a list. For
written play lists, latest 5 lists are recognized in
the order in which they are written.
• When writing to a CD-R/RW, etc., turn off the Disc
At Once function.
• When adding a play list, it is recommended to
write it in the “Root” folder.
Different pieces of music
heard by plural listeners
(2-ZONE function)
About the 2-ZONE function
The 2-ZONE function is a function that outputs
separate sounds from the MAIN zone and SUB
zone by simultaneously operating two sources in the
one center unit, thereby allowing plural listeners to
enjoy separate music sources.
This unit can control its internal sources (radio, CD,
MP3, etc.) to play back them, and further, can simultaneously play back sources from external equipment connected via CeNET (for instance, CD
changers etc.).
The sources of the MAIN zone are played back
from the speakers of the vehicle side, and those
of the SUB zone are from the headphone systems (WH104/WH204).
Notes:
• Except AUX, the MAIN and SUB zones cannot simultaneously use sources inside this unit.
Also, external equipment connected via CeNET
cannot simultaneously be used.
• The TV mode while the 2-ZONE function is tuned
on is forced to change to “VTR playback.”
• The ISR function cannot be operated when the 2ZONE function is turned on.
• The Audio mode and Z-enhancer function cannot
be set for the sources of the SUB zone.
• If any of following external equipment is connected, this function is disenabled.
• 5.1 channel surround decoder (DVC920)
20 DXZ545MP
Setting the 2-ZONE function
The initial setting is “OFF”.
When you have set the 2-ZONE function to “ON” in
the initial state, the MAIN zone services for sources
inside this unit and the SUB zone, for AUX. Changing a source during later use causes the latest heard
source to be invoked.
Press and hold the [
longer to turn on or off. When the 2-ZONE function
is turned on, “2-ZONE ON” on the display lights.
] button for 1 second or
Switching sources
1. Press the [ ] button to select the control
zone (“MAIN” or “SUB”).
Every time the button is pressed, the “MAIN
ZONE” changes to the “SUB ZONE” or vice
versa.
“MAIN” or “SUB” on the display lights at that
time, thereby indicating that the relevant
zone becomes ready to operate.
Different pieces of music heard by
plural listeners (2-ZONE function)
Operations Common to Each Mode
English
2. Press the [FNC] button to select a source in
the control zone.
Every time the button is pressed, the followings appear in turn.
● For a source group included in this unit:
Radio ➜ CD/MP3 ➜ AUX ➜ Radio...
● For a source group in external equip-
ment:
AUX ➜ CD changer ➜ DVD changer ➜ TV
➜ AUX...
∗ The name of equipment that is not connected
to this unit is not displayed.
• To change a current musical performance etc., press
the button that controls the selected source ([SCN]
button, etc.).
● Example for source change
Oparation
2-ZONE
turned off
2-ZONE
turned on
2-ZONE
turned off
Source
change
2-ZONE
turned on
MAIN zone
Radio playback
Radio playback
Radio playback
External
equipment (CD
changer)
External
equipment (CD
changer)
SUB zone
Radio playback
AUX
Radio playback
External
equipment (CD
changer)
Radio playback
Adjusting the sound level for the
MAIN zone
You can adjust the sound level only for the MAIN
zone. To adjust the sound level for the SUB zone,
adjust it in the headphone (WH104/WH204) side.
Turning the [ROTARY] knob to adjust the sound
level for the MAIN zone.
Counterchanging the sources of the MAIN and SUB zones
You can supersede the music sources of the MAIN
and SUB zones.
Press and hold the [ISR] button for 1 second or
longer to counterchange the sources of the MAIN
and SUB zones.
“REVERSE” is displayed for 2 seconds on the dis-
play.
Turning the screen saver function
on or off
This unit is provided with the screen saver function which allows you to show various kinds of
patterns and characters in the Operation Status
indication area of the display in a random order.
You can turn on and off this function.
If the button operation is performed with the
screen saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
∗ The factory default setting is “ON”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“SCRN SVR
3. Press the [ ] button.
4. Turn the [ROTARY] knob clockwise or coun-
terclockwise to select the setting. Each time
you turn the [ROTARY] knob, the setting
changes in the following order:
SS OFF ➜ SS ON ➜ SS MESSAGE
5. Press the [ ] button to store the setting.
6. Press the [T] button to return to the previous
mode.
”.
Entering MESSAGE INFORMATION
When the use of the message is selected for the
screen saver setting, you can change the contents of the message.
∗ Up to 30 characters can be entered.
∗ The factory default setting is “Welcome to Clarion”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“MSG INPUT ”.
3. Press the [
4. Press the [BND] button to clear the old message.
5.
Press the [a] or [d] button to move the cursor.
6. Press the [DISP] button to select a character.
Each time you press the [DISP] button, the
character changes in the following orders:
Capital letters ➜ Small letters ➜ Numbers
and Symbols ➜ Umlaut ➜ Capital letters...
] button.
DXZ545MP 21
Operations Common to Each Mode
English
7. Turn the [ROTARY] knob to select the de-
sired character.
8. Repeat step 5 to 7 to enter up to 30 characters for message.
9. Press and hold the [ ] button for 2 seconds or longer to store the message in
memory and cancel input message.
10.Press the [T] button to return to the previous
mode.
Message display
When the unit is powered on or off, a message
is displayed. The user can turn this message
display ON or OFF.
∗ The factory default setting is “ON”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“MESSAGE”.
3.
Turn the [ROTARY] knob clockwise or counterclockwise to set the message display ON or OFF.
4. Press the [T] button to return to the previous
mode.
Setting the method for title scroll
Set how to scroll in CD-TEXT, MP3/WMA Title.
∗ The factory default setting is “ON”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“AUTO SCRL”.
3. Turn the [ROTARY] knob clockwise or coun-
terclockwise and select “ON” or “OFF”.
● ON:
To scroll automatically.
● OFF:
To scroll just 1 time when the title was
changed or the title key was pressed.
4. Press the [T] button to return to the previous
mode.
Dimmer control
You can setting the dimmer control “ON” or “OFF”.
∗ The factory default setting is “ON”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
22 DXZ545MP
2. Press the [a] or [d] button to select
“DIMMER”.
3. Turn the [ROTARY] knob clockwise to “ON”
or counterclockwise to “OFF”.
4. Press the [T] button to return to the previous
mode.
Adjusting the display contrast
You can adjust the display contrast to match the
angle of installation of the unit.
∗ The factory default setting is “8”. (Adjustment level:
1 to 16)
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select “CONTRAST”.
3. Turn the [ROTARY] knob clockwise or coun-
terclockwise to adjust the contrast.
4. Press the [T] button to return to the previous
mode.
Setting LOW PASS FILTER
∗ The factory default setting is “LPF 120Hz”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“SUB-W LPF”.
3. Turn the [ROTARY] knob clockwise or coun-
terclockwise to select the setting. Each time
you turn the [ROTARY] knob, the setting
changes in the following order:
LPF REAR ➜ LPF 50Hz ➜ LPF 80Hz ➜
LPF 120Hz
4. Press the [T] button to return to the previous
mode.
Selecting AUX IN sensitivity
Make the following settings to select the sensitivity when sounds from external devices connected to this unit are difficult to hear even after
adjusting the volume.
∗ The factory default setting is “MID”.
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“AUX SENS”.
3. Turn the [ROTARY] knob clockwise or coun-
terclockwise as needed and select from
“HIGH”, “MID” or “LOW”.
4. Press the [T] button to return to the previous
mode.
Setting the clock
1. Press and hold the [T] button for 1 second or
longer to switch to the adjustment selection
display.
2. Press the [a] or [d] button to select
“CLOCK
3. Press the [ ] button.
4. Press the [a] or [d] button to select the
hour or the minute.
5. Turn the [ROTARY] knob clockwise or coun-
terclockwise to set the correct time.
∗ The clock is displayed in 12-hour format.
6. Press the [ ] button to store the time into
memory.
7. Press the [T] button to return to the previous
mode.
Note:
• You cannot set the clock when it is displayed with
only the ignition on. If you drain or remove the
car’s battery or take out this unit, the clock is reset. While setting the clock, if another button or
operation is selected, the clock set mode is canceled.
”.
Entering titles
Titles up to 10 characters long can be stored in
memory and displayed for CD, CD changer and
TV stations. The number of titles that can be entered for each mode are as follows.
Mode Number of titles
CD mode 50 titles
TV mode 20 titles
Tuner mode 30 titles
CD changer mode Number of titles
DCZ625 connected 100 titles
CDC655Tz connected 100 titles
CDC1255z connected 50 titles
1. Press the [FNC] button to select the mode
you want to enter a title (TUNER, CD, CD
changer or TV).
2. Select and play a CD in the CD changer or
tune in to a TV station or TUNER for which
you want to enter the title.
Operations Common to Each Mode
3. Press the [DISP] button and display the
main.
4. Press the [T] button.
5. Press the [a] or [d] button to move the
cursor.
6. Press the [DISP] button to select a character.
Each time you press the [DISP] button, the
character changes in the following order:
Capital letters ➜ Small letters ➜ Numbers
and Symbols ➜ Umlaut ➜ Capital letters...
7. Turn the [ROTARY] knob to select the de-
sired character.
8. Repeat steps 5 to 7 to enter up to 10 characters for the title.
9. Press and hold the [
onds or longer to store the title into memory
and cancel title input mode.
] button for 2 sec-
Clearing titles
1. Select and play a CD in the CD changer or
tune in to a TV station or TUNER for which
you want to clear the title.
2. Press the [DISP] button and display the
main.
3. Press the [T] button.
The display switches to the title input display.
4. Press the [BND] button.
5. Press and hold the [
ond or longer to clear the title and cancel title
input mode.
] button for 2 sec-
Triggered audio mute for cellular
telephones
This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car.
∗ This function is not compatible with all cellular tele-
phones Contact your local authorized Clarion dealer
for information on proper installation and compatibility.
AUX function
This system has an external input jack so you
can listen to sounds and music from external
devices connected to this unit.
DXZ545MP 23
English
English
8. OPERATIONS OF ACCESSORIES
CD Changer Operations
CD changer functions
When an optional CD changer is connected
through the CeNET cable, this unit controls all
CD changer functions. This unit can control a total of 2 changers.
Press the [FNC] button and select the CD
changer mode to start play. If 2 CD changers
are connected, press the [FNC] button to select
the CD changer for play.
∗ If “NO MAG” appears in the display, insert the maga-
zine into the CD changer. “DISC CHECK” appears
in the display while the player loads (checks) the
magazine.
∗ If “NO DISC” appears in the display, eject the maga-
zine and insert discs into each slot. Then, reinsert
the magazine back into the CD changer.
Note:
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
CAUTION
CD-ROM discs cannot be played from every
CD changer, it’s depended on the model.
Pausing play
1. Press the [ ] button to pause play.
“PAUSE” appears in the display.
2. To resume play, press the [
Displaying CD titles
This unit can display title data for CD-text CDs
and user titles input with this unit.
∗ Title data for CD-text CDs can be displayed with
this unit only when it is connected to CDC655Tz.
● When connected to DCZ625 or CDC1255z
Press the [DISP] button to display the title.
● When connected to CDC655Tz
1. Press the [DISP] button to display the title.
2. Each time you press and hold the [DISP] but-
ton for 1 second or longer, the title display
changes in the following order:
User title (disc) ➜ CD-text title (disc) ➜ Artist
name ➜ CD-text title (track) ➜ User title (disc)…
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “NO TITLE” appears in the
display.
] button again.
• If a CD-text CD is not input its disc title or a track
title, “NO TITLE” appears in the display.
Procedure to scroll a title
Set “SCROLL” to “ON” or “OFF”.
(The factory default setting is “ON”. Refer to the
subsection “Turning the screen saver function
on or off” in section “Operation common to
each mode”.)
● When set to “ON”
The title is automatically kept scrolling.
● When set to “OFF”
To scroll just 1 time when the title was changed
or the [T] button was pressed.
Selecting a CD
Press the [UP] or [DN] button to select the desired disc.
∗ If a CD is not loaded in a slot of magazine, pressing
the [UP] or [DN] button can not work.
Selecting a track
● Track-up
1. Press the [d] button to move ahead to the
beginning of the next track.
2. Each time you press the [d] button, the
track advances ahead to the beginning of the
next track.
● Track-down
1. Press the [a] button to move back to the
beginning of the current track.
2. Press the [a] button twice to move to the
beginning of the previous track.
Fast-forward/fast-backward
● Fast-forward
Press and hold the [d] button for 1 second or
longer.
● Fast-backward
Press and hold the [a] button for 1 second or
longer.
24 DXZ545MP
Scan play
Scan play locates and plays the first 10 seconds
of each track on a disc automatically. This function continues on the disc until it is cancelled.
∗ The scan play is useful when you want to select a
desired track.
1. Press the [SCN] button to start track scan-
ning. “SCN” lights in the display.
2. To cancel the scan play, press the [SCN] button again. “SCN” goes off from the display
and the current track continues to play.
Disc scan play
Disc scan play locates and plays the first 10 seconds of the first track on each disc in the currently selected CD changer. This function continues automatically until it is cancelled.
∗ Disc scan play is useful when you want to select a
desired CD.
1. Press and hold the [SCN] button for 1 second or longer. “DISC” and “SCN” light in the
display and disc scan play starts.
2. To cancel disc scan play, press the [SCN]
button again. “DISC” and “SCN” go off from
the display and the current track continues to
play.
CD Changer Operations
Random play
Random play selects and plays individual tracks
on the disc in no particular order. This function
continues automatically until it is cancelled.
1. Press the [RDM] button. “RDM” lights in the
display and random play begins.
2. To cancel random play, press the [RDM] button again. “RDM” goes off from the display
and normal play resumes.
Disc random play
The disc random play selects and plays individual tracks or discs automatically in no particular order. This function continues automatically until it is cancelled.
1. Press and hold the [RDM] button for 1 second or longer. “DISC” and “RDM” light in the
display and disc random play starts.
2. To cancel disc random play, press the [RDM]
button again. “DISC” and “RDM” go off from
the display and normal play resumes from
the current track.
English
Repeat play
Repeat play continuously plays the current track.
This function continues automatically until it is
cancelled.
1. Press the [RPT] button. “RPT” lights in the
display and the current track is repeated.
2. To cancel repeat play, press the [RPT] button
again. “RPT” goes off from the display and
normal play resumes.
Disc repeat play
After all the tracks on the current disc have been
played, disc repeat play automatically replays
the current disc over from the first track. This
function continues automatically until it is cancelled.
1. Press and hold the [RPT] button for 1 second
or longer. “DISC” and “RPT” light in the display and disc repeat play starts.
2. To cancel disc repeat play, press the [RPT]
button again. “DISC” and “RPT” go off from
the display and normal play resumes on the
current track.
DXZ545MP 25
TV Operations
English
TV tuner functions
When an optional TV tuner is connected through
the CeNET cable, this unit controls all TV tuner
functions. To watch TV requires a TV tuner and
monitor.
Watching a TV
1. Press the [FNC] button and select the TV
mode.
2. Press the [BND] button to select the desired
TV band (TV1 or TV2). Each time the button
is pressed, the input selection toggles between TV1 and TV2.
3. Press the [a] or [d] button to tune in the
desired TV station.
Watching a video
The TV tuner has a VTR input terminal to which
1 external device can be connected. Connect a
12 V video cassette player (VCP) or video cassette recorder (VCR) to the TV tuner input terminal.
1. Press the [
2. To return to the TV broadcast, press the
[ ] button.
] button to select VTR.
1. Press the [BND] button and select the de-
sired band (TV1 or TV2).
∗ If “MANU” is not lit in the display, press and
hold the [BND] button for 1 second or longer.
“MANU” lights in the display and manual tuning is now available.
2. Tune into a station.
● Quick tuning:
Press and hold the [a] or [d] button for 1
second or longer to tune in a station.
● Step tuning:
Press the [a] or [d] button to manually
tune in a station.
Recalling a preset station
A total of 12 TV stations can be stored (6-TV1
and 6-TV2). This allows you to select your favorite TV stations and store them in memory for
later recall.
1. Press the [BND] button and select the de-
sired TV band (TV1 or TV2).
2. To recall a stored TV station, press the desired [DIRECT] button to select that station.
∗ Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
station into preset memory.
Tuning
There are 3 types of tuning mode available,
Seek tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the de-
sired TV band (TV1 or TV2).
∗ If “MANU” is lit in the display, press and hold
the [BND] button for 1 second or longer.
“MANU” in the display goes off and seek tuning is now available.
2. Press the [a] or [d] button to automatically
seek a station. Press the [d] button to automatically tune up the frequency band to the
next available TV station; press the [a] button to automatically tune down.
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the frequency changes one step at a time. In the quick
tuning mode, you can quickly tune the desired
frequency.
26 DXZ545MP
Manual memory
1. Select the desired station with seek tuning,
manual tuning or preset tuning.
2. Press and hold one of [DIRECT] buttons for
2 seconds or longer to store the current station into preset memory.
Auto store
Auto store selects 6 TV stations automatically
and stores each one into preset memory.
If there are not 6 stations with good reception,
stations previously stored in memory remain
and only the strong stations are stored into
memory.
1. Press the [BND] button and select the de-
sired TV band (TV1 or TV2).
2. Press and hold the [P/A] button for 2 seconds or longer. The stations with good reception are stored automatically to the preset
channels.
Preset scan
Preset scan allows the user to view each preset
position before it automatically advances to the
next preset. This function is useful for searching
for a desired TV station in memory.
1. Press the [P/A] button.
2. When the desired station is found, press the
[P/A] button again to remain tuned to that
station.
Note:
• Do not press and hold the [P/A] button for 2 sec-
onds or longer. Doing so will trigger the auto store
function and start storing stations into memory.
Setting the TV diver
You can change the reception setting for the TV
antenna connected to the TV tuner.
1.
Press and hold the [T] button for 1 second or longer
to switch to the adjustment selection display.
2. Press the [a] or [d] button to select “TV
DIVER”.
3. Turn the [ROTARY] knob clockwise to set to
“ON” or counterclockwise to set to “OFF”.
● ON:
Sets the diver setting to ON.
● OFF:
Sets the diver setting to OFF.
4. Press the [T] button to return to the previous
mode.
TV Operations
English
DXZ545MP 27
English
9. IN CASE OF DIFFICULTY
Problem
Power does not
turn on.
(No sound is
produced.)
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Nothing happens
when buttons are
pressed.
General
Display is not
accurate.
No sound heard
No sound heard
Sound skips or is
noisy.
Sound is cut or
skipped.
Noise is
generated or
CD/MP3/WMA
noise is mixed
with sound.
Sound is bad
directly after
power is turned
on.
Wrong filename
Play list play is
not performed.
Cause Measure
Fuse is blown.
Incorrect wiring.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
The microprocessor has
malfunctioned due to noise,
etc.
DCP or source unit
connectors are dirty.
The speaker protection
circuit is operating.
MP3/WMA files are absent
in a disc.
Files are not recognized as
an MP3/WMA file.
File system is not correct.
Compact disc is dirty.
Compact disc is heavily
scratched or warped.
MP3/WMA files are not
encoded properly.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
File system is not correct.
File name or extension is not
correct.
Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.
Consult your store of purchase.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the
power antenna lead one by one. If the amplifiers
turn off before all wires are attached, use an
external relay to provide remote-on voltage
(excessive current required).
Turn off the power, then press
the [RELEASE] button and
remove the DCP.
Press the reset button for
about 2 seconds with a thin
rod.
Reset button
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
1. Turn down sound volume. Function can also be
restored by turning the power off and on again.
(Speaker volume is reduced automatically when
the speaker protection circuit operates).
2. If the sound is muted again, consult our service
department.
Write MP3/WMA files onto the disc properly.
Use MP3/WMA files encoded properly.
Use ISO9660 level 1, 2 or JOLIET or Romeo file system.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Use MP3/WMA files encoded properly.
Let dry for about 1 hour with the power on.
Use ISO9660 level 1, 2 or JOLIET or Romeo file system.
Use alphanumeric/ASCII characters for MP3/WMA file name.
Use “.M3U” or “.ASX” for the file extension of a play list.
28 DXZ545MP
10. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to eliminate the problem.
English
ERROR 2
ERROR 3
ERROR 6
CD/MP3/WMA
ERROR 2
ERROR 3
CD changer
ERROR 6
ERROR 2
ERROR 3
ERROR 6
DVD changer
ERROR P
ERROR R
AMP GUARD
General
CauseError Display
A CD is caught inside the CD deck and is
not ejected.
A CD cannot be played due to scratches,
etc.
A CD is loaded upside-down inside the CD
deck and does not play.
A CD inside the CD changer is not loaded.
A CD inside the CD changer cannot be
played due to scratches, etc.
A CD inside the CD changer cannot be
played because it is loaded upside-down.
A DISC inside the DVD changer cannot be
played.
A DISC cannot be played due to scratches,
etc.
A DISC inside the DVD changer cannot be
played because it is loaded upside-down.
Parental level error
Region code error
The speaker protection circuit is operating.
During this operation, if any volume
operation is performed, the display shows
“AMP GUARD”.
Measure
This is a failure of CD deck’s mechanism and
consult your store of purchase.
Replace with a non-scratched,
non-warped-disc.
Eject the disc then reload it properly.
This is a failure of CD changer’s mechanism
and consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
Eject the disc then reload it properly.
This is a failure of DVD mechanism and consult your store of purchase.
Retry or replace with a non-scratched, nonwarped-disc.
Eject the disc then reload it properly
Set the correct Parental level.
Eject the disc and replace correct region
code disc.
1. Turn down sound volume. Function can
also be restored by turning the power off
and on again.
(Speaker volume is reduced automatically
when the speaker protection circuit operates).
2. If the sound is muted again, consult our
service department.
If an error display other than the ones described above appears, press the reset button. If the problem
persists, turn off the power and consult your store of purchase.
DXZ545MP 29
English
11. SPECIFICATIONS
FM Tuner
Frequency Range:
87.9 MHz to 107.9 MHz
Usable Sensitivity:
9 dBf
50dB Quieting Sensitivity:
15 dBf
Alternate Channel Selectivity:
70 dB
Stereo Separation (1 kHz):
35 dB
Frequency Response (±3 dB):
30 Hz to 15 kHz
AM Tuner
Frequency Range:
530 kHz to 1710 kHz
Usable Sensitivity:
25 µV
CD Player
System:
Compact disc digital audio system
Usable Discs:
Compact disc
Frequency Response (±1 dB):
5 Hz to 20 kHz
Signal to Noise Ratio (1 kHz):
100 dB
Dynamic Range (1 kHz):
95 dB
Harmonic Distortion:
0.01%
Audio
Maximum Power Output:
208 W (52 W ✕ 4 ch)
Continuous Average Power Output:
17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
Bass Control Action (50 Hz/80 Hz/120 Hz):
+16 dB, -12dB
Treble Control Action (8 kHz/12 kHz):
±12 dB
Line Output Level (CD 1 kHz):
1.8 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption:
Less than 15 A, 3A
Speaker Impedance:
4 Ω (4 Ω to 8 Ω allowable)
Weight / Source unit:
2.86 lb. (1.3 kg)
Weight / Remote control unit:
1 oz. (30 g) (including battery)
Dimensions / Source unit:
7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)
[178 (W) ✕ 50 (H) ✕ 155 (D) mm]
Dimensions / Remote control unit:
1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8"
(Depth)
[44 (W) ✕ 110 (H) ✕ 27 (D) mm]
Note:
• Specifications and design are subject to change without notice for further improvement.
30 DXZ545MP

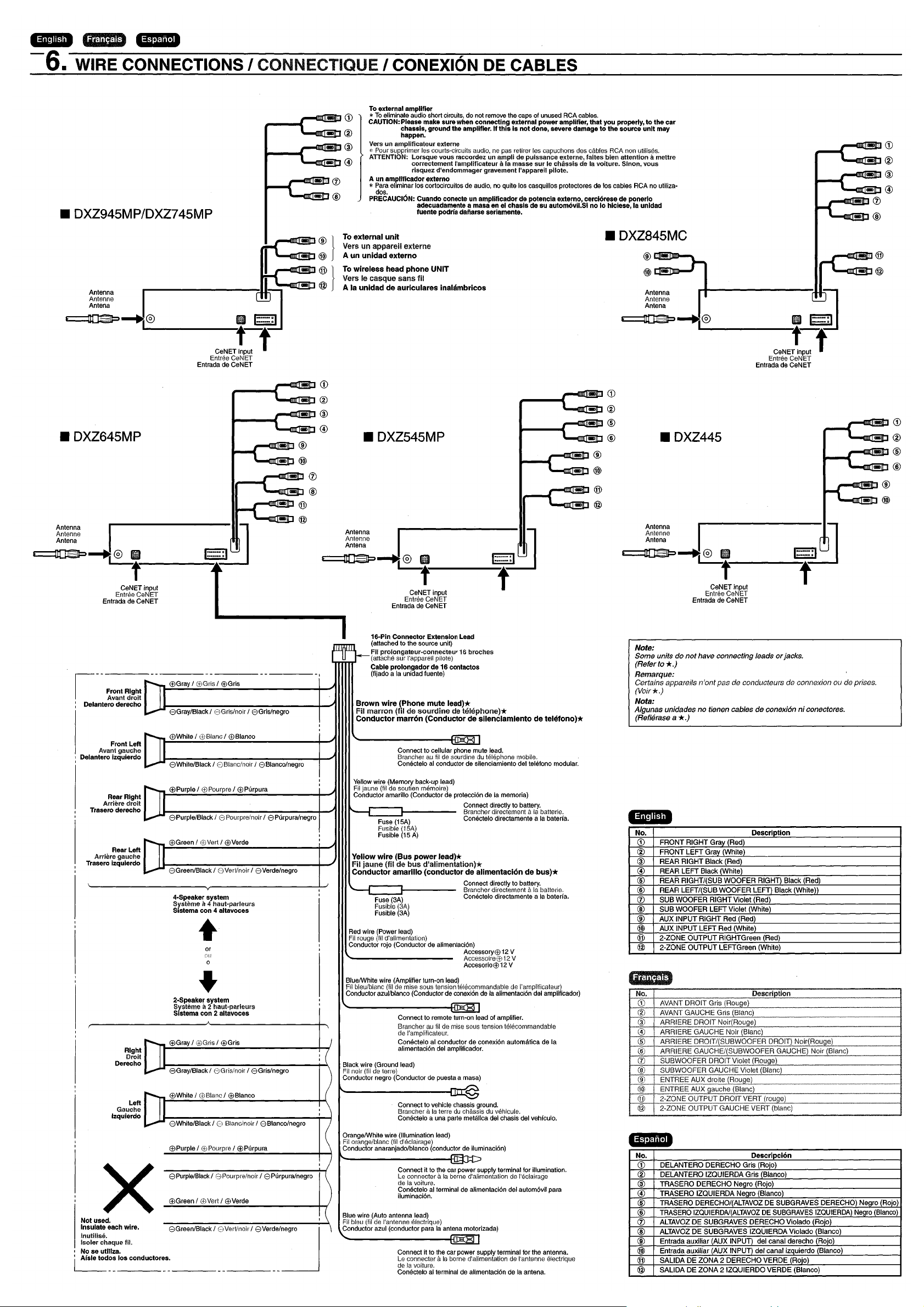

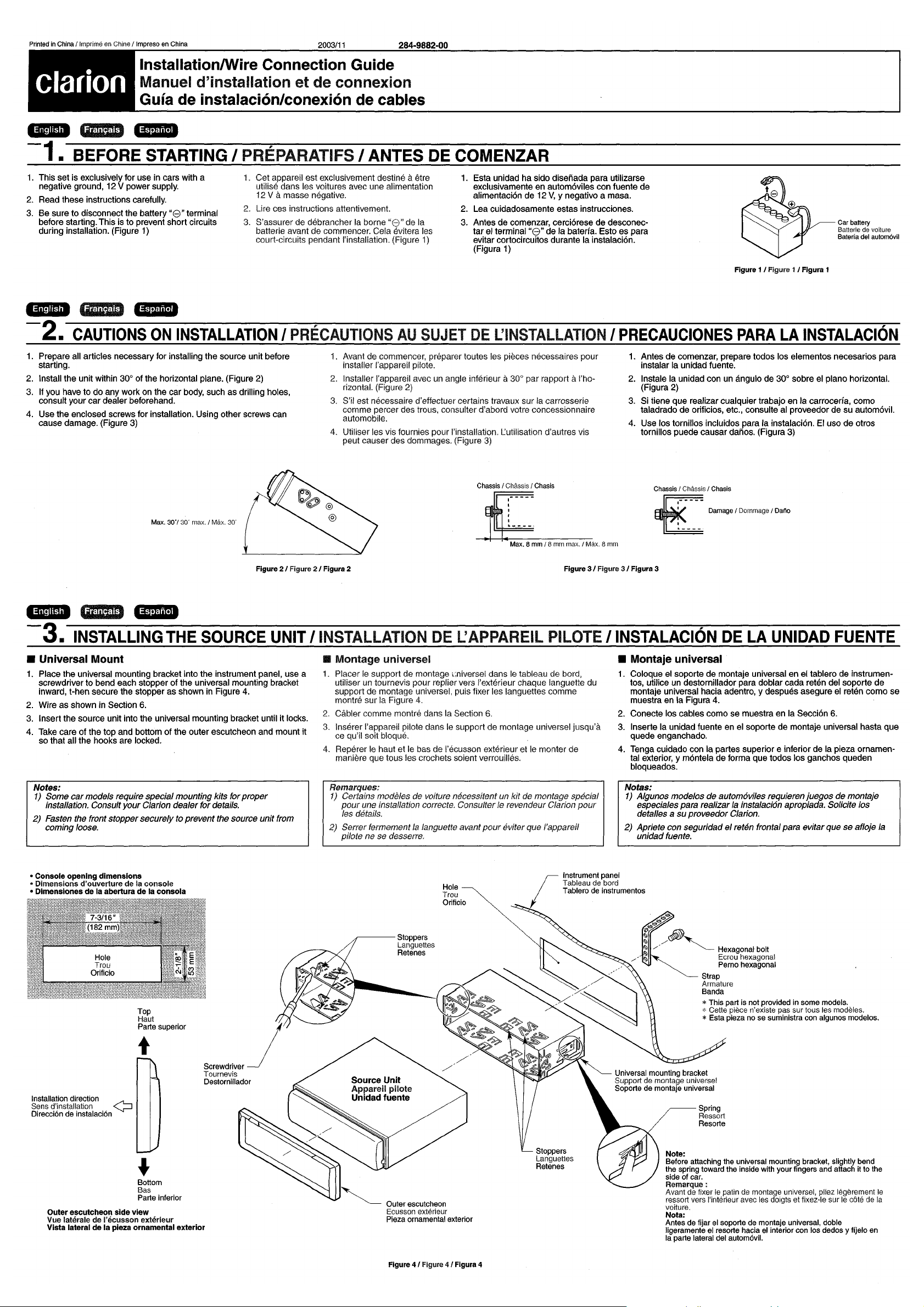

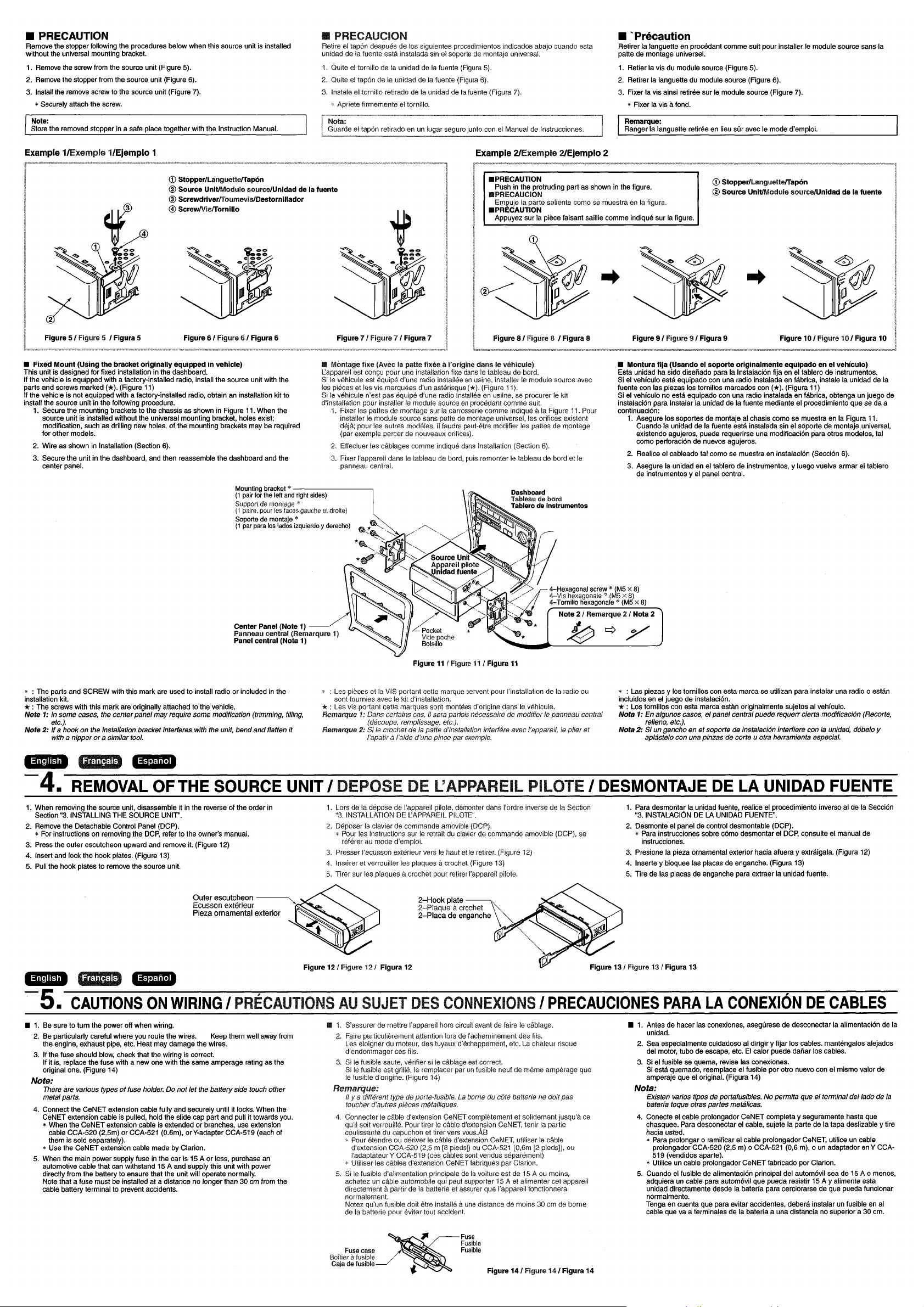

Loading...
