Contents

1. FEATURES ........................................................................................................................... 2

2. CONTROLS

MAIN UNIT ............................................................................................................................. 3

3. BUTTON TERMINOLOGY

Names of the Buttons and their Functions ............................................................................. 4

Major Button Operations when external equipment is connected to this unit ........................ 5

4. PRECAUTIONS

5. HANDLING COMPACT DISCS

6. DCP (Detachable Control Panel) ........................................................................................ 8

7. REMOTE CONTROL

Inserting the Battery ............................................................................................................... 9

Functions of Remote Control Unit Buttons ........................................................................... 10

8. OPERATIONS

Basic Operations ..................................................................................................................11

Radio Mode Operations ....................................................................................................... 13

CD/MP3/WMA Mode Operations ......................................................................................... 14

Operations Common to Each Mode ..................................................................................... 19

9. OPERATIONS OF ACCESSORIES

CD Changer Operations ...................................................................................................... 22

TV Operations ..................................................................................................................... 23

10. TROUBLESHOOTING

11. ERROR DISPLAYS

12. SPECIFICATIONS

.......................................................................................................................... 3

................................................................................................... 4

.................................................................................................................... 6

............................................................................................ 7

............................................................................................................ 9

......................................................................................................................11

.................................................................................... 22

........................................................................................................ 25

............................................................................................................ 27

.............................................................................................................. 28

1. FEATURES

Flip-down console

MP3 and WMA compatible with ID3-TAG display

“Z-ENHANCER” sound customization & “MAGNA BASS EX” dynamic bass enhancement

Be sure to unfold and read the next page.

반드시 다음 페이지를 펴서 읽으십시오.

DXZ366MP

叫叭ゲ甶秨並綷弄下頁。

English

2. CONTROLS / 北制 / 제어부

MAIN UNIT / 主诀 / 메인유닛

いゅ

한국어

With the FLIP DOWN PANEL opened / 讽 FLIP DOWN PANEL (陆秨面狾)砆

ゴ秨時 / 플립다운 패널이 열린 상태

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

猔種: 綷弄各彻時叫叭ゲ甶秨此頁並綷弄玡面的瓜。

주: 반드시 이 페이지를 펴서 각 장을 읽을 때 앞면 도표를 참고하십시오.

DXZ366MP

English

3. BUTTON TERMINOLOGY

Note:

• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3.

Names of the Buttons and their Functions

[

OPEN] button

• Deeply push in [OPEN down panel.

[

ADJ] button

• Press the button to switch to the ADJ mode.

[

]

button

• Perform preset scan while in the radio mode.

Press and hold the button for 2 seconds or

longer to perform auto store.

• Play or pause a CD while in the CD/MP3/WMA mode.

[

SENSOR

• Receiver for remote control unit.

• Operating range: 30° in all directions.

[

ISR] button

• Recall ISR radio station in memory.

• Press and hold for 2 seconds or longer: Store current station into ISR memory (radio mode only).

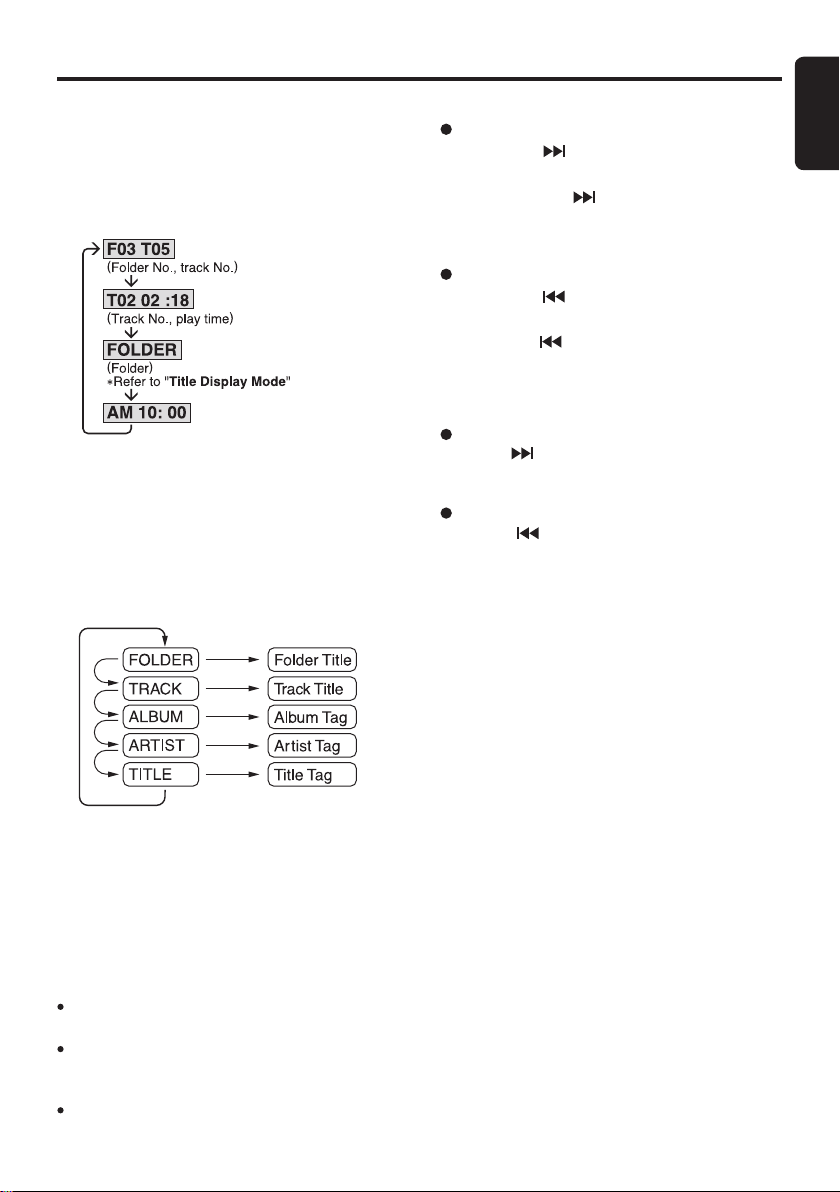

[D]

• Switch the display indication display, Clock display

• Press and hold the button for 1 second or longer to enter the display adjustment mode.

[Z]

button

• Press the button to select one of the 3 types of sound charact er istics already stored in memory.

[T]

button

• Press the button to input a title in the Radio mode.

• Press the button to input a title in the CD mode.

• Press the button to switch the user titles or track titles, while in the CD/MP3/WMA mode.

• Press the button to scroll the title during the CDtext play, while in the CD/MP3/WMA mode.

]

button

]

button to unlock the ﬂip

(

Main display, Title

)

[

BND] button

• Switch the band, or seek tuning or manual tuning while in the radio mode.

• Play a ﬁrst track while in the CD/MP3/WMA mode.

Press and hold the button for 1 second or longer

to perform multi-session.

• Press the button to change the character.

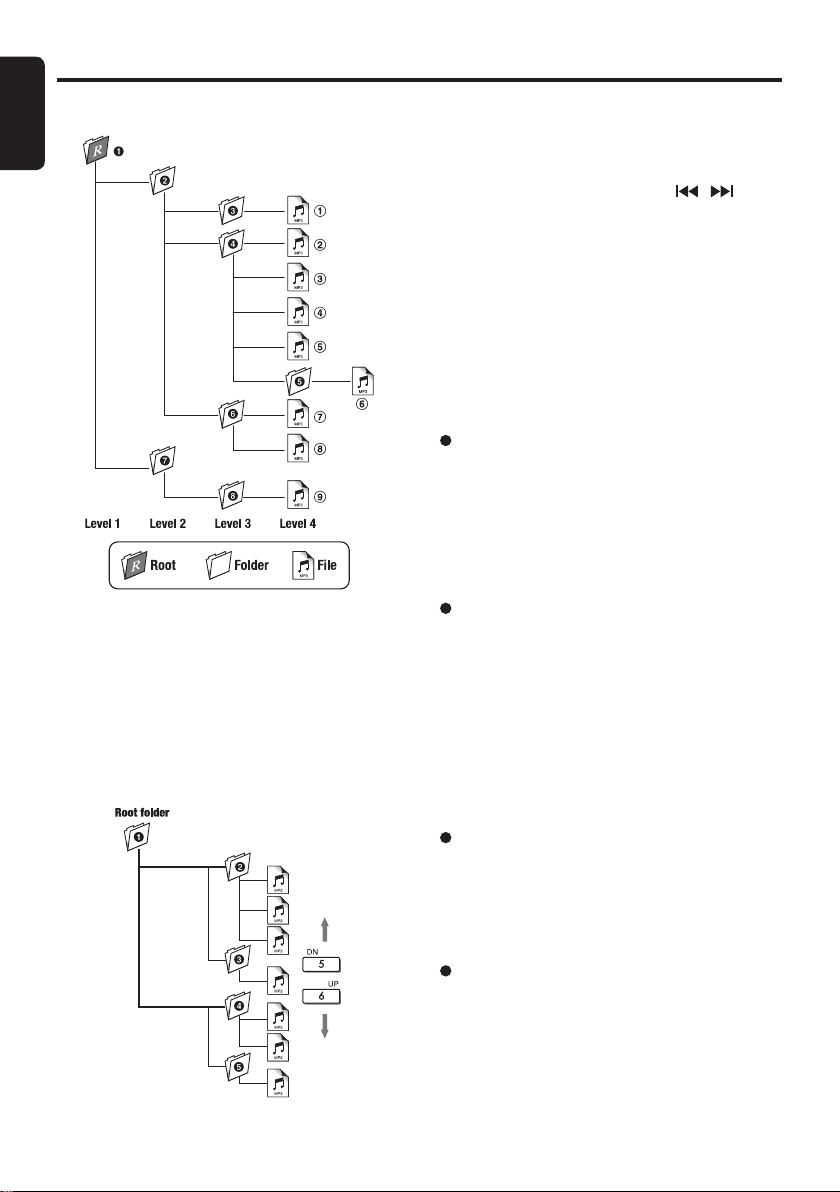

[UP], [DN]

• Select the Folder.

[

RDM] button

• Perform random play while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or longer to perform folder random play while in the MP3/ WMA mode.

[

RPT] button

• Repeat play while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or longer to perform folder repeat play while in the MP3/ WMA mode.

[

SCN] button

• Perform scan play for 10 seconds of each track while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or longer to perform folder scan play while in the MP3/ WMA mode.

[

DIRECT] buttons

• Store a station into memory or recall it directly while in the radio mode.

[

SRC] button

• Press the button to turn on the power.

• Press and hold the button for 1 second or longer to turn off the power.

• Switch the operation mode among the radio mode, etc.

[

ROTARY

• Adjust the volume by turning the knob clockwise or counterclockwise.

• Use the knob to perform various settings.

buttons

]

knob

(

MP3/WMA disc only

)

DXZ366MP

Names of the Buttons and their Functions

English

[

A-M] button

• Press the button to switch to the audio mode. (

bass/treble, balance/fader

• Press and hold for 1 second or longer to turn on or off the M-B EX mode.

[

]

button

• Eject a CD when it is loaded into the unit.

[

CD SLOT

• CD insertion slot.

]

)

[

, ] lever

• Select a station while in the radio mode or select a track when listening to a CD. This lever is used to make various settings.

• Press the lever upward or downward and hold in position for 1 second or longer to enter the

fast-forward or fast-backward mode.

Major Button Operations when external equipment is connected to this unit

[

When the CD/DVD changer is connected

∗ For details, see the section “CD changer opera-

tions”. For the DVD changer, refer to the Ownerʼs

Manual provided with the DVD changer.

[

]

button

• Play or pause a CD or DVD.

[D]

button

• Press the button to display the title.

• Press and hold the button for 1 second or longer to enter the display adjust mode.

[T]

button

• Press the button switches the user titles or track titles, etc. while in the CD changer mode.

• Press and hold the button for 1 second or longer to input a title in the CD changer mode.

• Press the button to scroll the title during CD-text play.

[

BND] button

• Move the next disc in increasing order.

SCN] button

• Perform scan play for 10 seconds of each track.

Press and hold the button for 1 second or longer

to perform disc scan play.

[

, ] lever

• Select a track when listening to a disc.

• Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode.

When the TV is connected

∗ For details, see the section “TV Operations”.

[

]

button

• Perform preset scan while in the TV mode.

Press and hold the button for 2 seconds or

longer to perform auto store.

[

BND] button

• Switch the band.

Press and hold the button for 1 second or longer

to switch to the seek tuning or manual mode.

[UP]

, [DN] buttons

• Select the disc.

[

RDM] button

• Perform random play. Press and hold the button for 1 second or longer to perform disc random play.

[

RPT] button

• Perform repeat play. Press and hold the button for 1 second or longer to perform disc repeat play.

[

DIRECT] buttons

• Store a station into memory or recall it directly.

[

ADJ] button

• Press the button to switch to the ADJ mode.

• Press and hold the button for 1 second or longer to switch to the TV picture mode or VTR (

external) picture mode.

[

, ] lever

• Select a station.

DXZ366MP

English

4. PRECAUTIONS

1. When the inside of the car is very cold and the player is used soon after switching on the heater moisture may form on the disc or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour. The condensation will disappear naturally allowing normal operation.

CAUTION

USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

2. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip.

3. Thi s unit us es a pre cisi on mec h anis m. Even in the event that trouble arises, never open the case, disassemb le the unit, or lubricate the rotating parts.

INFORMATION FOR USERS:

CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY.

DXZ366MP

5. HANDLING COMPACT DISCS

English

This unit has been designed speciﬁcally for playback of compact discs bearing the or mark. No other discs can be played.

To remove the compact disc from its storage case, press down on the center of the case and lift the

disc out, holding it carefully by the edges.

Always handle the compact disc by the edges. Never touch the surface.

To remove ﬁngermarks and dust, use a soft cloth, and wipe in a straight line from the center of the compact disc to the circumference.

New discs may have some roughness around the edges. The unit may not work or the sound may skip if such discs are used. Use a ball-point pen, etc. to remove roughness from the edge of the disc.

Note on compact discs

Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen.

Do not use any solvents such as commercially available cleaners, anti-static spray, or thinner to clean compact discs.

Do not use compact discs that have large scratch es, are misshapen, or cracked, etc. Use of such discs will cause misoperation or damage.

Do not expose compact discs to direct sunlight or any heat source.

Note:

• Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These

may get caught in the internal mechanism and damage the disc.

DXZ366MP

English

6. DCP (Detachable Control Panel

)

The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP prevent scratches.

We recommend taking the DCP with you when leaving the car.

(

Detachable Control Panel) case to

Removing the DCP

[

1. Press the to switch off the power.

2. Press in the

∗ If the ﬂip down panel does not open fully, gently

open it with your hand.

3. Pull the DCP toward you and remove it.

SRC] button for 1 second or longer

[

OPEN] button.

CAUTION

Be sure to close the HOLD FLAP for safety when removing the DCP.

Attaching the DCP

1. Insert the right side of the DCP into the main unit.

2. Insert the left side of the DCP to attach into the main unit.

CAUTION

• The DCP can easily be damaged by shocks.

After removing it, be careful not to drop it or subject it to strong shocks.

• If the FLIP DOWN PANEL is kept open, the

DCP may drop due to vibration of the car.

This result in damage to the DCP. So close

the FLIP DOWN PANEL or remove the DCP to store into the case.

• The connector connecting the main unit and

the DCP is an extremely important part. Be careful not to damage it by pressing on it with ﬁngernails, pens, screwdrivers, etc.

4. Close the HOLD FLAP.

DXZ366MP

Note:

• If the DCP is dirty, wipe off the dirt with a soft, dry

cloth only.

7. REMOTE CONTROL

English

Inserting the Battery

1. Turn over the remote control unit and slide the cover in the direction indicated by the arrow in the illustration.

2. Insert the battery (CR2025) into the insertion gu ides , with th e pri n ted si de upwards.

3. Press the battery in the direction indicated by the arrow so that it slides into the compartment.

4. Replace the cover and slide in until it clicks into place.

(+ )

fac ing

Notes:

Misuse may result in rupture of the battery, producing leakage of ﬂuid and resulting in personal injury or damage to surrounding materials. Always follow these safety precautions:

• Use only the designated battery.

• When replacing the battery, insert properly, with +

/- polarities oriented correctly.

• Do not subject battery to heat, or dispose of in ﬁre or water. Do not attempt to disassemble the battery.

• Dispose of used batteries properly.

DXZ366MP
