Congratulations and Thank You for your selection of a CITIZEN Eco-Drive watch. To get the most out of your purchase, please be sure to read this manual and keep it on hand for reference. Once fully charged by exposure to light, your watch will give you years of enjoyment and reliability.

Notice

All repairs performed on this watch are to be performed at the CITIZEN. When desiring to have your watch repaired or inspected, please contact the Citizen Service Center either directly or through the store where you purchased your watch.

Please use this watch after it has been sufficiently charged by exposure to light.

If the second hand of the watch is moving at two-second intervals, this indicates the watch is insufficiently charged. To ensure proper operation, the watch should be fully charged by placing the watch under direct sunlight for about eight (8) hours. We recommend the watch keep a high charge level to ensure optimum operation. Charge your watch as indicated in “Guide to Charging Time” (p. 96).

6 7

Note: To assist in the explanation, all parts of the digital display are shown in the illustration.

Part Names (2): Digital Displays

[Digital display 2] [Digital display 1]

World city name

Morning: A Afternoon: P

Chronograph measurement mark

Timer measurement mark

Alarm setting mark

Daylight saving time setting mark

Home city name

Insufficient charge warning mark

World city time Hour/minute/second

• The illustrations shown in this manual may differ from the actual watch you have purchased.

Part Names (1)

Charge level indicator/ radio wave reception indicator

Home time hour hand

Digital display 2 (Displays the home city)

Home time second hand

Mode hand

UTC hour hand

UTC minute hand

Home time minute hand

Button (B)

24-hour hand

Crown

Button (A)

Digital display 1 (Displays world city/ world time)

1. Your Watch

World Time Eco-Drive Radio Controlled Watch

This watch is a radio controlled watch, which receives the standard time radio waves that are broadcast from radio wave transmitters in three regions, Japan, the USA and Europe (Germany), and uses these waves to automatically correct the time and date. (p. 18)

i Automatic reception: The watch will automatically receive the radio wave up to three

times a day, at 2 a.m., 3 a.m. and 4 a.m., and adjust the time and date accordingly. However, note that if the watch successfully receives the radio wave at 2 a.m., it will not perform automatic reception again at the later times. The 4 a.m. automatic reception can be changed to any time of the day.

i On demand reception: The radio wave can be received at any time of the day to adjust

the time and date. In the event that a radio signal cannot be received, the watch can be manually set and will operate keeping time within +/- 15 seconds per month.

8 9

Part Names (3): Radio Wave Reception Display

NO: Signal reception failed RX: Reception standby H, M, L: Reception level/

reception status

Modes where reception is possible: CAL, TME and RX-S

JPN : JJY (Japan) USA : WWVB (USA) EUR : DCF77 (Germany)

10 11

Important Points Regarding Radio Wave Reception

There are two methods to receive radio signals during normal operation, Automatic and On Demand. The internal unidirectional antenna may be weakened by geography or building structures, which may require the user to place the watch near a window. When receiving radio waves: * Remove the watch from your wrist * Face the 9:00 position of the watch towards a window * Place the watch on a stable surface * Do not move the watch during this process. Movement of the watch may cause

incomplete reception. During radio reception, the second hand of the watch moves in reception level.

* When reception is complete, the watch will return to movement at one-second

intervals. Reception can take from about 2 minutes to a maximum of 15 minutes.

i UTC (Coordinated Universal Time), the time and date of 43 cities (or regions) from around

the world and one city (any can be set) can be displayed and easily called up. It is convenient when traveling overseas on business or vacation. Daylight saving time can also be set. (p. 44)

This is a multi-functional Eco-Drive watch, which is equipped with a solar power function for powering the watch by converting light energy into electric energy.

i Charge level display function: This function displays the charge level in four grades, to

give an approximate indication of how much the secondary battery is charged. (p. 38)

i Power saving function: The watch is equipped with two power saving functions.

If the watch face is not exposed to light for 30 minutes or longer, all the LCD display sections turn off (Power saving 1). If the watch face is then not exposed to light for one week or longer, the hands are stopped in order to minimize the watch’s power consumption (Power saving 2). (p. 92)

12 13

Check the reception status.

• Pull out the crown to position 1.

• Turn the crown to align the mode hand with TME.

• Return the crown to the normal position.

• Press the lower right button (A) at the 4:00 position.

(p. 26)

The second hand indicates a reception status of H, M or L

The second hand indicates a reception status of NO

Refer to “On Demand Reception” (p. 20) to perform the radio wave reception.

Your watch is

correctly receiving

the standard time

radio wave.

It is ready to use.

If you are unable to receive radio waves, please inquire to the

Citizen Service Center.

2. Before Use

[Insufficient charging]

Charge level indicator

[Fully charged]

Check the movement of the second hand.

The second hand is moving at 2-second intervals or is stopped.

The second hand is moving at 1-second intervals.

Charge the watch sufficiently by placing it in direct sunlight as indicated in “Guide to Charging Time” (p. 96).

NO: Signal reception failed

RX: Reception standby

Reception level/ reception status H: High M: Middle L: Low

Crown in its normal position

Button (A)

Mode hand

14 15

1. Pull the crown out to position 1 and turn to align the mode hand with CHR (chronograph mode).

2. Pull out the crown to position 2.

• The hands will move rapidly, stopping at the

reference position recorded in the watch memory.

Correct reference positions

Charge level indicator: EUR UTC hour and minute hands: 12:00 Hour, minute and second hands: 12:00:00 24-hour hand: 12:00

3. If the reference position is correct, the check is complete. Press the crown back into its normal position.

• If a position is incorrect, refer to “Adjusting the

Reference Position” and adjust it to the correct position. (p. 72)

[Checking the Reference Position]

Before using the watch, confirm that the hands are aligned with “0”, similar to when setting weighing scales

i The reference position may become misaligned when the

watch is exposed to strong magnetism, static electricity or impacts. Even if radio waves are received, the correct time will not be indicated unless the watch hands are aligned to the correct reference position. Check that the hands are properly aligned with “0”.

Examples of magnetic products that can affect the watch.

• Health products (for example, medical necklaces and waist bands that have magnetic fields)

• Refrigerators (magnetic part of the door)

• Electromagnetic cookers

• Bags (with magnet fasteners)

• Mobile phones (speaker part)

Keep the watch away from items similar to those above.

Hour, minute and second hands

UTC hour and minute hands

24-hour hand

Charge level indicator

Mode hand

16 17

3. Set the home time.

If the home time is correct,

(1) Set the time manually (p. 46) (2) Set the time by receiving the radio

wave (p. 20)

Caution: If the home city is set to a city that is outside the reception area, the radio wave cannot be received. Turn off the automatic reception and set the time manually.

(p. 66oo69)

4. Set digital display 1.

The world time or date can be displayed on digital display 1. Also, the mode can be switched in order to use the alarm, timer or chronograph. (p. 40)

gotostep4

3. Basic Watch Operations

* The watch receives the radio wave from the radio wave transmitter located in the

home city’s region.

1. Check the charge level.

(p. 38)

2. Set the home city.

If the city in which you are situated is displayed in digital display 2,

(1) Pull out the crown to

position 1 and turn to align the mode hand with TME.

(2) Press button (A) or (B)

to call up the home city in digital display 1.

(3) Press button (A) and

button (B) at the same time to display the home city in digital display 2.

gotostep3

Home time hour hand

Home time minute hand

Digital display 1

Home time second hand

Home city (Digital display 2)

Button (A)

Button (B)

18 19

Automatic reception

• It is not necessary to operate buttons during automatic reception.

• The watch will automatically receive the radio wave every day at 2 a.m., 3 a.m. and 4 a.m.

• The 4 a.m. reception can be changed to any time of the day. (p. 66oo69)

• Reception can be set to OFF. (p. 66oo69)

1. Remove the watch from your wrist and place on

a stable surface in a location, such as near a window, from which radio waves can be easily received, pointing the 9:00 side (reception antenna position) in the direction of the radio wave transmitter.

2. The watch will automatically receive the radio

wave every day at 2 a.m. If it successfully receives the wave, reception is not performed at 3 a.m. and 4 a.m.

4. Radio Signal Reception

Three types of radio signal reception are possible: automatic reception, on demand reception and recovery automatic reception. There are three modes where reception is possible: time (TME), calendar (CAL) and receive set (RX-S). The watch cannot receive signals in any other mode. Display the home city in digital display 2 when receiving the radio wave.

• Reception is not possible unless the crown is in the normal position.

• If the home city is “UTC”, reception is not possible.

• Reception is not possible during chronograph or timer measurement.

• The reception level may change depending on the surrounding environment. While referring to reception level (H, M or L), change the watch location, direction and angle to try to receive the radio wave.

• When the watch is receiving the radio wave signal, all of the hands will stop. To check the time, hold the lower right button (A) for 2 seconds to cancel the radio wave reception. The hands will then return to the current time.

An antenna for receiving the radio signals is located inside the watch (on the 9:00 position).

20 21

Recovery Automatic Reception (Automatic Reception)

• If the watch stops due to insufficient charging, expose the watch to sunlight to recharge it. When the watch is recharged sufficiently, it will automatically receive the radio wave once.

* Regularly charge your radio controlled watch so it does not become insufficiently

charged. The radio wave reception can be checked with “Confirming Reception Status”. (p. 26)

On Demand Reception (Manual Reception)

• Signals can be received at any time.

1. Pull the crown out to position 1 and turn to align the mode hand with the CAL, TME or RX-S position.

2. Return the crown to the normal position.

3. Remove the watch from your wrist and place on a stable surface near a window where the radio signal can be easily received.

4. Point the 9:00 side of the watch in the direction of the radio wave transmitter, and hold down the lower right button (A) for more than 2 seconds. Release when the confirmation tone sounds and the second hand stops at RX. The second hand will then move to H, M or L. * Do not move the watch during reception.

5. When the radio wave has been properly received, the second hand will automatically move from H, M or L to the time that was received, all the hands will be corrected, and the second hand will return to 1-second interval movement.

[Mode hand position

when receiving]

22 23

5. Poor Reception Areas

It may not be possible to receive radio waves under environmental conditions where reception is difficult or in areas susceptible to radio noise, such as those shown in the illustrations below. While referring to the reception level display, try to find a location with better reception.

j Extremely hot or cold locationsj Near cellular

phones that are in use

j Inside vehicles, including

cars, trains and aero planes

j Near TVs, refrigerators,

computers, fax machines and other home electronics or appliances

j Inside reinforced concrete

buildings or underground

j Near high-tension electrical

lines, railway overhead wires or communication facilities

If the watch has received insufficient light for charging or has been kept in a dark location for an extended period of time (one week or more), the Power Save Feature of the watch is activated and the hands of the watch stop. Even though the watch will not show movement, the correct time is kept in memory. When the watch is in the Power Save mode, it will continue to keep the correct time internally. In some instances, “Automatic Reception” may not be successful due to a weak signal reception. When resuming use of the watch after the power save mode has been activated for an extended period of time, you can cancel the Power Save function by placing the watch in light sufficient for charging and performing the “On Demand” reception process to correctly set the time and date. (Refer to page 92 for information on the Power Save Function.)

24 25

Reception can take from about 2 minutes to a maximum of 15 minutes, depending on factors such as the weather or noise. If the radio wave reception fails, the watch may return immediately to the normal display.

[Caution] During reception, the second hand may

rotate once and show the reception level again. Do not move the watch until the second hand has returned to 1-second interval movement.

6. Display during Reception

[During reception standby]

j Second hand moves to RX and

stops. The radio wave reception indicator points to the received transmitter.

[Digital display]

[Second hand display]

Off Off

j If the reception fails, RC and

NO are displayed.

Repeatedly switches between on and off

j The second hand moves from

RX to reception level H, M or L and reception starts.

j When the reception is

successful, the second hand will return to 1-second interval movement and the other hands will be automatically corrected.

[Receiving signal]

[Reception completed]

Radio wave reception indicator

26 27

Reception status

Signal reception failed

Radio wave reception environment was very good

Radio wave reception environment was good

Radio wave reception environment was not very good

Reception

level

* The time display may shift slightly depending on the reception environment and

internal watch processing even if radio waves are properly received.

* H, M and L indicate the reception status and are not connected to the performance of

the watch.

• If NO is indicated, find a location or direction where the reception is better and

perform on demand reception again. (p. 20)

7. Confirming Reception Status

• The result of the radio wave reception can be confirmed.

• The daylight saving time setting status of the home city can be confirmed.

1. Set the mode to TME, CAL or RX-S.

2. Press the lower right button (A) once to display the reception status. The second hand will move to H, M, L or NO.

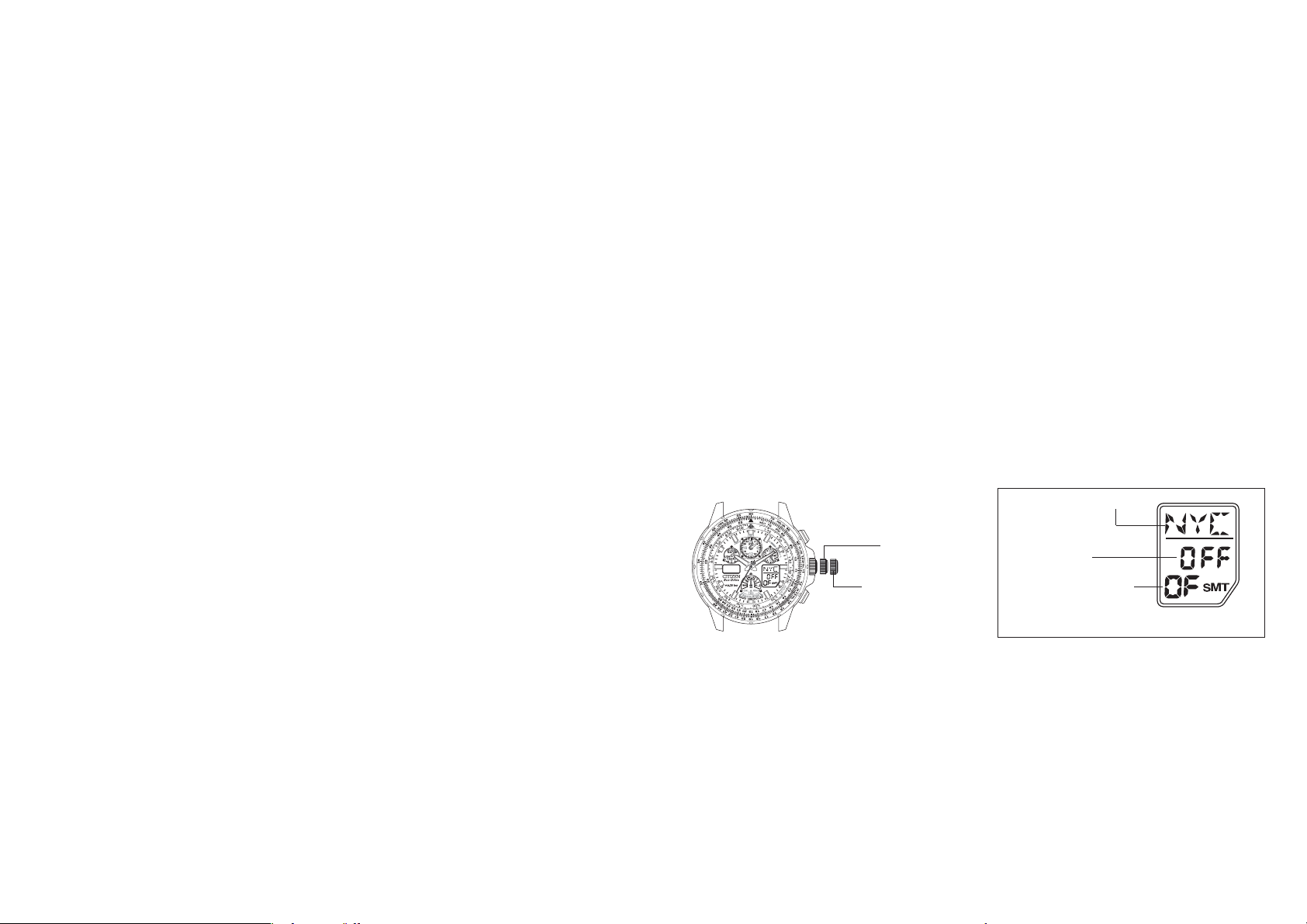

• The daylight saving time setting status for the home time is displayed on digital

display 2 (flashes alternately between SMT and ON or OFF).

• The radio wave reception indicator points to

JPN, EUR or USA.

3. Press the lower right button (A) once.

• The watch returns to the normal time display

(1-second interval movement).

• It also returns automatically to normal

display if there are no operations for 10 seconds.

[Digital display 2]

USA

EUR

JPN

28 29

8. Reception Area Guidelines

This watch can receive standard time radio waves broadcast from Japan (two transmitters), the USA and Europe (Germany). The standard time radio wave to be received can be changed by selecting the city in another region. The maps show the approximate reception areas. However, note that the radio wave condition could change due to factors including the weather (such as lightning) and changes in the season or sunrise/sunset time. The reception area on the map is only guideline, and it may be difficult to receive the radio signal even within the areas indicated on the map.

Standard time

radio signal

Transmitter Frequency

JJY

Japan

WWVB

USA

DCF77

Germany

Ohtakadoya-yama Standard Time Transmitter (Fukushima Transmitter)

Hagane-yama Standard Time Transmitter (Kyushu Transmitter)

Fort Collins Transmitter, Denver, Colorado

Mainflingen Transmitter, Southeast Frankfurt

The standard time radio wave this watch uses is broadcast almost continuously 24-hours a day, but may occasionally be interrupted for maintenance. Even if reception of the standard time radio signal has failed, the watch will continue to be accurate to within ±15 seconds per month.

40 kHz

60 kHz

77.5 kHz

30 31

USA: WWVB (USA) Fort Collins: 3,000 km radius from the transmitter

JPN: JJY (Japan) Automatically selects one of the two transmitters

Fukushima Transmitter: 1,500 km radius from the transmitter Kyushu Transmitter: 2,000 km radius from the transmitter

32 33

9. World City Display

UTC (Coordinated Universal Time) and 43 cities (or regions) are registered in this watch in advance, and it is also possible to register one additional city. The time of each city can be called up and displayed.

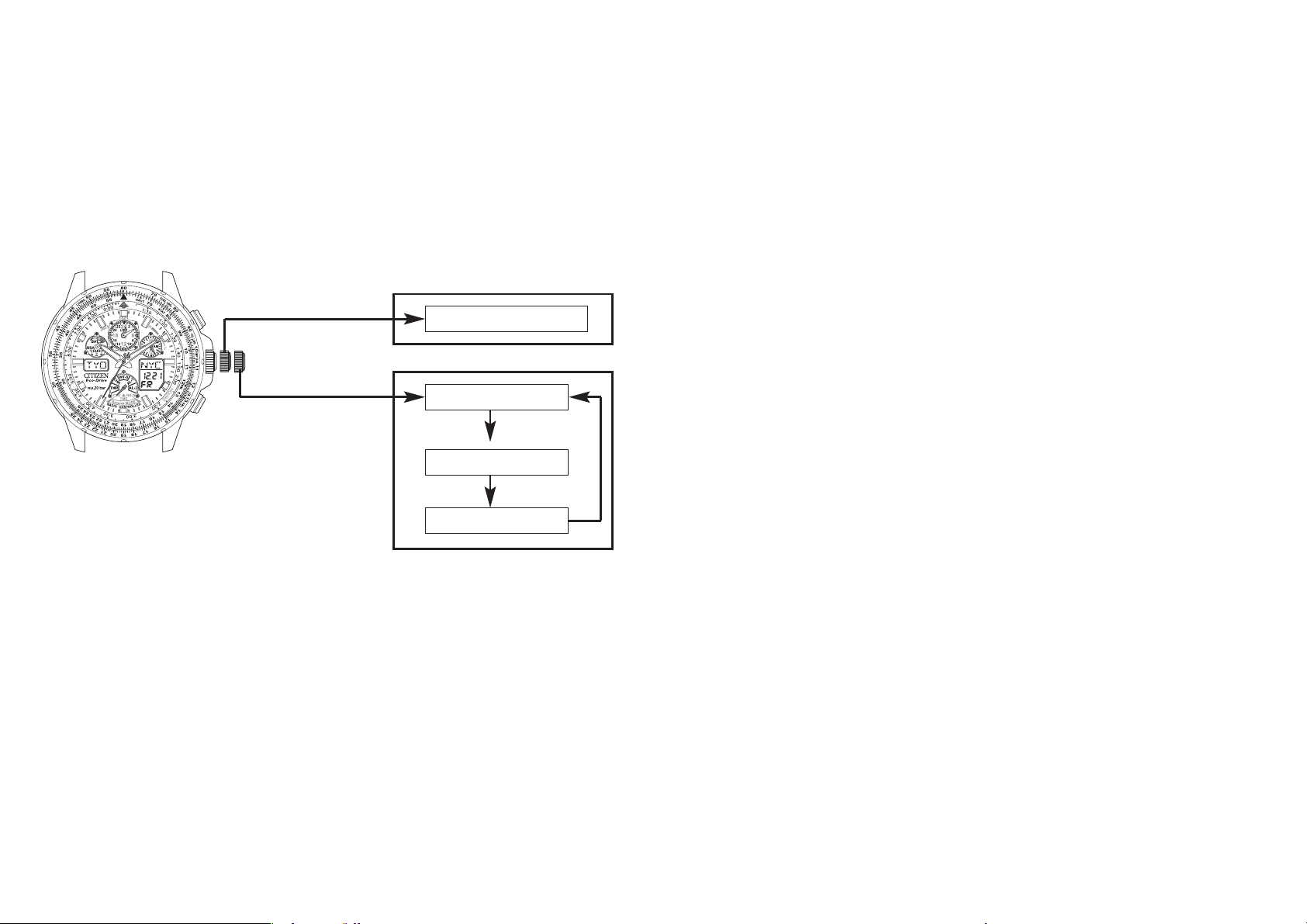

• Press the upper right button (B) while the crown is in position 1 during TME mode or CAL mode to display in sequence from the top left to bottom right the city names shown in “Table of UTC Time Differences” (p. 35), and press the lower right button (A) to display the city names in sequence from the bottom right to top left.

UTC: Coordinated Universal Time This is the time of an atomic clock that is used as the global standard (= international atomic time). It uses leap seconds to correct deviations in time systems that are based on the rotation of the Earth (universal time).

EUR: DCF77 (Germany) Mainflingen: 1,500 km radius from the transmitter

CAI

JNB

ATH

MOW

RUH

THR

DXB

UTC

LON

PAR

ROM

BER

MAD

34 35

[Cities and the standard time radio wave assignment]

• The received standard time radio waves shown in “Table of UTC Time Differences” are assigned one of the following three radio wave transmitters, in accordance with the home city in digital display 2.

[Standard time radio wave assignment]

JPN : JJY (Japan) USA : WWVB (USA) EUR : DCF77 (Germany)

• Radio wave transmitters are assigned even for countries and regions outside the reception area.

• For regions that are assigned Japan’s standard time radio wave (JJY), either the Fukushima transmitter or Kyushu transmitter is selected automatically for reception, whichever is easier to receive.

Radio signal transmitter

Digital display 2

[Table of UTC Time Differences]

Set to TME mode and press the upper right button (B) repeatedly while the crown is in position 1 to display in sequence in digital display 1 the table’s city names from top to bottom, and press the lower right button (A) to display in sequence the city names from bottom to top.

Watch

display

City name

Coordinated universal time

London

Paris

Rome

Berlin

Madrid

Time

difference

+ 1

---

EUR

Received

standard

time radio

wave

Watch

display

City name

Cairo

Johannesburg

Athens

Moscow

Riyadh

Tehran

Dubai

Time

difference

+ 2

+ 3

+ 3.5

+ 4

EUR

Received

standard

time radio

wave

+ 40 hidden pages

Citizen U60, U600 User Manual

Table of Contents

1. Your Watch

2. Before Use

[Checking the Reference Position]

3. Basic Watch Operations

4. Radio Signal Reception

5. Poor Reception Areas

6. Display during Reception

7. Confirming Reception Status

8. Reception Area Guidelines

9. World City Display
