Citizen CT-S300, iDP3110, CBM-291, CBM-293, iDP3111 Product Manual

...

CBM PRINTERS —

A full range of compact high-performers to meet your most rigorous requirements.

Reliability, value, and performance - these are some of the key strengths of CBM POS printers and OEM mechanisms. In a difficult business environment, you need every possible advantage. Selecting from one of the industry’s widest ranges of dot matrix and thermal printers and mechanisms gives you that edge. Standard features include semi-automatic paper loading, compact design, and reliable high-speed performance. Also available are such options as winders, autocutters, and multicolor ribbons. Rely on the resources and reputation of a worldwide industry leader to meet your POS printer and OEM mechanism requirements. Go with the CBM advantage.

CONTENTS

CT-S300

Line Thermal Printers

Standard type (External AC adapter)

Japan CBM Corporation is actively

meeting the need for thermal printers

in all parts of the world, led by printers

for POS, ECR, and kiosk applications.

With such benefits as quiet operation,

high-speed printing, and excellent

high-density barcode printing, thermal

printers are idea for many applications,

and CBM printers are among the

leaders in the field.

Customization software for easy customization

Built-in AC adapter type

58 80

Paper roll Paper roll

Parallel Serial USB

Type classfication

(1) Model type

CT-S300

(2) Interface

P: Parallel

R: Serial RS-232C

U: USB

(3) Character set

F: International

(4) Power source

100: AC 100V

120: AC 120V

230: AC 230V

(5) Power supply

S: Built-in AC adapter

A: External AC adapter

D: No AC adapter

(6) Blackmark sensor (Option)

None: No sensor

M1: Left side

M2: Right side

CT-S300 R F 230 S M1

(1) (2) (3) (4) (5) (6)

Features

• 100mm/sec. high speed

• Smallest size in its class

• Paper-drop-in style

• User-installable interface cards

• 80 or 58mm paper width

• Two-color printing

• Easy customization by software

• Bitmap data registration

• Barcode printing

• ESC/POS* compatibility

• Cash drawer kick-out

• Hardware buzzer incorporated

• Smoothing font

Specifications

Model CT-S300

Printing method Line thermal dot printing Printing width 80mm paper: 72mm/576 dots

58mm paper: 48mm/384 dots Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 100mm/sec. (23.6 lines/sec.) Number of columns 80mm paper: Font A-48/42 columns Font B-64/56 columns Font C-72/63 columns

58mm paper: Font A-32/30 columns Font B-42/40 columns Font C-48/45 columns

Character size (W

× H) Font A: 1.25 × 3.00mm (12 × 24 dots) / Font B: 0.88 × 2.13mm (9 × 17 dots)

Font C: 0.88 × 2.00mm (8 × 16 dots)

Character table Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866,

Katakana, WPC1252 , Thai code 18 Barcode type UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 Line spacing 4.23mm (1/6 inch); can be set by a command. Paper Thermal paper roll, 80 or 58mm (W) × ø83mm Interface Parallel: IEEE 1284 and Centronics compliant, Serial (RS-232C), or USB Input buffer 4K bytes / 45 bytes NV user memory 256K bytes Drawer kick-out 2 Drawers Power suppy DC 24V ± 7% AC adapter Input: AC 100-230V, 50/60 Hz, 120VA Output: DC 24V, 2A Weight Approx. 1.2kg Dimensions (W × D × H) 145 × 195 × 121mm Operating environment 5 ~ 40°C, 35 ~ 85% RH Storage environment -20 ~ 60°C, 10 ~ 90% RH Reliability Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts EMC and safety standards UL, C-UL, FCC Class A, TUV-GS, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Applications

• Receipt

• Coupon

• Ticket

• Daily report

• Kitchen

• Delivery slip

• Barcode

Interface cards

Wall mount kit

Easy paper loading

Just drop paper in and

close the top cover.

Line Thermal Printers

WALL-CTS300

Splash proof cover

SPROOF-CTS300

Vertical solution Available in black

(Built-in

AC adapter type)

*Available for external

AC adapter type only.

*Available for built-

in AC adapter type only.

CBM1000 Type II

Paper roll Paper roll

Line Thermal Printers

Standard type (Built-in AC adapter)

58 80

Available in black Label type

Type classfication

(1) Model type

1000II

(2) Interface

P: Parallel

R: Serial RS-232C

U: USB

(3) Character set

F: International

(4) Power source

100: AC 100V

120: AC 120V

230: AC 230V

(5) Power supply

S: Built-in AC adapter

A: External AC adapter

D: No AC adapter

(6) Label/Blackmark sensor

None: No sensor

L: Label/Blackmark type

CBM1000II R F 230 S L

(1) (2) (3) (4) (5) (6)

Paper-drop-in style

Model CBM1000 Type II

Printing method Line thermal dot printing Printing width 80mm paper: 72mm/576 dots

58mm paper: 54mm/432 dots Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 150mm/sec. (35.4 lines/sec.) Number of columns 80mm paper: Font A - 44/42 columns Font B - 64/56 columns

58mm paper: Font A - 36/30 columns Font B - 48/40 columns Character size (W × H) Font A: 1.25 × 3.00mm (12 × 24 dots) / Font B: 0.88 × 3.00mm (9 × 24 dots) Character table Code page 437, 850, 852, 857, 858, 860, 863, 865, 866, Katakana, WPC1252 Barcode type UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 Line spacing 4.23mm (1/6 inch), can be set by a command Paper Thermal paper roll, 80 or 58mm (W) × ø83mm Interface Parallel: IEEE1284 and Centronics compliant Serial: RS-232C Input buffer 4K bytes / 72 bytes NV bit map data area 256K bytes Drawer kick-out 2 Drawers Power supply Standard type: AC adapter internally included

Compact type: External AC adapter

AC adapter Input: AC100-240V, 50/60Hz, 120VA

Output: DC24V, 1.9A Weight Standard type: 2.0kg/Compact type: 1.4kg External dimensions (W

× D × H) Standard type: 145 × 190 × 157mm

Compact type: 145 × 190 × 114mm Operating environment 5 ~ 40°C, 35 ~ 85% RH Storage environment –20 ~ 60°C, 10 ~ 90% RH Reliability Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts EMC and safety standard UL, C-UL, FCC class A, TUV-GS, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Specifications

Parallel Serial USB

Interface cards Rear cover

Features

• 150mm/s high-speed printing

• Paper-drop-in style

• User-installable interface card

• Bitmap data registration

• Cash drawer kick-out

• Barcode printing

• ESC/POS* compatibility

• Page mode

• 80mm and 58mm paper width

• Availability in black or white

• Label/Black mark function (option)

• Cable cover (option)

• Two color printing

• Smoothing font

Applications

• Receipt

• Coupon

• Ticket

• Daily report

• Kitchen

• Delivery

• Barcode

Drop paper in and close the cover. Then it’s ready to print.

CMP-10

Paper roll

Line Thermal Printers

Mag stripe card reader type

Type classfication

(1) Model type

CMP-10

(2) Power source

J:100V

U:120V

E:230V

(3) Diameter of paper roll in stock

(Paper cover)

5:50mm

4:40mm

(4) Mag stripe card reader

None:Standard

M:Mag stripe card reader type

CMP-10 E 5 M

(1) (2) (3) (4)

Features

• Palm size

• Paper-drop-in style

• IrDA and serial interface

(Cable is option)

• Li-ion battery (Large capacity)

• ESC/POS* compatibility

• Auto power off

• Low battery monitoring

• Belt clip

• 40 or 50 mm diameter cover

• Internal charging circuit

• Mag stripe card reader (Option)

Specifications

Model CMP-10

Printing method Line thermal dot printing Printing width 58mm/ 384 dots Dot pitch 8 × 8 dots/mm (203dpi × 203dpi) Printing speed Max.50mm/sec Number of columns Font A: 32 columns: 12 × 24 dots Font B: 42 columns: 9 × 16 dots Character size (W × H) Font A: 1.25 × 3.00mm (12 × 24 dots) Font B: 0.88 × 2.13mm (9 × 16 dots) Character table ASCII, WPC1252 (Other code page data are ready to load) Barcode type UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 93, Code 128 Line spacing 4.23mm (1/6 inch), Software selectable Paper Thermal paper roll width: 58mm, Thickness: 60-65µm,

Outer diameter: ø50 or 40 (option), Core diameter: Min.8mm

Interface IrDA Version 1.0

RS-232C with optional special cable (1200-115200 bps) Input buffer 64K bytes Sensor & Error monitoring Paper end, Cover-open, Low battery, Head overhead Mag stripe card reader Track 1, 2, 3 Power supply Li-ion battery, 2000mAh

AC adapter only for charging (Output DC9V, 2A)

Battery 40,000 print lines per charge

Maximum recharge time: 3 hours Auto power off 1-60min. (default 10min.) Software selectable Weight Approx. 370g (with 50mm dia cover + card reader) Dimensions (W × D × H) 116 × 104 × 63mm (with 50mm dia cover + card reader) Operating environment 5 ~ 40°C Storage environment –20 ~ 60°C Reliability Thermal head: 100,000 pulses or 50km

Mechanism (MCBF) : 15,000,000 lines

EMC and safety standards UL, C-UL, TUV, GS, CE Marking, FCC Class B, VCCI Class B

* ESC/POS is a trademark of Seiko Epson Corporation

Applications

• Mobile

• Receipt

• Ticket

• Credit/ Debit

• Daily report

• Delivery slip

• Barcode

• Taxi meter

Mechanism

MLT-289

Easy paperLoading

Just drop a paper in and

close the top cover.

Wireless communication using IrDA

Long battery life using Li-ion battery

Belt clip available as standard

Serial interface cable (option)

CA10-01

Standard type

iDP3221/3240

Paper roll Paper roll

Line Thermal Printers

iDP3221

80 112

iDP3240

Type classfication

(1) Model type

3221: 80mm thermal printer

3240:

112mm wide thermal printer

(2) Interface

P: Parallel

R: Serial RS-232C

(3) Character set

F: International

J: Japanese

(4) Power source

100: 100 V

120: 120 V

230: 230 V

iDP3221 R F 230

(1) (2) (3) (4)

Model iDP3221 iDP3240

Printing method Line thermal dot printing Printing width 72.19mm/512 dots 104mm/832 dots Dot pitch 7.1 × 7.1 dots/mm (180 dpi × 180dpi) 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 63.45mm/sec.(15 lines/sec.) Max. 80mm/sec.(18.9 lines/sec.) Number of columns Font A: 42 columns Font A: 69/60 columns

Font B: 56 columns Font B: 92/80 columns

Character size (W

× H) Font A: 1.41 × 3.39mm (12 × 24 dots) Font A: 1.25 × 3.00mm (12 × 24 dots)

Font B: 0.99 × 3.39mm (9 × 24 dots) Font B: 0.88 × 3.00mm (9 × 24 dots)

Character table Code page 437, 850, 860, 863, 865 Code page 437, 850, 852, 857, 860, 863,

865, 866, Katakana and Windows code Barcode type UPC-A/E, JAN(EAN)-13/8, ITF, CODABAR, Code 39, and Code 128 Line spacing 4.23mm (1/6 inch), can be set by a command Paper Thermal paper roll, 80mm (W) × ø83mm Thermal paper roll, 112mm (W) × ø83mm Interface Parallel: IEEE1284 and Centronics compliant Serial: RS-232C Input buffer 4K bytes 64K bytes NV bit map data area — 256K bytes Drawer kick-out 2 Drawers Power supply Main unit: DC 24V AC adapter: 31AD AC adapter Input: AC 100-240V, 50/60Hz, 120VA, Output: DC 24V, 1.9A Weight Main unit: 1.3kg, AC adapter: 0.45kg Main unit: 1.45kg, AC adapter: 0.45kg External dimensions (W × D × H) 152(W) × 201(D) × 123(H)mm 186(W) × 201(D) × 128(H)mm Operating environment 5 ~ 40°C, 35 ~ 80% RH Storage environment –20 ~ 60°C, 10 ~ 90% RH Reliability Head: 50,000,000 pulses or 50km Head: 100,000,000 pulses or 100km

Cutter: 500,000 cuts Cutter: 500,000 cuts

EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Specifications

Easy paper loading

Auto cutter

Features

• Compact design

• High-speed line thermal printing

• Easy paper loading (See below)

• Barcode printing

• Cash drawer kick-out

• ESC/POS* compatibility

• Page mode

• 112mm page width (iDP3240)

• Bit map data registration (iDP3240)

• 80 columns mode (iDP3240)

• 64K input buffer (iDP3240)

Applications

• Receipt

• Coupon

• Ticket

• Daily report

• Kitchen

• Delivery

• Barcode

ACS-230 (iDP3221) ACS-240 (iDP3240)

iDP3221 iDP3240

Control chip

Gate Array:202LA

CBM-262 Type II

Paper roll

Line Thermal Printers

CBM-262 Type II

ACS-220

Type classfication

(1) Model type

262II: Tandem 2 station printer

(2) Interface

P: Parallel

R: Serial RS-232C

(3) Character set

F: International

J: Japanese

(4) Power source

100: 100 V

120: 120 V

230: 230 V

CBM262II R F 230

(1) (2) (3) (4)

Features

• Two station printing

(Receipt and journal with paper winder)

• High-speed line thermal printing

• Paper auto loading

• Barcode printing

• Cash drawer kick-out

• ESC/POS* compatibility

• Page mode

• Auto cutter (Receipt only)

• Smoothing font

Specifications

Model CBM-262 Type II

Printing method Line thermal dot printing Printing width 54mm, 432 dots Printing speed Max. 80mm/sec., 640 dot-line/sec. (Approx. 19 lines/sec.) Number of columns Font A: 36 columns

Font B: 48 columns

Character size (W

× H) Font A: 1.25 × 3.00mm (12 × 24 dots)

Font B: 0.88 × 2.13mm (9 × 17 dots) Dot pitch 8 dots/mm (Horizontal/Vertical) Barcode type UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 93, Code 128 Line spacing 4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) Paper Thermal paper roll, 58mm × ø83mm Interface Parallel: Centronics

Serial: RS-232C Input buffer 8K bytes Power supply voltage Main unit: DC 24V AC adapter Input: AC 100-240V, 50/60Hz, 120V, Output: DC 24V, 1.8A Weight Main unit: 2.3kg, AC adapter: 0.4kg External dimensions (W × D × H) 128 × 359.5 × 162.5mm Operating temp. range 5 ~ 40°C Storage temp. range –10 ~ 60°C Reliability Head: 50,000,000 pulses or 50km

Cutter: 300,000 cuts

EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Applications

• Receipt

• Journal

• Coupon

• Ticket

• Daily report

• Kitchen

• Delivery

• Barcode

Auto cutter

Mechanism

LT-289 (Receipt) LT-289D (Journal)

CBM-270/272

Paper roll

Line Thermal Printers

CBM-270

CBM-272

(Rechangeable battery built-in type)

Mechanism

Features

• Palm size

• Lightweight

• Availability of wall mount

• Paper auto loading

• Barcode printing

• ESC/POS* compatibility

• Paper near end sensor

• 2K bytes input buffer

• Label printing (CBM-270L)

• Black & red printing with special paper

(option)

• Rechargeable battery (CBM-272)

Applications

• POS

• Banking

• Medical equipment

• Coupon

• Ticket

• Daily report

• Delivery

• Barcode

LT-286

Type classfication

(1) Model type

270: External AC adapter type

272: Rechangeable Battery built-

in type

(2) Interface

P: Parallel

R: Serial RS-232C

U: USB

(3) Character set

F: International

(4) Power source

100: 100 V

120: 120 V

230: 230 V

(5) Power supply

N: None

L: Label interval detection

M: Black mark detection

CBM-270 R F 230-N

(1) (2) (3) (4) (5)

Model CBM-270 CBM-272

Printing method Line thermal dot printing Printing width 48mm (384 dots/line) Printing speed Max. 50mm/sec., 400 dot-line/sec. (11 lines/sec.) Number of columns Font A: 32 columns.

Font B: 42 columns.

Character size (W

× H) Font A: 1.25 × 3.00 mm (12 × 24 dots)

Font B: 0.88 × 3.00 mm (9 × 24 dots) Dot pitch 8 dots/mm Barcode type UPC-A/E, JAN (EAN), ITF, CODABAR, CODE39, CODE128 Line spacing 4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) Paper Thermal roll paper: 58

× ø83mm (max.) Thickness: 60 ~ 75µm

Thermal label paper: 58

× ø83mm (max.) Thickness: 150µm

Label width: 56mm (max.) Label length: 25mm/pc (min.) Interface Parallel: Centronics, Serial: RS-232C Input buffer 2K bytes Power supply DC 7.2V 2A (Peak 6A) or AC adapter AC 100-240V (27 AD) Battery

—

30,000 line per charge

Maximum recharge time: 5.5 hours Weight Approx. 600g Approx. 750g External dimensions (W × D × H) 106 × 184 × 110mm 106 × 183 × 126mm Reliability Head: 50,000,000 pulses or 50km EMC and safety standards FCC class A, TUV-GS, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Specifications

CBM-270L Label model

CBM-291/293

Paper roll

Line Thermal Printers

Paper roll

CBM-291

CBM-293

Type classfication

(1) Model type

291: Panel mount printer

(58mm)

293: Panel mount printer

(80mm)

(2) Character set

F: International

J: Japanese

CBM-291 F

(1) (2)

Features

• Compact design

• Panel mounting

• High-speed line thermal printing

• Paper auto loading

• Barcode printing

• ESC/POS* compatibility

• Auto cutter

• DC 24V drive

• No auto cutter model (290/292)

• Both parallel and serial interface

Specifications

Model CBM-291 CBM-293

Printing method Line thermal dot printing Printing width 52mm, 416 dots 72mm, 576 dots Printing speed Max. 50mm/sec. Max. 62.5mm/sec. Number of columns Font A: 34 columns Font A: 48 columns

Font B: 46 columns Font B: 64 columns

Character size (W

× H) Font A: 1.25 × 3.00mm (12 × 24 dots)

Font B: 0.88 × 2.14mm (7 × 19 dots) Dot pitch 8 dots/mm (Horizontal and Vertical) Barcode type UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 128 Line spacing 4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) Paper 58 × Max. ø50mm 80 × Max. ø50mm Interface Parallel: Centronics

Serial: RS-232C Input buffer 4K bytes Power supply voltage DC 5V and DC 24V DC 24V Weight 0.56kg 0.67kg External dimensions (W × D × H) 106 × 109 × 99mm 126 × 109 × 99mm Operating temp. range 5 ~ 40°C Storage temp. range –20 ~ 60°C Reliability Head: 50,000,000 pulses or 30km

Cutter: 300,000 cuts

EMC and safety standards FCC class A, TUV, CE marking

* ESC/POS is a trademark of Seiko Epson Corporation.

Applications

• Receipt

• Coupon

• Ticket

• Daily report

• Kiosk

• Kitchen

• Delivery

• Barcode

• Industrial machine

CBM-291

CBM-293

Mechanism

LT-282 (CBM-291) LT-381 (CBM-293)

ACS-220 ACS-230

Auto cutter

PPU-700/PHU-331

Paper roll Paper roll

Line Thermal Printers

Complete unit

PPU-700/PHU-331

*The bottom plate is not included.

806758 83

Features

• Selectable paper width

• 150mm/s high-speed printing

• Thicker paper capability (0.065-0.150mm)

• Presenter unit incorporated

• User-installable interface card

• Bitmap registration

• Smoothing font

• Two color printing

• Easy paper handling

• Compact design

• Large roll paper diameter up to 203mm

(PHU-331)

Type classfication

(1) Model type

PPU-700

(2) Interface

P: Parallel

R: Serial RS-232C

U: USB

(3) Character set

K: Japan

U: US/Europe

(4) Blackmark sensor (Option)

None: No sensor

M1: Left side of back

M2: Right side of back

(Open lever side)

M3: Left side of front

PPU-700 P E M1

(1) (2) (3) (4)

Model PPU-700/PHU-331

Printing method Line thermal dot printing Printing width 80mm/640 dots (paper width 83mm) 72mm/576 dots (paper width 80mm)

60mm/480 dots (paper width 67mm) 54mm/432 dots (paper width 58mm) Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 150mm/sec., (35.4 lines/sec.) Number of columns 80mm paper: Font A - 48 columns Font B - 64 columns Font C - 72 columns Character size (W

× H) 1.25mm × 3.00mm (Font A: 12 × 24 dots) 0.88mm × 2.13mm (Font B: 9 × 17 dots)

0.88mm × 2.00mm (Font C: 8 × 16 dots)

Character table Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866,

Katakana, WPC1252 , Thai code 18 Barcode type UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 Logo registration/print Capable of registering user-defined characters print and logos into flash memory. Line spacing 4.23mm (1/6 inch); can be set by a command. Paper Thermal paper roll: Paper width 58/67/80/83mm Paper roll diameter 203mm or less

Paper thickness 0.065 - 0.150mm

Core diameter : 12mm (paper thickness : 0.065 - 0.080mm) 25.4mm (paper thikness : 0.080 - 0.150mm)

Recommended paper : TF-50KS-E-2D, TF-62KS-E (Nippon Paper industries) Interface Parallel: IEEE 1284 and Centronics compliant, Serial (RS-232C), or USB Input buffer 4K bytes (72 bytes selectable with a DIP switch) NV user memory 256K bytes Sensors Paper near end sensor (adjustable, for PHU series) (photo interrupter)

Paper end sensor (mechanical switch) Black mark sensor (photo interrupter)

Cover open sensor (mechanical switch) Presenter sensor (photo interrupter) Power supply 24V ± 7% Power consumption 100W Weight PPU700: 2.1 kg (incl. control PCB) PHU-331: 0.95 kg (excl. roll paper) External dimensions (W × D × H) PPU-700: 163.2 (incl. control PCB) × 176 × 143mm PHU-331: 114.4~138.9 × 122.6 × 137.2mm Operating environment 5 ~ 40°C, 35 ~ 85% RH Storage environment -20 ~ 60°C, 10 ~ 90% RH Reliability Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts EMC and safety standards UL, C-UL, FCC Class A, TUV-GS, CE marking

Specifications

Paper roll Paper roll

KIOSK UNIT

Customization software for easy customization

PPU-700/PHU-331S PPU-700/PHU-331T

(1) Model type

(2) Length of roll paper shaft

3: 58-82.5mm (Standard)

2: 58mm fixed

(3) Number of PNE senser

1: 1 sensor (Standard)

2: 2 sensor

(4) Roll paper installation

S: From side (Standard)

T: From top

PHU-3 3 1 S

(1) (2) (3) (4)

Parallel Serial USB

Interface cards

Easy roll paper installation

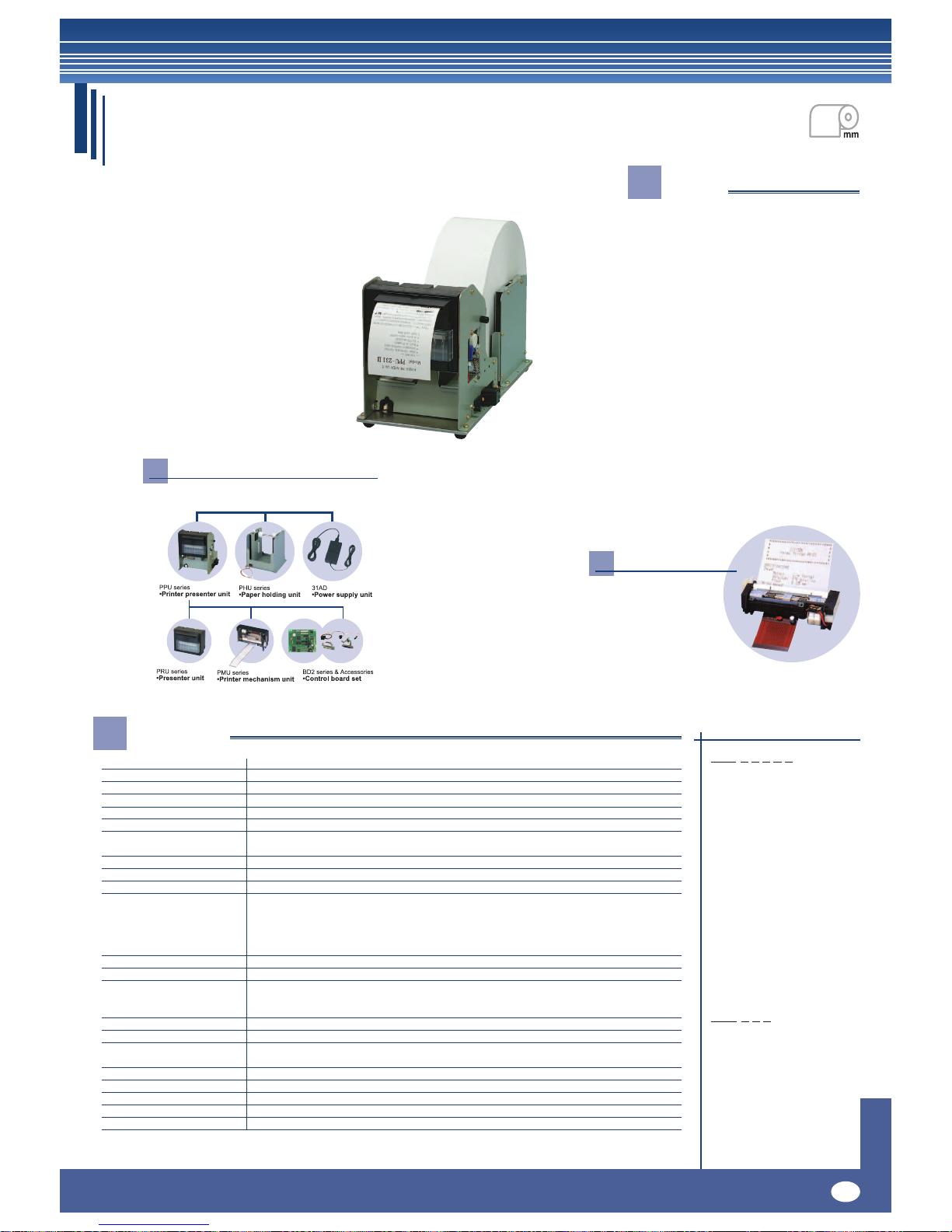

PPU-231/PHU-131

Paper roll

Line Thermal Printers

Complete unit

PPU-231/PHU-131

*The bottom plate is not included.

Type classfication

(1) Model type

PPU: Printer+presenter unit

(2) Printing method

2: Thermal

(3) Paper width

3: 80mm

(4) Product number

1: Standard

(5) Interface

P: Parallel

R: Serial RS-232C

(6) Character set

K: Japan

U: US

E: Europe

PPU-2 3 1 P E

(1) (2) (3)(4) (5) (6)

Features

• Easy paper handling — the presenter

unit feeds the paper after print and cut

• Paper auto loading

• Barcode printing

• Bitmap registration

• Page Mode

• Large roll paper diameter up to 203mm

• Both parallel (Centronics) and serial

(RS-232C) interfaces available

• Equipped with a paper end sensor and

paper near end sensor

Specifications

Model PPU-231/PHU-131

Printing method Line thermal dot printing Printing width 72mm/576 dots Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 62.5mm/sec. (14.8 lines/sec.) Number of columns Font A - 48 columns Font B - 64 columns Character size (W

× H) 1.25mm × 3.00mm (Font A: 12 × 24 dots)

0.88mm × 3.00mm (Font B: 9 × 24 dots) Character table Alphanumeric, International characters Barcode type UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 Line spacing 4.23mm (1/6") Selectable by command set (Min. 1/203 inch). Paper Thermal roll paper Width: 80mm (W)

× ø83mm

External diameter: ø203mm (with paper holder unit)

Internal diameter: ø25.4mm

Paper thickness: 60 to 85µm

Recommended paper: TF-50KS-E, TF-62KS-E (Nippon Paper Industries) Interface Serial (RS-232C), Parallel (Centronics) Input buffer 4K bytes Sensors Paper near end sensor (adjustable, for PHU series)

Paper end sensor (for PMU series)

Black mark sensor (option) Power source voltage 24V±7% Power consumption 100W Weight PPU-231: 1.6 kg (incl. control PCB)

PHU-131: 0.9 kg (excl. roll paper) External dimensions (W × D × H) PPU: 153.7 × 160 × 172mm / PHU: 132.2 × 120 × 125.2mm Operating environment 5 ~ 40˚C, 35 ~ 85%RH (No condensation) Storage environment -20 ~ 60˚C, 10 ~ 90%RH (No condensation) Reliability Thermal head: 50,000,000 pulses or 30km Auto cutter: 300,000 cuts EMC and safety standards UL, C-UL, FCC class A, TUV-CE marking

Mechanism

LT-380V

(1) Model type

PHU: Paper holding unit

(2) Product number

(3) Paper width

3: 80mm

(4) Number of PNE sensor

1: 1 sensor

2: 2 sensors

PHU-1 3 1

(1) (2) (3)(4)

KIOSK UNIT

Unit breakdown

iDP3550/3551

Impact Printers

iDP3550F

iDP3551F

(Auto cutter type)

Amid the growing variety of printer

types, dot impact printers continue to

be the top choice for a range of

applications. Featuring high-speed,

plain-paper printing, dot impact

printers are essential for check and

validation applications, among others.

CBM brings all of its precision

machinery expertise to bear in the

development of dot impact printers,

and thus is well-positioned to meet all

customer needs.

Impact Printers

Model iDP3550F iDP3550P iDP3551F

Printing method Serial dot impact Printing direction Bidirectional Font 7 × 9 matrix Number of columns 40 columns Printing speed 3.6 lines/sec.(DP-654), 3.0 lines/sec.(DP-657) Character size (W × H) 1.36 × 2.4mm (DP-654), 1.20 × 2.4mm (DP-657) Character set Alphanumeric, International, Code page 437, 850, 860, 863, 865, 852, 866, 857, WPC1252 Line spacing 4.23mm, 1/6''(DP-654), 2.82mm (DP-657) Character pitch 1.59mm (DP-654), 1.46mm (DP-657) Line feed speed 18 lines/sec.(DP-654), 15 lines(DP-657) Paper feed method Friction Sprocket Friction Paper 76mm roll paper 76 ~ 89mm fanfold paper 76mm roll paper Interface Parallel: Centronics, Serial: RS-232C or Current loop Input buffer 6K bytes Paper end sensor Equipped None Equipped Paper cutter None Partial/Full cut Paper winder AW-3 (Option) None AW-3 (Option) Cash drawer kick-out 2 drawers Ink ribbon Red/Black, Cassette Power supply AC 100/120/230V Power consumption 30W Weight 2.8kg 3.0kg Dimensions (W × D × H) 160 × 184 × 173mm 160 × 184 × 199.3mm Operating temp. range 0 ~ 40°C Storage temp. range –20 ~ 60°C Reliability Printer: MCBF 4.0 million lines Printer: MCBF 4.0 million lines,

Head: 80 million characters Head: 80 million characters,

Cutter: 500,000 cuts

EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

• Paper auto loading

• Compatibility

(CBM, ESC/POS, Star)

• 6K bytes input buffer

• Auto cutter (iDP3551)

• Auto winder option (AW-3)

• Cash drawer kick-out

• Pinfeed version (iDP3550P)

• Two color printing

• Receipt

• Journal

• Ticket

• Label

• Credit/Debit

• Daily report

• Kitchen

• Delivery

• Winder: AW-3

• Paper basket: 35PB-1

• Ink ribbon: IR-61B (Black)

• Ink ribbon: IR-61P (Purple)

• Ink ribbon: IR-61RB (Red/Black)

iDP3550P+35PB-1

(with paper basket)

Type classfication

(1) Model type

3550: No cutter 3551: With cutter

(2) Paper

F: Friction feed P: Sprocket feed

(3) Column capacity

40: 40 columns

(4) Interface

R: Serial RS-232C

L: Current loop P: Parallel

(5) Character set

F: International

(6) Power source

100: AC 100 V 120: AC 120 V 230: AC 230 V

(7) Mode

C: Character G: Graphic

iDP3551 F 40 R F 230 C

(1) (2) (3) (4)(5) (6) (7)

Applications

Features

Accessories

Specifications

Mechanism

Auto cutter

AC-134

DP-650 Series

76~

F type P type

Paper roll Sprocket

iDP3551F+AW-3

(with winder)

iDP3420/3421/3423

Paper roll

Impact Printers

iDP3420

(Standard type)

iDP3421

(Auto cutter type)

iDP3423

(Auto cutter + Auto winder type)

Type classfication

(1) Model type

3420: Standard model 3421: With auto cutter 3423: With auto cutter

and winder

(2) Interface

R: Serial RS-232C P: Parallel I: Parallel

(3) Character set

F: International

(4) Power source

100: 100 V 120: 120 V 230: 230 V

iDP3420 R F 230

(1) (2) (3) (4)

Model iDP3420 iDP3421 iDP3423

Printing method Serial dot impact Printing direction Bidirectional Font 7 × 9 matrix Number of columns 40/42 columns (Selectable by Dip switch) Printing speed Approx. 3.0 line/sec. Character size (W × H) 1.31 × 3.1mm Character set Alphanumeric, International, Code page 437, 850, 860, 863, 865, 852, 866, 857, Windows code Line spacing 4.23mm (1/6 inch) or 2.82mm (1/9 inch) Min. 1.41mm (1/18inch) Paper 76mm Roll paper Interface Parallel: Centronics, Serial: RS-232C Input buffer 6K bytes / 256 bytes Paper end sensor Equipped Paper near end sensor Equipped Paper cutter None Equipped Equipped Paper winder None None Equipped Cash drawer kick-out 2 drawers Ink ribbon Red/Black, or Black (CBM Ink ribbon cassette) Power supply AC 100/120/230V Power consumption 30W (During printing) Weight 2.4kg 2.6kg 2.8kg Dimensions (W × D × H) 164 × 248 × 140mm 164 × 280 × 183mm Operating environment 0 ~ 40°C, 35 ~ 85% RH Storage environment –20 ~ 60°C, 10 ~ 90% RH Reliability Printer: MCBF 2.5 million lines Printer: MCBF 2.5 million lines Printer: MCBF 2.5 million lines

Head: 80 million characters Head: 80 million characters Head: 80 million characters

Cutter: 500,000 cuts Cutter: 500,000 cuts

EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

Specifications

• Auto cutter (iDP3421/3423)

• Auto winder (iDP3423)

• 6K bytes memory buffer

• Graphic printing

• Two color printing

• Cash drawer kick-out

• Compatibility (CBM, ESC/POS, Star)

• Paper auto loading

• Receipt

• Journal

• Ticket

• Credit/Debit

• Delay report

• Kitchen

• Delivery

• Ink ribbon: IR-41B (Black)

• Ink ribbon: IR-41P (Purple)

• Ink ribbon: IR-41RB (Red/Black)

Applications

Features

Accessories

Auto cutter

ACS-234

Mechanism

DP-430

iDP-460

Paper roll

Impact Printers

iDP-460

Type classfication

(1) Interface

RF: RS-232C LF: Current loop PF: Parallel VF: Serial. Mini DIN interface

(2) Power source

100: AC 100 V 120: AC 120 V 230: AC 230 V

(3) Mode

None: Character G: Graphic

iDP-460-RF 230 G

(1) (2) (3)

Model iDP-460

Printing method Serial dot impact Printing direction Bidirectional Font 7 × 7 matrix Number of columns 40/42 columns Printing speed 3.0 lines/sec. Character size (W × H) 1.31 × 2.4mm Line spacing 4.23 or 2.82mm Min. 1.41mm Character pitch 1.52mm Line feed speed 30 lines/sec. Interface Parallel: Centronics, Serial: RS-232C or Current loop Input buffer 250 bytes Paper end sensor Equipped Cash drawer kick-out Option (1 drawer) Paper 76mm roll paper Ink ribbon Exclusive ink ribbon cartridge IR-41 Power supply AC adapter AC 100/120/230 Power consumption 30W Weight Main: 1.25kg AC adapter: 0.95kg Dimensions (W × D × H) 144 × 233 × 121mm Operating temp. range 0 ~ 40°C Storage temp. range –20 ~ 60°C Reliability MCBF 2.5 million lines 80 million characters EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

Specifications

• Compact design

• Two color printing

• Compatible with most bankcard terminals

• Mini DIN interface model

• Paper end sensor

• Paper auto loading

• Graphic model

• Cash drawer kick-out

• Receipt

• Ticket

• Credit/Debit

• Kitchen

• Delivery

• Ink ribbon: IR-41B (Black)

• Ink ribbon: IR-41P (Purple)

• Ink ribbon: IR-41RB (Red/Black)

Applications

Features

Accessories

Mechanism

DP-420 DP-430 (Graphic model)

iDP3110/3111 CBM-910/920

Paper roll

Impact Printers

Model iDP3110 iDP3111 CBM-910 CBM-920

Printing method Serial dot impact Printing direction Left to right Font 5 × 8 matrix Number of columns 24/40 columns Printing speed 24 col = 2.5 lines/sec.

40 col = 1.8 lines/sec.

Character size (W

× H) 24 col = 1.62 × 2.4mm

40 col = 1.08 × 2.4mm Line spacing Character = 3.52mm / Graphic = 2.4mm Character pitch 24 col = 1.98mm / 40 col = 1.19mm Line feed speed 5.0 lines/sec. Paper width 57.5mm Interface Parallel: Centronics, Serial: RS-232C Input buffer 1 line 2K bytes Paper end sensor None Equipped Ink ribbon Purple, Cassette Power supply AC 100/120/230V Ni-cd AA AC 100/120/230V DC 5V only

DC 7V battery × 4 DC 7V

Battery

24 columns: 5,500 lines

continuous printing

—

(Approx. 40 minutes or more)

——

40 columns: 4,500 lines

continuous printing

(Approx. 40 minutes or more)

Power consumption 7VA Weight 0.4kg 0.57kg 0.4kg 0.5kg Dimensions (W × D × H) 106 × 180 × 88mm 115 × 119 × 65mm Operating temp. range 5 ~ 35°C Storage temp. range –20 ~ 60°C Reliability MCBF 1.0 million lines (40 columns) EMC and safety standards FCC class A, TUV-GS, CE marking

• Palm size and Light weight

• Bit image graphics printing

• 2K bytes input buffer (CBM-910/920)

• Paper end sensor (CBM-910)

• Rechargeable internal battery (iDP3111)

• Panel mount (CBM-920)

• Paper auto loading (CBM-920)

• Receipt

• Daily report

• Portable

(iDP3111)

• Industrial machine

(CBM-920)

• Ticket

• Kitchen

• Credit/Debit

• Delivery

• Ink ribbon: IR-91B (Black)

• Ink ribbon: IR-91P (Purple)

iDP3110/3111

CBM-910

CBM-920

Type classfication

(1) Model type

3110: Standard 3111: With rechargeable battery 910: With 2 K byte buffer 920: Panel mount

(2) Column capacity

24: 24 columns 40: 40 columns

(3) Interface

P: Parallel R: Serial RS-232C

(4) Character set

F: International J: Japanese

(5) Power source

100: 100 V 120: 120 V 230: 230 V DC: 920 only

(6) Paper roll diameter

A: Max. 60 mmø B: Max. 80 mmø (920 is Max. 50 mmø)

iDP/CBM3110-24 R F 230-A

(1) (2) (3)(4) (5) (6)

Applications

Features

Accessories

Specifications

Mechanism

MD-910/911

CBM-520

Paper rollPaper roll

Impact Printers

6958

CBM-520

• Durable aluminium cabinet

• Two color printing

• Panel mount design

• Receipt

• Ticket

• Credit/Debit

• Daily report

• Kitchen

• Delivery

• Industrial machine

• Ink ribbon: IR-01B (Black)

• Ink ribbon: IR-01P (Purple)

• Ink ribbon: IR-01RB (Red/Black)

Applications

Features

Accessories

Mechanism

DP-555/575

24 columns 40 columns

Type classfication

(1) Model type

520: Panel printer

(2) Print direction

L: Left to right R: Right to left

(3) Column capacity

24: 24 columns 40: 40 columns

(4) Interface

P: Parallel H: Handshake R: Serial RS-232C, TTL level,

20 mA Current loop

(5) Character set

F: International J: Japanese

(6) Power source

12: DC 12 V (Case is option) 100: AC 100 V 120: AC 120 V 220: AC 220 V 240: AC 240 V

(7) Mode

G: Graphic C: Character

(8) ROM version

M: Masked ROM R: EPROM

(9) Character direction

O: Normal A: Inverted

CBM-520 L-40 P F 230-C M O

(1) (2) (3) (4)(5) (6) (7) (8) (9)

Model CBM-520

Printing method Serial dot impact Printing direction L = Left to right / R = Right to left Font 5 × 7 matrix Number of columns 24/40 columns Printing speed 24 col = 1.9 lines/sec. / 40 col = 1.2 lines/sec. Character size (W × H) 24 col = 1.7 × 2.75mm / 40 col = 1.25 × 2.75mm Line spacing Character = 5.5mm / Graphic = 2.75mm Character pitch 24 col = 2mm / 40 col = 1.5mm Line feed speed 8 lines/sec. Paper width 24 col = 57.5mm / 40 col = 69mm Interface Parallel: Centronics, 8 bit hand shake

Serial: RS-232C, 20mA Current loop/TTL Input buffer 1 line + 1 byte Paper end sensor Option Ink ribbon Red/Black, Spool Power supply AC 100/120/220/240V / DC 12V Power consumption 20W Weight 3kg Dimensions (W × D × H) 150 × 149 × 199mm Operating temp. range 5 ~ 40°C Storage temp. range –20 ~ 70°C Reliability Printer: 1.5 million lines

Head: 36 million characters

EMC and safety standards —

Specifications

CBM-710/720/750

Paper roll

Impact Printers

Model CBM-710 CBM-720 CBM-750

Printing method Serial dot impact Printing direction Bidirectional Font 7 × 9 matrix Number of columns 23/28/40 columns Printing speed 40 col = 3.0 lines/sec. Character size (W × H) 23 col = 1.8 × 2.4mm / 28 col = 1.5 × 2.4mm / 40 col = 1.35 × 2.4mm Line spacing Character = 4.23mm, 1/6'' / Graphic = 2.8mm Character pitch 23 col = 2.49mm / 28 col = 2.07mm / 40 col = 1.59mm Line feed speed 40 col = 16 lines/sec. Paper feed method Friction Paper 76mm Roll paper Interface Parallel: Centronics, Serial: RS-232C, 20mA Current loop Input buffer 7K bytes Paper end sensor Equipped Validation Option None None Paper cutter None Partial/Full cut Partial/Full cut Paper winder AW-2 (Option) – Cash drawer kick-out None Ink ribbon Red/Black, Cassette Power supply AC 100/120/230V Power consumption 30W Weight 3.1kg 3.3kg 3.6kg Dimensions (W × D × H) 176 × 255 × 125mm 176 × 255 × 146.5mm 178.6 × 203.2 × 330mm Operating temp. range 5 ~ 35°C Storage temp. range –20 ~ 70°C Reliability Printer: MCBF 4.0 million lines Printer: MCBF 4.0 million lines

Head: 80 million characters Head: 80 million characters

Cutter: 300,000 cuts

EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

• High-speed printing

• Auto cutter (CBM-720/CBM-750)

• Auto winder option (AW-2)

• 7K bytes input buffer

• Two color printing

• Receipt

• Journal

• Ticket

• Credit/Debit

• Daily report

• Kitchen

• Delivery

• Winder: AW-2

• Ink ribbon: IR-61B (Black)

• Ink ribbon: IR-61P (Purple)

• Ink ribbon: IR-61RB (Red/Black)

CBM-710

CBM-720+AW-2

(with winder)

CBM-750

Type classfication

(1) Model type

710: Without auto cutter 720: With auto cutter 750: Vertical printer with auto

cutter

(2) Column capacity

23: 23 columns 28: 28 columns 40: 40 columns

(3) Interface

P: Parallel R: Serial RS-232 20 mA Current

loop

(4) Character set

F: International J: Japanese

(5) Power source

100: AC 100 V 120: AC 120 V 230: AC 230 V

(6) Mode

C: Character

(23, 28 columns) I: Character (40 columns) G: Graphic

(7) Memory back-up

B: With back-up N: Without back-up

(8) Validation function (710 only)

V: Available None: Not available

CBM-710-40 R F 230 I B V

(1) (2) (3) (4) (5) (6)(7)(8)

Applications

Features

Accessories

Specifications

MechanismAuto cutter

AC-2 DP-600 Series

CBM-820

Slip

Impact Printers

80~

182

CBM-820

• Slip paper printing

• Easy paper loading

• 3 ply paper printing capability

• Cash drawer kick-out

• Compatibility (ESC/POS)

• Compact design

• Page mode

• Receipt

• Invoice

• Sales slip

• Daily report

• Ticket

• Delivery

• Credit/Debit

• Check endorsement

• Check

• Ink ribbon: IR-82P (Purple)

Applications

Features

Accessories

Model CBM-820

Printing method Serial impact dot matrix Printing head 9 pins Number of columns 42 col. (7 × 9 font), 35 col. (5 × 9 font) Printing speed 3.1 lines/sec. (Maximum) Character size (W

× H) 7 × 9 font (half): 1.2 × 2.42mm

× 9 font (2 pulses per dot): 1.5 × 2.42mm

5 × 9 font (3 pulses per dot): 2.1 × 2.42mm Character set PC437, PC850, International Dot spacing Horizontal: 0.30mm Vertical: 0.35mm Printing width 63mm Emulation ESC/POS Ink ribbon Purple or Black (CBM ink ribbon cassette) Paper 80 to 182mm (W)

× 80 to 257mm (H)

Original + 2 copies / Thickness: 1 ply 0.09 to 0.2mm

Duplicates 0.12mm to 0.25mm / (Max. 0.2mm for graphics printing) Interface Serial: RS-232C Input buffer 2K bytes or 35 bytes Cash drawer kick-out 2 drawers Sensors Paper out top-of-form, bottom-of-form sensors Power supply AC adaptor (31 AD) 100/120/230V / Output 24V DC 5%, 1.9A Power consumption Peak current: 3.1A / Continuous ASCII printing + paper feed: 0.6A Weight 2.1kg Dimensions (W × D × H) 180 × 190 × 138mm Operating temp. range 5 ~ 40°C Storage temp. range –20 ~ 60°C Reliability Mechanism (MCBF): 2.5 million lines / Printer head life: 70 million characters EMC and safety standards UL, C-UL, FCC class A, TUV-GS, CE marking

Specifications

Type classfication

(1) Interface

R: Serial RS-232C

(2) Character set

F: International

(3) Power source

100: 100 V 120: 120 V 230: 230 V

CBM-820 R F 230

(1) (2) (3)

Reference Table

CT-S300 ●● ● ●●●●●

CBM1000 ●● ● ●●Option ●●●

CMP-10 ●● ● ● ●

iDP3221 ●● ● ● ● ●

iDP3240 ●● ● ● ● ● ●

CBM-262 ●● ● ● ●●●●

CBM-270 ●●Option ●●

CBM-272 ●● ● ● ●

CBM-291 ●● ●● ●

CBM-293 ●● ●● ● ●

PPU-231 PHU-131

●● ● ●

iDP3550F ●●● Option ●●

iDP3550P ●●● ●●

iDP3551F ●●●● Option ●●

iDP3420 ●●● ● ●

iDP3421 ●●●● ●●

iDP3423 ●●●● ●● ●

iDP-460 Option ●●

iDP3110

iDP3111 ●

CBM-910

CBM-920 ●●●

CBM-520 Option ●●● ●

CBM-710 ● Option ● Option

CBM-720 ●●Option ●

CBM-750 ●● ●

CBM-820 ●● ● ●

Model name

Auto

cutter

Barcode

Battery

drive

Cash

drawer

kick-out

drive

ESC/

POS

Internal

power

supply

Label

printing

Metal

case

Page

mode

Panel

mount

Paper

winder

Paper

auto

Sprocket

feed

Two

station

Two

color

Valida-

tion print80columns

Model

iDP3550 iDP3420 iDP3423 iDP-460 iDP3110 iDP3111 CBM-920 CBM-520 CBM-710 CBM-750 CBM-820

Application

iDP3551 iDP3421 CBM-910 CBM-720

Receipt ● ●●●●●●●●●●

Journal ●●

Sales Slip ●

Coupon

Ticket ●●●●●●●●●●●

Label

Credit / Debit ●●●●●●● ●●●

Check ●

Invoice ●

Daily Report ●●●●●●●●●●

Kitchen ●●●●●●●●●●

Delivery ●●●●●●●●●●●

Check Endorsement

●

Barcode

Industrial machine

●●

Portable ●

Kiosk

Model

CT-S300 CBM1000 CMP-10 iDP3221 CBM-262 CBM-270 CBM-272 CBM-291 PPU-700 PPU-231

Application

iDP3240 CBM-293 PHU-331 PHU-131

Receipt ●●●●●●●●

Journal ●

Sales Slip

Coupon ●●●●●●●●

Ticket ●●●●●●●●●●

Label Option Option

Credit / Debit ●●●

Check

Invoice

Daily Report ●●●●●●●●

Kitchen ●● ●●●●●

Delivery ●●●●●●●●

Check Endorsement

Barcode ●●●●●●●●●●

Industrial machine

●●●

Portable ●●

Kiosk ●●●

Feature Reference Table

Application Reference Table

Line Thermal Printers Impact Printers

Peripherals

Included items

•

Display unit

•

Base unit

•

Short pole

•

Long pole

•

AC adapter

•

AC cable

•

Interface cable (DB25 female DB9 male)

•

User’s manual

Customer Display

Model Classification

23 8 5 E-DR-MS

(1) (2) (3)(4) (5)

(1) Connector

23 - Modalar (RJ-11)

(2) Number of coins

8 or 5

(3) Number of bills

5 or 4

(4) Key option

E : 3 position key None : 2 position key

(5) Microswitch option

MS: Microswitch equipped None : No microswitch

Dimensions

• 8 coin drawer 420(W)

450(D) ×98(H) mm

• 5 coin drawer 420(W)

420(D) ×98(H) mm

Cash Drawers

Specification

Model AC-120 AC-130 ACS-220 ACS-230 ACS-240 AC-2 AC-3 AC-5 AC-6 AC-7

Cutting method Guillotine Guillotine Slide cutting Slide cutting Slide cutting Guillotine Guillotine Guillotine Guillotine Rotary

Paper width thickness 38 — 69 mm 50 — 89 mm 45 — 69 mm 50 — 89 mm 55 — 115 mm 76 ±0.5 mm Ma 76 ±0.5 mm Ma 59.5 ±0.5 mm 111.5 ±0.5 mm 59.5 ±0.5 mm

0.06 — 0.09 mm 0.06 — 0.09 mm 0.06 — 0.15 mm 0.06 — 0.15 mm 0.06 — 0.13mm 0.06 — 0.085 mm 0.06 — 0.085 mm 0.065 mm 0.065 mm 0.15 mm

Max. cutting frequency 20 cut/min 20 cut/min 20 cut/min 20 cut/min 20 cut/min 20 cut/min 20 cut/min 6 cut/min 6 cut/min 10 cut/min

Voltage* 24V ±10% 24V ±10% 24V ±10% 24V ±10% 24V ±10% 24V ±10% 12V ±10% 24V ±10% 24V ±10% 24V ±10%

Current (peak) 0.8A 0.8A 0.8A 0.8A 0.8A 0.8A 1.2A 1.3A 1A 1.3A

Operating temperature 0 — 45°C 0 — 45°C 0 — 45°C 0 — 45°C 0 — 45°C 0 — 40°C 0 — 40°C 5 — 40°C 5 — 40°C 5 — 40°C

Size 80 × 57 × 15 mm 102 × 57 × 15 mm 80 × 55.7 × 15 mm 102 × 55.7 × 15 mm 130 × 55.7 × 15 mm 99 × 74 × 30 mm 93 × 74 × 25 mm 70 × 55 × 31.7 mm 130 × 55 × 21.5 mm 96.5 × 85.5 × 40 mm

Weight 130g 160g 140g 180g 220g 200g 200g 160g 260g 150g

Reliability 300,000 cuts 300,000 cuts 500,000 cuts 500,000 cuts 300,000 cuts 300,000 cuts 300,000 cuts 300,000 cuts 300,000 cuts 500,000 cuts

Number of tab left

(F)ull cut blade type 0 or several tabs 0 or several tabs 0 or 1 tabs 0 or 1 tabs 0 or 1 tabs 0 or 2-5 tabs 0 or 2-5 tabs 1 tabs 1 tabs 0 tabs

(P)artical cut blade type

1 or several tabs 1 or several tabs — — — 1 or 3-5 tabs 1 or 3-5 tabs 8 tabs — —

Applicable mechanism LT-1220 (AC-125) DP-6xx (AC-134)

LT-286 (ACS-224) 5V

DP-400 (ACS-234) LT-481 (ASC-249) DP-61X (AC-2) DP-5XX (AC-3) LT-281 (AC-5) LT-481 (AC-6) LT-281 (AC-7)

LT-1320 (AC-135) LT-1220 (ACS-225) DP-410 (ACS-234)

MLT-288 (ACS-228) 5V

LT-1320 (ACS-235)

LT-281 (ACS-229) DP-600 (ACS-236)

* For some models, other voltages are also available.

Ribbons

IR-01 RB/BL/P IR-41 RB/B/P IR-61 RB/B/P IR-91 P/B

For CBM-520 For iDP-460 For CBM-710/720/750 For CBM-910/920

iDP34XX iDP3550/3551 iDP3110/3111

Cutters

Accessory Reference Table

RIBBON — IR-41RB/B/P IR-61RB/B/P IR-41RB/B/P IR-91B/P IR-01RB/B/P IR-61RB/B/P IR-61RB/B/P IR-82P

WINDER — — AW-3 — — — AW-2 — —

DRAWER 23XXDR 23XXDR 23XXDR 23XXDR — — — — 23XXDR

MODEL

CT-S300 CBM1000 CBM-262

iDP3221

iDP3420 iDP3421 iDP3423

iDP3550 iDP3551

iDP-460

iDP3110

iDP3111 CBM-910 CBM-920

CBM-520

CBM-710 CBM-720

CBM-750 CBM-820

RIBBON IR-91B/P IR-41RB/B/P IR-01RB/B/P IR-61RB/B/P IR-61RB/B/P IR-71P — — — ————

CUTTER ACS-234 AC-3 AC-134 AC-134 AC-5 ACS-229 ACS-224 ACS-125 ACS-135 ACS-249 ACS-228

— ACS-236 ACS-236 AC-7 ACS-225 ACS-235 AC-6 —

AC-2

WINDER AW-5 AW-2FA NW-58 AW-2FA AW-2FA

——————

AW-4

—

NW-69

MODEL MD-910 DP-400

DP-555 DP-575

DP-600 DP-620

DP-730 DP-740

LT-281 LT-286 LT-1220 LT-1320 LT-481 LT-483 MLT-288

COMPLETE PRINTERS

PRINTER MECHANISMS

Peripherals

MODEL C2202-PD

Display method Vacuum fluorescent display Display color Blue green Number of character 20 columns x 2 lines Brightness 700 cd/m2 Character font 5 x 7 dot matrix, comma, decimal point Character size 9.2 x 5.25 mm Character pitch 8.3 mm Code page PC-437 / 850 / 860 / 863 / 865, Slavonic, Russian, Katakana Emulation CBM standard, ESC/POS Interface RS-232C (with path through function) Power supply 12V DC Power consumption 4.5 W MTBF 25,000 hours Dimensions 230(W) x 100(H) x 42(D) mm Viewing angle ±30 degrees Rotation angle Maximum 270 degrees Weight 0.9 kg Safety FCC class B, CE

(Cutter model name with mounting bracket and paper guide)

Available in black

Citizen CT-S300, iDP3110, CBM-291, CBM-293, iDP3111 Product Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
