Cisco SCE8000 Configuration Guide

Download

Cisco SCE8000 Installation and Configuration Guide

Release 3.1.7

December, 2008

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Customer Order Number: Text Part Number: OL-16478-02

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Wel come to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0812R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Cisco SCE8000 Installation and Configuration Guide

About this Guide ix

CONTENTS

CHAPTER

1 Cisco Service Control Overview 1-1

Cisco Service Control Solution 1-1

Service Control for Broadband Service Providers 1-1

Cisco Service Control Capabilities 1-2

SCE Platform Description 1-3

Management and Collection 1-5

Network Management 1-5 Subscriber Management 1-6 Service Configuration Management 1-6 Data Collection 1-6

2 Introduction to the Cisco SCE8000 Platform 2-1

Information About the SCE Platform 2-1

Service Control Module (SCE8000-SCM-E) 2-2

Introduction to SIPs and SPAs 2-4

SPA Interface Processors 2-4 Specifying the SIP Subslot Location for a SPA 2-5 Shared Port Adapters 2-5 Modular Optics 2-6 XFP Connections 2-6 The SCE8000-SIP 2-7 The 1-Port 10GBE SPA Interface Module 2-7

OL-16478-02

The Cisco SCE8000 Optical Bypass 2-8

Optical Bypass Functionality 2-9

Optical Bypass Module Connectivity 2-9

Optical Bypass Module (OPB-SCE8K) 2-9

Optical Bypass Module Specifications 2-11 Fan Assembly 2-11 Power Supplies 2-12

Power Supply Cooling 2-13

Load Sharing 2-13

Checking the Shipping Container Contents 2-13

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

Contents

Cisco SCE8000 Component List 2-14

Cisco SCE8000 Installation Checklist 2-15

CHAPTER

3 Cisco SCE8000 Topology and Topology-Related Parameters 3-1

The Cisco SCE8000 Platform 3-1

Topology Considerations 3-1

Physical Topologies 3-3

SCE8000 Interface Numbering 3-3

Single Cisco SCE8000 Topologies 3-3 Single Link: Inline Topology 3-4 Dual link: Inline Installation 3-4 Single Link: Receive-only Topology 3-5

Dual Link: Receive-Only Topology 3-5 Dual Cisco SCE8000 Topology (Cascade) 3-6 Multi-Gigabit Service Control Platform (MGSCP) Topology 3-7

Type of SCE Platform Redundancy 3-8

Redundant Cisco 7600 Series Router 3-8

Link Continuity 3-9

Internal Bypass Mechanism 3-9 External Optical Bypass 3-9

Topology-Related Parameters 3-11

Connection Mode Parameter 3-11 Physically Connected Links Parameter 3-12 Priority 3-12 On-Failure Mode Parameter 3-12

CHAPTER

Asymmetric Routing Topology 3-13

Asymmetric Routing and Other Service Control Capabilities 3-13

4 Installing the Cisco SCE8000 Chassis 4-1

Preparing for Installation 4-2

Safety 4-2 Site Requirements 4-2

Preventing Electrostatic Discharge Damage 4-3

Environmental Requirements 4-3

Power Requirements 4-3 Power Connection Guidelines 4-4 AC-Powered Systems 4-4 DC-Powered Systems 4-10

Site Planning Checklist 4-11

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Installing the Cisco SCE8000 Chassis in the Rack 4-12

Unpacking the Cisco SCE8000 Chassis 4-12 Installation Guidelines 4-12 Required Tools 4-13 Installing the Chassis Brackets 4-13 Installing the Chassis in the Rack 4-14 Installing an Optical Bypass Module 4-15

Connecting the System Ground 4-16

Required Tools and Equipment 4-17

Installing the Power Supplies in the Cisco SCE8000 Chassis 4-18

Contents

CHAPTER

5 Connecting the Management Interfaces 5-1

How to Set Up the Local Console 5-1

Initial Setup Parameters 5-2

Connecting the Management Interface 5-4

How to Cable the Management Port 5-4 How to Verify Management Interface Connectivity 5-5

6 Cabling the Line Ports and Completing the Installation 6-1

Connecting the Line Ports to the Network 6-1

Single Link: Inline Topology 6-2 Single Link: Receive-only Topology 6-2 Dual Link: Single Cisco SCE8000 Topologies 6-2 Dual Link: Two Cisco SCE8000s Topology 6-3 Multi-Gigabit Service Control Platforms (MGSCP) Topologies 6-4

The Optical Bypass Module 6-8

Optical Bypass Module Connectivity 6-8

Cabling the 10GBE Line Interface Ports 6-9

Fiber Specifications 6-10 Optical Device Maintenance 6-10 How to Cable the 10GBE Line Interface Ports 6-10 Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module 6-11 Testing Connectivity: Examining Link LEDs and Counters 6-13

Examining the LEDs 6-13 How to View the Ten Gigabit Ethernet Port Status 6-13 How to View the Ten Gigabit Ethernet Counters 6-13 How to View the User Log Counters 6-14

OL-16478-02

How to Load and Activate a Service Control Application 6-14

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

iii

Contents

Cascaded Systems 6-15

How to Install a Cascaded System 6-15 CLI Commands for Cascaded Systems 6-16

Topology-Related Parameters for Redundant Topologies 6-16

How to Configure the Connection Mode 6-16

How to Set the Link Mode 6-17

Monitoring the System 6-18

CHAPTER

7 Basic Cisco SCE8000 Platform Operations 7-1

Starting the Cisco SCE8000 Platform 7-1

Checking Conditions Prior to System Startup 7-1 Performing Complex Configurations 7-2 Starting the System and Observing Initial Conditions 7-2 What to Do Next 7-2 Final Tests 7-3

Verifying Operational Status 7-3

Viewing the User Log Counters 7-3

Viewing the Ten Gigabit Ethernet Port Status 7-4

Viewing the Ten Gigabit Ethernet Counters 7-4

Managing Cisco SCE8000 Configurations 7-5

Viewing Configurations 7-5 Saving or Changing the Configuration Settings 7-6

Example for Saving or Changing the Configuration Settings 7-7 Restoring a Previous Configuration 7-8

Example for Restoring a Previous Configuration 7-8

How to Display the SCE Platform Version Information 7-9

Example for Displaying the SCE Platform Version Information 7-9

How to Display the SCE Platform Inventory 7-12

Examples for Displaying the SCE Platform Inventory 7-12

Displaying the SCE Platform Inventory: FRUs Only 7-12

Displaying the Complete SCE Platform Inventory 7-13

How to Display the System Uptime 7-16

Example for Displaying the System Uptime 7-16

Rebooting and Shutting Down the SCE Platform 7-16

Rebooting the SCE Platform 7-16

Examples for Rebooting the SCE Platform 7-16 How to Shut Down the SCE Platform 7-17

Examples for Shutting Down the SCE Platform 7-17

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Contents

CHAPTER

8 Troubleshooting 8-1

Troubleshooting Overview 8-1

Information About Troubleshooting Tools 8-2

CLI Commands for Troubleshooting 8-2 Checking the LEDs 8-4

Problem Solving Using a Subsystems Approach 8-6

Identifying Startup Problems 8-6 Troubleshooting the Power Subsystem 8-7 Troubleshooting the Firmware Package Installation 8-8 Troubleshooting the Management Subsystem 8-8 Troubleshooting the Link Interface Subsystem 8-10

Troubleshooting with the User Log 8-11

The Logging System 8-11

How to Copy the User Log to an External Source 8-12 How to Copy the User Log to an Internal Location 8-12 How to View the User Log 8-12 How to Clear the User Log 8-12 How to View the User Log Counters 8-13 How to View the Non-volatile Counter For the User-file-log Only 8-13

Generating a File for Technical Support 8-13

CHAPTER

9 Removal and Replacement Procedures 9-1

Safety 9-1

Preventing Electrostatic Discharge Damage 9-2

Supported Hardware 9-3

Removing and Replacing the Power Supply 9-3

Required Tools 9-3 Removing an AC-Input Power Supply 9-3 Installing an AC-Input Power Supply 9-5 Removing a DC-Input Power Supply 9-5 Installing a DC-Input Power Supply 9-7

Removing and Replacing the Fan Assembly 9-10

Required Tools 9-10 Removing the Fan Assembly 9-11 Installing the Fan Assembly 9-11

Removing and Replacing Modules 9-12

Required Tools 9-12 Handling SIPs 9-13

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

Contents

Installing a Module 9-13 Removing a Module 9-17

Inserting and Removing a Module: Detail 9-19 Verifying the Installation 9-20

Removing and Replacing Shared Port Adapters 9-22

Required Tools and Equipment 9-22 Laser/LED Safety 9-22 Handling SPAs 9-23 SPA Installation and Removal 9-23 Installing a SPA in a SIP 9-24 Removing a SPA from a SIP 9-24

Removing and Replacing the Optical Bypass Module 9-25

Removing the Optical Bypass Module 9-25 Installing the Optical Bypass Module 9-25 Replacing the Optical Bypass Module without Disrupting Traffic on the Link 9-26

CHAPTER

A Using Optical Splitters with 10GBE Links A-1

Supported Configurations A-1 Unsupported Configuration A-2

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

About this Guide

This preface describes who should read the Cisco SCE8000 Installation and Configuration Guide, how it is organized, and its document conventions.

This guide is for the networking or computer technician responsible for installing and configuring the SCE8000 platform on-site. To use this publication, you should be familiar with telecommunications equipment and installation procedures, as well as electronic circuitry and wiring practices. You should also have experience as an electronic or electromechanical technician.

This installation guide explains the initial hardware installation and basic configuration procedures for the SCE8000. It contains procedures for unpacking and installing the device and performing basic configuration via the setup wizard. After completing the installation and basic configuration procedures covered in this guide, you will then use the appropriate companion publications to more completely configure your system.

This guide contains instructions on how to install and run the SCE8000 platform. This guide assumes a basic familiarity with telecommunications equipment and installation procedures.

Document Revision History

Cisco Service Control

Revision

OL-16478-02 3.1.7

OL-16478-01 3.1.6S

OL-16478-02

Release and Date Change Summary

December, 2008

June, 2008

Added explanation of casacade topology and cabling.

First version. New document for new product.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

Organization

The major sections of this guide are as follows:

Chapter Title Description

1 Cisco Service Control Overview, page 1-1 This chapter provides a brief introduction to

2 Introduction to the Cisco SCE8000 Platform,

3 Cisco SCE8000 Topology and

4 Installing the Cisco SCE8000 Chassis,

5 Connecting the Management Interfaces,

6 Cabling the Line Ports and Completing the

7 Basic Cisco SCE8000 Platform Operations,

8 Troubleshooting, page 8-1 This chapter provides basic system startup

9 Removal and Replacement Procedures,

A Using Optical Splitters with 10GBE Links,

page 2-1

Topology-Related Parameters, page 3-1

page 4-1

page 5-1

Installation, page 6-1

page 7-1

page 9-1

page A-1

About this Guide

Cisco Service Control.

This chapter provides a hardware overview of the SCE8000 platform.

This chapter describes the possible deployment topologies of the SCE8000 and explains how various aspects of the topology determine the configuration of the system.

This chapter explains how to install a SCE8000 platform in the rack and properly ground it.

This chapter explains how to connect the SCE8000 platform to a local console and perform the initial system configuration via the setup wizard that runs automatically.

This chapter provides instructions for cabling the Gigabit Ethernet ports for both one and two SCE8000 topologies, and for configuring Gigabit Ethernet (GBE) interface parameters. In a topology utilizing two SCE8000s (cascade), this includes the cascade ports as well as the line ports.

This chapter describes how to start up the SCE8000 platform, reboot, and shutdown. It also describes how to manage configurations.

troubleshooting information.

This chapter explains the procedures for removing and replacing the power supplies, fan trays, and other modules.

This appendix supplies important information regarding supported and not supported optical splitter configurations in the 10GBE environment.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

About this Guide

Related Publications

Your SCE8000 platform and the software running on it contain extensive features and functionality, which are documented in the following resources:

• Cisco CLI software:

–

Cisco SCE8000 Software Configuration Guide

–

Cisco SCE8000 CLI Command Reference

• For initial installation and startup information, refer to the Cisco SCE8000 Quick Start Guide.

• For international agency compliance, safety, and statutory information for wide-area network

(WAN) interfaces for the SCE8000 platform, refer to the Regulatory Compliance and Safety

Information for Cisco SCE8000.

• For installation and configuration of the other components of the Service Control Management Suite

refer to:

–

Cisco SCMS Subscriber Management User Guide

–

Cisco SCMS Collection Manager User Guide

• To view Cisco documentation or obtain general information about the documentation, refer to the

Conventions

This document uses the following conventions:

–

Cisco Service Control Application for Broadband User Guide

–

Cisco Service Control Application Reporter User Guide

Cisco Information Packet that shipped with your SCE8000 platform.

Convention Indication

bold font Commands and keywords and user-entered text appear in bold font.

italic font Document titles, new or emphasized terms, and arguments for which you supply

values are in italic font.

[ ] Elements in square brackets are optional.

{x | y | z } Required alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ] Optional alternative keywords are grouped in brackets and separated by

vertical bars.

string A nonquoted set of characters. Do not use quotation marks around the string or

the string will include the quotation marks.

courier font Terminal sessions and information the system displays appear in courier font.

< > Nonprinting characters such as passwords are in angle brackets.

[ ] Default responses to system prompts are in square brackets.

!, # An exclamation point (!) or a pound sign (#) at the beginning of a line of code

indicates a comment line.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

About this Guide

Note Means reader take note.

Tip Means the following information will help you solve a problem.

Caution Means reader be careful. In this situation, you might perform an action that could result in equipment

damage or loss of data.

Timesaver Means the described action saves time. You can save time by performing the action described in

the paragraph.

Warning

Means reader be warned. In this situation, you might perform an action that could result in bodily injury.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.

xii

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Cisco Service Control Overview

This chapter provides a general overview of the Cisco Service Control solution. It introduces the Cisco service control concept and capabilities.

It also briefly describes the hardware capabilities of the service control engine (SCE) platform and the Cisco specific applications that together compose the complete Cisco service control solution.

• Cisco Service Control Solution, page 1-1

• Cisco Service Control Capabilities, page 1-2

• SCE Platform Description, page 1-3

• Management and Collection, page 1-5

Cisco Service Control Solution

The Cisco service control solution is delivered through a combination of hardware and specific software solutions that address various operational and business-related challenges. Service providers can use the SCE platform to support classification, analysis, and control of Internet and IP traffic.

CHA PTER

Service control enables service providers to:

• Capitalize on existing infrastructure.

• Analyze, charge for, and control IP network traffic at multigigabit wire line speeds.

• Identify and target high-margin content-based services and enable their delivery.

As access and bandwidth have become commodities where prices continually fall and profits disappear, service providers have realized that they must offer value-added services to derive more revenue from the traffic and services running on their networks.

Cisco service control solutions allow the service provider to capture profits from IP services through detailed monitoring, precise, real-time control, and awareness of applications as they are delivered.

Service Control for Broadband Service Providers

Service providers of any access technology (DSL, cable, mobile, and so on) targeting residential and business consumers must find new ways to get maximum leverage from their existing infrastructure, while differentiating their offerings with enhanced IP services.

The Cisco service control application for broadband adds a layer of service intelligence and control to existing networks that can:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

1-1

Cisco Service Control Capabilities

• Report and analyze network traffic at subscriber and aggregate level for capacity planning

• Provide customer-intuitive tiered application services and guarantee application service level

agreements (SLAs)

• Implement different service levels for different types of customers, content, or applications

• Identify network abusers who are violating the acceptable use policy (AUP)

• Identify and manage peer-to-peer traffic, NNTP (news) traffic, and spam abusers

• Enforce the AUP

• Integrate Service Control solutions easily with existing network elements and business support

systems (BSS) and operational support systems (OSS)

Cisco Service Control Capabilities

The core of the Cisco service control solution is the network hardware device: the Service control engine (SCE). The core capabilities of the SCE platform, which support a wide range of applications for delivering service control solutions, include:

Chapter 1 Cisco Service Control Overview

• Subscriber and application awareness—Application-level drilling into IP traffic for real-time

understanding and controlling of usage and content at the granularity of a specific subscriber.

–

Subscriber awareness—The ability to map between IP flows and a specific subscriber to maintain the state of each subscriber transmitting traffic through the SCE platform and to enforce the appropriate policy on this subscriber’s traffic.

Subscriber awareness is achieved either through dedicated integrations with subscriber management repositories, such as a DHCP or a RADIUS server, or through sniffing of RADIUS or DHCP traffic.

–

Application awareness—The ability to understand and analyze traffic up to the application protocol layer (Layer 7).

For application protocols implemented using bundled flows (such as FTP, which is implemented using Control and Data flows), the SCE platform understands the bundling connection between the flows and treats them accordingly.

• Application-layer, stateful, real-time traffic control—The ability to perform advanced control

functions, including granular bandwidth (BW) metering and shaping, quota management, and redirection, using application-layer, stateful, real-time traffic transaction processing. This requires highly adaptive protocol and application-level intelligence.

• Programmability—The ability to quickly add new protocols and adapt to new services and

applications in the service provider environment. Programmability is achieved using the Cisco Service Modeling Language (SML).

Programmability allows new services to be deployed quickly and provides an easy upgrade path for network, application, or service growth.

• Robust and flexible back-office integration—The ability to integrate with existing third-party

systems at the service provider, including provisioning systems, subscriber repositories, billing systems, and OSS systems. The SCE provides a set of open and well-documented APIs that allows a quick integration process.

1-2

• Scalable high-performance service engines—The ability to perform all of these operations at wire

speed.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 1 Cisco Service Control Overview

SCE Platform Description

The SCE family of programmable network devices performs application-layer stateful-flow inspection of IP traffic, and controls the traffic based on configurable rules. The SCE platform is a network device that uses ASIC components and reduced instruction set computer (RISC) processors to exceed beyond packet counting and expand into the contents of network traffic. Providing programmable, stateful inspection of bidirectional traffic flows, and mapping these flows with user ownership, SCE platforms provide real-time classification of network use. The classification provides the basis of the SCE platform advanced traffic-control and bandwidth-policing functionality. Where most bandwidth control functionality ends, the SCE platform provides further control and shaping options, including:

• Layer 7 stateful wire-speed packet inspection and classification

• Robust support for more than 600 protocols and applications, including:

–

General—HTTP, HTTPS, FTP, Telnet, Network News Transfer Protocol (NNTP), Simple Mail Transfer Protocol (SMTP), Post Office Protocol 3 (POP3), Internet Message Access Protocol (IMAP), Wireless Application Protocol (WAP), and others

–

Peer-to-Peer (P2P) file sharing—FastTrack-KazaA, Gnutella, BitTorrent, Winny, Hotline, eDonkey, DirectConnect, Piolet, and others

–

P2P VoIP—Skype, Skinny, DingoTel, and others

SCE Platform Description

–

Streaming and Multimedia—Real Time Streaming Protocol (RTSP), Session Initiation Protocol (SIP), HTTP streaming, Real Time Protocol (RTP) and Real Time Control Protocol (RTCP), and others

• Programmable system core for flexible reporting and bandwidth control

• Transparent network and BSS and OSS integration into existing networks

• Subscriber awareness that relates traffic and usage to specific customers

Figure 1-1 illustrates a common deployment of an SCE platform in a network.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

1-3

SCE Platform Description

LINK

R X

Cisco SCE 2000

S e

r ie s

4xGBE

R X

M M

T X

LIN K

R X TX

R X

M M T

L I N K

R X

T X

R X

T X

L IN K

R X

T X

M M

T X

G BE

-1 S U

NET

P W R

S T A T

U S

P W R

B Y P A

S S

1 0 / 1 0

/ 10 0 0

L I N K / AC TIVE

1 0 / 1 0

0/ 1 0 00

I N K /

T IVE

-2

SUB

LI N E /CA

S CAD

E NE T

A UX

C O NS

OLE

M NG

N G 1

UsersCorporate

Aggregation device

DSL

CMTS

SCE platform

Provider

network

Peer network

& Internet

92764

Chapter 1 Cisco Service Control Overview

Figure 1-1 SCE Platform in the Network

1-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 1 Cisco Service Control Overview

LINK

Cisco SCE 2000

S e

r ie s

4xGBE

M M

LIN K

RX TX

MM TX

L INK RX

RX MM

LINK RX

R X

G BE-1

SUB

LINE

NE T

P W R

B S TA

T U S

P W R

B Y P A

S S

1 0/10

0/ 1 0 00

L INK/ A C TIVE

10 / 1 00/ 100 0

/ A C

TIVE

GBE-2

B LINE/CASCADE

NET

A U X

CON

SOLE

G 2

N G 1

92763

Aggregation

device

SCE platform

RDRs

CLI and SNMP

XML/RPC

Subscriber info

Router

DHCP

or RADIUS

Subscriber Manager

Provisioning

system

Service

policy and quota

management

Network

management

Collection

Manager

Management and Collection

The Cisco service control solution includes a complete management infrastructure that provides the following management components to manage all aspects of the solution:

• Network management

• Subscriber management

• Service Configuration management

These management interfaces are designed to comply with common management standards and to integrate easily with existing OSS infrastructure (Figure 1-2).

Figure 1-2 Service Control Management Infrastructure

Management and Collection

Network Management

The Cisco service control solution provides complete network Fault, Configuration, Accounting, Performance, Security (FCAPS) Management.

Two interfaces provide network management:

connection, the CLI is used for configuration and security functions.

functionality.

OL-16478-02

• Command-line interface (CLI)—Accessible through the Console port or through a Telnet

• SNMP—Provides fault management (through SNMP traps) and performance-monitoring

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

1-5

Management and Collection

Subscriber Management

Where the Cisco service control application for broadband (SCA BB) enforces policies on different subscribers and tracks usage on an individual subscriber basis, the Cisco service control management suite (SCMS) subscriber manager (SM) may be used as middleware software for bridging between OSS and SCE platforms. Subscriber information is stored in the SM database and can be distributed between multiple platforms according to actual subscriber placement.

The SM provides subscriber awareness by mapping network IDs to subscriber IDs. It can obtain subscriber information using dedicated integration modules that integrate with AAA devices, such as RADIUS or DHCP servers.

Subscriber information may be obtained in one of two ways:

• Push Mode—The SM pushes subscriber information to the SCE platform automatically upon logon

of a subscriber.

• Pull Mode—The SM sends subscriber information to the SCE platform in response to a query from

the SCE platform.

Chapter 1 Cisco Service Control Overview

Service Configuration Management

Service configuration management is the ability to configure the general service definitions of a service control application. A service configuration file containing settings for traffic classification, accounting and reporting, and control is created and applied to an SCE platform. The SCA BB application provides tools to automate the distribution of these configuration files to SCE platforms. This standards-based approach makes it easy to manage multiple devices in a large network.

Service Control provides a GUI to edit and create these files and a complete set of APIs to automate their creation.

Data Collection

Data collection occurs as follows:

1. All analysis and data processing functions of the SCE platform result in the generation of Raw Data

Records (RDRs), which the SCE platform forwards using a simple TCP-based protocol (RDR-Protocol).

2. RDRs are processed by the Cisco service control management suite collection manager.

3. The collection manager software is an implementation of a collection system that receives RDRs

from one or more SCE platforms. It collects these records and processes them in one of its adapters. Each adapter performs a specific action on the RDR.

RDRs contain a variety of information and statistics, depending on the configuration of the system. Three main categories of RDRs include:

1-6

• Transaction RDRs—Records generated for each transaction, where a transaction is a single event

detected in network traffic. The identification of a transaction depends on the particular application and protocol.

• Subscriber Usage RDRs—Records generated per subscriber, describing the traffic generated by that

subscriber for a defined interval.

• Link RDRs—Records generated per link, describing the traffic carried on the link for a defined

interval.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

CHA PTER

Introduction to the Cisco SCE8000 Platform

This chapter provides an introduction to the Cisco SCE8000 10GBE platform, the Service Control hardware component.

• Information About the SCE Platform, page 2-1

• Service Control Module (SCE8000-SCM-E), page 2-2

• Introduction to SIPs and SPAs, page 2-4

• The SCE8000-SIP, page 2-7

• The 1-Port 10GBE SPA Interface Module, page 2-7

• The Cisco SCE8000 Optical Bypass, page 2-8

• Checking the Shipping Container Contents, page 2-13

• Cisco SCE8000 Installation Checklist, page 2-15

Information About the SCE Platform

The Service Control Engine (SCE) platform, which is the hardware component of the Cisco Service Control solution, is designed to support observation, analysis, and control of Internet/IP traffic. The following table summarizes model information for the Cisco SCE8000 platform.

Table 2-1 SCE Platform Model Information

Model number Cisco SCE8000 10GBE

Link Type 10 Gigabit Ethernet

Number of Ports 2 or 4

Number of Links 1 or 2

The Cisco SCE8000 is a transparent element with 10GBE links service throughput. It can be installed inline in the network where the entire traffic passes through it or in receive-only mode where it receives replication of the traffic through SPAN ports or optical splitters.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-1

Service Control Module (SCE8000-SCM-E)

270543

STATUS

I P

000-F

POW

E R

PAS

T A

AUX

L I

N K

IV E

E R

S C

E 8

0 0

0 EX

T E

ED S

ERVICE C

O N

T R

O L M

O D

ULE

Y P

S S

BYPA

CON

S O

1 0

0 1 0

0 0

I N K

I V

TUS

PB-SCE8K-MM

OPT

ICA

BYPA

SCE

-M M

ICA

P ASS

T X

PAS

T A

100

1000

LIN

C TI

S C

0 0

0 EX

T EN

ED S

ICE C

O N

T R

O L M

SCE

0 0

-S C M-

SCE80

0 0

C M-

E80

0 0-S

CON

S O

1 0

00 1 0

I NK

I V

O R

Y P

S S

P T I

STAT

ACTIV

E/L

A- 1

G E

- L

-V 2

TAT

ACT

VE/LI

A-1

G E

- L

-V 2

TAT

ACTIV

S PA

-1 X 1

0 G

E-

-V 2

TAT

ACT

S P

A-1

X 1

0 G

- L

-V

0 0

SCE8000 EXTENDED SERVICE CONTROL MODULE

SCE8000-SCM-E

STATUS

OPTICAL BYPASS

MASTER

SYSTEM POWER

10/100/ 1000

LINK/ ACTIVE

OPTICAL BYPASS1

CONSOLE PORT1

10/100/ 1000

LINK/ ACTIVE

OPTICAL BYPASS2

AUX PORT2

Figure 2-1 Cisco SCE8000 Platform

The Cisco SCE8000 supports the following network insertion models:

Chapter 2 Introduction to the Cisco SCE8000 Platform

• single appliance (inline)

• single appliance (receive-only)

• cascade configuration

• MGSCP configuration

The Cisco SCE8000 platform is a 4-slot chassis hosting the following modules:

• One or two Service Control Modules (SCE8000-SCM-E) that each contain special purpose fast path

chipset, traffic processors and control processor.

• One SPA Interface Processor card (SCE8000-SIP) that holds up to four SPA 10GBE interface

modules.

• One optional optical bypass module hosting panel that holds up to two optical bypass modules.

In addition, the Cisco SCE8000 chassis contains two power supply modules in a 1+1 configuration, as well as a fan tray module.

Service Control Module (SCE8000-SCM-E)

The Cisco SCE8000 contains one or two SCE8000-SCMs located in slots#1 and #2 (the top two slots). The Service Control module contains ports and LEDs as shown in the following figure and tables.

Figure 2-2 SCE8000-SCM-E

...

2-2

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

Table 2-2 SCE8000-SCM-E Ports

Port Quantity Description Connect This Port To…

GBE port 2

Currently only one GBE port is supported.

Console 1 RS-232 RJ-45 port for use by

AUX 1 RS-232 RJ-45 port used by

Bypass 2 RJ-11 port The Control connector on the

Gigabit Ethernet RJ-45 ports for management of the Cisco SCE8000.

CLI designation: interface GigabitEthernet 1/1, 1/2.

technicians

Service Control Module (SCE8000-SCM-E)

A LAN using a GBE cable with an RJ-45 connector.

A local terminal (console) using an RS-232 cable with an RJ-45 connector, as provided in the Cisco SCE8000 kit.

optical bypass module.

Table 2-3 SCE8000-SCM-E LEDs

LEDs Description

Power

• Steady green — Installed power supplies are functioning normally.

• Steady amber — Only one power supply is functioning normally.

• Unlit — No power from either power supply.

On a slave SCE8000-SMC_E module (in the second slot), this LED is always off.

Status The Status LED indicates the operational status of the Cisco SCE8000 system, as

follows:

• Unlit — No power from either power unit.

• Steady amber — The system is booting up.

• Flashing amber — The system is operational, but is in a warning state.

• Flashing green — The system is fully operational.

• Steady red — There is a problem or failure

Note that Alarms are hierarchical: Failure takes precedence over Warning, which takes precedence over Operational.

Optical Bypass

• Steady amber — The optic bypass module has been directed to pass traffic via

the Cisco SCE8000.

• Unlit — The optic bypass module (if present) will connect the link fibers

directly, and traffic will bypass the Cisco SCE8000.

On a slave SCE8000-SMC_E module (in the second slot), this LED is always off.

OL-16478-02

Note that this functionality is consistent even when the Cisco SCE8000 is powered down.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-3

Introduction to SIPs and SPAs

Table 2-3 SCE8000-SCM-E LEDs

LEDs Description

Master Indicates the master Service Control module

Mng interface The Mng interface LEDs indicate the operational status of the Cisco SCE8000

Chapter 2 Introduction to the Cisco SCE8000 Platform

• Steady green — Master Service Control module

• Unlit — Slave Service Control module

out-of-band LAN-based management port, as follows:

• Link/Active

Steady green — Port link is up

Flashing green — Activity on the port link

Unlit — Port link is down

• Speed

Unlit — Port is set to 10Mbps

Steady green — Port is set to 100 Mbps

Steady amber — Port is set to 1000 Mbps

On a slave SCE8000-SMC_E module (in the second slot), this LED is always off.

Introduction to SIPs and SPAs

SIPs and SPAs are a new carrier card and port adapter architecture used to increase modularity, flexibility, and density across Cisco Systems routers for network connectivity. This section describes the SIPs and SPAs and provides some guidelines for their use.

• SPA Interface Processors, page 2-4

• Specifying the SIP Subslot Location for a SPA, page 2-5

• Shared Port Adapters, page 2-5

• Modular Optics, page 2-6

• XFP Connections, page 2-6

SPA Interface Processors

The SIP module supported by the Cisco SCE8000 chassis is the SCE8000-SIP.

The following list describes some of the general characteristics of a SIP:

2-4

• A SIP is a carrier card that inserts into a slot in the chassis like a line card. It provides no network

connectivity on its own.

• A SIP contains one or more subslots (bays), which are used to house one or more SPAs. The SPA

provides interface ports for network connectivity.

• During normal operation the SIP should reside in the router fully populated either with functional

SPAs in all subslots, or with a blank filler plate (SPA-BLANK=) inserted in all empty subslots.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

Sub-slot 0

Front of SCE8000-SIP

Sub-slot 1

Sub-slot 2 Sub-slot 3

Single-height SPA

Front of the SCE8000-SIP

Single-height SPA

Single-height SPA Single-height SPA

Specifying the SIP Subslot Location for a SPA

Cisco SCE8000-SIP subslots begin their numbering with “0” and have a horizontal orientation.

Figure 2-3 shows the subslot numbering for the Cisco SCE8000-SIP.

The Cisco SCE8000-SIP supports four subslots for the installation of SPAs, as follows:

• SIP subslot 0—Top–left subslot

• SIP subslot 1—Top–right subslot

• SIP subslot 2—Bottom–left subslot

• SIP subslot 3—Bottom–right subslot

Figure 2-3 SPA Module Subslot Location

Introduction to SIPs and SPAs

Shared Port Adapters

The SPA supported by the Cisco SCE8000-SIP is the 1-Port 10-Gigabit Ethernet SPA, SPA-1X10GE-L-V2

The following list describes some of the general characteristics of a SPA:

• A SPA is a modular type of port adapter that inserts into a subslot of a compatible SIP carrier card

to provide network connectivity and increased interface port density. The Cisco SCE8000-SIP can hold up to four SPAs.

Since the interfaces are connected in subscriber/network pairs, either two or four SPAs must be installed.

• The supported SPA is a single-height SPAs, which inserts into one SIP subslot. (See Figure 2-4.)

Figure 2-4 Single-Height SPA Size

• Each SPA provides a one 10GBE port, which is the interface to either subscriber or network traffic.

These interfaces can be individually configured using the Cisco command-line interface (CLI).

• Either a blank filler plate or a functional SPA should reside in every subslot of an SIP during normal

operation to maintain cooling integrity. Blank filler plates are available in single-height form only.

Since the interfaces are connected in subscriber/network pairs, the SCE8000-SIP must be either fully populated or have both the bottom bays covered with blank filler plates.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-5

Introduction to SIPs and SPAs

129499

Modular Optics

The SPAs implement 10GBE small form-factor pluggable (XFP) optical transceivers to provide network connectivity. An XFP module is a transceiver device that mounts into the front panel to provide network connectivity.

Note It is highly recommended only to use the XFP modules listed as supported in this document. Use of

unsupported or unqualified XFP modules may affect reliability or operation.

Figure 2-5 10GBE Small Form-factor Pluggable (XFP)

Chapter 2 Introduction to the Cisco SCE8000 Platform

The interface connector on the 1-Port 10-Gigabit Ethernet SPA is a fiber optic receiver that supports one XFP.

The types of optics modules that have been qualified for use with the 1-Port 10-Gigabit Ethernet SPA on the Cisco SCE8000 platform are as follows:

• XFP-10GLR-OC192SR

• XFP-10GER-OC192IR

• XFP-10GZR-OC192LR

• XFP-10G-MM-SR

XFP Connections

The qualified XFPs include an optical transmitter and receiver pair integrated with Clock and Data Recovery (CDR) integrated circuits. The XFPs provide high-speed serial links at 10.3125 Gbps on single mode fibers.

The transmit side recovers and retimes the 10 Gbps serial data and passes it to a laser driver. The laser driver biases and modulates a laser, enabling data transmission over fiber through an LC connector. The receive side recovers and retimes the 10 Gbps optical data stream from a photo detector trans impedance amplifier and passes it to an output driver.

See the label on the XFP for technology type and model.

XFP dimensions are:

• Height 12.5 mm

2-6

• Width 18.35 mm

• Length 71.1mm

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

STATUS

122151

ACTIVE/LINK

SPA-1X10GE-L-V2

1 2

The XFP operating temperature range is 0°C to 70°C.

Table 2-4 XFP Port Cabling Specifications

XFP Wavelength Fiber Type

XFP-10GLR-OC192SR 1310 nm SMF

XFP-10GER-OC192IR 1550 nm SMF

XFP-10GZR-OC192LR 1550 nm SMF

XFP-10G-MM-SR 850 nm MMF

The SCE8000-SIP

Table 2-5 SCE8000-SIP LED

LEDs Description

Status

Introduction to SIPs and SPAs

• Green —Operational

• Flashing Amber - Electrical bypass in operation

• Red - Not initialized or failed

• Unlit —No power

The 1-Port 10GBE SPA Interface Module

The SCE8000-SIP is installed in slot #3 of the Cisco SCE8000 chassis. It hosts up to four single-width, single-height 1-Port 10GBE SPA interface modules, but in the Cisco SCE8000, it must be configured with either two 1-Port 10GBE SPAs (in the top two subslots) or four 1-Port 10GBE SPAs, to provide interfaces for either one or two complete traffic links.

Figure 2-6 1-Port 10GBE SPA Interface Module

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

2-7

The Cisco SCE8000 Optical Bypass

Ta b l e 2 -6 S PA P o r t s

Port Quantity Description Connect This Port To…

10 GBE Line port

Chapter 2 Introduction to the Cisco SCE8000 Platform

1 on each SPA Any one of the following:

• XFP

XFP-10GLR-OC192SR (10km)

• XFP-10GER-OC192IR

(40km)

• XFP-10GZR-OC192LR

(80km)

• XFP-10G-MM-SR

Any one of the following:

• Subscriber side network

component

• Network side network

component

• Optical bypass 10GBE line

port

• 10GBE line port of a

cascaded SCE8000 platform

(200m)

CLI designation: interface TenGigabitEthernet 3/0/0, 3/1/0/, 3/2/0, 3/3/0.

• EtherChannel port of a

Cisco 7600 Series router (MGSCP topology)

Refer to Connecting the Line

Ports to the Network, page 6-1for further information.

Table 2-7 SPA LEDs

LEDs Description

Active/Link (1)

• Green —Port is enabled by software and the link is up.

• Amber — Port is enabled by software and the link is down.

• Unlit — Port is not enabled by software.

Status (2) The Status LED indicates the operational status of the SPA module, as

follows:

• Green — SPA is ready and operational.

• Amber — SPA power is on and good, and SPA is being configured.

• Off — SPA power is off.

The Cisco SCE8000 Optical Bypass

• Optical Bypass Functionality, page 2-9

• Optical Bypass Module (OPB-SCE8K), page 2-9

The Cisco SCE8000 platform optical bypass module preserves the service provider 10GBE links under all circumstances. At power failure the bypass is automatically activated. It can also be activated by the Cisco SCE8000 software.

The Cisco SCE8000 platform already includes an internal electrical bypass, but it is strongly recommended to use the optical bypass module for addressing the following scenarios:

• During platform reboot (SW reload)—If the external bypass module is not used, there is a 5-second

period (at most) during which the link is forced down (cutoff functionality).

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-8

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

242125

Default bypass state (no power) Non-default bypass state

OPB

3/0/0 3/1/0

3/2/0 3/3/0

SCE8000

• During a power failure —The Cisco SCE8000 has two power supplies. A power failure occurs only

when both of them fail.

In a case where the Cisco SCE8000 platform must be replaced, it is possible to remove the bypass modules from the SCE8000 chassis without disconnecting them from the network and then reinstall them in the new SCE platform, so that traffic links are preserved even in a case of complete failure and replacement of the Cisco SCE8000 platform. (See Replacing the Optical Bypass Module without

Disrupting Traffic on the Link, page 9-26.)

Optical Bypass Functionality

The optical bypass module is connected bump-in-the-wire in the 10-GBE link. It is then connected to the Cisco SCE8000 platform with two types of connections:

• 10GBE optical connections for data link traffic — 10 GBE connections from the optical bypass

module to one pair of the 10GBE SPA ports.

• Control connection — Connection to the RJ-11 External Bypass connector on the SCE8000-SCM,

so the optical bypass is activated if the Cisco SCE8000 platform fails.

The Cisco SCE8000 Optical Bypass

Optical Bypass Module Connectivity

The optical bypass module functions as follows:

• Under normal conditions, the bypass module directs traffic to flow via the Cisco SCE8000.

• Under failure conditions, the optical bypass shortcuts the interfaces that are connected to the traffic

link, and all traffic flows through the optical bypass module, bypassing the SCE platform.

Figure 2-7 Optical Bypass Module Connectivity

Optical Bypass Module (OPB-SCE8K)

There are two types of optical bypass modules to support different optic types:

OL-16478-02

• OPB-SCE8K-SM supports Single-Mode optics and should be used with SCE8000 equipped with

Single-Mode optics.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-9

The Cisco SCE8000 Optical Bypass

A B A C

C D B D

STATUS

CNTRL

OPB—SCE8K—MM

OPTICAL BYPASS2

242235

• OPB-SCE8K-MM supports Multi-Mode optics and should be used with SCE8000 equipped with

Multi-Mode optics.

The optical bypass module is installed either internally, in slot #4 of the Cisco SCE8000 chassis or in an external mounting panel in the rack.

Up to two optical bypass modules can be mounted internally, supporting inline insertion into two links.

Up to four optical bypass modules can be mounted using an external mount panel (OPB-SCE8K-EXT-PNL). A single panel can serve two SCE8000 platforms, each cutting two links or up to four SCE8000 platforms, each cutting a single link.

Figure 2-8 Optical Bypass Module

Chapter 2 Introduction to the Cisco SCE8000 Platform

Table 2-8 Optical Bypass Module Ports

Port Quantity Description Connect This Port To…

10 GBE Line port

4 10GBE ports A through D

Duplex LC, panel mount adaptor for LC/UPC connectors

SPA interfaces on the Cisco SCE8000.

Refer to Cabling the 10GBE

Line Interface Ports: Using the External Optical Bypass Module, page 6-11 for further

information.

CTRL 1 RJ-11 port RJ-11 Optical Bypass port on the

SCE8000-SCM-E

Table 2-9 Optical Bypass Module LEDs

LEDs Description

Status The Status LED indicates the operational status of the optical bypass

module, as follows:

• Green — Bypass module has been de-activated (traffic flows through the

Cisco SCE8000 platform)

• Off — Bypass module is active (traffic does not flow through the Cisco

SCE8000 platform)

2-10

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

270893

Y STE

POW

T I

AL BY

AUX

POR

LINK AC

T IVE

MAST

E R

SC E8

0 00

E X T

D ED

VICE CO

T R O

DULE

T ICAL

OPT

ICAL

PASS

L E

0 1

0 0

LINK ACTIVE

TATUS

T R

OPB-S

-MM

OPTIC

BYP

SS1

R X

B-SCE8K-M

OPT

ICA

SS2

S TEM

POW

T I

L BY

1 0

0 1 0

L I N

A C

I V

STER

SC E8

0 0

E X T

D ED

ERVIC

E CON

T R O

MOD

ULE

0 0 0-S

M-

0 0 0-S

M-

E 8

0 0

0-SI

L E

0 100

0 0

L INK

CTIV

P T

ICAL

BYP

P T

ICA

P ASS

STA

TIV

/LI

P A-1X

-L

-V 2

VE/LI

A-

X 1

GE-L

INK

A-1

1 0

-L- V

/LI

-1 X

1 0

-L- V

1 0

0 1 0

0 0

FAN

STATUS

Captive installation screws

Optical Bypass Module Specifications

Fiber Cable Type

The fiber cable type within the Optical Bypass Module area as follows:

• OPB-SCE8K-MM: 50 um core.

• OPB-SCE8K-SM: SMF-28

Maximum optical path (fiber length of two ports) is 600m.

Switching Time

Switching time is measured from trigger to stable 90% optical output.

• Typical switching time: 3 ms

• Maximal switching time: 10ms

Fan Assembly

The Cisco SCE8000 Optical Bypass

The system fan assembly, located in the chassis, provides cooling air for the installed modules. Sensors on the fan assembly and within the system monitor the internal air temperatures. If the air temperature exceeds a preset threshold, the environmental monitor displays warning messages.

Figure 2-9 Fan Assembly

If an individual fan within the assembly fails, the FAN STATUS LED turns red. To replace a fan assembly, see Removing and Replacing the Fan Assembly, page 9-10.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-11

The Cisco SCE8000 Optical Bypass

126565

Captive installation

screws

PWR-AC

INPUT

FAN

OUTPUT

FAIL

ALL FASTENERS MUST BE FULLY ENGAGED

PRIOR TO OPERATING THE POWER SUPPLY

100-240V-16A 50/60Hz

Captive installation

screws

132218

Captive installation

screws

Captive installation

screws

PWR-2700-DC/4

-VE-1

-VE-2

INPUT1

48V-60V

=40A

INPUT2

48V-60V

=40A

FAN OK

OUTPUT

FAIL

ALL FASTENERS MUST BE FULLY ENGAGED PRIOR TO OPERATING THE POWER SUPPLY

Power Supplies

The Cisco SCE8000 platform supports redundant AC- or DC-input power supplies. The following power supplies are available for the Cisco SCE8000 platform:

• 2700 W DC input (PWR-2700-DC/4): uses an external terminal block on the back side of the chassis

• 2700 W AC input (PWR-2700-AC/4): uses an external power cord directly connected to the AC

Figure 2-10 PWR-2700-AC/4

Chapter 2 Introduction to the Cisco SCE8000 Platform

for input power connection.

power supply.

2-12

Figure 2-11 PWR-2700-DC/4

The AC-input and DC-input power supplies support redundancy. When power is removed from one supply, the redundant power feature causes the second supply to produce full power.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

Power Supply Cooling

Power supplies have built-in fans and are completely self-cooling. Air enters from the right of the fan and exits through the left.

Load Sharing

With two power supplies, each power supply concurrently provides approximately half of the required power to the system. If one power supply fails, the second power supply immediately assumes full power to maintain uninterrupted system operation. The second power supply enables load sharing and fault tolerance automatically; no software configuration is required.

Checking the Shipping Container Contents

Use the Cisco SCE8000 Component List to check the contents of the Cisco SCE8000 platform shipping container.

Checking the Shipping Container Contents

Tip Do not discard the shipping container when you unpack the Cisco SCE8000. Flatten the shipping cartons

and store them with the pallet. You will need these containers if you need to move or ship the Cisco SCE8000 in the future.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-13

Checking the Shipping Container Contents

Cisco SCE8000 Component List

Table 2-10 Cisco SCE8000 Component List

Component Description

Cisco SCE8000 platform Cisco SCE8000 10GBE chassis configured with the

Cisco SCE8000-SCM-E Cisco SCE8000 Service Control Module

Cisco SCE8000-SIP Cisco SCE8000 SPA Jacket card Interface Processor

2 or 4 SPA Jacket cards SPA Interface. See below the list of supported SPA models.

2 or 4 XFP OpticsXFP optic modules. See below the list of supported XFP models

2 Cisco PWR-2700-AC/4 or 2 Cisco PWR-2700-DC/4

SCE8000-FAN Redundant fans unit.

Accessories The following accessories might arrive in separate shipping

Management cables

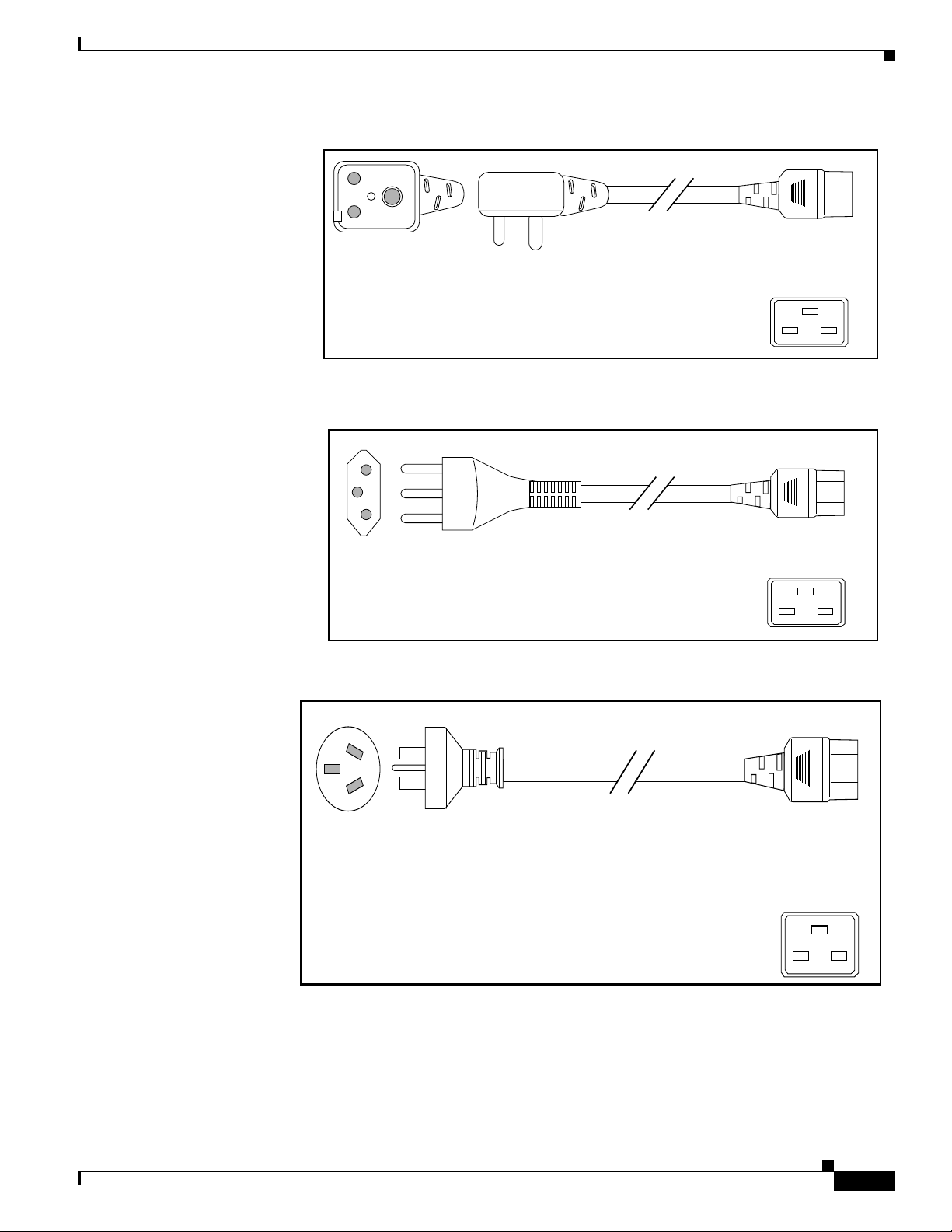

Power cables Two AC power supply cords, if ordered with AC-input power

Grounding kit 69-0815-01

Chapter 2 Introduction to the Cisco SCE8000 Platform

following components:

Cisco power supply units, AC or DC. Hot swappable, redundant power supply, compatible with Cisco 7604 router.

containers:

• Gigabit Ethernet cable for connecting to the

Management ports

• RS-232 serial cables (DB-9 to RJ-45 and DB-25 to

RJ-45) for connecting to a local terminal

supply units

• Grounding lug

• Two M4 hex-head screws with locking washers

Optical Bypass module kit

Note Cisco does not ship the entire Cisco SCE8000 documentation set automatically with each system. You

• Optical Bypass Module

• Control Cable (2 m)

• Control Cable (40 cm)

must specifically order the documentation as part of the sales order. If you ordered documentation and did not receive it, we will ship the documents to you within 24 hours. To order documents, contact a customer service representative.

2-14

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 2 Introduction to the Cisco SCE8000 Platform

Cisco SCE8000 Installation Checklist

To assist you with your installation and to provide a historical record of what was done by whom, photocopy the following Cisco SCE8000 Installation Checklist. Indicate when each procedure or verification is completed. When the checklist is completed, place it in your site log along with the other records for your new Cisco SCE8000 platform.

Table 2-11 Cisco SCE8000 Installation Checklist

Task Verified By Date

Date Cisco SCE8000 received

Cisco SCE8000 and all accessories unpacked

Safety recommendations and guidelines reviewed

Topology verified: number of Cisco SCE8000 platforms, number of links, and whether inline or receive-only

Installation Checklist copied

Site log established and background information entered

Site power voltages verified

Site environmental specifications verified

Required passwords, IP addresses, device names, and so on, needed for initial configuration available (refer to Initial Setup Parameters,

page 5-2)

Required tools available

Network connection equipment available

Cisco SCE8000 mounted in rack

System grounding established, if required

AC/DC power cables connected to AC/DC sources and Cisco SCE8000 chassis

Optical bypass modules installed (optional)

Console port set for 9600 baud, 8 data bits, no parity, and 1 stop bit (9600 8N1)

ASCII terminal attached to console port

Management port is operational

Network interface cables and devices connected

System power turned on

System boot complete (Status LED is on)

10 GBE line ports operational

Correct hardware configuration displayed after system banner appears

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

2-15

Cisco SCE8000 Installation Checklist

Chapter 2 Introduction to the Cisco SCE8000 Platform

2-16

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

CHA PTER

Cisco SCE8000 Topology and Topology-Related Parameters

This chapter describes the possible deployment topologies of the Cisco SCE8000 and explains how to configure the relevant parameters correctly for each topology.

• The Cisco SCE8000 Platform, page 3-1

• Topology Considerations, page 3-1

• Physical Topologies, page 3-3

• Link Continuity, page 3-9

• Topology-Related Parameters, page 3-11

• Asymmetric Routing Topology, page 3-13

The Cisco SCE8000 Platform

The Cisco SCE8000 is a solution for dual links with load sharing and asymmetrical routing and support for fail-over between two SCE platforms.

The Cisco SCE8000 is built to support wire speed processing of full-duplex 10GBE streams. The Cisco SCE8000 can, therefore, be deployed in a multi-link environment, in several different topologies.

• Single Cisco SCE8000 topology — Provides the ability to process both directions of a bi-directional

flow, processing both the upstream and downstream paths of a flow, even if they traverse different links.

• Dual Cisco SCE8000 topology (cascade) — Cascaded Cisco SCE8000s provide high-availability

and fail-over solution and maintain the line and service in case of Cisco SCE8000 failure

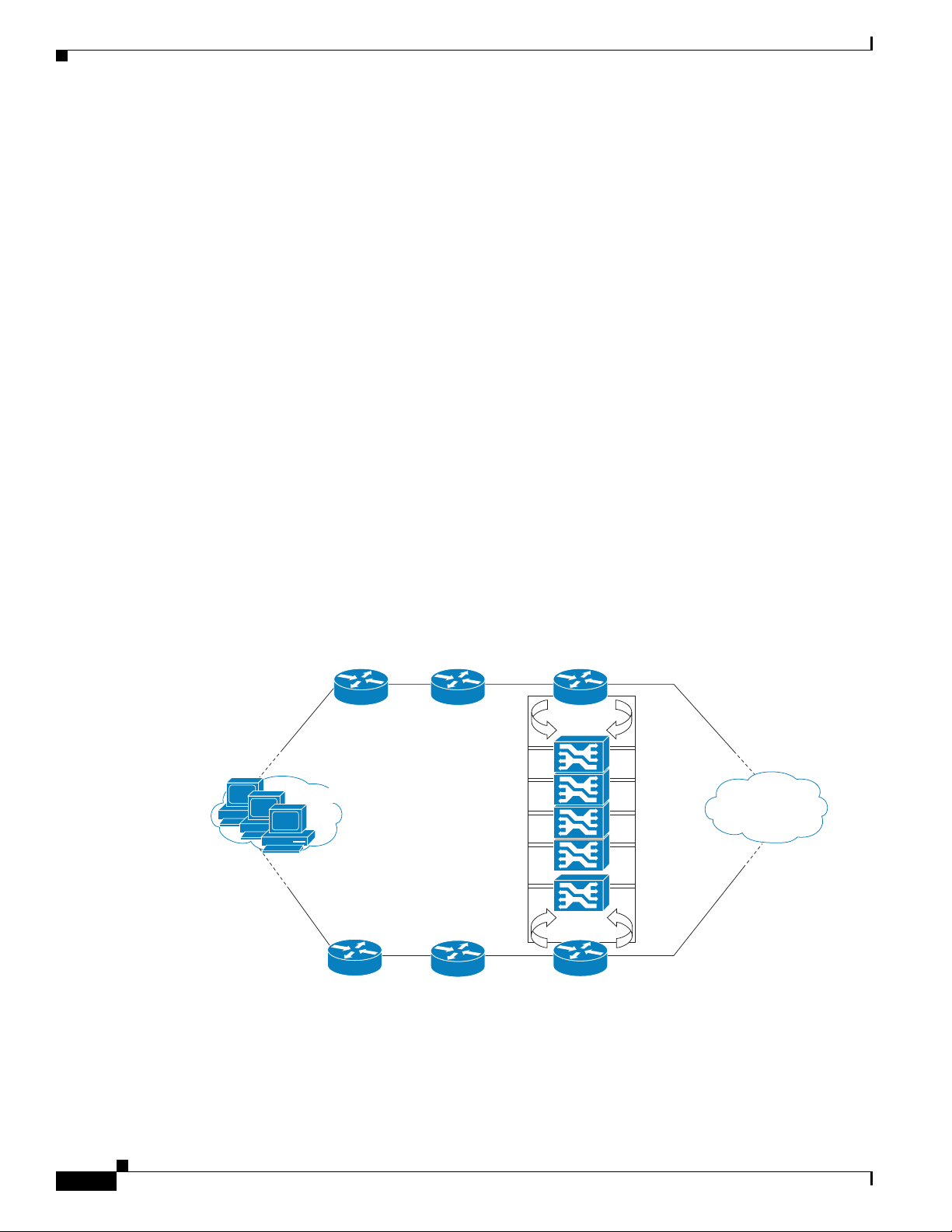

• Multi-Gigabit Service Control Platform (MGSCP) topology — For scalability, the Cisco SCE8000

platform supports the option to connect a multiple number of SCE platforms to a Cisco 7600 Series router used to perform load-balancing between the platforms.

Topology Considerations

There are several issues that must be considered in order to arrive at the optimum configuration of the topology-related parameters:

• Functionality

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-1

Topology Considerations

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

— Will the system be used solely to monitor traffic flow, with report functionality only, or will it be used for traffic flow control, with enforcement as well as report functionality?

–

Monitoring and Control — The Cisco SCE8000 monitors and controls traffic flow. Decisions are enforced by the Cisco SCE8000 depending on the results of the monitoring functions of the Cisco SCE8000 and the configuration of the Service Control Application for Broadband or Mobile solution.

In order to perform control functions, the Cisco SCE8000 must be physically installed as an inline installation.

–

Monitoring only — The Cisco SCE8000 monitors traffic flow, but cannot control it.

Either an inline installation or an optical splitter or port SPAN installation may be used for monitoring only.

• Size

A Cisco SCE8000 deployment can range from a single 10GBE link to multiple platforms in a MGSCP topology.

A complete discussion on sizing the system is beyond the scope of this document. Information regarding the number of Cisco SCE8000 platforms required is related to the design considerations 'per link' (topology and redundancy factors) rather than to overall sizing of the system.

• Redundancy

Must the system be designed to guarantee uninterrupted Cisco SCE8000 functionality? If so, there must be a backup Cisco SCE8000 platform (or a backup for each platform in an MGSCP topology) to assume operation in case of failure of the primary device.

A backup SCE platform is connected in a cascade configuration with the primary SCE platform so that, although all processing is performed only in the active Cisco SCE8000, the standby Cisco SCE8000 is constantly updated with all the necessary information so that it can instantly take over processing the traffic on the data links should the active Cisco SCE8000 fail.

Note that an MGSCP topology with multiple Cisco SCE8000 platforms provides more sophisticated redundancy options, but the basic decision on each link is the same: does it require a standby SCE platform or not?

• Link continuity

How should the Cisco SCE8000 respond to platform failure with regard to link continuity? Should traffic flow continue even though the unit is not operating, or be halted until the platform is repaired/replaced?

If link continuity is a high priority, an external optical bypass module can be installed on the link. (See Link Continuity, page 3-9 and The Cisco SCE8000 Optical Bypass, page 2-8.)

Note In cascade configuration, installation of an external optical bypass module is required.

These issues determine two important aspects of system deployment and configuration:

3-2

• Physical topology of the system — The actual physical placement and connection of the Cisco

SCE8000 platform or platforms in the system.

• Topology-related configuration parameters — The correct values for each parameter must be

ascertained before configuring the system to make sure that the system will function in the desired manner.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Subscriber Network

3/0/0

3/2/0

3/1/0

3/3/0

Physical Topologies

Following are descriptions of a number of physical topologies that the Cisco SCE8000 supports.

• SCE8000 Interface Numbering, page 3-3

• Single Cisco SCE8000 Topologies, page 3-3

• Dual Cisco SCE8000 Topology (Cascade), page 3-6

• Multi-Gigabit Service Control Platform (MGSCP) Topology, page 3-7

SCE8000 Interface Numbering

The following diagram shows the numbering of the SCE8000 interfaces as indicated in the topology diagrams in this chapter. The interface numbering is explained as follows:

• The first digit is the slot number (always 3).

• The second digit is the number of the sub-slot or SPA module (0-3).

• The third digit is the number of the interface on the designated SPA module (always 0).

• Interfaces 3/0/0 and 3/2/0 are on the two left-hand SPA modules and are the Subscriber side

interfaces.

Physical Topologies

• Interfaces 3/1/0 and 3/3/0 are on the two right-hand SPA modules and are the Network side

interfaces.

Figure 3-1 SCE8000 Interface Numbering

Single Cisco SCE8000 Topologies

A single Cisco SCE8000 supports both single 10GBE link and dual 10GBE link topologies.

• Single Link: Inline Topology, page 3-4

• Dual link: Inline Installation, page 3-4

• Single Link: Receive-only Topology, page 3-5

• Dual Link: Receive-Only Topology, page 3-5

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-3

Physical Topologies

Subscriber

270588

Network

3/0/0

3/2/0

3/1/0

3/3/0

Subscriber 1

Network 1

3/0/0

3/2/0

3/1/0

3/3/0

Subscriber 2

Network 2

Single Link: Inline Topology

Typically, the Cisco SCE8000 is connected in a full duplex 10GBE link between two devices (Router, BRAS, etc.). When the Cisco SCE8000 is installed as an inline installation, it physically resides on the data link between the subscribers and the network.

Figure 3-2 Single Link: Inline Topology

When configuring the Cisco SCE8000, an inline installation is referred to as “inline” connection mode.

Dual link: Inline Installation

In this topology, one Cisco SCE8000 is connected inline in two full duplex, 10GBE links.

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

In case the two links are load-shared, asymmetrical routing might occur, and some of the flows may be split, that is, the upstream packets of the flow go on one link, and the downstream packets go on the other link.

When installed in this topology, the Cisco SCE8000 completely overcomes this phenomenon, and provides its normal functionality as if asymmetrical routing were not occurring in the two links.

Figure 3-3 Dual link: Inline Installation

This topology supports both monitoring and control functionality, and is referred to as “inline” connection mode.

3-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Splitter

Subscriber

270586

Network

3/0/0

3/2/0

3/1/0

3/3/0

Single Link: Receive-only Topology

In this topology, an optical splitter resides physically on the 10GBE link between the subscribers and the network. The traffic passes through the optical splitter, which splits traffic to the Cisco SCE8000. The Cisco SCE8000, therefore, only receives traffic and does not transmit.

Figure 3-4 Single Link: Receive-only Topology

When configuring the Cisco SCE8000, an optical splitter topology is referred to as “receive-only” connection mode.

Note that in an optical splitter topology, the Cisco SCE8000 only enables traffic monitoring functionality.

Physical Topologies

Note When implementing receive-only topologies with a switch, the switch must support SPAN functionality

that includes separation between ingress and egress traffic and multiple SPAN-ports destinations.

Dual Link: Receive-Only Topology

In this topology, one Cisco SCE8000 is connected in receive-only mode to two full duplex, 10 Gig links using optical splitters. If the two links are load-shared, asymmetrical routing might occur, and some of the flows may be split, i.e. the upstream packets of the flow go on one link, and the downstream packets go on the other link.

When installed in this topology, the Cisco SCE8000 completely overcomes this phenomenon, and provides its normal monitoring functionality as if asymmetrical routing were not occurring in the two links.

This installation supports monitoring functionality only, and is configured as “receive-only” connection mode.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-5

Physical Topologies

270587

Subscriber 1

Network 1

Subscriber 2

Network 2

3/0/0

3/2/0 3/3/0

3/1/0

Splitter

Subscriber

Network

3/0/0

3/2/0

3/1/0

3/3/0

Subscriber

Network

3/2/0

3/0/0

3/3/0

3/1/0

Note When implementing receive-only topologies with a switch, the switch must support SPAN functionality

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Figure 3-5 Dual Link: Receive-Only Topology

that includes separation between ingress and egress traffic and multiple SPAN-ports destinations.

Dual Cisco SCE8000 Topology (Cascade)

In this topology, two cascaded Cisco SCE8000s are used. This allows a fail-over solution, where in case of a failure of one Cisco SCE8000 the functionality that the Cisco SCE8000 provides is preserved by the redundant platform.

This topology allows both control and monitoring functionality where redundancy is required and “inline” connection is used. The two Cisco SCE8000s are cascaded, so the primary Cisco SCE8000 processes the traffic of the two links, while the secondary Cisco SCE8000 only bypasses the traffic of its links to the primary Cisco SCE8000 for processing, and then bypasses the processed traffic back to the link. The two Cisco SCE8000s also exchange keep-alive messages and subscriber state information.

In case the primary Cisco SCE8000 fails, the two Cisco SCE8000s switch their roles, and this way fail-over is provided.

Figure 3-6 Two Cascaded Cisco SCE8000 Platforms

3-6

This fail-over solution preserves the Cisco SCE8000 functionality and the network link:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

4+1

SCE8000s

270877

Cisco 7600

40Gig

Subscribers

Internet

• The two Cisco SCE8000s are simultaneously aware of the subscriber contexts, and subscriber states

are constantly exchanged between them, such that if the primary Cisco SCE8000 fails, the secondary can take over with minimum state loss.

• When one Cisco SCE8000 fails (depending on the type of failure) its link traffic is still bypassed to

the functioning Cisco SCE8000 and processed there, so the traffic processing continues for both the links.

• The bypass of the traffic through the failed Cisco SCE8000 is configurable, and the user may choose

to always cutoff the line that goes through the failed Cisco SCE8000. In this case network redundancy protocols like HSRP are responsible for identifying the line cutoff and switching all the traffic to go through the functioning Cisco SCE8000.

• In addition, it is possible to configure the Cisco SCE8000 to use the external optical bypass device

so that in the event of any failure of the Cisco SCE8000, it will be used to provide link continuity. This ensures 100% link continuity at the expense of providing asymmetric routing functionality.

Multi-Gigabit Service Control Platform (MGSCP) Topology

In this topology, multiple Cisco SCE8000 platforms are connected to a Cisco 7600 Series router, which acts as a dispatcher between the platforms. The router contains two EtherChannels (ECs), one for the subscriber side and one for the network side, that perform load balancing for the SCE platform traffic. Traffic enters the first router, is distributed between the SCE platforms by the subscriber-side EC and then returns to the router so it can be forwarded to its original destination.

Physical Topologies

Figure 3-7 Basic MGSCP Topology

There are a number of variables to be considered in the MGSCP topology. Two of the main factors to be considered include:

• Type of SCE Platform Redundancy, page 3-8

• Redundant Cisco 7600 Series Router, page 3-8

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-7

Physical Topologies

Internet

4+1

SCE8000s

270883

40Gig

Subscribers

Cisco 7600

Type of SCE Platform Redundancy

• All Active

All ports in the EC and all SCE platforms are active. If there is a failure in one of the SCE platforms, the links on the related ports in the EC will be down and the EC will automatically exclude it from the load distribution. The load will then be distributed between the remaining active SCE platforms.

Since the Cisco SCE8000 supports two links, this configuration requires one SCE platform per two links (two EC ports).

• N+1

'N' SCE platforms are active and one platform is on standby. The EC ports connected to the standby SCE platform must be configured as standby ports. In the case of failure of one of the SCE platforms, the EC ports connected to the failing SCE platform are shut and the standby EC ports, connected to the standby SCE platform, will be activated.

Since the Cisco SCE8000 supports two links, this configuration requires one SCE platform per two links (two EC ports), plus one extra SCE platform for standby.

Note that the standby SCE platform must be connected to the two highest-numbered ports, since EC behavior automatically designates these as the standby ports.

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Redundant Cisco 7600 Series Router

Two Cisco 7600 Series routers can be used to provide network redundancy.

In this topology, one link on each Cisco SCE8000 platform is connected to each router. Therefore, one SCE platform is required for each link.

Figure 3-8 MGSCP with Redundant Router

3-8

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Link Continuity

The internal bypass mechanism of the Cisco SCE8000 allows traffic to continue to flow, if desired, even if the device itself is not fully functioning. In addition, the Cisco SCE8000 is designed with the ability to control up to two external optical bypass devices (one per link). This is needed because the internal bypass mechanism cannot maintain traffic flow in all cases.

Note that when the Cisco SCE8000 is connected to the network through an optical splitter, a failure of the Cisco SCE8000 does not affect the traffic flow, as the traffic continues to flow through the optical splitter.

• Internal Bypass Mechanism, page 3-9

• External Optical Bypass, page 3-9

Internal Bypass Mechanism

The Cisco SCE8000 includes a SPA Interface Processor module with a bypass mechanism that is enabled upon Cisco SCE8000 failure.

Link Continuity

The SPA Interface Processor card supports the following three modes:

• Bypass — The bypass mechanism preserves the network link, but traffic is not processed for

monitoring or for control.

• Forwarding — This is the normal operational mode, in which the Cisco SCE8000 processes the

traffic for monitoring and control purposes.

• Cutoff — There is no forwarding of traffic, and the physical link is forced down (cutoff

functionality at layer 1).

The SPA Interface Processor card cannot preserve the link in the following circumstances:

• During platform reboot (SW reload), there is a 5-second period (at most) during which the link is

forced down (cutoff functionality).

• During a power failure (The Cisco SCE8000 has two power supplies. A power failure occurs only

when both of them fail).

• Under certain types of failure within the SIP module, the SPA cards, or the XFP optic modules.

External Optical Bypass

In installations in which the limitations of the internal bypass are not acceptable, an external optical bypass device can be used to provide dependable link continuity. The external optical bypass device can be installed either inside the Cisco SCE8000 chassis or be rack-mounted externally. The external optical bypass device can also be controlled manually by specific CLI commands.

OL-16478-02

Under normal operating conditions, traffic flows through the link as usual, with the exception that the optical bypass module sits on the link.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-9

Link Continuity

OPB

270904

OPB

Subscriber 1

Subscriber 2

3/0/0

3/2/0

3/1/0

3/3/0

Network 1

Network 2

OPB

Subscriber 1

Network 1

Network 2

3/0/0

3/2/0

3/1/0

3/3/0

Subscriber 2

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Figure 3-9 Optical Bypass Under Normal Operating Conditions

If the SCE8000 platform fails, traffic flows through the optical bypass module, bypassing the SCE8000, so that traffic on the link is maintained

Figure 3-10 Optical Bypass Under Failure Conditions

Note In cascade configuration, installation of the optical bypass module is required

This optical bypass module can be added to link without altering the basic characteristics of the topology. (The installation procedure and the actual connections are somewhat different when the optical bypass module is used, see Optical Bypass Module Connectivity, page 6-8.)

For more information regarding the external bypass module, refer to The Cisco SCE8000 Optical

Bypass, page 2-8.

3-10

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Topology-Related Parameters

Refer to the following sections to determine the correct values for all topology-related parameters before beginning to run the initial setup of the Cisco SCE8000.

• Connection Mode Parameter, page 3-11

• Physically Connected Links Parameter, page 3-12

• Priority, page 3-12

• On-Failure Mode Parameter, page 3-12

There are four topology-related parameters:

• Connection mode — Can be any one of the following, depending on the physical installation of the

Cisco SCE8000 (Refer to Connection Mode Parameter, page 3-11):

–

Inline — single Cisco SCE8000 inline

–

Receive-only — single Cisco SCE8000 receive-only

–

Inline-cascade — two inline Cisco SCE8000 platforms cascaded

–

Receive-only-cascade — two receive-only Cisco SCE8000 platforms cascaded

• Physically-connected-links — In cascaded configurations, this parameter defines the number of the

link connected to the Cisco SCE8000 platform being configured. (Refer to Physically Connected

Links Parameter, page 3-12.)

Topology-Related Parameters

It is applicable only in a cascade topology.

• Priority — This parameter defines which is the primary Cisco SCE8000 (Refer to Priority,

page 3-12.)

It is applicable only in a cascade topology

• On-failure — This parameter determines whether the system cuts the traffic or bypasses it when the

Cisco SCE8000 either has failed or is booting. Traffic bypass can be achieved either through the external optical bypass device or through the internal bypass mechanism of the SPA interface processor. It is not applicable to receive-only topologies. (Refer to On-Failure Mode Parameter,

page 3-12.)

These parameters are configured via the connection-mode command.

Connection Mode Parameter

The connection mode parameter refers directly to the physical topology in which the Cisco SCE8000 is installed. The connection mode depends on two factors:

• Inline/Receive-only:

–

Inline — The Cisco SCE8000 resides on the data link between the subscriber side and the network side, thus both receiving and transmitting packets.

–

Receive-only — The Cisco SCE8000 does not reside physically on the data link. Data is forwarded to the Cisco SCE8000 via an external optical splitter. The Cisco SCE8000 itself receives only and does not transmit.

• Cascade — Indicates a two Cisco SCE8000 topology where the two Cisco SCE8000 platforms are

connected via the cascade ports.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-11

Topology-Related Parameters

The connection mode parameter is determined by the physical deployment of the Cisco SCE8000, as follows:

• Single Cisco SCE8000 inline installation = Inline connection mode.

• Single Cisco SCE8000 optical splitter installation = Receive-only connection mode.

• Two-platform cascaded Cisco SCE8000 inline installation = Inline-cascade connection mode.

• Two-platform cascaded Cisco SCE8000 optical splitter installation = Receive-only-cascade

connection mode

Physically Connected Links Parameter

A cascade topology supports two traffic links. This parameter defines which link is connected to which Cisco SCE8000 platform. The links are designated as follows:

• Link 0

• Link 1

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

Priority

In a cascade topology, the user must define the priority of each Cisco SCE8000.

• Primary — The Primary Cisco SCE8000 is active by default

• Secondary — The Secondary Cisco SCE8000 is the default standby.

Note that these defaults apply only when both devices are started together. However, if the primary Cisco SCE8000 fails and then recovers, it will not revert to active status, but remains in standby status, while the secondary device remains active

On-Failure Mode Parameter

The on-failure mode parameter configures the action taken by a failed box when a failure is detected.

As described in the section Internal Bypass Mechanism, page 3-9, the SPA Interface Processor card supports three different modes. The Bypass and Cutoff modes are possible when the Cisco SCE8000 is not operational due to platform failure or boot. The Forwarding mode enables control of traffic flow and is not compatible with the non-operational status.

The following on-failure modes are possible:

• Bypass — The SPA interface card forwards traffic between the two ports of each link with no

intervention of the control application running in the Cisco SCE8000 platform. This is also known as 'electrical bypass'.

In a cascade setup, this allows the traffic of the link connected to the failed box to be passed to the active box for processing.

3-12

• Cutoff — There is no forwarding of traffic. The link is forced down, resulting in traffic cutoff at

Layer1.

• External-bypass – The external optical bypass device is used to bypass traffic, maintaining link

continuity at all times.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

In a single Cisco SCE8000 topology, the value of this parameter is determined by whether or not the link can be completely cut when the Cisco SCE8000 fails, or whether traffic flow should continue across the link in spite of platform failure. In the latter case, the External-bypass mode is the recommended setting, and is therefore the default value for the on-failure mode parameter.

In a dual cascaded Cisco SCE8000 topology, the default on-failure mode is Bypass, since it preserves full traffic processing functionality on both links in most single box failures (as long as the SPA interface card is functioning properly).

• Cutoff mode is suggested for the following:

–

Non-redundant inline topology if value-added services (such as security) are crucial and are more important than maintaining connectivity.

• Bypass mode is suggested for the following:

–

Non-redundant inline topology if connectivity is of high importance.

–

In redundant inline setups, if cutoff or traffic loss on a single link for a period of up to ten minutes (during a rare event of a SPA interface card failure) can be tolerated.

• External-bypass mode is suggested for the following:

–

Non-redundant inline topology if connectivity is crucial.

Asymmetric Routing Topology

–

Redundant inline setups, if connectivity is crucial. Note that when this mode is used, the link connected to the failed box is not serviced, and the other link operates with asymmetric routing functionality.

Asymmetric Routing Topology

In some Service Control deployments, asymmetrical routing occurs between potential service control insertion points. Asymmetrical routing can cause a situation in which the two directions of a bi-directional flow pass through different SCE platforms, resulting in each SCE platform seeing only one direction of the flow (either the inbound traffic or the outbound traffic).

This problem is typically solved by connecting the two SCE platforms in cascade mode (or through an MGSCP cluster), thereby making sure that both directions of a flow run through the same SCE platform. However, this is sometimes not feasible, due to the fact that the SCE platforms sharing the split flow are geographically remote (especially common upon peering insertion). In this type of scenario, the asymmetric routing solution enables the SCE platform to handle such traffic, allowing SCA BB to classify traffic based on a single direction and to apply basic reporting and global control features to uni-directional traffic.

Asymmetric Routing and Other Service Control Capabilities

Asymmetric routing can be combined with most other Service Control capabilities, however there are some exceptions.

OL-16478-02

Service Control capabilities that cannot be used in an asymmetric routing topology include the following:

• Subscriber redirect

• Subscriber notification

• Any kind of subscriber integration. (Use subscriber-less mode or anonymous subscriber mode

instead)

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

3-13

Asymmetric Routing Topology

Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters

3-14

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

CHA PTER

Installing the Cisco SCE8000 Chassis

This chapter describes how to install a Cisco SCE8000 chassis.

Warning

Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information for the Cisco SCE8000 Platform. This guide contains important safety information you should know before working with the system.

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.

The plug-socket combination must be accessible at all times because it serves as the main disconnecting device.

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

There is the danger of explosion if the battery is replaced incorrectly. The battery is not a user-serviceable part.

OL-16478-02

Warning

Class 1 laser product.

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-1

Preparing for Installation

Chapter 4 Installing the Cisco SCE8000 Chassis

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

• Preparing for Installation, page 4-2

• Installing the Cisco SCE8000 Chassis in the Rack, page 4-12

• Connecting the System Ground, page 4-16

• Installing the Power Supplies in the Cisco SCE8000 Chassis, page 4-18

Preparing for Installation

• Safety, page 4-2

• Site Requirements, page 4-2

• Power Connection Guidelines, page 4-4

Safety

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

Read the installation instructions before connecting the system to the power source.

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations.

Site Requirements

This section provides site power requirements for the Cisco SCE8000 chassis. You should verify the site power prior to installation.

• Preventing Electrostatic Discharge Damage, page 4-3

• Environmental Requirements, page 4-3

• Power Requirements, page 4-3

4-2

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. Port adapters and blades consist of printed circuit boards that are fixed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap during handling.

Following are guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

• Connect the equipment end of the strap to an unfinished chassis surface.

• When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane or midplane. These devices prevent accidental removal, provide proper grounding for the system, and help to ensure that bus connectors are properly seated.

• When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed component board-side-up on an antistatic surface or in a static shielding container.

If you plan to return the component to the factory, immediately place it in a static shielding container.

Preparing for Installation

• Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be

between 1 and 10 megohm (Mohm).

Environmental Requirements

Ensure adequate spacing between racks using the information in the following table. Keep all of the vents clear of obstructions, including dust and foreign conductive material, and away from the exhaust ports of other equipment.

Table 4-1 Chassis Airflow Requirements

Airflow Intake Airflow Exhaust Air Filter Option

Right side Left side Not applicable 6 in (15 cm) 12 in (30.5)

Power Requirements

Minimum Clearance (walls)

Minimum Horizontal Separation

OL-16478-02

Warning

Read the installation instructions before connecting the system to the power source.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-3

Preparing for Installation

Follow these requirements when preparing your site for the Cisco SCE8000 installation:

• The redundant power configuration provides a second, identical power supply to ensure that power

to the chassis continues uninterrupted if one power supply fails or input power on one line fails.

• Connect each of the two power supplies to a separate input power source. If you fail to do this, your

system might be susceptible to total power failure due to a fault in the external wiring or a tripped circuit breaker.

• To prevent a loss of input power, be sure that the total maximum load on each circuit supplying the

power supplies is within the current ratings of the wiring and breakers.

• In some systems, you might use an uninterruptible power supply (UPS) to protect against power

failures at your site. Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems like the Cisco SCE8000, which can have substantial current draw fluctuations due to bursty data traffic patterns.

Power Connection Guidelines

This section provides the guidelines for connecting the Cisco SCE8000 AC and DC power supplies to the site power source.

Chapter 4 Installing the Cisco SCE8000 Chassis

• AC-Powered Systems, page 4-4

• DC-Powered Systems, page 4-10

• Site Planning Checklist, page 4-11

AC-Powered Systems

• Each chassis power supply should have its own dedicated branch circuit.

• The circuit must be protected by a dedicated two-pole circuit breaker.

For North America, the circuit breaker should be rated at 20A.

For everywhere else, the circuit breaker should be sized according to the power supply input rating and local or national code requirements.

• The AC power receptacles used to plug in the chassis must be the grounding type. The grounding

conductors that connect to the receptacles should connect to protective earth ground at the service equipment.

Warning

Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

4-4

Warning

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

The plug-socket combination must be accessible at all times because it serves as the main disconnecting device.

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations.

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Table 2-5 lists the AC-input power cord options, specifications, and Cisco product numbers for the 2700 W AC-input power supplies. Table 2-5 also references power cord illustrations.

Table 4-2 AC-Input Power Cord Options

Locale Part Number Length Plug Rating

North America (locking)

Europe CAB-GSR16-EU(=)14 feet (4.3m) 250VAC, 16A Figure 4-1

Preparing for Installation

Power Cord Reference Illustration

CAB-GSR16-US(=)14 feet (4.3m) 250VAC, 20A Figure 4-1

International CAB-AC16A-90L

14 feet (4.3m) 250VAC, 16A Figure 4-1

-IN(=)

China CAB-AC16A-CH=14 feet (4.3 m) 250VAC, 16A Figure 4-2

Continental Europe

International CAB-AC-2500W-I

CAB-AC-2500WEU=

14 feet (4.3 m) 250VAC, 16A Figure 4-3

14 feet (4.3 m) 250VAC, 16A Figure 4-4

NT=

Israel CAB-AC-2500W-I

14 feet (4.3 m) 250VAC, 16A Figure 4-5

SRL=

Japan, North America

CAB-AC-2500WUS1=

14 feet (4.3 m) 250VAC, 16A Figure 4-6

(nonlocking plug) 200–240VAC operation

Japan, North America (locking

CAB-AC-C6K-T WLK=

14 feet (4.3 m) 250VAC, 16A Figure 4-7

plug) 200–240VAC operation

Japan, North

CAB-7513AC= 14 feet (4.3 m) 125VAC, 20A Figure 4-8 America 100–120VAC operation1

South Africa CAB-7513ACSA= 14 feet (4.3 m) 250VAC, 16A Figure 4-9

Switzerland CAB-ACS-16= 14 feet (4.3 m) 250VAC, 16A Figure 4-10

Australia, New

CAB-AC-16A-AUS=14 feet (4.3 m) 250VAC, 16A Figure 4-11 Zealand

Power Distribution

CAB-C19-CBN 14 feet (4.3 m) 250VAC, 16A Figure 4-12 Unit (PDU(=)*

OL-16478-02

*The PDU power cable is designed for users who power their switch from a PDU. The end of the cable that plugs into the Cisco SCE8000 chassis has a C19 connector; the other end of the cable that plugs into the PDU has a C20 connector.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-5

Preparing for Installation

68142

Europe

VIIG plug

CEE (7) VII (16A)

Appliance coupler

C19W coupler

Hot EN60320/C19 (20A)

North America (Locking)

(1900W power supply)

NEMA L6-20 plug (20A, 250V)

North America (Non-locking)

(1900W power supply)

NEMA 6-20 plug (20A, 250V)

International (1900W power supply) EN 60309 (16A, 250V)

126792

Cordset rating: 16A, 250V

Length: 14 ft 0 in. (4.26 m)

Plug: GB16C

Connector: IEC

60320-1 C19

Chapter 4 Installing the Cisco SCE8000 Chassis

AC Power Cord Illustrations

This section contains the AC power cord illustrations.

Figure 4-1 AC Power Cord Plugs and Appliance Coupler for the 2700 W Power Supply

4-6

Figure 4-2 CAB-AC16A-CH=

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

Connector: IEC 60320 C19

Plug: CEE 7/7

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

113361

Connector: IEC 60320 C19

Plug: IEC 309

Plug: SI16S3

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

Connector: IEC 60320 C19

Figure 4-3 CAB-AC-2500W-EU=

Figure 4-4 CAB-AC-2500W-INT=

Preparing for Installation

OL-16478-02

Figure 4-5 CAB-AC-2500W-ISRL=

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-7

Preparing for Installation

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

113362

Connector: IEC 60320 C19

Plug: NEMA 6-20

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

113363

Connector: IEC 60320 C19

Plug: NEMA L6-20

Cordset rating: 20 A, 125 V

Length: 14 ft 0 in. (4.26 m)

Connector: IEC 60320 C19

Plug: NEMA 5-20

Chapter 4 Installing the Cisco SCE8000 Chassis

Figure 4-6 CAB-AC-2500W-US1=

Figure 4-7 CAB-AC-C6K-TWLK=

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-8

Figure 4-8 CAB-7513AC=

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

113357

Connector: IEC 60320 C19

Plug: IEC 884

Plug: SEV 5934-2

Type 23

Cordset rating: 16 A, 250 V

Length:

8 ft 2 in. (2.5 m)

113364

Connector: IEC 60320 C19

Cordset rating: 16 A, 250 V

Length: 14 ft 0 in. (4.26 m)

Connector: IEC 60320 C19

Plug: AU20S3

Figure 4-9 CAB-7513ACSA=

Figure 4-10 CAB-ACS-16=

Preparing for Installation

OL-16478-02

Figure 4-11 CAB-AC-16A-AUS

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-9

Preparing for Installation

Cordset rating: 16 A, 250 V

Length: 9 ft 0 in. (2.7 m)

Connector:

IEC 60320 C19

Connector:

IEC 60320 C20

Figure 4-12 CAB-C19-CBN

DC-Powered Systems

Basic guidelines for DC-powered systems include the following:

• Each chassis power supply should have its own dedicated input power source. The source must

comply with the safety extra-low voltage (SELV) requirements in the UL 60950, CSA 60950, EN 60950, IEC 60950 standards.

• The DC supplies each have the provision for a dual connection to the power source in order to permit

high-power operation without exceeding current ratings. For the SCE8000, it is not necessary to connect both of these inputs to DC power sources; it is sufficient to connect only the '1' connections.

• Each circuit must be protected by a dedicated two-pole circuit breaker. The circuit breaker should

be sized according to the power supply input rating and local or national code requirements.

Chapter 4 Installing the Cisco SCE8000 Chassis

• The circuit breaker is considered the disconnect device and should be easily accessible.

• The system ground is the power supply and chassis ground.

Caution Do not connect the DC-return wire to the system frame or to the system grounding equipment.

4-10

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Site Planning Checklist

Table 2-6 lists the site planning activities that you should perform prior to installing the Cisco SCE8000 chassis. Completing each activity helps ensure a successful installation.

Table 4-3 Site Planning Checklist

Task No. Planning Activity Verified By Time Date

1 Space evaluation:

2 Environmental evaluation:

Preparing for Installation

Space and layout

Floor covering

Impact and vibration

Lighting

Maintenance access

Ambient temperature

Humidity

Altitude

Atmospheric contamination

Airflow

3 Power evaluation:

Input power type

Power receptacles

Receptacle proximity to the equipment

Dedicated (separate) circuits for redundant power supplies

UPS for power failures

DC systems: Proper gauge wire and lugs

4 Grounding evaluation:

Circuit breaker size

CO ground (AC- and DC-powered systems)

5 Cable and interface equipment evaluation:

Cable type

Connector type

Cable distance limitations

6 EMI evaluation:

OL-16478-02

Distance limitations for signaling

Site wiring

RFI levels

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-11

Chapter 4 Installing the Cisco SCE8000 Chassis

Installing the Cisco SCE8000 Chassis in the Rack

This section describes how to install a Cisco SCE8000 platform in a rack. For first-time installations, perform the procedures in the following sections in the order listed:

• Unpacking the Cisco SCE8000 Chassis, page 4-12

• Installation Guidelines, page 4-12

• Required Tools, page 4-13

• Installing the Chassis Brackets, page 4-13

• Installing the Chassis in the Rack, page 4-14

• Installing an Optical Bypass Module, page 4-15

Note Before starting the installation procedures in this chapter, see the Site Planning Checklist,

page 4-11section to verify that all site planning activities were completed.

Unpacking the Cisco SCE8000 Chassis

Tip Do not discard the shipping container when you unpack the Cisco SCE8000. Flatten the shipping cartons

and store them with the pallet. You will need these containers if you need to move or ship the Cisco SCE8000 in the future.

Perform the following to check the contents of the shipping container:

• Check the contents of the accessories kit against the list of accessories in the Cisco SCE8000

Component List, page 2-14 and the packing slip. Verify that you received all listed equipment,

which should include the following:

–

Hardware and software documentation, if ordered

–

Optional equipment that you ordered, such as network interface cables, transceivers, or special connectors

• Check the modules in each slot. Ensure that the configuration matches the packing list and that all

the specified interfaces are included.

Installation Guidelines

Before installing the chassis, ensure that the equipment rack complies with the following guidelines:

• The width of the rack, measured between the two front mounting strips or rails, must be 17.75 inches

(45.09 cm)

• The depth of the rack, measured between the front and rear mounting strips, must be at least 19.25

inches (48.9 cm) but not more than 32 inches (81.3 cm)

4-12

• The rack must have sufficient vertical clearance to insert the chassis. The height of the Cisco

SCE8000 chassis is 8.7 inches (22.09 cm) (5 RU).

If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

Note We recommend that you maintain a minimum air space of 6 inches (15 cm) between walls and the chassis

air vents and a minimum horizontal separation of 12 inches (30.5 cm) between two chassis to prevent overheating.

The installation hardware is not suitable for use with racks with obstructions (such as a power strip) that could impair access to field-replaceable units (FRUs).

Installing the Cisco SCE8000 Chassis in the Rack

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: >This unit should be mounted at the bottom of the rack if it is the only unit in the rack. >When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack. >If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

Required Tools

These tools and equipment are required to install the chassis in the rack:

• Number 1 and number 2 Phillips-head screwdrivers

• 3/16-inch flat-blade screwdriver

• Tape measure and level

• Masking tape or some other method of marking the desired installation height in the rack

Installing the Chassis Brackets

The chassis is shipped with the mounting brackets installed on the front of the chassis. These brackets can be installed on the rear of the chassis.

To install the brackets on the rear of the chassis, perform these steps:

OL-16478-02

Step 1 Remove the screws that secure the brackets to the chassis.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-13

Installing the Cisco SCE8000 Chassis in the Rack

STATUS

SCM

SIP

SCE

8000

-F

SYSTEM

WER

OPT

I CAL BYPASS

T A

T US

AUX

POR

LINK ACTIVE

MAST

SCE80

00 EX

T E

DED

SERVIC

C ON

U L

OPTIC

A L

ICA

ASS

C ON

100

0 0

L I NK

A CTIVE

CTR

OPB

SCE8

K-MM

OPT

AL BYP

TUS

CTRL

PB-SC

E8K

-MM

OPT

ICAL B

ASS

S YS

P OW

OPT

I CAL B

Y PASS

T A

T US

0 10

0 00

INK

C T

I V

S TE

SCE80

00 EX

T E

SERVI

C ON

ODUL

C E8

0 00-

M-E

C E8

0 00-SC

M-E

SCE

00 0-

S IP

C ON

1 0

100

LI NK

A CTI

O R

YPASS

TICA

ASS

S PA

- 1 X

1 0

G E

-L

- V

TATU

TIVE

S PA

- 1 X

1 0

G E

-L

- V

S PA

- 1X

10GE

- L

- V

S P

- 1X

1 0GE-

- V

1 0

100

1 0

0 0

270890

Figure 4-13 Brackets on Cisco SCE8000 Chassis

Chapter 4 Installing the Cisco SCE8000 Chassis

Step 2 Position one of the brackets against the chassis side, and align the screw holes.

Step 3 Secure the bracket to the chassis with the screws removed in Step 1.

Step 4 Repeat Steps 2 and 3 for the other bracket.

Installing the Chassis in the Rack

Caution To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the

handles on modules (such as power supplies, fans, or cards); these types of handles are not designed to support the weight of the unit. Lift the unit only by grasping the chassis underneath its lower edge.

To install the Cisco SCE8000 chassis in the equipment rack, perform these steps:

Step 1 Position the chassis in the rack as follows:

• If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between

the mounting posts.

• If the rear of the chassis is at the front of the rack, insert the front of the chassis between the

mounting posts.

4-14

Step 2 Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the

equipment rack.

Step 3 Use a tape measure and level to choose and mark the position that the chassis is to be installed in the

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

rack. Make a mark at equal height on both sides of the rack. This will help ensure that the chassis will be installed straight and level.

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

270891

N STATUS

S CM

E8000-FAN

S Y

T E

M P

OPTIC

BYP

AUX

ORT

L I

N K

A CTIV

SCE8000

E N D

E D

S E

VIC

CONT

M O

DULE

O P

T ICAL

P ASS

P T

ICAL

1 0

0 10 0

LIN

ACT

I V E

PORT

TAT

T R

-S C E8K

I CAL BYP

T X

R X

A TUS

CTRL

-SC E8K-

L BY

PAS

T X

R X

E M

OPTIC

BYPA

A TU

POR

1 0

0 0

C T

I V

SCE8

0 E

N D

E D

S E

C E

C O N

T R

M ODUL

0 0

-S C M-E

0 0

-S C M

-E

8 0 0

-SIP

1 0

0 10 0

L I N

ACT

IVE

PORT

O P

T ICA

BYP

ASS

OPTICAL BYPAS

STA

TUS

IVE/

S P

- 1X10

E-

- V2

STA

VE/

S P

- 1X

E-L

-V 2

STA

- 1X10

G E-

L-V2

STAT

P A

- 1X10G

E-L-

1 0

0 1 0 0

Figure 4-14 Installing the Cisco SCE8000 Chassis in the Rack

Installing the Cisco SCE8000 Chassis in the Rack

Step 4 Install the eight (four per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the

bracket and into the threaded holes in the equipment rack posts.

Step 5 Use a tape measure and level to verify that the chassis is installed straight and level.

Installing an Optical Bypass Module

There are two installation options for the external bypass modules:

• Chassis mount panel—This panel is mounted on slot #4 of the SCE8000 chassis. It hosts two optical

• External mounting panel—This panel can be mounted in any 19" rack. It hosts up to four optical

bypass modules, which will serve the two traffic links supported by one Cisco SCE8000 chassis.

bypass modules, which will serve the four traffic links supported by two Cisco SCE8000 platforms.

Step 1 For external mounting, install the external mounting panel in the 19" rack. Screw the mounting panel to

the rack using four 3/4-inch screws, two on each side, through the holes in the mounting panel and into the threaded holes in the rack posts.

For internal mounting, the SCE8000 chassis will be shipped with the chassis mounting panel already installed in slot #4.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-15

Connecting the System Ground

270994

FAN STATUS

00-F

S T

POW

YPA

TATU

R T

L INK

I VE

STE

SCE8

000 EXT

SER

VIC

C O

N T R

MODUL

T ICAL

BYPASS

PTI

A L

BYPASS

SOLE

100 10 0

L I NK

ACT

IVE

PORT

E M

P A

TATU

U X

POR

100

C T

I V

SCE800

0 EXTEN

C O

NTR

M O

L E

SCE8

0 0

-S C M-

SCE8

0 0

-S C M-

SCE800

-S

I P

SOLE

100 10 0

L I NK

ACT

IVE

PORT1

T ICAL

OPTICA

S S

STATUS

E/L

S PA

-1 X

1 0

-L

- V

S PA

- 1 X

1 0

-L

- V2

IVE

/LINK

-1 X

0 G

- L-V2

/LINK

- 1 X

0 G

- L-V2

1 0

0 1 0 0

Step 2 Remove the module filler plate covering the subslot in the mounting panel by loosening the two screws.

Step 3 Carefully insert the optical bypass module into the subslot (there are no guide rails) and tighten the

captive screws on either side of the module.

Figure 4-15 Optical Bypass Modules in External Mounting Panel

Chapter 4 Installing the Cisco SCE8000 Chassis

Connecting the System Ground

Note You must connect the system ground on both AC- and DC-powered systems to an earth ground if this

This section describes how to connect a system (earth) ground to the Cisco SCE8000 chassis.

equipment is installed in a US or European Central Office.

Note For DC-powered systems, the system ground is also the power supply ground. The DC ground must be

installed with a permanent connection to an earth ground according to NEC guidelines.

Two threaded M4 holes are provided on the chassis frame to attach the ground cable.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-16

OL-16478-02

Chapter 4 Installing the Cisco SCE8000 Chassis

You must complete this procedure before connecting system power or turning on the Cisco SCE8000 chassis.

Required Tools and Equipment

To connect the system ground, you need the following tools and materials:

• One grounding lug.

• Two M4 (metric) hex-head screws with locking washers.

Note The grounding lug and M4 hex-head screws with locking washers are provided in kit 69-0815-01.

• One grounding wire.

The grounding wire must be sized according to local and national installation requirements. Depending on the power supply and system, a 12 AWG conductor or larger size wire is required for U.S. installations.

• Number 2 Phillips-head screwdriver.

• Crimping tool (must be large enough to accommodate the girth of the grounding lug when crimping

the grounding cable into the lug).

Connecting the System Ground

• Wire-stripping tool.

Step 1 Use a wire-stripping tool to remove approximately 0.75 inch (19 mm) of the covering from the end of

the grounding wire.

Step 2 Insert the stripped end of the grounding wire into the open end of the grounding lug.

Step 3 Use the manufacturer recommended crimping tool to secure the grounding wire in place in the grounding

lug.

Step 4 Locate and remove the adhesive label from the system grounding pad on the chassis.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

4-17

Installing the Power Supplies in the Cisco SCE8000 Chassis

FAN

ATUS

SCM

I P

-FA N

S YSTE

M PO

I C

P A

S T

A T

AUX

T 2

L INK

A CT

I V

STER

SCE8

0 00 E

X T

D E

D SERVI

TROL

O D

OPT

I C

P AS

TICAL

A SS

CON

S OL

1 0

100

1 0

0 0

L INK

A CTI

POR

TUS

SCE8

I C

BYPA

-S C

-M M

ICA

YST

P O

I C

AL BY

P A

A T

1 0

0 0

I N K

C T

I V

SCE8

000

X T

D E

D SERVI

TRO

L M

O D

E 8

M-

E80

M-

SCE800

0-S

CON

S OL

1 0

100

1 0

0 0

INK

CTI

POR

OPTIC

BYP

ASS

S PA

- 1 X

0 G

- L-V

TATUS

VE/LI

S PA

- 1 X1

0 G

- L

-V 2

VE/

S P

- 1 X1

G E

- L

-V 2

VE/

LINK

S P

- 1 X1

G E

- L

-V 2

1 0

0 1 0

270892

System ground

connector

System ground

connector

Grounding

lug

Wire

Figure 4-16 Installing the System Ground

Chapter 4 Installing the Cisco SCE8000 Chassis

Step 5 Place the grounding wire lug against the grounding pad, making sure there is solid metal-to-metal

contact.

Step 6 Secure the grounding lug to the chassis with two M4 screws. Ensure that the grounding lug will not

interfere with other hardware or rack equipment.

Step 7 Prepare the other end of the grounding wire, and connect it to an appropriate grounding point in your

site to ensure adequate earth ground for the Cisco SCE8000 chassis.

Installing the Power Supplies in the Cisco SCE8000 Chassis

The SCE8000 chassis is shipped with the power supplies (AC or DC) already installed. Should it be necessary to install a power supply module, refer to Removing and Replacing the Power Supply,

page 9-3.

4-18

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Connecting the Management Interfaces

This chapter explains how to connect the SCE8000 Service Control Module (SCE8000-SCM-E) to a local console and perform the initial system configuration via the setup wizard that runs automatically.

Additionally, this chapter contains instructions for cabling the Gigabit Ethernet Management interfaces.

The Console interface (CON) as well as the Gigabit management interface (Port1) are located on the SCE8000-SCM-E located in slot# 1 of the Cisco SCE8000 chassis (see Service Control Module

(SCE8000-SCM-E), page 2-2).

• How to Set Up the Local Console, page 5-1

• Initial Setup Parameters, page 5-2

• Connecting the Management Interface, page 5-4

How to Set Up the Local Console

CHA PTER

Even if you will be managing the Cisco SCE8000 from a remote location, you must first connect the unit to a local console and configure the initial settings for the Cisco SCE8000 to support remote management. When the initial connection is established, the setup utility will run automatically, prompting you to perform the initial system configuration.

This section provides instructions for setting up your local terminal at your workstation, to enable you to perform the initial system configuration of the Cisco SCE8000 system using the setup utility.

Make sure that the terminal configuration is as follows:

• 9600 baud

• 8 data bits

• No Parity

• 1 stop bits

• No flow control

The above Cisco SCE8000 port parameters are fixed and are not configurable.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

5-1

Initial Setup Parameters

270976

CE8000-SCM-E

00/

INK

IVE

OPTICAL BYPASS1

CONSOLE

PORT1

Step 1 Plug the RS-232 serial cable provided with the Cisco SCE8000 into the CON port on the front panel of

Chapter 5 Connecting the Management Interfaces

the SCE8000-SCM-E. (See item #2 in Figure 5-1 below.)

Figure 5-1 Connecting the Local Console to the SCE8000-SCM-E CON Port

Make sure that you push on the RJ-45 connector (attached to the RS-232 serial cable) until you hear a “click”, which indicates that the connector is fully inserted and secured in the receptacle. Gently pull on the plug to confirm whether the plug is locked into the socket.

Step 2 Connect the other end of the serial cable (with an attached DB-9 or DB-25 connector) to the VT100

compatible local (serial) terminal.

Step 3 Make sure the local terminal is configured as a VT-100 terminal, according to the fixed Cisco SCE8000

CON port parameters.

Step 4 Make sure that the Cisco SCE8000 is powered-on, and has been allowed to complete booting (this

process may take several minutes).

Step 5 Press Enter several times until the Cisco logo appears on the local terminal.

Initial Setup Parameters

At this point there are several basic global parameters that must be correctly configured in order for the SCE platform to communicate properly with the outside world. The following is a very brief summary of the initial setup parameters and commands. For more information, refer to the Cisco SCE8000

Software Configuration Guide.

• IP address and subnet mask of the Cisco SCE8000 platform itself. This is the IP address used by the

GBE management interface.

• IP address of the default gateway.

• Hostname—The hostname is used to identify the SCE platform. It appears as part of the CLI prompt

and is also returned as the value of the MIB-II object sysName.

5-2

–

The maximum length is 20 characters.

–

The default hostname is SCE8000.

• Passwords for user, admin and root level access. These are authorization-level passwords, not

individual passwords. These passwords may be encrypted.

Passwords must meet the following criteria:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 5 Connecting the Management Interfaces

–

Minimum length — 4 characters

–

Maximum length — 100 characters

–

Begin with an alpha character

–

May contain only printable characters

• The default password for all levels is cisco.

• System clock— Current date and time. The clock and the calendar must always be synchronized.

• Time zone—The name or ID of the time zone along with the number of hours offset from UTC.

• Domain name server—Default domain name, which is used to complete unqualified host names, as

well as up to three domain name servers, which are used for DNS lookup.

You must also enable DNS lookup.

• RDR formatter destination—The SCE platform generates Raw Data Records and sends them to the

specified destinations (external collection systems) via the RDR formatter. You can configure up to eight RDR formatter destinations. Specify the IP address and port number for each destination.

The following table lists commands both for displaying the currently configured values and for configuring these parameters. It also lists the command mode for each configuration command. All show commands are executed from the User Exec command mode.

Initial Setup Parameters

Table 5-1 Initial Setup Configuration

configuration command

Parameter show command configuration command

Management IP address and subnet mask

show interface GigabitEthernet 1/1 ip address

ip address x.x.x.x subnet-mask GigabitEthernet

mode

Interface Configuration

Default gateway show ip default-gateway ip default-gateway x.x.x.x Global Configuration

Hostname show hostname hostname host-name Global Configuration

Authorization level passwords

Clock show clock

N/A enable password level level

[encryption-type] password

calendar set hh:mm:ss day month

show calendar

year

clock read-calendar

Global Configuration

Privileged EXEC

clock set hh:mm:ss day month year clock update-calendar

Time zone show timezone clock timezone zone-name

Global Configuration

offset-hours

Domain name server show hosts ip domain-lookup

Global Configuration

RDR formatter destination

OL-16478-02

ip domain-name domain-name

ip name-server server-address1

[server-address2] [server-address3]

show rdr-formatter destination rdr-formatter destination

ip-address port port-number

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

Global Configuration

5-3

Connecting the Management Interface

270976

CE8000-SCM-E

00/

INK

ACTIVE

OPTICAL BYPASS1

CONSOLE

PORT1

Connecting the Management Interface

The SCE8000-SCM-E is equipped with one active RJ-45 management port. This port provides access from a remote management console to the Cisco SCE8000 via a LAN.

The procedures for cabling the GBE management port and testing connectivity between the Cisco SCE8000 and the remote management host are explained in the following sections.

• How to Cable the Management Port, page 5-4

• How to Verify Management Interface Connectivity, page 5-5

How to Cable the Management Port

The SCE8000-SCM-E has one GBE port that is used as the management port, located in slot# 1 of the Cisco SCE8000 chassis, and labeled Port1.

Step 1 Plug the Ethernet cable provided (with attached RJ-45 connector) into Port 1on the front panel of the

SCE8000-SCM-E. (See item #3 in Figure 5-2 below.)

Chapter 5 Connecting the Management Interfaces

Figure 5-2 Cabling the Management Port

5-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 5 Connecting the Management Interfaces

Step 2 Connect the other end of the Ethernet cable into your management network.

Make sure that you push on the RJ-45 connector attached to the cable until you hear a click, which indicates that the connector is fully inserted and secured in the receptacle. Gently pull on the plug to confirm whether the plug is locked into the socket.

If the Link LED on the port does not light, try removing the cable and reinserting it firmly into the module socket. To disconnect the plug from the socket, press down on the raised portion on top of the plug, releasing the latch. You should hear an audible click indicating the latch has released. Carefully pull the plug out of the socket.

If the Link LED still does not light, verify that the cable is connected correctly to the appropriate network element on its second end.

How to Verify Management Interface Connectivity

If the Cisco SCE8000 platform has been powered up, test now to verify that connectivity has been established between the Cisco SCE8000 and the remote management host. If the Cisco SCE8000 platform is not powered up, perform this step after starting the Cisco SCE8000 platform.

Connecting the Management Interface

Step 1 After you connect the cable to the GBE management port and to your network, check the relevant Mng

port LEDS.

There are two GBE LEDs — Link/Active, and 10/100/1000 (refer to Service Control Module

(SCE8000-SCM-E), page 2-2).

At this point, check that the Link/Active LED is green.

The state of the 10/100/1000 LED will depend on the Ethernet network settings, as follows:

• Off: 10 Mbps

• Green: 100 Mbps

• Orange: 1000 Mbps

Step 2 Test connectivity. From the host that you intend to use for remote management, ping to the Cisco

SCE8000 by typing ping and the Cisco SCE8000 IP address, and pressing Enter (see the example, below).

Note Note that only this step (Step 2), is performed from the remote management host (connected by LAN to

the Mng port).

This verifies that an active connection exists between the specified station and the management port.

The ping command sends an echo request packet to an IP address and then awaits a reply. Ping output can help you evaluate path-to-host reliability, delays over the path, and whether the host can be reached or is functioning.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

5-5

Connecting the Management Interface

EXAMPLE:

The following example displays a typical ping response where the target IP address is 10.10.10.20.

C:\>ping 10.10.10.20 pinging 10.10.10.20 ... PING 10.10.10.20: 56 data bytes 64 bytes from host (10.10.10.20): icmp_seq=0. time=0. ms 64 bytes from host (10.10.10.20): icmp_seq=1. time=0. ms 64 bytes from host (10.10.10.20): icmp_seq=2. time=0. ms 64 bytes from host (10.10.10.20): icmp_seq=3. time=0. ms

----10.10.10.20 PING Statistics---4 packets transmitted, 4 packets received, 0% packet loss round-trip (ms) min/avg/max = 0/0/0

Chapter 5 Connecting the Management Interfaces

5-6

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

CHA PTER

Cabling the Line Ports and Completing the Installation

This chapter provides instructions for cabling the Cisco SCE8000 10 Gigabit Ethernet ports for single, cascaded, and MGSCP topologies. In a cascade topology, this includes the cascade ports as well as the line ports.

The 10 Gigabit Ethernet ports are located on the 10G SPA modules, which are installed in the SCE8000-SIP module in slot #3 of the Cisco SCE8000 chassis.

Note When installing a cascaded system, it is extremely important to follow the sequence of procedures

outlined in the section Cascaded Systems, page 6-15.

Note When installing an External Optical Bypass module, the Cisco SCE8000 line ports are connected to the

module. See Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module,

page 6-11 for complete instructions.

• Connecting the Line Ports to the Network, page 6-1

• The Optical Bypass Module, page 6-8

• Cabling the 10GBE Line Interface Ports, page 6-9

• How to Load and Activate a Service Control Application, page 6-14

• Cascaded Systems, page 6-15

Connecting the Line Ports to the Network

• Single Link: Inline Topology, page 6-2

• Single Link: Receive-only Topology, page 6-2

• Dual Link: Single Cisco SCE8000 Topologies, page 6-2

• Dual Link: Two Cisco SCE8000s Topology, page 6-3

• Multi-Gigabit Service Control Platforms (MGSCP) Topologies, page 6-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

6-1

Connecting the Line Ports to the Network

Single Link: Inline Topology

In the inline topology, the Cisco SCE8000 resides physically on the 10 GBE (Ten Gigabit Ethernet) link between the subscribers and the network. The subscribers are usually connected through either a BRAS (in DSL access), a PDSN (in wireless access), a CMTS (in the Cable access), or a switch or router aggregator (in other topologies). The network is a router or layer 3 switch network element connecting the Cisco SCE8000 towards the core of the network.

Guidelines for single link inline topologies

• If only two SPA modules are installed (only two SPA modules are required for a single link), they

must be installed in bays 0 and 1 of the SPA jacket card.

• Inline topologies require both Receive and Transmit fibers.

• To maintain link continuity at all times, an optical bypass module should be installed.

Single link inline connectivity

• Port 3/0/0: Link 0, Subscribers side

• Port 3/1/0: Link 0, Network side

Chapter 6 Cabling the Line Ports and Completing the Installation

Single Link: Receive-only Topology

In this topology, an optical splitter unit resides physically on the 10 GBE link that the Cisco SCE8000 should monitor. The optical splitter unit is connected to the Cisco SCE8000 Rx links only. For each link monitored, there will be two Rx connections to the Cisco SCE8000, one for each direction of traffic flow in the link. The traffic passes through the optical splitter, which allows the Cisco SCE8000 to monitor traffic without affecting the normal optic and data path between subscriber and network.

Note Receive-only topologies can also be implemented using a switch. Such a switch must support SPAN

functionality that includes separation between ingress and egress traffic and multiple SPAN-ports destinations.

Guidelines for single link receive-only topologies:

• If only two SPA modules are installed (only two SPA modules are required for a single link), they

must be installed in bays 0 and 1 of the SPA jacket card.

• Receive-only topologies use only Receive fibers.

Single link receive-only connectivity

• Port 3/0/0: Link 0, Split of optic signal transmitted by subscribers side

• Port 3/1/0: Link 0, Split of optic signal transmitted by network side

Dual Link: Single Cisco SCE8000 Topologies

6-2

In this topology, one Cisco SCE8000 is connected to two full duplex, 10GBE links. The Cisco SCE8000 may be either inline, to support both monitoring and traffic control functionality, or receive-only for traffic monitoring functionality only.

Guidelines for dual link topologies:

• SPA modules 0 and 1 are connected to the first link (Link 0)

• SPA modules 2 and 3 are connected to the second link (Link 1)

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

• Dual link inline topologies require both Receive and Transmit fibers.

• Dual link receive-only topologies use only Receive fibers.

• To maintain link continuity at all times on both links when using the inline topology, two optical

bypass modules should be installed.

Dual link connectivity

• Port 3/0/0: Link 0, Subscribers side

• Port 3/1/0: Link 0, Network side

• Port 3/2/0: Link 1, Subscribers side

• Port 3/3/0: Link 1, Network side

Note Receive-only topologies can be implemented using either an optical splitter or a switch. If a switch is

used, it must support SPAN functionality that includes separation between ingress and egress traffic and multiple SPAN-ports destinations.

Dual Link: Two Cisco SCE8000s Topology

Connecting the Line Ports to the Network

In this topology, two Cisco SCE8000s are connected to two full duplex, 10GBE links, providing full redundancy through cascading the two Cisco SCE8000s. The Cisco SCE8000s must be inline.

Note When installing a cascaded system, it is extremely important to follow the sequence of procedures

outlined in Cascaded Systems, page 6-15.

When two Cisco SCE8000s are used, the ports 3/0/0 and 3/1/0 in each Cisco SCE8000 are connected to the links, while ports 3/2/0 and 3/3/0 are the cascade ports that are used for communicating between the two Cisco SCE8000s as follows:

Cisco SCE8000 #1

• Port 3/0/0: Link 0, Subscribers side

• Port 3/1/0: Link 0, Network side

• Port 3/2/0: Cascade, connect to Port 3/3/0 in Cisco SCE8000 #2

• Port 3/3/0: Cascade, connect to Port 3/2/0 in Cisco SCE8000 #2

Cisco SCE8000 #2

• Port 3/0/0: Link 1, Subscribers side

• Port 3/1/0: Link 1, Network side

• Port 3/2/0: Cascade, connect to Port 3/3/0 in Cisco SCE8000 #1

• Port 3/3/0: Cascade, connect to Port 3/2/0 in Cisco SCE8000 #1

OL-16478-02

Inline topologies require connecting both Receive and Transmit fibers to the Cisco SCE8000. Cascade ports always require both Receive and Transmit fibers to be connected.

To maintain link continuity at all times, two optical bypass modules should be installed and the traffic ports should be connected to these bypass modules.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-3

Chapter 6 Cabling the Line Ports and Completing the Installation

Connecting the Line Ports to the Network

Multi-Gigabit Service Control Platforms (MGSCP) Topologies

In this topology, multiple Cisco SCE 8000 platforms are connected to a Cisco 7600 Series router used as a load-balancer (“dispatcher”) between the platforms. Traffic enters the router, is distributed between the Cisco SCE8000 platforms by the router EtherChannel, and returns to the router to be forwarded to its original destination.

General guidelines for MGSCP topologies:

• Since there are two links per Cisco SCE8000 platform, the minimum number of platforms required

is half the number of links used.

• Each link corresponds to one port on the EtherChannel (EC) on the Cisco 7600 Series router. Each

EC supports a maximum of eight active ports. Therefore, if all eight EC ports are configured, four Cisco SCE8000 platforms are required.

• For N+1 redundancy, two additional ports (connected to the standby platform) must be configured

as standby ports on both ECs.

Therefore, for N+1 redundancy, one router and five Cisco SCE8000 platforms would be used to support eight links.

• If two Cisco 7600 Series routers are used (for network redundancy), one link on each Cisco

SCE8000 platform is connected to each router. This requires twice the number of Cisco SCE8000 platforms, one platform for each link.

–

A minimum of eight Cisco SCE8000 platforms are required to support eight ports.

–

For N+1 redundancy, nine Cisco SCE8000 platforms would be used to support eight active links

When cabling to the EC, follow these guidelines:

• The Cisco SCE platform ports MUST be connected to the EC ports in the same order on both sides.

• The EC ports should be sorted in an ascending order by their physical interface numbers.

• In a topology with two Cisco 7600 Series routers, the order of connection to the EC ports must be

the same on both routers. In order for both routers to send the traffic of a given subscriber to the same SCE platform, the SCE platforms must be connected to both routers in exactly the same order (one SCE platform connected to the first link on both routers, another SCE platform connected to the second link on both routers, and so on).

• Refer to MGSCP Connectivity Examples, page 6-4 for specific examples explaining how to connect

the Cisco SCE8000 ports to the EC ports in various topologies.

• Refer to Dual Link: Single Cisco SCE8000 Topologies, page 6-2 and Single Link: Inline Topology,

page 6-2 for further information on specific cabling schemes.

MGSCP Connectivity Examples

• The First Step-Ordering the EC Ports, page 6-5

• Single Router MGSCP Connectivity, page 6-5

• Single Router with N+1 Redundancy MGSCP Connectivity, page 6-5

• Dual Routers MGSCP Connectivity, page 6-6

• Dual Routers with N+1 Redundancy MGSCP Connectivity, page 6-7

6-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

The First Step-Ordering the EC Ports

This section explains how to order the EC ports and assign them to links. This example is the basis for all following examples.

1. Sort the EC ports in an ascending order by their physical interface numbers. Take the following EC

interfaces as an example:

–

EC1 (subscriber side): 0/1, 0/2, 1/3, 1/5

–

EC2 (network side): 2/2, 3/1, 3/2, 3/4

2. Order the ports in subscriber/network pairs according to their order in the ECs (the first port in EC1

(subscriber side) is paired with the first port in EC2 (network side) and so on):

–

Link 1. S=0/1, N=2/2

–

Link 2. S=0/2, N=3/1

–

Link 3. S=1/3, N=3/2

–

Link 4. S=1/5, N=3/4

Single Router MGSCP Connectivity

Four links would require two Cisco SCE8000 platforms. Connect the ordered pairs, each pair of EC ports to a pair of Subscriber/Network ports in a Cisco SCE8000 platform:

Connecting the Line Ports to the Network

• Cisco SCE8000 #1: Links 1 and 2

• Cisco SCE8000 #2: Links 3 and 4

The actual connections might look like this:

• S=0/1, Cisco SCE8000 #1 3/0/0

• N=2/2, Cisco SCE8000 #1 3/1/0

• S=0/2, Cisco SCE8000 #1 3/2/0

• N=3/1, Cisco SCE8000 #1 3/3/0

• S=1/3, Cisco SCE8000 #2 3/0/0

• N=3/2, Cisco SCE8000 #2 3/1/0

• S=1/5, Cisco SCE8000 #2 3/2/0

• N=3/4, Cisco SCE8000 #2 3/3/0

Single Router with N+1 Redundancy MGSCP Connectivity

In order to have N+1 redundancy, we must add one extra SCE platform as the standby platform. We also must add two more ports on each EC to be used as standby ports. In this case, we would use three SCE platforms, two on the traffic links and one for redundancy, which would be connected to the standby ports.

If we added ports 0/3 and 2/3 on EC1 and 2/4 and 4/4 on EC2, the ECs would look like this:

• EC1: 0/1, 0/2, 0/3, 1/3, 1/5, 2/3

• EC2: 2/2, 2/4, 3/1, 3/2, 3/4, 4/4

OL-16478-02

The standby ports must be the two highest-numbered ports:

• EC1 standby ports: 1/5, 2/3

• EC2 standby ports: 3/4, 4/4

The traffic ports would be assigned to the links as follows:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-5

Connecting the Line Ports to the Network

• Link 1. S=0/1, N=2/2

• Link 2. S=0/2, N=2/4

• Link 3. S=0/3, N=3/1

• Link 4. S=1/3, N=3/2

The standby ports would be assigned to the links as follows:

• Link 5 (standby). S=1/5, N=3/4

• Link 6 (standby). S= 2/3, N=4/4

If Cisco SCE8000 #3 is the redundant platform, Links 5 &6 would be connected to it and the actual connections might look like this:

• S=0/1, Cisco SCE8000 #1 3/0/0

• N=2/2, Cisco SCE8000 #1 3/1/0

• S=0/2, Cisco SCE8000 #1 3/2/0

• N=2/4, Cisco SCE8000 #1 3/3/0

• S=0/3, Cisco SCE8000 #2 3/0/0

• N=3/1, Cisco SCE8000 #2 3/1/0

Chapter 6 Cabling the Line Ports and Completing the Installation

• S=1/3, Cisco SCE8000 #2 3/2/0

• N=3/2, Cisco SCE8000 #2 3/3/0

• S=1/5, Cisco SCE8000 #3 3/0/0

• N=3/4, Cisco SCE8000 #3 3/1/0

• S=2/3, Cisco SCE8000 #3 3/2/0

• N=4/4, Cisco SCE8000 #3 3/3/0

Dual Routers MGSCP Connectivity

Four links on each router would require four Cisco SCE8000 platforms. For the sake of simplicity, we assume that the EC ports are the same on both routers.

Connect the ordered pairs, each pair of EC ports to a pair of Subscriber/Network ports in a Cisco SCE8000 platform:

• Cisco SCE8000 #1: Link 1 on both routers

• Cisco SCE8000 #2: Link 2 on both routers

• Cisco SCE8000 #3: Link 3 on both routers

• Cisco SCE8000 #4: Link 4 on both routers

The actual connections might look like this:

• Router 1: S=0/1, Cisco SCE8000 #1 3/0/0

• Router 2: S=0/1, Cisco SCE8000 #1 3/2/0

• Router 1: N=2/2, Cisco SCE8000 #1 3/1/0

6-6

• Router 2: N=2/2, Cisco SCE8000 #1 3/3/0

• Router 1: S=0/2, Cisco SCE8000 #2 3/0/0

• Router 2: S=0/2, Cisco SCE8000 #2 3/2/0

• Router 1: N=3/1, Cisco SCE8000 #2 3/1/0

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

• Router 2: N=3/1, Cisco SCE8000 #2 3/3/0

• Router 1: S=1/3, Cisco SCE8000 #3 3/0/0

• Router 2: S=1/3, Cisco SCE8000 #3 3/2/0

• Router 1: N=3/2, Cisco SCE8000 #3 3/1/0

• Router 2: N=3/2, Cisco SCE8000 #3 3/3/0

• Router 1: S=1/5, Cisco SCE8000 #4 3/0/0

• Router 1: S=1/5, Cisco SCE8000 #4 3/2/0

• Router 1: N=3/4, Cisco SCE8000 #4 3/1/0

• Router 1: N=3/4, Cisco SCE8000 #4 3/3/0

Dual Routers with N+1 Redundancy MGSCP Connectivity

In order to have N+1 redundancy, we must add one extra SCE platform as the standby platform. We also must add another port on each EC to be used as standby ports. In this case, we would use five SCE platforms, four on the traffic links and one for redundancy, which would be connected to the standby ports.

Again, for the sake of simplicity, we assume that the EC ports are the same on both routers.

If we added ports 0/3 on EC1 and 2/4 on EC2, the ECs would look like this:

Connecting the Line Ports to the Network

• EC1: 0/1, 0/2, 0/3, 1/3, 1/5

• EC2: 2/2, 2/4, 3/1, 3/2, 3/4

The standby ports must be the highest-numbered ports:

• EC1 standby port: 1/5

• EC2 standby port: 3/4

The traffic ports would be assigned to the links as follows:

• Link 1. S=0/1, N=2/2

• Link 2. S=0/2, N=2/4

• Link 3. S=0/3, N=3/1

• Link 4. S=1/3, N=3/2

The standby ports would be assigned to the links as follows:

• Link 5 (standby). S=1/5, N=3/4

If Cisco SCE8000 #5 is the redundant platform, Link 5 from both routers would be connected to it and the actual connections might look like this:

• Router 1: S=0/1, Cisco SCE8000 #1 3/0/0

• Router 2: S=0/1, Cisco SCE8000 #1 3/2/0

• Router 1: N=2/2, Cisco SCE8000 #1 3/1/0

• Router 2: N=2/2, Cisco SCE8000 #1 3/3/0

• Router 1: S=0/2, Cisco SCE8000 #2 3/0/0

OL-16478-02

• Router 2: S=0/2, Cisco SCE8000 #2 3/2/0

• Router 1: N=2/4, Cisco SCE8000 #2 3/1/0

• Router 2: N=2/4, Cisco SCE8000 #2 3/3/0

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-7

The Optical Bypass Module

• Router 1: S=0/3, Cisco SCE8000 #3 3/0/0

• Router 2: S=0/3, Cisco SCE8000 #3 3/2/0

• Router 1: N=3/1, Cisco SCE8000 #3 3/1/0

• Router 2: N=3/1, Cisco SCE8000 #3 3/3/0

• Router 1: S=1/3, Cisco SCE8000 #4 3/0/0

• Router 2: S=1/3, Cisco SCE8000 #4 3/2/0

• Router 1: N=3/2, Cisco SCE8000 #4 3/1/0

• Router 2: N=3/2, Cisco SCE8000 #4 3/3/0

• Router 1: S=1/5, Cisco SCE8000 #5 3/0/0

• Router 2: S=1/5, Cisco SCE8000 #5 3/2/0

• Router 1: N=3/4, Cisco SCE8000 #5 3/1/0

• Router 2: N=3/4, Cisco SCE8000 #5 3/3/0

The Optical Bypass Module

Chapter 6 Cabling the Line Ports and Completing the Installation

The external optical bypass module is an optional component that provides additional protection by enabling automatic preservation of the network 10GBE link. For more information regarding the external bypass module, refer to The Cisco SCE8000 Optical Bypass, page 2-8.

There are two installation options for the optical bypass module:

• Chassis mount—The optical bypass module may be installed in the panel in slot #4 of the Cisco

SCE8000 chassis. This panel hosts up to two optical bypass modules.

• External mounting panel: —The optical bypass module may be installed in a panel that is mounted

in a 19" rack. This panel can host up to four optical bypass modules.

Note Make sure to use the correct type of optical bypass module (single-mode or multi-mode) according to

the transceivers and cabling that are used for the subscriber and network links.

Note Since the optic bypass module will directly connect the subscriber and network side optic paths when

bypassing the SCE8000, the subscriber and network optic links must be of the same type (single-mode or multi-mode) and wavelength.

Warning

Invisible laser radiation may be emitted from disconnected fibers or connectors. Avoid exposure to radiation and do not stare into open aperture.

Optical Bypass Module Connectivity

• Single Link Topology, page 6-9

• Dual Link Topology, page 6-9

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-8

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

Single Link Topology

A single link requires only one bypass module.

• Subscriber side network element <->Port A on the bypass module

• Cisco SCE8000 port 3/0/0 <->Port C on the bypass module

• Network side network element <->Port B on the bypass module

• Cisco SCE8000 port 3/1/0 <->Port D on the bypass module

• CTRL <->left-hand 'Optical Bypass' port on Cisco SCE8000-SCM-E module.

Dual Link Topology

A dual link requires two bypass modules.

• Subscriber side network element <->Port A on bypass module #1

• Cisco SCE8000 port 3/0/0 <->Port C on bypass module #1

• Network side network element <->Port B on bypass module #1

• Cisco SCE8000 port 3/1/0 <->Port D on bypass module #1

• CTRL on bypass module #1 <->left-hand 'Optical Bypass' port on Cisco SCE8000-SCM-E module.

Cabling the 10GBE Line Interface Ports

• Subscriber side network element <->Port A on bypass module #2

• Cisco SCE8000 port 3/2/0 <->Port C on bypass module #2

• Network side network element <->Port B on bypass module #2

• Cisco SCE8000 port 3/3/0 <->Port D on bypass module #2

• CTRL on bypass module #2 <->right-hand 'Optical Bypass' port on Cisco SCE8000-SCM-E

module.

Cabling the 10GBE Line Interface Ports

Note When installing an External Optical Bypass module, the Cisco SCE8000 line ports are connected to the

module. See Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module,

page 6-11 for complete instructions.

Warning

Class 1 laser. Avoid exposure to radiation and do not stare into open aperture.

• Fiber Specifications, page 6-10

• Optical Device Maintenance, page 6-10

• How to Cable the 10GBE Line Interface Ports, page 6-10

OL-16478-02

• Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module, page 6-11

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-9

Cabling the 10GBE Line Interface Ports

Fiber Specifications

The following table presents the fiber specifications. The Cisco SCE8000 may be ordered with either multi-mode or single mode transceivers. The transceiver type is indicated on the front panel under the ports. Note that all transceivers on any individual Cisco SCE8000 are the same mode, either 850nm multi-mode OR 1310nm single mode.

Table 6-1 Fiber Specifications

SCE Model Transceiver Transmit Power Receive Power

Cisco SCE8000 10GBE MM

Cisco SCE8000 10GBE SM

850nm multi-mode

1310nm FRP laser single mode

Chapter 6 Cabling the Line Ports and Completing the Installation

Typical (Max.) Distance

–9.5 to –4 dBm –17 to 0 dBm

–9.5 to –3 dBm –20 to 3 dBm 10 km for 9.0µm

• 750m for

50µm Core Diameter MMF

• 400m for

62.5µm Core Diameter MMF

Core Diameter SMF

Optical Device Maintenance

Any contamination of the fiber connection can cause failure of the component or failure of the whole system. A particle that partially or completely blocks the core generates strong back reflections, which can cause instability in the laser system. Inspection, cleaning, and reinspection are critical steps to take before making fiber-optic connections.

How to Cable the 10GBE Line Interface Ports

Step 1 Take the appropriate fiber optic cable (see Fiber Specifications, page 6-10) and plug it into the

appropriate port on the 10GBE interface on the SPA module in slot #3 of the Cisco SCE8000. (See

Figure 6-1 below.)

Make sure to push on the connector until you hear a click, which indicates that the connector is fully inserted and secured in the receptacle. Always make sure that you insert the connector completely into the socket.

6-10

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

270979

SCE8000-SIP

TATUS

CTIVE/LINK

SPA-1X

0GE-L-V2

STAT

ACTIVE/LI

SPA-1X

0GE-L-V2

270978

C D

B D

TATU S

NTRL

OPB—SCE8K—MM

OPTICAL BYPASS1

Figure 6-1 Cabling the 10GBE Interface

Step 2 Verify that the link LED is green.

If the link LED does not light, try removing the network cable plug and reinserting it firmly into the module socket.

Cabling the 10GBE Line Interface Ports

Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module

Refer to Optical Bypass Module Connectivity, page 6-8 for specific connectivity.

Figure 6-2 External Optical Bypass Module Line Interfaces

Step 1 Take the appropriate fiber optic cable (see Fiber Specifications, page 6-10) and plug it into the

appropriate port (A or B) on the external bypass module.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-11

Cabling the 10GBE Line Interface Ports

270977

A B

A C

C D

B D

TATU S

NTRL

OPB—SCE8K—MM

PTICAL BYPASS1

270976

CE8000-SCM-E

00/

INK

IVE

OPTICAL BYPASS1

CONSOLE

PORT1

Step 2 Using a cable with LC connectors on both ends, plug one end into the appropriate port (C or D) on the

external bypass module and the other end into the appropriate 10GBE interface in slot #3 of the SCE8000 chassis.

Step 3 Using the control cable provided, which has RJ11 connectors on both ends, plug one end into the CNTRL

interface on the external bypass module (see Figure 6-3) and plug the other end into the External Bypass interface on the SCE8000-SCM-E in slot #1 of the SCE8000 chassis (see item #1 in Figure 6-4 below). If using only one external bypass module, use External Bypass port #1. If using two external bypass modules, use both External Bypass ports on the SCE8000-SCM-E in slot #1.

Step 4 Complete the installation and powering up of the SCE8000.

By its nature, the optic bypass module will not connect the link to the SCE8000-SIP module until the entire SCE8000 system is fully functional. It is necessary to bring the SCE8000 to fully operational, non-bypassed status, in order to confirm correct functioning of the link through the optic bypass module to the SCE8000-SIP module.

Step 5 Verify link connectivity by checking that the link LED on the 10GBE interface is green, or by using the

SCE8000 command line.

Figure 6-3 Cabling the CNTLR Interface on the External Bypass Module

Chapter 6 Cabling the Line Ports and Completing the Installation

6-12

Figure 6-4 Cabling the SCE8000-SCM-E Module

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

Testing Connectivity: Examining Link LEDs and Counters

If the Cisco SCE8000 platform has been powered up, test now to verify that connectivity has been established on all links. If the Cisco SCE8000 platform is not powered up, perform this step after starting the Cisco SCE8000 platform.

• Examining the LEDs, page 6-13

• How to View the Ten Gigabit Ethernet Port Status, page 6-13

• How to View the Ten Gigabit Ethernet Counters, page 6-13

• How to View the User Log Counters, page 6-14

Examining the LEDs

The 10GBE Link LED should be green, verifying that an active connection exists.

How to View the Ten Gigabit Ethernet Port Status

Cabling the 10GBE Line Interface Ports

Step 1 At the Cisco SCE8000# prompt, type show interface TenGigabitEthernet 3/ baynumber /0.

This displays the port link status.

The following example displays a system response.

Cisco SCE8000#show interface TenGigabitEthernet 3/1/0 Actual Status: Link is on Bandwidth: 10000000Kbps Burst-size: 500000bytes

How to View the Ten Gigabit Ethernet Counters

In an inline topology, you can monitor traffic via the platform counters for both the Rx and Tx connections. The counters increase as packets flow through the Cisco SCE8000 for both Rx and Tx.

However, in receive-only topologies, the counters for the Tx do not increment, as the SCE8000 is only monitoring traffic, and not re-transmitting it

Step 1 At the Cisco SCE8000# prompt, type show interface TenGigabitEthernet 3/ baynumber /0 counters.

This displays the TenGigabitEthernet counters. This command enables you to verify that traffic is taking place. You can see that the counters increase, together with real-time packet flow through the Cisco SCE8000.

Remember, in bump-in-the-wire topology, both the Rx and Tx counters apply as traffic monitors. For receive-only topologies, using an external splitter, only the Rx counters apply.

OL-16478-02

The following example shows the counters of the first Ten Gigabit Ethernet interface.

Cisco SCE8000#show interface TenGigabitEthernet 3/0/0 counters In total octets: 100 In good unicast packets: 90

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-13

How to Load and Activate a Service Control Application

In good multicast packets: 0 In good broadcast packets: 10 In packets discarded: 0 In packets with CRC/Alignment error: 0 In undersized packets: 0 In oversized packets: 0 Out total octets: 93*2^32+1022342538 Out unicast packets: 858086051 Out non unicast packets: 0 Out packets discarded: 0

How to View the User Log Counters

You should view the user log for errors that occurred during the installation process.

Step 1 At the SCE8000# prompt, type show logger device User-File-Log counters and press Enter.

SCE8000#show logger device user-file-log counters Logger device User-File-Log counters: Total info messages: 1 Total warning messages: 0 Total error messages: 0 Total fatal messages: 0

If there are “Total error messages” or “Total fatal messages”, use the show logger device User-File-Log command to display details about the errors.

Chapter 6 Cabling the Line Ports and Completing the Installation

How to Load and Activate a Service Control Application

The Cisco SCE8000 platform provides the basic functionalities of Service Control analysis and enforcement. A Service Control solution requires that a Service Control application be loaded into the platform, to take advantage of the unique SCE platform capabilities.

Loading and activating an application includes the following stages:

• Downloading the application provided as an SLI file to the Cisco SCE8000 disk.

• Activating the application.

• Configuring the application.

The detailed procedure of how to perform these operations is not specified and described in this manual. For further details, refer to the following documentation:

• Cisco Service Control Application for Broadband User Guide

• Cisco Service Control Application for Broadband Reference Guide

6-14

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

Cascaded Systems

• How to Install a Cascaded System, page 6-15

• CLI Commands for Cascaded Systems, page 6-16

How to Install a Cascaded System

This section outlines the installation procedures for a redundant solution with two cascaded Cisco SCE8000 platforms. Refer to the Cisco Service Control Engine (SCE) CLI Command Reference for details of the CLI commands.

When working with two Cisco SCE8000 platforms with split-flow and redundancy, it is extremely important to follow this installation procedure.

Step 1 Install both Cisco SCE8000 platforms, power them up, and perform the initial system configuration. (See

Chapter 4, “Installing the Cisco SCE8000 Chassis”and Chapter 5, “Connecting the Management Interfaces”and Starting the Cisco SCE8000 Platform, page 7-1.)

Cascaded Systems

To maintain link continuity at all times, including during the reload sequence and power failure events, optical bypass modules must be installed.

Step 2 Connect both Cisco SCE8000 platforms to the management station. (See Connecting the Management

Interface, page 5-4.)

Step 3 Connect the cascade ports. (See Dual Link: Two Cisco SCE8000s Topology, page 6-3.)

The cascade ports must be either be connected directly in Layer 1 (dark fibers), or using the following procedure to connect through a switch.

• Connect port 3/2/0 from box A and port 3/3/0 from box B to a single switch. Configure them both

on the same access VLAN, which will be used only by the interfaces connected to these ports. No other interfaces in the switch should reside on that VLAN.

• Connect port 3/3/0 from box A and port 3/2/0 of box B to a switch on a different VLAN. Again, the

access ports should be configured as access ports on this VLAN, which will be used only by the interfaces connected to these ports. No other interfaces in the switch reside on the VLAN.

Step 4 Set topology configurations for each Cisco SCE8000 platform via the connection-mode options. (See

How to Configure the Connection Mode, page 6-16.)

Step 5 Make sure that the Cisco SCE8000 platforms have synchronized and active Cisco SCE8000 platform was

selected.

Use the show interface linecard 0 connection-mode command.

Step 6 If you want to start with bypass, change the link mode to your required mode in both Cisco SCE8000

platforms on both links. The bypass mode will be applied only to the active Cisco SCE8000 platform. (See How to Set the Link Mode, page 6-17.)

OL-16478-02

Step 7 Make sure that the link mode is as you required. (See Monitoring the System, page 6-18.)

Use the show interface linecard 0 link mode command.

Step 8 Connect the traffic port of Cisco SCE8000 platform #1. This will cause a momentary down time until

the network elements from both sides of the Cisco SCE8000 platform auto-negotiate with it and start working (when working inline). (See Dual Link: Two Cisco SCE8000s Topology, page 6-3.)

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-15

Cascaded Systems

Step 9 Connect the traffic port of Cisco SCE8000 platform #2. This will cause a momentary down time until

the network elements from both sides of the Cisco SCE8000 platform auto-negotiate with it and start working (when working inline). (See Dual Link: Two Cisco SCE8000s Topology, page 6-3.)

Step 10 When full control is needed, change the link mode on both Cisco SCE8000 platforms on both links to

‘forwarding’. It is recommended to first configure the active Cisco SCE8000 platform and then the standby. (See How to Set the Link Mode, page 6-17.)

Step 11 You can now start working with the Subscriber Manager.

CLI Commands for Cascaded Systems

This section presents CLI commands relevant to the configuration and monitoring of a redundant system.

Use the following commands to configure and monitor a redundant system:

• connection-mode

• [no] force failure-condition

• show interface linecard 0 connection-mode

Chapter 6 Cabling the Line Ports and Completing the Installation

• show interface linecard 0 physically-connected links

• Topology-Related Parameters for Redundant Topologies, page 6-16

• How to Configure the Connection Mode, page 6-16

• How to Set the Link Mode, page 6-17

• Monitoring the System, page 6-18

Topology-Related Parameters for Redundant Topologies

All four of the topology-related parameters are required when configuring a redundant topology.

• Connection mode — Redundancy is achieved by cascading two SCE platforms. Therefore the

connection mode for both SCE platforms is:

–

Inline-cascade

• Physically-connected-links — For each of the cascaded SCE platforms, this parameter defines the

number of the link (Link 0 or Link 1) connected to this SCE platform.

• Priority — For each of the cascaded SCE platforms, this parameter defines whether it is the primary

or secondary device.

• On-failure — For each of the cascaded SCE platforms, this parameter determines whether the

system cuts the traffic or bypasses it via an external optical bypass module when the SCE platform either has failed or is booting.

If either the bypass or external-bypass option is configured, the optical bypass module must be properly installed. If an optical bypass device is not detected, the command is executed but a warning is issued. The system then enters warning mode until either the command is changed, or the presence of an optical bypass device is detected

How to Configure the Connection Mode

Use the following command to configure the connection mode, including the following parameters:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-16

OL-16478-02

Chapter 6 Cabling the Line Ports and Completing the Installation

• inline

• physically connected links

• behavior upon failure of the SCE platform

• primary/secondary

Step 1 From the Cisco SCE8000(config if)# prompt, type connection-mode inline-cascade

physically-connected-links (link-0|link-1) priority (primary|secondary) on-failure (external-bypass|bypass|cutoff) and press Enter.

EXAMPLE 1

Use the following command to configure the primary SCE platform in a two-SCE platform inline topology. Link 1 is connected to this SCE platform and the behavior of the SCE platform if a failure occurs is bypass.

Cisco SCE8000(config if)# connection-mode inline-cascade physically-connected-links link-1 priority primary on-failure bypass

Cascaded Systems

EXAMPLE 2

Use the following command to configure the SCE platform that might be cascaded with the SCE platform in Example 1. This SCE platform would have to be the secondary SCE platform, and Link 0 would be connected to this SCE platform, since Link 1 was connected to the primary. The connection mode would be the same as the first, and the behavior of the SCE platform if a failure occurs is also bypass.

Cisco SCE8000(config if)# connection-mode inline-cascade physically-connected-links link-0 priority secondary on-failure bypass

How to Set the Link Mode

The SCE platform has an internal hardware card used to maintain the links even when the SCE platform fails. This hardware card has three possible modes of operation:

• bypass

• forwarding

• cutoff

Normally, the link mode is selected by the SCE platform software according to the configured connection-mode. However, the link mode command can be used to enforce a specific desired mode. This may be useful when debugging the network, or in cases where we would like the SCE platform just to forward the traffic. (Note that this is only relevant to inline topologies even though the configuration is available also when in receive-only mode.)

The following link mode options are available:

• Forwarding — forwards traffic on the specified link to the SCE platform for processing.

OL-16478-02

• Bypass — stops all forwarding of traffic on the specified link to the SCE platform. Traffic still flows

on the link, but is not processed in any way by the SCE platform.

This does not affect the redundancy states.

• Cutoff — completely cuts off flow of traffic through the specified link.

Note the following recommendations and restrictions:

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

6-17

Cascaded Systems

• Link mode is relevant only to inline topologies.

• It is recommended that in cascaded topologies, both SCE platforms be configured for the same link

mode, otherwise the service will be unpredictable.

• The default link mode is forwarding. When other link modes are selected, active service control is

not available and any service control configuration will not be applicable.

Step 1 From the Cisco SCE8000 (config if)# prompt, type link mode [forwarding|bypass|cutoff] and press

Enter.

Monitoring the System

Use the following commands to view the current connection mode and link mode parameters.

• How to View the Current Connection Mode, page 6-18

• How to View the Current Link Mode, page 6-18

• How to View the Current Link Mappings, page 6-18

Chapter 6 Cabling the Line Ports and Completing the Installation

How to View the Current Connection Mode

Step 1 From the Cisco SCE8000# prompt, type show interface linecard 0 connection-mode and press Enter.

How to View the Current Link Mode

Step 1 From the Cisco SCE8000# prompt, type show interface linecard 0 link mode and press Enter.

How to View the Current Link Mappings

Step 1 From the Cisco SCE8000# prompt, type show interface linecard 0 physically-connected-links and

press Enter.

6-18

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Basic Cisco SCE8000 Platform Operations

This chapter describes how to start up the Cisco SCE8000 platform, reboot, and shutdown. It also describes how to manage configurations.

• Starting the Cisco SCE8000 Platform, page 7-1

• Managing Cisco SCE8000 Configurations, page 7-5

• How to Display the SCE Platform Version Information, page 7-9

• How to Display the SCE Platform Inventory, page 7-12

• How to Display the System Uptime, page 7-16

• Rebooting and Shutting Down the SCE Platform, page 7-16

Starting the Cisco SCE8000 Platform

CHA PTER

The procedures for starting the Cisco SCE8000 platform are explained in the following sections:

• Checking Conditions Prior to System Startup, page 7-1

• Performing Complex Configurations, page 7-2

• Starting the System and Observing Initial Conditions, page 7-2

• Final Tests, page 7-3

Checking Conditions Prior to System Startup

Check the following conditions before you start your Cisco SCE8000 platform:

• Both power supply units are installed and connected. (If only one power supply is connected it will

put the box in warning state.)

• First-time startup at installation:

–

Cisco SCE8000 platform connected to local console (CON port)

–

The console terminal is turned on and properly configured

• Subsequent startups

–

Line interfaces are properly cabled (optional)

–

Cisco SCE8000 platform is connected to at least one of the following types of management stations:

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

7-1

Chapter 7 Basic Cisco SCE8000 Platform Operations

Starting the Cisco SCE8000 Platform

–

Direct connection to local console (CON port)

–

Remote management station via the LAN (Mng port)

Performing Complex Configurations

After you have installed your Cisco SCE8000 platform hardware, checked all external connections, turned on the system power, allowed the system to boot up, and performed the initial system configuration, you might need to perform more complex configurations, which are beyond the scope of this publication.

For further information on system and interface configuration, refer to the following documents:

• Cisco SCE8000 Software Configuration Guide

• Cisco SCE8000 CLI Command Reference

Starting the System and Observing Initial Conditions

After installing your Cisco SCE8000 platform and connecting cables, complete the following steps to start the Cisco SCE8000 platform:

Step 1 Make sure the power cables are connected to the Cisco SCE8000 platform.

Step 2 Plug the AC power supply cables into the AC power source, or make sure the circuit breakers at the DC

panels are turned to the on position. Turn on the switches on both power supplies.

Step 3 Listen for the fans; you should immediately hear them operating.

Step 4 During the boot process, observe the following LEDs on the SCE8000-SCM-E:

• The Power LEDs should be green.

• Optical Bypass LED should be green while the Cisco SCE8000 is in bypass and unlit when the

• The Status LED should be a constant amber while booting. After a successful boot, the Status LED

Note It takes a several minutes for the Cisco SCE8000 to boot and for the status LED to change from amber

to green.

What to Do Next

If the system does not complete each of the steps in the startup procedure, proceed to Identifying Startup

Problems, page 8-6 for troubleshooting recommendations and procedures.

optical bypass is turned off.

is steady green.

7-2

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 7 Basic Cisco SCE8000 Platform Operations

Final Tests

The procedures for performing the final tests to verify that the Cisco SCE8000 is functioning properly are explained in the following sections:

• Verifying Operational Status, page 7-3

• Viewing the User Log Counters, page 7-3

• Viewing the Ten Gigabit Ethernet Port Status, page 7-4

• Viewing the Ten Gigabit Ethernet Counters, page 7-4

Verifying Operational Status

After all the ports are connected, verify that the Cisco SCE8000 is not in a Warning state.

Step 1 On the front panel of the Service Control module, examine the Status LED; it should be green.

Step 2 To display the operation status of the system, at the Cisco SCE8000# prompt, type show system

operation-status and press Enter.

A message displaying the operation status of the system appears. If the system is operating in order, the following message appears:

System Operation status is Operational.

Starting the Cisco SCE8000 Platform

If the Status LED is red or flashing amber, the following message appears:

System Operation status is Warning Description:

1. Power Supply problem

2. Line feed problem

3. Amount of External bypass devices detected is lower than expected amount

Viewing the User Log Counters

View the user log for errors that occurred during the installation process.

Step 1 At the SCE# prompt, type show logger device user-file-log counters and press Enter.

Examples for Viewing the User Log Counters

The following example shows the current User-File-Log device counters.

SCE#show logger device user-file-log counters Logger device User-File-Log counters: Total info messages: 1 Total warning messages: 0 Total error messages: 0 Total fatal messages: 0

If there are “Total error messages” or “Total fatal messages”, use the show logger device user-file-log command to display details about the errors.

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

7-3

Starting the Cisco SCE8000 Platform

Viewing the Ten Gigabit Ethernet Port Status

Step 1 At the Cisco SCE8000# prompt, type show interface TenGigabitEthernet 3/ baynumber /0.

This displays the port link status.

The following example displays a system response.

Cisco SCE8000#show interface TenGigabitEthernet 3/1/0 Actual Status: Link is on Bandwidth: 10000000Kbps Burst-size: 500000bytes

Viewing the Ten Gigabit Ethernet Counters

In an inline topology, you can monitor traffic via the platform counters for both the Rx and Tx connections. The counters increase as packets flow through the Cisco SCE8000 for both Rx and Tx.

However, in receive-only topologies, the counters for the Tx do not increment, as the SCE8000 is only monitoring traffic, and not re-transmitting it

Chapter 7 Basic Cisco SCE8000 Platform Operations

Step 1 At the Cisco SCE8000# prompt, type show interface TenGigabitEthernet 3/ baynumber /0 counters.

This displays the TenGigabitEthernet counters. This command enables you to verify that there is traffic on the line. You can see that the counters increase, together with real-time packet flow through the Cisco SCE8000.

Remember, in bump-in-the-wire topology, both the Rx and Tx counters apply as traffic monitors. For receive-only topologies, using an external splitter, only the Rx counters apply.

The following example shows the counters of the first Ten Gigabit Ethernet interface.

Cisco SCE8000#show interface TenGigabitEthernet 3/0/0 counters In total octets: 100 In good unicast packets: 90 In good multicast packets: 0 In good broadcast packets: 10 In packets discarded: 0 In packets with CRC/Alignment error: 0 In undersized packets: 0 In oversized packets: 0 Out total octets: 93*2^32+1022342538 Out unicast packets: 858086051 Out non unicast packets: 0 Out packets discarded: 0

7-4

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 7 Basic Cisco SCE8000 Platform Operations

Managing Cisco SCE8000 Configurations

After you have installed your SCE8000 platform hardware, checked all external connections, turned on the system power, and allowed the system to boot up, you are ready to install the Service Control application. However, before you install the application, you might need to configure the SCE platform. Instructions for configuring the SCE8000 platform are beyond the scope of this publication.

For further information on system and interface configuration, refer to the following documents:

• Cisco SCE8000 Software Configuration Guide

• Cisco SCE8000 CLI Command Reference

The procedures for managing Cisco SCE8000 configurations are explained in the following sections:

• Viewing Configurations, page 7-5

• Saving or Changing the Configuration Settings, page 7-6

• Restoring a Previous Configuration, page 7-8

Viewing Configurations

Managing Cisco SCE8000 Configurations

When you enter configuration commands, it immediately affects the SCE platform operation and configuration. This configuration, referred to as the running-config, is saved in the SCE platform volatile memory and is effective while the SCE platform is up. After reboot, the SCE platform loads the startup-config, which includes the non-default configuration that was saved by the user, into the running-config.

The SCE platform provides commands for:

• Viewing the running configuration with only user-configured (non-default) values: show

running-config

• Viewing the running configuration with all the SCE platform running configuration values, whether

default or not: show running-config all-data

• Viewing the startup configuration: show startup-config

After configuring the SCE platform, you may query for the running configuration using the command show running-config.

Step 1 At the Cisco SCE8000# prompt, type show running-config.

The system shows the running configuration.

SCE8000#>show running-config #This is a general configuration file (running-config). #Created on 12:06:13 UTC SUN May 11 2008 #cli-type 1 #version 1 no management-agent notifications notification-list 1417,1418,804,815,1404,1405,1406,1407,1408,400 no management-agent notifications notification-list 402,421,440,441,444,445,446,450,437,457 no management-agent notifications notification-list 3593,3594,3595,10040 snmp-server community "public" ro RDR-formatter forwarding-mode multicast RDR-formatter destination 10.56.96.26 port 33000 category number 1 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 2 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 3 priority 100

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

7-5

Managing Cisco SCE8000 Configurations

RDR-formatter destination 10.56.96.26 port 33000 category number 4 priority 100 interface LineCard 0 connection-mode inline on-failure external-bypass no silent no shutdown attack-filter subscriber-notification ports 80 replace spare-memory code bytes 3145728 interface GigabitEthernet 1/1 ip address 10.56.96.46 255.255.252.0 interface TenGigabitEthernet 3/0/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/1/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller"

exit ip default-gateway 10.56.96.1 line vty 0 4 exit management-agent property "com.pcube.management.framework.install.activation.operation" "Install" management-agent property "com.pcube.management.framework.install.activated.package" "SCA BB" management-agent property "com.pcube.management.framework.install.activated.version" "3.1.6 build 79" management-agent property "com.pcube.management.framework.install.activation.date" "Sun May 11 08:44:04 GMT+00:00 2008" flow-filter partition name "ignore_filter" first-rule 4 num-rules 32 flow-filter partition name "udpPortsToOpenBySw" first-rule 40 num-rules 21

Chapter 7 Basic Cisco SCE8000 Platform Operations

Saving or Changing the Configuration Settings

When you make changes to the current running configuration and you want those changes to continue to be in effect when the system restarts, you must save the changes before leaving the management session. You do that by saving the running configuration to the startup configuration file.

The SCE platform provides multiple interfaces for the purpose of configuration and management. All interfaces supply an API to the same database of the SCE platform and any configuration made through one interface is reflected through all interfaces. Furthermore, when saving the running configuration to the startup configuration from any management interface, all configuration settings are saved regardless of the management interface used to set the configuration.

For backup purposes, the old startup-config file is saved under the directory: to Restoring a Previous Configuration, page 7-8 for an explanation on how to restore a previous configuration.

To remove a configuration command from the running-config, use the no form of the command.

Step 1 At the SCE# prompt, type show running-config to view the running configuration.

The running configuration is displayed.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

7-6

/system/prevconf. Refer

OL-16478-02

Chapter 7 Basic Cisco SCE8000 Platform Operations

Step 2 Check the displayed configuration to make sure that it is set the way you want. If not, make the changes

you want before saving.

Step 3 Type copy running-config startup-config.

The system saves all running configuration information to the configuration file, which is used when the system reboots.

The configuration file holds all information that is different from the system default in a file called config.tx1 located in the directory: /system.

Example for Saving or Changing the Configuration Settings

The following example shows how to save the running configuration file (first displaying the file to review the settings).

SCE#show running-config #This is a general configuration file (running-config). #Created on 12:06:13 UTC SUN May 11 2008 #cli-type 1 #version 1 no management-agent notifications notification-list 1417,1418,804,815,1404,1405,1406,1407,1408,400 no management-agent notifications notification-list 402,421,440,441,444,445,446,450,437,457 no management-agent notifications notification-list 3593,3594,3595,10040 snmp-server community "public" ro RDR-formatter forwarding-mode multicast RDR-formatter destination 10.56.96.26 port 33000 category number 1 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 2 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 3 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 4 priority 100 interface LineCard 0 connection-mode inline on-failure external-bypass no silent no shutdown attack-filter subscriber-notification ports 80 replace spare-memory code bytes 3145728 interface GigabitEthernet 1/1 ip address 10.56.96.46 255.255.252.0 interface TenGigabitEthernet 3/0/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/1/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller"

Managing Cisco SCE8000 Configurations

OL-16478-02

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

7-7

Managing Cisco SCE8000 Configurations

management-agent property "com.pcube.management.framework.install.activated.version" "3.1.6 build 79" management-agent property "com.pcube.management.framework.install.activation.date" "Sun May 11 08:44:04 GMT+00:00 2008" flow-filter partition name "ignore_filter" first-rule 4 num-rules 32 flow-filter partition name "udpPortsToOpenBySw" first-rule 40 num-rules 21 SCE#copy running-config startup-config Writing general configuration file to temporary location... Backing-up general configuration file... Copy temporary file to final location... SCE#

Tip To remove a configuration command from the running-config, use the no form of the command.

The following example illustrates how to remove all DNS settings from the running configuration.

SCE(config)#no ip name-server

Restoring a Previous Configuration

Chapter 7 Basic Cisco SCE8000 Platform Operations

When you save a new configuration, the system automatically backs up the old configuration in the directory

config.tx1-config.tx9, where config.tx1 is the most recently saved file.

/system/prevconf/. Up to nine versions of the startup configuration file are saved, namely

You can view the old startup configuration files using the CLI command more.

Restoring a previous startup configuration means renaming the file so it overwrites the startup configuration (

Step 1 At the SCE# prompt, type more /system/prevconf/config.tx1 to view the configuration file.

config.txt) file.

The system displays the configuration information stored in the file.

Step 2 Read the configuration information to make sure it is the configuration you want to restore.

Note that you cannot undo the configuration restore command.

Step 3 Type copy /system/config.tx1 /system/config.txt.

The system sets the startup configuration to the configuration from config.tx1.

Example for Restoring a Previous Configuration

The following example displays a saved configuration file and then restores the file to overwrite the current configuration.

SCE#more /system/prevconf/config.tx1 #This is a general configuration file (running-config). #Created on 12:07:41 UTC SUN May 11 2008 #cli-type 1 #version 1 no management-agent notifications notification-list 1417,1418,804,815,1404,1405,1406,1407,1408,400 no management-agent notifications notification-list 402,421,440,441,444,445,446,450,437,457 no management-agent notifications notification-list 3593,3594,3595,10040 snmp-server community "public" ro

7-8

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Chapter 7 Basic Cisco SCE8000 Platform Operations

RDR-formatter forwarding-mode multicast RDR-formatter destination 10.56.96.26 port 33000 category number 1 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 2 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 3 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 4 priority 100 interface LineCard 0 connection-mode inline on-failure external-bypass no silent no shutdown attack-filter subscriber-notification ports 80 replace spare-memory code bytes 3145728 interface GigabitEthernet 1/1 ip address 10.56.96.46 255.255.252.0 interface TenGigabitEthernet 3/0/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/1/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller"

How to Display the SCE Platform Version Information

Use this command to display global static information on the SCE platform, such as software and hardware version, image build time, system uptime, last open packages names and information on the SLI application assigned.

Step 1 From the SCE> prompt, type show version and press Enter.

Example for Displaying the SCE Platform Version Information

The following example shows how to display the SCE platform version information.

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

7-9

How to Display the SCE Platform Version Information

SCE>show version System version: Version 3.1.6S Build 279 Build time: Jun 10 2008, 19:27:47 (Change-list 335658) Software version is: Version 3.1.6S Build 279 Hardware information is:

---------------Firmware

---------------kernel : [kernel] 1.0.0/5 (inactive: [kernel] 1.0.0/5) u-boot : [uboot] 1.0.0/6 (field: [uboot] 0.8.1/13) select : [ubs-cf1] 1.0.0/5 (secondary: [ubs-cf1] 1.0.0/5)

---------------Slot 1: SCM-8000

---------------serial-num : CAT1202G07D part-num : 73-10598-01 38 cpld : 0x8162 vtpld : 0xc001 summit-0 : 0x10008 summit-1 : 0x10008 dpt/tx : 0x4837 cls/ff : 0x2047 cls flow cap: 33554432

---------------TVR

---------------#cpus : 1 cpu SVR : 0x80900120 cpu PVR : 0x80040202 cpu freq : 1000MHz cpu (eeprom): 2.1, 1000MHz cpld : 0xa1b7 cpld-ufm : 0xa803 summit : 0x10007 cf : Model=SMART CF, FwRev=0x20060811, Size=4062240KB

---------------CFC-0

---------------board type : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 cpu-1 PVR : 0x80040202 cpu-1 freq : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 cpld-1-ufm : 0xb803 cpld-2-ufm : 0xb803 summit-0 : 0x1000a summit-1 : 0x1000a fc : 0x1044

---------------CFC-1

---------------board type : P2

Chapter 7 Basic Cisco SCE8000 Platform Operations

7-10

Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7

OL-16478-02

Cisco SCE8000 Configuration Guide
