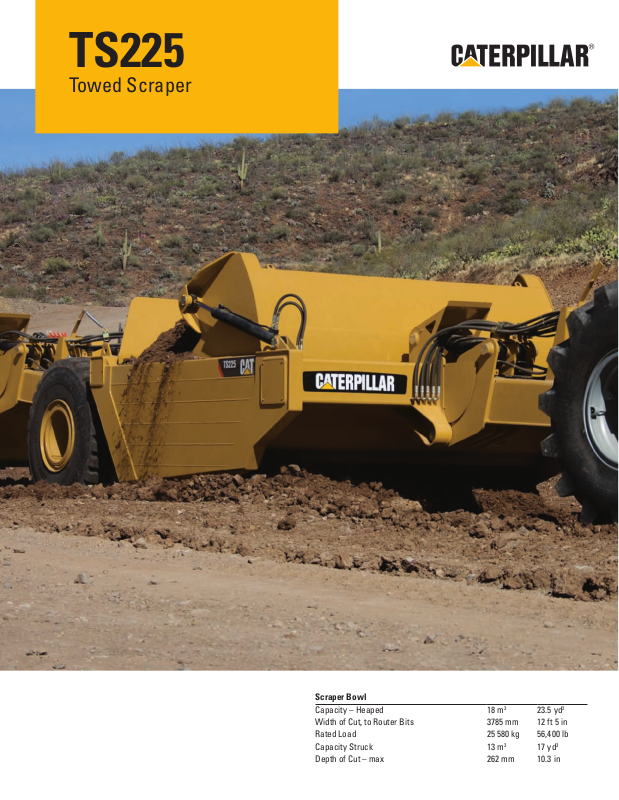

Page 1
TS225
Towed Scraper
Scraper Bowl
Capacity – Heaped 18 m
Width of Cut, to Router Bits 3785 mm 12 ft 5 in
Rated Load 25 580 kg 56,400 lb
Capacity Struck 13 m
Depth of Cut – max 262 mm 10.3 in
3
3
23.5 yd
17 yd
3
3
Page 2
TS225 Features
High-Strength, Abrasion-Resistant Steel
in Bowl Interior
High-strength, abrasion-resistant steel on the
apron face, floor walls, and ejector minimizes
wear – yard after yard.
Standard Heavy-Duty, Construction-Grade
Brakes
Standard dry-disc brakes enhance your job
site safety.
Standard Radial Tires
Standard radial tires deliver reduced rolling
resistance, excellent flotation, and durability.
Walking Beam Suspension
Independent walking beam axles transfer loads
for a smoother ride and reduced sway, improving
cycle times and operator comfort.
Contents
Scraper Bowl .......................................................3
Tongue and Hitch ................................................4
Hydraulics ............................................................5
Attachments.........................................................6
Innovation.............................................................7
Wheels, Brakes ...................................................7
Customer Support ...............................................8
TS225 Towed Scraper Specifications ..............9
TS225 Standard Equipment .............................11
TS225 Optional Equipment ...............................11
2
Originally designed by a road contractor for the
construction industry, the Cat® TS225 Towed Scraper
delivers outstanding performance and legendary
durability. High-strength, abrasion-resistant steel in the
scraper bowl minimizes wear. The rugged hitch, tongue,
and structural design ensure long life in the toughest
job site conditions. The exclusive walking-beam axle
provides a smoother ride for the operator and a variable
cutting edge angle for unmatch productivity. Designed
to be pulled by Caterpillar® Track-Type Tractors or
Challenger® Tractors, the Cat TS225 Towed Scraper
raises the standard.
Page 3

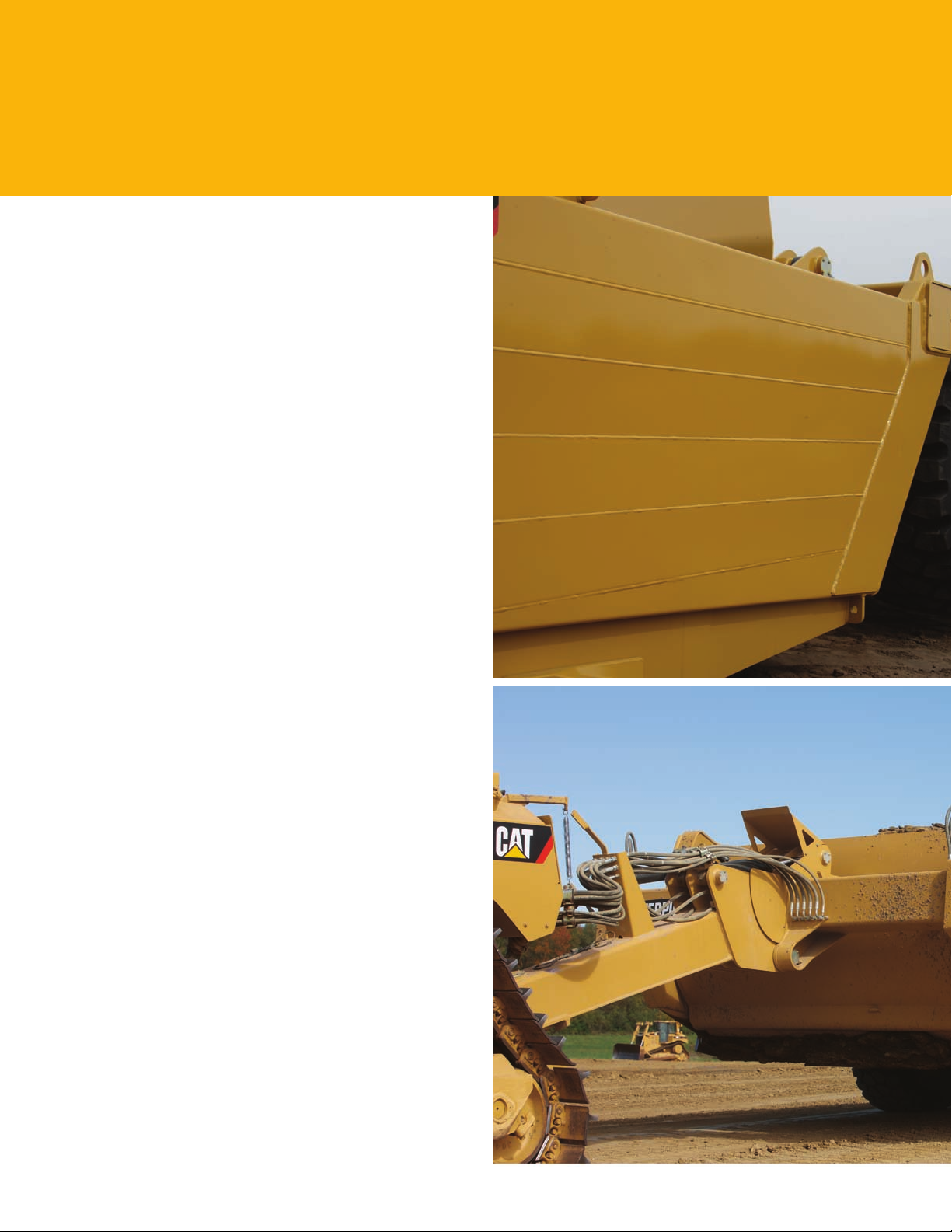

Scraper Bowl
Unmatched Durability.
High-Strength Bowl Design
The scraper bowl is constructed using L-shaped box sections
of high strength steel for superior strength and dent resistance.
The oor is a box-section structure made from high-strength,
abrasion-resistant steel for maximum strength during top
loading and rigidity during intermittent push loading.
High-strength, abrasion-resistant steel is used throughout
the inside of the bowl for maximum wear resistance.
Center Lift Design
The center lift design improves the strength and durability
by placing the hydraulic cylinders between the tongue and
spreader tube. This eliminates the need for draft arms,
reducing weight and complexity.
Cutting Edges
Common Cat Wheel Tractor-Scraper cutting edges and
router bits are used to ensure exceptional performance and
great availability. The center cutting edge is in the stinger
(drop down) position for good penetration and efcient
material ow into the bowl.
When worn, the cutting edges can be rotated by 180 degrees,
doubling the life.
Ejector
The ejector is constructed from a single plate of high-strength,
abrasion-resistant steel. The ejector extends beyond the front
edge of the scraper oor to minimize carryback.
To minimize wear, the ejector weight is carried on steel rollers
supported by a wear strip welded to the bowl oor. At the
sides, alignment is maintained by Ultra High Molecular
Weight (UHMW) plastic guides.
Depth Indicator
A depth indicator is mounted on trailing scrapers to provide
the operator a visual reference to scraper cut depth.
3
Page 4

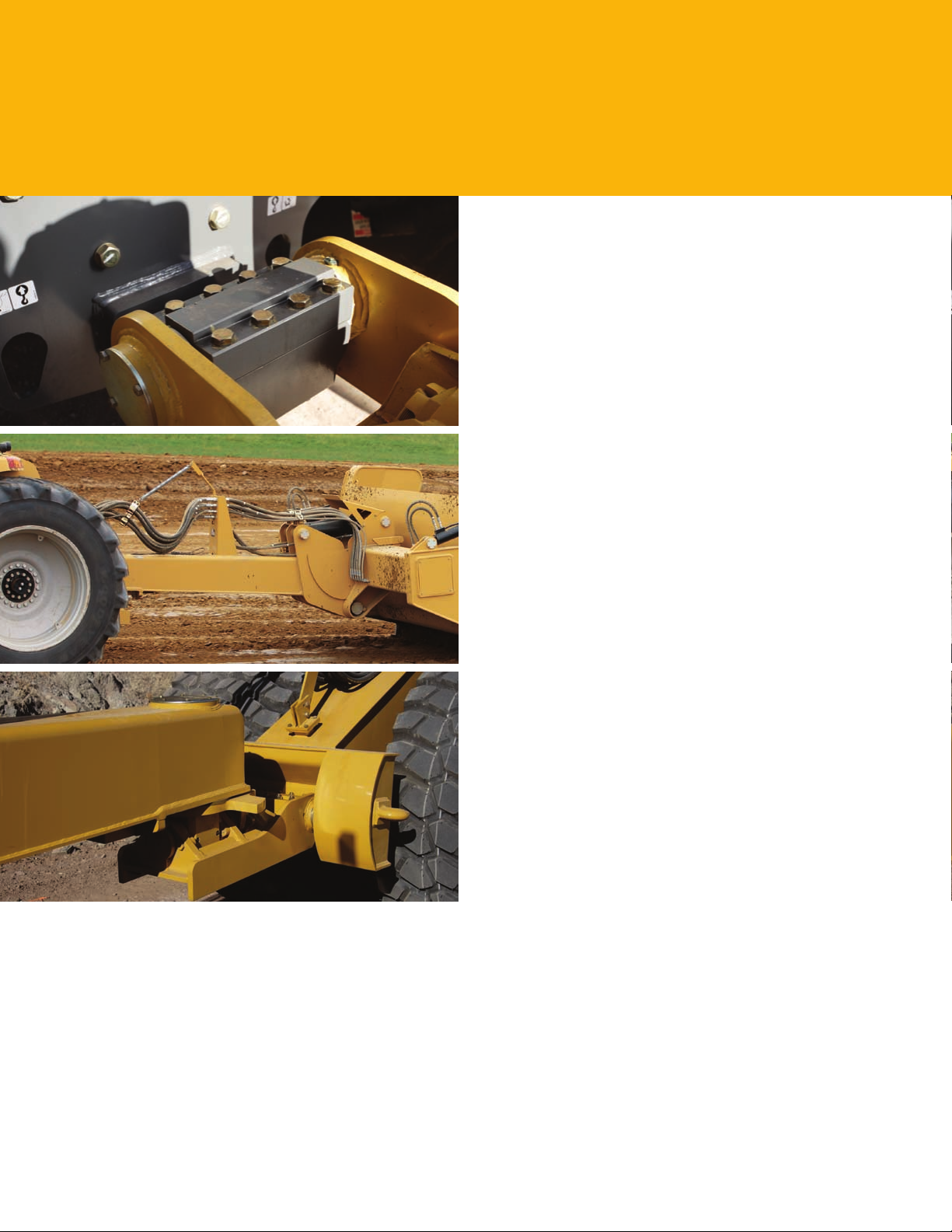

Tongue and Hitch
Built rugged for extreme durability.
Hitches for Cat® Tractors
Robust hitches are available for Cat® Track-Type Tractors
and Challenger® MTS800/MTS900 Series Tractors. See your
Caterpillar dealer for hitches for other pulling machines.
Rugged Hitch
To prevent pin wear, the hitch uses a massive 89 mm (3.5 in)
pin securely held in place with eight bolts.
The hitch platform, positioned between the pulling machine
and the tongue, contains two pins that allow ± 45 degrees of
side to side oscillation (or roll), ± 90 degree turns (yaw), and
± 27 degrees of uphill/downhill movement (pitch).
An integrated stop block allows a 90 degree turning radius
while preventing contact between the tongue and the pulling
machine tires/tracks.
An adapter is available to convert the scraper hitch for pulling
drawn implements, such as disk harrows and sheepfoot
compactor rollers.
Robust, Straight-Line Design
Built from 13 mm (0.5 inch) structural plate steel, the tongue
is built to withstand the high drawbar forces imposed by
track-type tractors pulling towed scrapers.
The straight-line design eliminates draft arms, hydraulic
cylinders, and lines located outside the width of the bowl,
improving the overall strength to most effectively transfer
the drawbar power to the cutting edges.
Countersunk Tandem Hitch
A countersunk hitch is provided in the push block of lead
scrapers, allowing the scraper to be push loaded when a
second scraper is not used.
4
Page 5

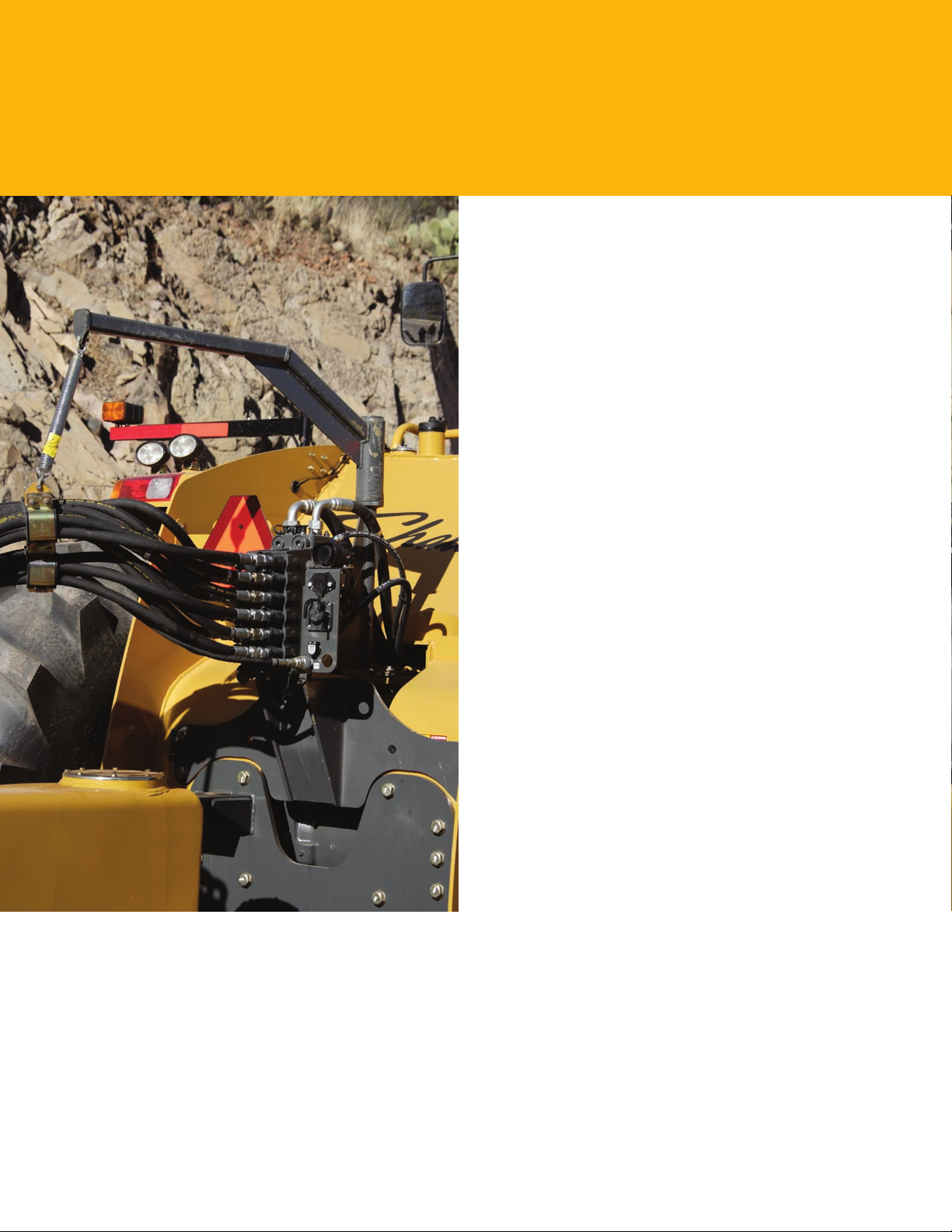

Hydraulics
Tough components for tough applications.
Hose and Couplings
Cat XT™ -3 ES (Enhanced Spiral) hose is used. Cat XT-3 ES hose has an exclusive cover formulated and
manufactured by Caterpillar to provide up to 20 times more abrasion resistance than industry-standard
hose. Cat XT-3 ES hose works at half of the SAE’s bend radius without sacricing cold ex capability.
As additional protection all exposed hydraulic lines are solidly secured with rubber-lined clamps,
protecting the hoses from failure caused by rubbing.
All hydraulic hose and lines use O-Ring Face Seal (ORFS) ttings for maximum leak prevention.
Steel Hydraulic Lines in Scraper Bowl Walls
Brake lines and hydraulic lines for the rear scraper in tandem arrangements use steel lines inside the
scraper bowl walls – eliminating hose damage caused by material in the bowl or during top loading.

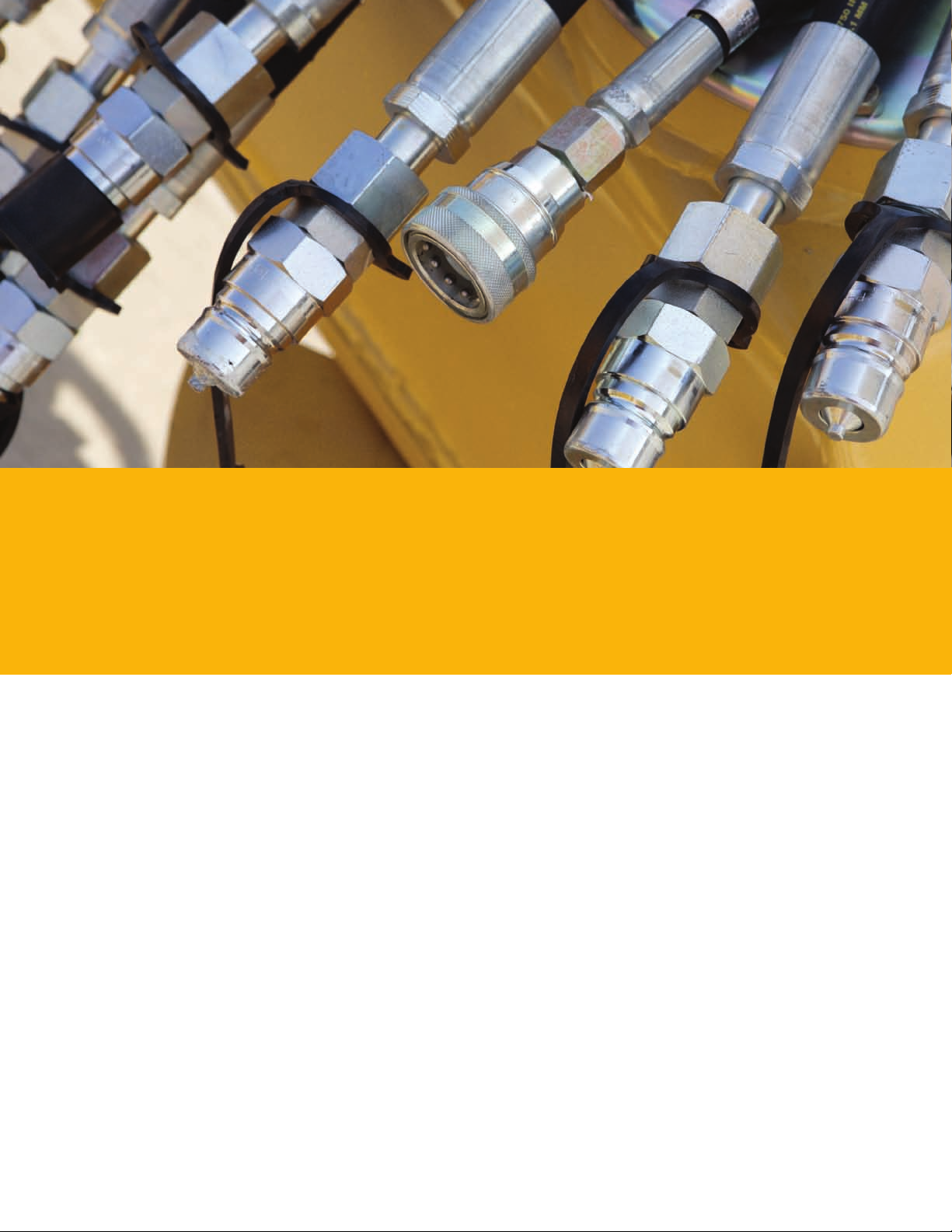

Hose Fittings
Three hose tting options are available:
19 mm (3/4 in) poppet-style•
13 mm (1/2 in) poppet-style•
Threaded at-face connectors•
Threaded at-face connectors, available exclusively on Cat Towed Scrapers, allow connection and
disconnection under pressure and are less susceptible to wear caused by hose movement.
5
Page 6
Attachments
Lower the costs of Challenger® Tractors in scraper applications.
Rubber Track Guides
Rubber Track Guides for Challenger MTS800 Series Tractors
center the rubber tracks on roller wheels, and help prevent
the track from moving into the machine or detracking,
avoiding expensive downtime. The track guides extend the
service life of the belt as the side-loading on the belt guide
blocks is reduced.
Detracking is generally caused by sharp turns, usually under
load. The rubber track guides can minimize tractor damage
caused by detracking, but are not a replacement for sound
operating techniques. Your Caterpillar Dealer can provide
training in proper towed scraper operation.
Hydraulic Hose Hanging Tower Kit
The hydraulic hose hanging tower kit for Challenger MTS800
and MTS900 Series Tractors allows the hoses to move freely
and eliminate entanglement while maintaining vertical
alignment. This reduces hose tting and valve wear for
increased service life.
6
Page 7
Innovation
Exclusive Cat Features.

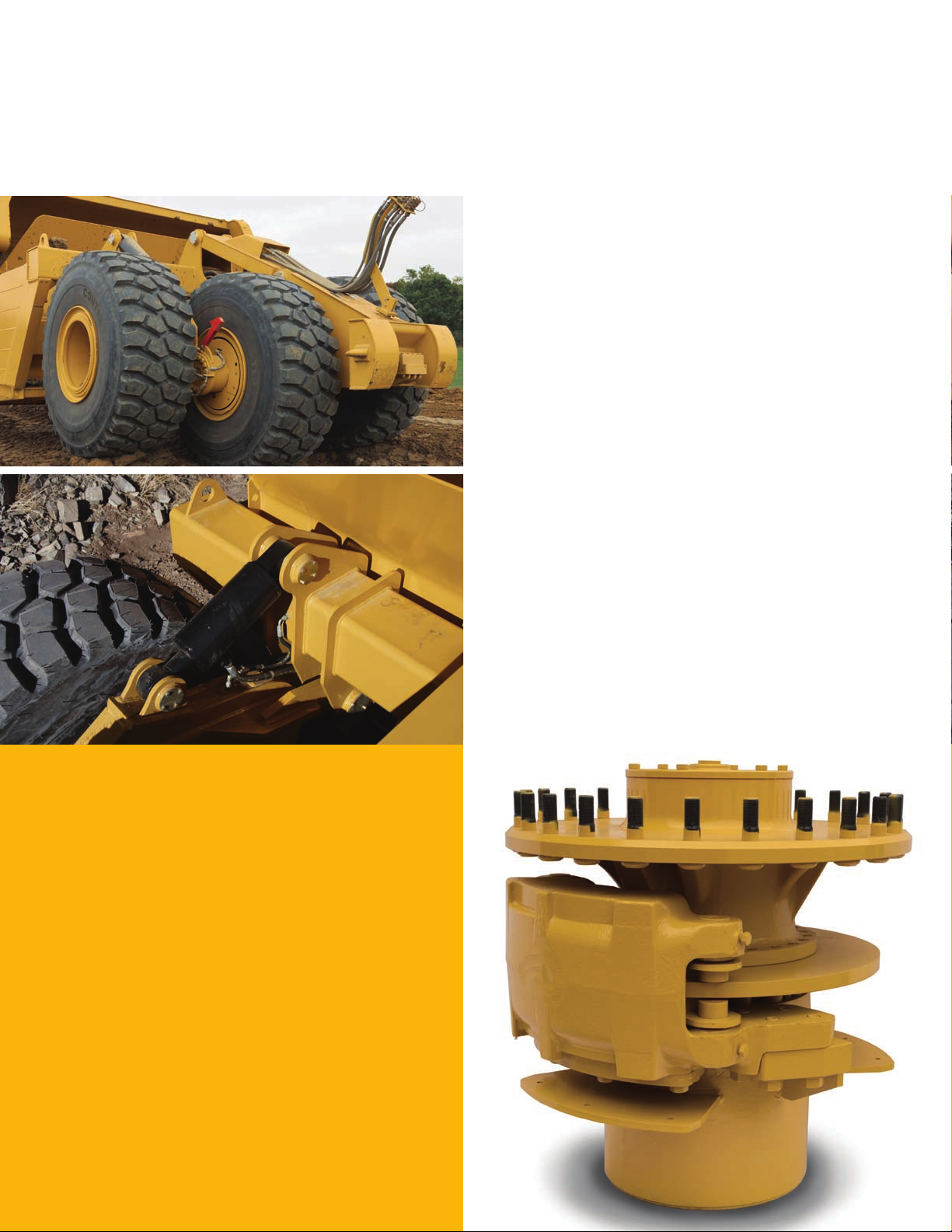

Walking Beam Suspension
The TS225 uses a four-tire arrangement with independent
walking-beam load transferring axles. The exclusive design
gives the scraper a smoother ride, reduced side-to-side sway
and easier nish grading.
Adjustable Cutting Angle
The TS225 is equipped with an additional pair of lift
cylinders at the rear of the scraper.
An experienced operator can use this exclusive feature to
“ne-tune” the cutting depth for improved productivity.
Steepen the cutting angle while drop cutting or during push
loading. Use a shallower cut when loading lighter materials
such as sand or dry topsoil.
Wheels, Brakes
Raising the Standards.
Standard Brakes – Construction-Grade
Standard heavy-duty brakes bring a new level of safety to
the job site. Each machine is equipped with four calipers.
The hydraulically-actuated, dry-disc brakes are identical
to the brakes used on Cat D400E Articulated Trucks.
Standard Radial Tires
Standard radial tires reduce rolling resistance and provide
excellent otation and durability. Heavy-duty, ve-piece
rims ensure a long service life. Wheel hubs are oil-lled
and sealed with Cat Duo-Cone™ seals.
7
Page 8
Customer Support
Unmatched support makes the difference.
Your Cat dealer is read to assist you with your purchase decision and everything after.
Make comparisons of machines with estimates of component life, preventative maintenance and •
cost of production.
Financing packages are exible to meet your needs.•
Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make •
the right choices.
Most Cat dealers offer operator training to help you get the most out of your machine investment•
For more information on Cat products, the variety of dealer services, and industry solutions, visit us •
at www.cat.com.
8
Page 9
TS225 Towed Scraper Specifications
Scraper Bowl
Capacity – Heaped 18 m
Width of Cut, to
Router Bits
Rated Load 25 580 kg 56,400 lb
Capacity Struck 13 m
Depth of Cut – max 262 mm 10.3 in
Ground Clearance
– max
Cutting Edge
– thickness
Depth of Spread
– max
Apron Opening 1600 mm 63 in
3
23.5 yd
3785 mm 12 ft 5 in
3
660 mm 26 in
22 mm 0.87 in
737 mm 29 in
17 yd
3
Pull Unit Recommendations
Steel Track-Type
Tractor, Single
Scraper
Steel Track-Type
Tractor, Tandem
Scrapers
Rubber Tracked
Ag Tractor, Single
Scraper
Rubber Tracked Ag
Tractor, Tandem
Scrapers
Rubber Tired Ag
Tractor, Single
Scraper
Rubber Tired Ag
Tractor, Tandem
Scrapers
Hydraulic Services
Required – Single
Scraper
Hydraulic Services
Required – Tandem
Scraper
D8
D10
298-373 kW
(400-500 hp)
373-447 kW
(500-600 hp)
298-373 kW
(400-500 hp)
298-373 kW
(500-600 hp)
3
6
Hydraulics
3
Front Bowl Cylinder
Bore
Front Bowl Cylinder
Stroke
Rear Bowl Cylinder
Bore
Rear Bowl Cylinder
Stroke
Apron Cylinder Bore 102 mm 4 in
Apron Cylinder
Stroke
Ejector Cylinder
Bore
Ejector Cylinder
Stroke
140 mm 5.5 in
508 mm 20 in
152 mm 6 in
203 mm 8 in
965 mm 38 in
127 mm 5 in
1219 mm 48 in
Weights
Empty Weight 15 250 kg 33,620 lb
Distribution, Empty
– Tongue
Distribution, Empty
– Axle
Distribution, Loaded
– Tongue
Distribution, Loaded
– Axle
28%
72%
29%
71%
Brakes and Tires
Brake Type Dry-Disc
Calipers, Lead – qty 2 per side
Calipers, Trail – qty 2 per side
Tires – qty 4
Tire – Standard 26.5R25
Dimensions
Width – inside of
bowl
Width – outside rear
tires
Width – outside bowl 3988 mm 157 in
Height – overall
shipping
Height – Floor to
top of Ejector
Height – Sidewall 1219 mm 48 in
Height – Ground to
Cutting Edge – Max
Length – max 10 287 mm 405 in
Length – Floor 1346 mm 53 in
3632 mm 143 in
3912 mm 154 in
2515 mm 99 in
1930 mm 76 in
811 mm 31.9 in
9
Page 10

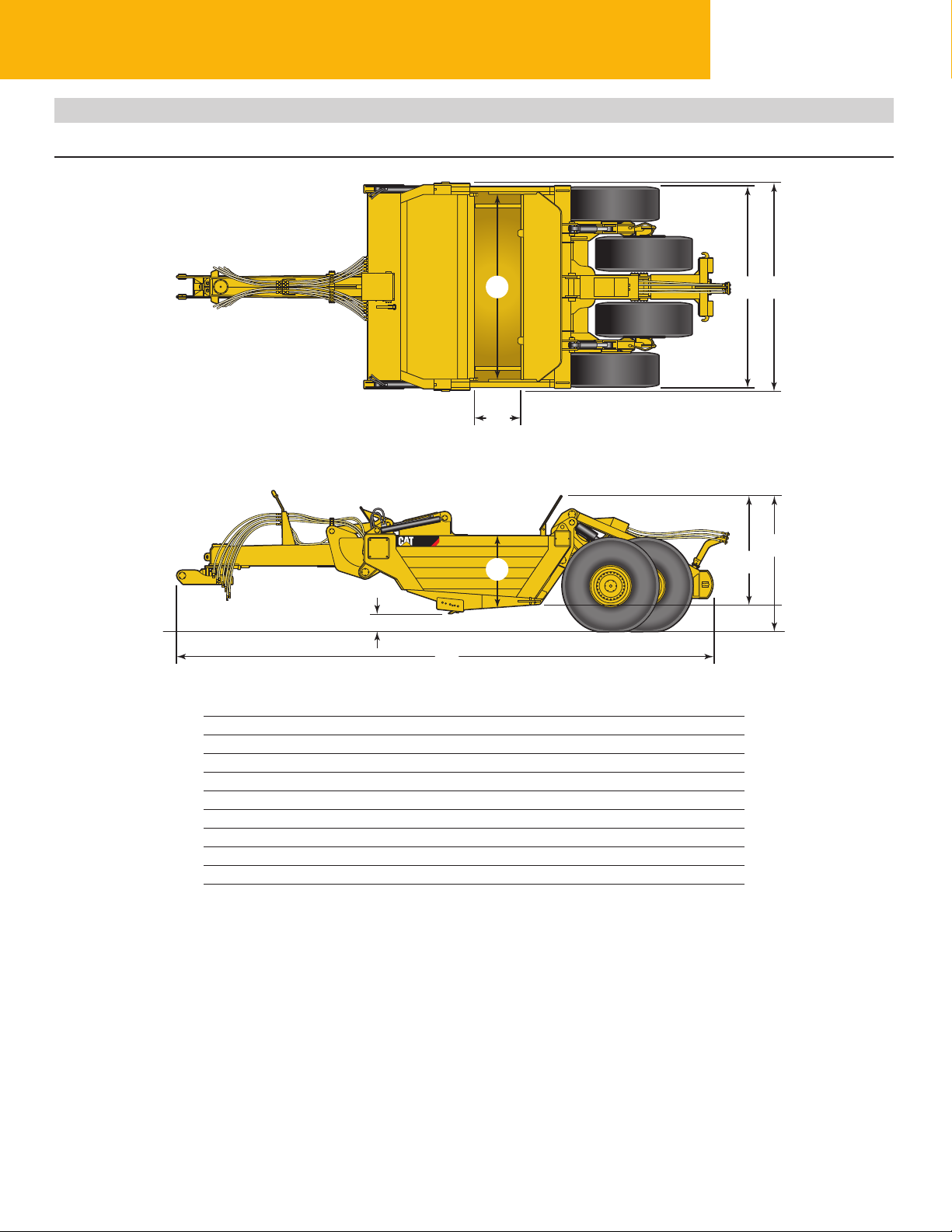

TS225 Towed Scraper Specifications
Dimensions
All dimensions are approximate.
mm in
1
W idth – Inside of Bowl 3623 143
2
W idth – Outside Rear Tires 3912 154
3
W idth – Outside Bowl 3988 157
4
Height – Overall Shipping 2515 99
5
Height – Floor to Top of Ejector 1930 76
6
Height – Sidewall 1219 48
7
Height – Ground to Cutting Edge – Maximum 811 31.9
8
Length – Maximum 10 287 405
9
Length – Floor 1346 53
2
4
5
7
1
6
3
9
8
10
Page 11
Standard equipment may vary. Consult your Caterpillar dealer for details.
TS225 Standard Equipment
BOWL
Capacity, heaped, 23.5 yd³
Capacity, struck, 17 yd³
Center Lift System
Cutting Edges, Reversible
Router Bits
UHMW Plastic Alignment Guides
Ejector Roller System
Variable Cutting Angle
Apron Lock Mechanism
HITCH AND TONGUE
Hitch Pin, 89 mm (3.5 in) diameter
Hitch platform
Integrated stop blocks
Rear hitch countersunk in push block for
tandem operation (Lead)
Literature Storage Container
HYDRAULICS
Cat® XT™-3 ES Hose
Hydraulic connections for tandem
operation (Lead Scraper)
Manual Lowering Valve
ORFS Fittings
Poppet-style Fittings, 19 mm (0.75 in)
WHEELS AND TIRES
Braking System (hydraulic)
Caliper Disc (1 per wheel)
Walking-Beam Suspension
26.5 R25 Radial Tires (4)
Five-Piece Rim
Walking-Beam Transport Locks
STRUCTURES
Push Block
Rear Tow Hooks
TS225 Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for details.
HYDRAULICS
Quick-Connect Fittings
Poppet-style ttings, 13 mm (0.5 in)
Threaded, at-face connectors
WHEELS AND TIRES
Spare Rim
11
Page 12

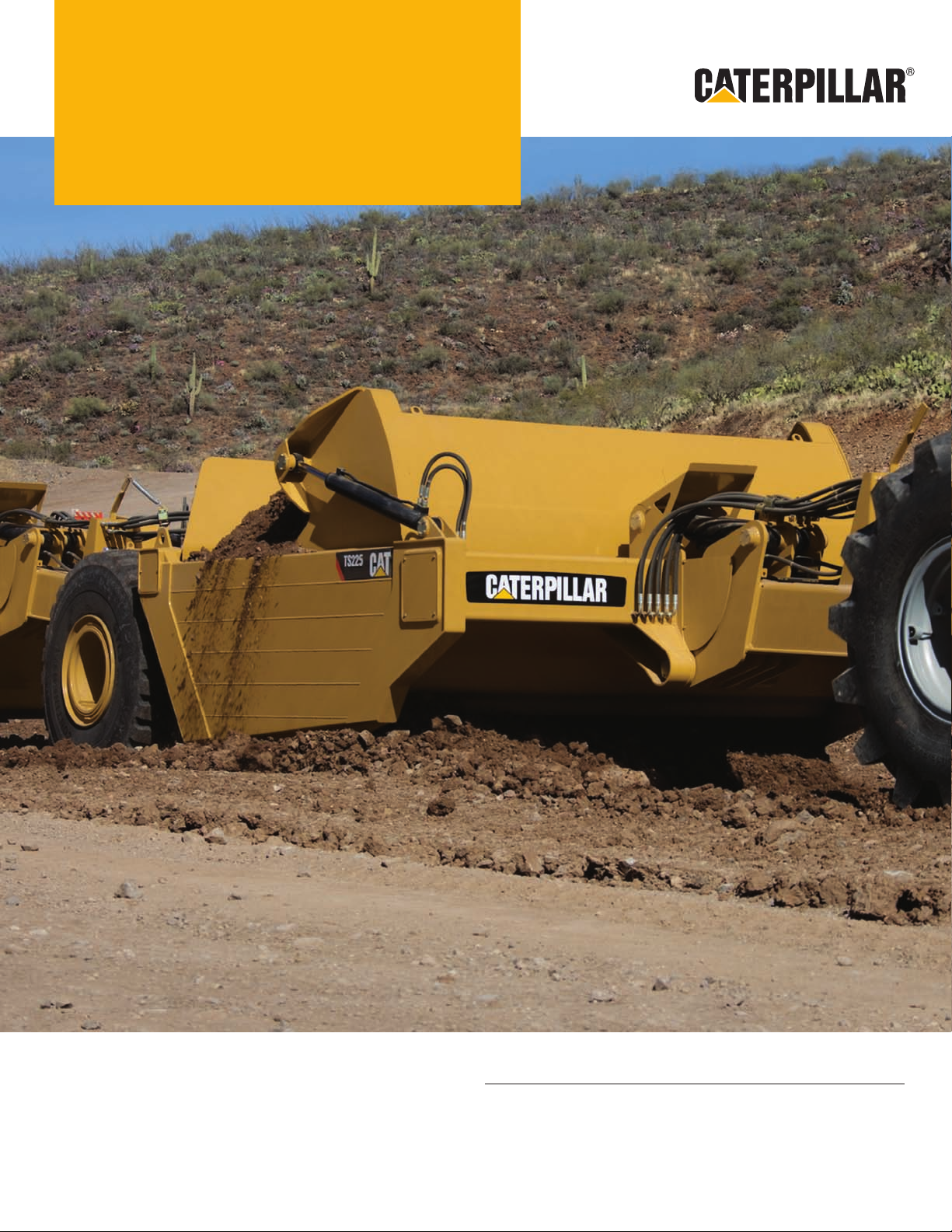

TS225 Towed Scraper
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2009 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines in
photos may include additional equipment. See your Caterpillar dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the POWER EDGE trade dress, as well as corporate and product identity used herein, are
trademarks of Caterpillar and may not be used without permission.
12
AEHQ6006 (04-2009)
Loading...
